Waterproof 120116 Motor + 300A 85V VESC + Waterproof Remote + Anti-spark Switch + Water Pump

  • In Offerta
  • $2,191.50
  • Prezzo di listino $2,578.50
Spese di spedizione calcolate al momento del pagamento.


300A-400A 85V VESC 75_300 based Watercooled Speed Controller + MTI120116 100KV 200KV Waterproof Inrunner Sensorless Motor + MTSKR1905WF IP67 Waterproof Remote + 300A 85V VESC Anti-spark Switch + Water Pump Set for Efoil, Electric Hydrofoil High Voltage Electric Vehicles, etc.,

Frequently Asked Questions:

  • How much voltage can be used for this kit?
- The VESC max voltage can be used is 85V, so this kit can use max to 85V voltage.
  • Is water pump necessary?

  - The VESC is watercooled, not fully waterproof, so if you will use this for water sports like Efoil, surfboard, then please better order together with the water pump for cooling.

  • Is anti-spark switch needed?
    - Anti-spark switch function is to protect your battery and VESC systems from damaged by power surges when startup and power up, especially when use high voltage, so anti-spark switch is recommended. Our MTS2009AS anti-spark switch can also cut off positive pole power, save your battery power and more convenient to use.
  • What applications can this kit be used to?
    - Efoil, electric hydrofoil, electric boat, electric kayak, electric motorcycle, ev car, agv car, heavy duty cargo robots, electric water sports, counter current swimming machine, etc.,

Specifications:

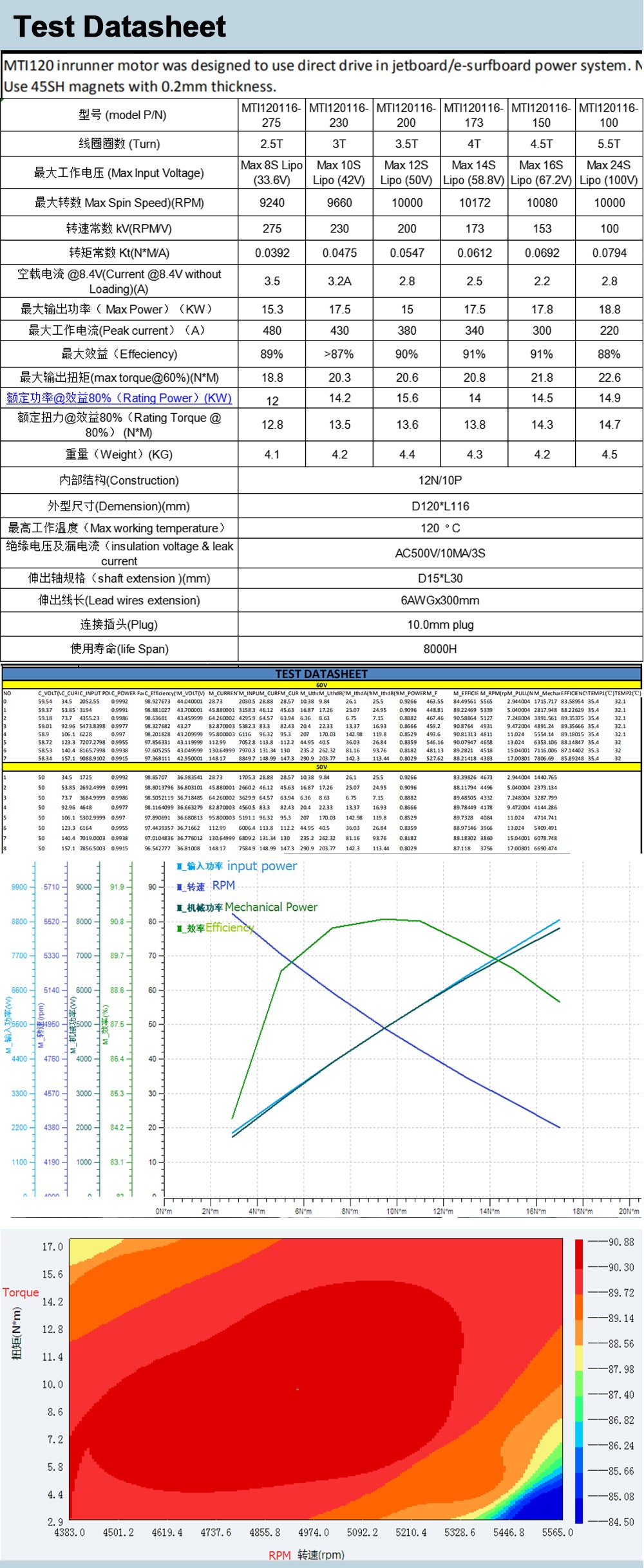

-Motor: MTI120116-WP Inrunner Sensorless Watercooled Brushless DC Motor

Model No.  MTI85165-WP Idle Current  2.1A/8.4V
Internal Resistance 0.0322Ω Max Current  300A
KV 100KV / 200KV Shaft Keyway Shaft
Input Volt

6-12S Lipo (25V-50.4V) for 200KV;

8-24S Lipo (33.6V-100V) for 100KV

Max Output Watt 10.5KW
Max Pull 15.5 N.m Motor Weight  2800g
Motor Size 85X167.2mm Shaft  12mm
Cable Length 1m Plug Size See Drawing
**Noted please, our standard stock KV is 100KV and 200KV, and the motor max RPM recommended to use is 10000, so if you order 200KV, please use voltage under 50V.
MTI120116-200-SF watercooled 200KV sensorless inrunner bldc motor for electric surfboard efoil rc boat electric kayak
MTI120116-200-SF watercooled 200KV sensorless inrunner bldc motor for electric surfboard efoil rc boat electric kayak
maytech 65162 motor production procedures, factory, manufacturer for waterproof motor, manufacturer for inrunnner brushless motors

-MTSVESC7.5H 300A-400A 85V VESC

Model No.:  MTSVESC7.5H
Cont Current: 300A-400A
Max Current: 1000A
Waterproof Rank: Non waterproof
Watercooling: Yes, with
Input Volt: 6-20S Lipo (25V-85V)
VESC hardware: VESC 75_300
VESC_TOOL Compatible: Yes
Signal Format: PWM (PPM), UART
Case Material: Alloy aluminum case
Connector: Cold-pressed Terminal Connector

High voltage 85V electric speed controller 300A max 1000A electric surfboard jetsurf jetski electric skateboard electric mountainboardHigh voltage 85V electric speed controller 300A max 1000A electric surfboard jetsurf jetski electric skateboard electric mountainboard



Ports definitions:
1.AUX port to supply 12V and 5V to external device;
2.PPM port to connect PPM transceivers;
3.CAN Port for CAN communication with other devices and VESC arrays;
4.Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders);
5.SWD port to get direct access to the Chipset. Diagnostics, debugging, and real time data;
6.COMM port for various kinds of other communication methods like I2C, ADC, Uart,You can use your Arduino or Raspberry Pi to control the VESC!
7.USB port for programming.
High voltage 85V electric speed controller 300A max 1000A electric surfboard jetsurf jetski electric skateboard electric mountainboard

High voltage 85V electric speed controller 300A max 1000A electric surfboard jetsurf jetski electric skateboard electric mountainboard






-Remote: MTSKR1905WF IP67 Waterproof Remote for Esurf, with PWM & UART Receiver

Item MTSKR1905WF (V2)
Waterproof Rank IP67 Waterproof with 2 Layers Nanometers Coating
Control Mode Esk8/Esurf
Signal PWM (PPM)
PWM Signal Output Range:  1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode.
Double Source Power Supply Accept 5V power by ESC built in BEC or extra 5V power
UART Acceptable
Display Remote and battery power, signal strength, throttle and brake percentage, RPM, speed, mileage; Current, voltage,
Firmware Updatable Yes
Control Pump Yes (Relay Switch)
Control Light Yes (Transistor Switch)
Set Safety Button Acceptable
Brake Button Yes
 Cruise Control Yes, in Esurf mode
Wireless Charging Yes
Accessories Charging Pad; Receiver; 3pcs Dupont Cables

maytech waterproof remote, MTSKR1905WF, IP67 waterproof, display screen, throttle trigger, speed control, cruise control, brake functin, wireless charging, electric surfboard, electric skateboard, mountainboard, elongboard
MTSKR1905WF V2 Maytech remote, waterproof remote, Esk8  remote, esurf remote, efoil remote, IP67 waterproof



-MTS2009AS Anti-spark Switch 300A 85V

Model No.

MTS2009AS

Max Current

300A

Max Voltage

25V-80V

Size

96.5 x 56 x 25 (mm)

Switch Diameter

12mm

Switch Type

Use NMOS to realize switching on/off Power positive

Connector With 4pcs Cold-pressed Terminal Connector
Function Protect your controller and power supply system when brake or startup
Features

First Switch that can cut off positive pole power in the market;

Switch comes with LED light indicator;
Shutdown current less than 1uA;
Suitable for load: three phase motor speed controller;
Boot soft start;
Automatic short circuit protection when boot;
Automatic short circuit protection when work.

Application Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, etc.,

Maytech 300A electric switch protection for electric skateboard elimanite sparks when connection high current high power switch antispark switch on and off switch

-Water Pump + DC-DC Power Supply System

water pump for electric surfboard esurf efoil jetski jetfoiler for electric efoiling 12V 30W water pump

40W DC-DC Converter Input 40-160V Output DC 48V Step Down Module UBEC
Feedback Videos on Efoil:



Advice after usage:
1. To expand the products life, please better wipe off the waters on the products and keep them for all dry after everytime use.
2. For this kit of the ESC, because the motor is sensorless, suggest to use the default value in the ESC, we have tested the kit before shipment with the default value, do not suggest to modify the values.

If you have other requirement on motor KV, ESC or other questions, please contact us agnes@maytech.cn
