More reference: FAQ 2 (frequently asked questions) about VESC controller

1. What is VESC?

    Vedder Electronic Speed Controller or VESC is an open source project, started by a Swedish engineer named Benjamin Vedder in 2014 to create a customizable high power Electronic speed control. The project was mainly tailored for the Electric skateboard, but now it can be used for many applications, such as E-Bike/Robots/Drones/Underwater propulsion system/Cable-camera/Parking system/etc.

    Maytech VESC based controllers: click each picture to check specs of each VESC.

    Maytech MTVESC50A Electric Speed Controller based on V4.12 for Electric Skateboard/Fighting RobotsMaytech SUPERFOC6.8 50A VESC6-based speed controller compatible to VESCtool Programmable for Esk8/EbikeMTVESC100A VESC4-based Speed Controller with Aluminum Case for Esk8/Robotics

    Maytech MTSVESC6.0 based 200A VESC Speed Controller for Esk8/Mountainboard/RoboticsMaytech MTVESC6.12 Upgraded 200A VESC based on VESC6.0 Controller with Anti-spark Circuit Electric Speed Controller for Esk8/Fighting Robots/Esurf



    2. What is the difference of VESC4 and VESC6?

    Both work good in BLDC mode.

    VESC4 is basic version, working good in BLDC mode and more economic.

    VESC6 has some updates in firmware and hardware for more functions and more precise control, such as:

    Replacing the driver chip with the DRV8301 solves some VESC4.12 DRV error problems in FOC mode;
    Independent current ADC sampling chip for faster sampling of current data;
    Add one more sampling resistor to provide more accurate current data.

    Here is the comparison of different VESC based controller models in our store:



    3. What is VESC_TOOL?

    VESC Tool development started in 2017 to create an application with a mobile version for control, customization, and update of VESC firmware. The application was created in an open source fashion, as well. The tool can be used over USB and recently through a wireless connection as well. It is developed to be compatible with latest VESC Hardware and backward compatible with older versions of the hardware. It allows the generation of real time data that can help improve performance of systems employing VESC.

    Here is picture of VESC_TOOL interface:

    Electirc speed controller, VESC  benjamin vedder controller , controller for Esk8 , controller for Electric skateboard  , SUPER esc , VESC_TOOL compatible controller , programmable VESC , VESC controller  , VESC6.0 based controller  , updatable vesc , speed controller  , Great start-up , dust-proof , splash waterproof , great start-up , canbus connection  , Compatible with sensored or sensorless motor  , high quality components construction  , SUPER FOC mode , BLDC mode , FOC mode  ,



    4. What's the difference of ESC and VESC?

    VESC is more advanced ESC. It's got amazing features. It's one of the latest BLDC ESCs which give you full control over how your ESC operates. Much better than typical RC ESCs. It allows tons of customization. It allows you to control the torque of the board by adjusting the current output to the motor and current input from the battery. It allows you to customize the acceleration and braking curve so that the board behaves exactly as you want it to while braking and accelerating.

    You can also set some limits to protect your ESC, motor, and battery such as:

    -limiting the currents to the motor. (over current to the motor fries it.)
    -limits the temperature of the VESC. (going too hot may cook the VESC).
    -limiting the minimum voltage to drain the battery. (over-discharge degrades the battery.)



    Item

    VESC

    ESC

    High Voltage

    3-12S Lipo Voltage

    2-6S Lipo Voltage

    Volume

    Small volume high power

    Small volume low power

    Compatible with brushed and brushless motor

    Yes

    Brushless Motor

    Can work with sensored and Sensorless motor

    Yes

    Sensorless motor

    Support PWM/ADC/UART and Canbus Signal Input

    Yes

    No

    Support sinusoid (FOC) and square-wave to control motor



    Yes

    No

    Applications

    Electric skateboard / Mountainboard / robotics / Drones / Underwater propulsion system / Cable-camera / Parking system / etc.

    Drone / Airplane / Helicopter

    Support forward and backward

    Yes

    No

    Regenerative Brake

    Yes

    No

    Over voltage/Over current protection, low voltage protection

    Yes

    No

    Battery Protection

    Yes

    No

    Overheat Protection

    Yes

    No

    Support VESC_TOOL to adjust parameters

    Yes

    No

    Multiple VESC synchronization(speed and torque synchronization)

    Yes

    No



    5. What is Regenerative brake?
    VESC regenerative braking takes advantage of the fact that you can turn the motor into a generator of some sort. Given that the process that induces an electric current into the copper wire also induces resistance into the system, it is perfect for braking. The resistance slows down the wheels, thereby providing effective braking.

    On the other hand, the electric current produced during the process is fed into the battery cells, thereby recharging the batteries.

    The efficiency is influenced by your battery BMS, your using environment and also your battery capacity.

    Besides VESC regenerative braking, another type of braking is the Dynamic Braking. Dynamic braking uses a different setup that the current is fed to a resistor. So, this setup includes additional components. Picture is as following:

    Maytech MTBR1812 Rheostatic Brake 10S Lipo Voltage 5A Max Current Protect ESCs



    When the VESC is instructed to brake, the kinetic energy in the wheels is spin the magnetics around the copper wire. This induces a current and some resistance, very much as is the case with regen braking. However, the electric current is diverted to a resistor where it converted to heat, thereby converting the kinetic energy to heat that is lost to the environment.

    The good thing about the dynamic system of braking is that you can use the brakes even your battery is fully charges. So, if you live on the top of a hill, and the first time you hit the road with your e-skateboard is going downhill, you can use dynamic braking without destroying your battery. Additionally, dynamic braking adds a layer of redundancy to your braking capabilities, which improves the overall safety of the skateboard.

    6. What is BLDC mode?

    Brushless Direct Current (BLDC) mode is the conventional way that electric skateboards have been built. BLDC mode offers ease of use, reliability and high adjust ability. This mode is recommended for entry level enthusiasts.  BLDC does tend to be significantly louder when operating over FOC mode.

    7. What is FOC mode?

    Field-Oriented Control (FOC) is used to control the AC synchronous and induction motors. FOC is a different method of spinning up the motors. It was originally developed for high-performance motor applications that are required to operate smoothly over the full speed range, generate full torque at zero speed, and have high dynamic performance including fast acceleration and deceleration.

    FOC is well-known for its superior efficiency and extremely quiet operating sound. Using FOC coupled with sensors gives extreme low end torque for when you are traveling up a steep hill at low speeds.

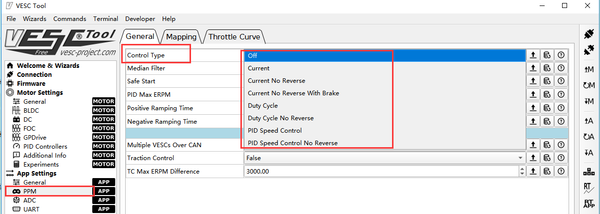

    8. What does each mode mean when use for electric skateboard? (Vesc PPM Control Modes)

    Brushless motor  electric motor  brushless dc motor  DC brushless motor  outrunner motor  outrunner dc motor  BLDC motor   6pin hall sensor  brushless motor  maytech motor   Electric skateboard motor   electric engine  powerful motor   sensored motor   Japanese NSK ball bearing motor  Japanese NMB ball bearing motor   high quality motor  qualified motor   motor for electric skateboard   motor for fighting robotics  Maytech 6374 motor  maytech 6396 motor   maytech powered engine  high efficiency dc brushless motor  unsealed motor



    Before to answer this question, let to know ‘What is Hall Sensor’ first.

    Hall sensors are positioned in the motor to send rotor position information back to the ESC. Sensored brushless motor has smooth transition from slow speeds and be able to produce a great amount of torque right at zero RPM. Sensorless brushless motor is able to operate very well at high speeds.

    -Sensorless mode in VESC is not to use hall sensor;

    -Sensored mode is pure sensored mode, which means it’ll use sensors all the time. You probably don’t want this as sensors are not efficient at high speeds and may cause issues such as high heat.

    -Hybrid mode will cut off the sensored operation at a predetermined erpm from the “sensorless erpm” field in vesc tool. So it operates in sensored mode at motor startup and in sensorless mode at high speed.

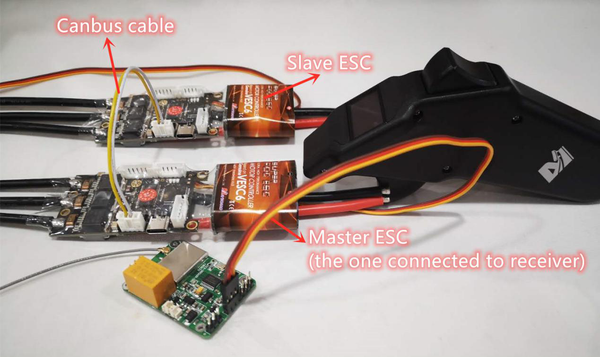

    10. How to control two VESCs (two motors) synchronously by one remote?  ( Connect two VESC via CAN Bus )

    Vedders VESC allows the connection of multiple devices via CAN bus. You can control one (master) VESC via PPM/ADC or nunchuk and let the other (slave) VESC follow the master’s commands. You can use this for a vehicle with two or more motors to have 4wd or whatever you like. The software also allows a basic traction control feature in which it will detect the lowest spinning motor and ajust the other to match that speed.

    Follow is how to do:

    • Connect the CANL and CANH of the CANBUS connector from the master with the slave VESC. Do not connect GND or +5V.



    brushless motor DIY electric skateboard  single motor for skateboard  dual motor driven electric skateboard  outrunner motor with direct drive  dc motor speed control board design  torque monster  motorized  Mounted motor  single shaft motor  drivetrains  general motor  motor climb  brushless dc motor for sale  Electric kayak motors  electric SUP motors   underwater brushless motor  electric motor for power tools   small high power electric motor   motor mount  motor surfboard  robotic motor  electric outboard engine   electric outboard motors  gear build system motor  watreproof motor  dustproof motor  splsh proof motor  splash waterproof motor  sealed cover motor  powerful engine



    • Enable Canbus function by VESC_TOOLfor both VESCs:

    VESC, VESC TOOL, esk8, esurf, efoil, electric skateboard, electric longboard

    And select the signal (PPM or ADC or Nunchuk) you used and configure it as following:

    PPM configuration

    VESC, VESC TOOL, esk8, esurf, efoil, electric skateboard, electric longboard

    ADC configuration

    VESC, VESC TOOL, esk8, esurf, efoil, electric skateboard, electric longboard

    Nunchuk configuration

    VESC, VESC TOOL, esk8, esurf, efoil, electric skateboard, electric longboard
