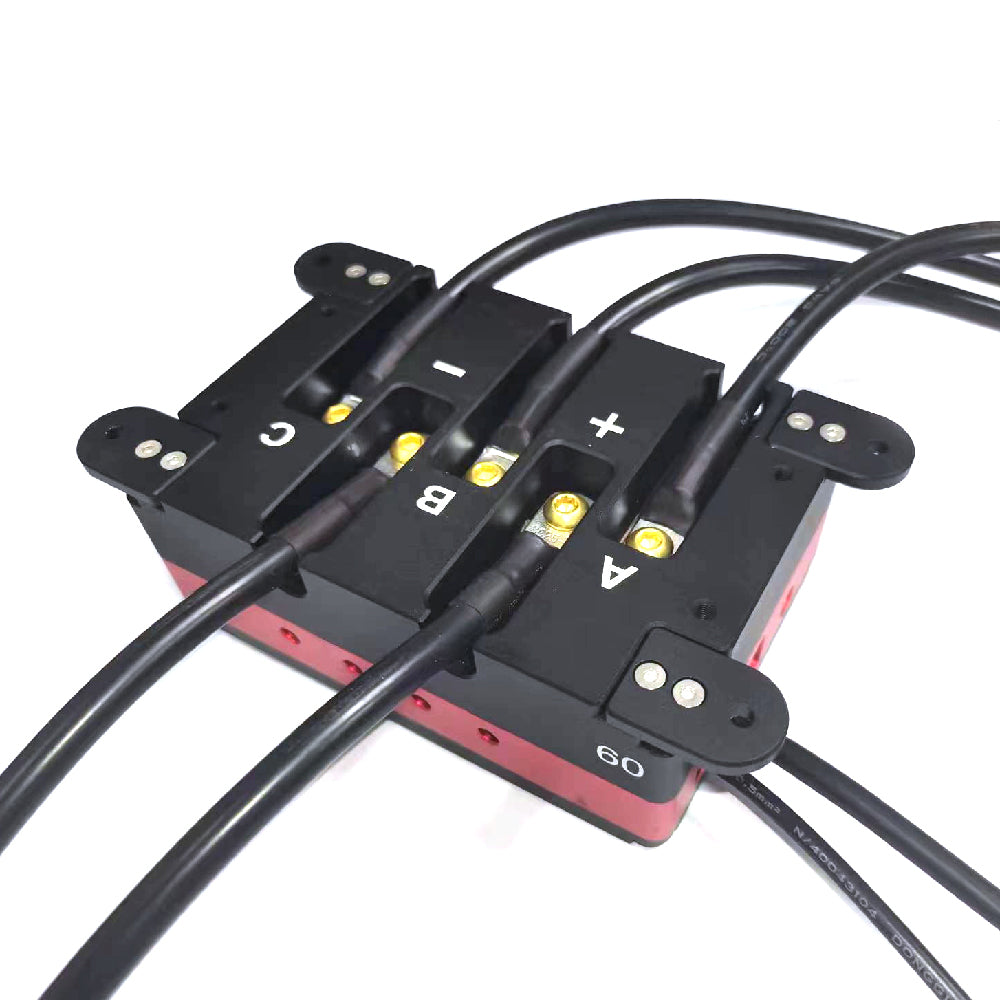

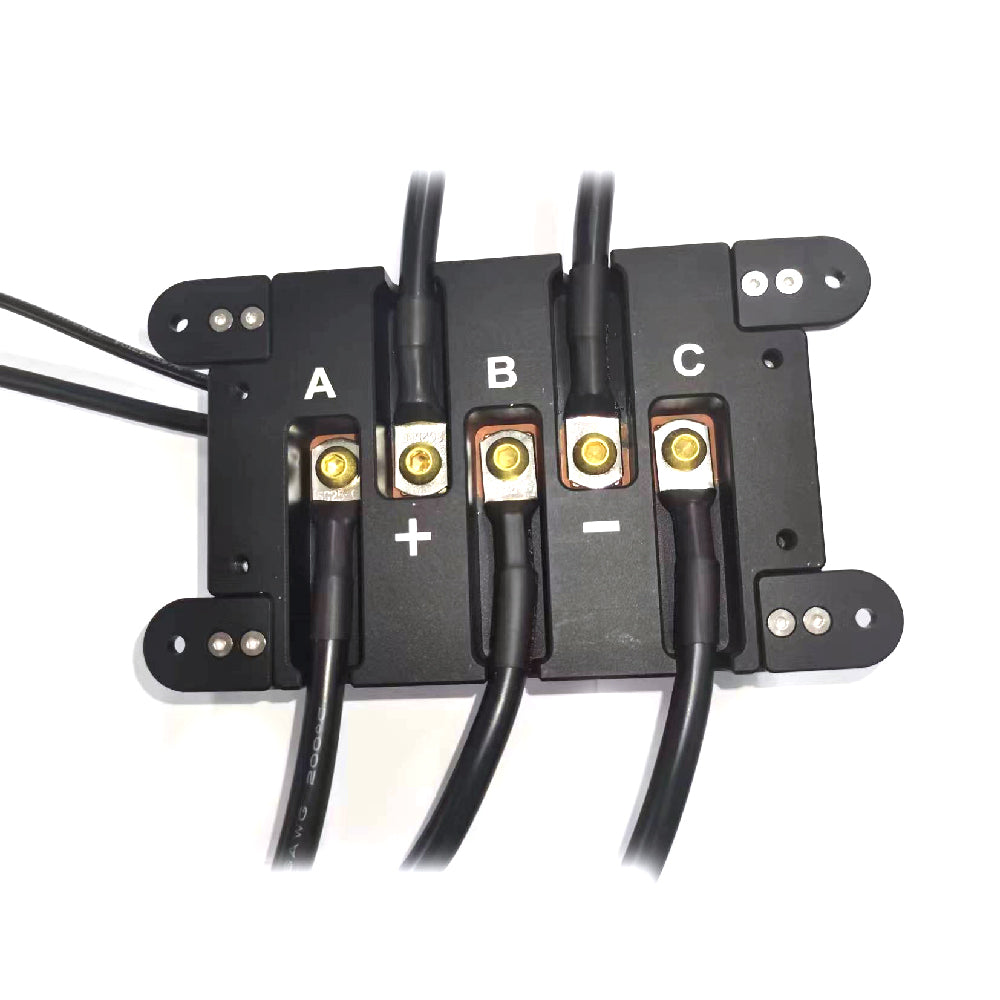

Maytech 250A 60V Watercooled ESC Speed Controller for Electric Surfboard Boat Efoil

Normaler Preis $426.00 USD

Normaler Preis Verkaufspreis $426.00 USD

Stückpreis / pro

Sale Ausverkauft

Versand wird beim Checkout berechnet

Produktvarianten

Anzahl (0 im Warenkorb)

Maytech 250A 60V Watercooled ESC Speed Controller for Electric Surfboard Boat Efoil Electric Propulsion Motorcycle

Specifications:

Model No.	MTSF250A-ESC	Max Current	250A
BEC Output (V/A)	5V/1.5A, 1.4V/200mA	Instant Peak Current	500A
Input Voltage	6-14S Lipo （42-60）	Wire Guage	4AWG
Dimension	L133W80H50	Watercooling	Yes

Electric speed controller 250A high voltage 84V ESC BLDCM motor controller motorized surfboard jetsurf kayak SUP foil board electric boat controller

Related Products: (Clicking the following pictures to check specs)

1. IP67 Waterproof Esk8 Remote MTSKR1905WF:

2. Brushless Inrunner Motor Waterproof & Watercooled:

3. Efoil / Esurf Kits Motor + ESC + Remote

Link

Vollständige Details anzeigen

Maytech 250A 60V Watercooled ESC Speed Controller for Electric Surfboard Boat Efoil

Dein Warenkorb
Produkt	Produktzwischensumme	Anzahl	Preis	Produktzwischensumme
Maytech 250A 60V Watercooled ESC Speed Controller for Electric Surfboard Boat Efoil	Maytech 250A 60V Watercooled ESC Speed Controller for Electric Surfboard Boat Efoil $426.00/Stück	$0.00	Anzahl Ausverkauft	$426.00/Stück	$0.00

Wird geladen ...

Frequently Bought Together

In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil
$99.90
Add this
+
In Stock Maytech Fully Waterproof Efoil Motor MTI65162 120 Brushless Inrunner Motor
$310.00
Add this
+
In Stock Maytech IP68 Waterproof MTI85165 200KV Inrunner Brushless Sensorless Motor for Esurf/Efoil/RC Boat KV Customized
$441.80
Add this
+
In Stock 2pcs / 5pcs MTS2009AS Max 300A 85V Anti-spark Switch with Short Cirsuit Protection
$423.70
Add this
+
Maytech Waterproof 300A 14S 60V Watercooled ESC for Efoil Electric Surfboard Jetsurf
$762.30
Add this
+
Pre-order Maytech New Marine 32Bit 300A 60V ESC IP68 Waterproof Smaller Size for Efoil Underwater Thruster Electric Surfboard
$343.90
Add this

In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil

Specification:

Model No	MTSKR1905WF (V2), upgraded waterproof and signal strength
Waterproof Rank	IP67 with 2 layers nanometers coating
Control Mode	Esk8/ Esurf
Signal Format	Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%.
PWM Signal Output Range	1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode.
Double Source Power Supply	Accept 5V power by ESC built-in BEC or extra 5V power
Output Signal	Max 3.3V
Display	Remote and battery power, signal strength, throttle and brake percentage, RPM; speed, mileage; Current, voltage, temp when work with VESC
Control Pump	Yes (Relay Switch)
Control Light	Yes (Transistor Switch)
Safety Button	Support
Cruise Control	With in Esurf Mode
Brake	With in Esk8 Mode
Wireless Charging	Yes
Package Includes	Transmitter, receiver, charging Pad, receiver, wristband, 3pcs dupont cable
Compatible Controllers	VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote.
Application	foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc.,

Features:

1. Display speed (km/h or mph) in Esk8 mode (for electric skateboard)
2. Display voltage in V, current, temperature when work with VESC based controller

3. Display RPM (by 3 ways, hall sensor, VESC, motor wire)

> Get Manual: Remote Manual and Instruction

Click Here: How to Display Volt, Current, RPM with TX and RX?

Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoil

MTSKR1905WF V2 Maytech remote, waterproof remote, Esk8 remote, esurf remote, efoil remote, IP67 waterproof

The remote has 2 Modes, signal output pulse width is different in 2 modes:

Esurf Mode is 1ms-2ms, no stop no brake, if you use Esurf mode to work with VESCTOOL compatible controller, please use below settings in VESCTOOL and to match with the remote:

PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms

Or you can use wizard mode to detect compatible value.

MTSKR1905WF V2 Maytech remote, waterproof remote, Esk8 remote, esurf remote, efoil remote, IP67 waterproof

Esk8 Mode is 1.5ms-1ms (Brake), 1.5ms-2ms (Speed up), 1.5ms is stop position.

Please noted to match compatible parameters for different modes in VESC_TOOL.

If your surrounded has strong magnetic interference, the signal might easy get lost, suggest you order the version with 1m or 3m extend antenna.

Tips After Using:

In order to avoid being corroded by sea water and to extend the remote life, please wash the remote in fresh water after using; Also please charge when the remote all dry.

Go to the following Youtube Links to check the remote instruction videos:

1. Motor RPM display by MOTOR WIRE: https://youtu.be/N1IV1dJbil0

2. Motor RPM display by Hall Sensor: https://youtu.be/YBRBzAa-3ww

3. Motor RPM display by VESCTOOL compatible controller: https://youtu.be/qqaZf78ilV4

4. Esk8 mode with speed, current, distance, etc: https://youtu.be/ycFya3Xn7YU

5. Adjust Current mode and Duty cycle mode by remote: https://youtu.be/BPRIhySE7lw

6. Connect to controller or VESCTOOL Compatible Controller: https://youtu.be/sDiAPsg0hWc

7. Remote voltage display for Esk8 and Esurf: https://youtu.be/LZf98XgVwwI

8. Remote can control two switches for Esk8 light and Esurf pump: https://youtu.be/USQHbe3tCOs

9. Receiver wiring with VESCTOOL compatible speed controller

(You can select the functions you need and connect them accordingly.)

MTSKR1905WF wiring diagram with VESC, VESC_TOOL compatible

10. Receiver wiring with Maytech MTSF300A-OPTO ESC or other OPTO ESC, (You can select the functions you need and connect them accordingly.)

MTSF300A-OPTO ESC watercooled speed controller for electric foil hydrofoil sup board watercooling 300A controllers

11. Maytech MTSF300A-WP and MTSF500A-WP fully waterproof ESC:

MTSF300A-WP waterproof 300A ESC speed controller for electric surfboard Efoil hydrofoil sup board jetboard jetsurf

Related Products: Click the pictures to check specs

Esk8 Products: Brushless Motors

Maytech brushless outrunner motor for electric skateboard 6355/6374/6365.6880/6396 sensored brushless engines

Fully Water Efoil/Esurf/Boat Kit with Inrunner Brushless Motor+Remote MTSKR1905WF+300A ESC

Maytech fully waterproof efoil kit MTI65162 100KV motor V2 Fully waterpoof MTSKR1905WF hand remote controller MTSF300A-OPTO-WP 300A ESC 100% waterproof electric speed controller powered jetski jetsurf electric hydrofoil

$21.90

In Stock Maytech Fully Waterproof Efoil Motor MTI65162 120 Brushless Inrunner Motor

Maytech Fully Waterproof Efoil Motor MTI65162 100/120/190KV Brushless Inrunner Motor for Electric Surfboard/Efoil/Jetski/Esk8

Specification:

Model No.	MTI65162-120-SF
KV	100, 120, if you want other KV, contact agnes@maytech.cn
Max Current	300A
Input Voltage	6-24S Lipo (25-100V)
Max Output Voltage	9KW
Shaft	Screw Shaft
Hall Sensor	Without
Motor Pole Number	6
Waterproof Rank	IP68 Waterproof
Customize	KV, logo, shaft, cable, connector, etc., contact Email: agnes@maytech.cn

Customer Test Video on Efoil:

Maytech Self Testing: MTI65162-100-SF+MTSP0504 Prop+300A ESC+1905WF Remote:

To make sure the waterproof, we've tested the motor underwater for over 12 hours before released:

Related Products: Clicking the following pictures to check specs

Maytech Waterproof 300A 14S 60V Watercooled ESC for Efoil Electric Surfboard Jetsurf

In Stock 2pcs / 5pcs MTS2009AS Max 300A 85V Anti-spark Switch with Short Cirsuit Protection

$310.00

In Stock Maytech IP68 Waterproof MTI85165 200KV Inrunner Brushless Sensorless Motor for Esurf/Efoil/RC Boat KV Customized

Specification:

Model No.	MTI85165-200-WP
KV	200, if you want other KV, contact agnes@maytech.cn
Max Current	300A
Input Voltage	6-12S Lipo (25-50V) for 200KV, 6-16S Lipo (25-67V) for 150KV
Max Output Voltage	10.5KW
Shaft	Keyway Shaft
Hall Sensor	Without, if you want hall sensor, contact agnes@maytech.cn
Motor Pole Number	10
Waterproof Rank	IP68 Waterproof
Customize	KV, logo, shaft, cable, connector, etc., contact Email: agnes@maytech.cn

Stock Notice before Place Order:

The motor stock is limited, please confirm order asap.

And if you need very urgently, please contact agnes@maytech.cn to check stock first, if in stock, shipping time is about 1-2 days after order confirmed.

If not in stock, production time 30-50 days after order confirmed.

About Fully Waterproof Version:

electric surfboard, underwater drone, electric hydrofoil, Underwater Propulsion Scooter, Underwater Propulsion Device, Diver propulsion vehicle, Electric jet board, electric wakeboard, electric SUP, Wakeboarding, Electric Hydrofoil Board, DIY Electric Hydrofoil Board, Electric Hydrofoil System, DIY VeFoil Kit, Electric Hydrofoil Boards, electric hydrofoil surfboard, efoils, motorized surfboard, eSurfScooter, electric watercraft, hydrofoilsurfing, Wakeboarding, Wakeskating, Wakesurfing, electric sportboats, electric outboard motors, sportboats, electric powered jet board, electric foiling, efoil motor, electric boat motor waterproof trolling motor

electric motorised jet board, electric powerd carbonfiber hydrofoil water craft, electric Yachts, electric hydrofoil board, electric flying surfboard, DIY electric hydrofoil, electric hydrofoil water taxi, Hydrofoil Bike, electric Hydrofoil Bike, water bike, DIY Electric Hydrofoil & Surfboard Remote Propulsion System, flying surfboard, all-electric hydrofoil speed boat, E-surfboard, lightest motorized surfboard, Electric Foil Board, Water Sports, Electric kayak motors, Water jet propulsion devices, Electric SUP motors, Sea Scooter, stand up paddle board, Stand-Up PaddleBoards, WATER JET SYSTEM, jet-engine, powerful electric water sports gear, motor surfboard, WATER JET SYSTEM, jet-engine,

If you want watercooled version, click below picture:

Related Products: Clicking the following pictures to check specs

$441.80

In Stock 2pcs / 5pcs MTS2009AS Max 300A 85V Anti-spark Switch with Short Cirsuit Protection

Maytech MTS2009AS Max 300A 85V Electronic Anti-spark Switch Battery Cutoff Switch with Short Circuit Protection for Electric Hydrofoil Efoil Surfboard

It can cut off positive pole power, much safer when usage and greatly protect your controller and power suppy system.

Specification:

Model No.	MTS2009AS
Max Current	300A
Max Voltage	6-20S Lipo (25-85V), recommend better work under 75V
Size	96.5 x 56 x 25 (mm)
Switch Diameter	12mm
Switch Type	Use NMOS to realize switching on/off Power positive
Connector	With 4pcs Cold-pressed Terminal Connector
Function	Protect your controller and power supply system when brake or startup
Features	First Switch that can cut off positive pole power in the market; Switch comes with LED light indicator; Shutdown current less than 1uA; Suitable for load: three phase motor speed controller; Boot soft start; Automatic short circuit protection when boot; Automatic short circuit protection when work.
Application	Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, etc.,

Maytech 300A electric switch protection for electric skateboard elimanite sparks when connection high current high power switch antispark switch on and off switch

Notice when use with VESCTOOL compatible controllers:

Because VESCTOOL compatible controllers has regenerative brake function, when use it with 56V and above battery, recommend to use current mode no brake (Duty cycle mode or current mode with brake are not recommended for voltage ≥56V)

(This is only for reference accoridng to our engineer experience, different ESCs/ Applications might be different)

Related Products: (Click the following pictures to check more products)

Maytech Electric Surfboard / Efoil Kits:

Application: electric surfboard, underwater drone, electric hydrofoil, Underwater Propulsion Scooter, Underwater Propulsion Device, Diver propulsion vehicle, Electric jet board, electric wakeboard, electric SUP, Wakeboarding, Electric Hydrofoil Board, DIY Electric Hydrofoil Board, Electric Hydrofoil System, DIY VeFoil Kit, Electric Hydrofoil Boards, electric hydrofoil surfboard, efoils, motorized surfboard, eSurfScooter, electric watercraft, hydrofoilsurfing, Wakeboarding, Wakeskating, Wakesurfing, electric sportboats, electric outboard motors, sportboats, electric powered jet board, electric foiling, efoil motor, electric boat motor waterproof trolling motor, electric motorised jet board, electric powerd carbonfiber hydrofoil water craft, electric Yachts, electric hydrofoil board, electric flying surfboard, DIY electric hydrofoil, electric hydrofoil water taxi, Hydrofoil Bike, electric Hydrofoil Bike, water bike, DIY Electric Hydrofoil & Surfboard Remote Propulsion System, flying surfboard, all-electric hydrofoil speed boat, E-surfboard, lightest motorized surfboard, Electric Foil Board,

Maytech MTSKR1905WF IP67 Waterproof Remote for Esk8/Esurf:

Maytech MTSKR1905WF V2 IP67 Waterproof Remote Control 2.4GHz wireless hand remote compatible with VESC for Esk8 Esurf Efoil Hydrofoil RC Boat

$90.00

Maytech Waterproof 300A 14S 60V Watercooled ESC for Efoil Electric Surfboard Jetsurf

Maytech MTSF300A-WP IP68 Waterproof 300A ESC 300A 85V Anti-spark Switch Water Pump Esurf Kit Speed Controller for Efoil/RC Boat

Upgraded Notice Since July 29, 2022.

Upgrade with waterproof junction box for wiring as below picture:

Receiver can be put in the junction box to be waterproof, too:

Please noted for usage:

Max ERPM recommended to use for the ESC is 50000.

ERPM = RPM x Motor pole pairs number

maytech waterproof 300A ESC speed controller for electric surfboard jetsurf rescue boat hydrofoil board ESC speed controller Trampa 300A Flipsky 300A controller

Related Products: (Clicking the following pictures to check specs)

1. IP67 Waterproof Esk8 Remote MTSKR1905WF:

2. Waterproof Watercooled Esurf/Efoil/RC Boat Kit:

3. Maytech Watercooled 300A ESC Not Waterproof:

$762.30

Pre-order Maytech New Marine 32Bit 300A 60V ESC IP68 Waterproof Smaller Size for Efoil Underwater Thruster Electric Surfboard

Pre-order Maytech New 300A 60V Waterproof ESC Smaller Size for Efoil Underwater Thruster Electric Surfbord

Specification:

Model No.: MTSF300A-WP32

Waterproof Rank: IP68

Cont Current: 300A

Peak Current (at 10S): 320A

Input Voltage: 6-14S Lipo (22.2V-60V)

Cable Guage: 8AWG

Max ERPM: 100000

32BIT Micropprocessor

Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.,

Waterproof electric speed controller cheap ESC 300A IP68 fully waterproof ESC motor controller efoil controller marine 300A ESC

Strengths:

1. Fully new circuit design, excellent algorithm

--With high performance 32bit MCU processor, greatly improved data computing ability;

--Faster respond, smoother startup;

--Throttle linear is optimized, more accurate and smoother, better compatibility;

2. Seperate control board and power board design

--Elegant PCB layout and circuit design,control board won’t be influenced even when ESC gets heat at high power condition, which makes the ESC more reliable and has stronger anti-interference.

3. Support forward and reverse rotation

--The ESC filled with waterproof glue to make sure its IP68 waterproof, flat water cooling design to make sure high efficient heat dissipation.

--Suitable to use on various water sports like Efoil, surfboard, underwater thruster, etc.,

4. With kinetic energy recovery function

--Save more energy;

--Extend battery working time;

--Reduce heat

5. Multiple protections

--Startup protection;

--Over-temp protection;

--Low voltage protection;

--Phase loss protection;

--Signal loss protection

Related Products:

$25.80

Artikel wurde in den Warenkorb gelegt

Maytech 250A 60V Watercooled ESC Speed Controller for Electric Surfboard Boat Efoil

Maytech 250A 60V Watercooled ESC Speed Controller for Electric Surfboard Boat Efoil

Maytech 250A 60V Watercooled ESC Speed Controller for Electric Surfboard Boat Efoil Electric Propulsion Motorcycle

Related Products: (Clicking the following pictures to check specs)

Frequently Bought Together

In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil

Specification:

Features:

> Get Manual: Remote Manual and Instruction

Click Here: How to Display Volt, Current, RPM with TX and RX?

The remote has 2 Modes, signal output pulse width is different in 2 modes:

PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms

Tips After Using:

In Stock Maytech Fully Waterproof Efoil Motor MTI65162 120 Brushless Inrunner Motor

Maytech Fully Waterproof Efoil Motor MTI65162 100/120/190KV Brushless Inrunner Motor for Electric Surfboard/Efoil/Jetski/Esk8

Specification:

Customer Test Video on Efoil:

Maytech Self Testing: MTI65162-100-SF+MTSP0504 Prop+300A ESC+1905WF Remote:

Related Products: Clicking the following pictures to check specs

In Stock Maytech IP68 Waterproof MTI85165 200KV Inrunner Brushless Sensorless Motor for Esurf/Efoil/RC Boat KV Customized

Specification:

About Fully Waterproof Version:

In Stock 2pcs / 5pcs MTS2009AS Max 300A 85V Anti-spark Switch with Short Cirsuit Protection

Maytech MTS2009AS Max 300A 85V Electronic Anti-spark Switch Battery Cutoff Switch with Short Circuit Protection for Electric Hydrofoil Efoil Surfboard

Specification:

Maytech Waterproof 300A 14S 60V Watercooled ESC for Efoil Electric Surfboard Jetsurf

Maytech MTSF300A-WP IP68 Waterproof 300A ESC 300A 85V Anti-spark Switch Water Pump Esurf Kit Speed Controller for Efoil/RC Boat

Upgraded Notice Since July 29, 2022.

Upgrade with waterproof junction box for wiring as below picture:

Please noted for usage:

Related Products: (Clicking the following pictures to check specs)

Pre-order Maytech New Marine 32Bit 300A 60V ESC IP68 Waterproof Smaller Size for Efoil Underwater Thruster Electric Surfboard

Pre-order Maytech New 300A 60V Waterproof ESC Smaller Size for Efoil Underwater Thruster Electric Surfbord

Specification:

Strengths:

Related Products:

Land/Region

Sprache

Land/Region

Sprache

Maytech 250A 60V Watercooled ESC Speed Controller for Electric Surfboard Boat Efoil

Maytech 250A 60V Watercooled ESC Speed Controller for Electric Surfboard Boat Efoil

Maytech 250A 60V Watercooled ESC Speed Controller for Electric Surfboard Boat Efoil Electric Propulsion Motorcycle

Related Products: (Clicking the following pictures to check specs)

Frequently Bought Together

In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil

Specification:

Features:

> Get Manual: Remote Manual and Instruction

Click Here: How to Display Volt, Current, RPM with TX and RX?

The remote has 2 Modes, signal output pulse width is different in 2 modes:

PPM Control Type: Current no reversePPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms

Tips After Using:

In Stock Maytech Fully Waterproof Efoil Motor MTI65162 120 Brushless Inrunner Motor

Maytech Fully Waterproof Efoil Motor MTI65162 100/120/190KV Brushless Inrunner Motor for Electric Surfboard/Efoil/Jetski/Esk8

Specification:

Customer Test Video on Efoil:

Maytech Self Testing: MTI65162-100-SF+MTSP0504 Prop+300A ESC+1905WF Remote:

Related Products: Clicking the following pictures to check specs

In Stock Maytech IP68 Waterproof MTI85165 200KV Inrunner Brushless Sensorless Motor for Esurf/Efoil/RC Boat KV Customized

Specification:

﻿

About Fully Waterproof Version:

In Stock 2pcs / 5pcs MTS2009AS Max 300A 85V Anti-spark Switch with Short Cirsuit Protection

Maytech MTS2009AS Max 300A 85V Electronic Anti-spark Switch Battery Cutoff Switch with Short Circuit Protection for Electric Hydrofoil Efoil Surfboard

Specification:

Maytech Waterproof 300A 14S 60V Watercooled ESC for Efoil Electric Surfboard Jetsurf

Maytech MTSF300A-WP IP68 Waterproof 300A ESC 300A 85V Anti-spark Switch Water Pump Esurf Kit Speed Controller for Efoil/RC Boat

Upgraded Notice Since July 29, 2022.

Upgrade with waterproof junction box for wiring as below picture:

Please noted for usage:

Related Products: (Clicking the following pictures to check specs)

Pre-order Maytech New Marine 32Bit 300A 60V ESC IP68 Waterproof Smaller Size for Efoil Underwater Thruster Electric Surfboard

Pre-order Maytech New 300A 60V Waterproof ESC Smaller Size for Efoil Underwater Thruster Electric Surfbord

Specification:

Strengths:

Related Products:

PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
