Maytech 45KW Powerful Motor 155245 70KV for Electric Boat Efoil Boat Sensorless

Name: Maytech 45KW Powerful Motor 155245 70KV for Electric Boat Efoil Boat Sensorless
Brand: Maytech.cn
SKU: MTI155245-70-WP
Price: 1489.0 USD
Availability: InStock

$1,489.00 USD

Sale Ausverkauft

Versand wird beim Checkout berechnet

Waterproof or Watercooled IP68 Waterproof Watercooled

Produktvarianten

Anzahl

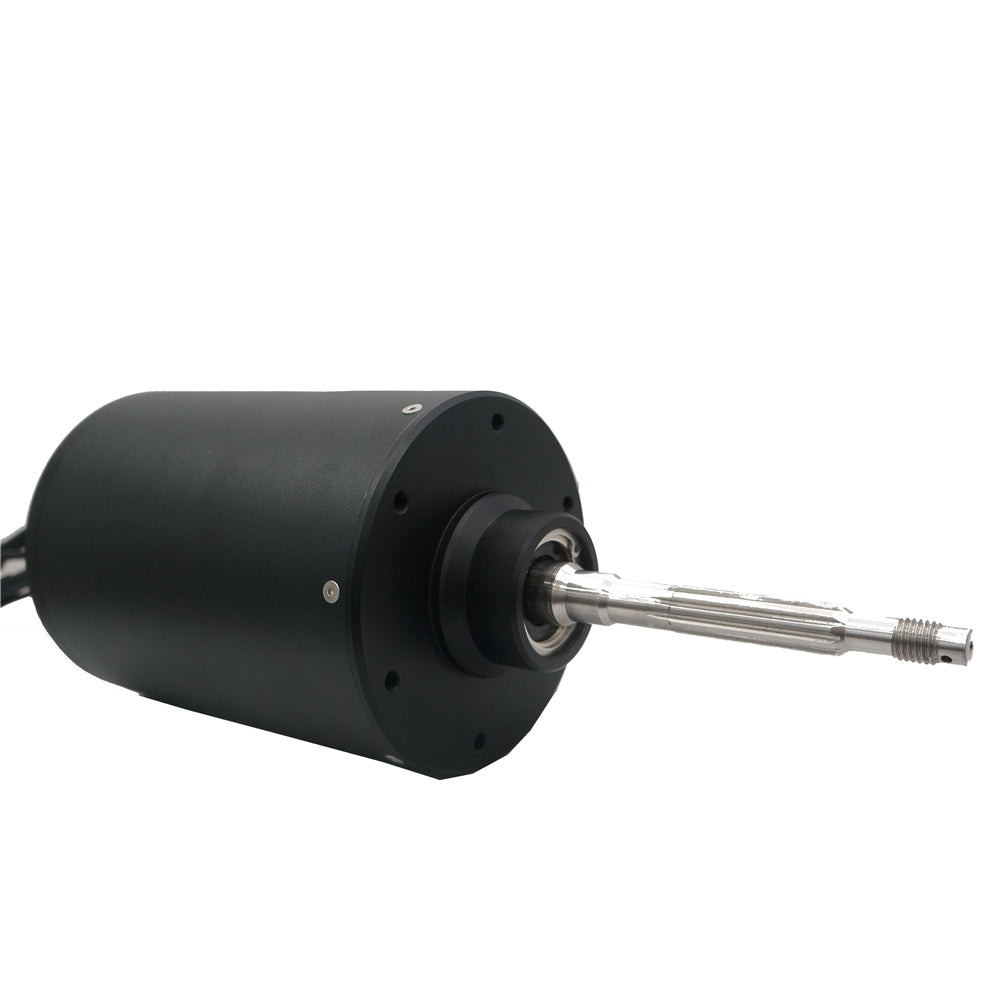

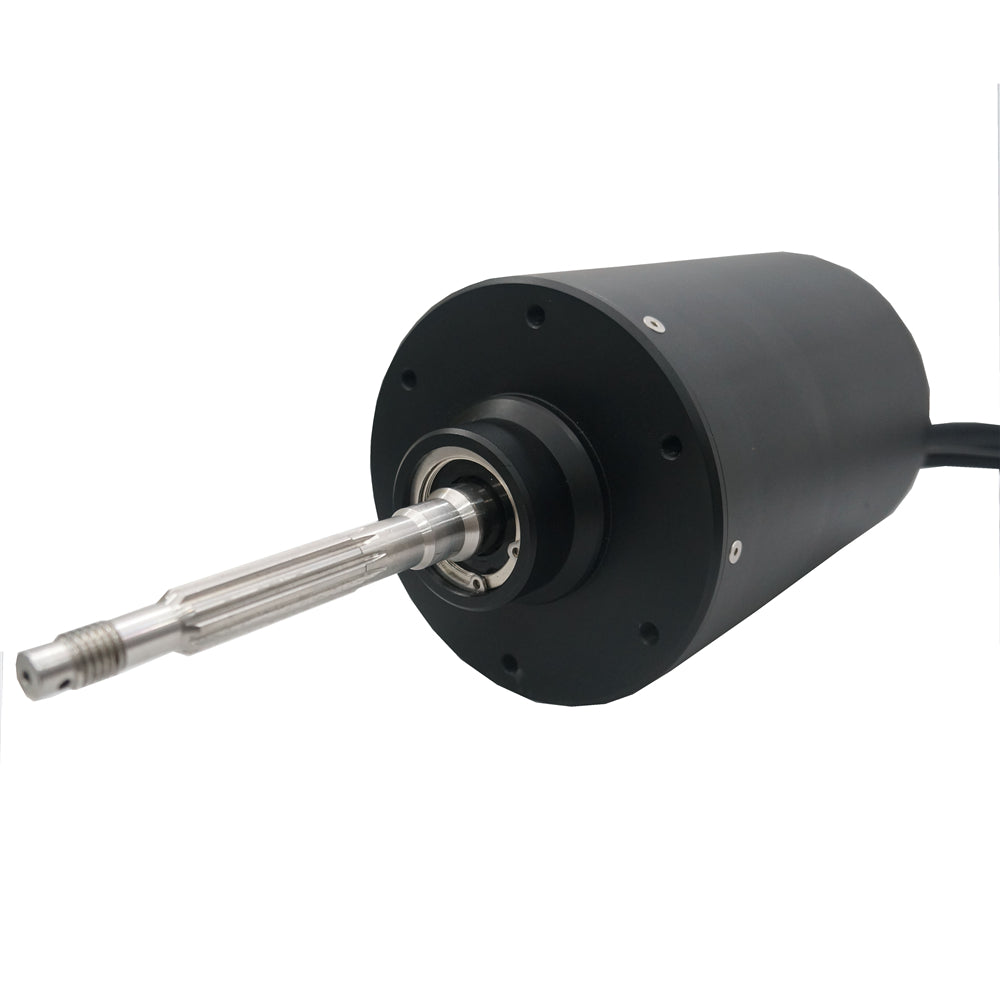

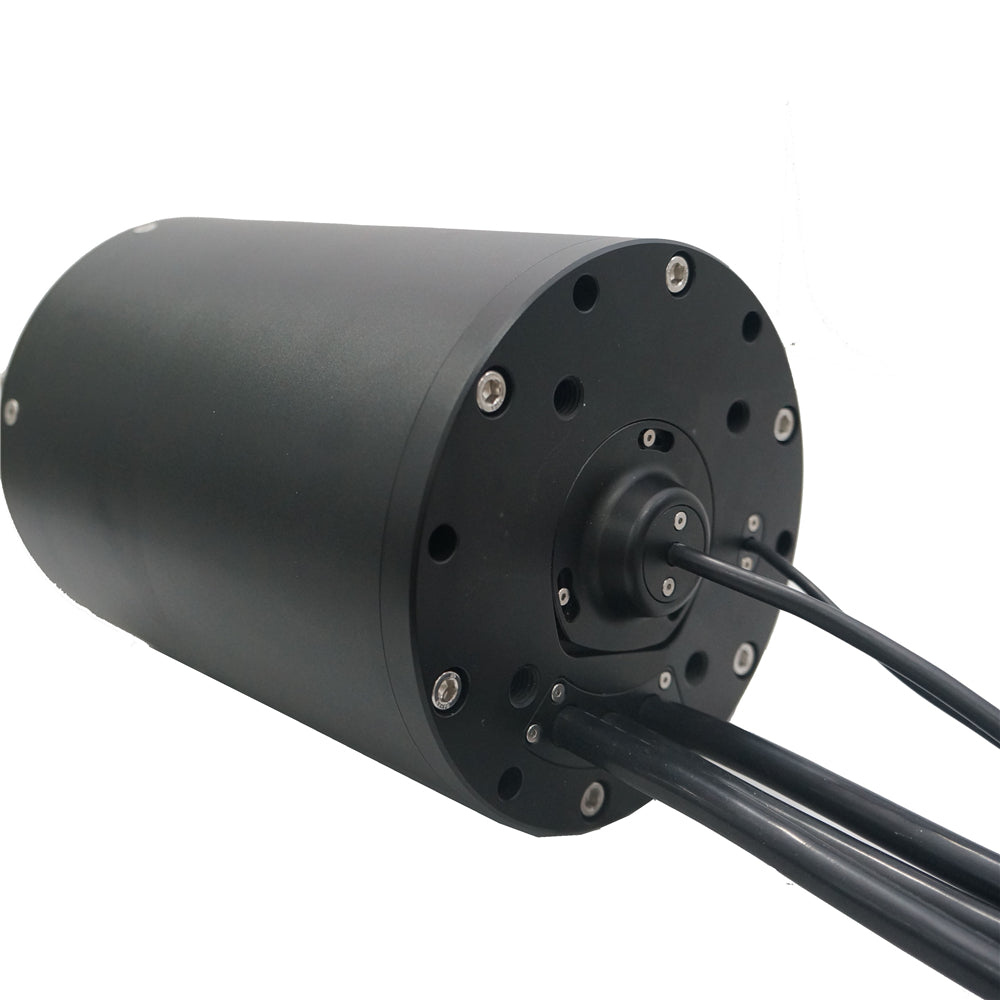

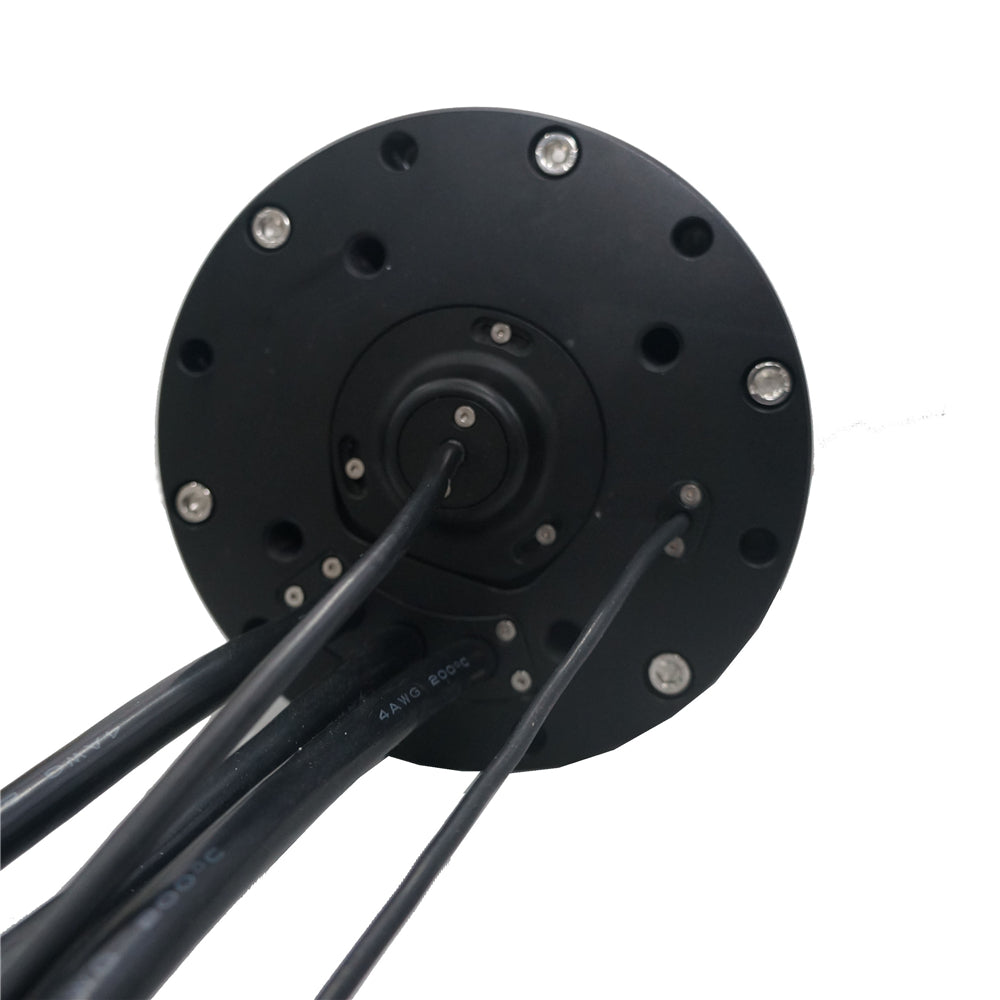

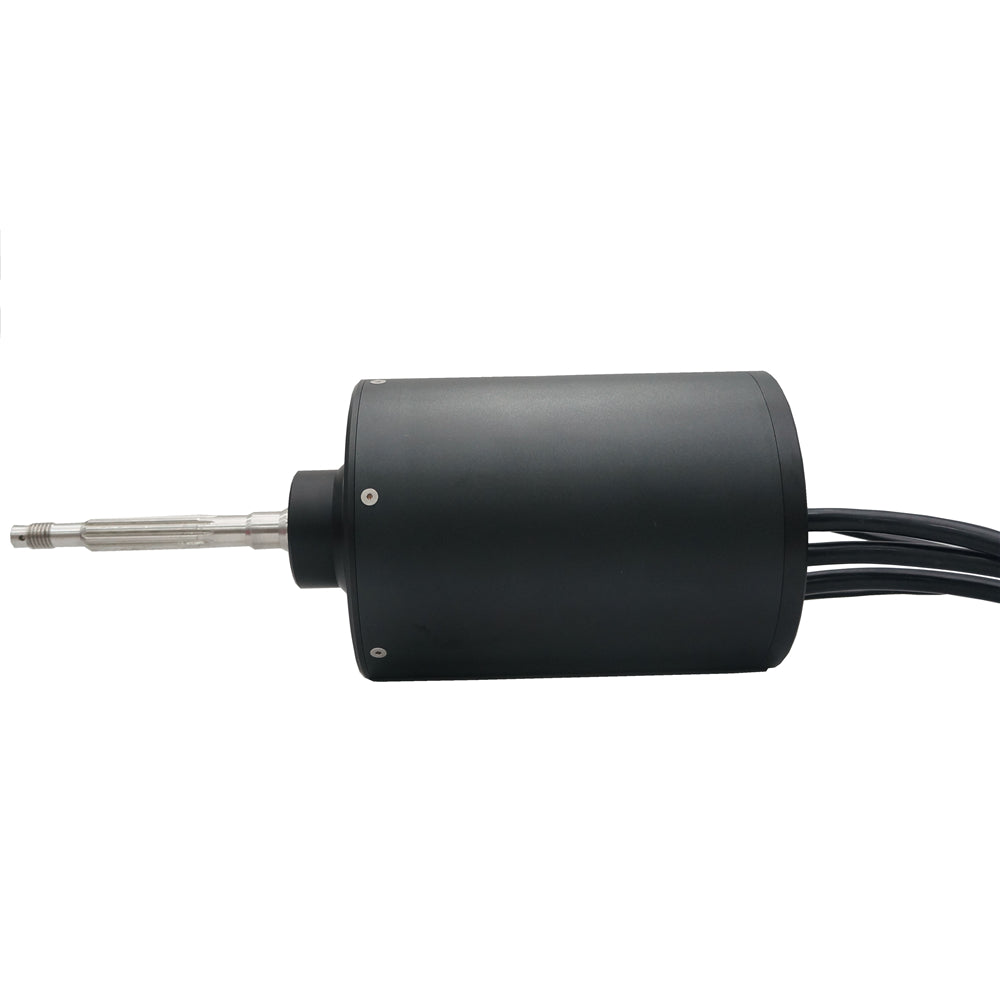

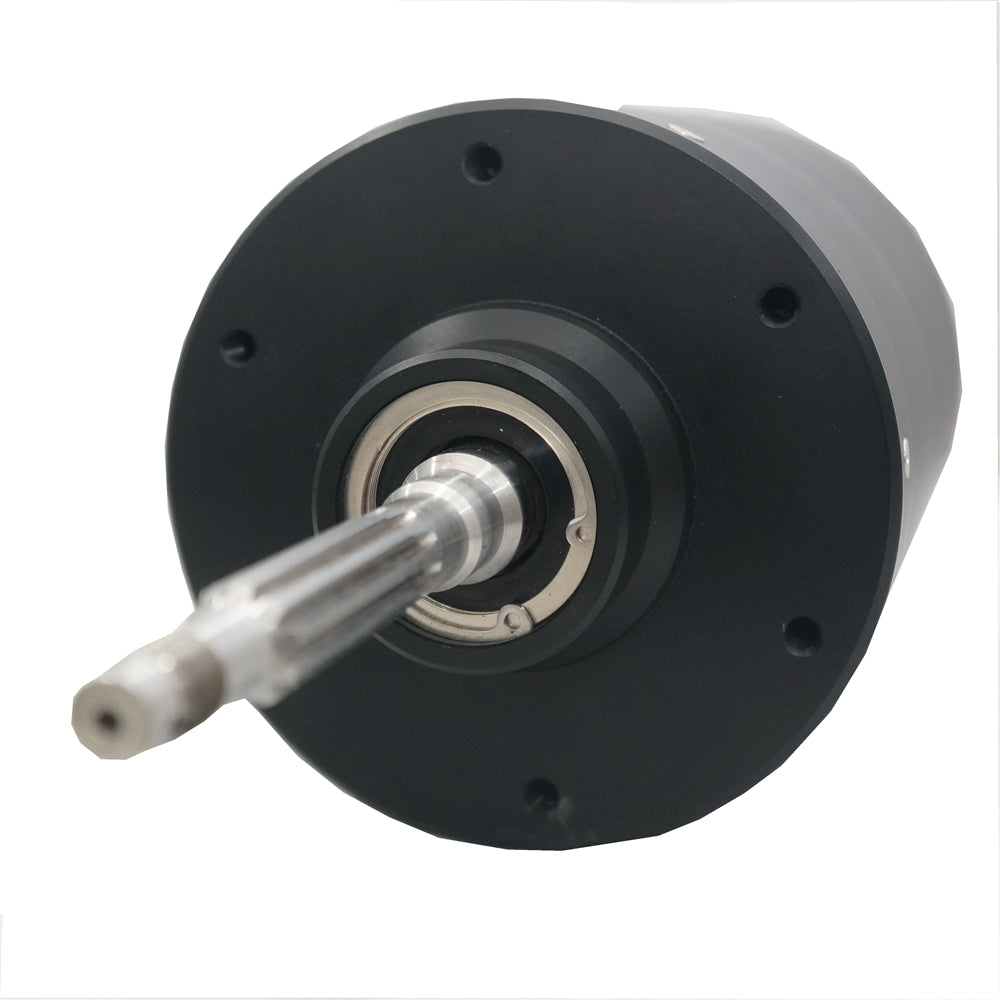

Maytech 45KW Powerful Motor 155245 70KV for Electric Boat Efoil Boat Sensorless Engine

Specification:

Model No.	MTI155245	Idle Current	3.5A
KV	70, contact us if you need other KV	Max Current	670A
Input Volt	4-21S Lipo (17-90V)	Max Output Watt	45KW
Max Touque @60%	73 N.m	Motor Weight	About 16.5kg
Max RPM	6350	Construction	12N/10P
Max Working Temperature	120℃	Insulation Volt & Leak Current	AC500V/10MA/3S

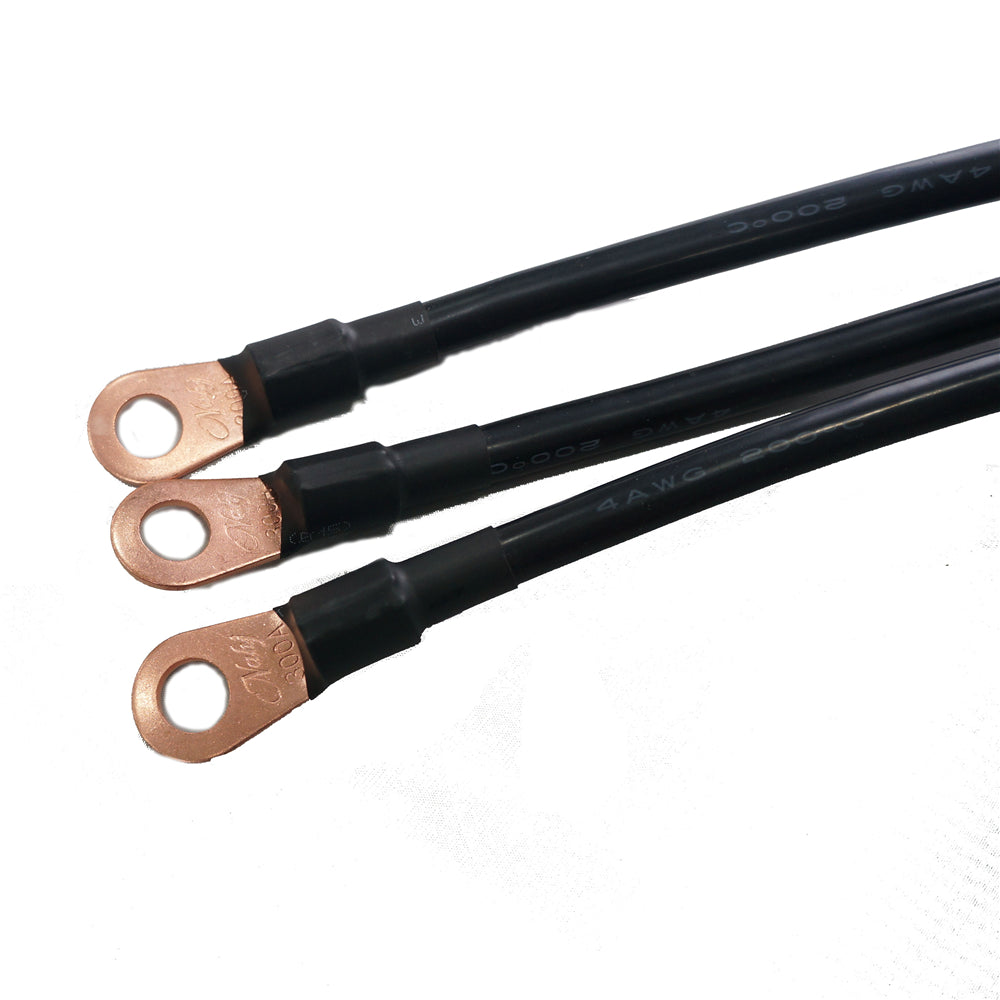

Plug	10mm gold-plated plug	Lead Wires Extension	2AWG
Motor Type	Waterproof and watercooled optional	Application	Electric boat, efoil boat, electric car, motorcycle, etc.,

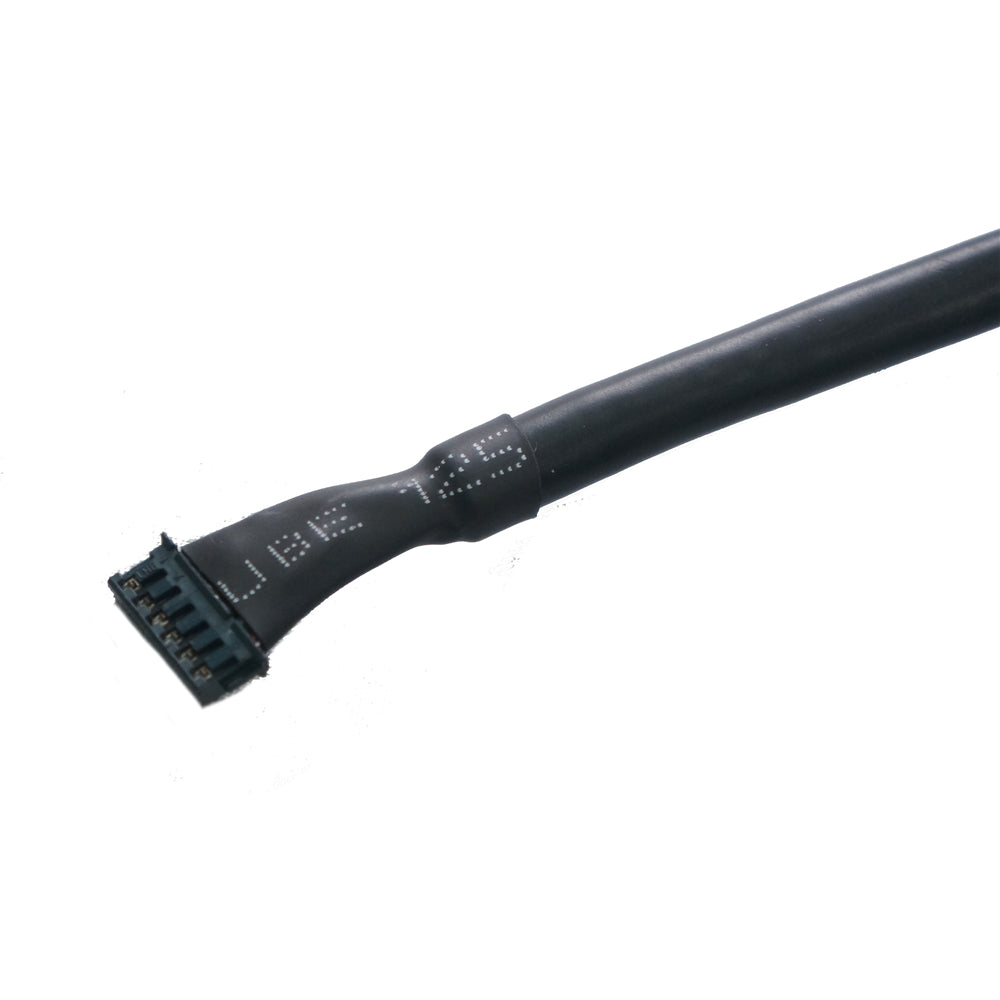

Hall Sensor	Without	Temp Sensor	With

Application:

Electric boat, foil boat, foiling boat, hydrofoil boat, hydrofoiling boat, efoil boat, etc.,

MTI155245 electric boat motor brushless inrunner sensorless engine for electric boat efoil boat hydrofoil jet propulsion rc boat powerful engine

155245 45KW Inrunner sensorless watercooled motor waterproof motor e-boat motor engine

Stock Notice before Place Order:

The motor is not stock item, above test datasheet is based on 70KV 50V, if you want other KV, please contact us for the KV you want.

Lead time for the motor production is about 3 months after your order confirmed.

And if you need very urgently, please contact us agnes@maytech.cn.

Production Line Real Shot:

MTI155245 electric boat motor brushless inrunner sensorless engine for electric boat efoil boat hydrofoil jet propulsion rc boat powerful engine
