In Stock Buy 7052 Motor SUPERFOC6.8 Controller Get Free Bluetooth Module

  • En oferta
  • Precio habitual $273.00
Los gastos de envío se calculan en la pantalla de pagos.

Wholesale / Customize


7052 60KV Hub Motor Brushless Outrunner Sensored Elongboard Motor SUPERFOC6.8 50A SuperESC Speed Controller 2.4Ghz Bluetooth Module for VESCTOOL Compatible ESC

Specifications:
1. 7052 Hub Motor:
Model No
MTO7052HBM
KV
60
Idle Current
0.5A
Max Current
22A
Inpur Voltage
24-42V Internal Resistance
0.557-0.577
Max Pull
6700g
Hole Size
M8

electric longboard skateboard hub motor 7052 70mm hub engine direct drive motor with hall sensor 70mm with red PU tyre ebike conversion kit

Upgrading Features:
1. Upgraded components quality, use UH52H magnet with great magnetism.
2. Add with temp sensor, standard NTC 10K thermistor.
3. Upgraded version can work from 12V-42V, can work in both BLDC and FOC modes.

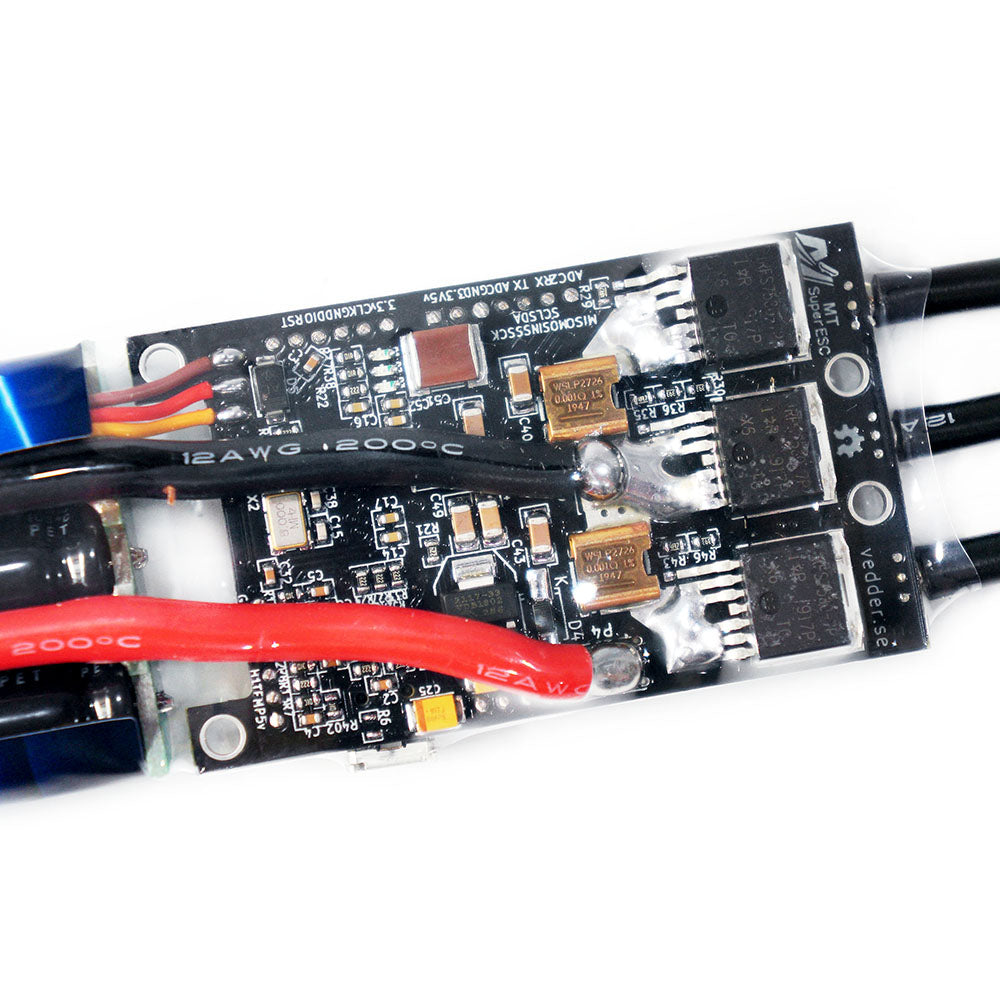

2. SUPERFOC6.8 50A VESCTOOL Compatible Speed Controller
Model No
MTSUPERFOC6.8 Cont Current 50A
Lipo Voltage 3-12S (12.6V-50V)
Burst Current
240A
BEC 5V PCB Size 40mm*60mm
Capatitor 3pcs 680uf63V MOS IRF7530
Hardware Based on V6.0 Firmware Updatable

Notice:
Never connect one reclever to two or more V6/V75 based SUPERFOC ESCs or VESCs in an array ! Permanent damage may result from Y-PPM wiring.

Only connect CAN L and CAN H ! GND pins and 5V should never be connected in a V6/V75 based SUPERFOC ESCs VESC array.

Maytech SUPERFOC6.8 50A VESC6.0 based controller for electric skateboard great FOC Mode Mountainboard Longboard fighting robotics UAV Drone combat robots
Maytech SUPERFOC6.8 50A VESC6.0 based controller for electric skateboard great FOC Mode Mountainboard Longboard fighting robotics UAV Drone combat robots

Maytech SUPERFOC6.8 50A VESC6.0 based controller for electric skateboard great FOC Mode Mountainboard Longboard fighting robotics UAV Drone combat robots
Maytech SUPERFOC6.8 50A VESC6.0 based controller for electric skateboard great FOC Mode Mountainboard Longboard fighting robotics UAV Drone combat robots
3. 2.4Ghz Bluetooth Module:

Application: Electric skateboard, electric longboard, motorized mountainboard
Diaplay: Voltage, current, temperature , etc.,
Model No.: MTBLEV1
Input Voltage: 3.3V-24V
Compatible Controller Hardware: V4 / V6 / V75 based SuperESC
Compatible Software: VESCTOOL App
Frequency: 2.4Ghz
ARM Processor: ARM Cortex-M0 32 bit processor
256kB flash&16kB RAM
PCB Size: 41mm x 21mm
Net Weight: 5g
Antenna Length: 90mm

Bluetooth Module 2.4G Wireless Based upon the nrf51_vesc project




1. The bluetooth is developed for communication between controller and VESCTOOL via BLE, to display parameters on mobile phone, so you can monitor real time parameters on app easily.

2. Motor current, duty cycle, ERPM, motor power, motor temperature, battery voltage, battery current, MOS temperature, charging current, charging power, etc., are able to display through the bluetooth module.

3. You can adjust parameters for motor settings, Including General, BLDC, FOC, PID controllers, etc informations.

4. It supports VESCTOOL Compatible controller based on V4, V6.0, V75_300 hardware, please choose the correct hardware version of your controller, we will match compatible cable for you.

5. Firmware is updatable.

Bluetooth module for electric skateboard, elongboared , mountainboard on App display current, temperature, power, voltageBluetooth module for electric skateboard, elongboared , mountainboard on App display current, temperature, power, voltage
