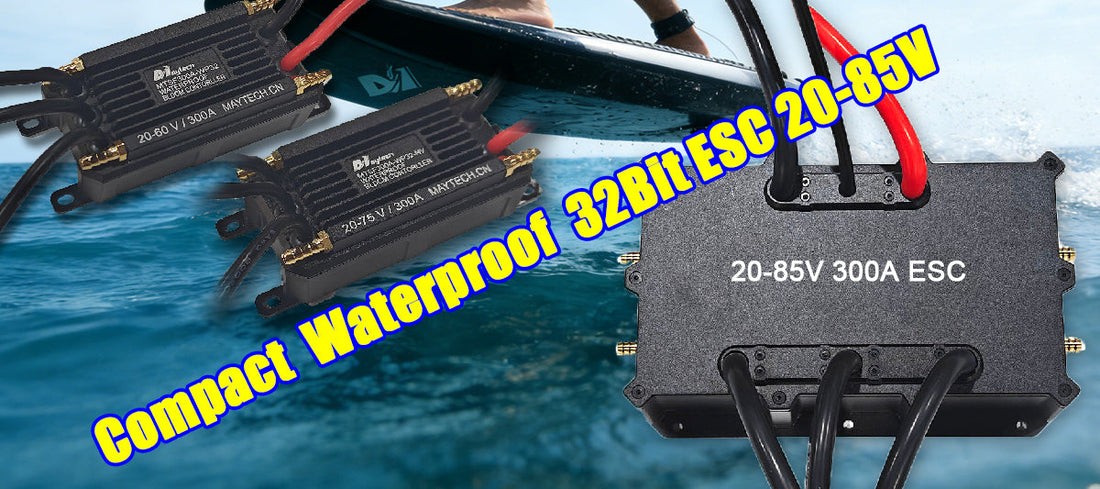

How to Adjust Parameters for Maytech 300A 85V ESC with Bluetooth Module?
- Download software App here to your phone: MTSF300A-WP32-HV PRO firmware
- Log in the App and do according to below video:
Specification:
Model No.: MTSF300A-WP32-HVPRO
Waterproof Rank: IP68
Cont Current: 300A
Peak Current (at 10S): 320A
Input Voltage: 10-20S Lipo (32V-85V)
Cable Guage: 6AWG
Max ERPM: 100000
32BIT Micropprocessor
Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.,
Strengths:
1. Fully new circuit design, excellent algorithm
--With high performance 32bit MCU processor, greatly improved data computing ability;
--Faster respond, smoother startup;
--Throttle linear is optimized, more accurate and smoother, better compatibility;
2. Seperate control board and power board design
--Elegant PCB layout and circuit design,control board won’t be influenced even when ESC gets heat at high power condition, which makes the ESC more reliable and has stronger anti-interference.
3. Single direction: forward or reverse
--The ESC filled with waterproof glue to make sure its IP68 waterproof, flat water cooling design to make sure high efficient heat dissipation.
--Suitable to use on various water sports like Efoil, surfboard, underwater thruster, etc.,
4. With kinetic energy recovery function
--Save more energy;
--Extend battery working time;
--Reduce heat
5. Multiple protections
--Startup protection;
--Over-temp protection;
--Low voltage protection;
--Phase loss protection;
--Signal loss protection
Recommend Motors:
