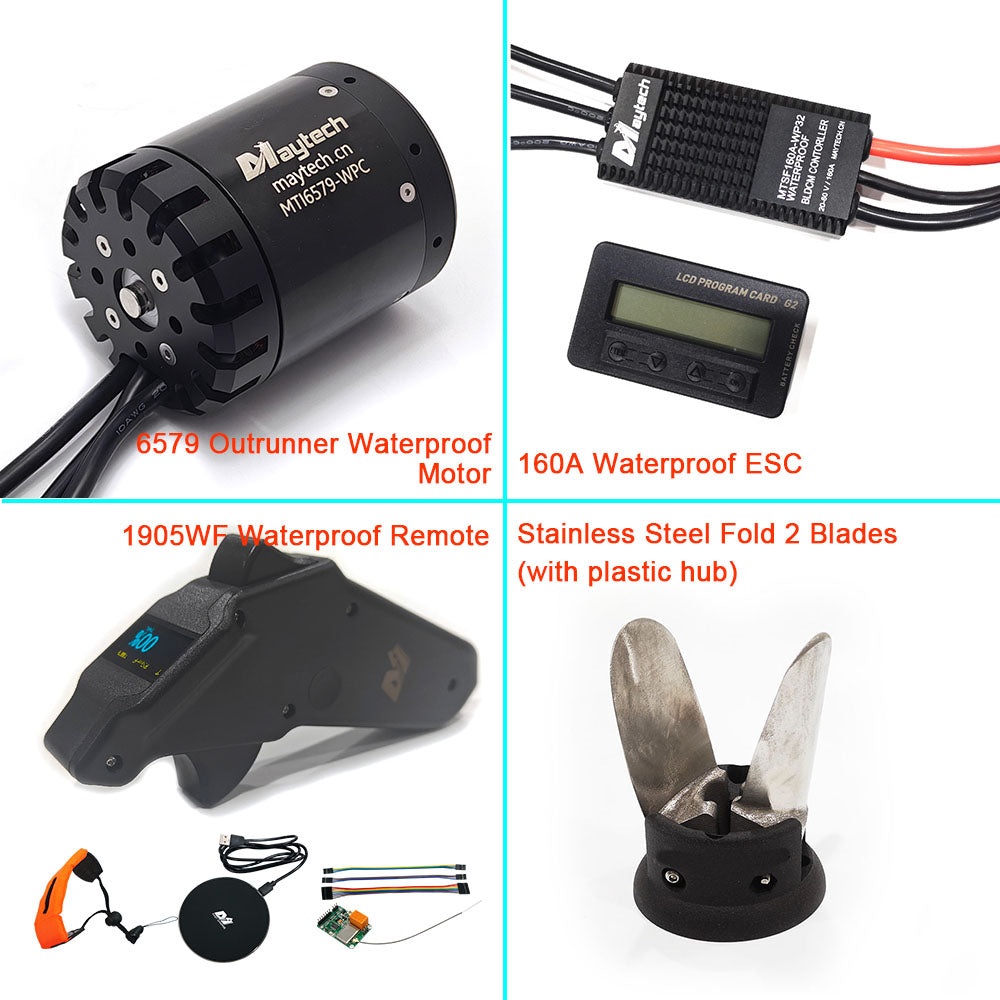

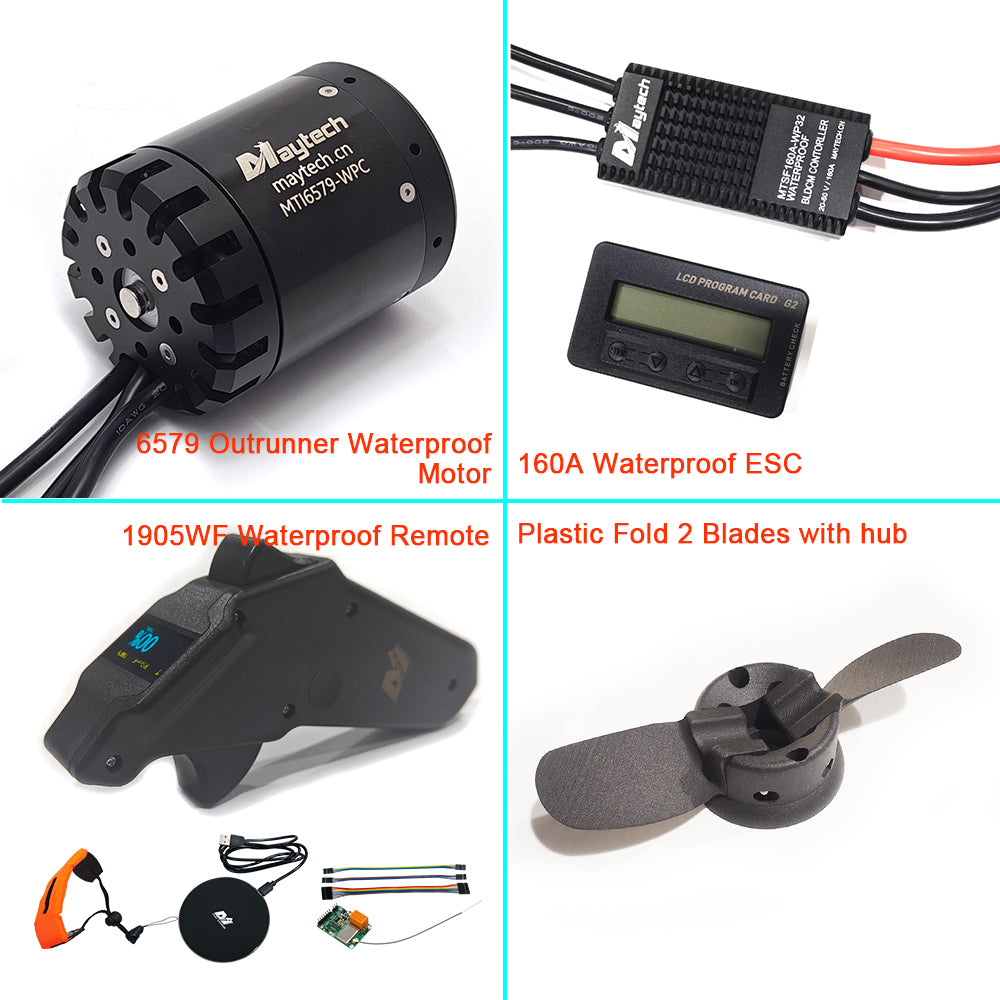

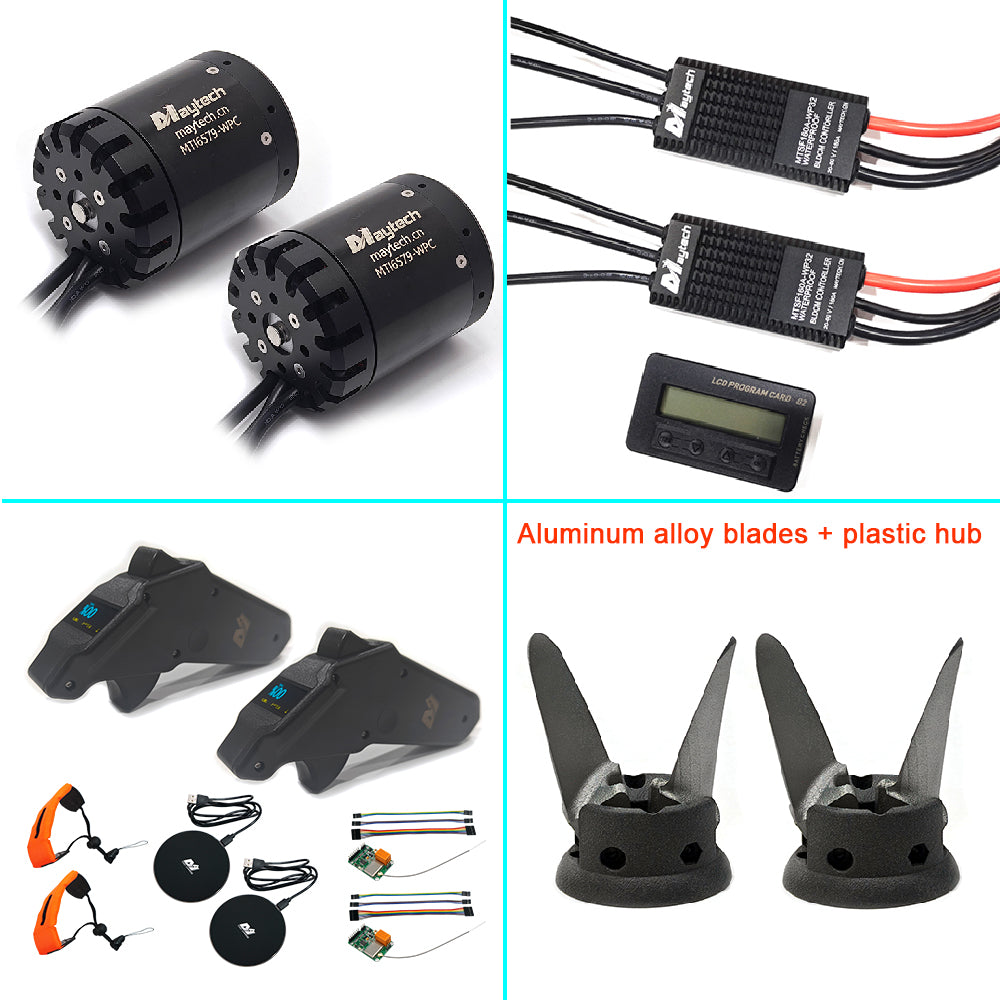

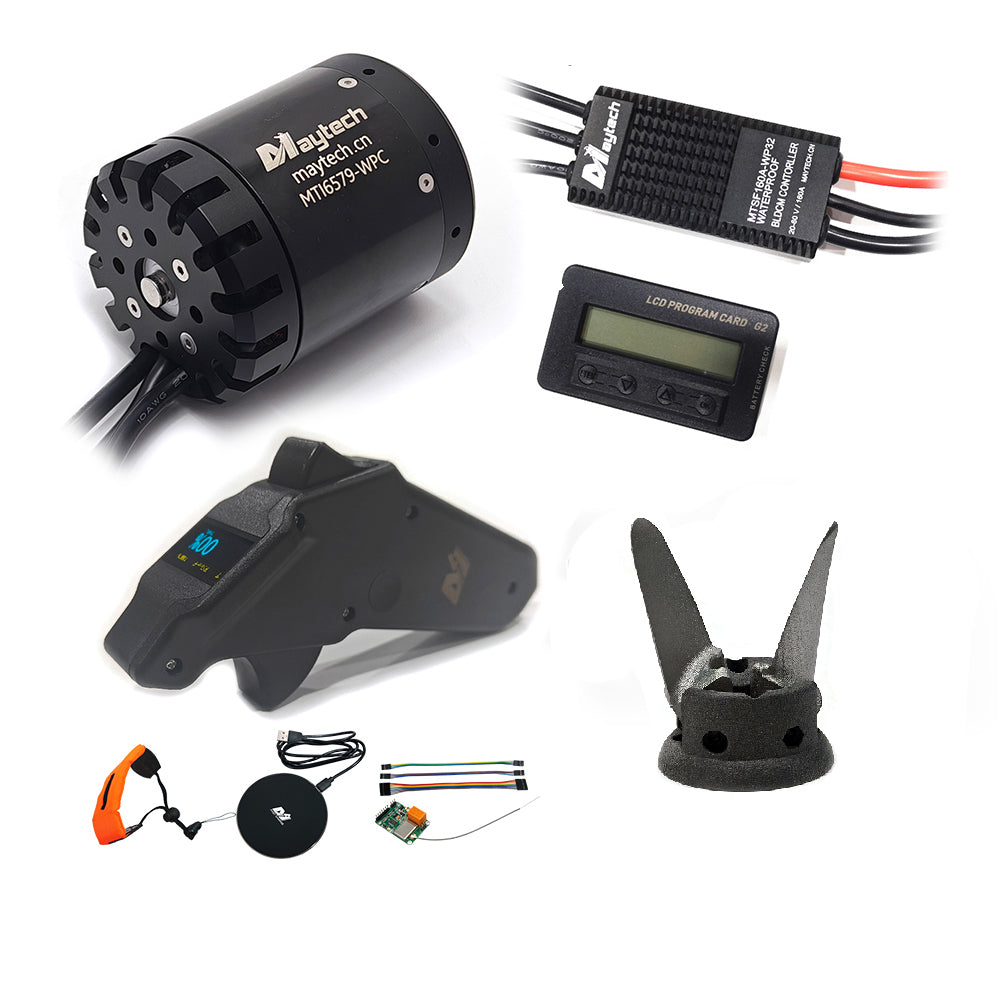

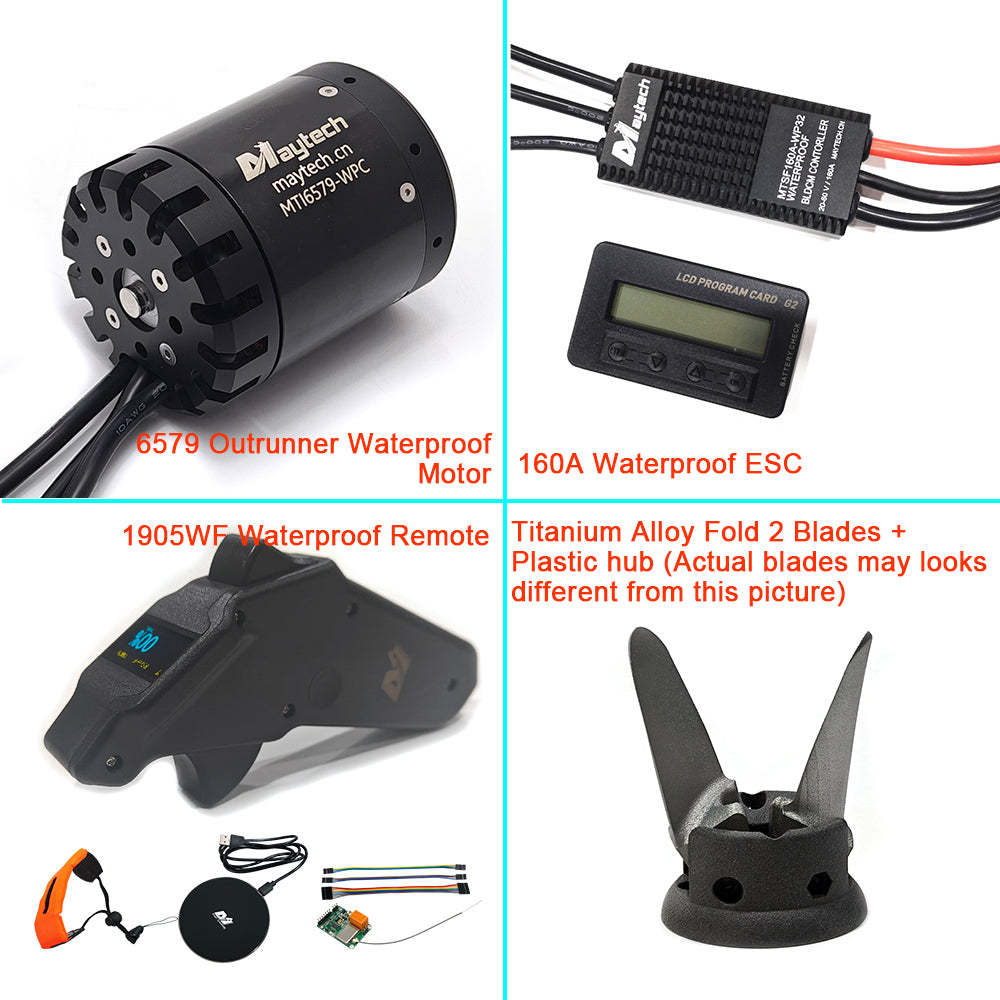

In Stock Foil Boost Pro Kit Up to 41kg Thrust Waterproof Efoil Kit 6579 Motor + 160A ESC + V3.0 Remote for Esurf Electric Kayak Thruster Tow Boogie Foil
In Stock Foil Boost Pro Kit Up to 41kg Thrust Waterproof Efoil Kit 6579 Motor + 160A ESC + V3.0 Remote for Esurf Electric Kayak Thruster Tow Boogie Foil
Couldn't load pickup availability
If you want to use other cheaper but slower shipping method, please contact agnes@maytech.cn
Shipping time by DHL or UPS is fast, normally 3-7 days arrive to you.

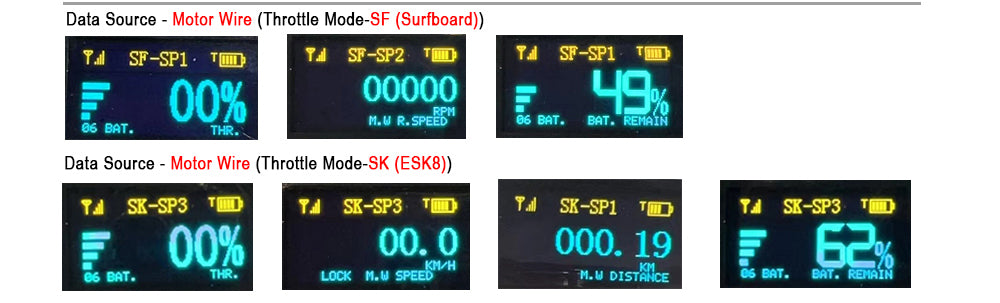

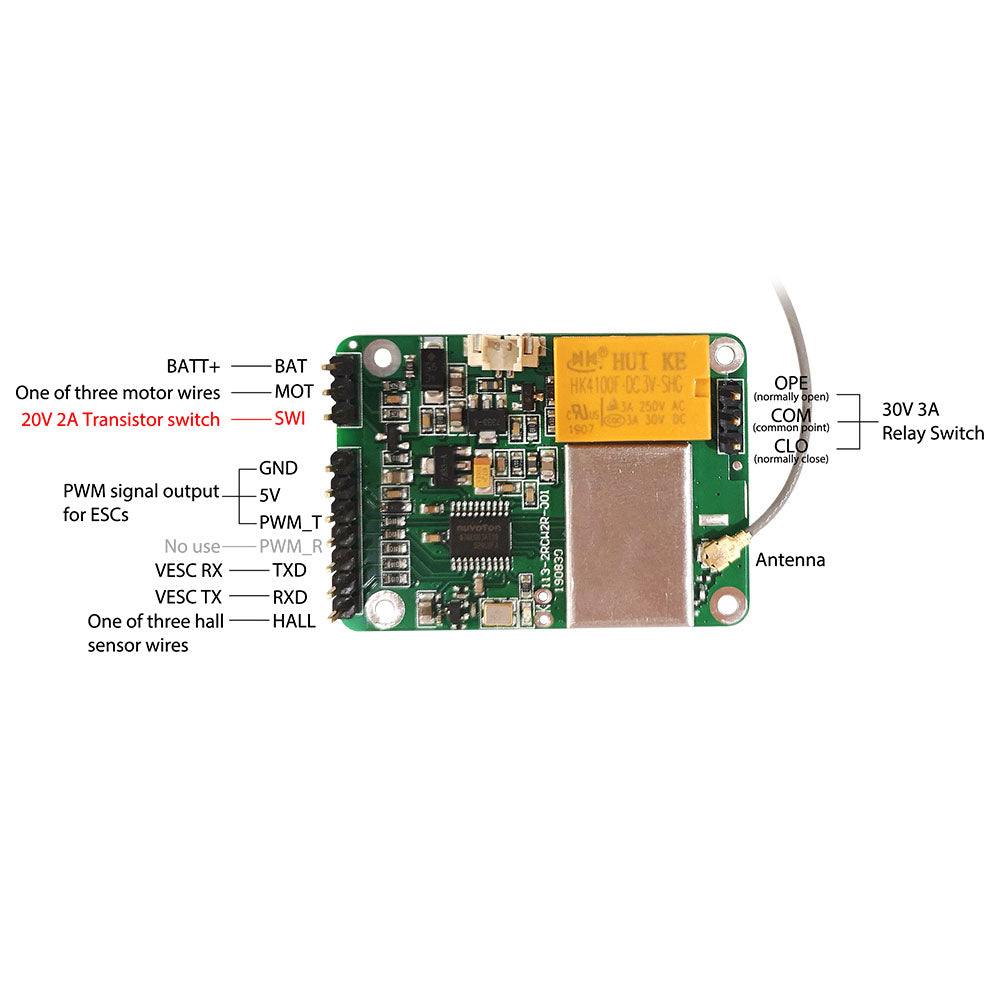

Wiring diagram and parameters display on remote:
If you want to display RPM and battery power bar and voltage %, please follow:
1. Display battery bar and voltage %: Lead out a wire from your battery + to "BAT" on receiver
2. Display RPM: Lead out a wire from one of 2 motor wires, connect to "MOT" on receiver.
3. Setting in remote for this kit:
| 1)Thr Mode: | Surfboard |
| --5) and 6) Batt Type and Batt Ser Num | Please set according to your battery. |
| 9) Data Source |
1. If you connected MOT for RPM display, then select 【Motor Wire】 2. If you don't connect MOT for ROM display, only need to display battery bat and voltage %, then select 【None】 |
| 10) M.Pole Pairs | 10 |
| 12) Gear Ratio | 1.0 |
| 14) VESC Thr | None |
Efoil, electric surfboard, underwater scooter, ROV, underwater thruster, electric propulsion, foil assist, electric sup board, paddle assist, downwind foil, winch foil, electric tow boogie, underwater cleaning robot, boat cleaner, countercurrent swimming machine, electric tender yachts, Infatable boat, tow boogie
>Check customer feedback video 1 get 70lbs pulls
>Check customer feedback video 2

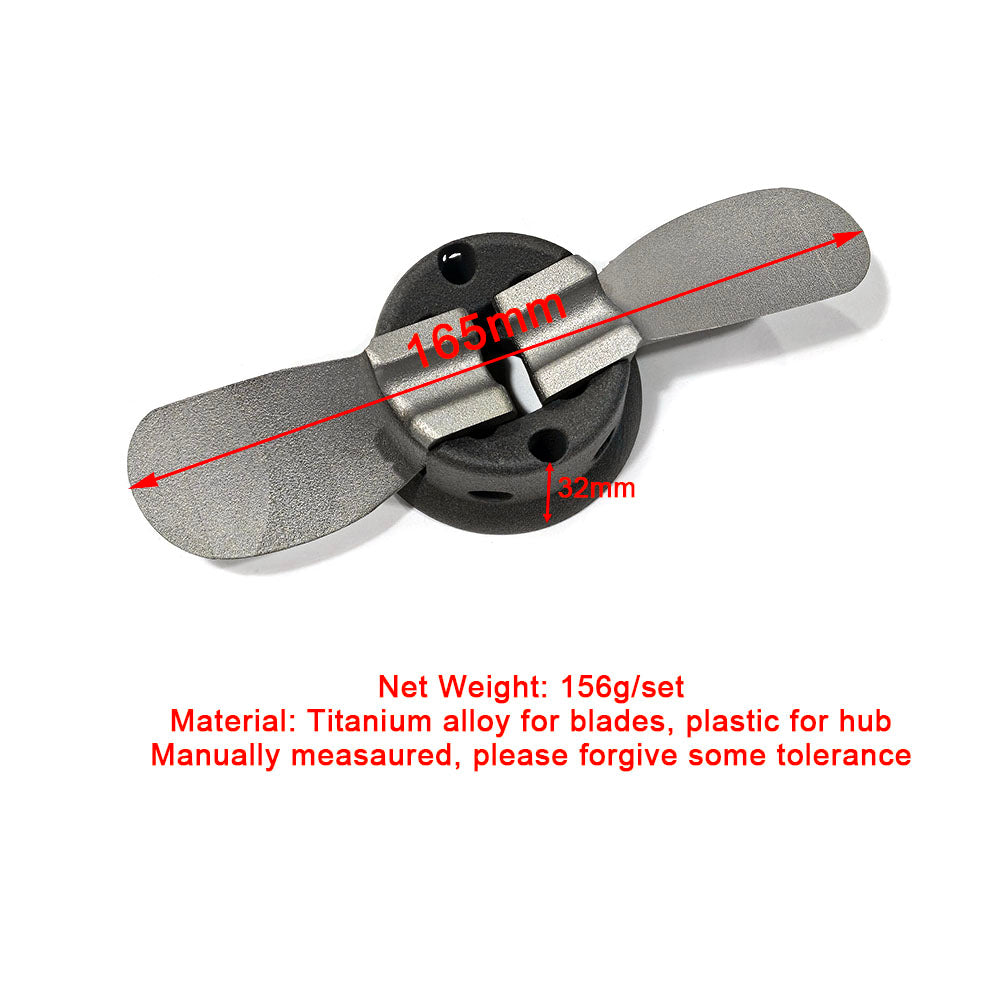

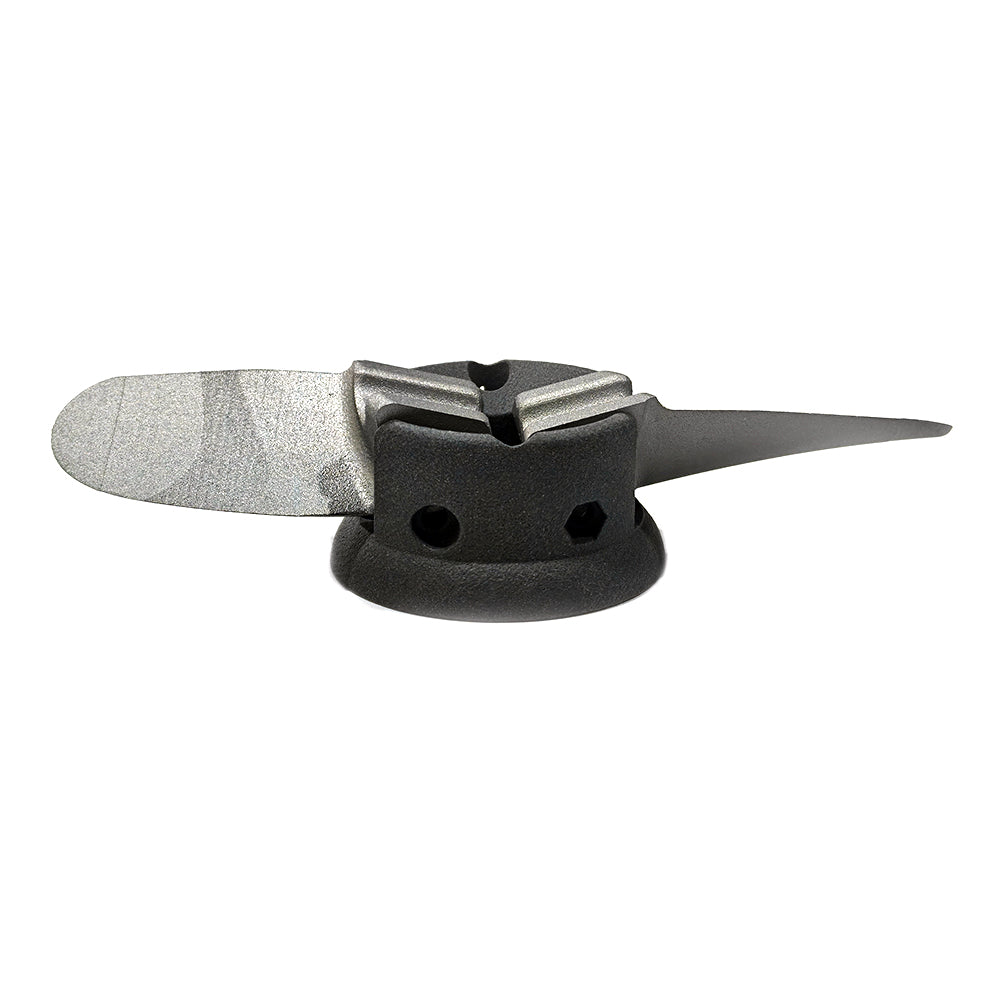

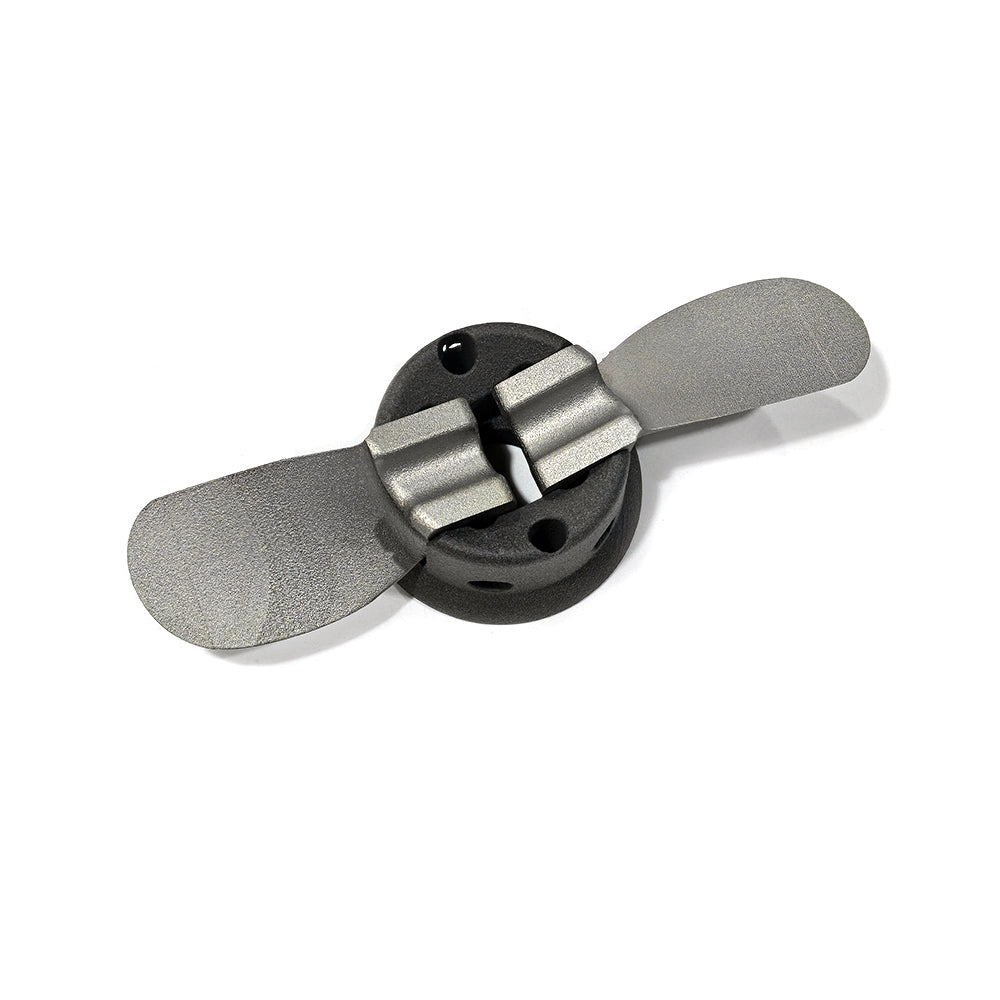

>Check Test Datasheet with Stainless Steel Propeller Max 41kg Thrust

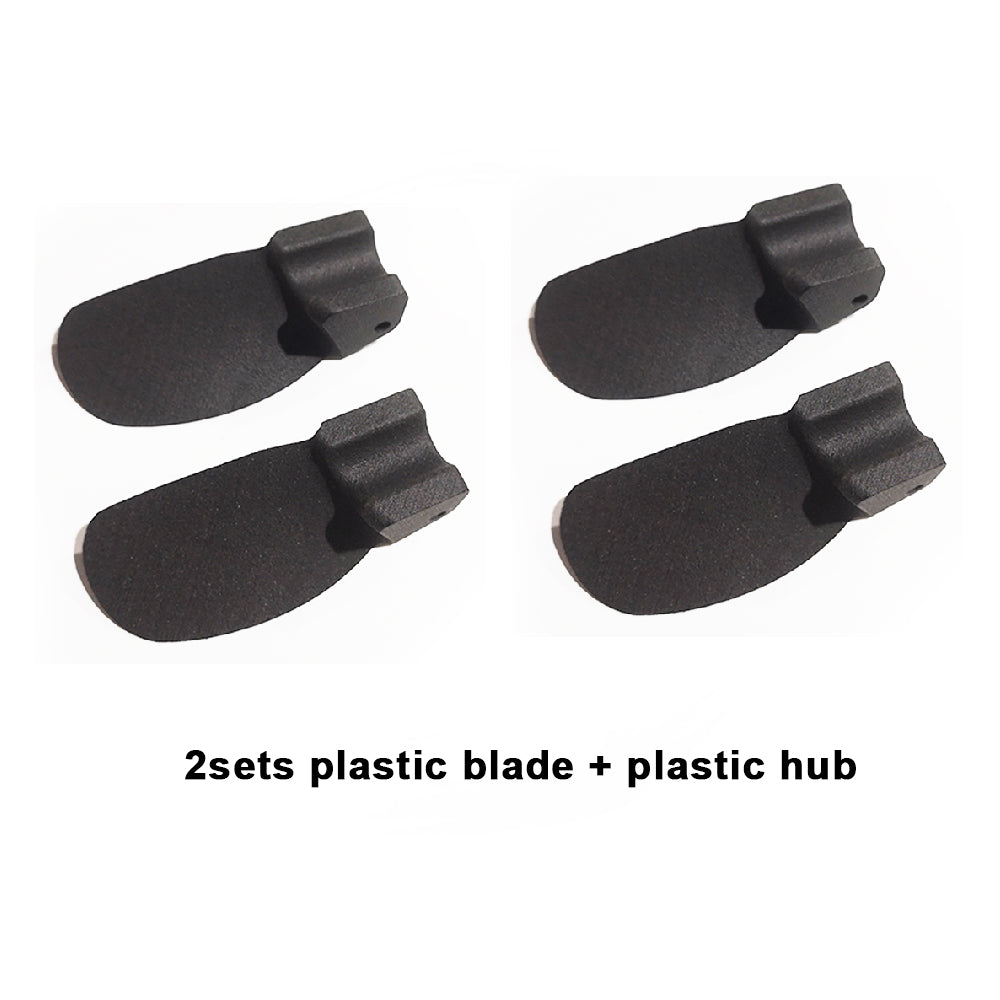

>Check Test Datasheet with Plastic Propeller Max 28kg Thrust
>Check ESC Manual

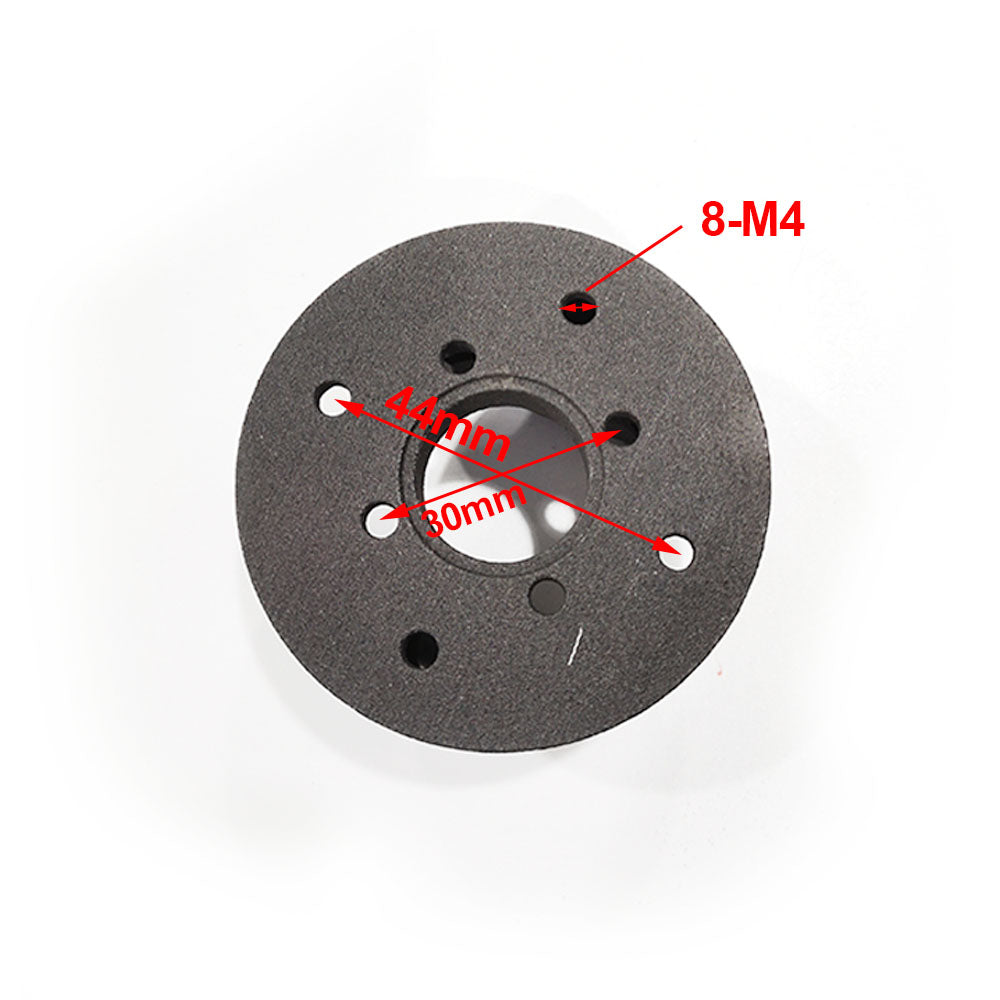

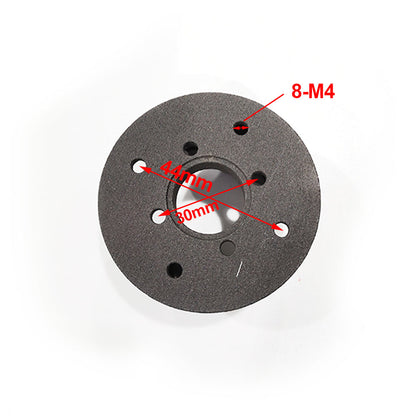

>How to Install Prop on Motor ?
>Check Underwater Test Video

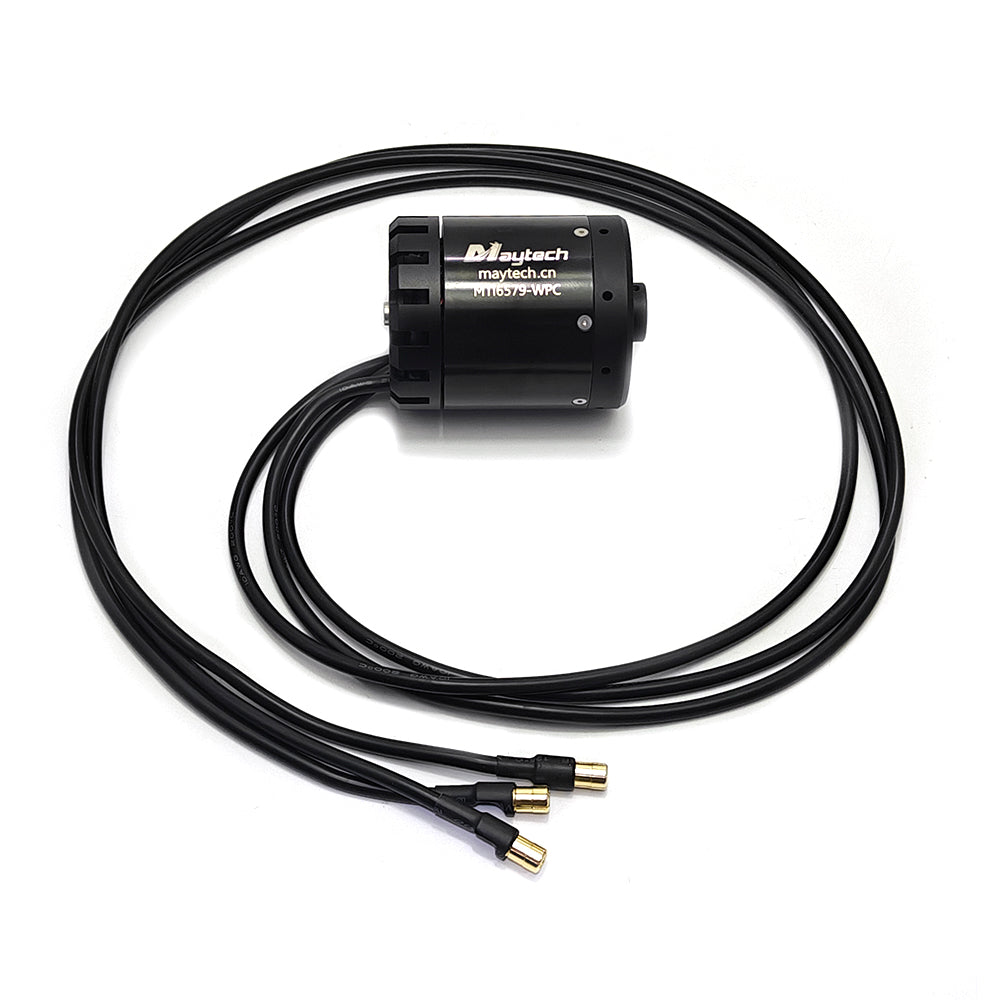

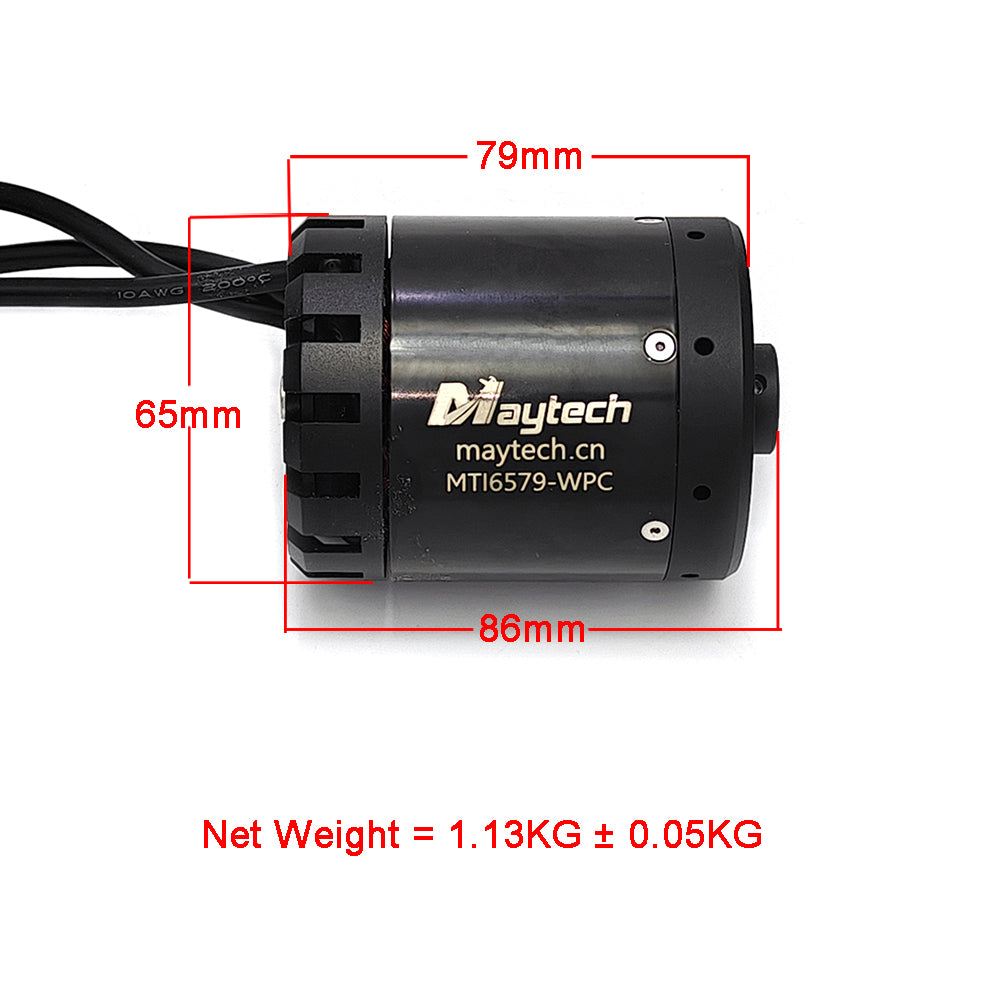

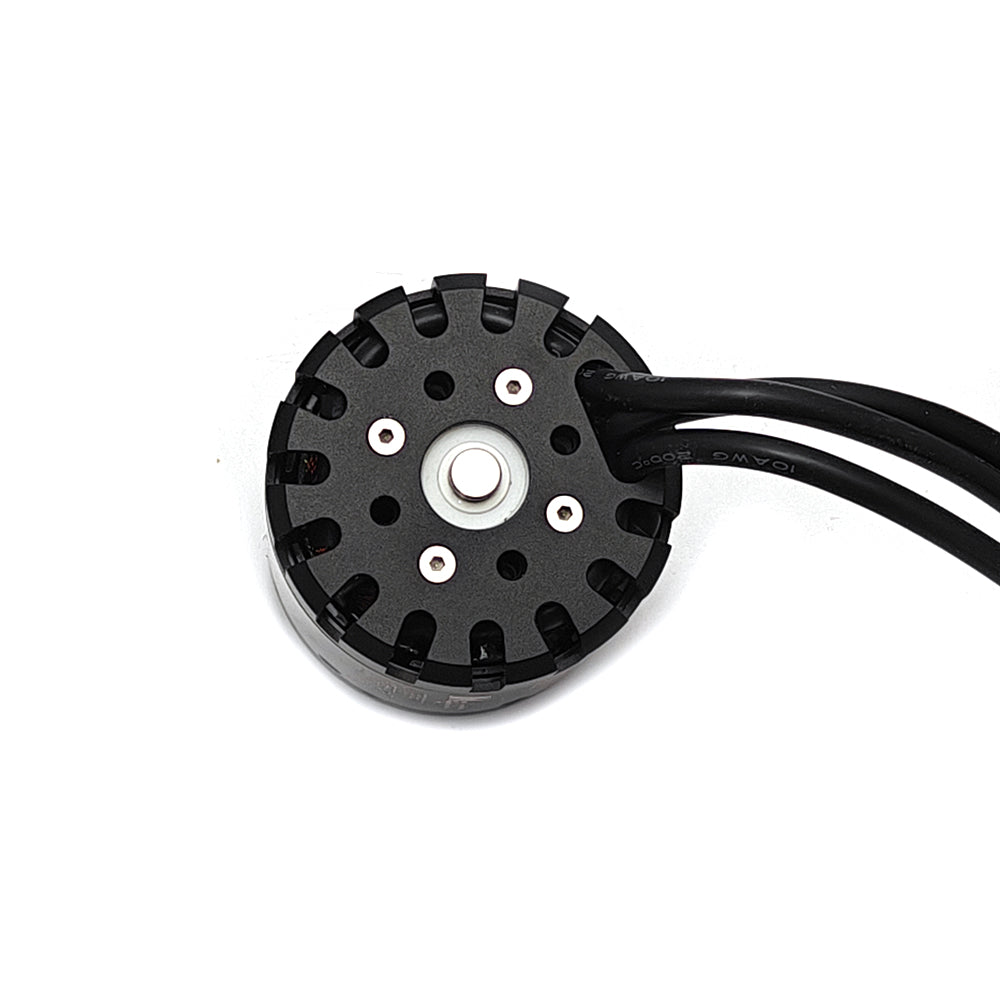

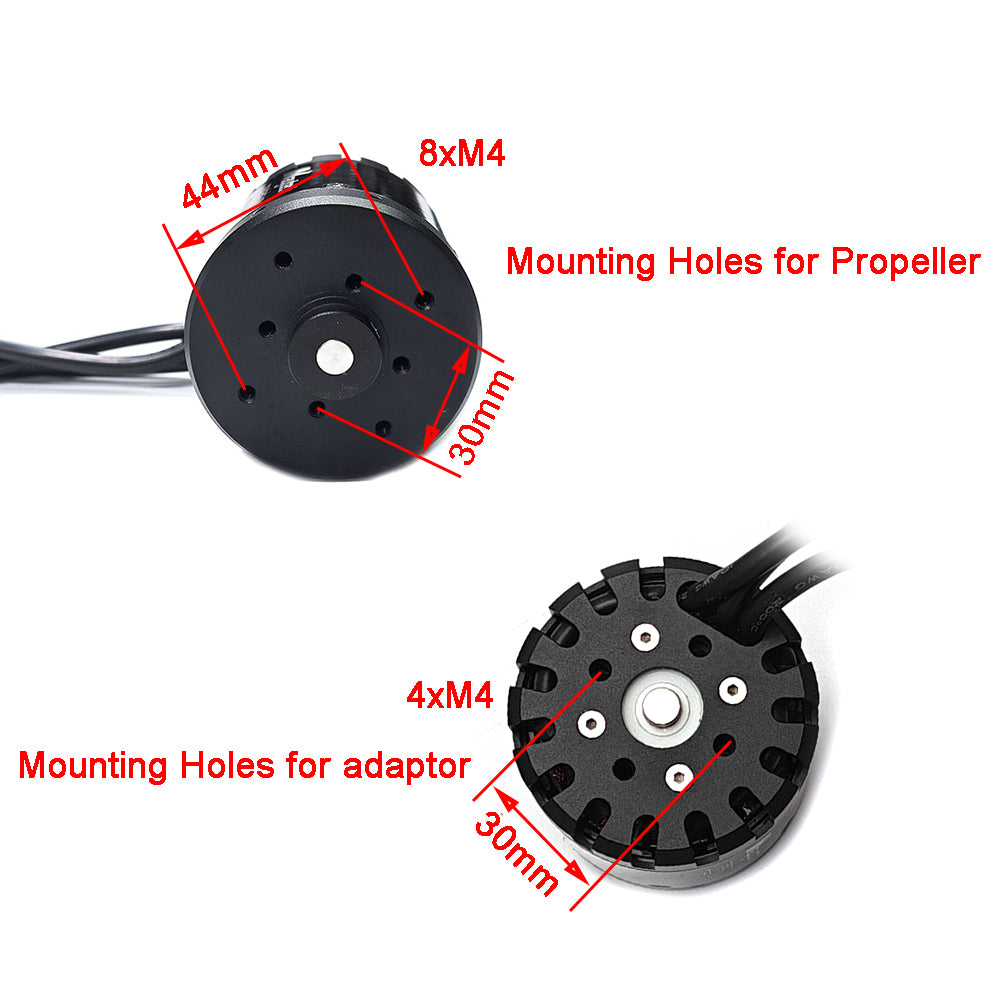

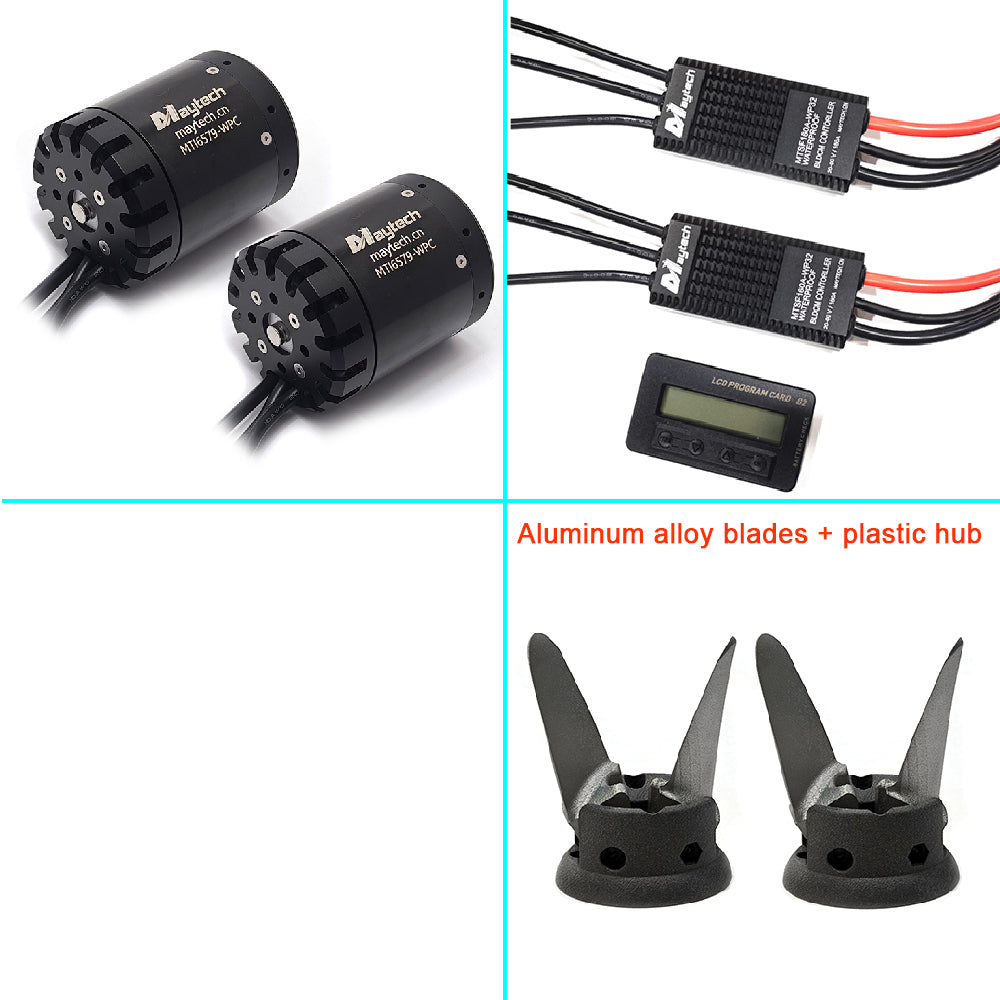

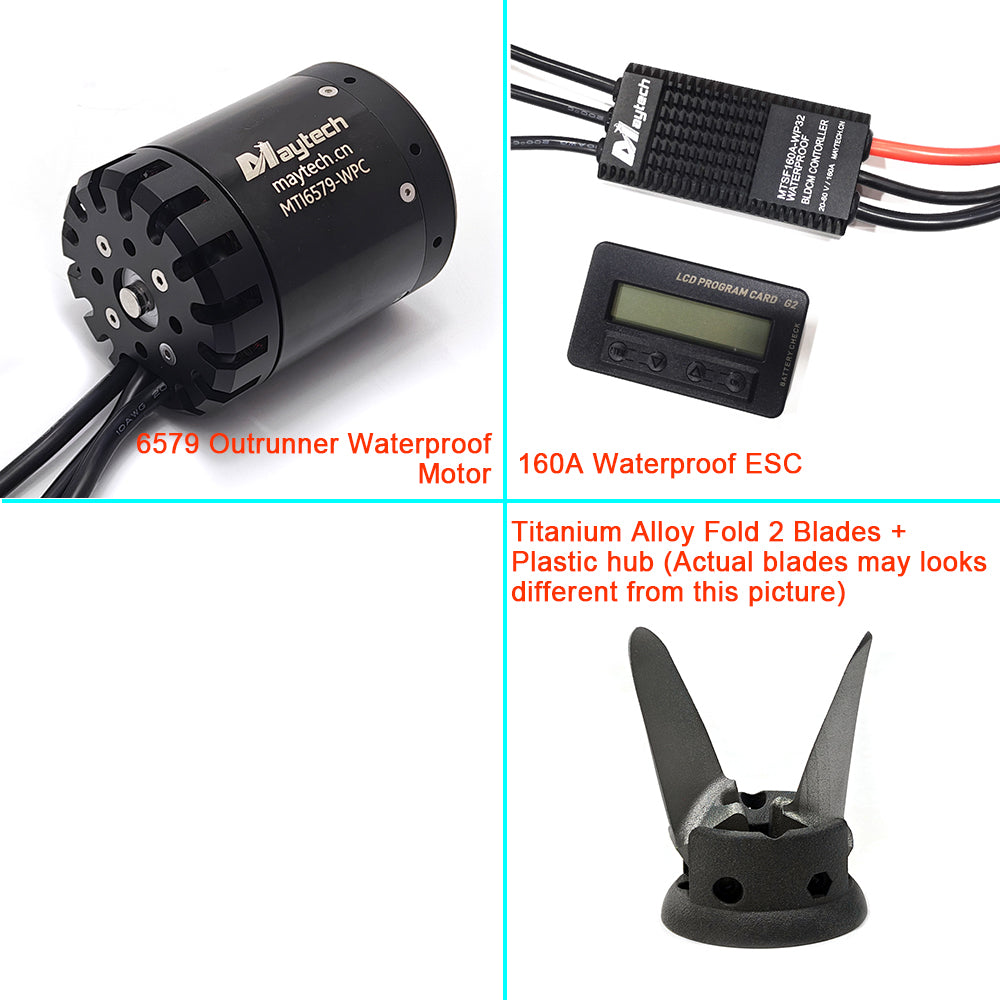

1. 6579 110KV Waterproof Motor
| Model No | MTO6579-110-WPC |
| KV | 110KV |
| Idle Current | 1A |
| Max Current | 160A |
| Rated Current | 150A |
| Input Voltage | 20-48V in this kit |
| Max Output Watt | 5.6KW in 48V |
| Shaft | No output shaft |
| Hall Sensor | Without |
| Waterproof Rank | IPX8 |
| Cable Length | 1m |
| Cable Guage | 3x 10AWG |
| Connector | 8.0mm Male bullet connector |
| Bearing | Ceramic bearing |
| Customize | KV, logo, shaft, mounting hole pattern, color, connector, cable, etc. contact agnes@maytech.cn |

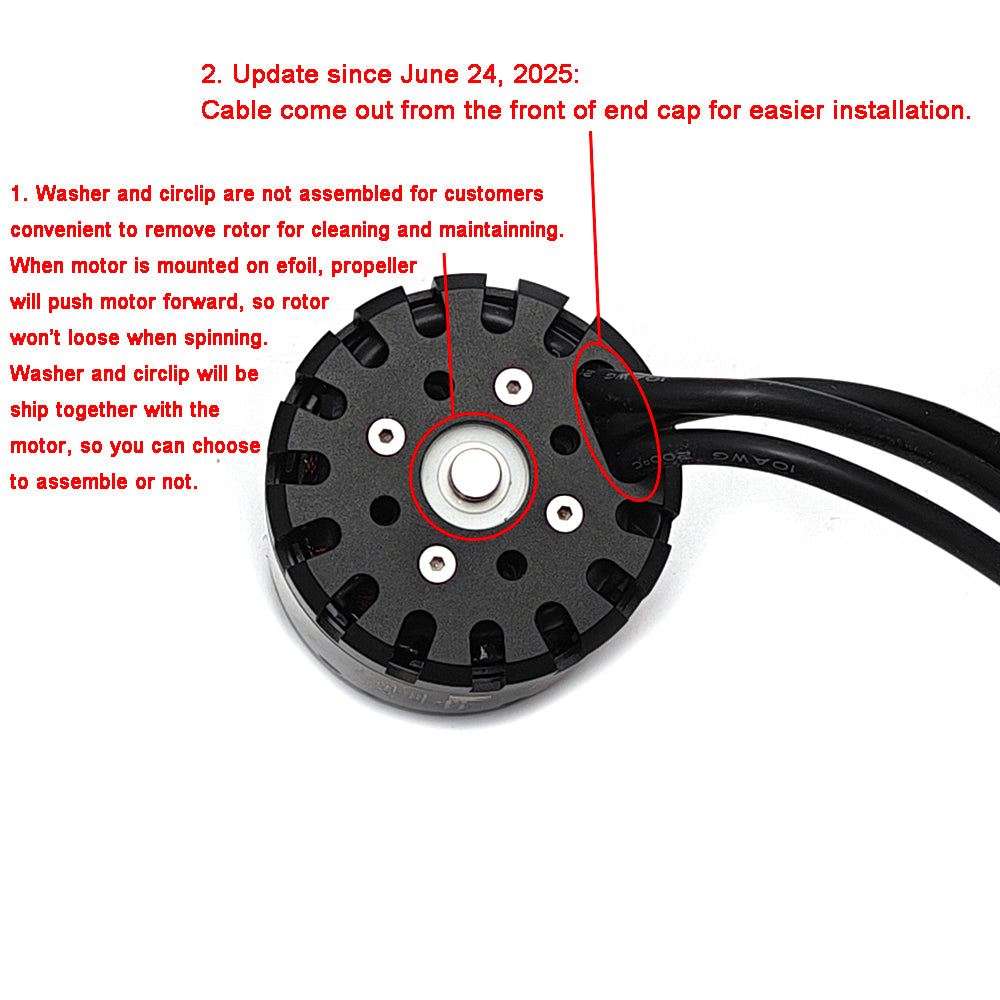

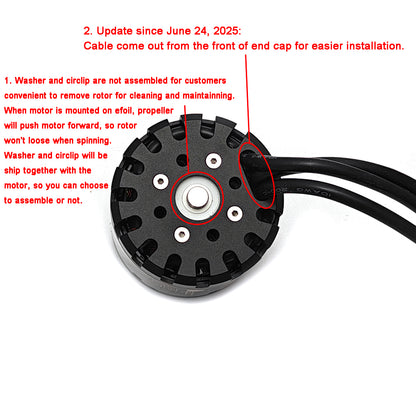

Tips of usage:
In order to increase the motor lifespan, please take apart the rotor and stator, clean stator and rotor with fresh water after every time use, must remove salt on the surface of magnets and lamination, then keep them all dry, after all dried, please apply anti-rust paint or anti-corrossion protection on rotor and stator for maintainence.

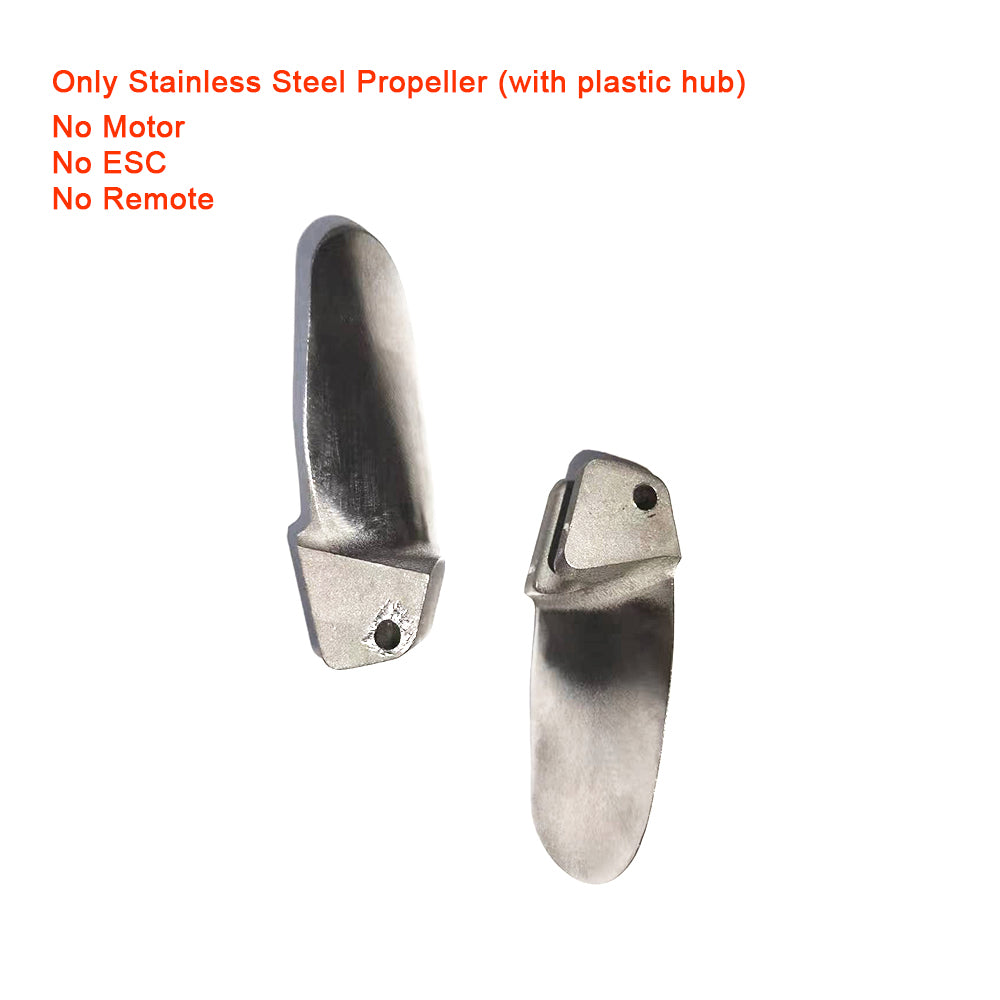

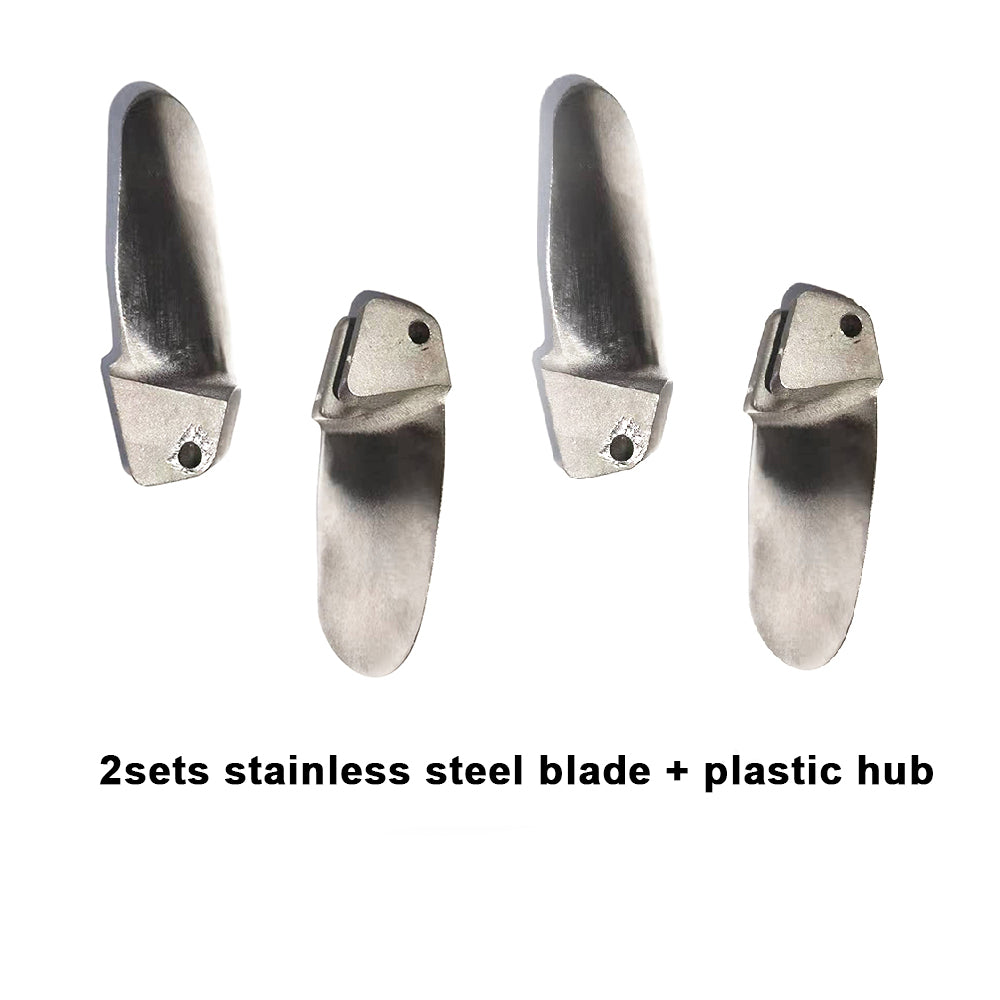

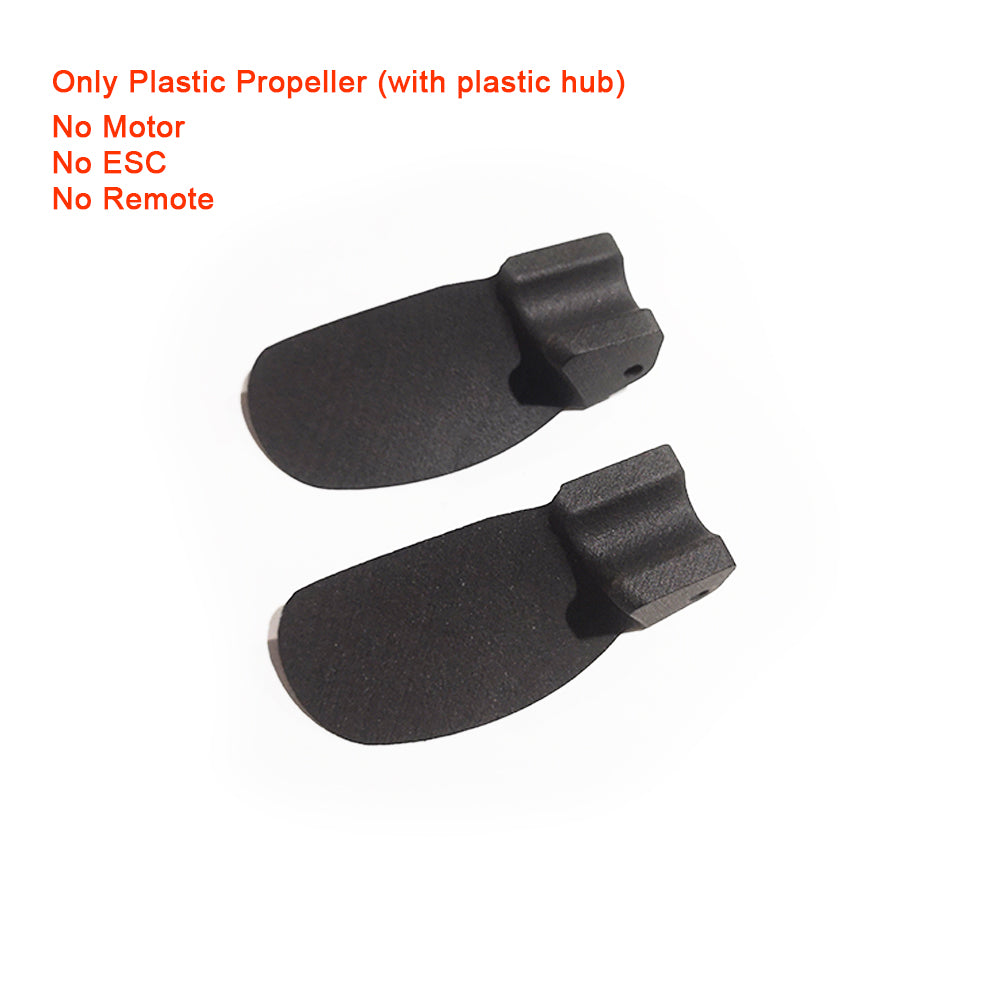

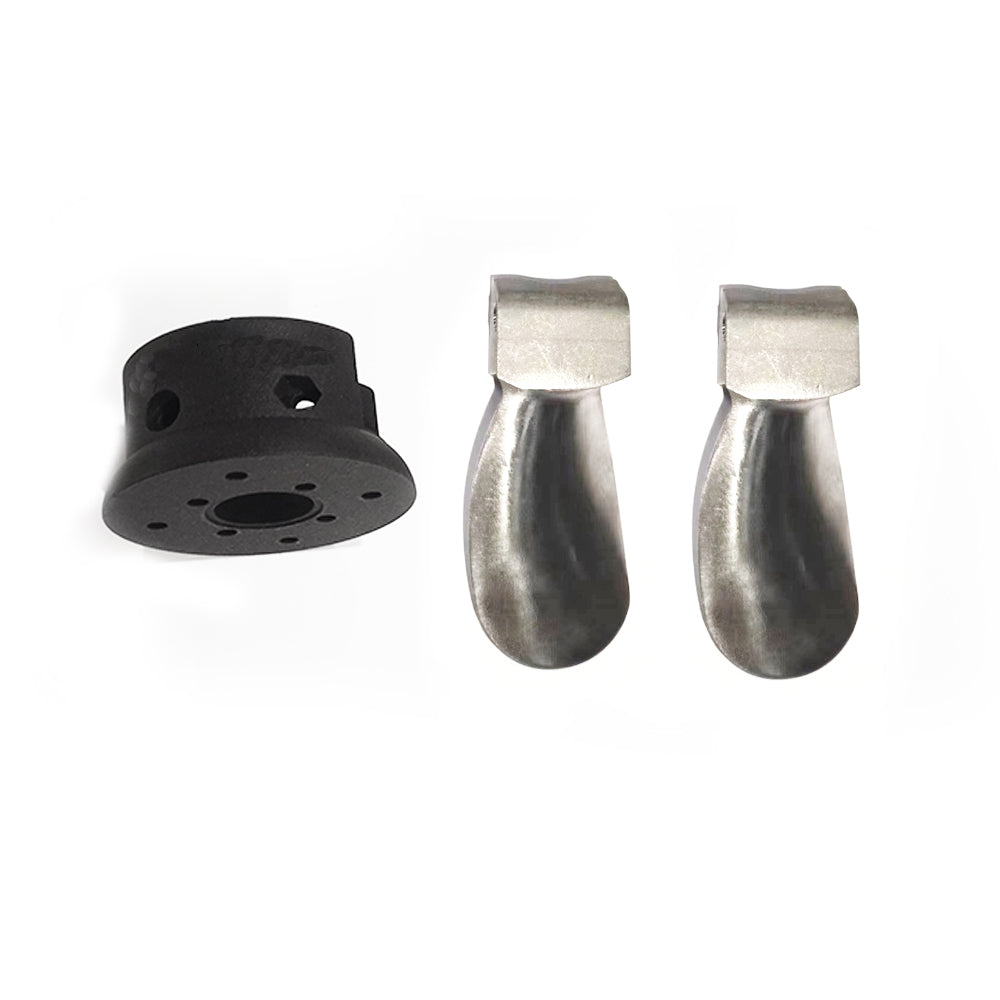

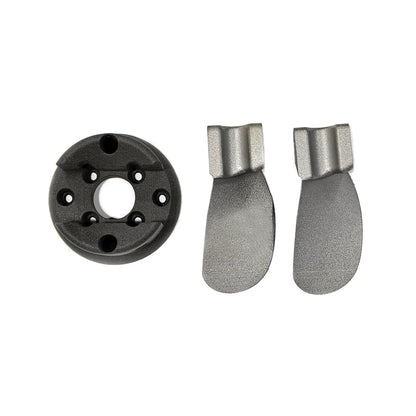

Both types are in stock, please choose the one you need.

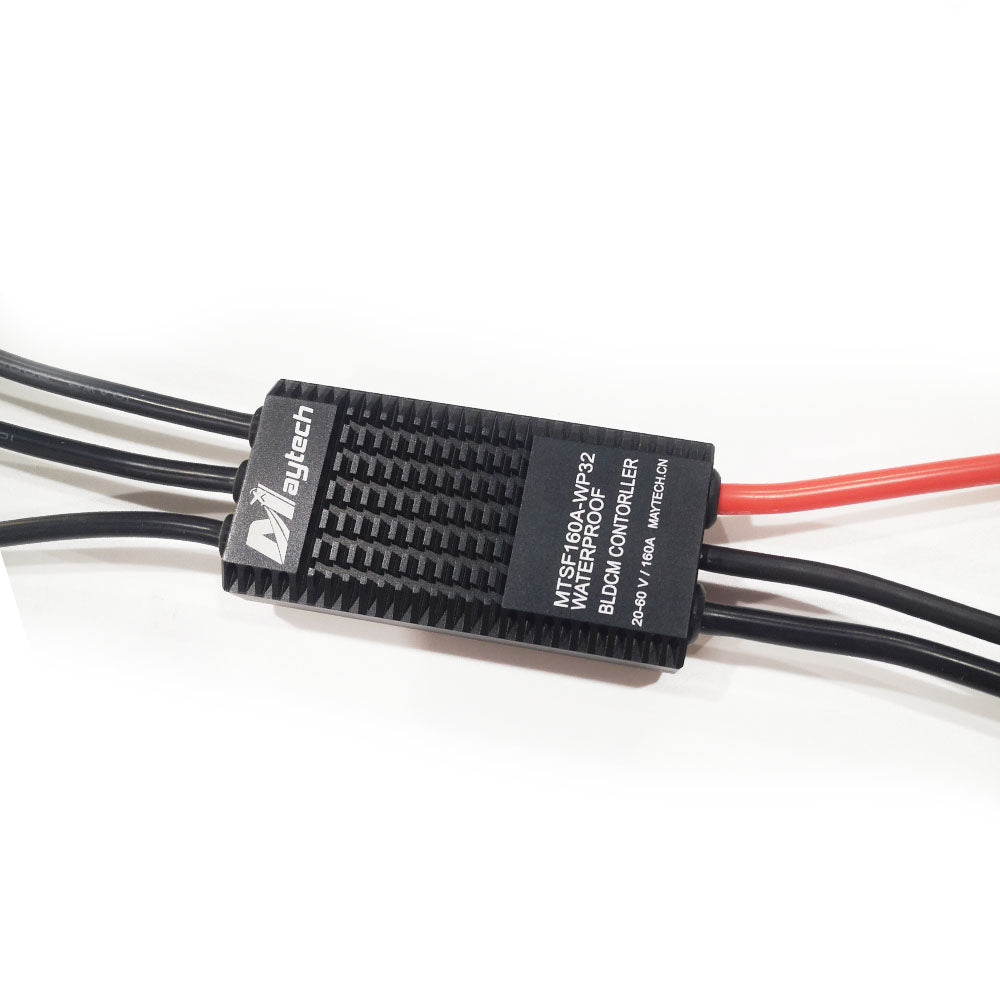

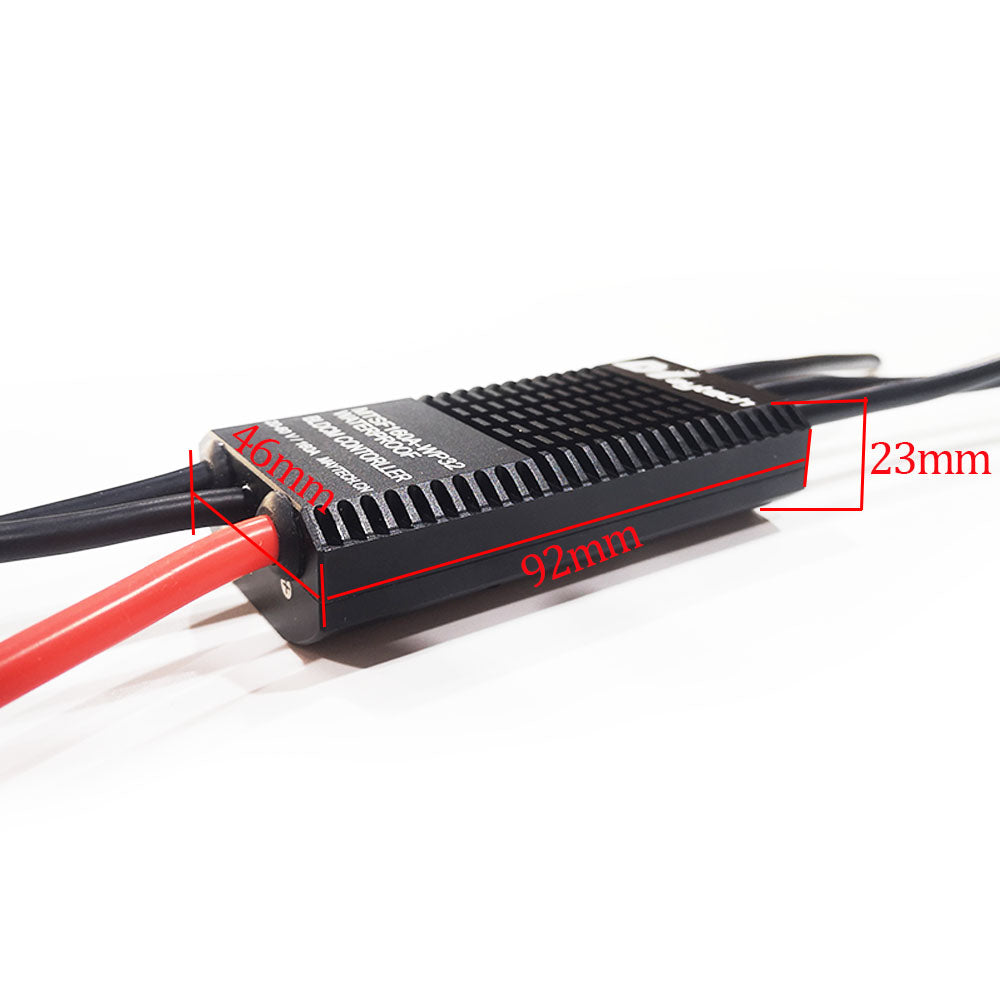

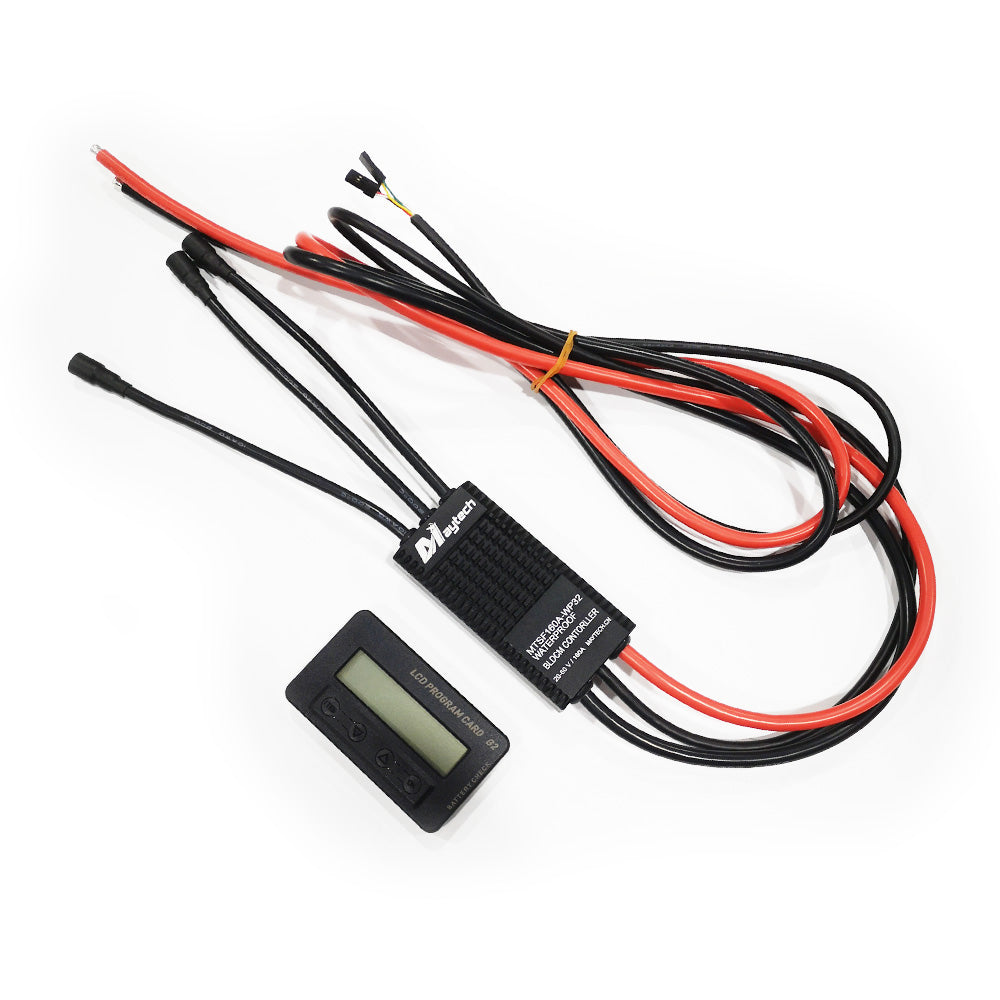

2. MTSF160A-WP32 160A 32Bit IP68 Waterproof ESC:
| Model No. | MTSF160A-WP32 |
| Waterproof Rank | IP68 |
| Cont Current | 160A |
| Peak Current | 180A |
| Input Voltage | 20-48V in this kit |
| BEC | With 5.5V/2A BEC |
| Connector |
With 3x 8.0mm female bullet connector on motor cable side No connector on battery cable side |
| MCU | 32BIT Micropprocessor |

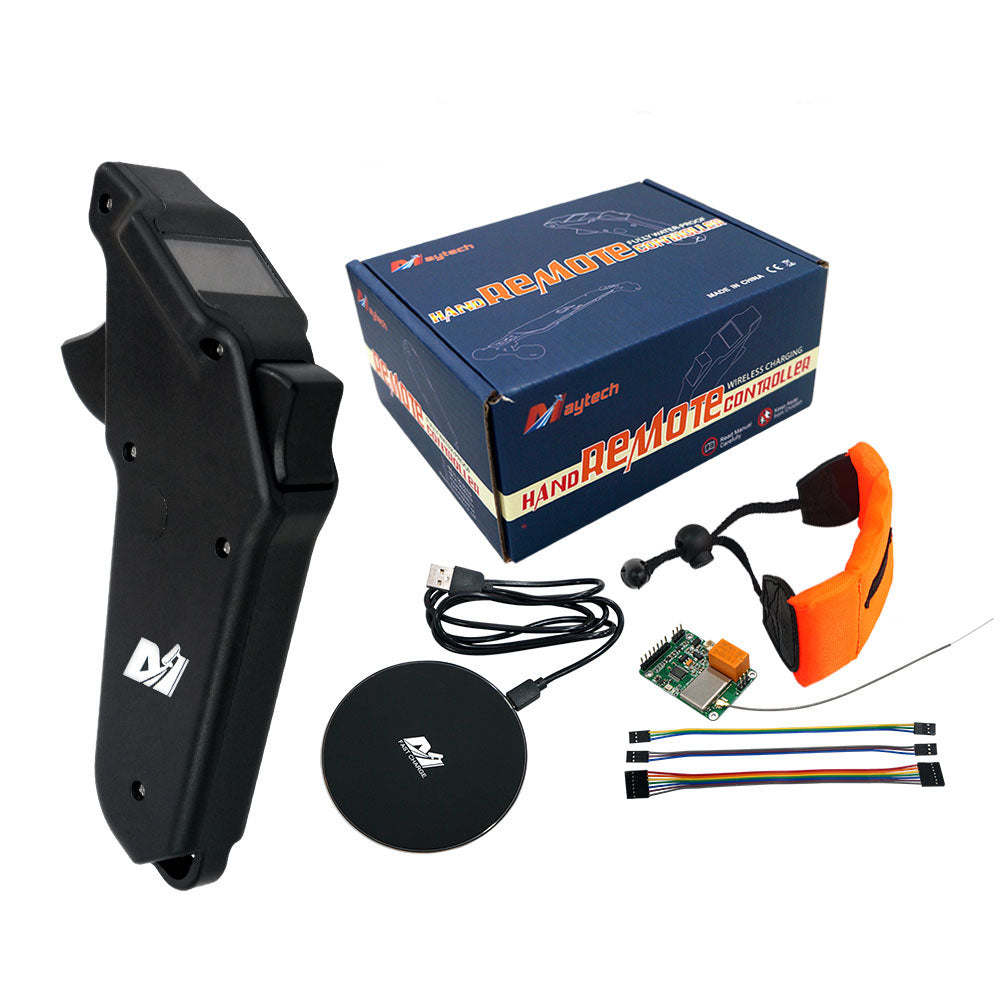

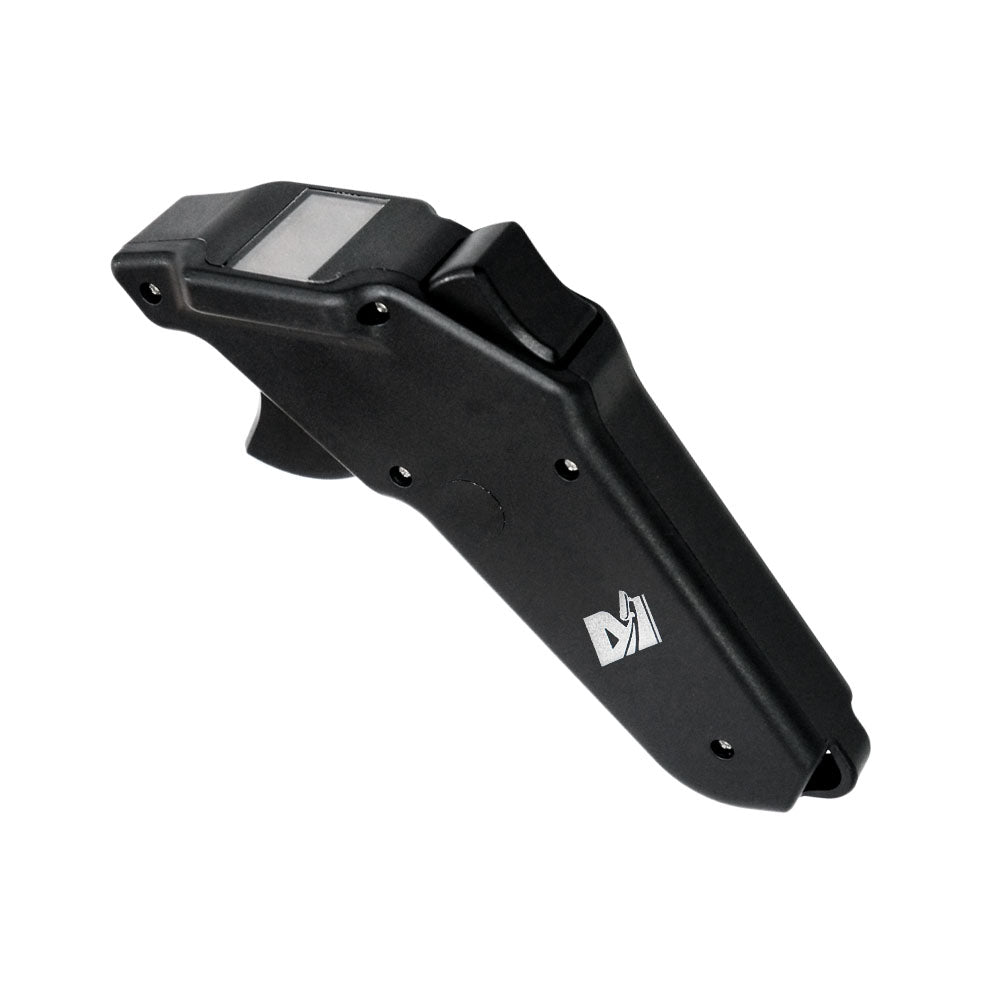

3. MTSKR1905WF V3.0 IP67 waterproof remote
| Model No | MTSKR1905WF V3.0 |
| Waterproof Rank | IP67 double waterproof |
| Thr Mode | ESURF (SF) and ESK8 (SK) |
| 3 Speed Modes | With, adjust throttle % from 20-100% |
| Power Modes | 2 levels, Eco (Level 1) < Pro (Level 2) |
| Throttle Lock | Yes, 10-30S optional |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display Parameters |
Signal strength, remote and battery power bars, battery voltage, RPM with VESC and other ESCs |
| Control Pump | Yes (Relay Switch) |
| Control Light | Yes (Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake | With in Esk8 Mode |

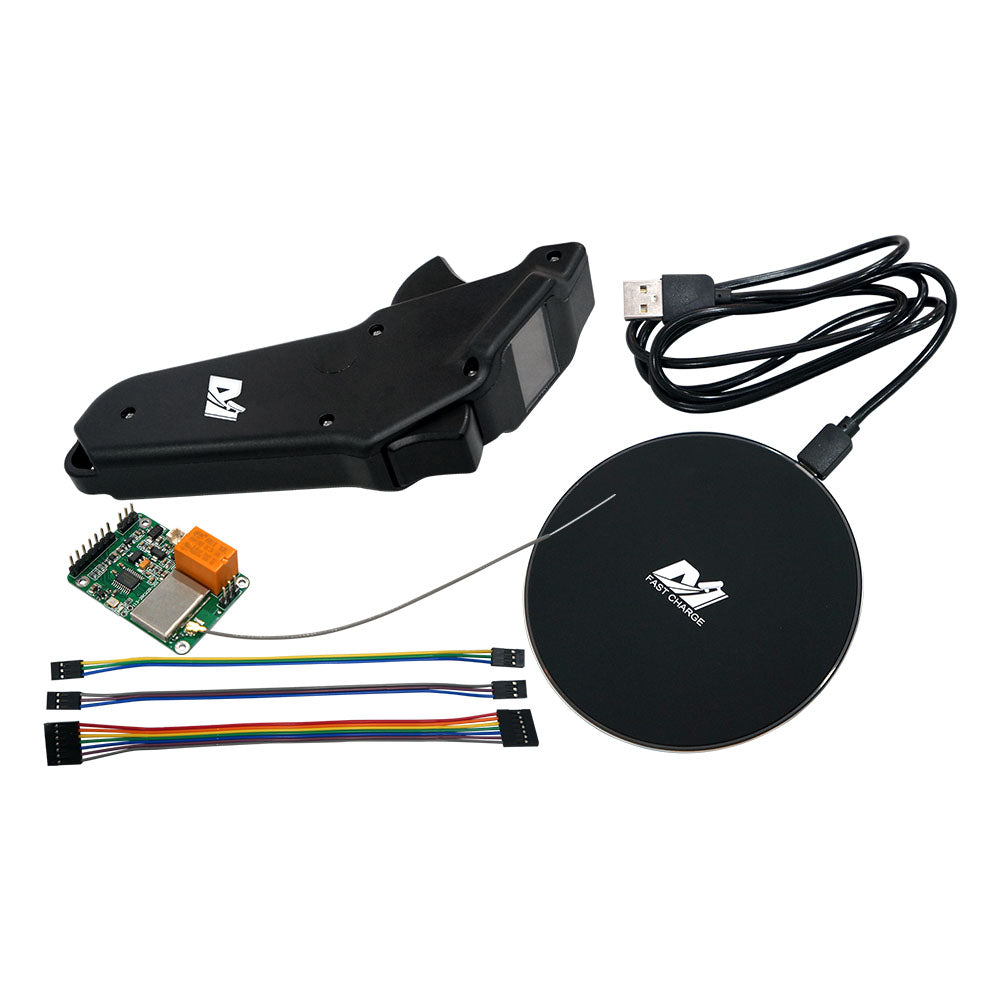

| Accessories | Wirelss charging pad / Receiver / USB cable / Wristband / 3pcs Dupond cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
| Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |
> Get E-Manual: Remote Manual and Instruction
> Check Video Using Instruction
4. Customer's Feedbacks ！
Stock Notice Before Place Order:
1. Stock items will be shipped in 24 working hours, if your order is not in stock, we will contact you.
