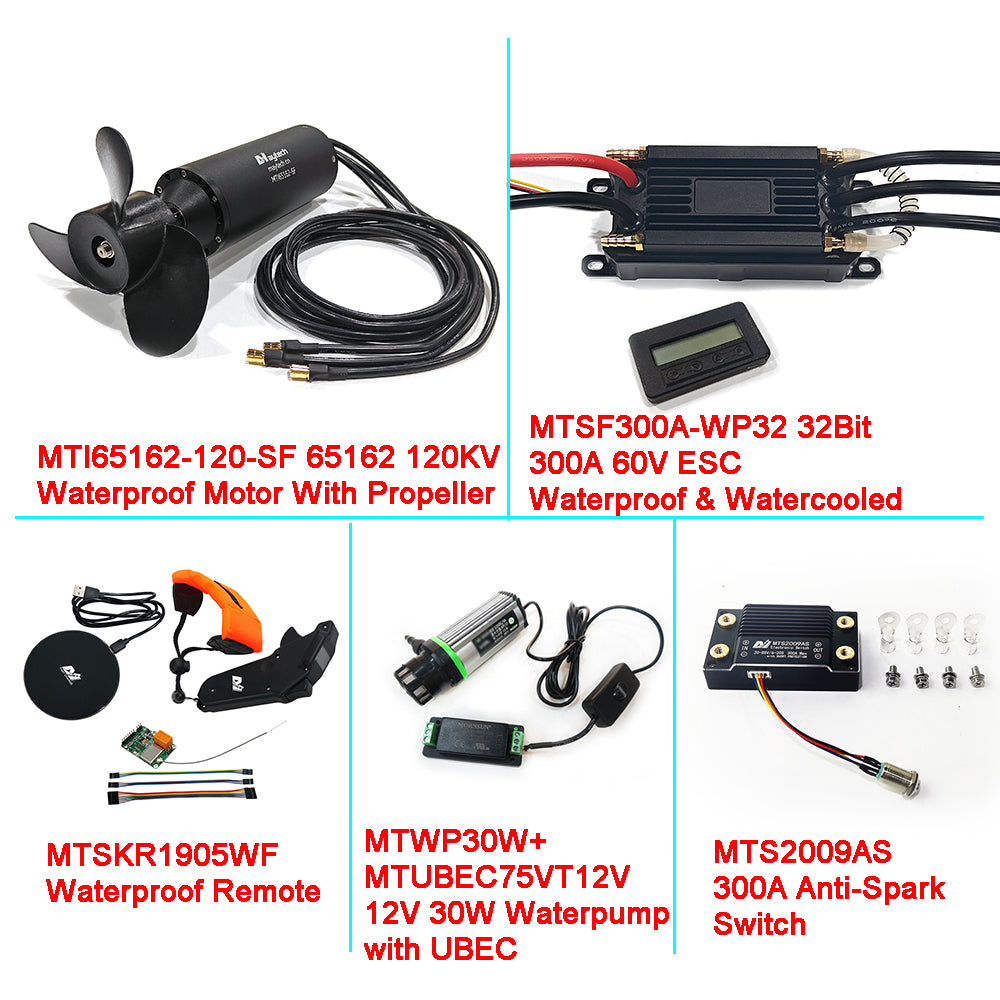

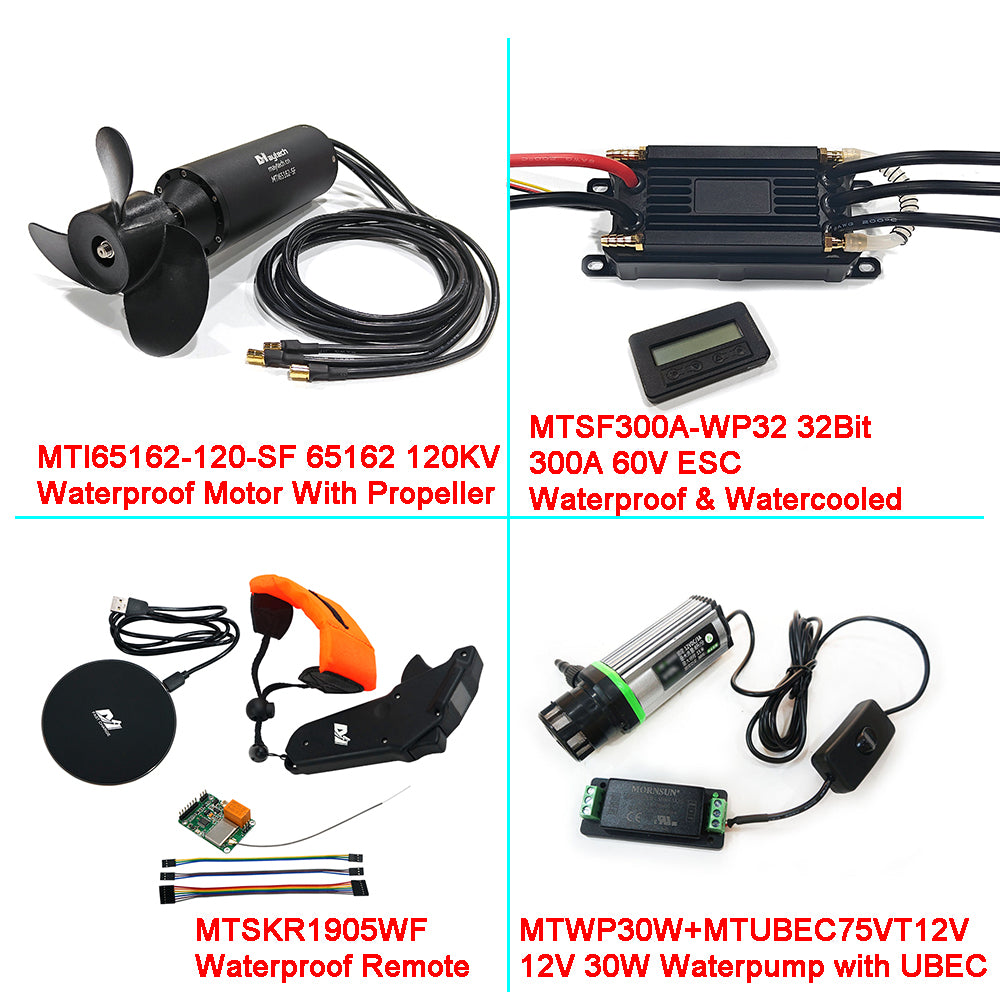

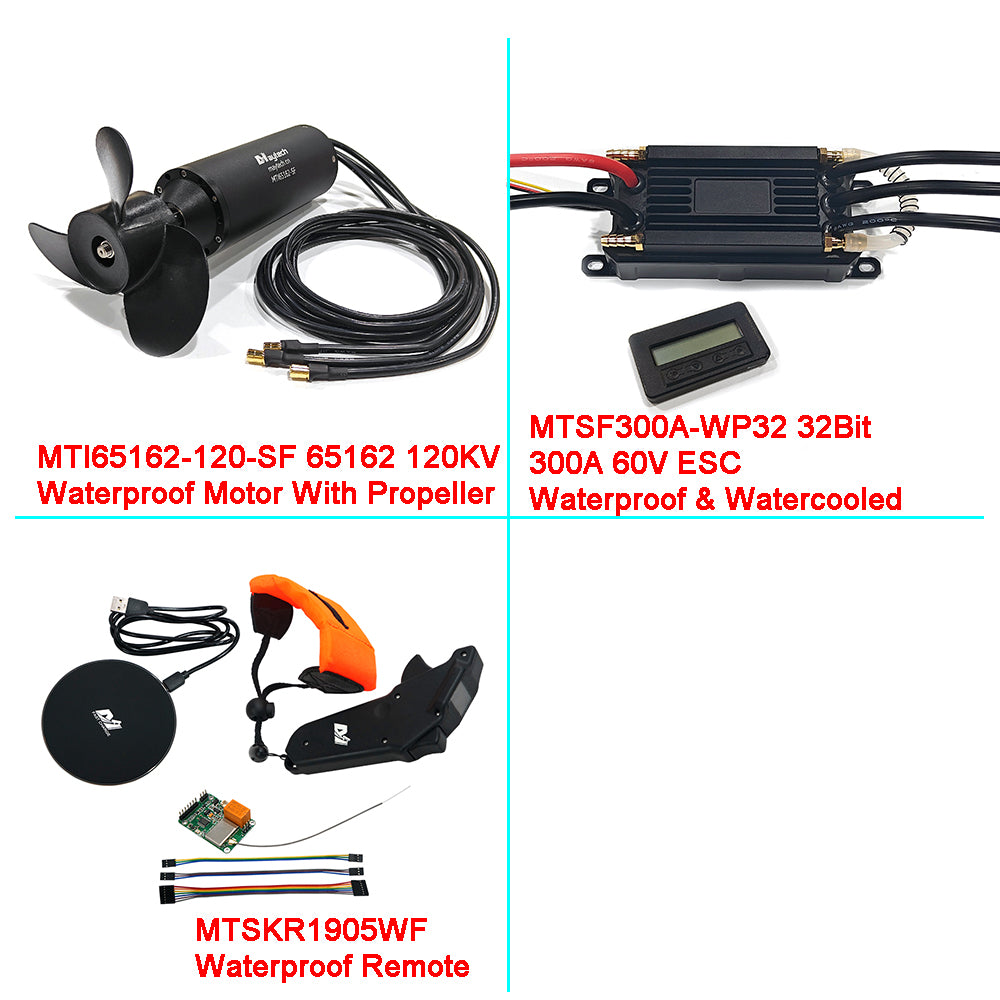

Fully Waterproof Efoil Kits with MTI65162 Motor + New 300A 32Bit ESC + 1905WF Remote + MTS2009AS Switch + 12V 30W Water Pump
Fully Waterproof Efoil Kits with MTI65162 Motor + New 300A 32Bit ESC + 1905WF Remote + MTS2009AS Switch + 12V 30W Water Pump
Regular price
$942.80 USD
Regular price
Sale price
$942.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

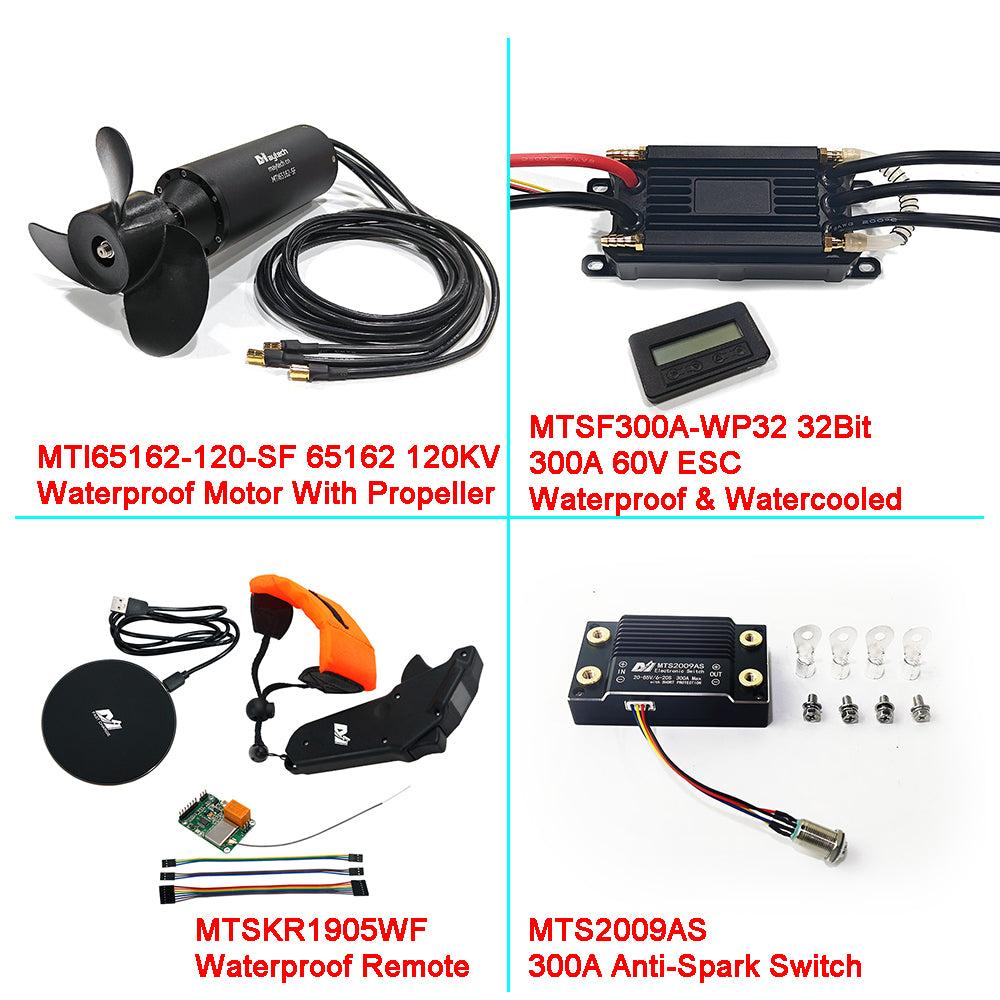

Maytech Fully Waterproof Efoil Kits with MTI65162 Motor + 300A ESC + 1905WF Remote + Progcard for Electric surfboard, Efoil, jetfoiler, electric hydrofoil, countercurrent swiming training, etc.,

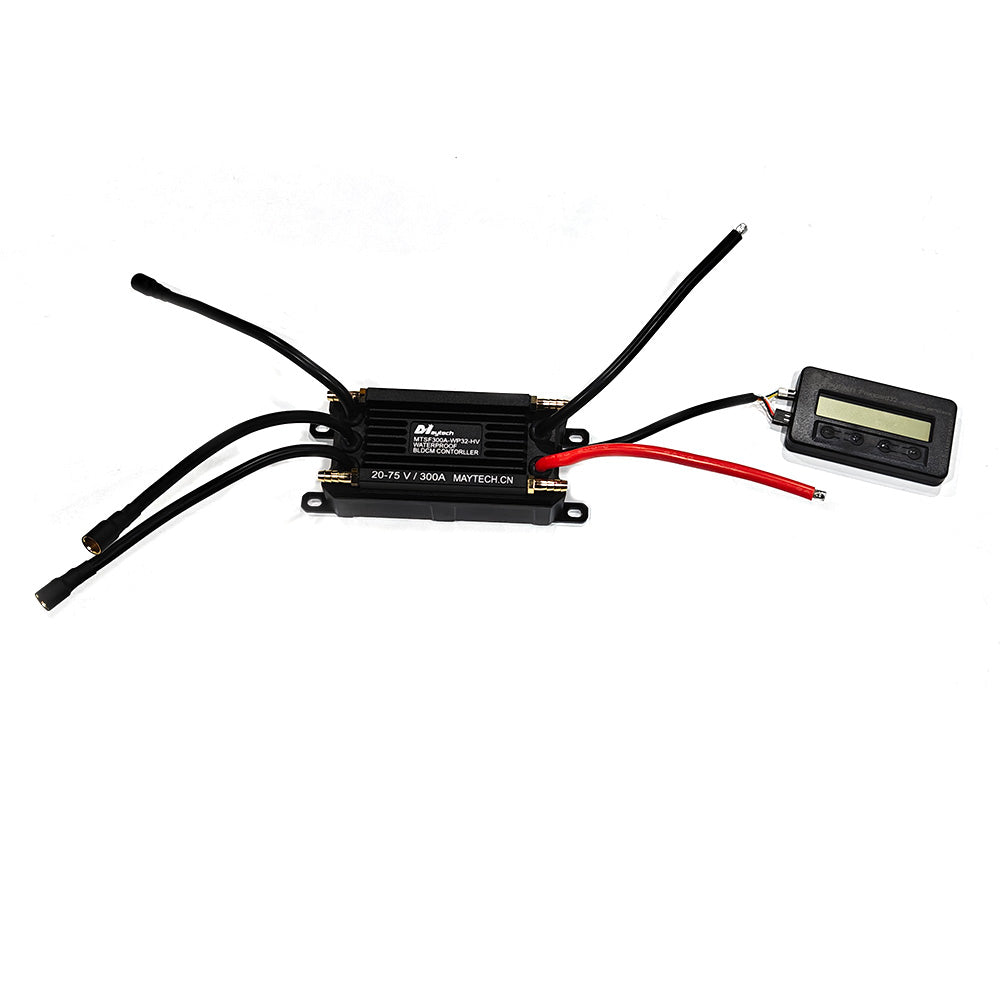

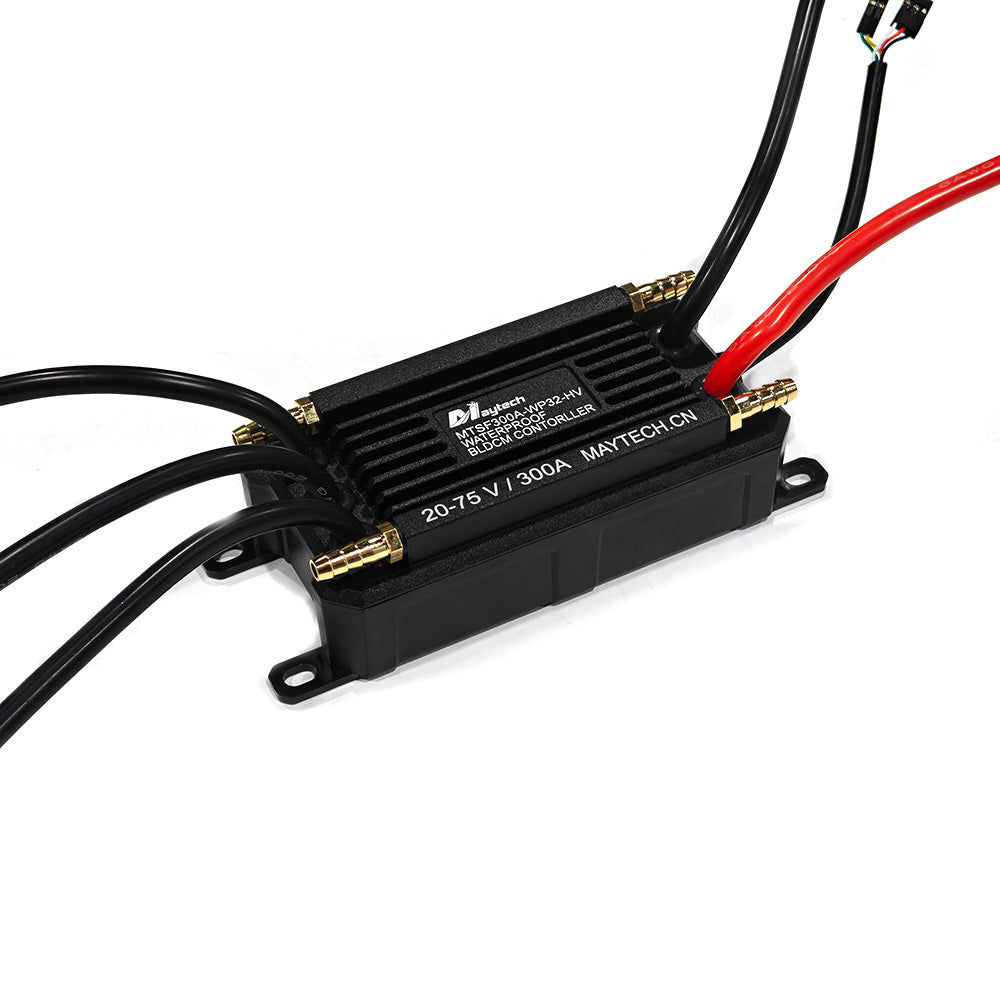

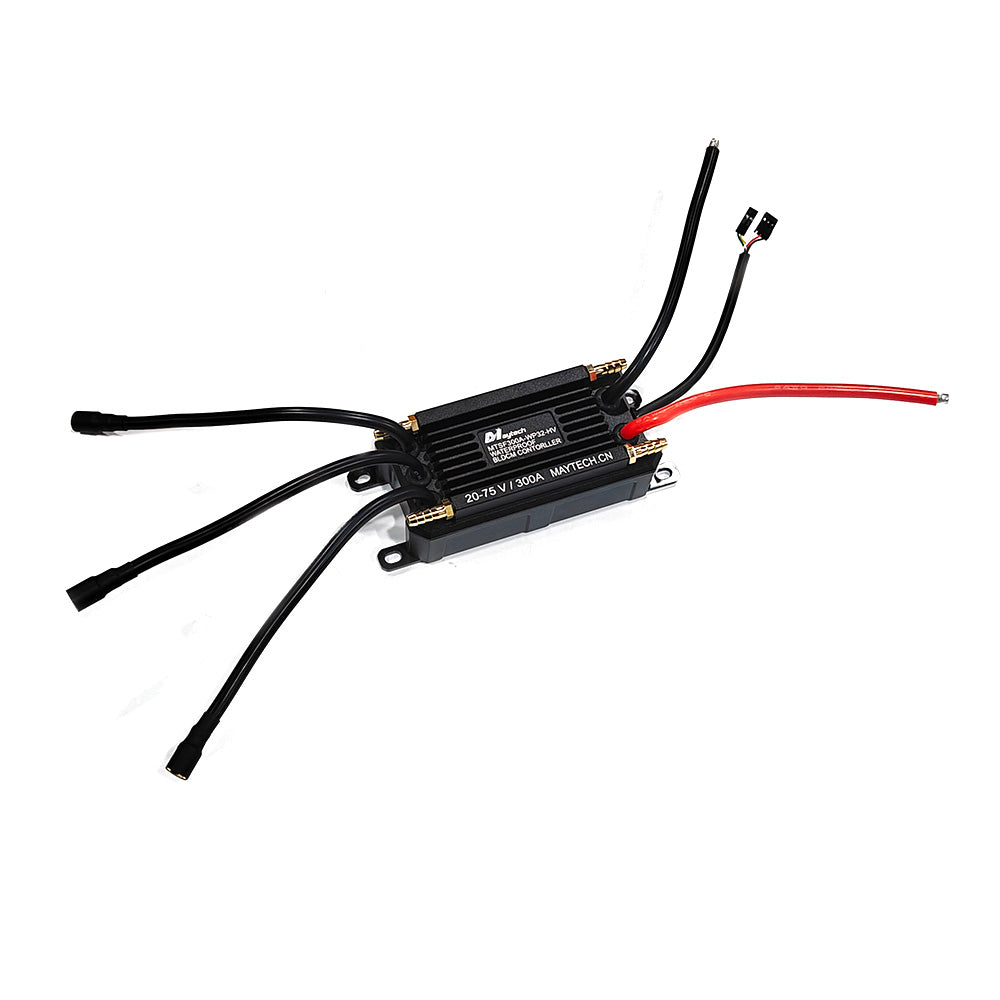

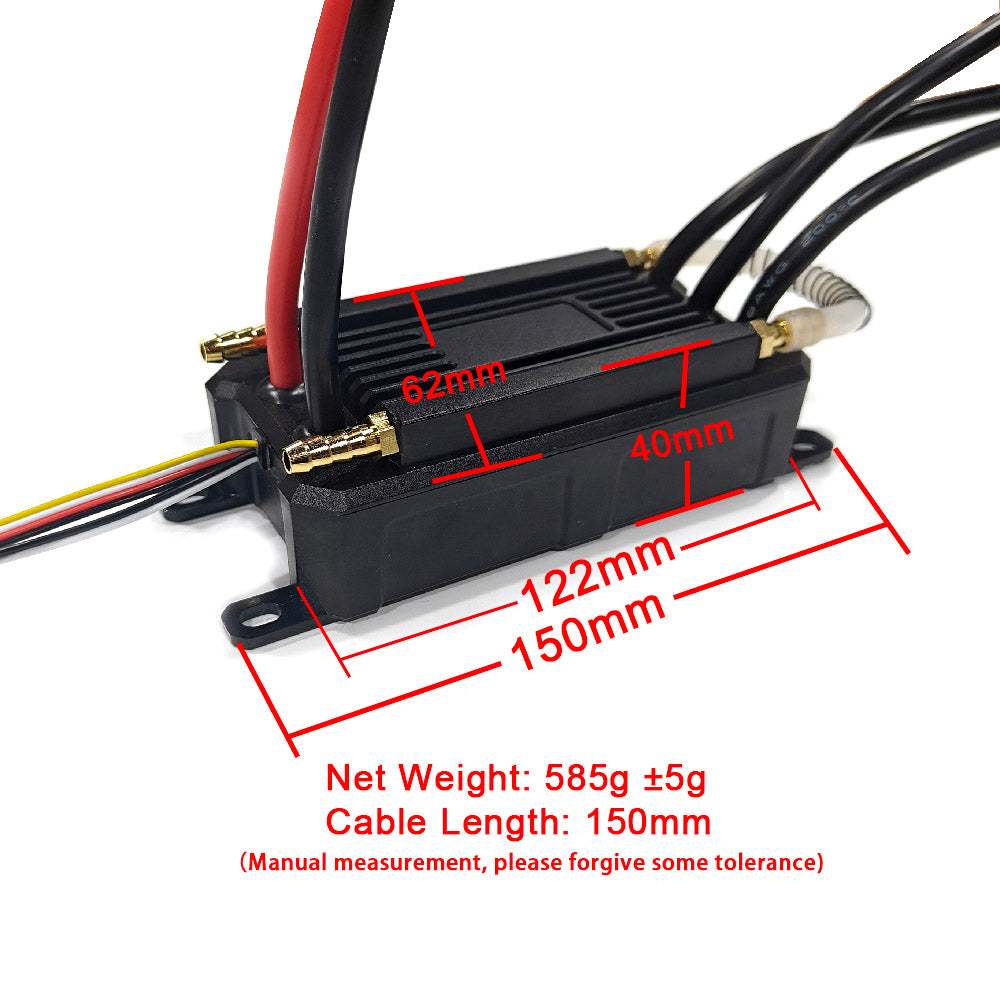

1. MTSF300A-WP32 6-14S Lipo New 32Bit ESC:
Specification:

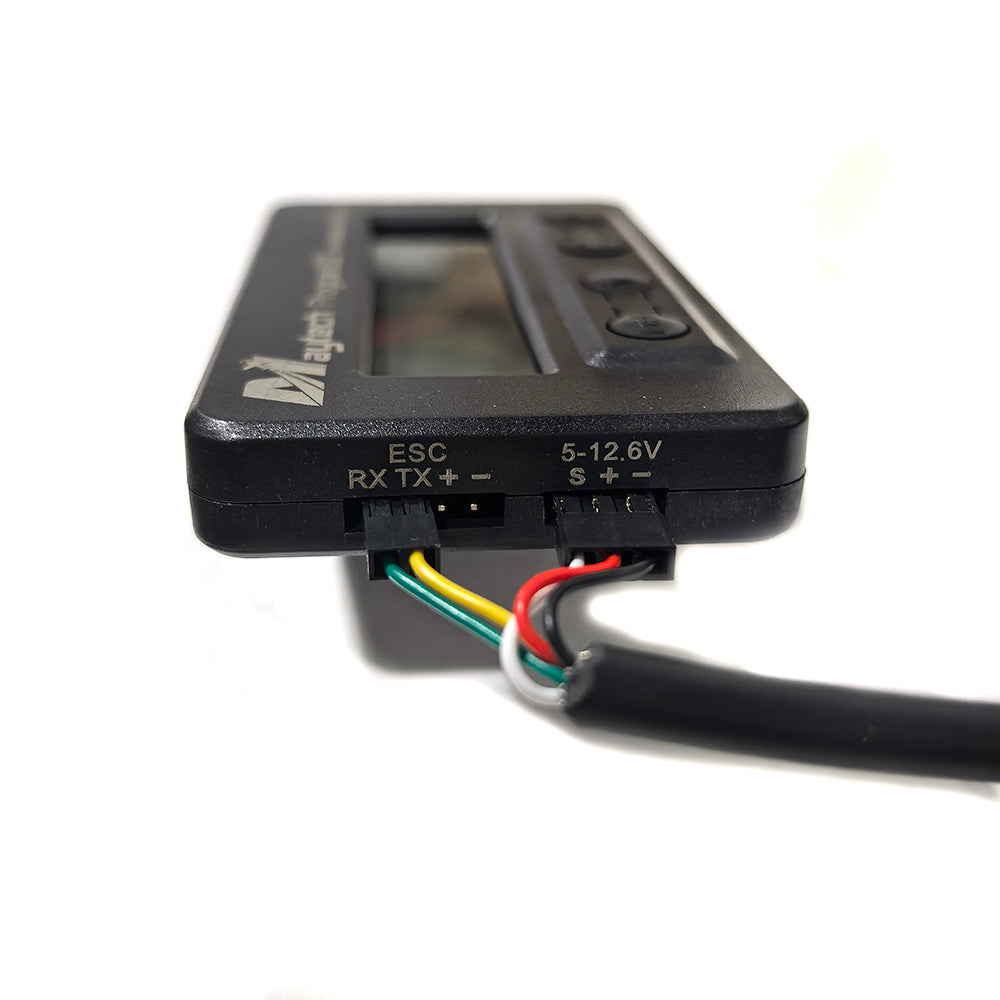

Model No.: MTSF300A-WP32 with Progcard32
Waterproof Rank: IP68
Cont Current: 300A
Peak Current (at 10S): 320A
Input Voltage: 6-14S Lipo (22.2V-60V)
Cable Guage: 8AWG
Max ERPM: 100000
32BIT Micropprocessor
Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.,

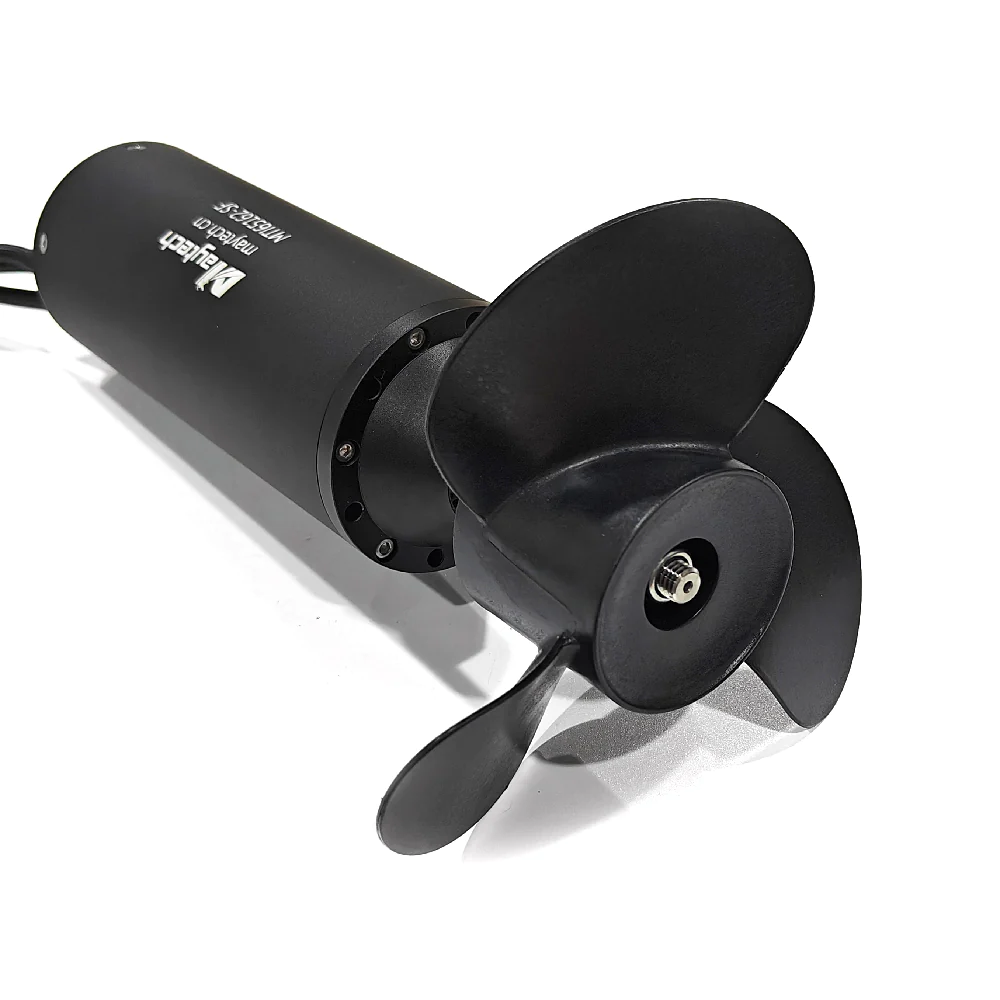

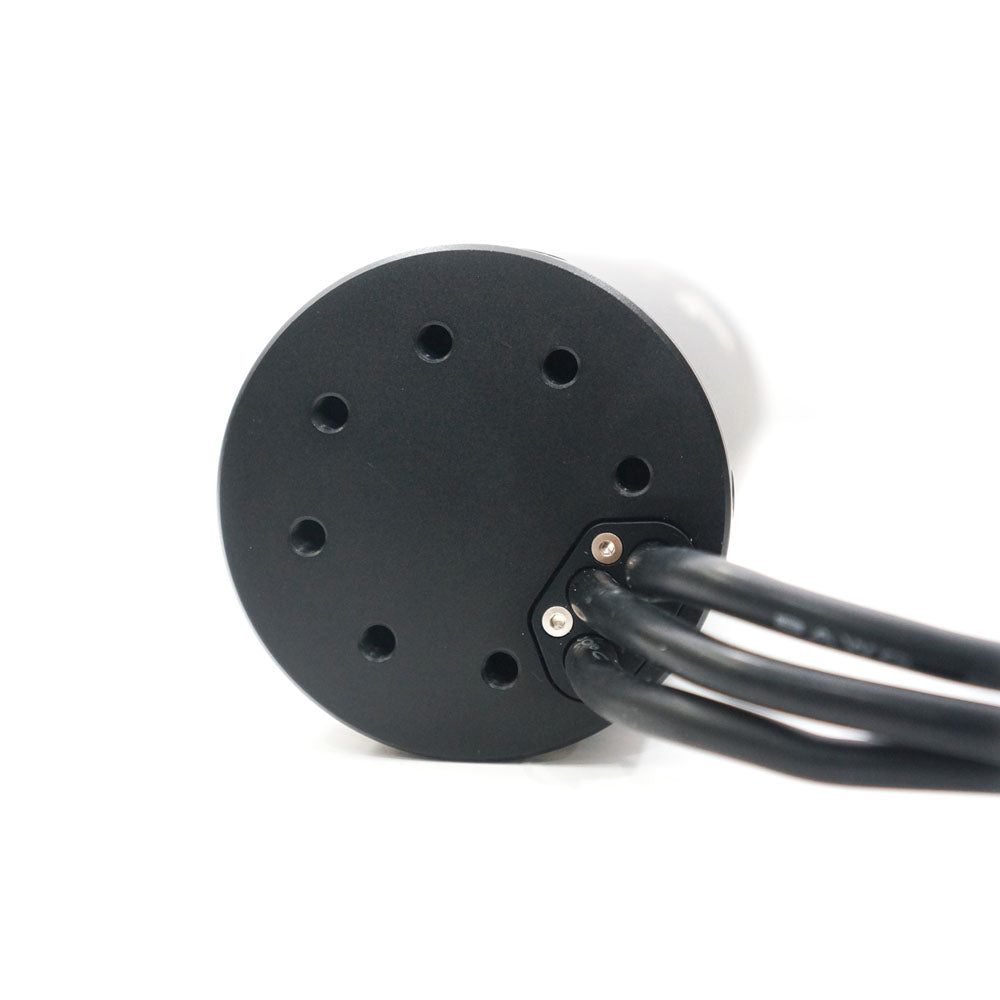

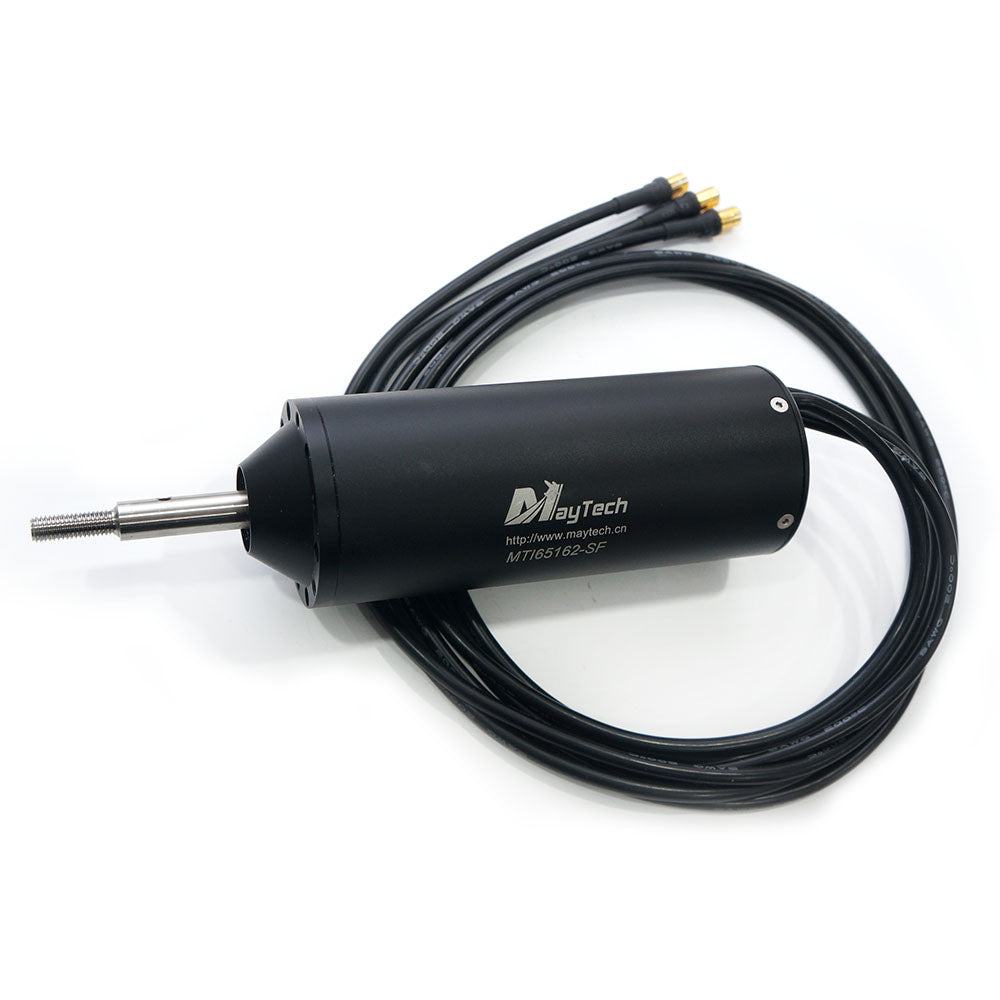

2. MTI65162 Inrunner Waterproof Motor
| Model No. | MTI65162-120-SF |
| KV | 120, if you want other KV, contact agnes@maytech.cn |
| Shaft | Screw Shaft |
| Input Voltage | 6-14S Lipo (25V-58.8V) |
| Waterproof Rank | IP68 |
| Max Current | 300A |
| Max Output Power | 9KW |
| Pole Number | 6 poles |
| Max Torque | 10N.m |
| Connector | 8.0mm male gold-plated bullet connector |
| Hall Sensor | Without |

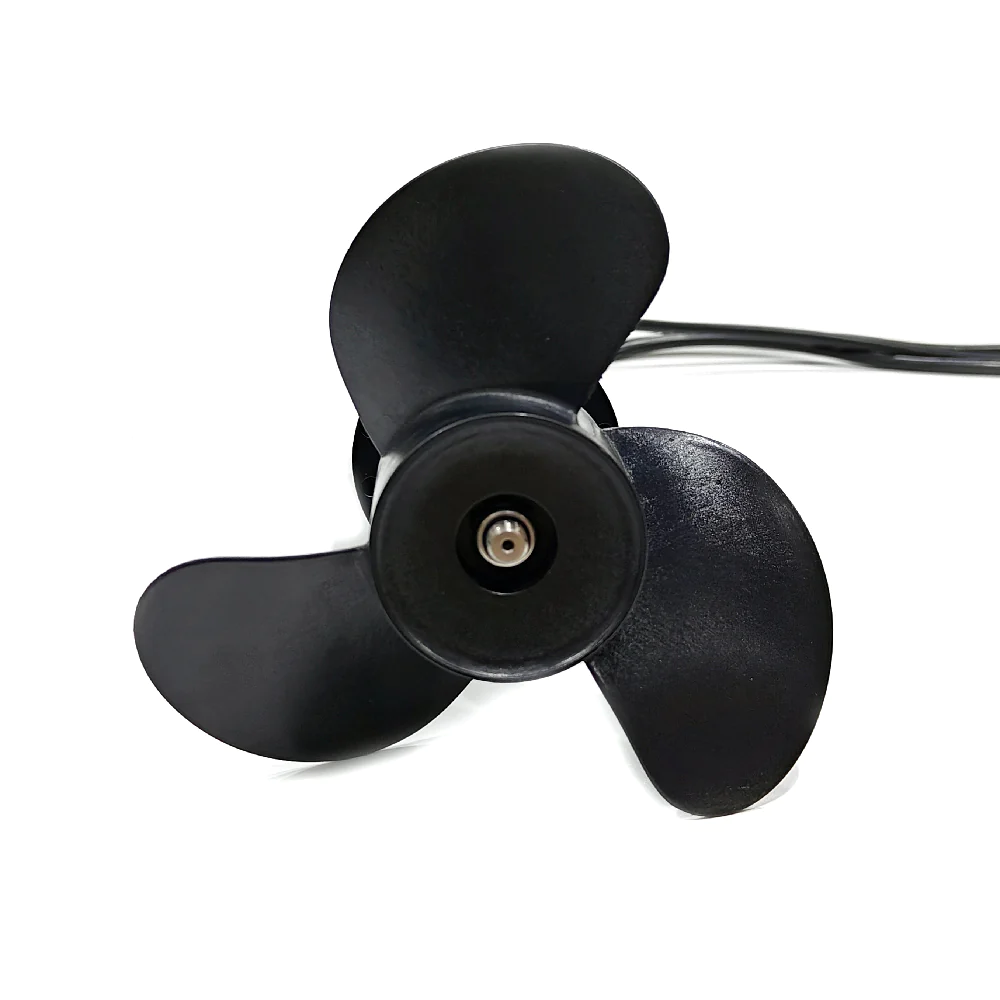

| Propeller | Optional for 120KV |
| Customize | KV, logo, shaft, cable, connector, cover, case, etc., contact agnes@maytech.cn |

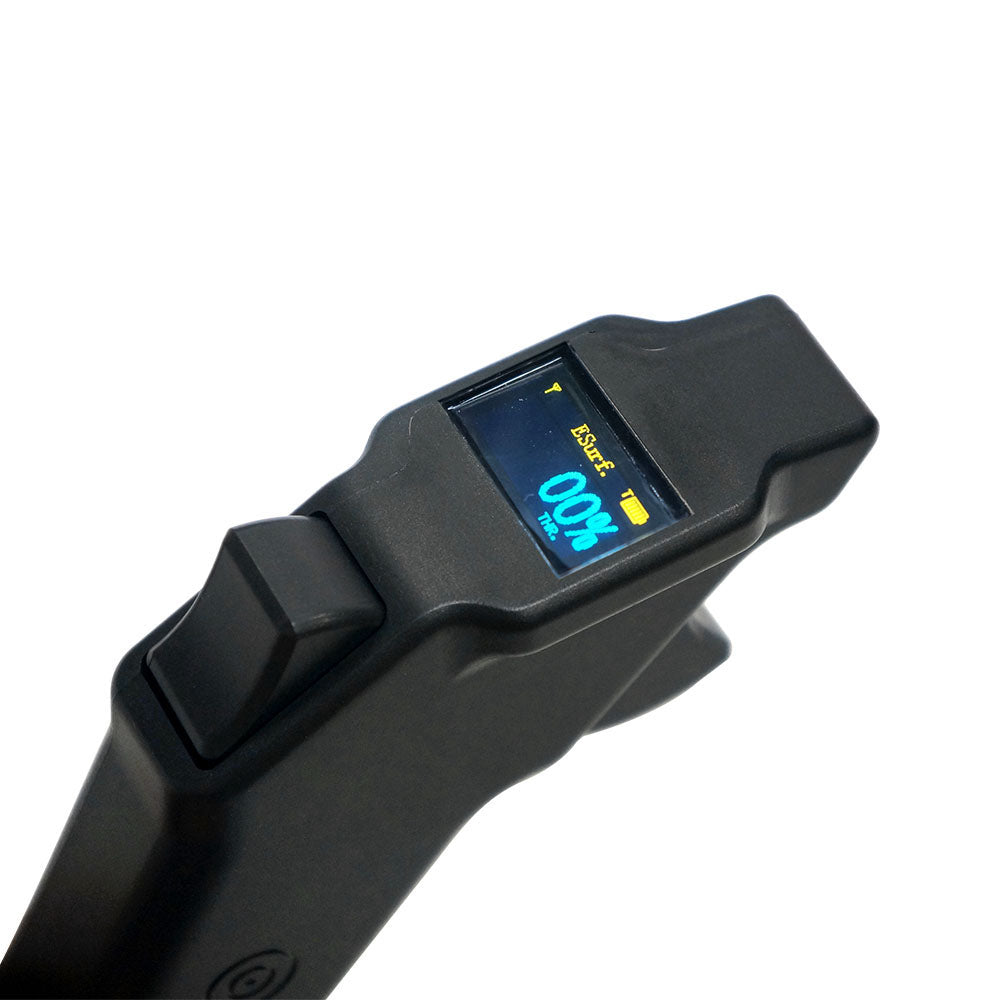

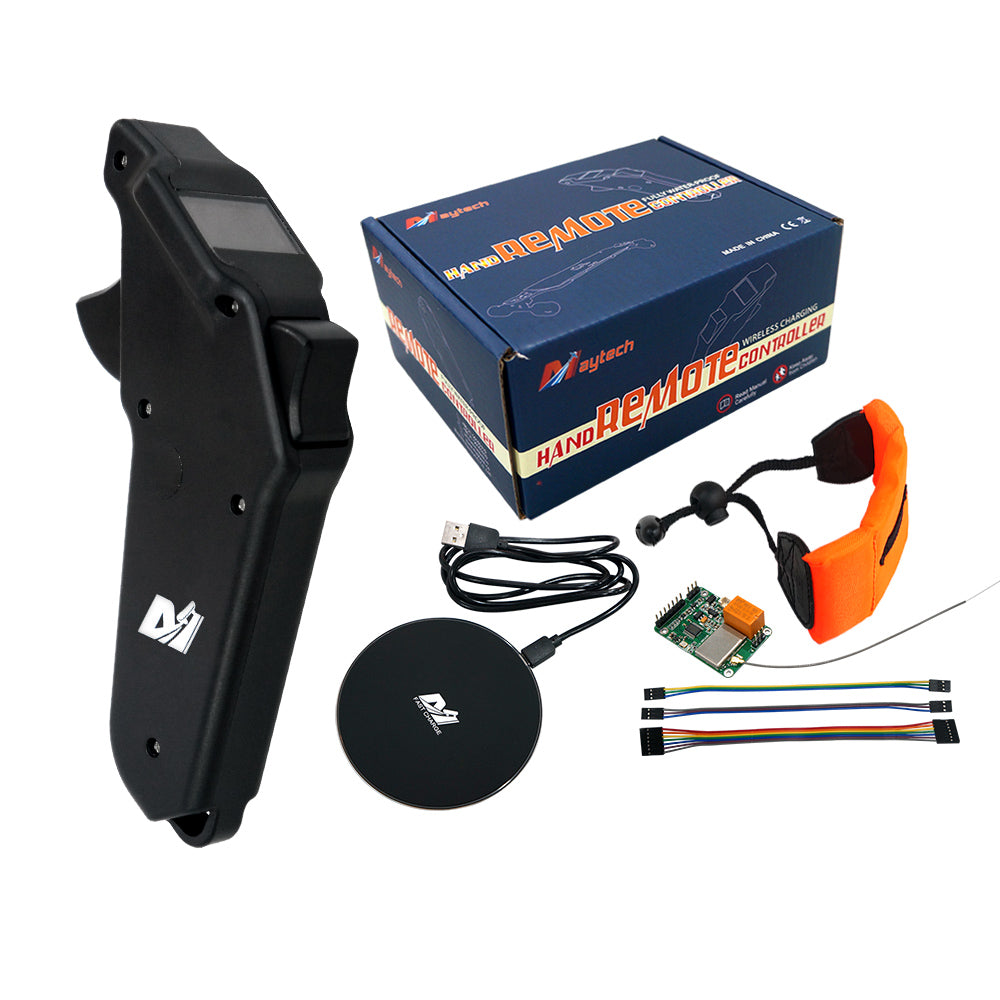

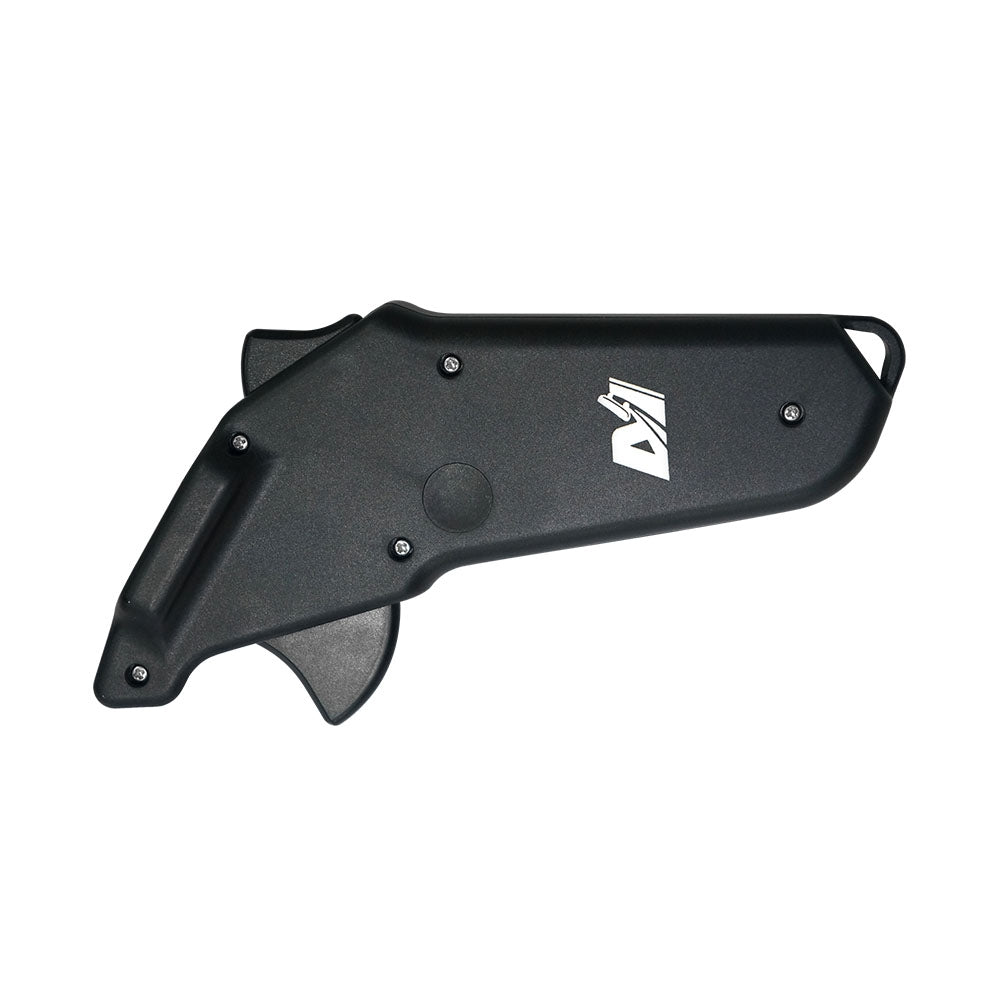

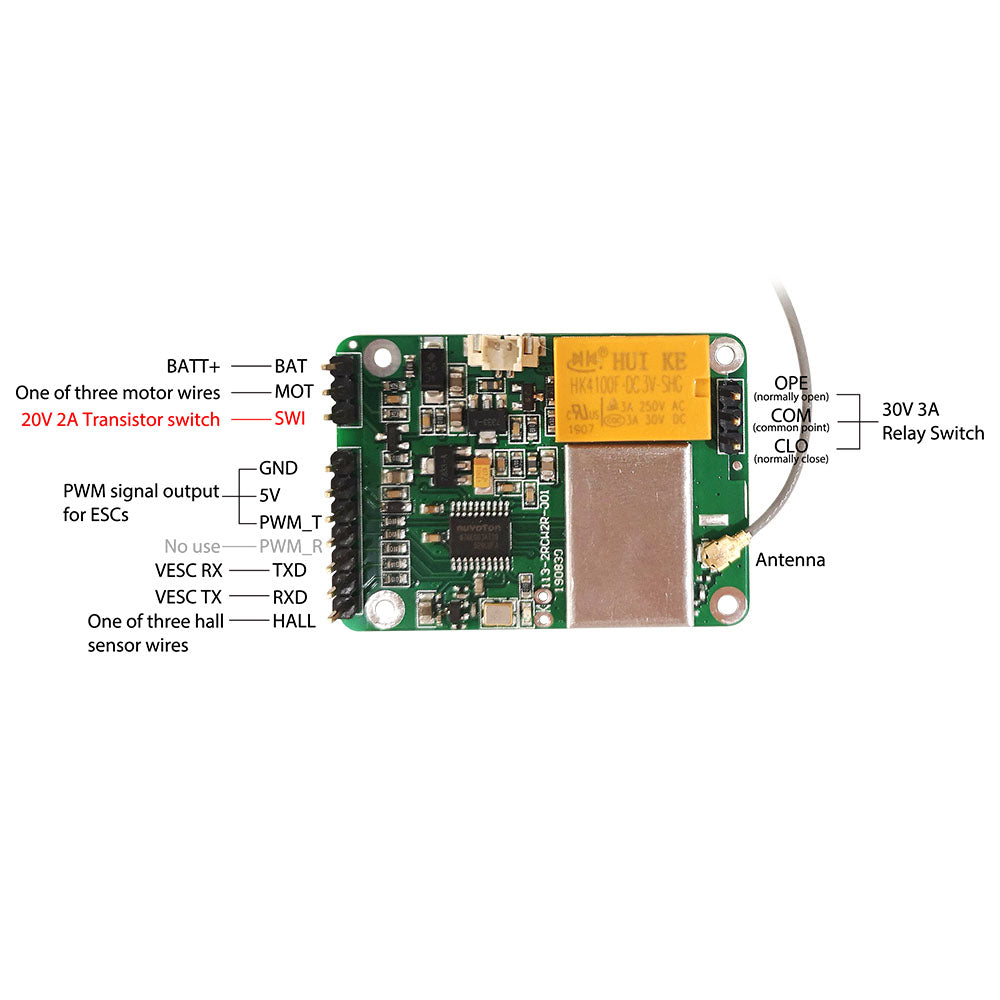

3. Remote: MTSKR1905WF IP67 Waterproof Remote for Esurf, with PWM & UART Receiver
| Model No | MTSKR1905WF V3.0 |
| Waterproof Rank | IP67 double waterproof |
| Thr Mode | ESURF (SF) and ESK8 (SK) |
| 3 Speed Modes | With, adjust throttle % from 20-100% |
| Power Modes | 2 levels, Eco (Level 1) < Pro (Level 2) |
| Throttle Lock | Yes, 10-30S optional |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display Parameters |
Current, voltage, temperature only when work with VESC or Maytech MTSF300A-WP32 ESC; |
| Control Pump | Yes (Relay Switch) |
| Control Light | Yes (Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake | With in Esk8 Mode |
| Accessories | Wirelss charging pad / Receiver / USB cable / Wristband / 3pcs Dupond cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
Updated functions:
1. Add 3 speed modes options:
Could compatible with Maytech new small MTSF300A-WP32 ESC and can display voltage, current, temperature, etc parameters
2. Stronger Signal and optional
Remote and receiver signal strength is enhenced to avoid some signal interference nearby, and with 2 levels signal strength optional in the remote, level 1 weaker signal but save power, level 2 stronger signal more consumption.
3. Better Waterproof Performance:
4. Compatible with Maytech new MTSF300A-WP32 ESC
Could compatible with Maytech new small MTSF300A-WP32 ESC and can display voltage, current, temperature, etc parameters
5. Display Voltage in %
Can display voltage %, so you can know when it's low voltage and charge in time
6. Throttle Lock Function
Add throttle lock function, you can set lock time from 10-30s, safer to use
> Get E-Manual: Remote Manual and Instruction
> Check Video Using Instruction
4. MTS2009AS Antispark Switch
| Model No. | MTS2009AS |
| Max Current | 300A |
| Input Voltage | 6-20S Lipo (25-85V), recommend better work under 75V |
| Swith Diameter | 12mm |
| Switch Type | NMOS to realize switching on/off Power positive |
| Waterproof | No, please keep the switch in dry space |
| Connector | With 4pcs Cold-pressed Terminal Connector |
| Function | Protect your controller and power supply system when brake or startup |
| Application | Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, Airplane, VTOL, UAV, Dronesetc., |
| Features: | Switch comes with LED light indicator; Shutdown current less than 1uA; Suitable for load: three phase motor speed controller; Boot soft start; Automatic short circuit protection when boot; Automatic short circuit protection when work. |
5. Water Pump
Advice after usage:
1. To expand the products life, please better wipe off the waters on the products and keep them for all dry after everytime use.
2. For this kit of the ESC, because the motor is sensorless, suggest to use the default value in the ESC, we have tested the kit before shipment with the default value, do not suggest to modify the values.
If you have other requirement on motor KV, ESC or other questions, please contact us at agnes@maytech.cn .
