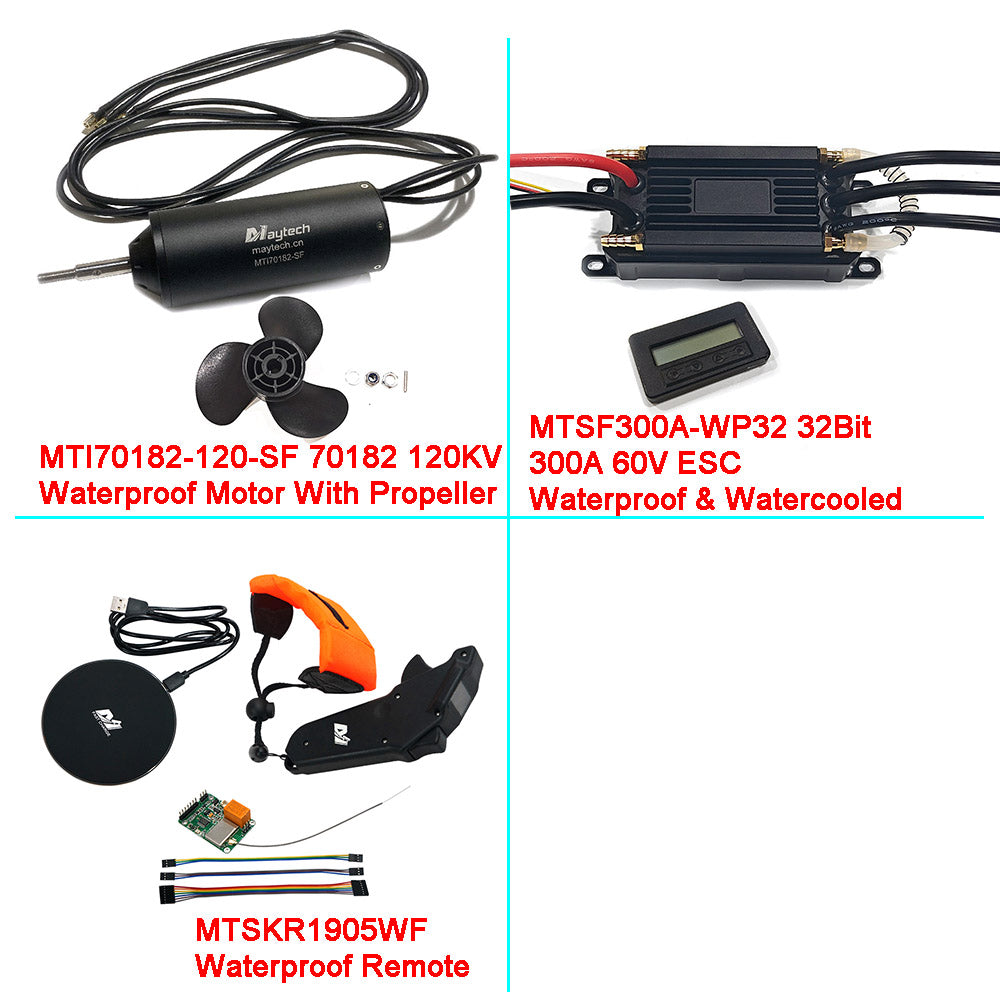

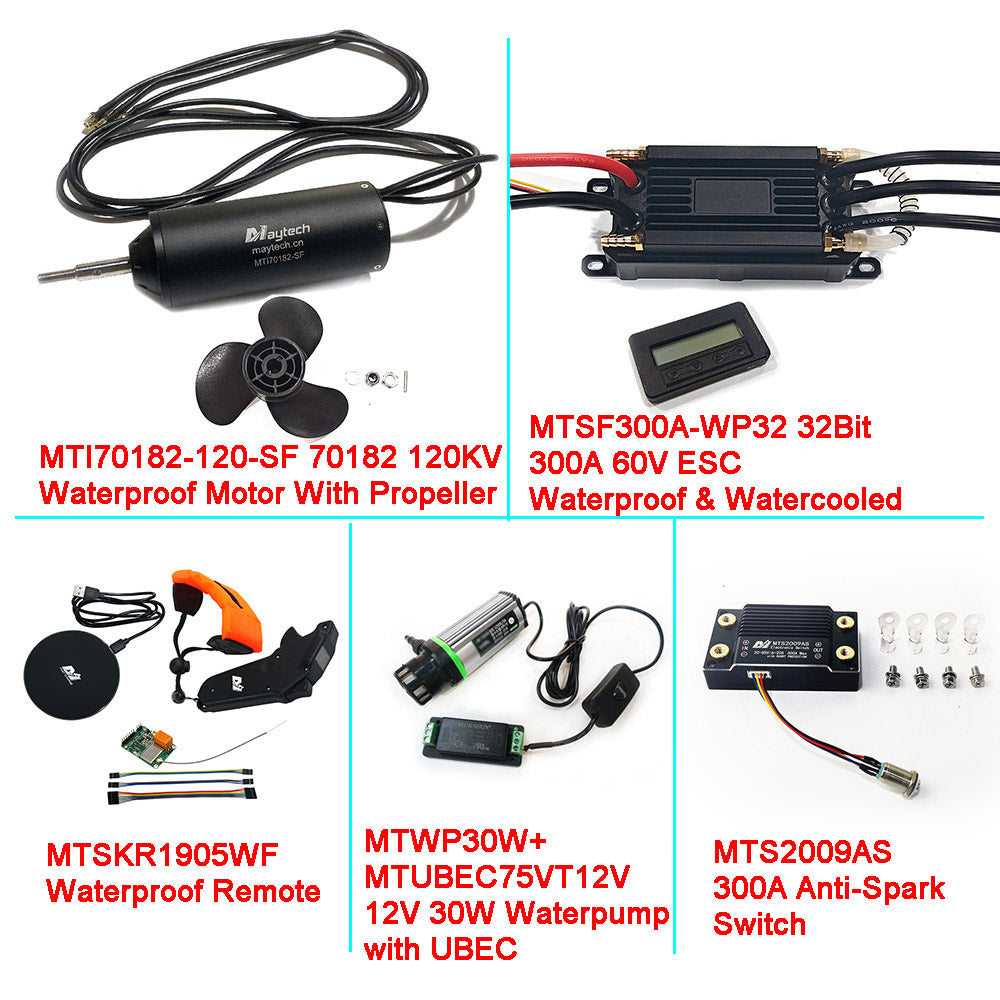

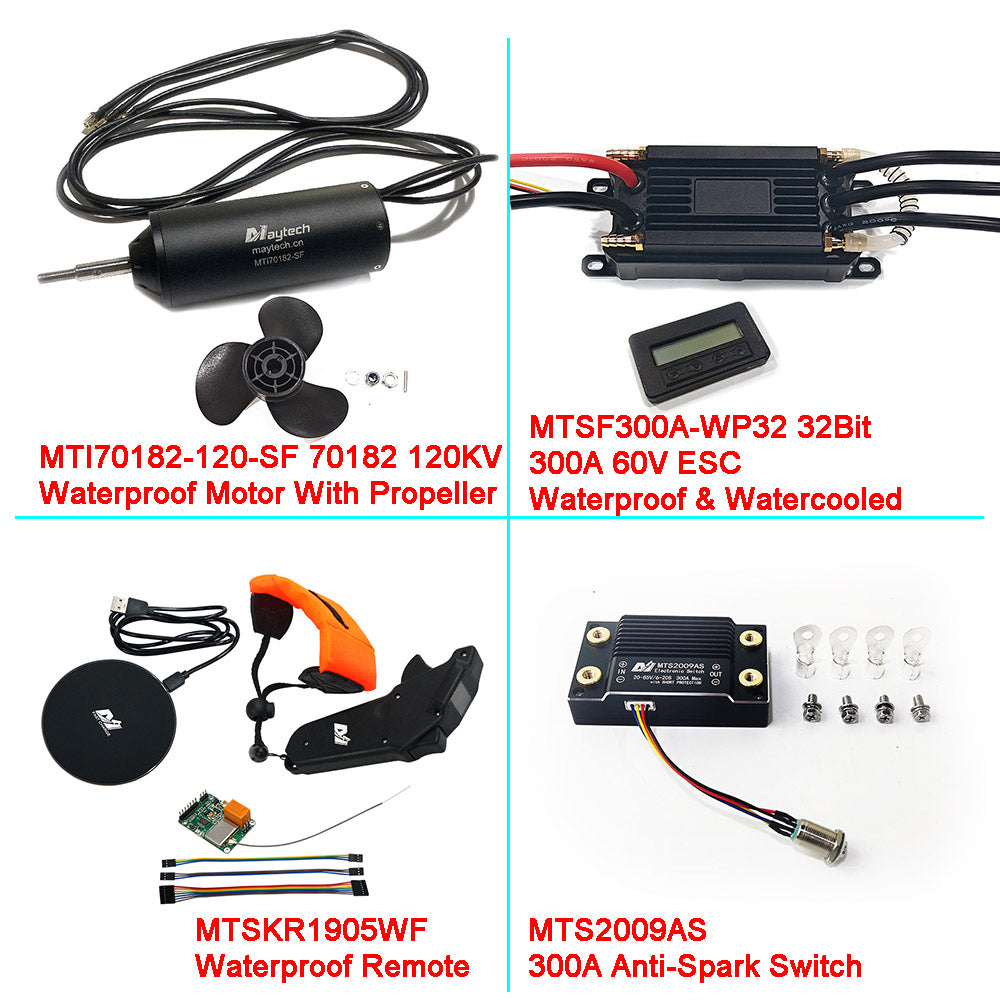

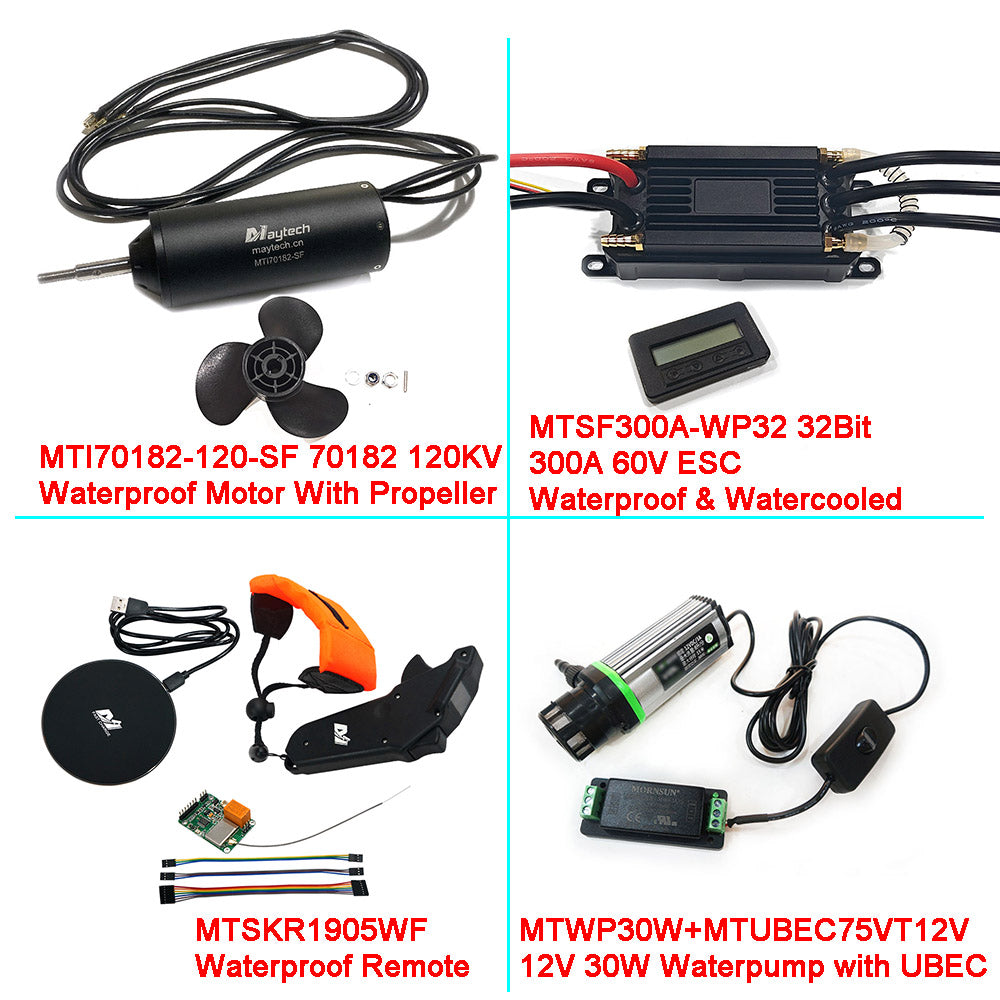

Fully Waterproof Efoil Kits with MTI70182 Motor + New 300A 32Bit ESC + 1905WF Remote + MTS2009AS Switch + 12V 30W Water Pump

Fully Waterproof Efoil Kits with MTI70182 Motor + New 300A 32Bit ESC + 1905WF Remote + MTS2009AS Switch + 12V 30W Water Pump

$952.57 USD
$1,035.40 USD $952.57 USD
Sale Sold out
Shipping calculated at checkout.
Motor
Water Pump
300A 80V Anti-Spark Switch


Fully Waterproof Efoil Kits with MTI70182 Motor + New 300A 32Bit ESC + 1905WF Remote + MTS2009AS Switch + 12V 30W Water Pump

> Feedback 1: It's a killer

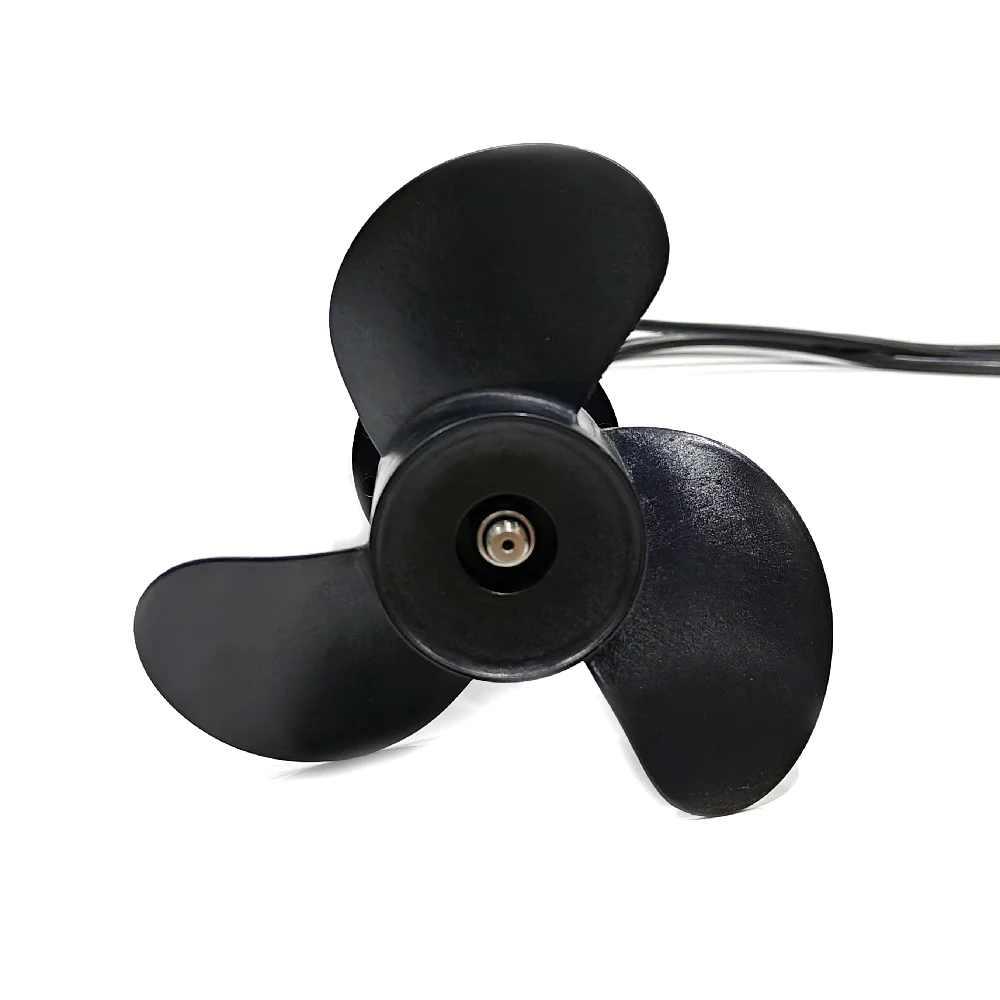

> Feedback 2: Work with 8‘’ pitch propller at 50V, reach 50km/h speed

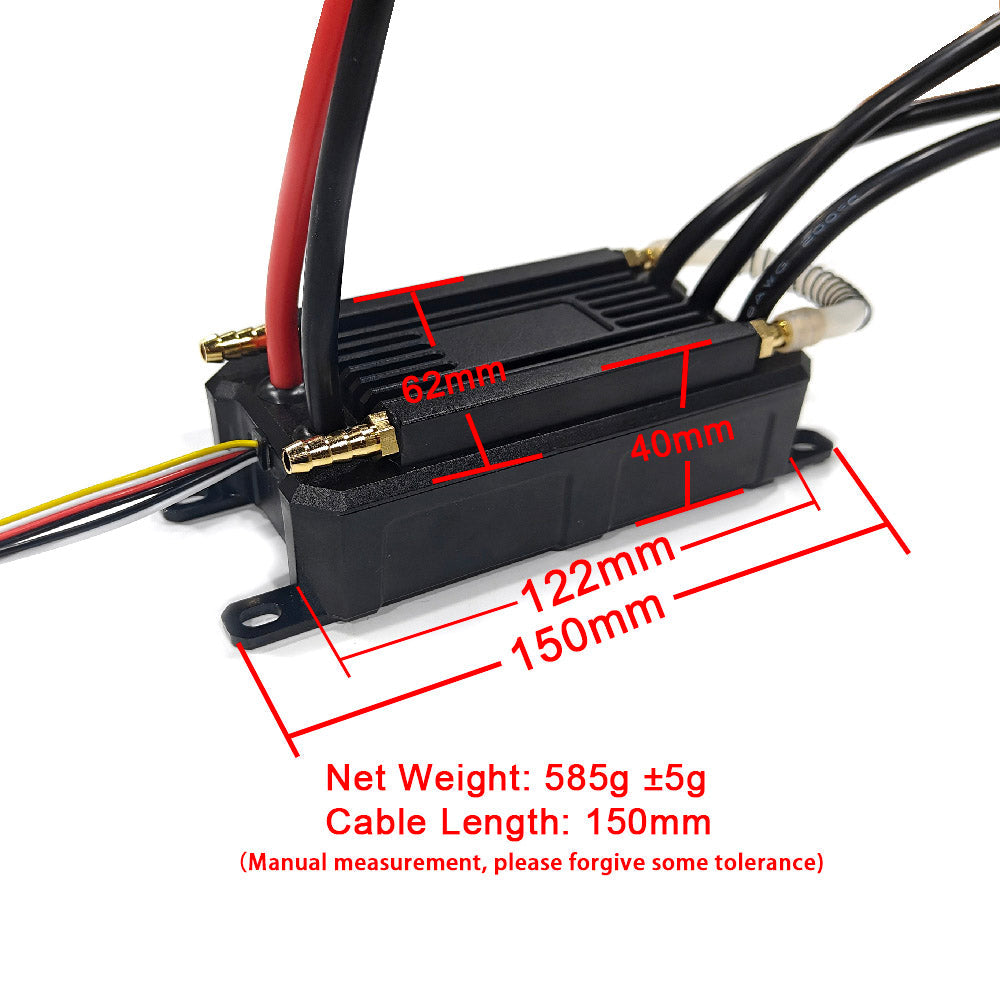

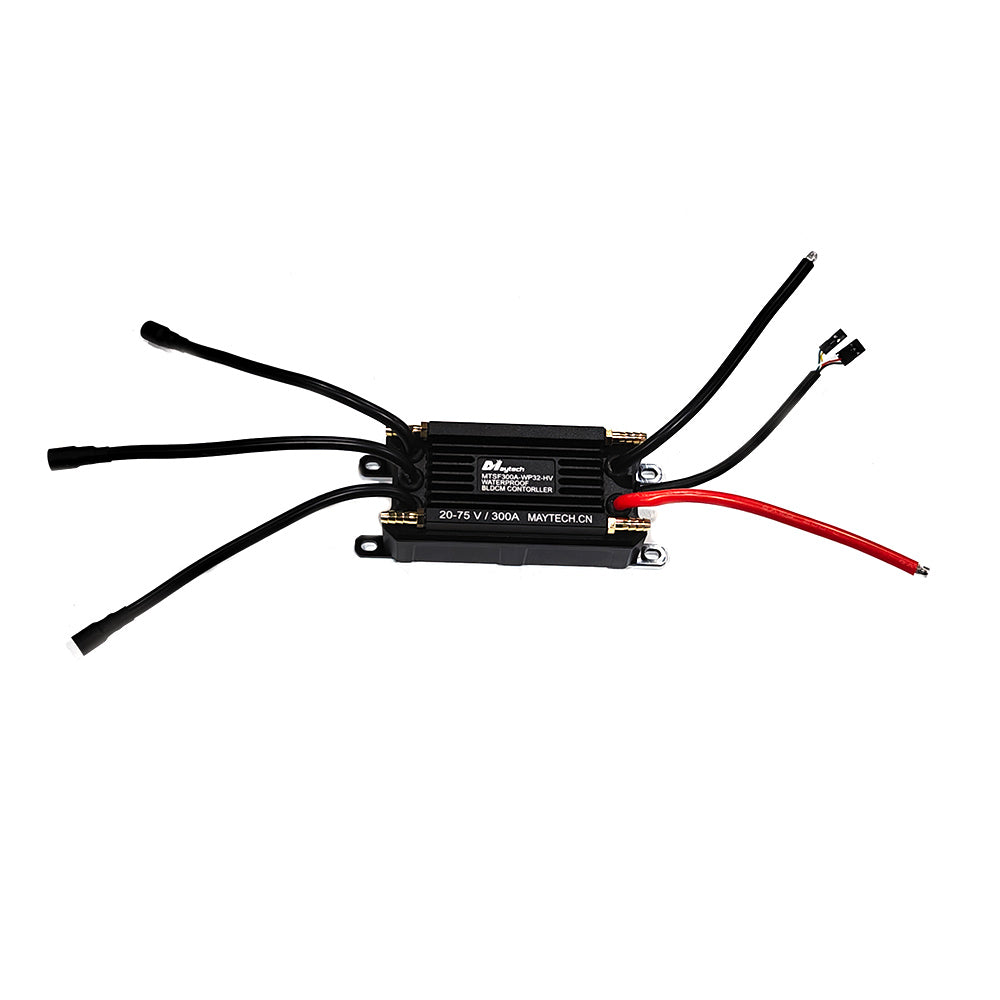

1. MTSF300A-WP32 6-14S Lipo New 32Bit ESC:

Specification:
Model No.: MTSF300A-WP32 with Progcard32
Waterproof Rank: IP68
Cont Current: 300A
Peak Current (at 10S): 320A
Input Voltage: 6-14S Lipo (22.2V-60V)
Cable Guage: 8AWG
Max ERPM: 100000
32BIT Micropprocessor
Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.,

> How to set the ESC bidirectional with MTSKR1905WF remote for Boat application?

Maytech New 300A 60V Waterproof ESC Smaller Size for Efoil Underwater Thruster Electric Surfbord Specification:

Maytech New 300A 60V Waterproof ESC Smaller Size for Efoil Underwater Thruster Electric Surfbord Specification:

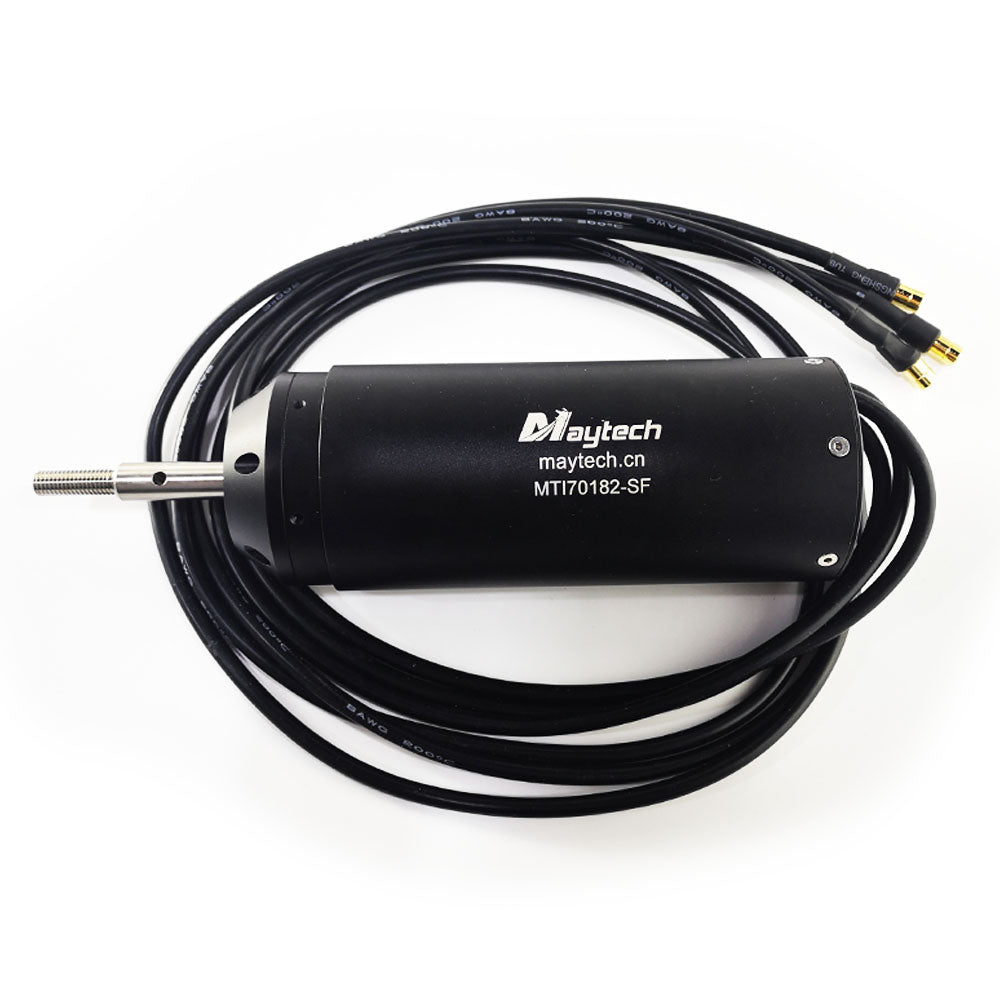

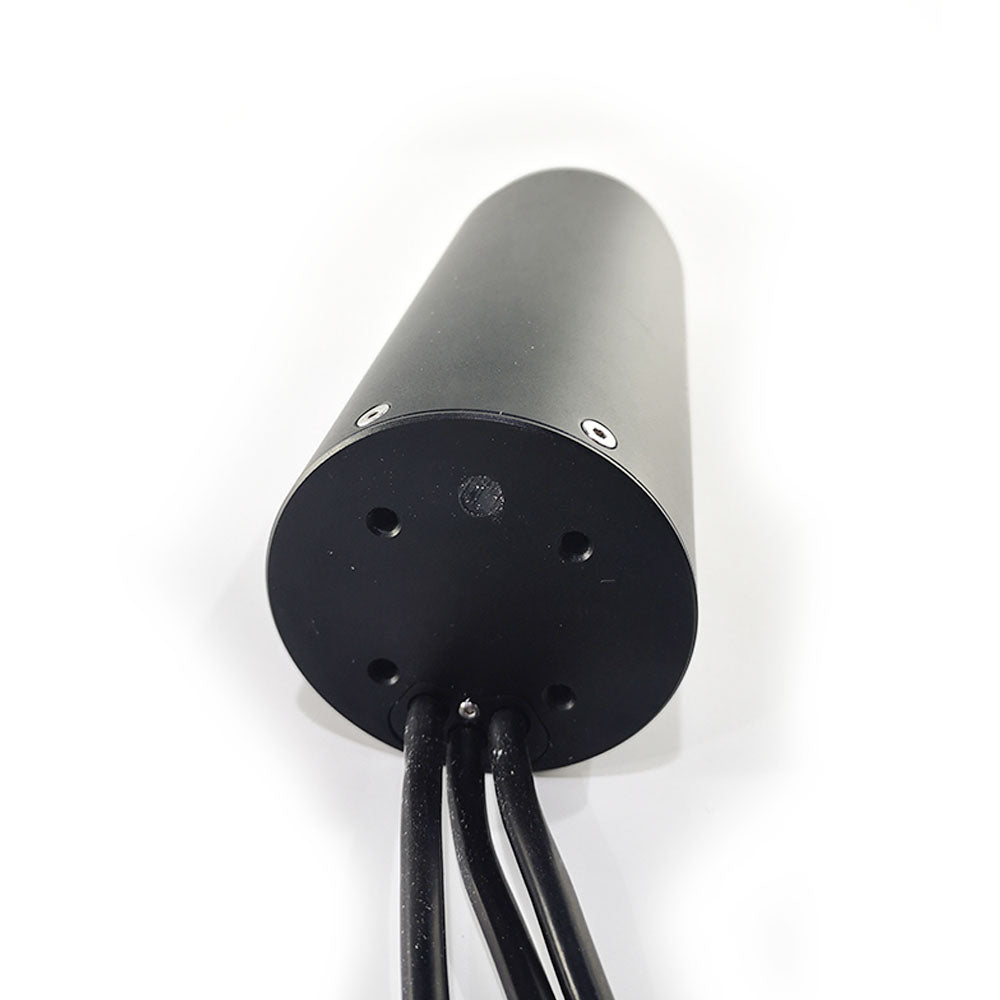

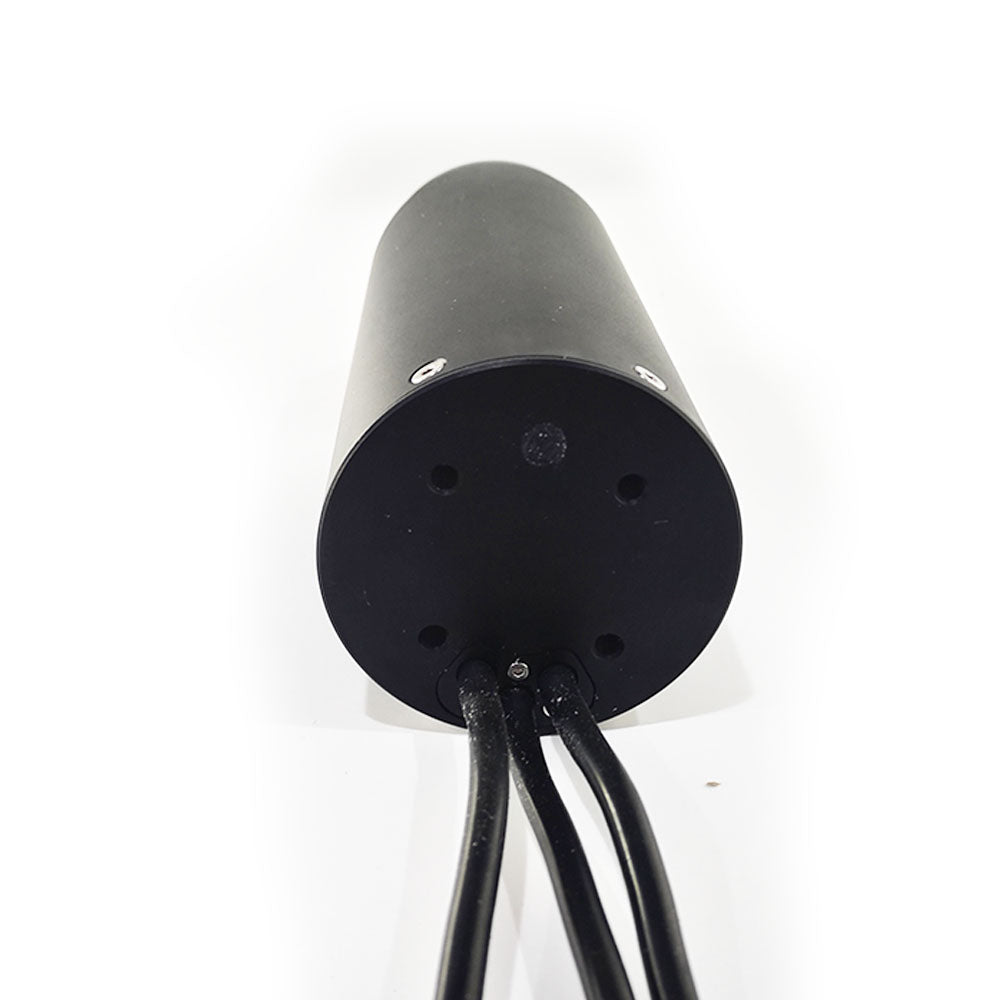

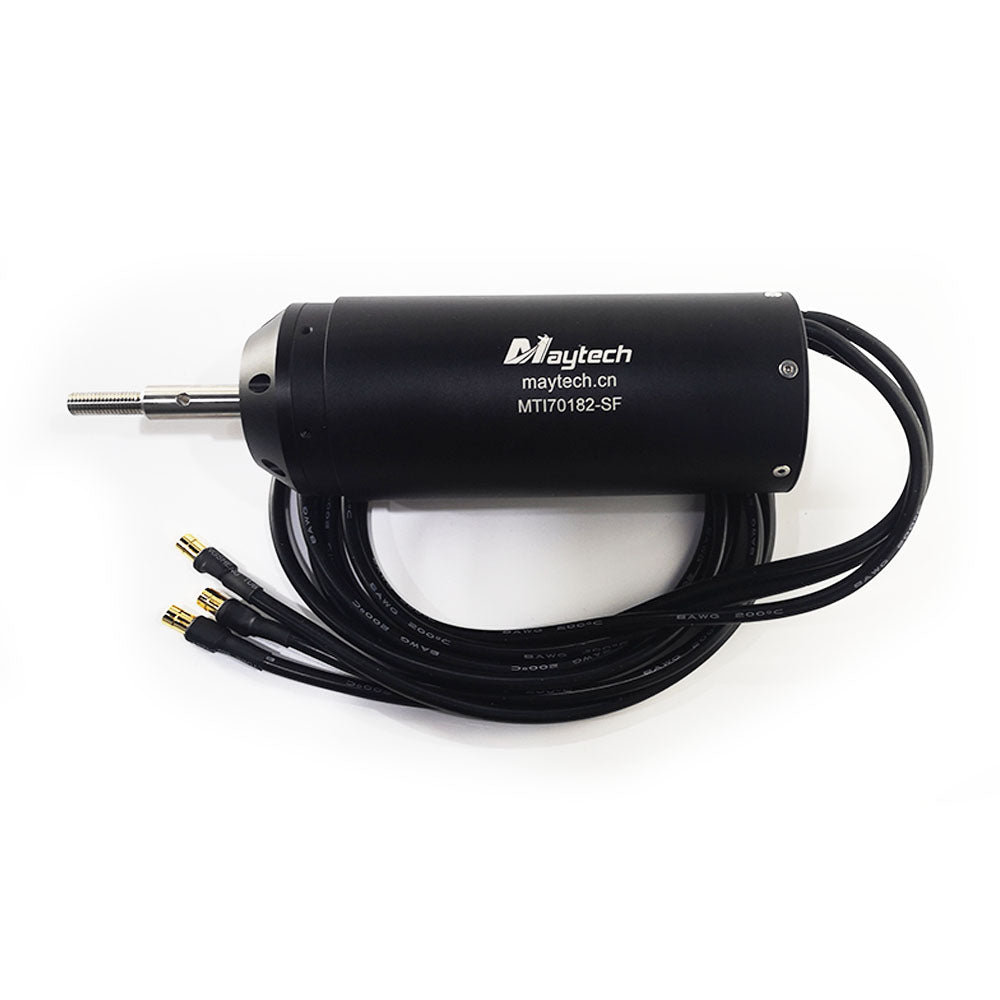

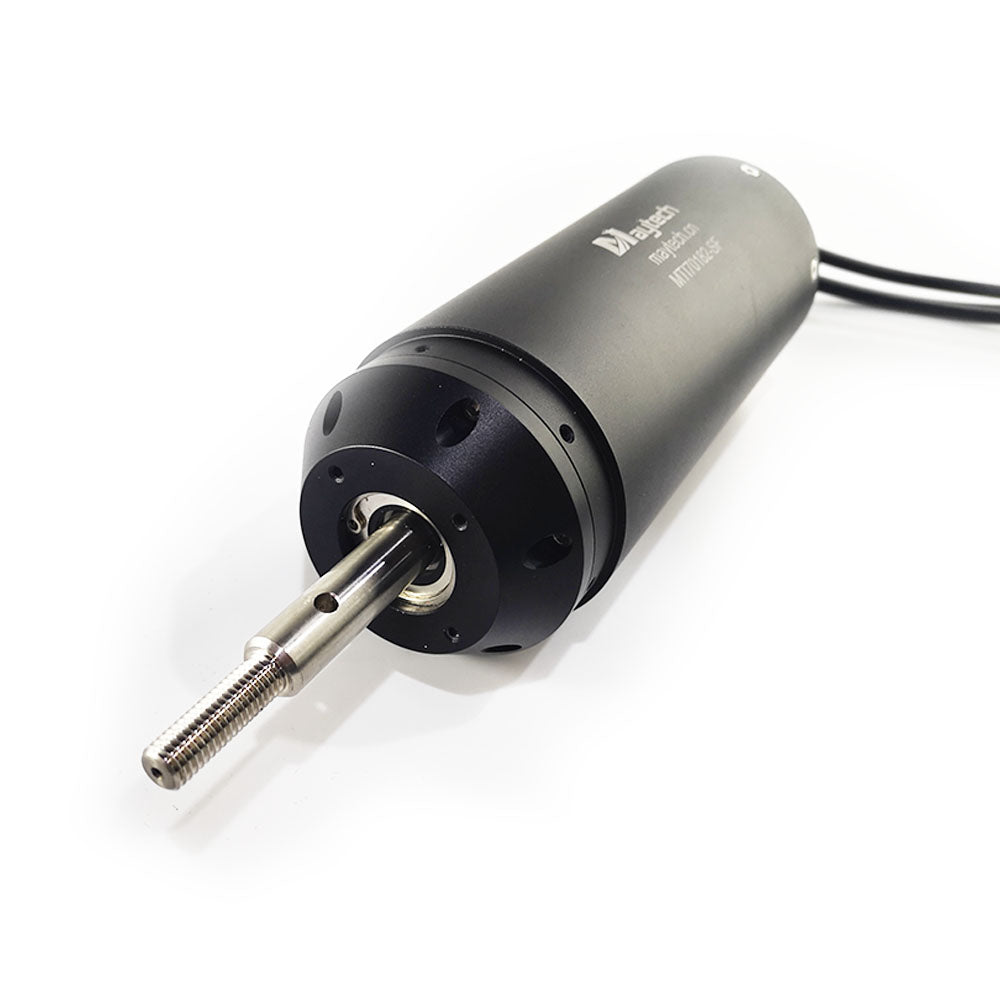

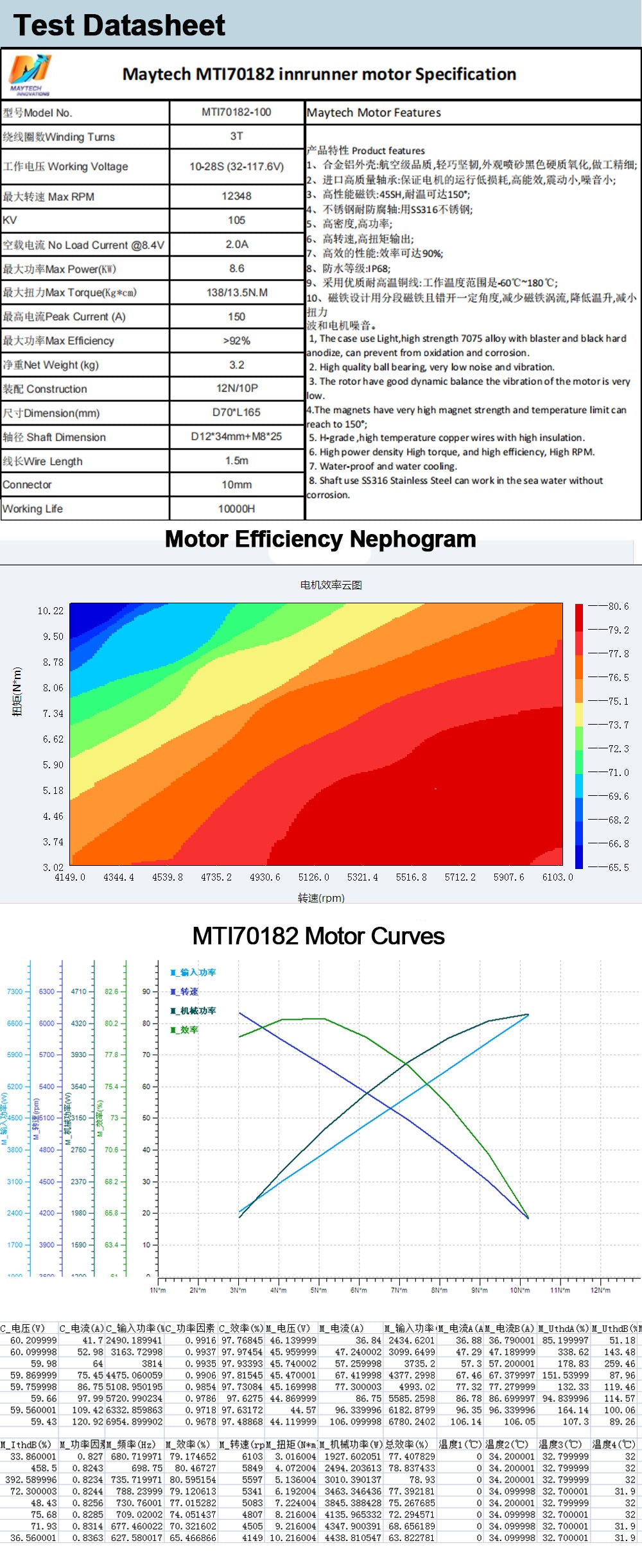

2. MTI70182 120KV Inrunner Waterproof Motor

Fully Waterproof Motor MTI70182 120KV Inrunner Sensorless Brushless Motor

Fully Waterproof Motor MTI70182 120KV Inrunner Sensorless Brushless MotorElectric surfboard motor, BLDC motor, brushless dc motor, brushless inrunner motor, surfboard engine, powerful engine, 9KW motor

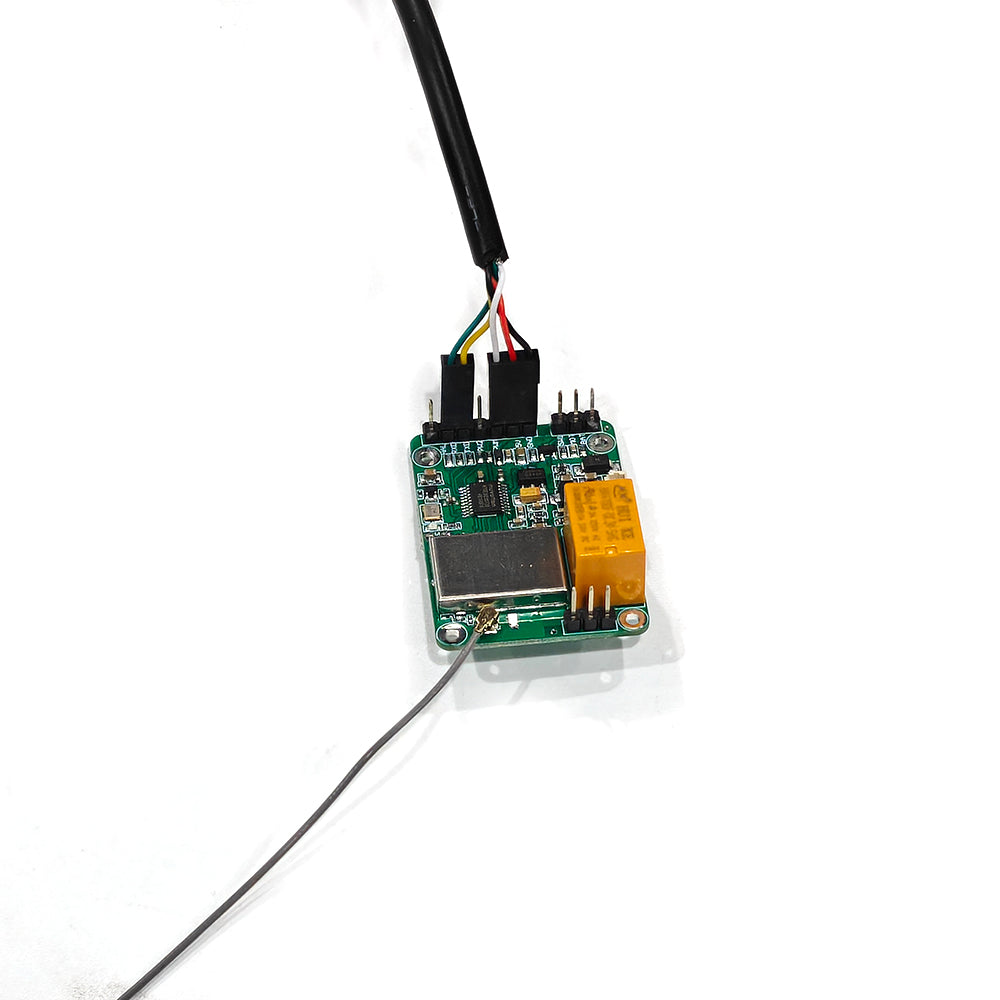

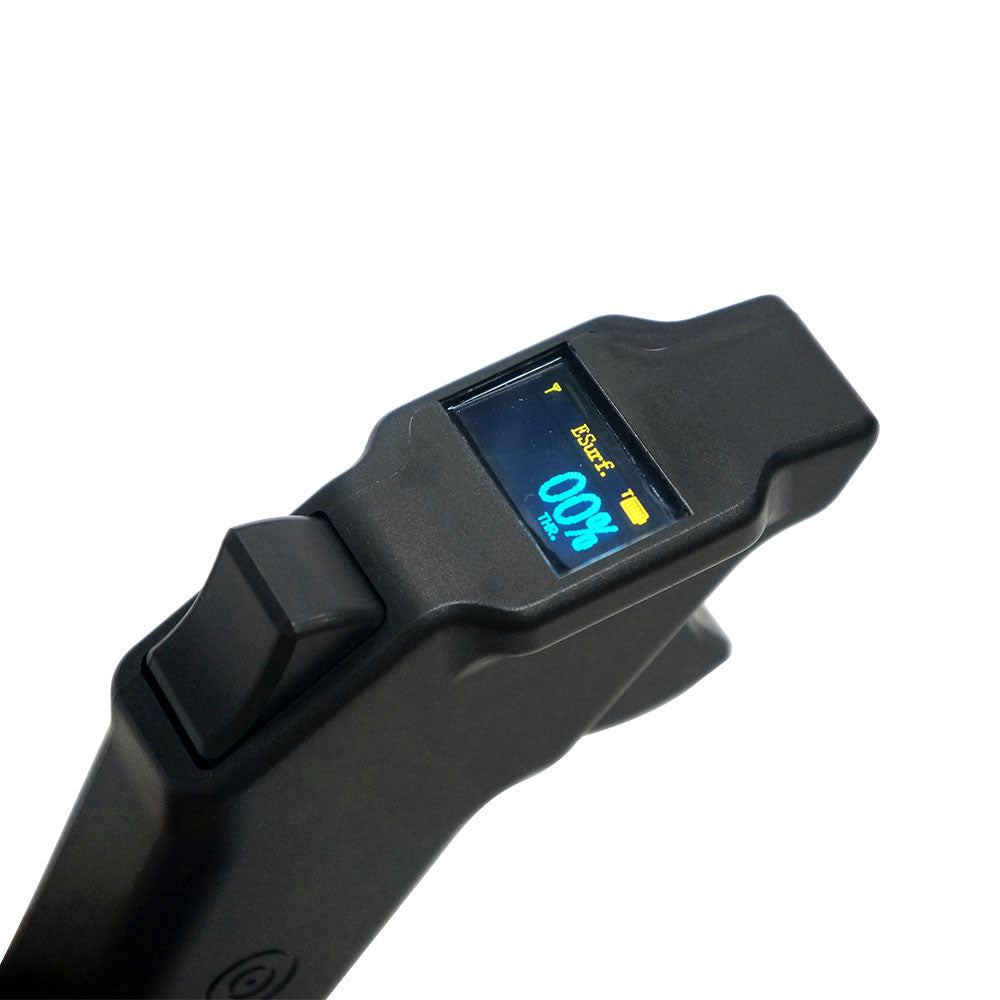

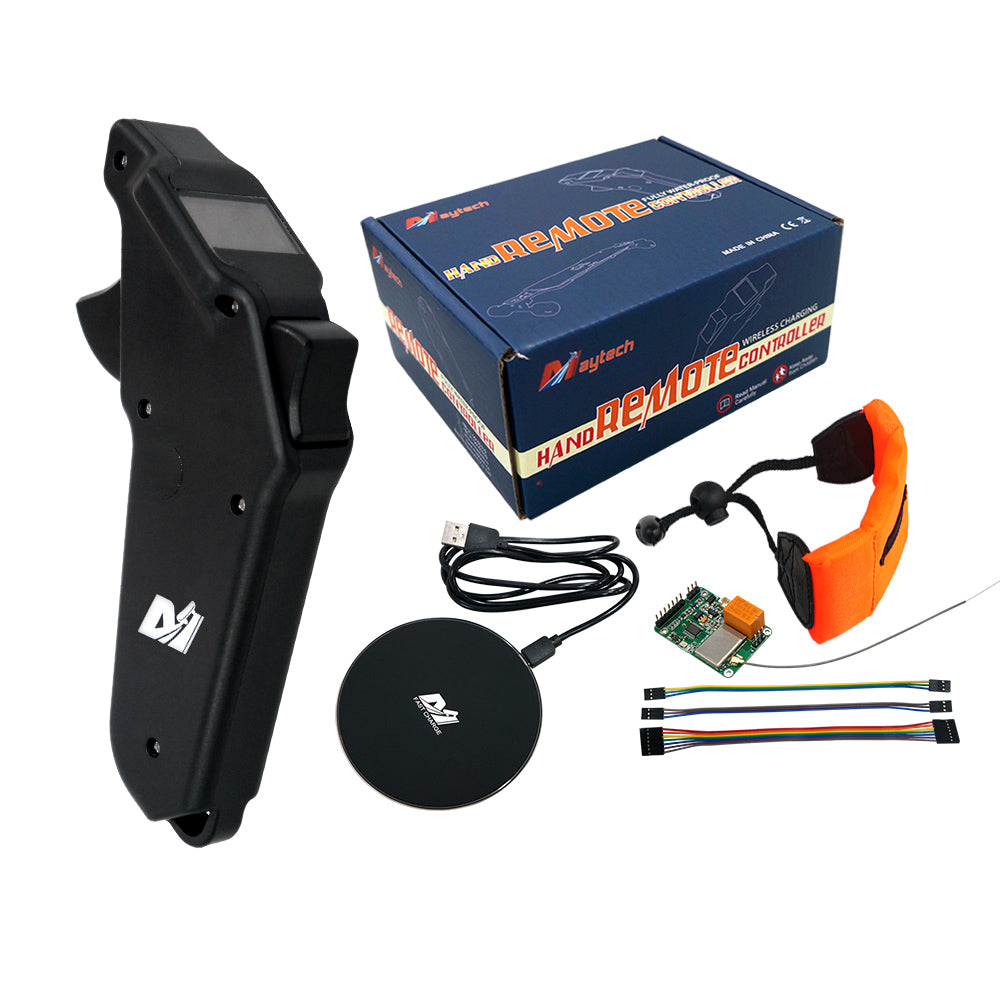

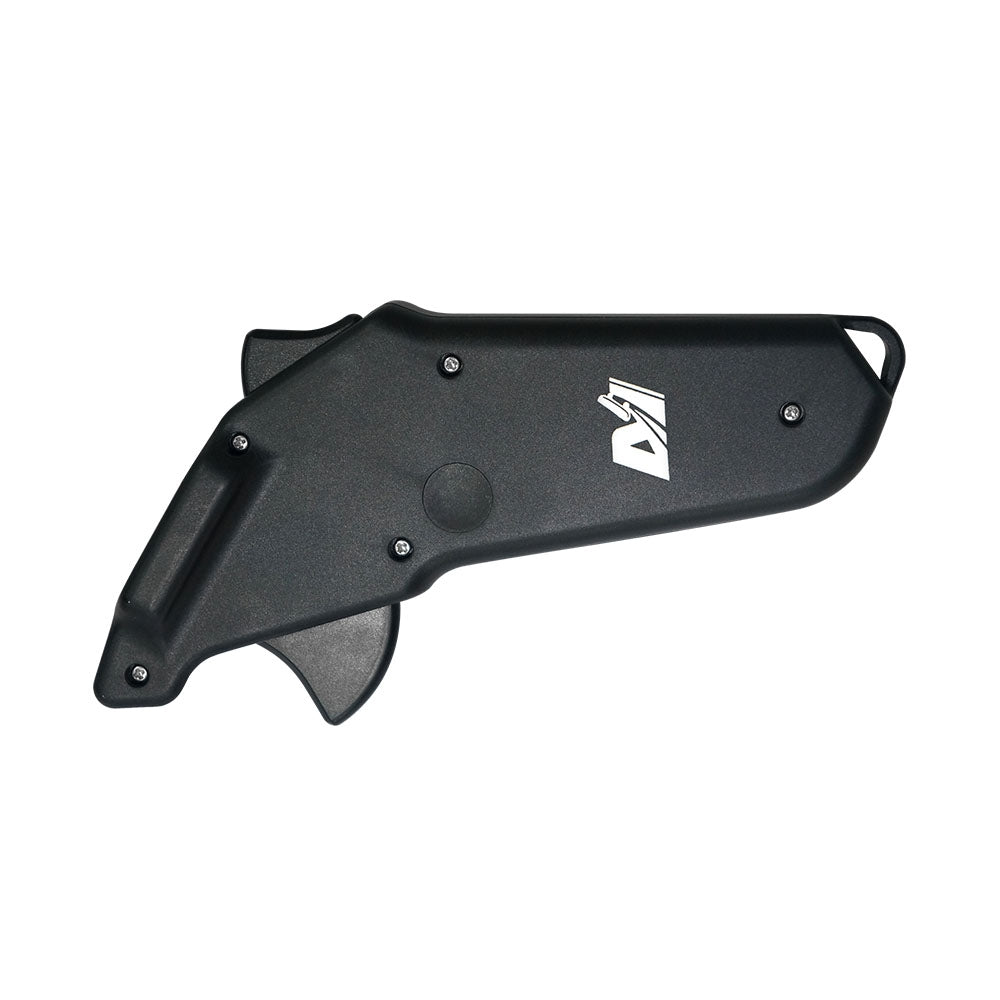

3. Remote: MTSKR1905WF IP67 Waterproof Remote for Esurf, with PWM & UART Receiver

Model No MTSKR1905WF V3.0
Waterproof Rank IP67 double waterproof
Thr Mode ESURF (SF) and ESK8 (SK)
3 Speed Modes With, adjust throttle % from 20-100%
Power Modes 2 levels, Eco (Level 1) < Pro (Level 2)
Throttle Lock Yes, 10-30S optional
Signal Format Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%.
PWM Signal Output Range 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode.
Double Source Power Supply Accept 5V power by ESC built-in BEC or extra 5V power
Output Signal Max 3.3V
Display Parameters

Current, voltage, temperature only when work with VESC or Maytech MTSF300A-WP32 ESC;
Signal strength, remote and battery power bars, battery voltage, RPM with VESC and other ESCs
Control Pump Yes (Relay Switch)
Control Light Yes (Transistor Switch)
Safety Button Support
Cruise Control With in Esurf Mode
Brake With in Esk8 Mode
Accessories Wirelss charging pad / Receiver / USB cable / Wristband / 3pcs Dupond cable
Compatible Controllers VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote.
Application foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc.,

> Get E-Manual: Remote Manual and Instruction

> Check Video Using Instruction


Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoil

4. MTS2009AS Antispark Switch

Model No. MTS2009AS
Max Current 300A
Input Voltage 6-20S Lipo (25-85V), recommend better work under 75V
Swith Diameter 12mm
Switch Type NMOS to realize switching on/off Power positive
Waterproof No, please keep the switch in dry space
Connector With 4pcs Cold-pressed Terminal Connector
Function Protect your controller and power supply system when brake or startup
Application Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, Airplane, VTOL, UAV, Dronesetc.,
Features:  Switch comes with LED light indicator;
Shutdown current less than 1uA;
Suitable for load: three phase motor speed controller;
Boot soft start;
Automatic short circuit protection when boot;
Automatic short circuit protection when work.

Maytech 300A electric switch protection for electric skateboard elimanite sparks when connection high current high power switch antispark switch on and off switchMaytech 300A electric switch protection for electric skateboard elimanite sparks when connection high current high power switch antispark switch on and off switchMaytech 300A electric switch protection for electric skateboard elimanite sparks when connection high current high power switch antispark switch on and off switch

5. Water Pump

water pump for electric surfboard esurf efoil jetski jetfoiler for electric efoiling 12V 30W water pump

Advice after usage:

1. To expand the products life, please better wipe off the waters on the products and keep them for all dry after everytime use.

2. For this kit of the ESC, because the motor is sensorless, suggest to use the default value in the ESC, we have tested the kit before shipment with the default value, do not suggest to modify the values.

If you have other requirement on motor KV, ESC or other questions, please contact us at agnes@maytech.cn .
