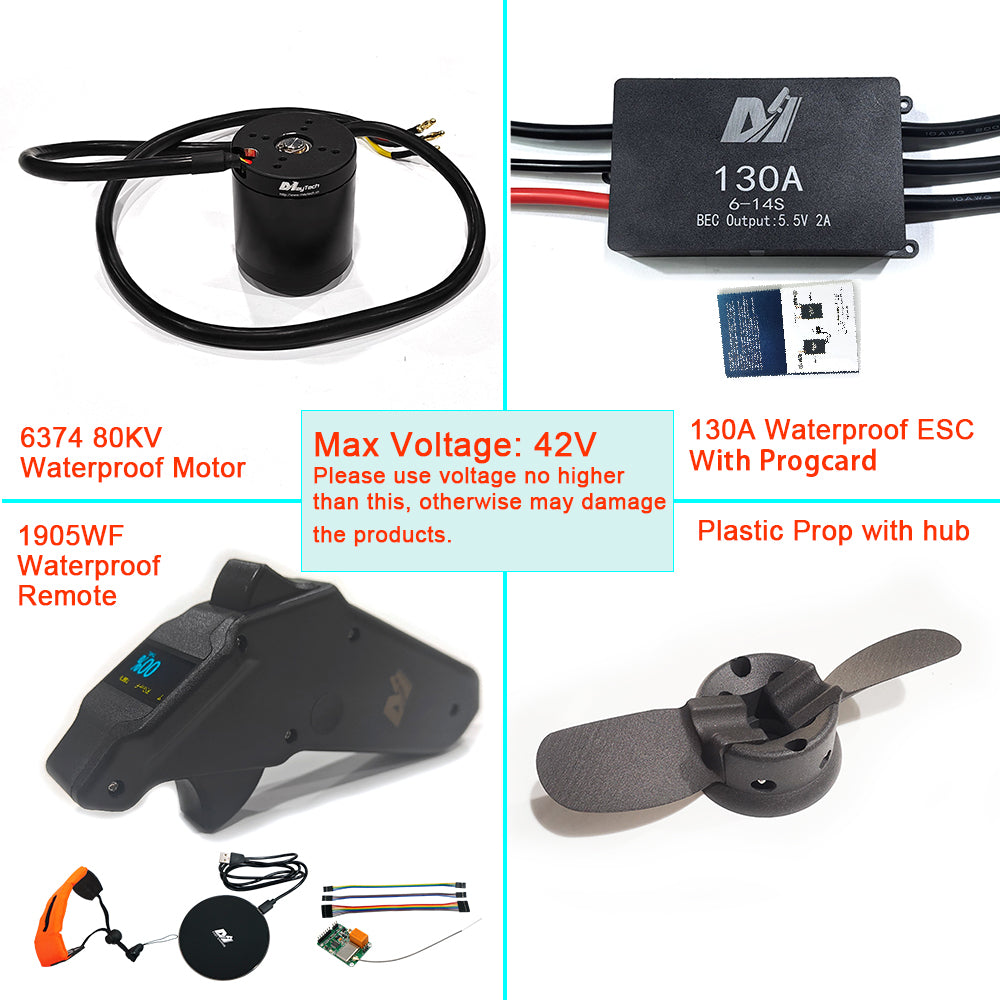

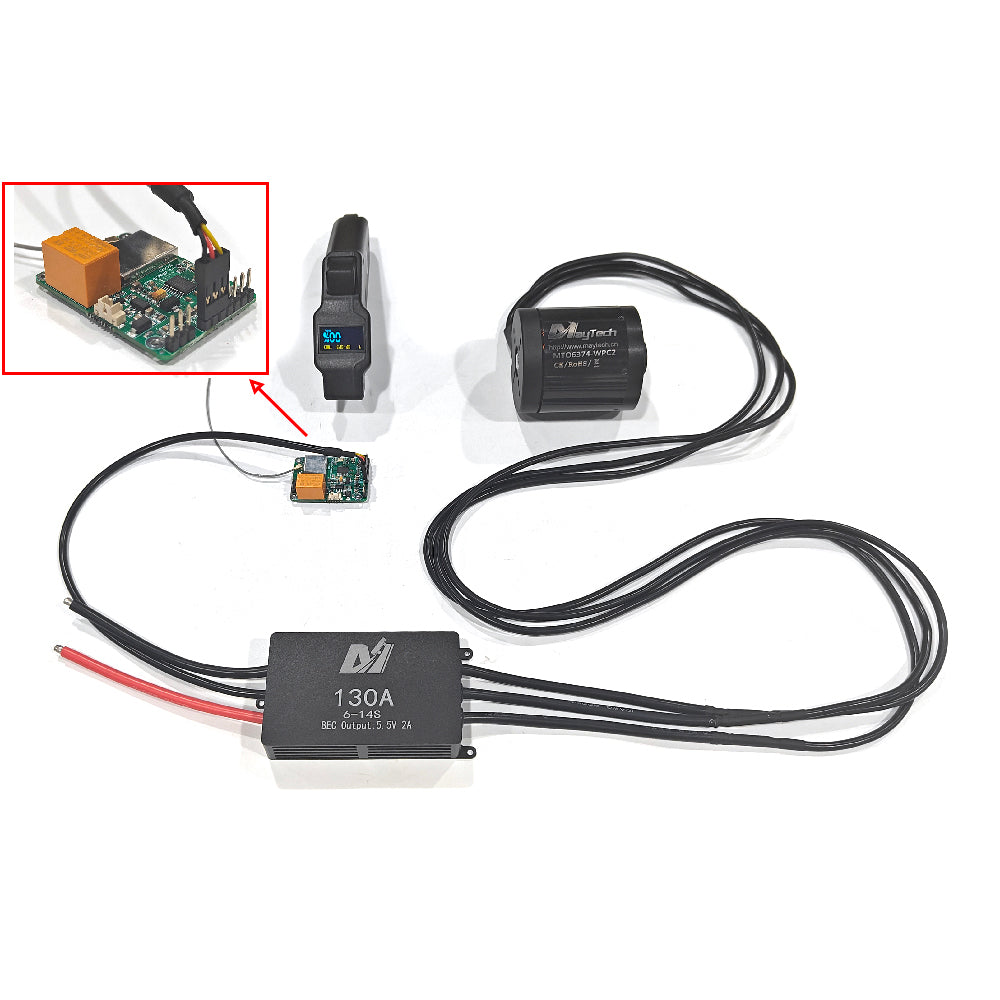

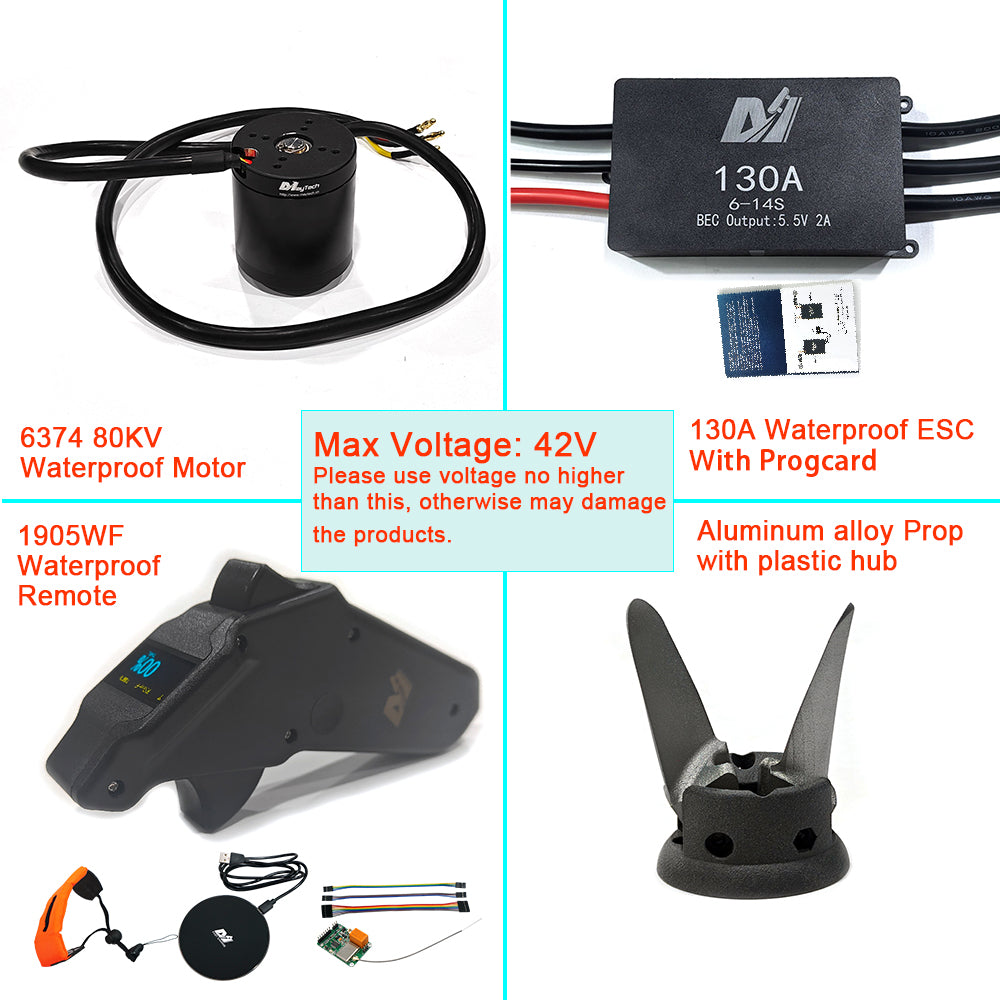

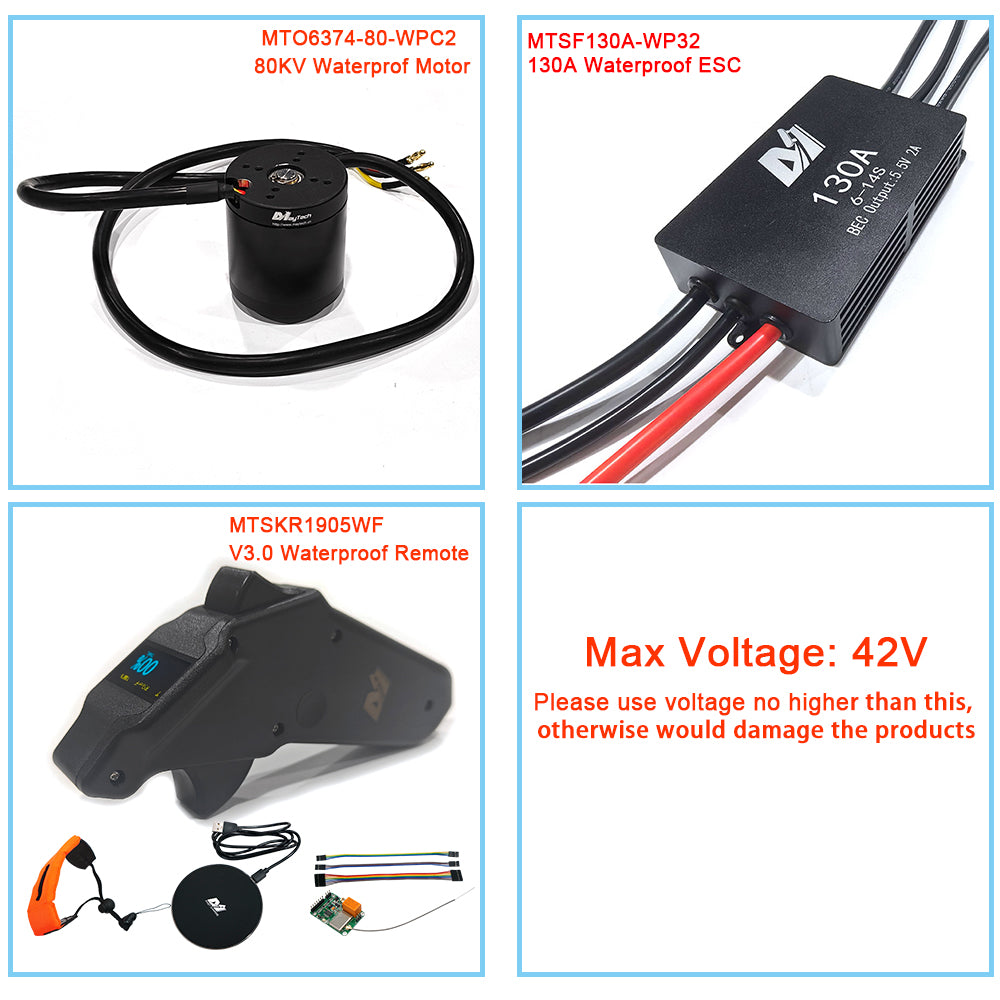

New Marine E Foil Kit 42V Waterproof 6374 80KV Motor + 130A ESC + MTSKR1905WF Waterproof Remote

New Marine E Foil Kit 42V Waterproof 6374 80KV Motor + 130A ESC + MTSKR1905WF Waterproof Remote

Regular price $523.60 USD
Regular price Sale price $523.60 USD
Sale Sold out
Shipping calculated at checkout.

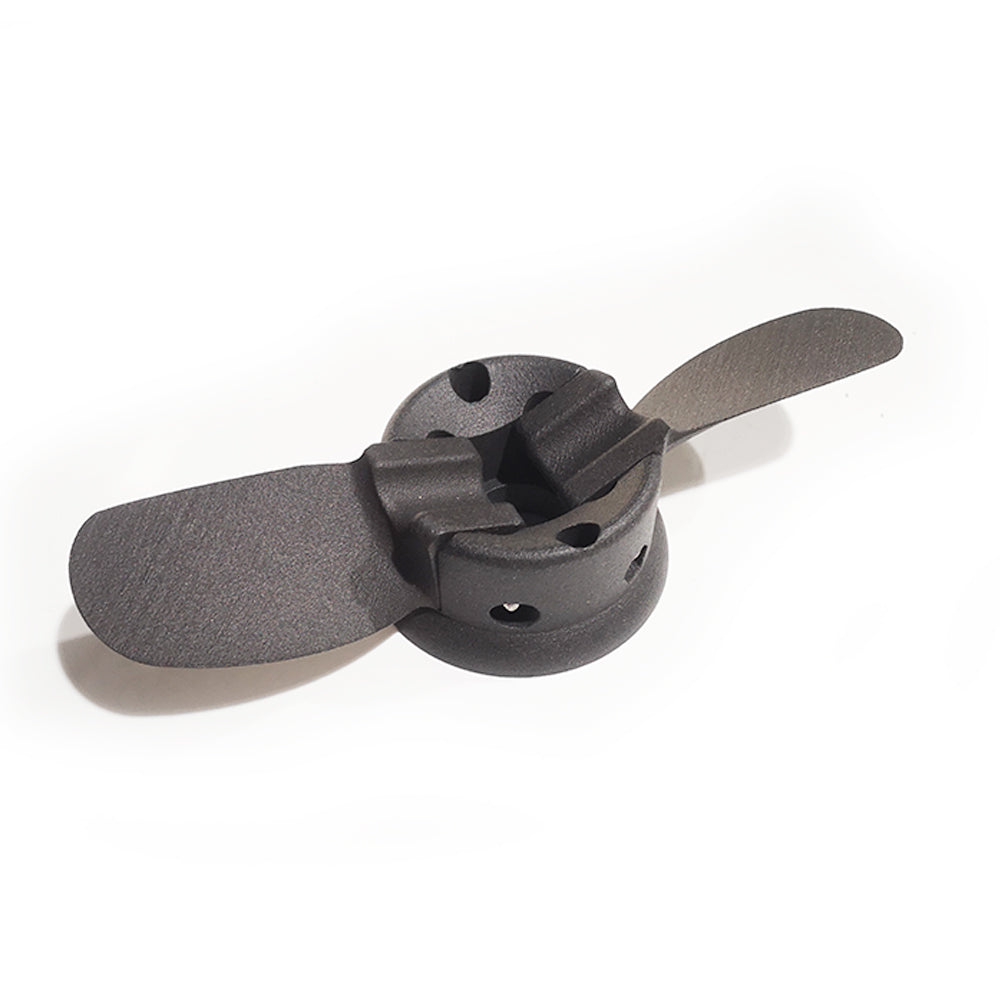

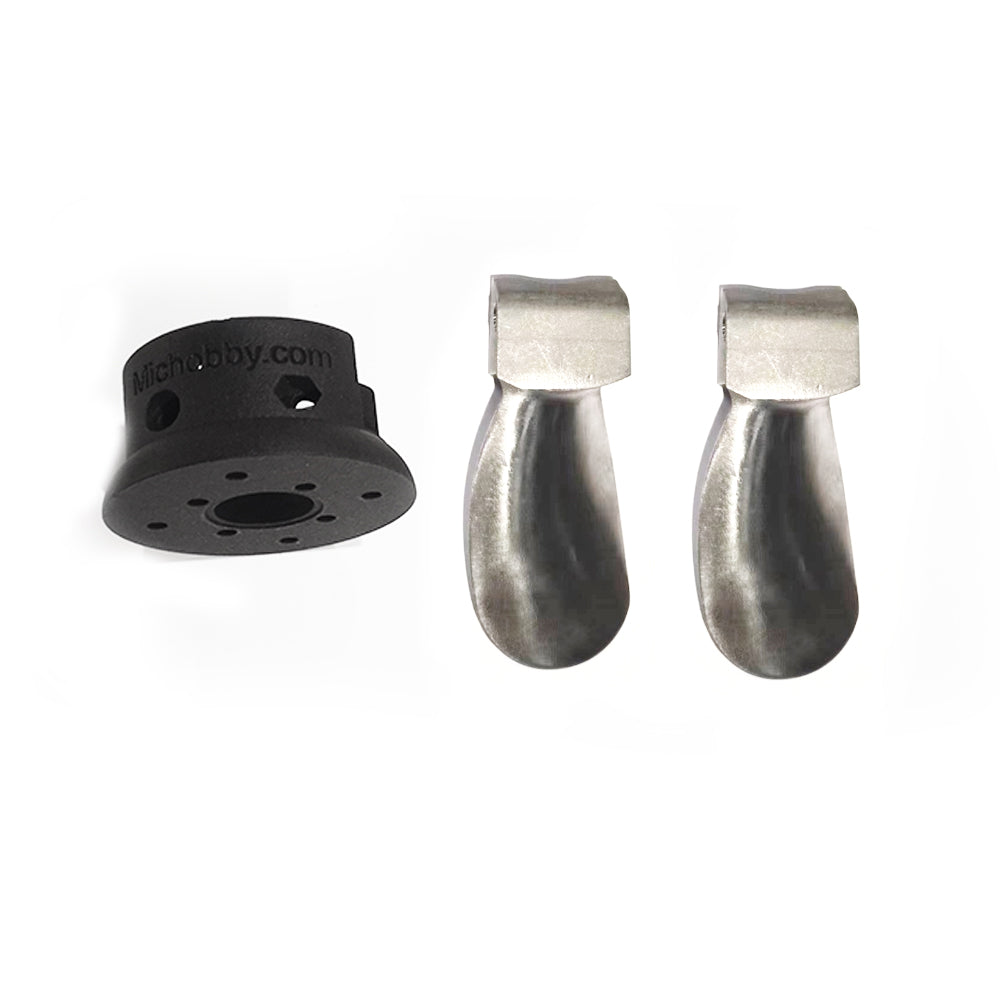

Propeller
Application:

DIY foil assist on wing foil, wind surf foil, sup foil board, kite foil, underwater thruster, sup foil assist, paddle assist, wind foil board, sup board, downwind, hull cleaning device, underwater rov, underwater cleaning robot, boat cleaner, quariums or submerged environments, tank cleaning, underwater drone, etc.,

Aiming to convert non-electric foil boards to electric foil easily with reasonable cost.

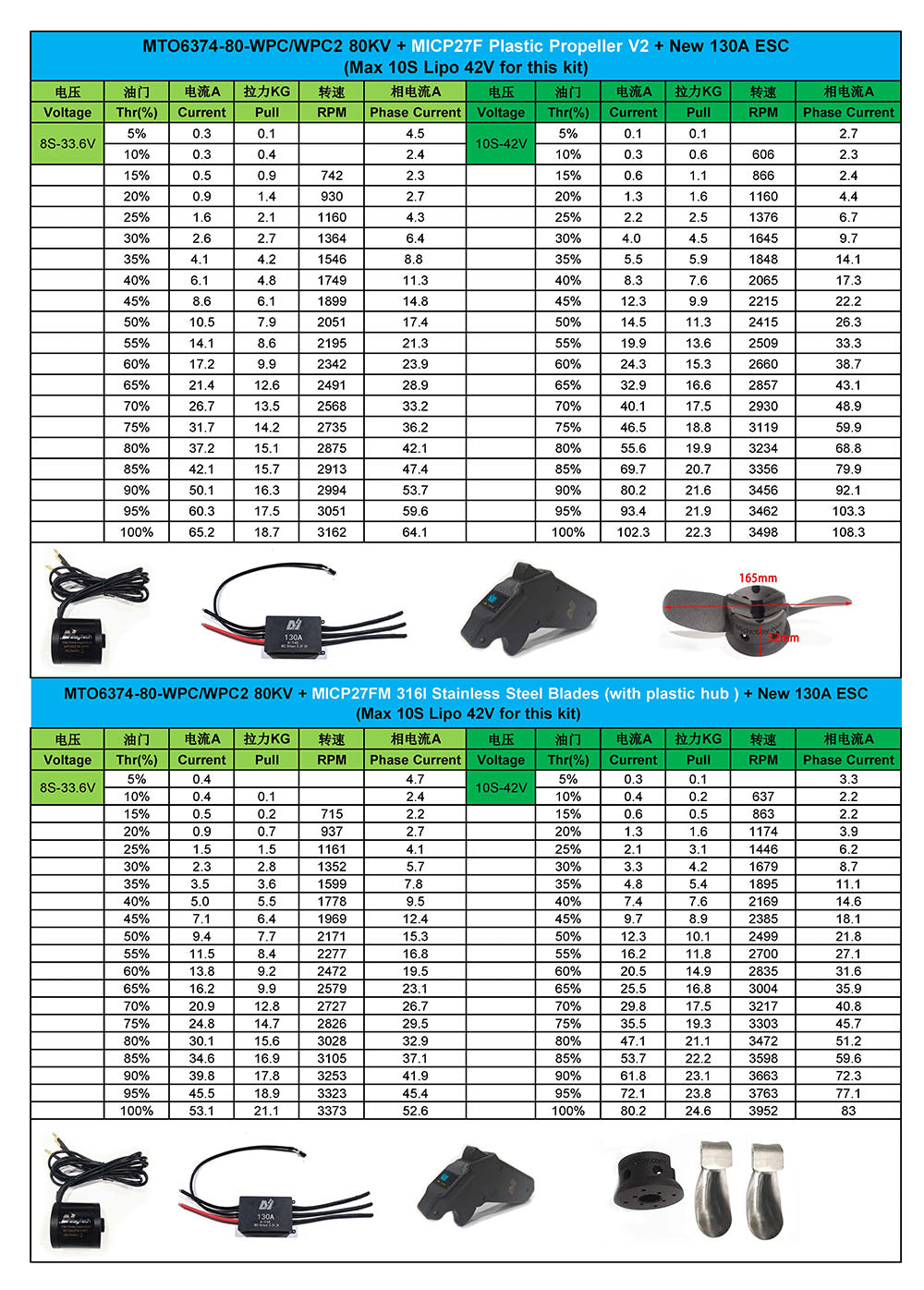

> Check Test Datasheet

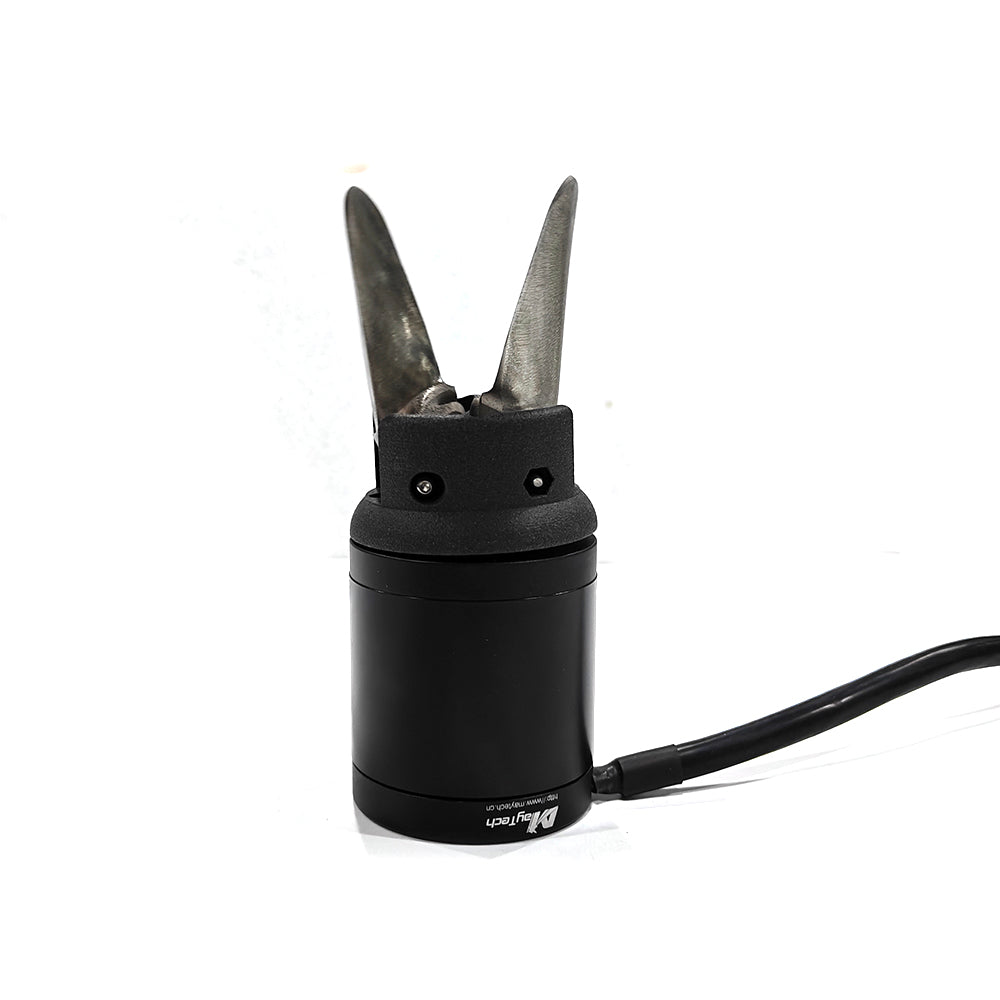

>How to Install Prop on Motor ?

>Check Underwater Test Video

>Using Instruction Video

>Check ESC Manual and Instruction

>Check V3.0 MTSKR1905WF Remote Manual and Instruction

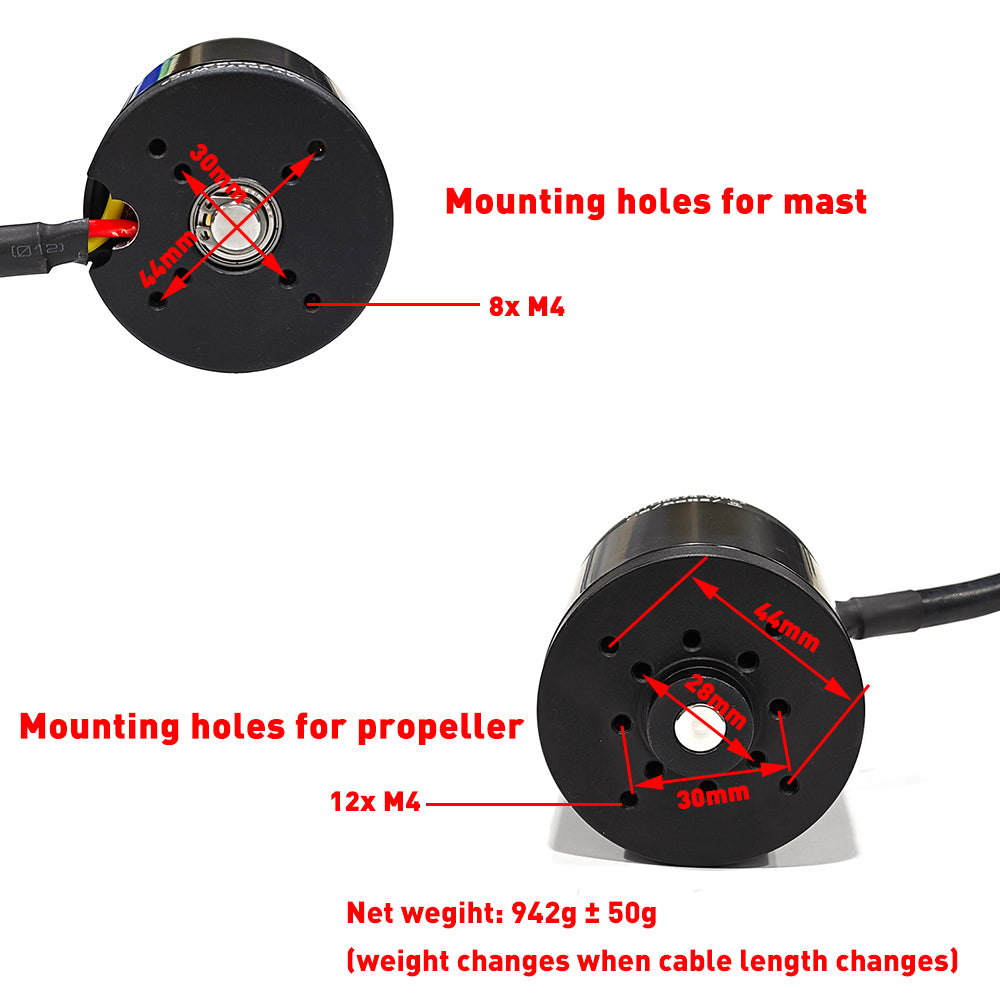

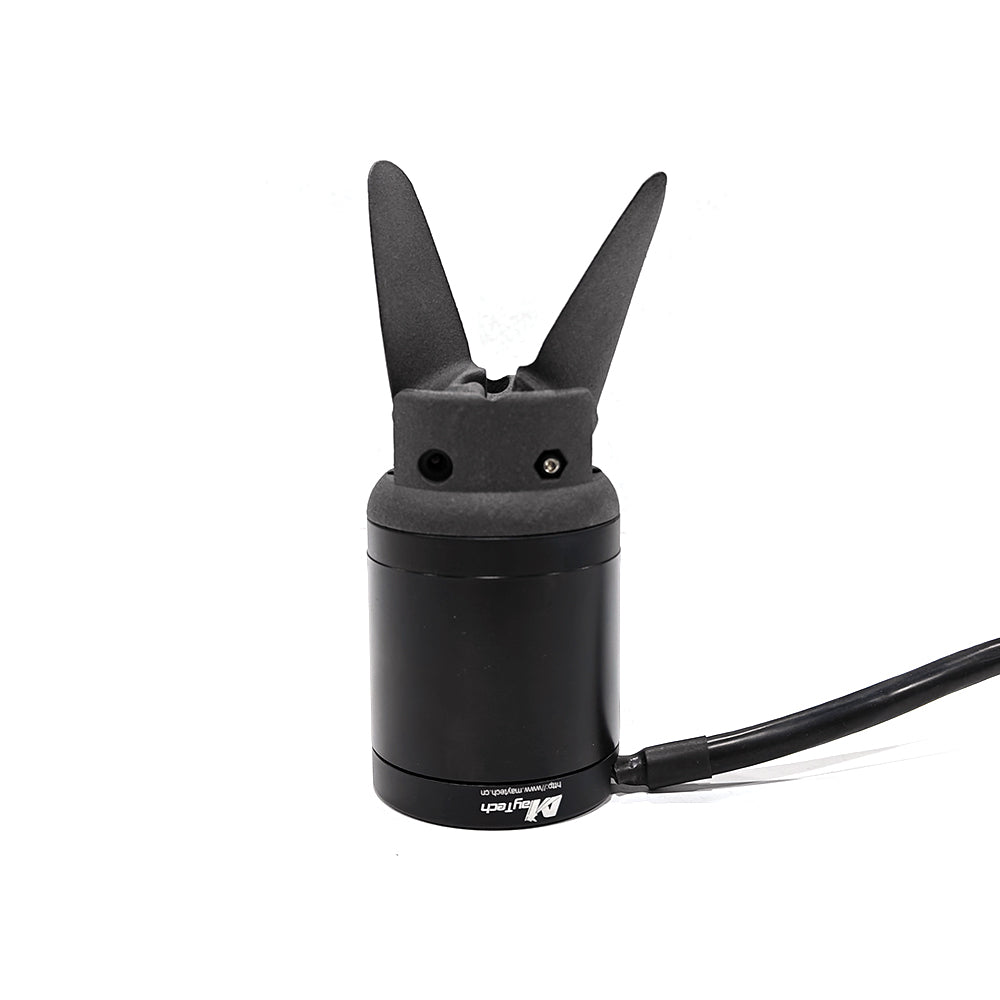

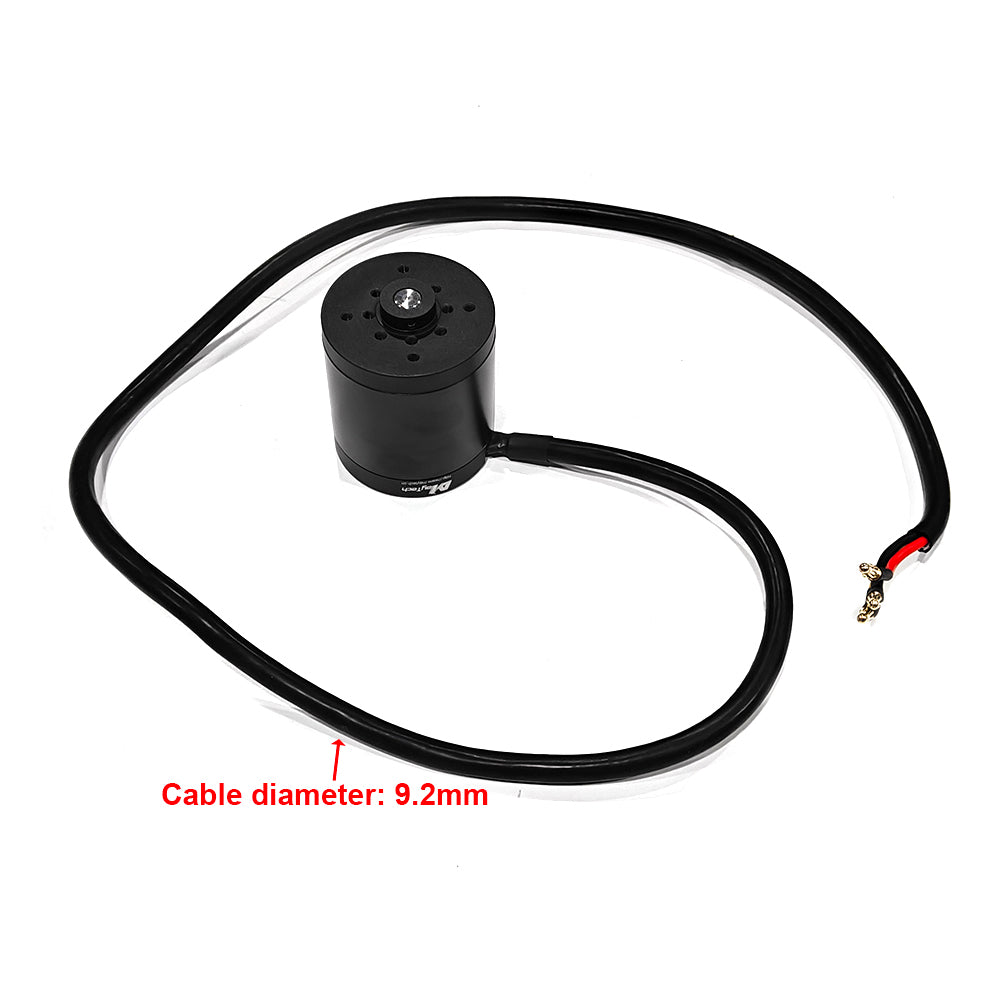

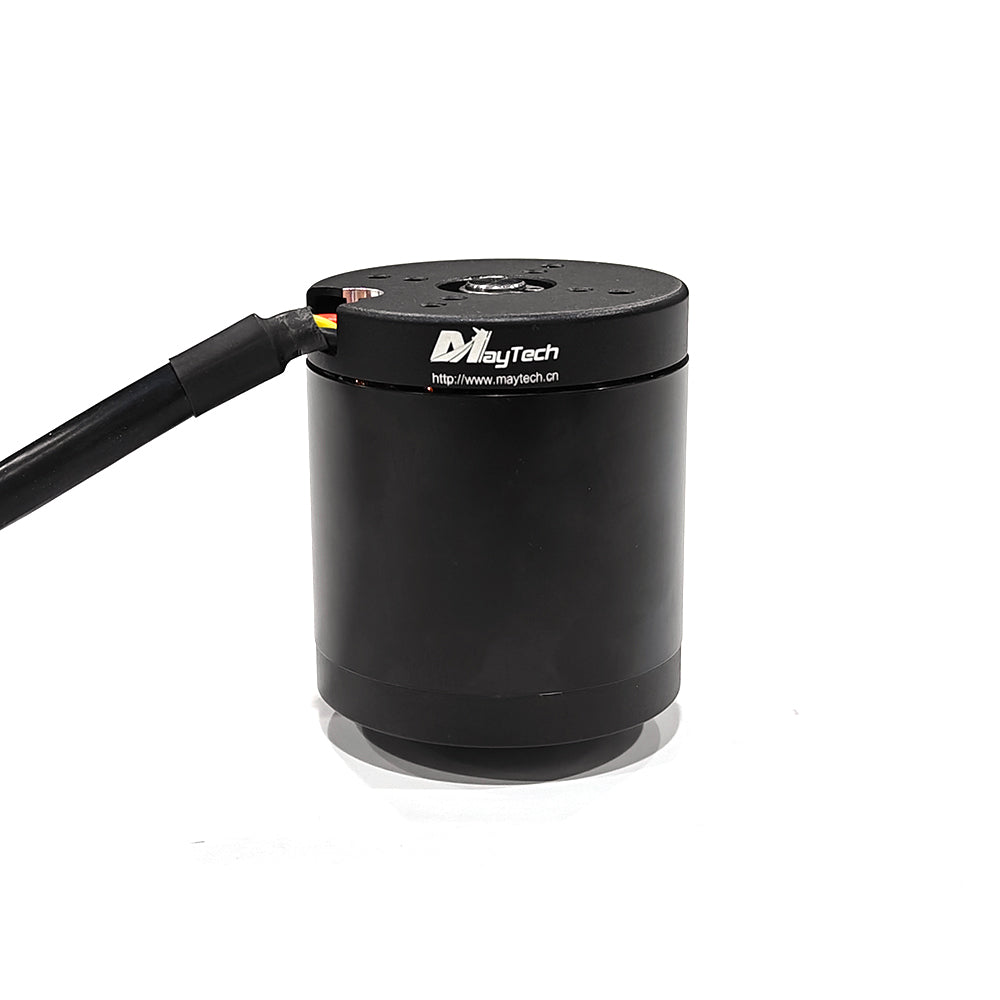

1. 6374 80KV Waterproof Motor

Model No MTO6374-80-WPC2
KV 80KV
Idle Current 0.8A
Max Current 102A at 42V
Rated Current 60A
Input Voltage 6-10S Lipo (24-42V)
Max Output Watt 4.3KW
Shaft No output shaft
Hall Sensor Without
Waterproof Rank IPX8
Cable Length 1m
Cable Guage 3x 12AWG
Connector 4.0mm Male bullet connector
Bearing Stainless stell bearing
Customize KV, logo, shaft, mounting hole pattern, color, connector, cable, etc. contact agnes@maytech.cn

waterproof 6374 motor for DIY foil assistant foilboard foil drive electric propulsion system for wing foil, windsurf, kite foil, etc.,

waterproof 6374 motor for DIY foil assistant foilboard foil drive electric propulsion system for wing foil, windsurf, kite foil, etc.,

waterproof 6374 motor for DIY foil assistant foilboard foil drive electric propulsion system for wing foil, windsurf, kite foil, etc.,
waterproof 6374 motor for DIY foil assistant foilboard foil drive electric propulsion system for wing foil, windsurf, kite foil, etc.,

waterproof 6374 motor for DIY foil assistant foilboard foil drive electric propulsion system for wing foil, windsurf, kite foil, etc.,waterproof 6374 motor for DIY foil assistant foilboard foil drive electric propulsion system for wing foil, windsurf, kite foil, etc.,

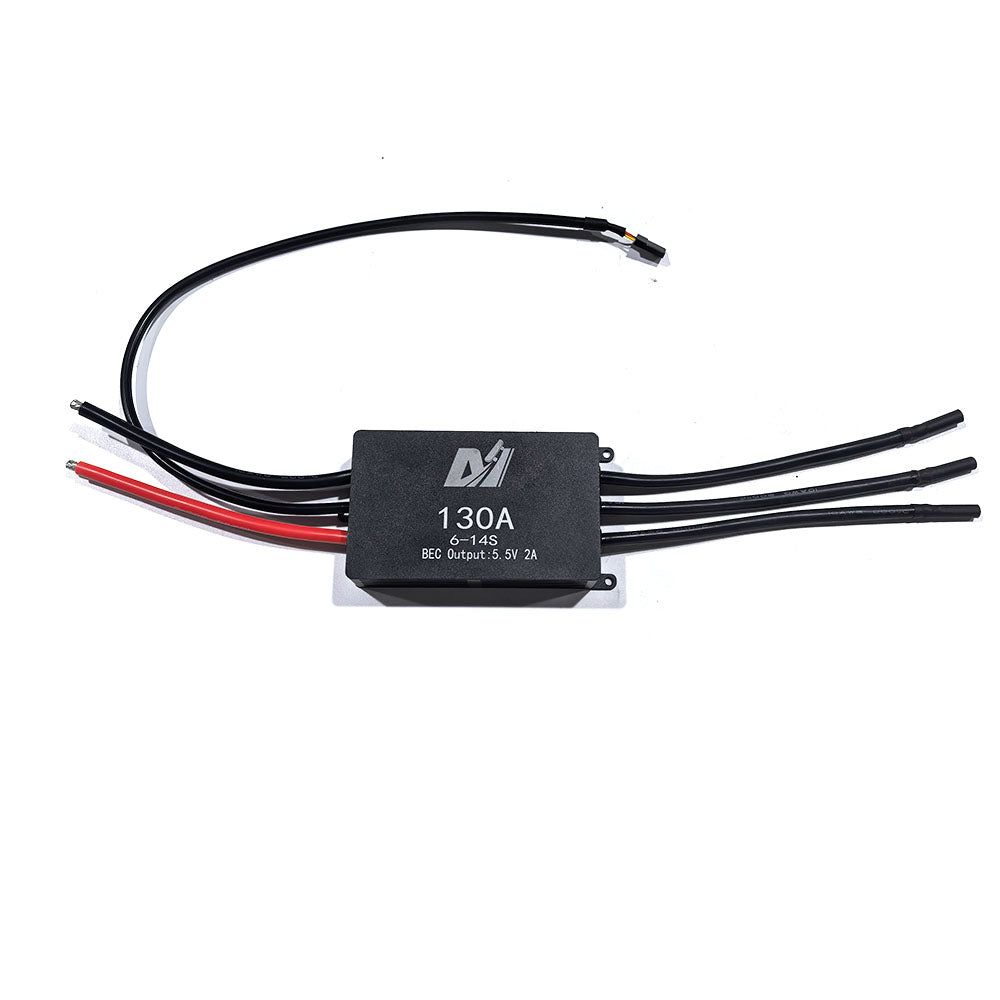

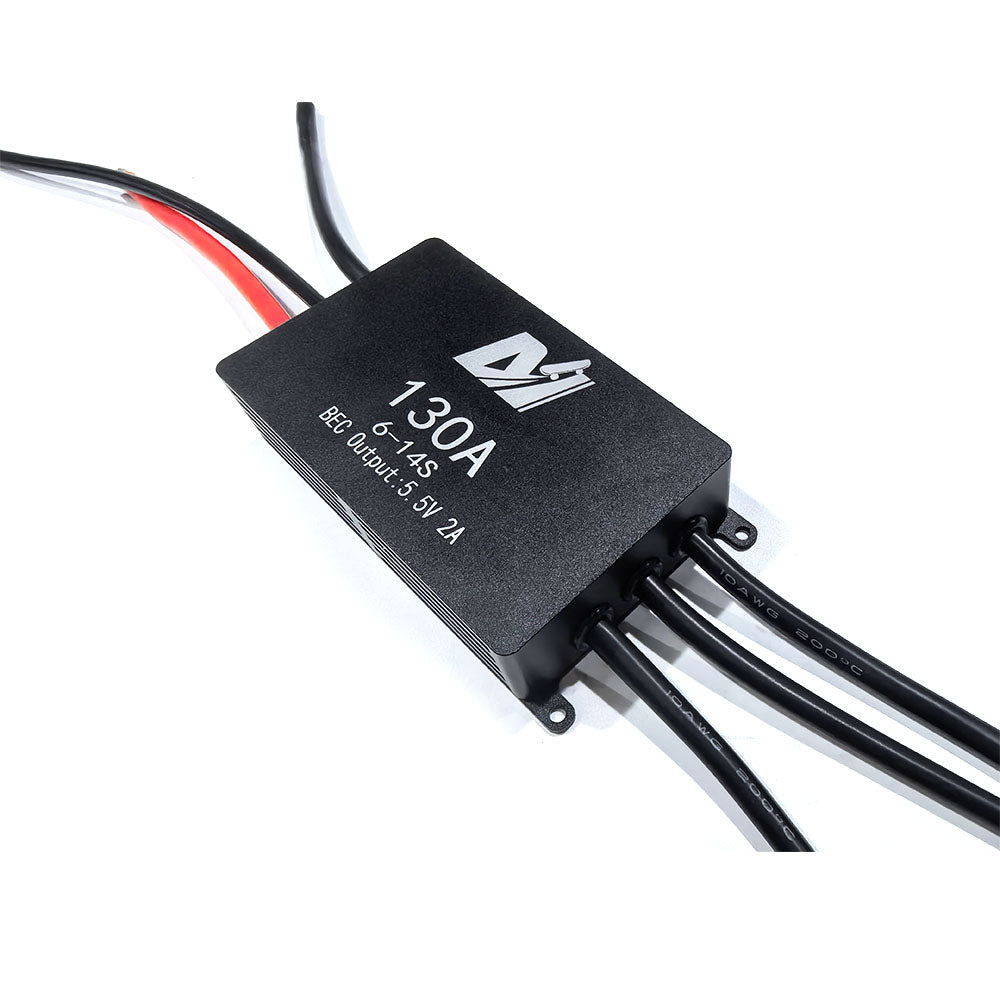

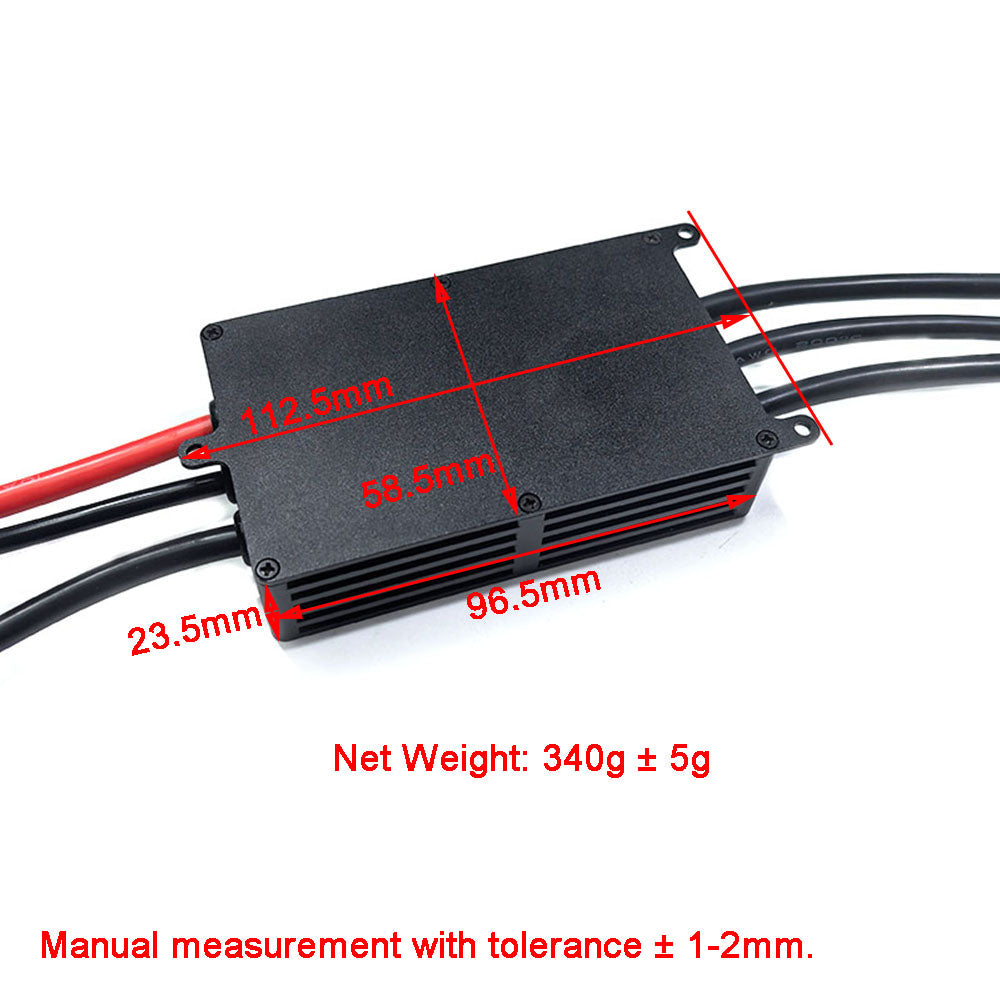

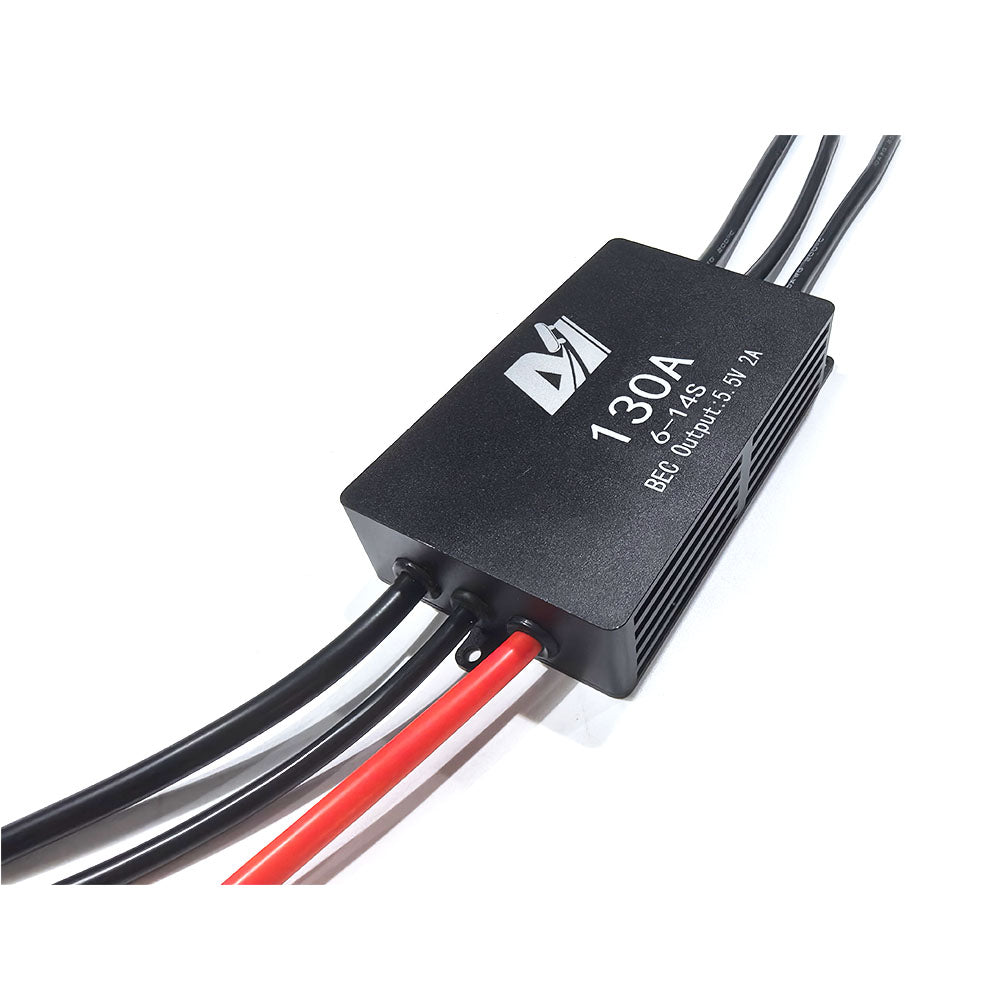

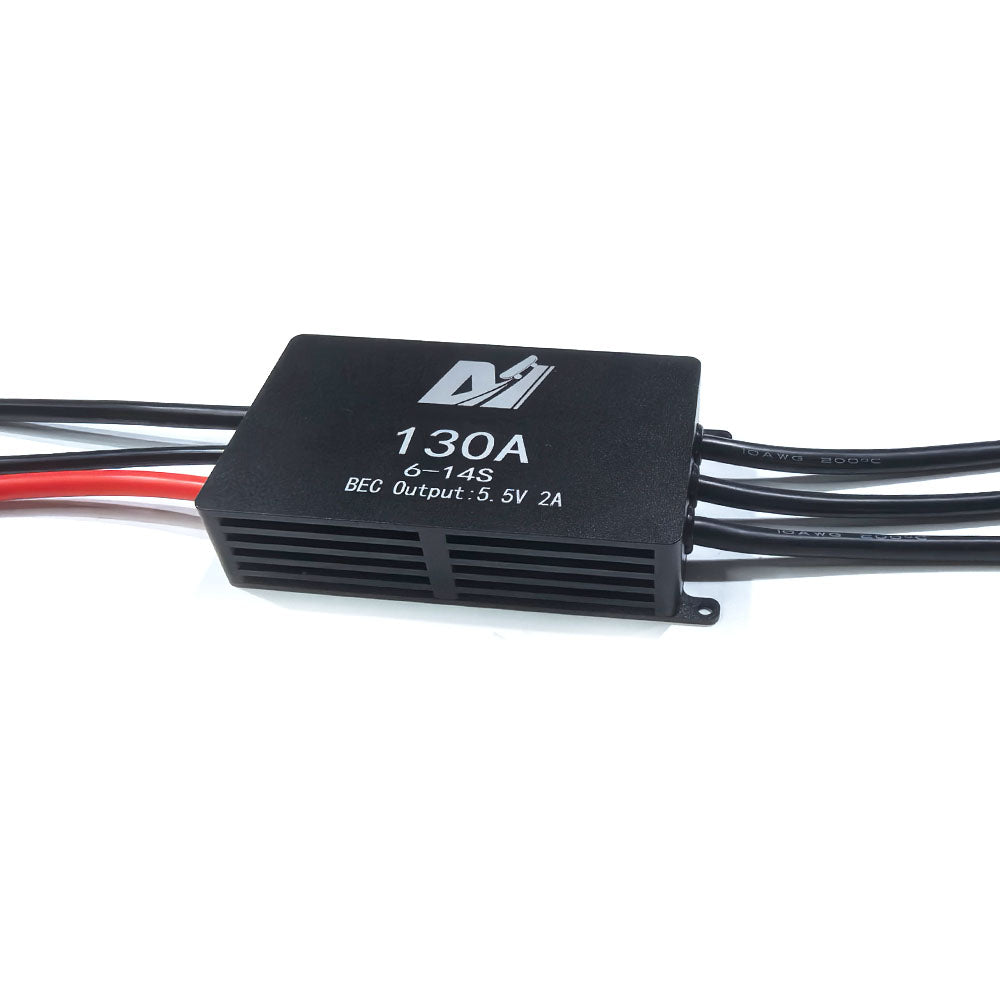

2. MTSF130A-WP32 130A 32Bit IP68 Waterproof ESC:

Model No. MTSF130A-WP32
Waterproof Rank IP68
Cont Current 130A
Peak Current 150A
Input Voltage 6-10S Lipo (24V-42V) in this kit
BEC With 5.5V/2A BEC
Connector

With 3x 4.0mm female bullet connector on motor cable side

No connector on battery cable side

MCU 32BIT Micropprocessor
Test We will set workable parameters fot the ESC and run test to make sure it work well with the 6374 80KV motor before shipment

Maytech new 130A waterproof ESC for foil drive assist kitMaytech new 130A waterproof ESC for foil drive assist kit

3. MTSKR1905WF V3.0 IP67 waterproof remote

Model No MTSKR1905WF V3.0
Waterproof Rank IP67 double waterproof
Thr Mode ESURF (SF) and ESK8 (SK)
3 Speed Modes With, adjust throttle % from 20-100%
Power Modes 2 levels, Eco (Level 1) < Pro (Level 2)
Throttle Lock Yes, 10-30S optional
Signal Format Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%.
PWM Signal Output Range 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode.
Double Source Power Supply Accept 5V power by ESC built-in BEC or extra 5V power
Output Signal Max 3.3V

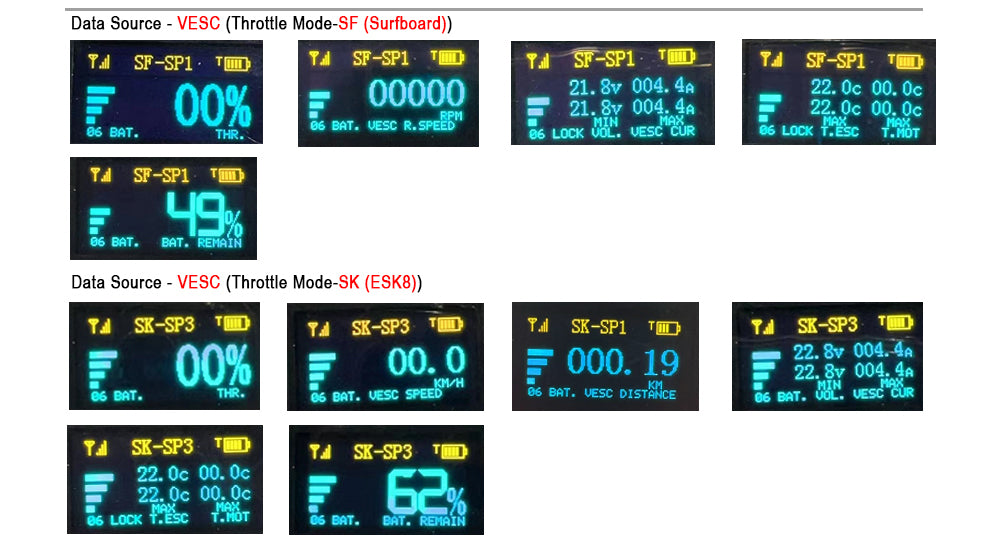

Display Parameters

Signal strength, remote and battery power bars, battery voltage, RPM with VESC and other ESCs

Control Pump Yes (Relay Switch)
Control Light Yes (Transistor Switch)
Safety Button Support
Cruise Control With in Esurf Mode
Brake With in Esk8 Mode

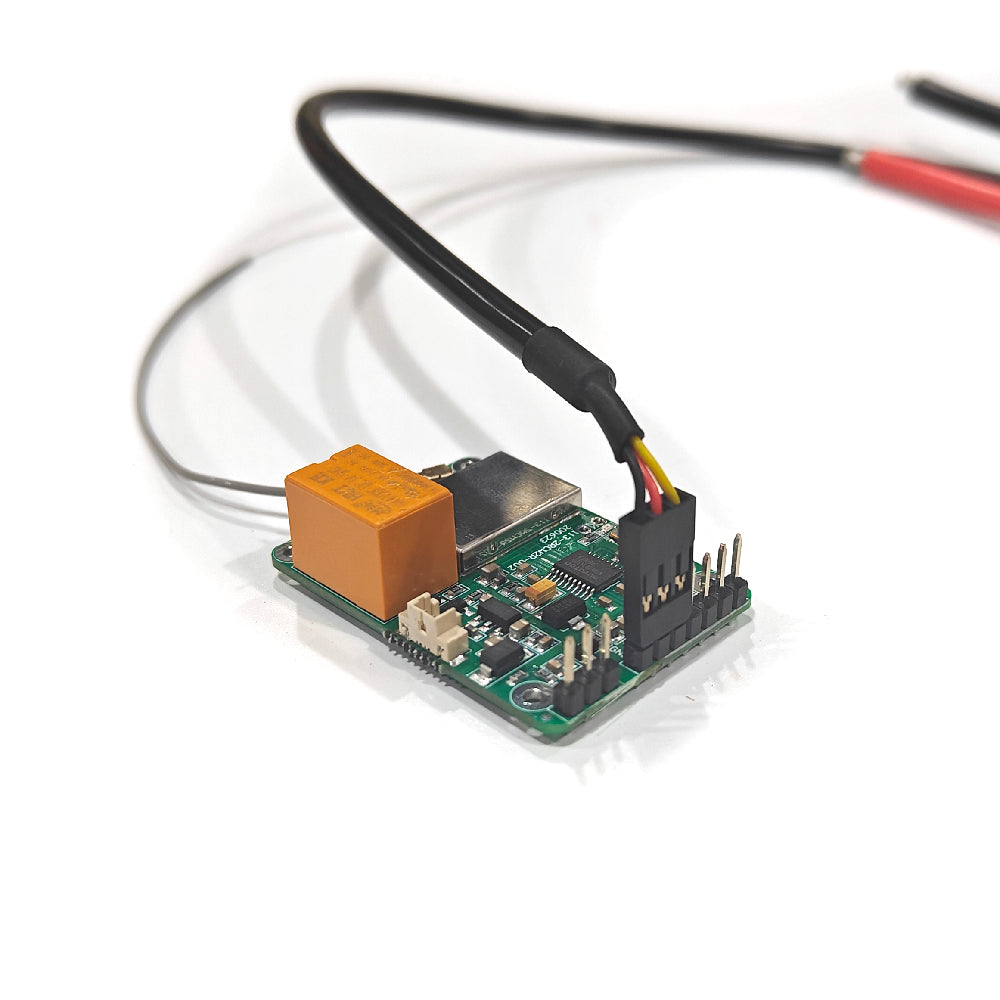

Accessories Wirelss charging pad / Receiver / USB cable / Wristband / 3pcs Dupond cable
Compatible Controllers VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote.
Application foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc.,

> Get E-Manual: Remote Manual and Instruction

> Check Video Using Instruction

Click Here: How to Display Volt, Current, RPM with TX and RX?


Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoil

Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoilMTSKR1905WF V2 Maytech remote, waterproof remote, Esk8  remote, esurf remote, efoil remote, IP67 waterproof

4. Customer's Feedbacks !

Customer feedback for Maytech foil assist kit 6374 150KV waterproof motor foil assist motor DIY foil drive alternative

Stock Notice Before Place Order:

1. The motor 150KV is in limited stock,  so please confirm your order asap, or please contact us agnes@maytech.cn to check stock first if you need very urgently.
KV can be customized, if you want to customize, we can do for you, please contact us for the KV you want.

2. Shipping time is about 24 working hours after your order confirmed for stock item, if not in stock, lead time is about 30-40 days.

3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.



In Stock Maytech Efoil Motor 65162 120KV with Propeller Marine MotorIn Stock 2pcs / 5pcs MTS2009AS Max 300A 85V Anti-spark Switch with Short Cirsuit Protection

IN STOCK! Maytech New Marine 32Bit 300A 60V ESC IP68 Waterproof Smaller Size for Efoil Underwater Thruster Electric SurfboardIn Stock V5 Bluetooth Module Can Automatically Switch VESC Communication with Receiver or Bluetooth Module https://maytech.cn/products/copy-of-maytech-ip68-waterproof-mti85165-200kv-inrunner-brushless-sensorless-motor-for-esurf-efoil-rc-boat-kv-customizedhttps://maytech.cn/products/maytech-brushless-inrunner-motor-for-electric-surfboard-rc-boat-mti120116-200-sf?variant=31252460765289

View full details
Your cart
Variant Variant total Quantity Price Variant total
With Stainless Steel Propeller and Plastic hub
With Stainless Steel Propeller and Plastic hub
$523.60
$0.00
$523.60 $0.00
With Plastic Propeller and hub
With Plastic Propeller and hub
$372.70
$0.00
$372.70 $0.00
No Propeller
No Propeller
$333.70
$0.00
$333.70 $0.00

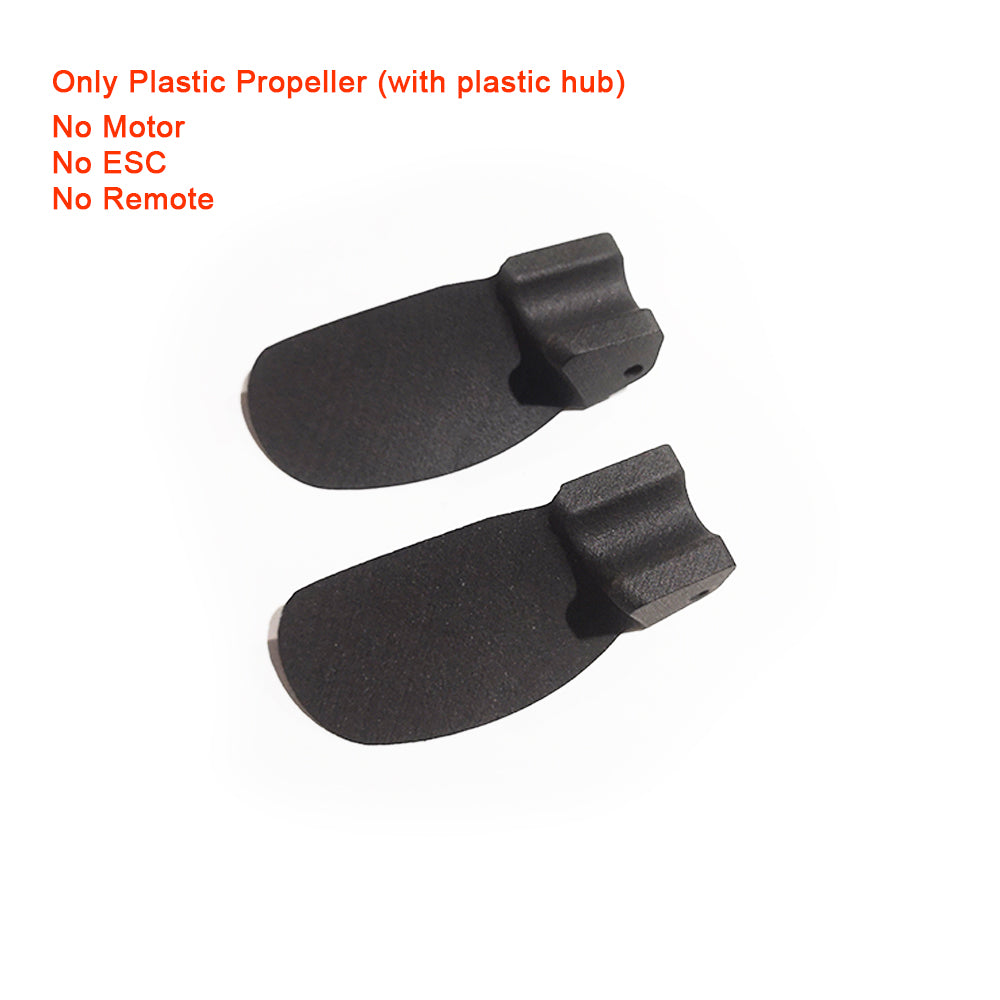

Only Plastic Propeller and Plastic hub
