In Stock Brushless 5055 Unsealed Motor 6mm Shaft Sensored 70/220KV
In Stock Brushless 5055 Unsealed Motor 6mm Shaft Sensored 70/220KV
Regular price
$59.62 USD
Regular price
$64.80 USD
Sale price
$59.62 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

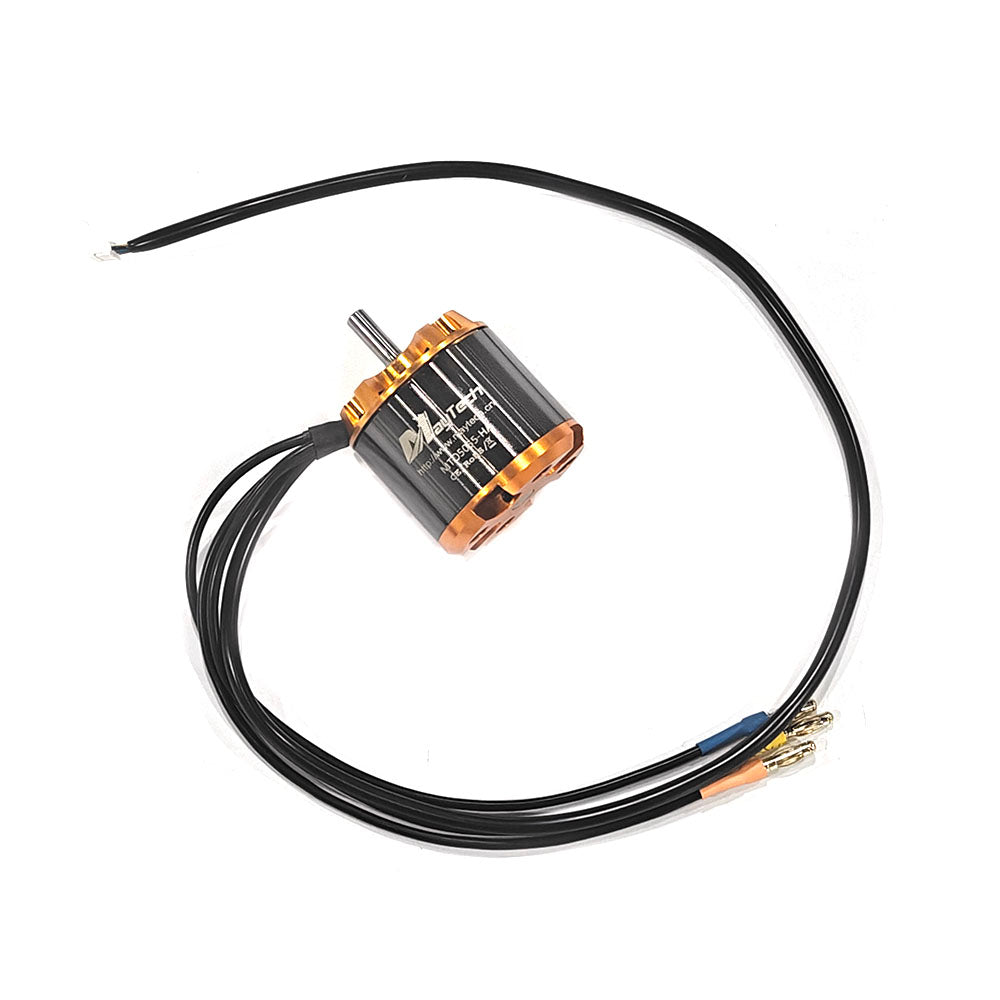

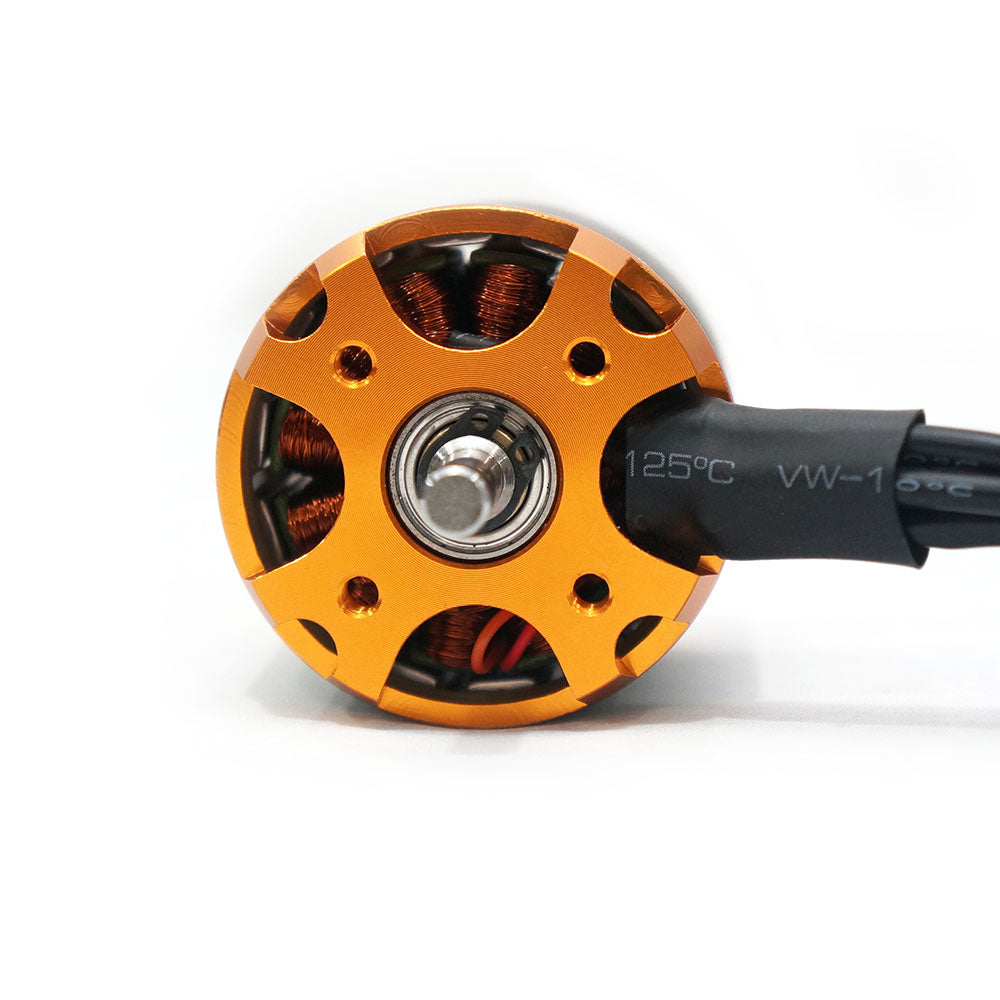

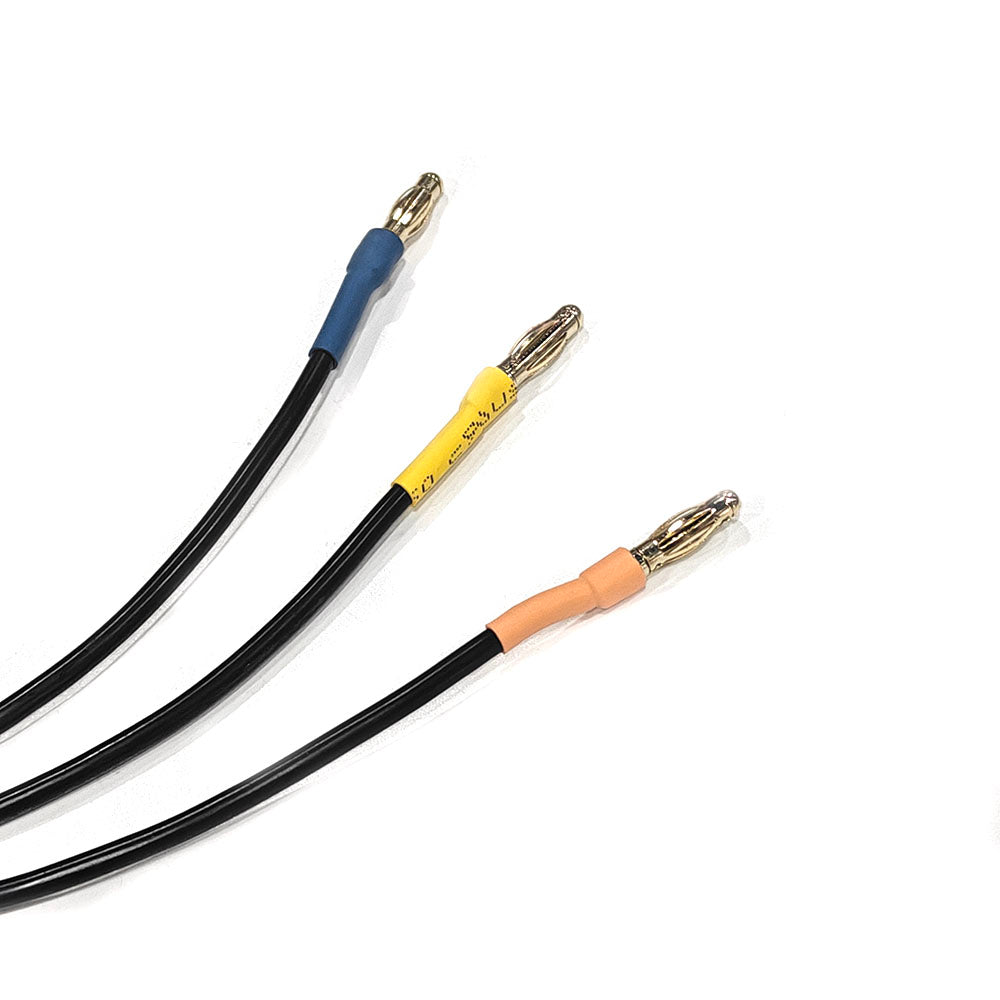

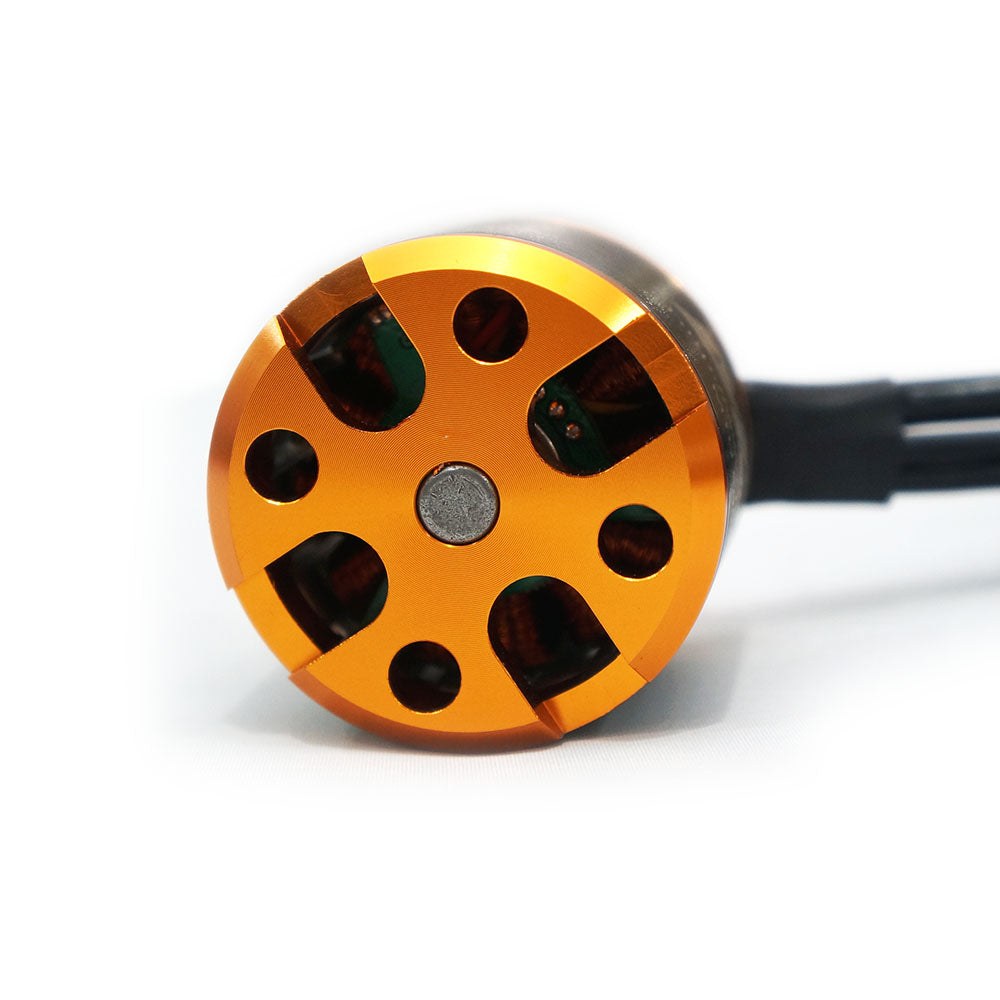

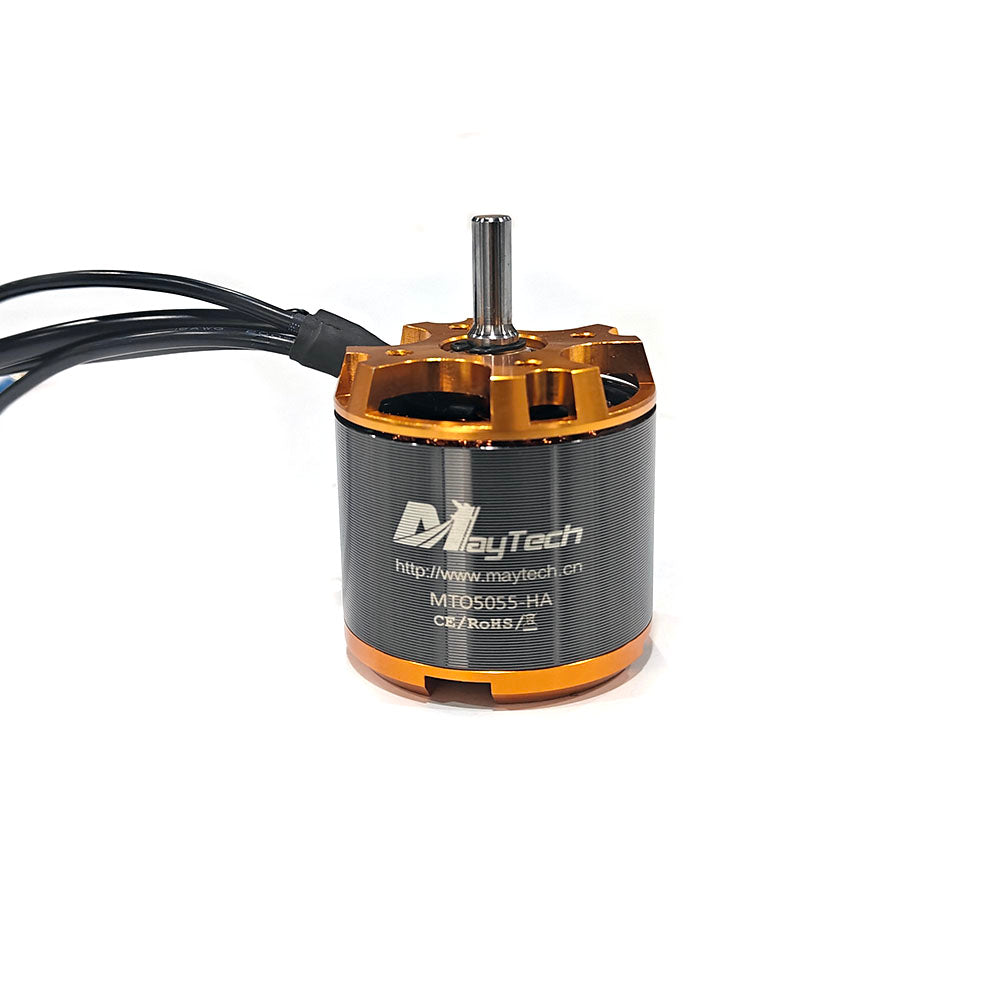

Maytech Brushless 5055 70/220/250KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/ROV MTO5055-HA 6 mm shaft
|
Model No
|
MTO5055-HA |
KV
|
70/220 |
|
Idle Current
|
0.5A
|
Max Current
|
30A
|
|
Inpur Voltage
|
3-12s Lipo
|
Max Output Watt
|
1170W
|
|
Max Pull
|
5400g
|
Rated Current
|
25.5A
|
|
Motor Weight
|
335g
|
Shaft
|
6mm
|
|
Output Shaft Length
|
26mm
|
Internal Resistance
|
0.1022
|
Notice:

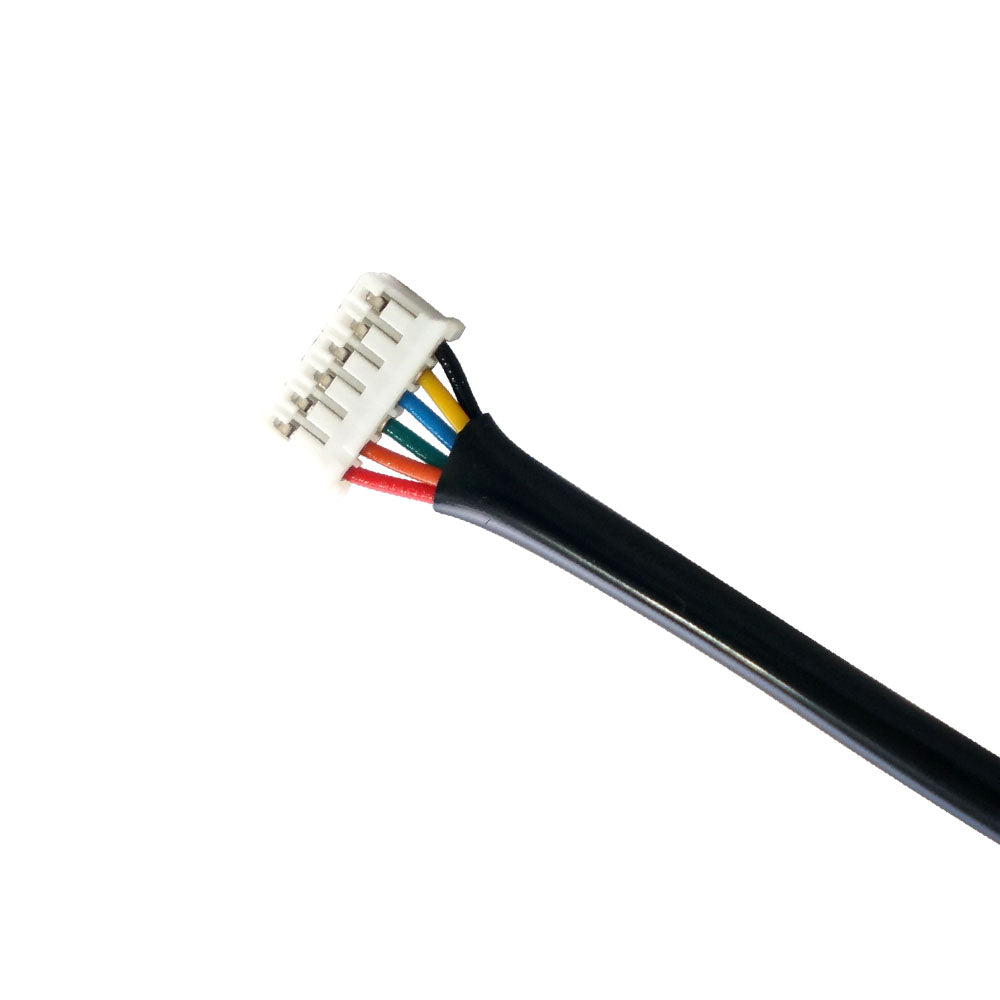

The motor has upgraded hall sensor embedded into stator, hall sensor board is more stable and motor has more precise positioning and smoother startup.
Printing on the motor case also has updated to with CE & ROHS symbol.
The upgraded version can work with previous version in same KV.
Stock Notice Before Place Order:
1. The motor is stock item, but stock is limited, so please confirm your order asap, or please contact us agnes@maytech.cn to check stock first if you need very urgently.2. Shipping time is about 24 working hours after your order confirmed if the product you ordered is in stock, if not in stock, lead time is about 30-40 days.
3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.

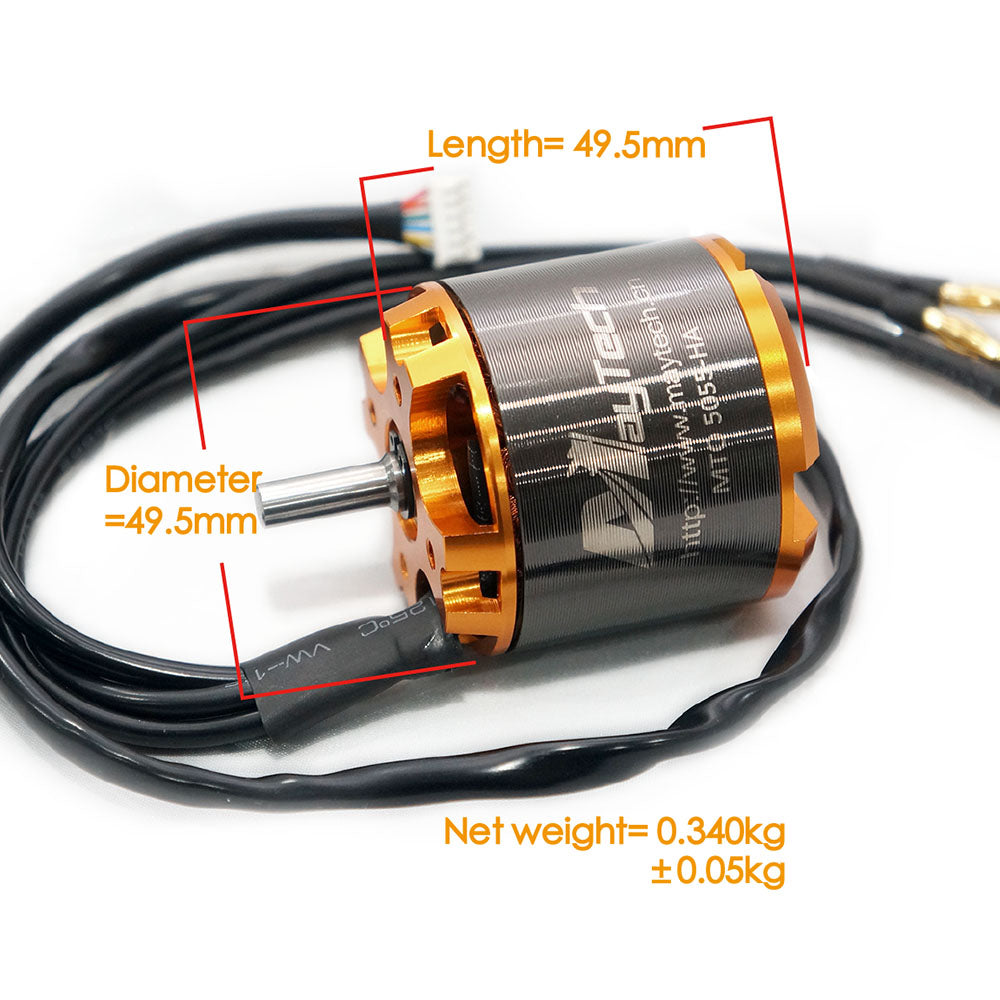

Motor Drawing:
