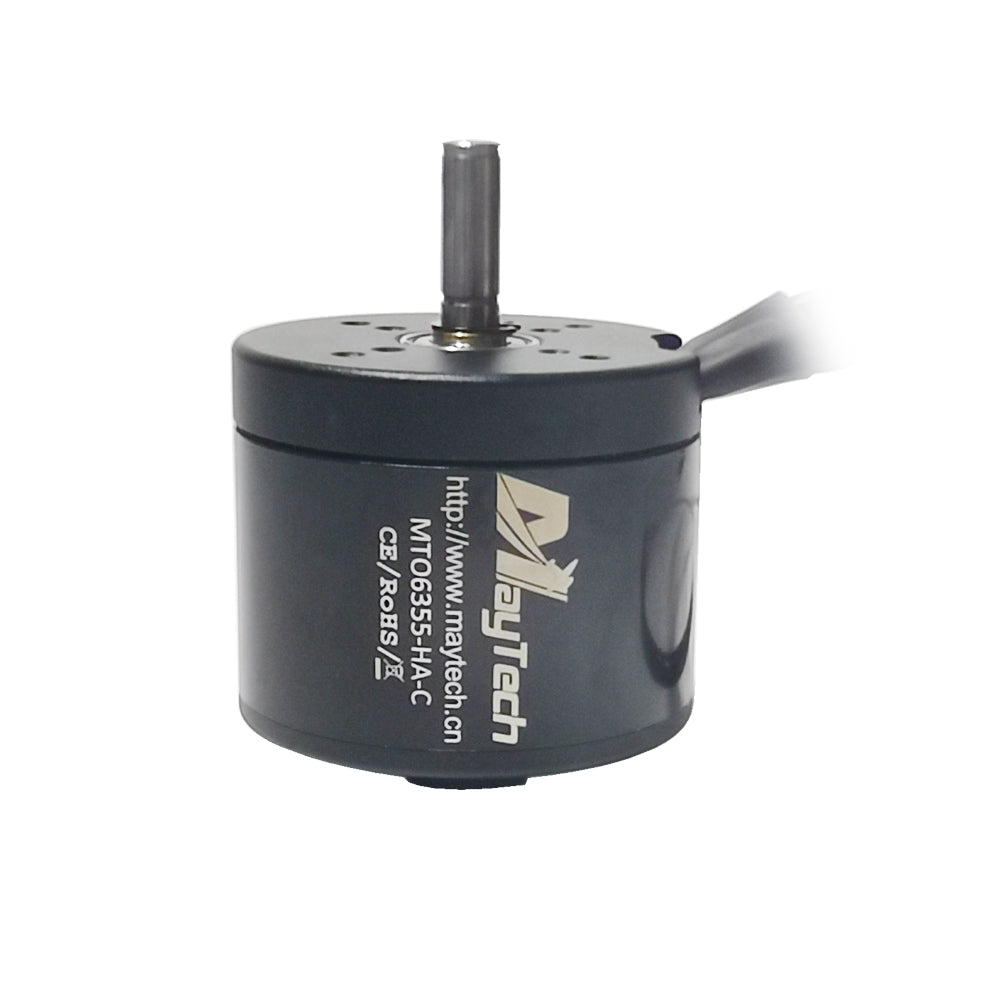

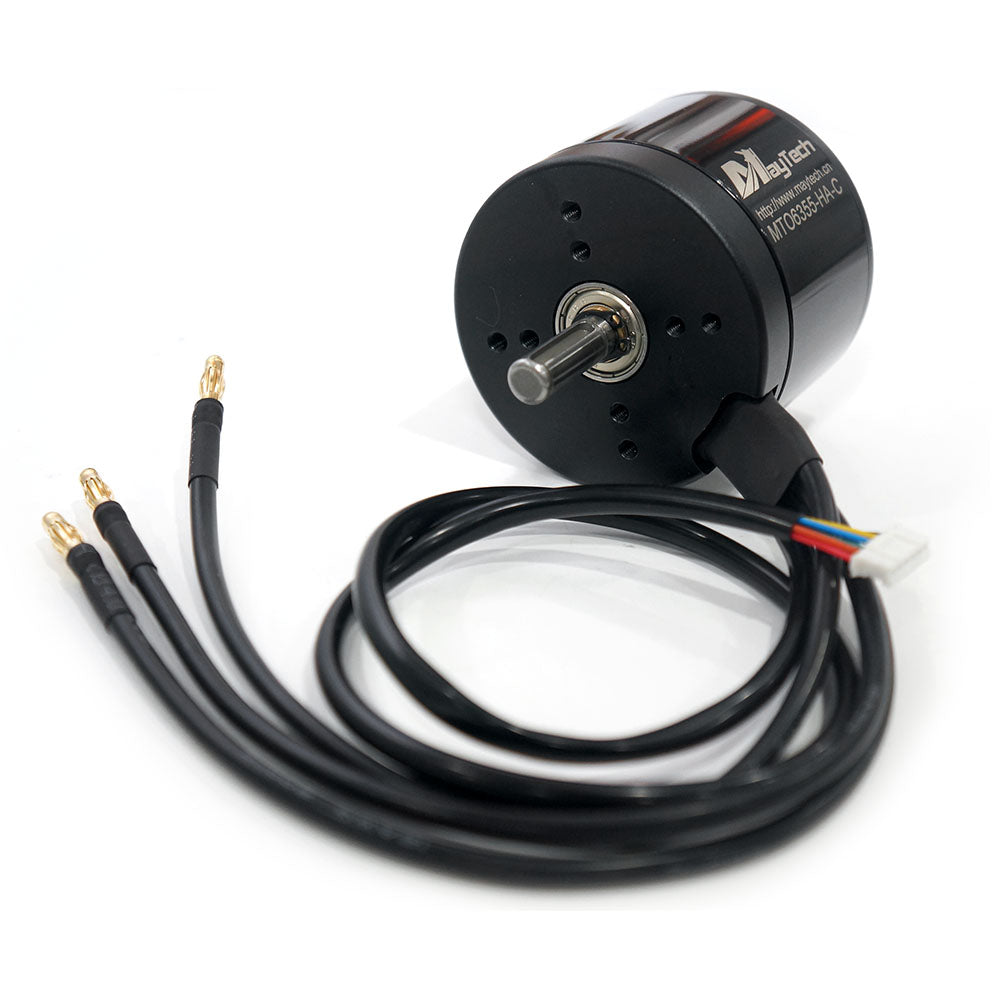

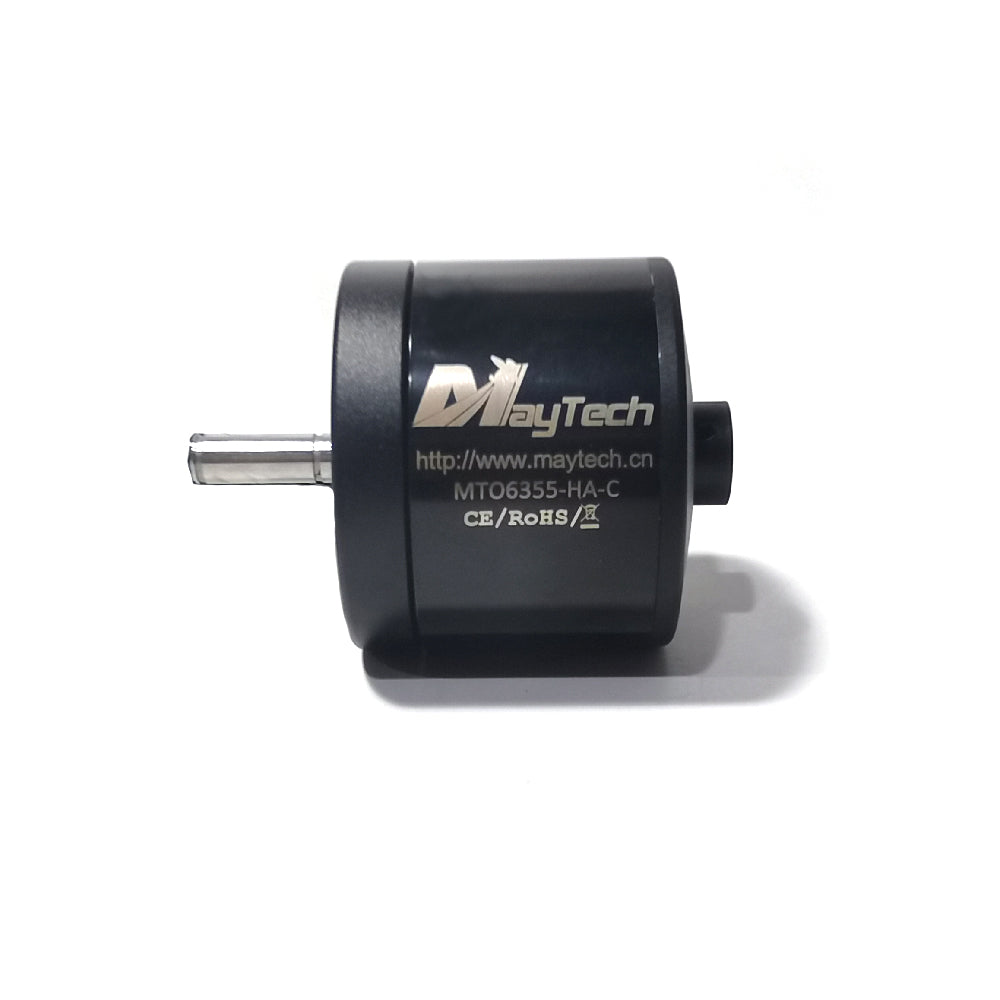

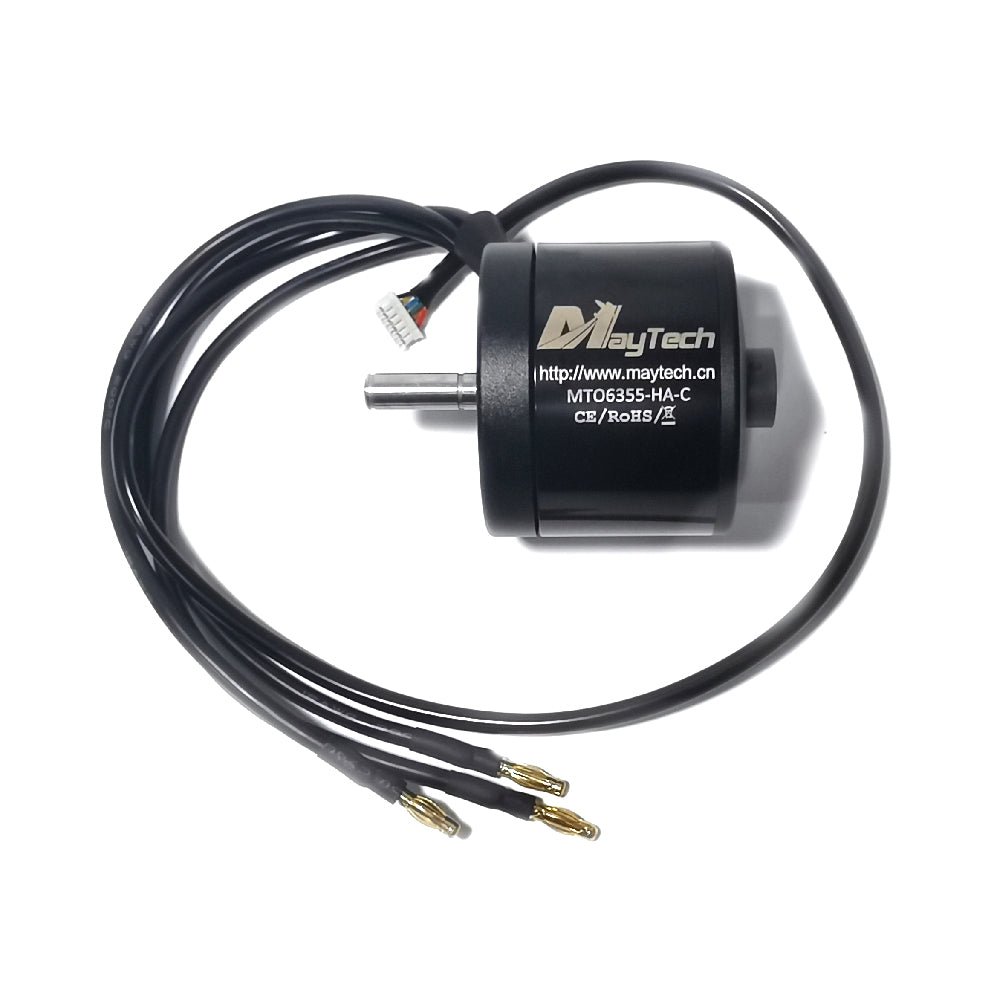

BRUSHLESS HALL SENSOR MOTOR MTO6355-170-HA-C
Maytech brushless closed cover outrunner motors are specially designed for electric skateboard. The motors come with low KV, high torque and efficiency. All parts are made of a high-precision CNC machining center, and all surfaces are made with oxidation treatment. High temperature and high purity oxygen-free copper wires were used. The motors use high-grade magnets and 0.2 mm lamination to improve efficiency.
The closed cover enable motors have dust-proof and water-proof function
The hall-effect sensors inside tracks the motor’s position. This information permits the controller to alternate power with the right timing and in the right sequence and, voila, it spins.
Better efficiency means you get more mechanical energy per unit of power,
After a lot of development, we have put together what we know works best for an electric skateboard or ebike motor and made it small and compact.
Model NO.: MTO6355-170-HA-C
KV: 170
Idle Current: 1.0A
Max. Current: 65A
Input Volt.: 2-12s Lipo
Max. Output Watt: 3510W
Max. Pull: 12000g
Rated Current: 55A
Motor Weight: 605g
Shaft: 8mm,Output shaft length: 26mm
Internal Resistance: 0.0441
With black closed cover
Application: for electric skateboard, ebike, electric bike, underwater robots, Marine robots, fighting robots, War robots, delivery robots, electric power tools, etc.

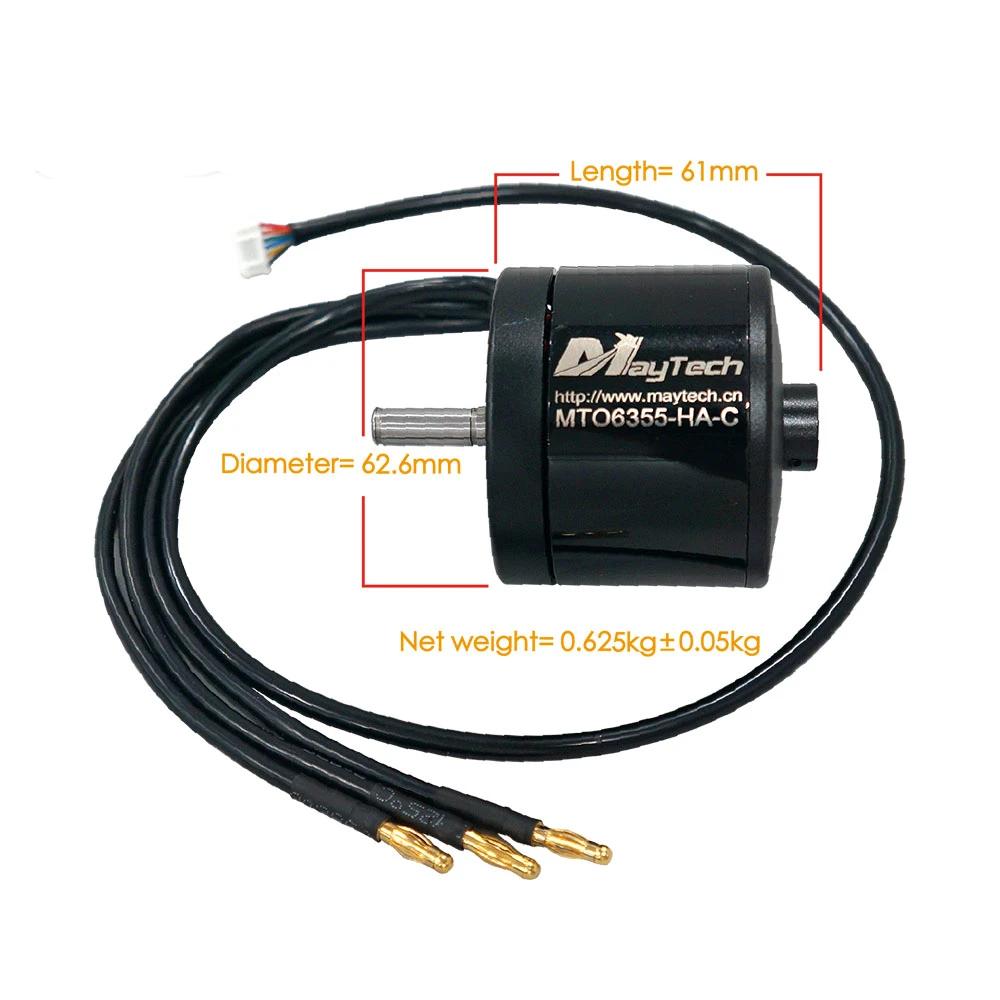

Dimension:
