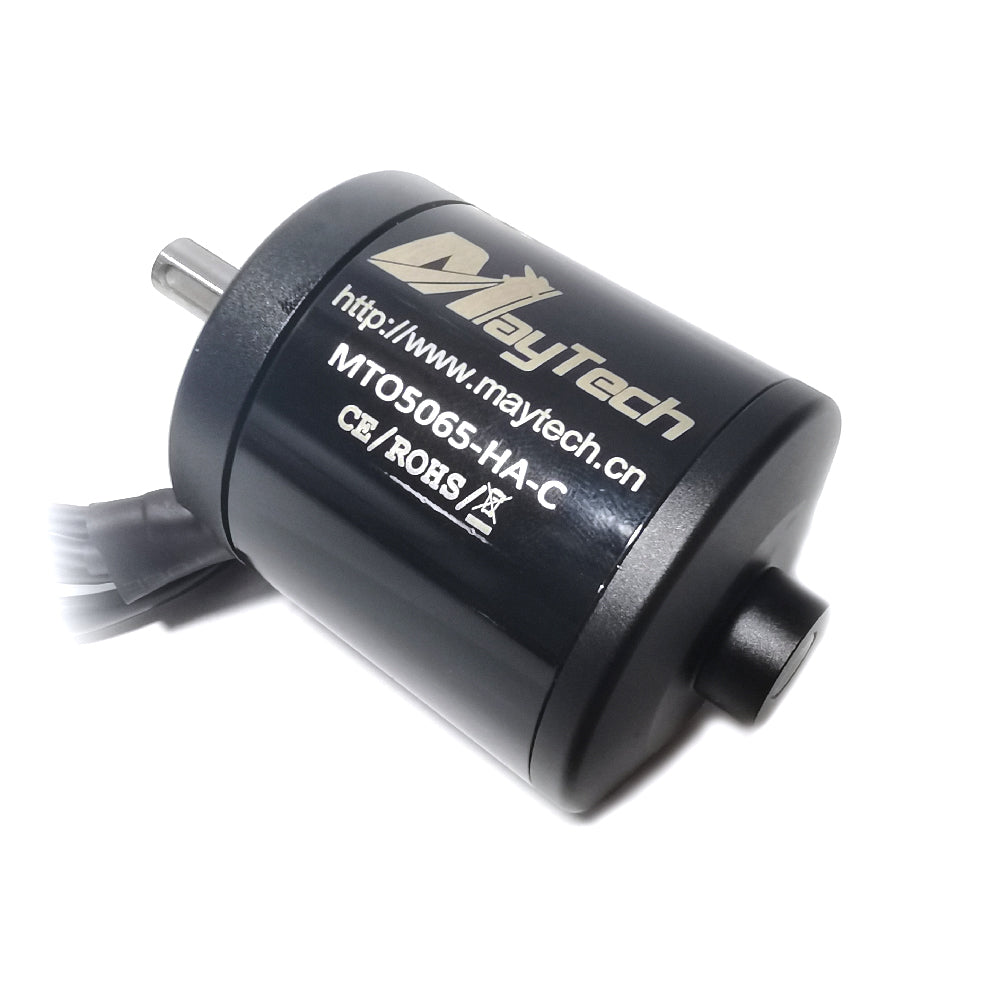

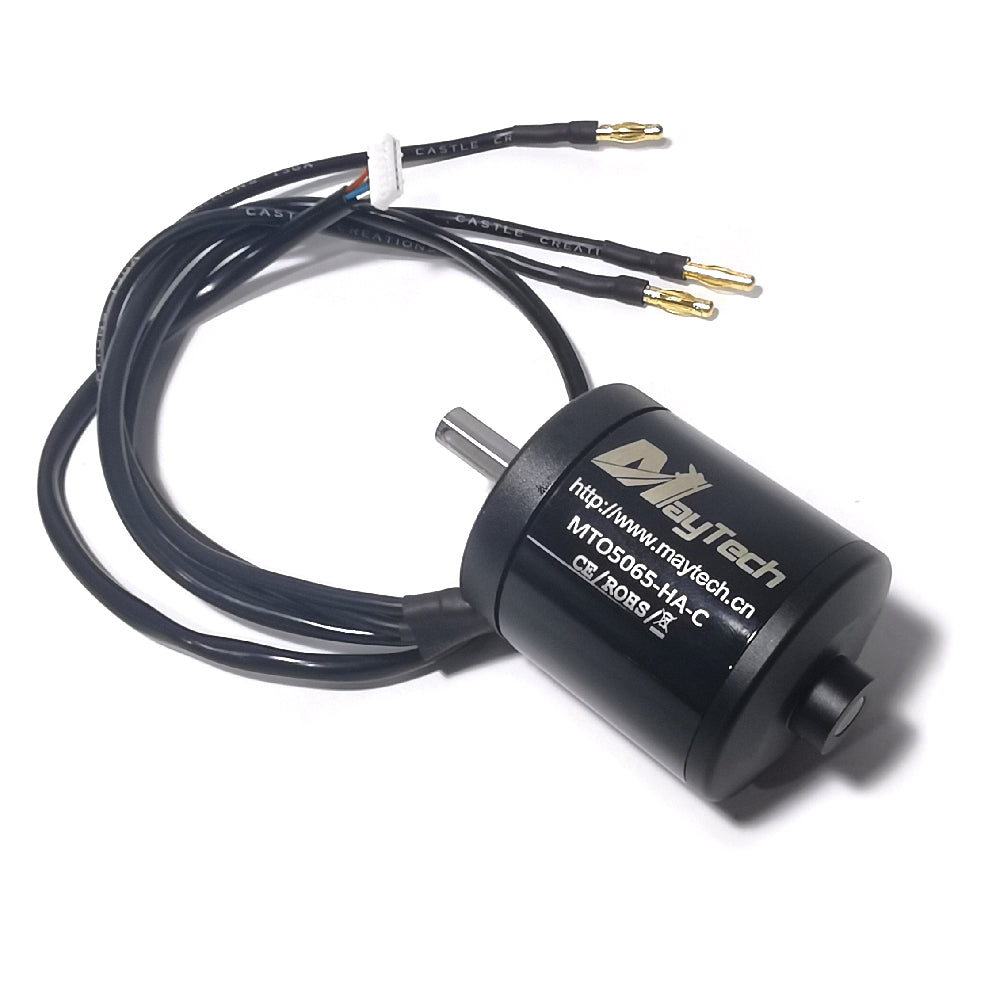

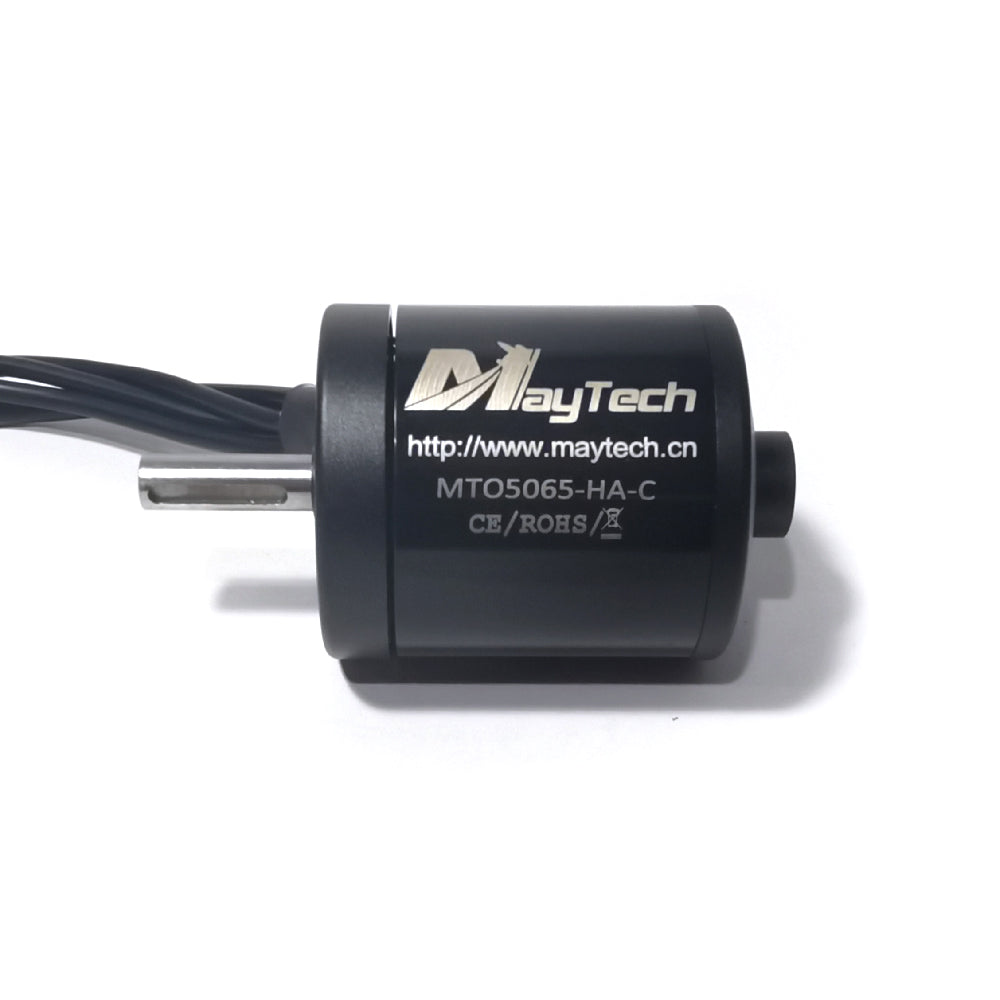

Brushless 5065 70/170/220KV Closed Cover Sensored IP54 Waterproof Motor For Esk8/E-scooter
Brushless 5065 170KV Closed Cover Sensored IP54 Waterproof Motor For Esk8/E-bike/Robots/Mountainboard/E-scooter MTO5065-170-HA-C 8mm Shaft
Maytech brushless closed cover outrunner motors are specially designed for electric skateboard. The motors come with low KV, high torque and efficiency. All parts are made of a high-precision CNC machining center, and all surfaces are made with oxidation treatment. High temperature and high purity oxygen-free copper wires were used. The motors use high-grade magnets and 0.2 mm lamination to improve efficiency.
The closed cover enable motors have dust-proof and water-proof function

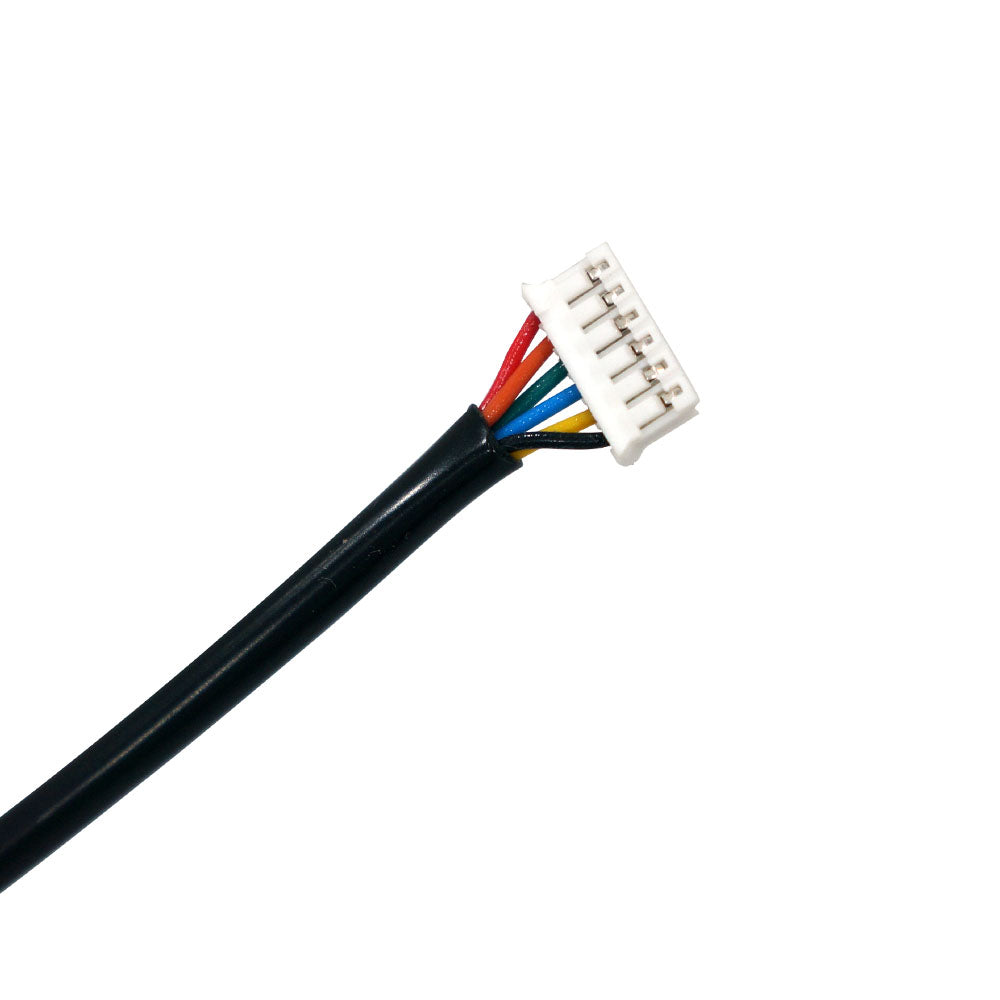

The hall-effect sensors inside tracks the motor’s position. This information permits the controller to alternate power with the right timing and in the right sequence and, voila, it spins.
Better efficiency means you get more mechanical energy per unit of power,
After a lot of development we have put together what we know works best for an electric skateboard or ebike motor and made it small and compact.
Model NO.: MTO5065-170-HA-C
KV: 170 (Standard KV)
Idle Current: 1.2A
Max. Current: 50A
Input Volt.: 2-10s Lipo
Max. Output Watt：1815W
Max. Pull: 6700g
Rated Current: 42.5A

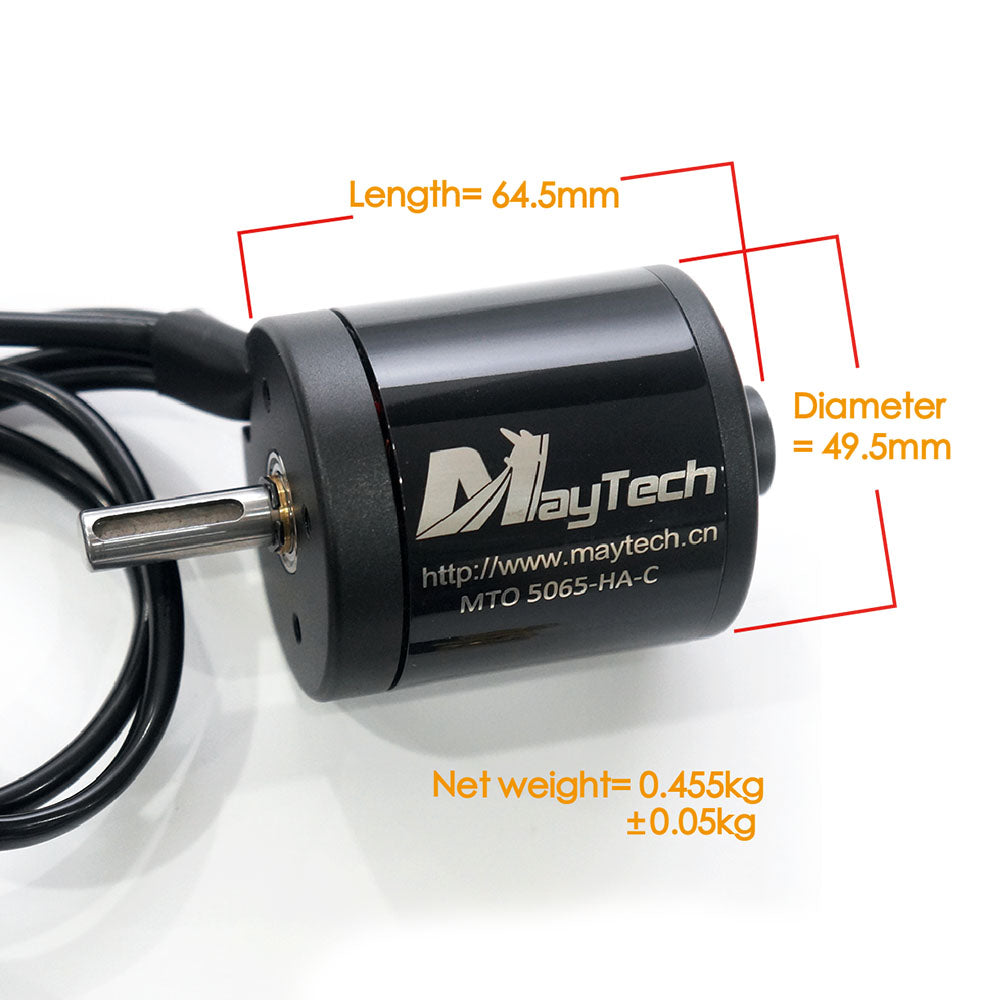

Motor Weight: 450g

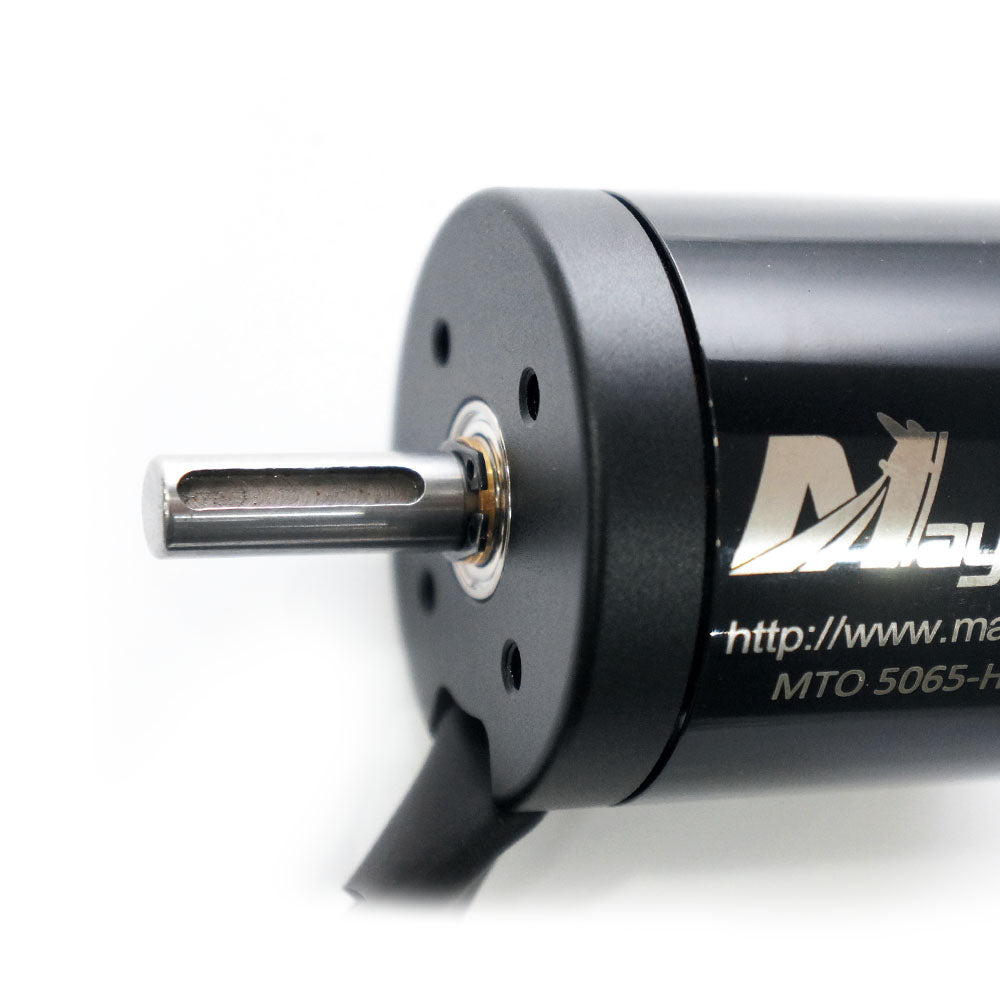

Output shaft length: 26mm
Internal Resistance: 0.0361
With black closed cover
Application: for electric skateboard, underwater robots, Marine robots, fighting robots, War robots, delivery robots, electric power tools, etc.
