Pre-order New Marine 32Bit 160A 60V ESC IP68 Waterproof Smaller Size for Powered Assist Foil Board Efoil

$238.90 USD

Sale Ausverkauft

Versand wird beim Checkout berechnet

Progcard With Progcard Without Progcard

Produktvarianten

Anzahl

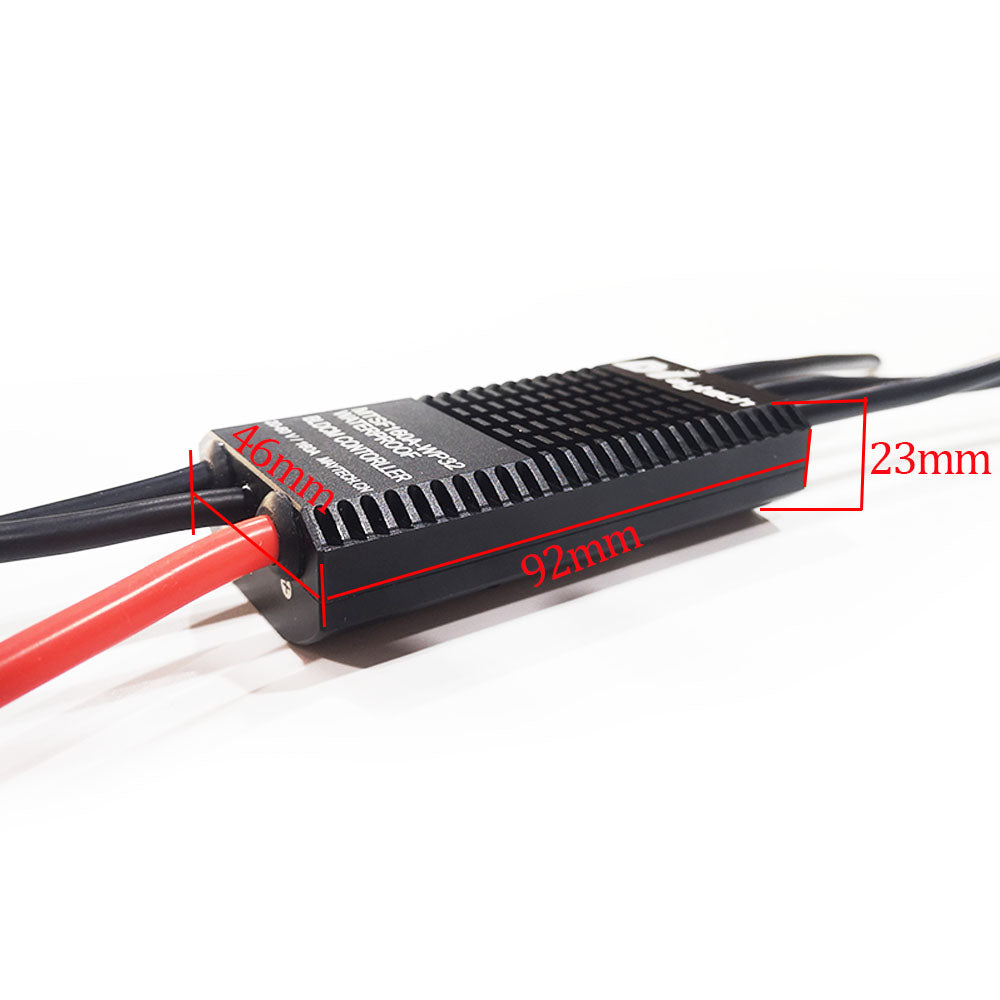

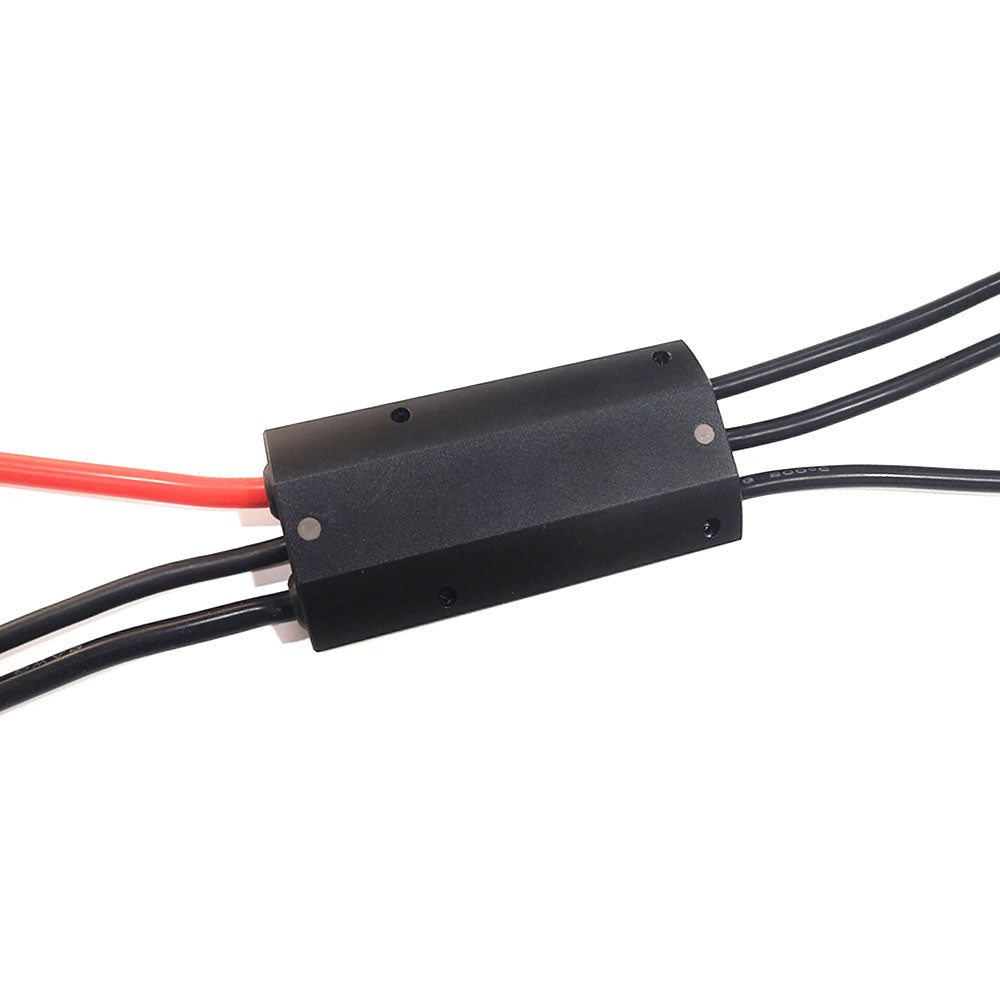

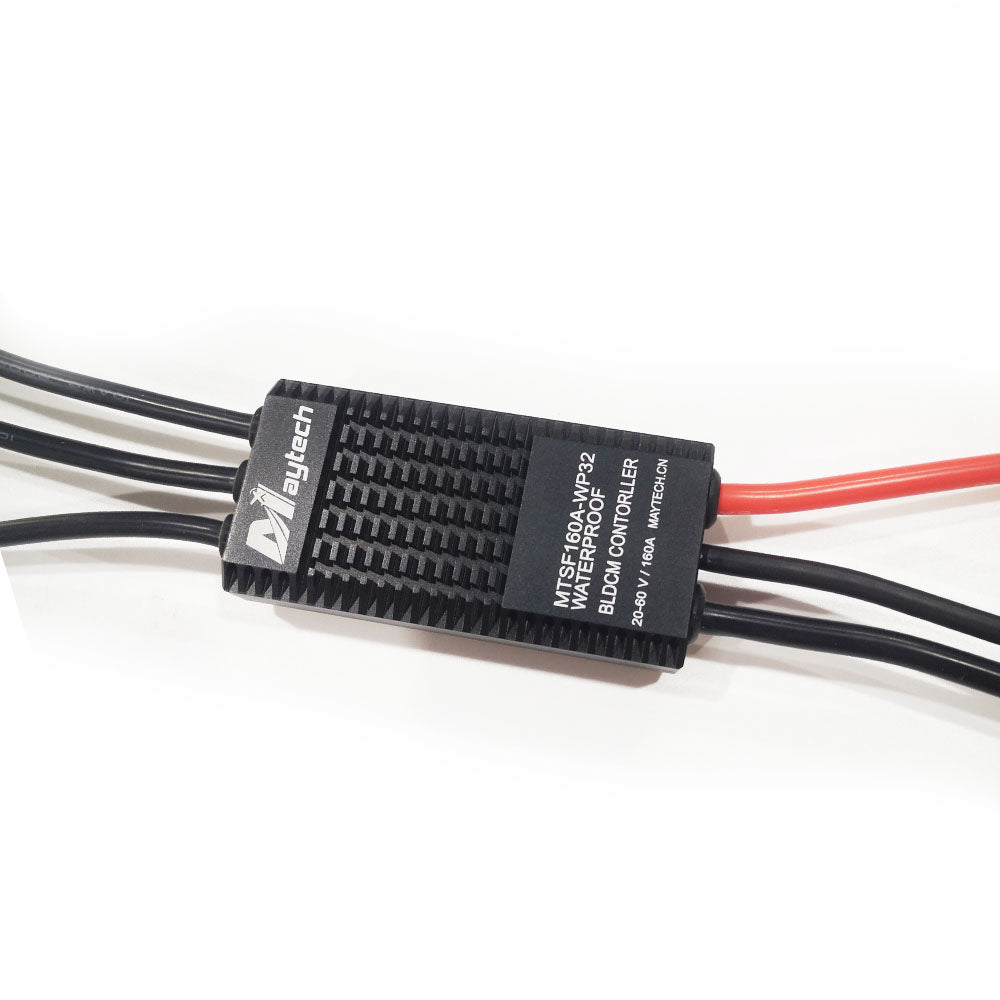

New Marine 32Bit 160A 60V ESC IP68 Waterproof Smaller Size for Powered Assist Foil Board Efoil

Specification:

Model No.: MTSF160A-WP32

Waterproof Rank: IP68

Cont Current: 160A

Peak Current: 180A

Input Voltage: 6-14S Lipo (25V-60V)

With 5V/0.5A BEC

32BIT Micropprocessor

Application: foil assist board, Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.,

New Marine 32Bit 160A 60V ESC IP68 Waterproof Smaller Size for Powered Assist Foil Board Efoil

Strengths:

1. Fully new circuit design, excellent algorithm

--With high performance 32bit MCU processor, greatly improved data computing ability;

--Faster respond, smoother startup;

--Throttle linear is optimized, more accurate and smoother, better compatibility;

2. Seperate control board and power board design

--Elegant PCB layout and circuit design,control board won’t be influenced even when ESC gets heat at high power condition, which makes the ESC more reliable and has stronger anti-interference.

3. Support forward and reverse rotation

--The ESC filled with waterproof glue to make sure its IP68 waterproof, flat water cooling design to make sure high efficient heat dissipation.

--Suitable to use on various water sports like Efoil, surfboard, underwater thruster, etc.,

4. With kinetic energy recovery function

--Save more energy;

--Extend battery working time;

--Reduce heat

5. Multiple protections

--Startup protection;

--Over-temp protection;

--Low voltage protection;

--Phase loss protection;

--Signal loss protection

Related Products:

Vollständige Details anzeigen

Dein Warenkorb
Variante	Varianten insgesamt	Anzahl	Preis	Varianten insgesamt
With Progcard	With Progcard $238.90/Stück	$0.00	Anzahl	$238.90/Stück	$0.00

Without Progcard	Without Progcard $213.10/Stück	$0.00	Anzahl	$213.10/Stück	$0.00

Warenkorb ansehen

0

Artikel gesamt

$0.00

Produktzwischensumme

Steuern, Rabatte und Versand werden beim Checkout berechnet

Warenkorb ansehen

Model No.	MTI65162-120-SF
KV	100, 120, if you want other KV, contact agnes@maytech.cn
Max Current	300A
Input Voltage	6-24S Lipo (25-100V)
Max Output Voltage	9KW
Shaft	Screw Shaft
Hall Sensor	Without
Motor Pole Number	6
Waterproof Rank	IP68 Waterproof
Customize	KV, logo, shaft, cable, connector, etc., contact Email: agnes@maytech.cn

Model No.	MTI85165-200-WP
KV	200, if you want other KV, contact agnes@maytech.cn
Max Current	300A
Input Voltage	6-12S Lipo (25-50V) for 200KV, 6-16S Lipo (25-67V) for 150KV
Max Output Voltage	10.5KW
Shaft	Keyway Shaft
Hall Sensor	Without, if you want hall sensor, contact agnes@maytech.cn
Motor Pole Number	10
Waterproof Rank	IP68 Waterproof
Customize	KV, logo, shaft, cable, connector, etc., contact Email: agnes@maytech.cn

Model No.	MTI85165-200-SF
KV	200, if you want other KV, contact agnes@maytech.cn
Max Current	300A
Input Voltage	6-12S Lipo (25-50V) for 200KV, 6-16S Lipo (25-67V) for 150KV
Max Output Voltage	10.5KW
Shaft	Screw Shaft, other shaft can be customized, contact us
Hall Sensor	Without, if you want hall sensor, contact agnes@maytech.cn
Motor Pole Number	10
Waterproof Rank	Not waterproof, watercooled version, can't work underwater directly
Customize	KV, logo, shaft, cable, connector, etc., contact Email: agnes@maytech.cn

Model No	MTSKR1905WF (V2), upgraded waterproof and signal strength
Waterproof Rank	IP67 with 2 layers nanometers coating
Control Mode	Esk8/ Esurf
Signal Format	Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%.
PWM Signal Output Range	1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode.
Double Source Power Supply	Accept 5V power by ESC built-in BEC or extra 5V power
Output Signal	Max 3.3V
Display	Remote and battery power, signal strength, throttle and brake percentage, RPM; speed, mileage; Current, voltage, temp when work with VESC
Control Pump	Yes (Relay Switch)
Control Light	Yes (Transistor Switch)
Safety Button	Support
Cruise Control	With in Esurf Mode
Brake	With in Esk8 Mode
Wireless Charging	Yes
Package Includes	Transmitter, receiver, charging Pad, receiver, wristband, 3pcs dupont cable
Compatible Controllers	VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote.
Application	foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc.,

Model No.	MTS2009AS
Max Current	300A
Max Voltage	6-20S Lipo (25-85V), recommend better work under 75V
Size	96.5 x 56 x 25 (mm)
Switch Diameter	12mm
Switch Type	Use NMOS to realize switching on/off Power positive
Connector	With 4pcs Cold-pressed Terminal Connector
Function	Protect your controller and power supply system when brake or startup
Features	First Switch that can cut off positive pole power in the market; Switch comes with LED light indicator; Shutdown current less than 1uA; Suitable for load: three phase motor speed controller; Boot soft start; Automatic short circuit protection when boot; Automatic short circuit protection when work.
Application	Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, etc.,
