Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil

Specification:

Item: MTSKR1905WF (V2)

Waterproof Rank: IP67 with 2 layers nanometers coating

Control Mode: Esk8/ Esurf

Signal Format: Standard PWM (PPM), output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%.

PWM Signal Output Range: 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode.

UART: Acceptable

Double Source Power Supply: Accept 5V power by ESC built-in BEC or extra 5V power

Output Signal: Max 3.3V

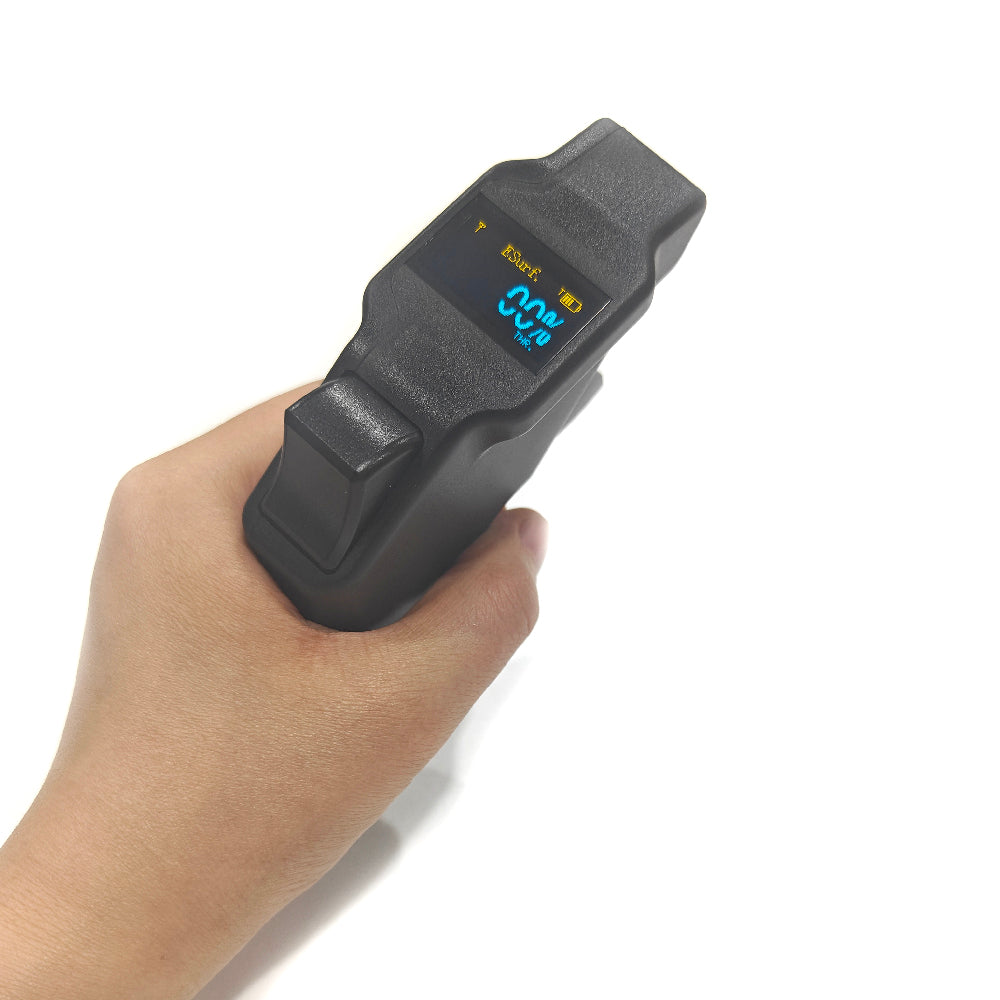

Display: Remote and battery power, signal strength, throttle and brake percentage, RPM, speed, mileage; Current, voltage,

Firmware Updatable: Yes

Control Pump: Yes (Relay Switch)

Control Light: Yes (Transistor Switch)

Set Safety Button: Yes

Cruise Control: With in Esurf Mode

Brake: With in Esk8 Mode

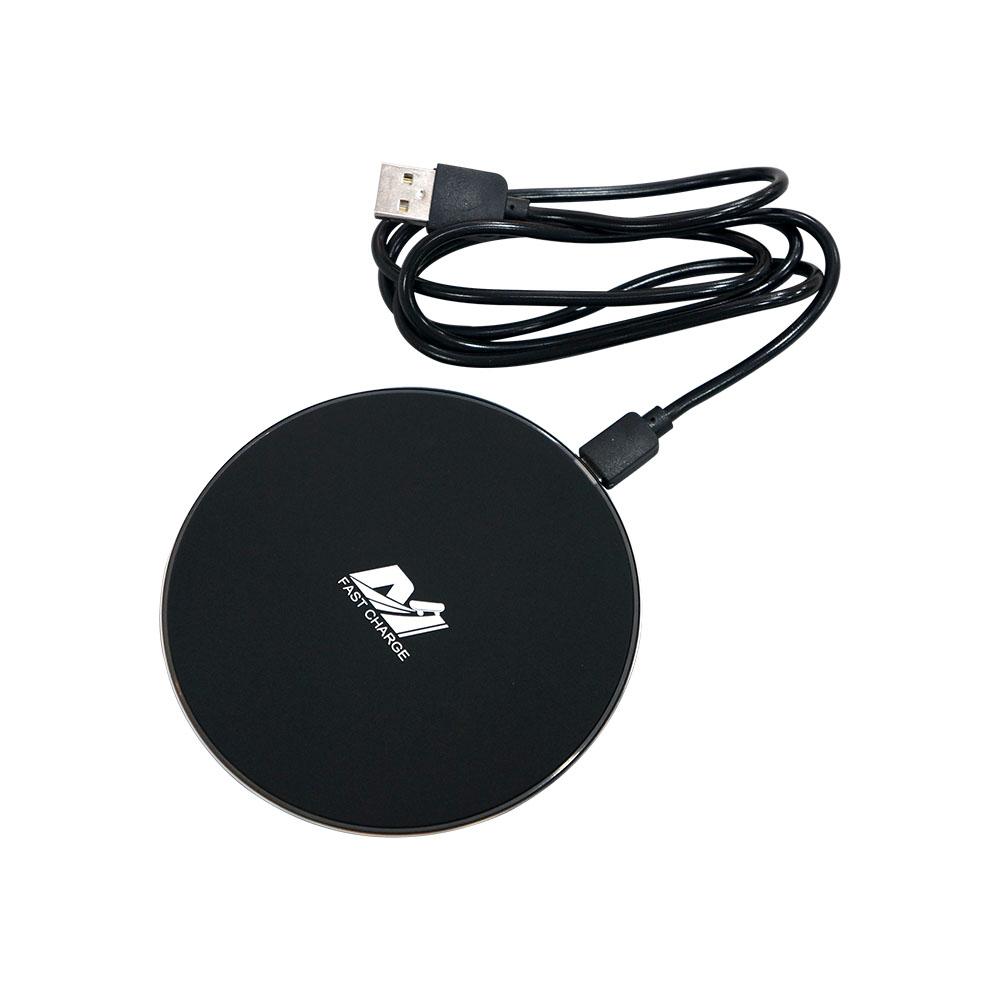

Wireless Charging: Yes

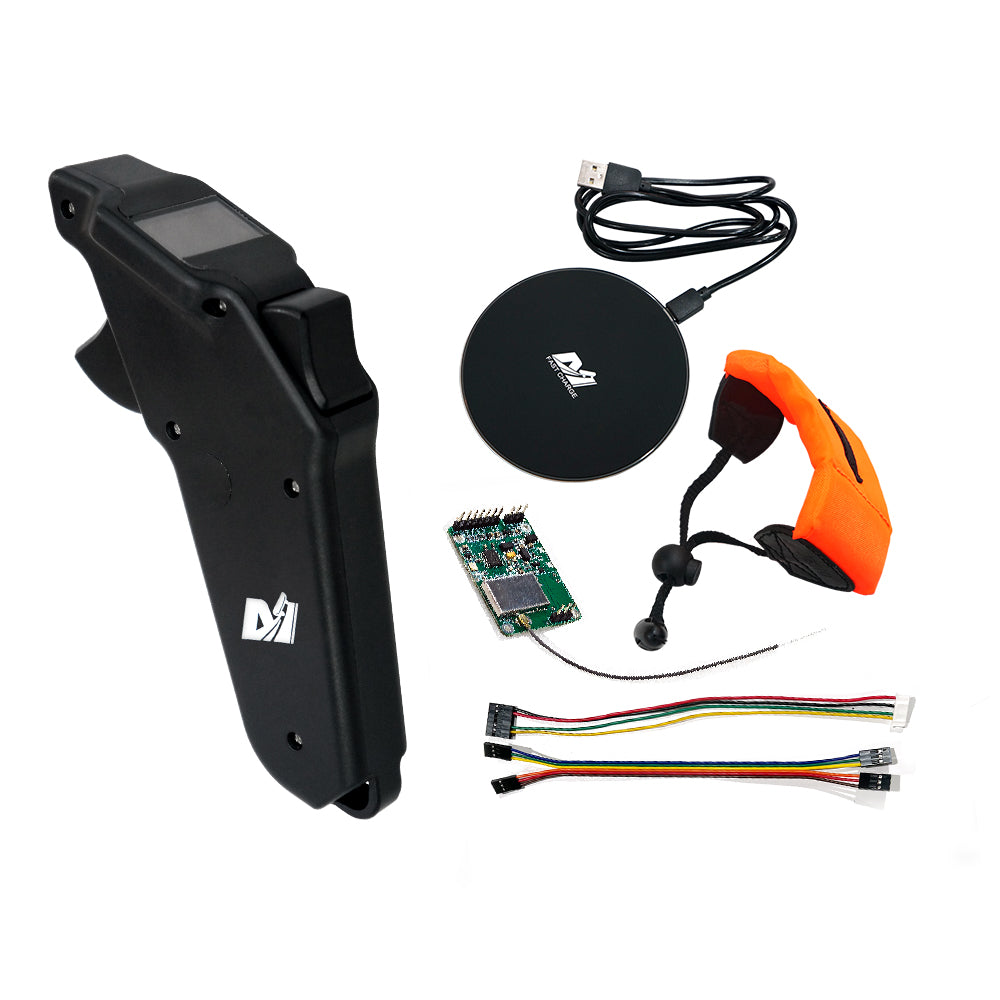

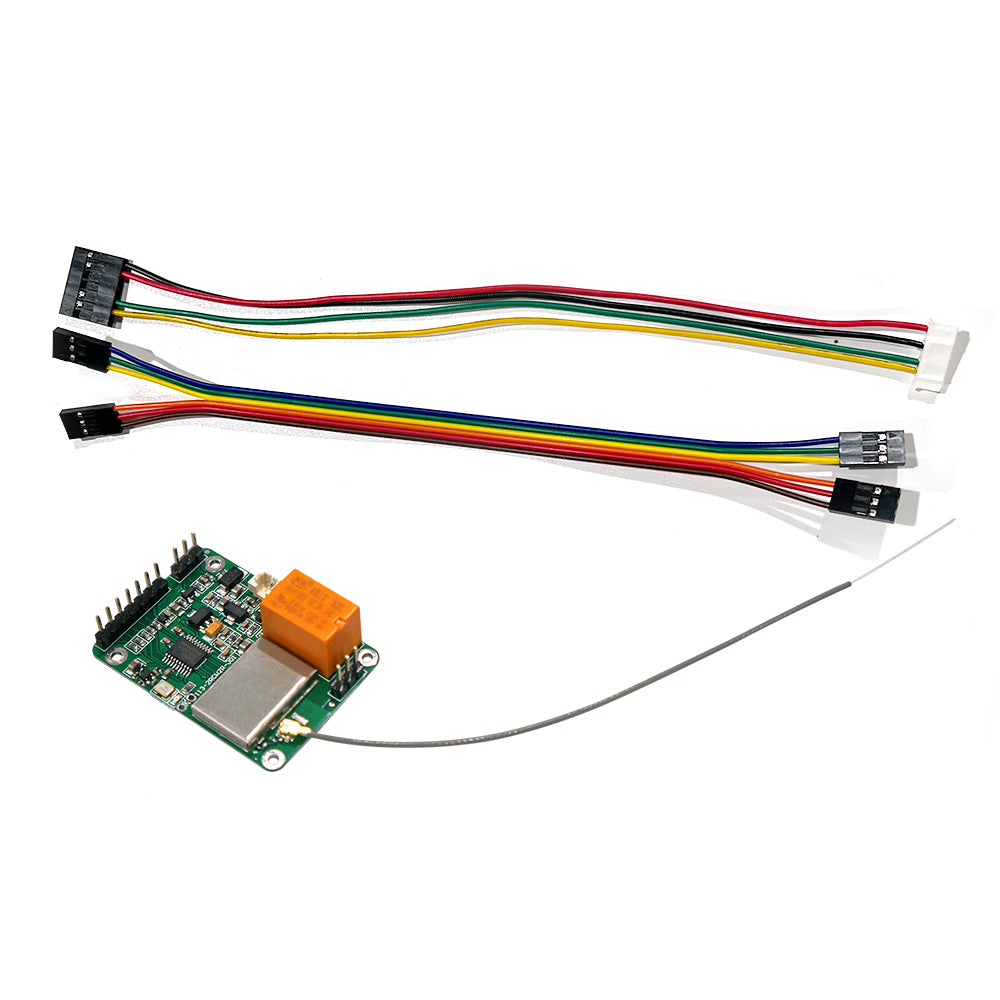

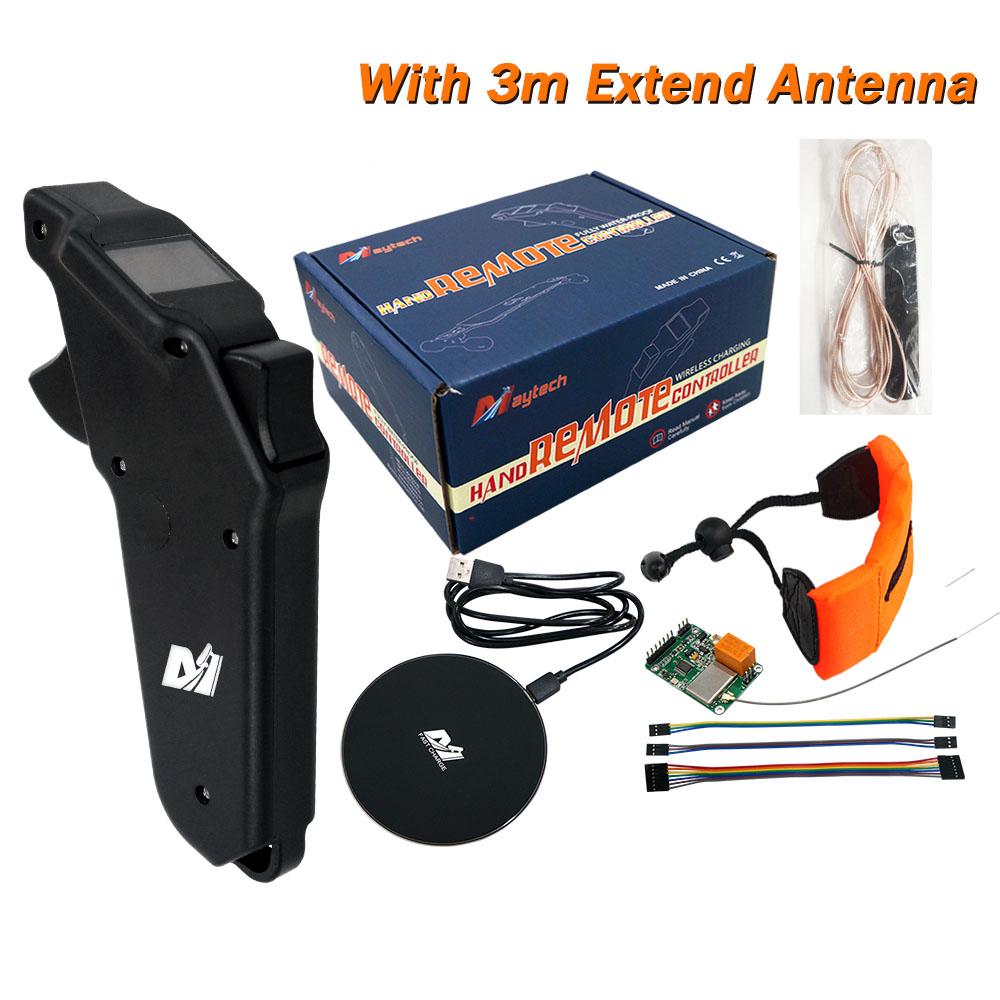

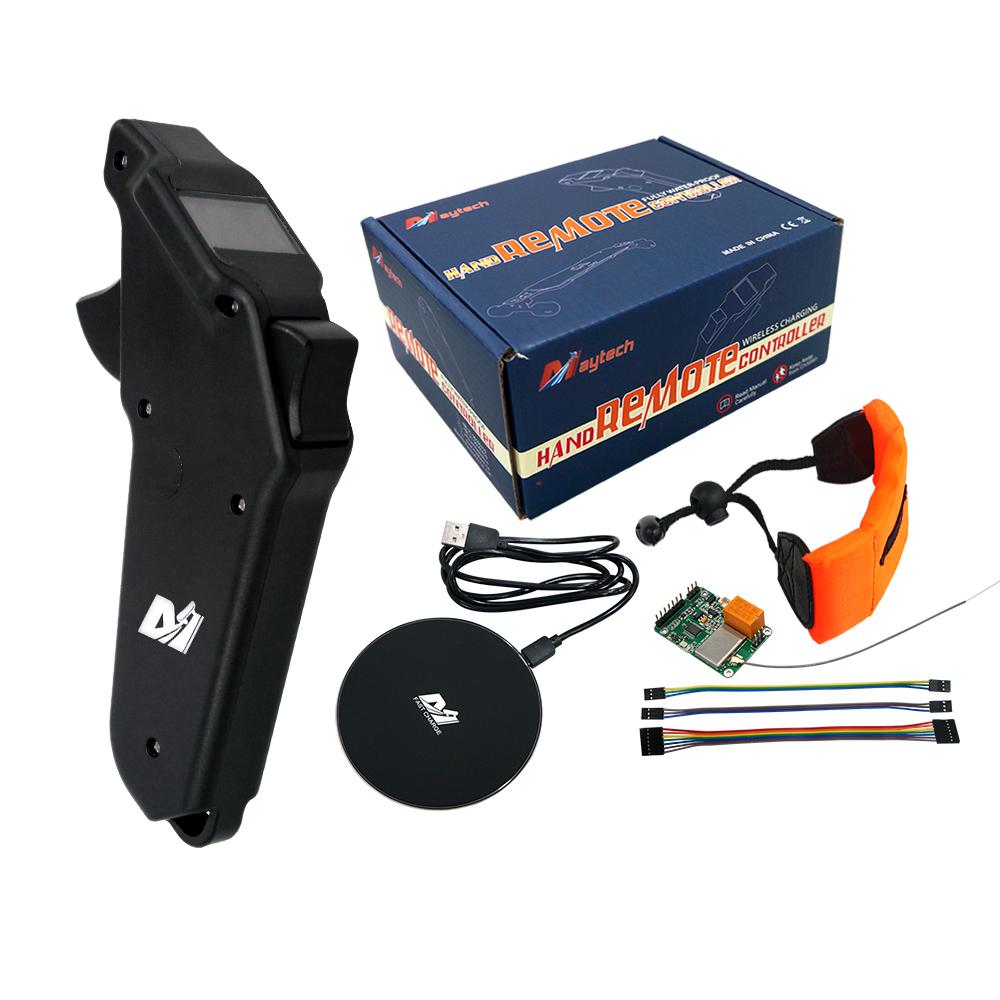

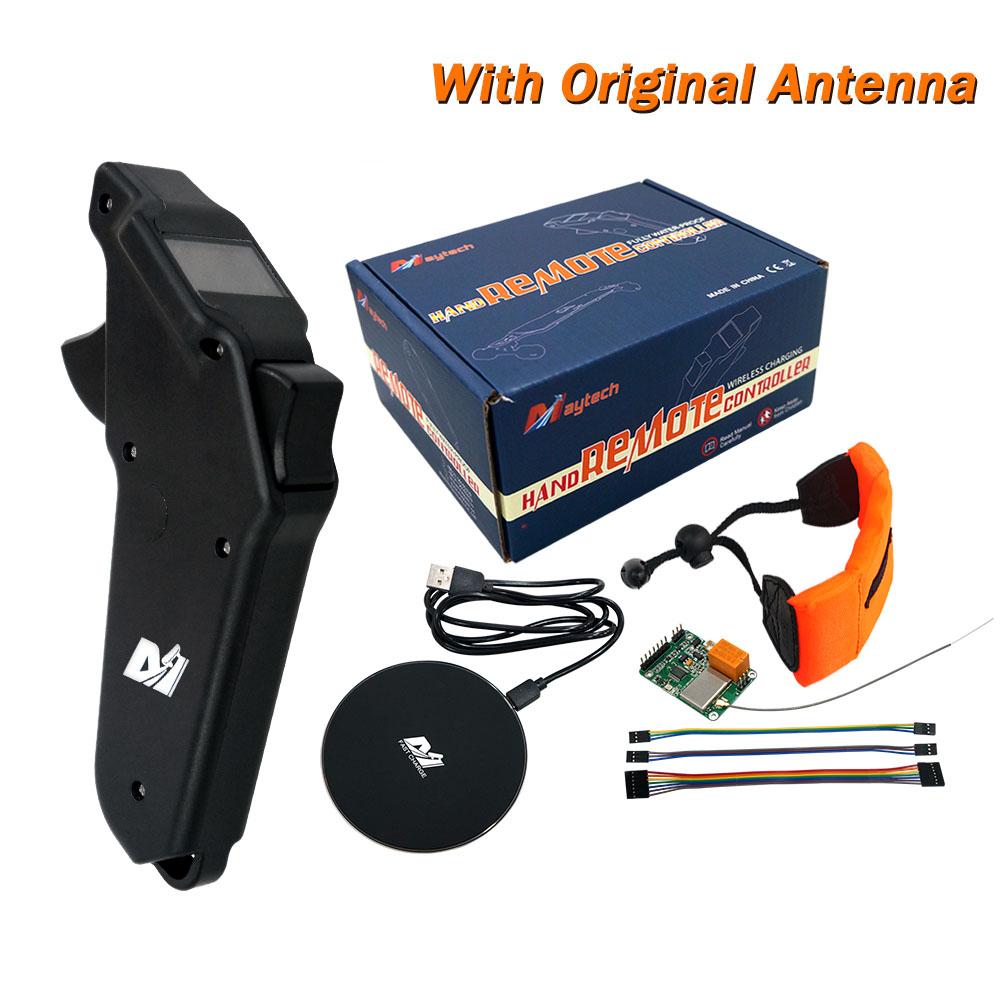

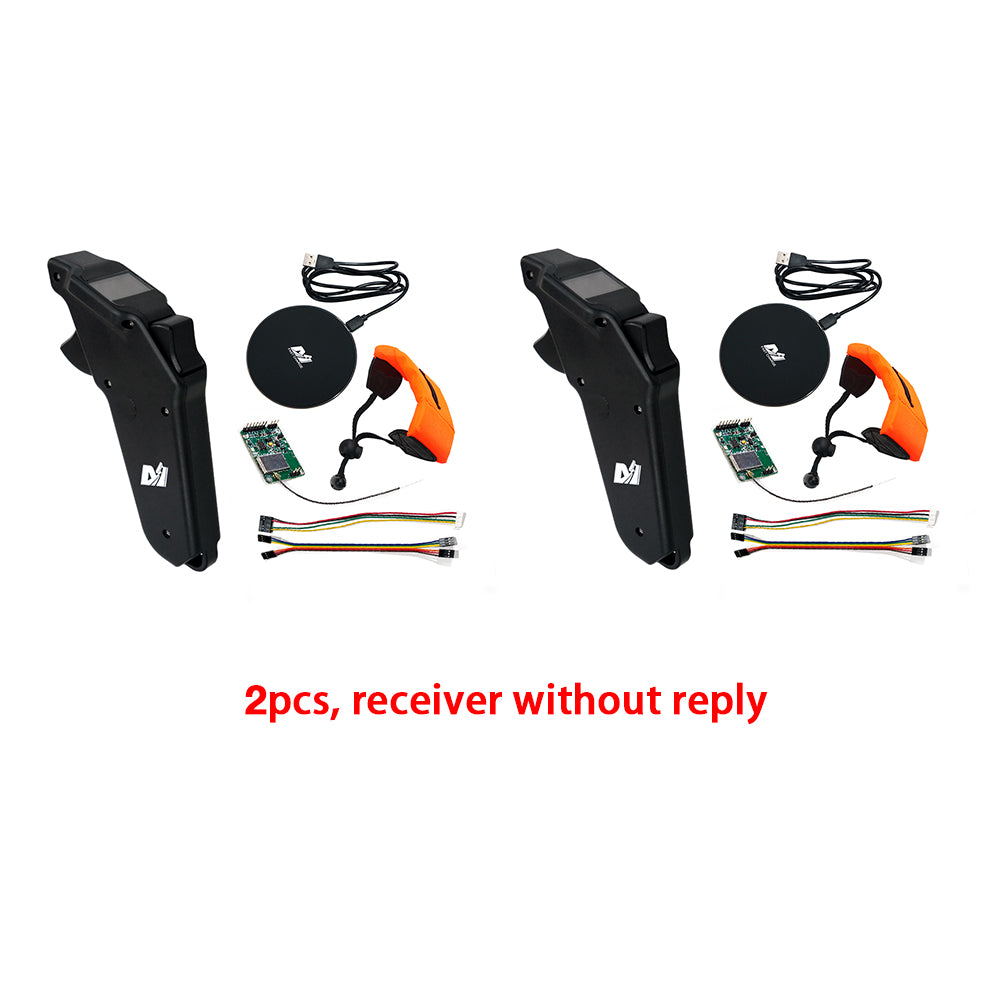

What comes in the package: Charging Pad, receiver, wristband, 3pcs dupont cable

Compatible Controllers: VESCTOOL Compatible/ Focbox/ Other PWM ESCs that has same signal output range with the remote.

Application: Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc.,



Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoil

Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoilMTSKR1905WF V2 Maytech remote, waterproof remote, Esk8  remote, esurf remote, efoil remote, IP67 waterproof

The remote has 2 Modes, signal output pulse width is different in 2 modes:

  • Esurf Mode is 1ms-2ms, no stop no brake, if you use Esurf mode to work with VESCTOOL compatible controller, please use below settings in VESCTOOL and to match with the remote:

PPM Control Type: Current no reverse
PPM Mapping:
Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms

Or you can use wizard mode to detect compatible value.



MTSKR1905WF V2 Maytech remote, waterproof remote, Esk8  remote, esurf remote, efoil remote, IP67 waterproof

  • Esk8 Mode is 1.5ms-1ms (Brake), 1.5ms-2ms (Speed up), 1.5ms is stop position.

Please noted to match compatible parameters for different modes in VESC_TOOL.

MTSKR1905WF V2 Maytech remote, waterproof remote, Esk8  remote, esurf remote, efoil remote, IP67 waterproofMTSKR1905WF V2 Maytech remote, waterproof remote, Esk8  remote, esurf remote, efoil remote, IP67 waterproof

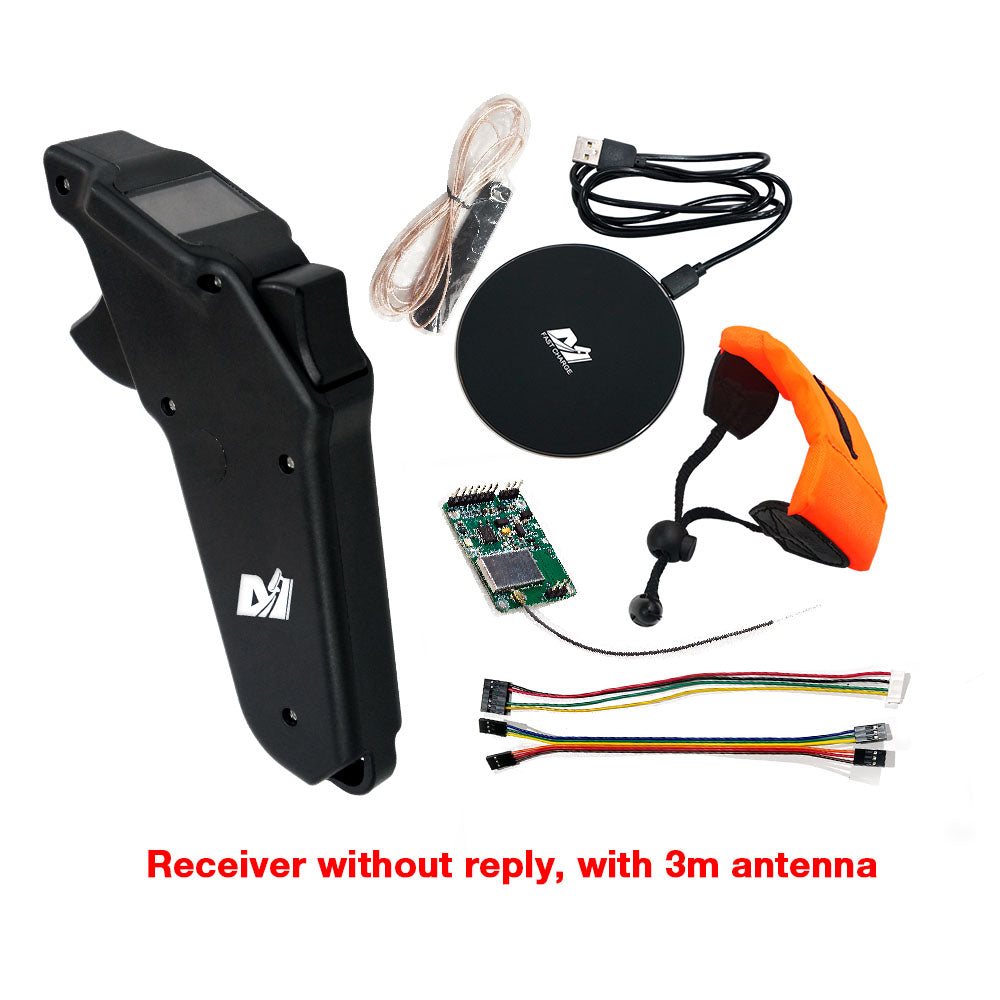

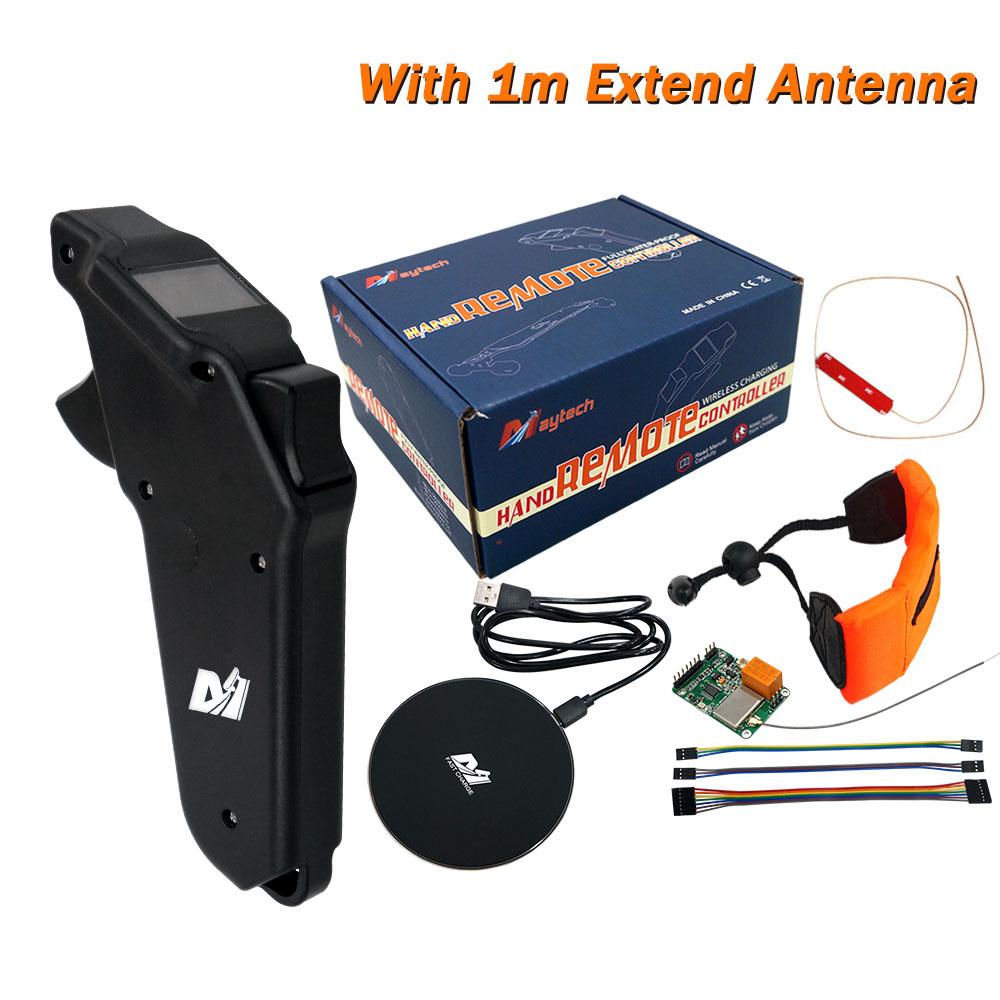

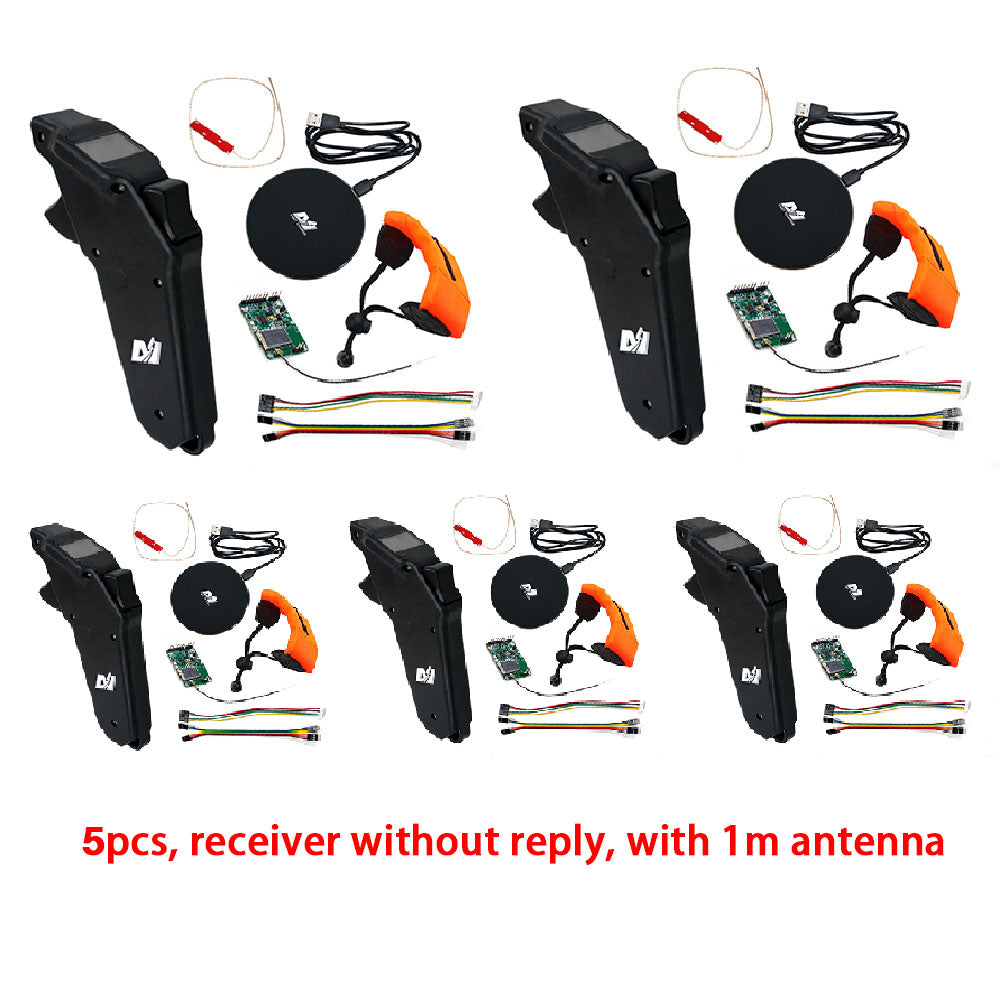

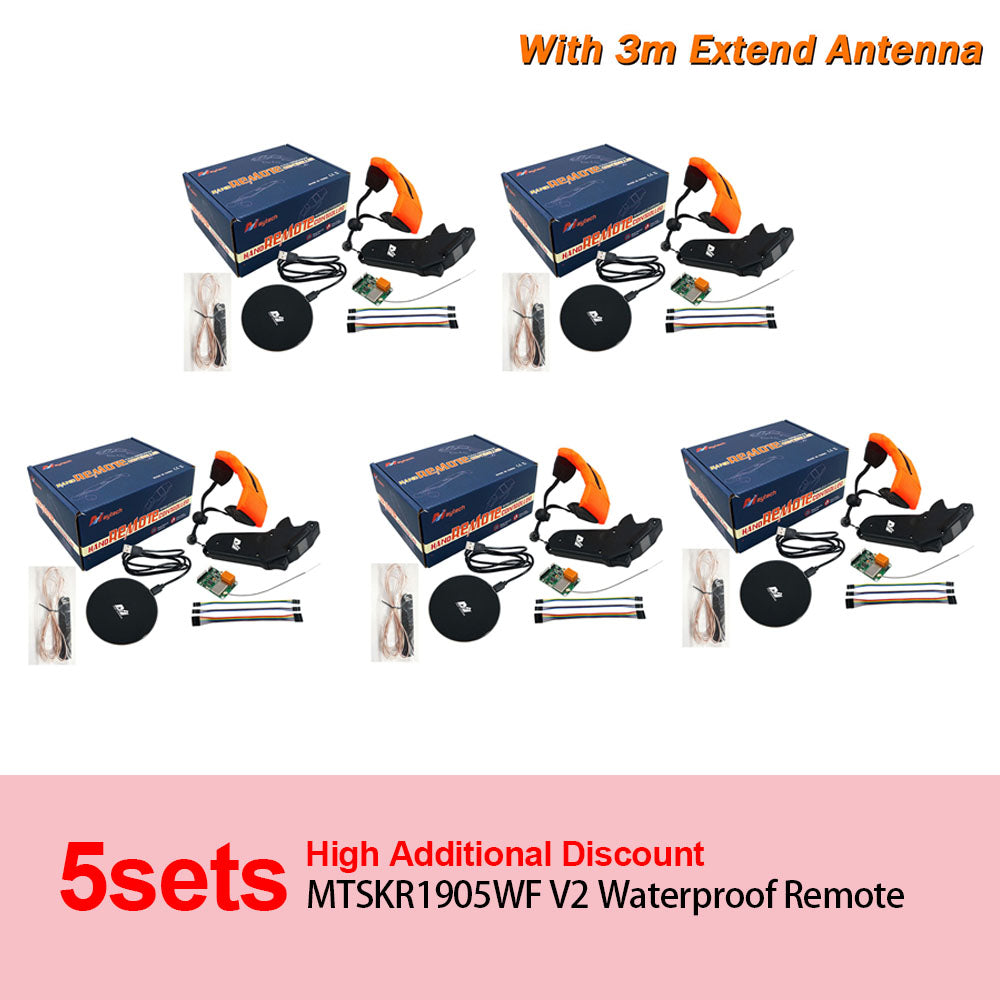

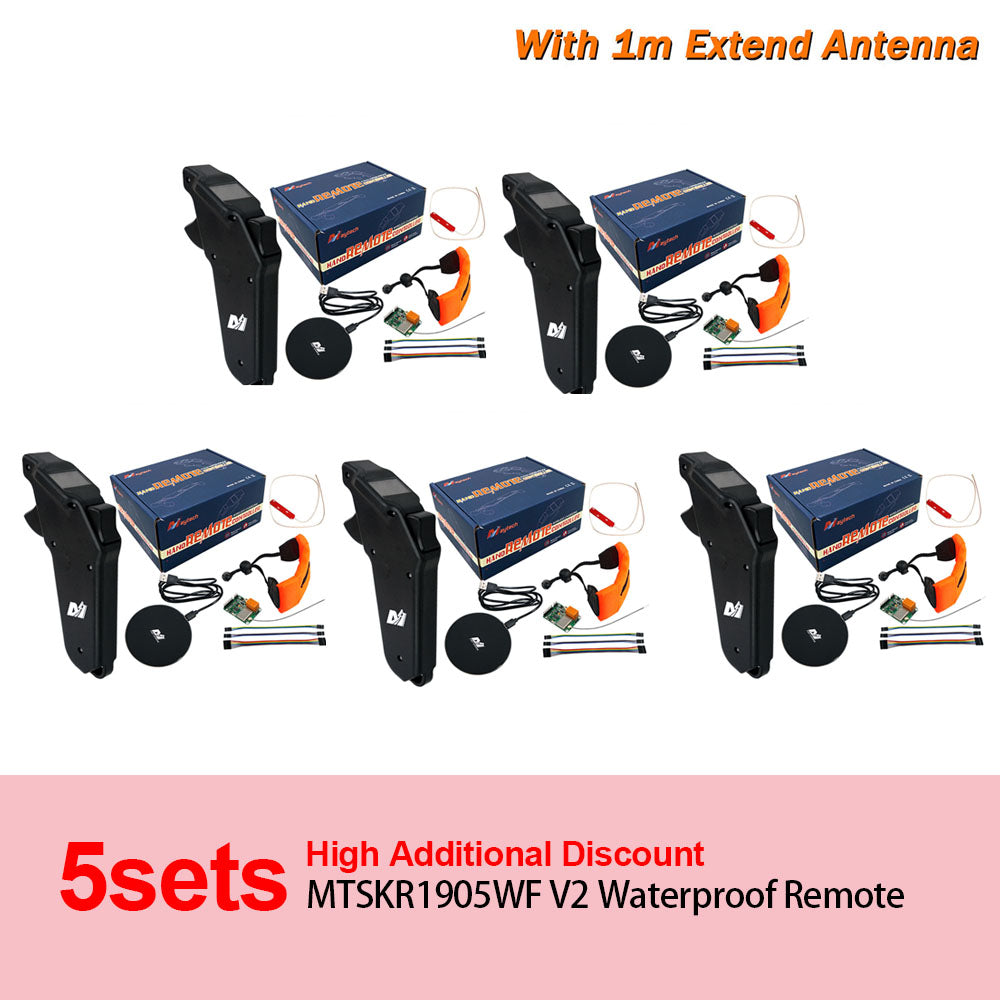

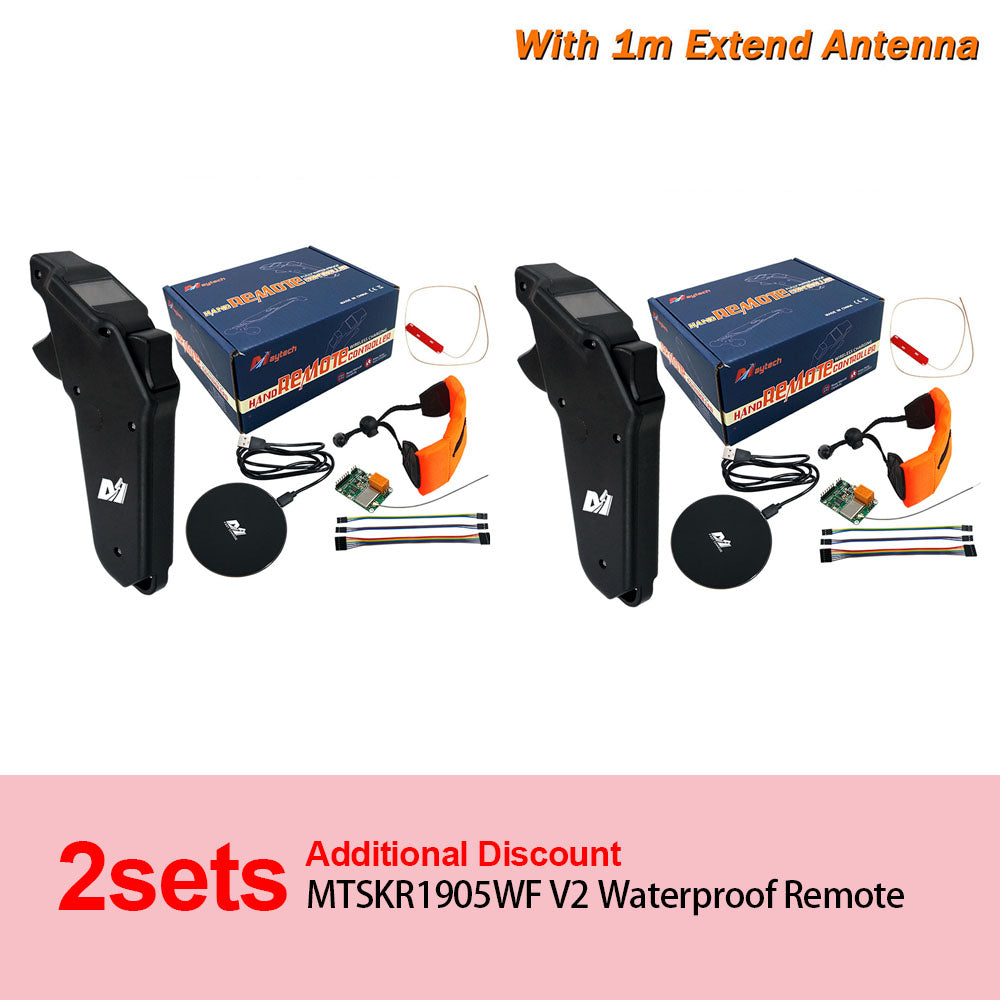

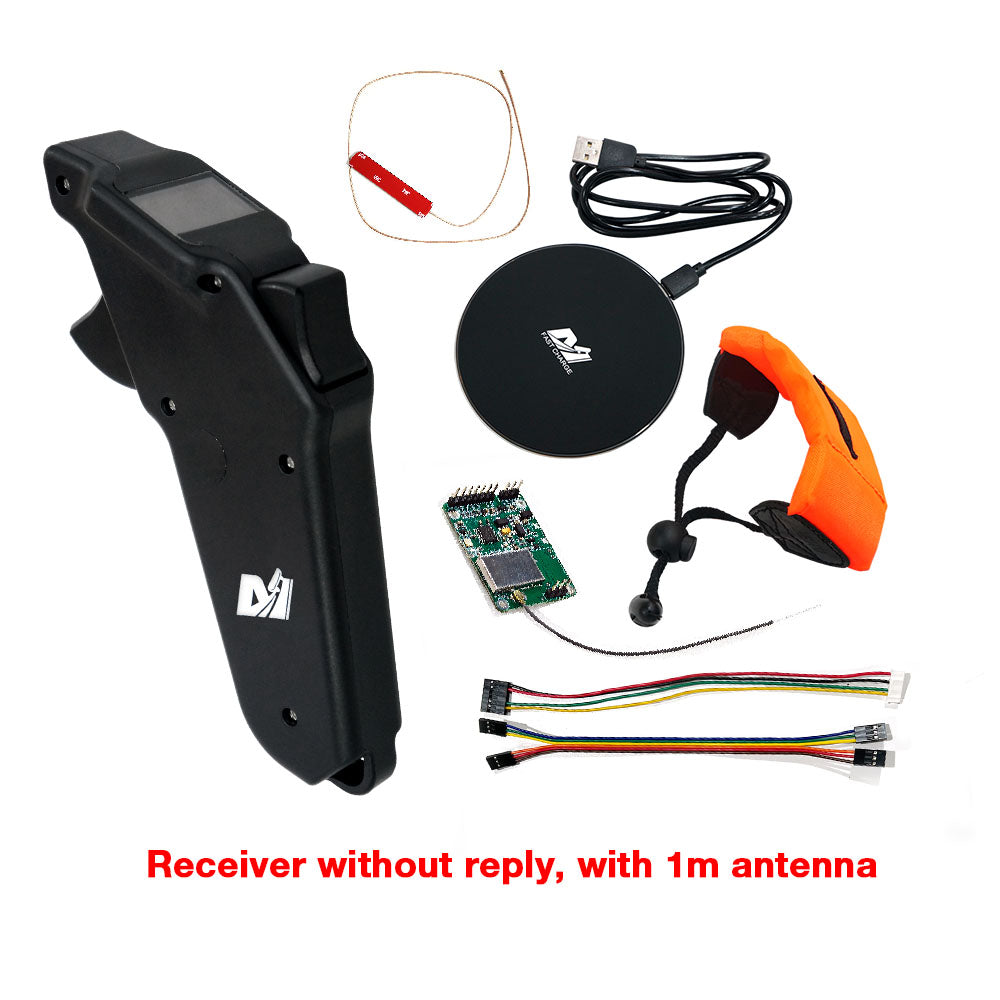

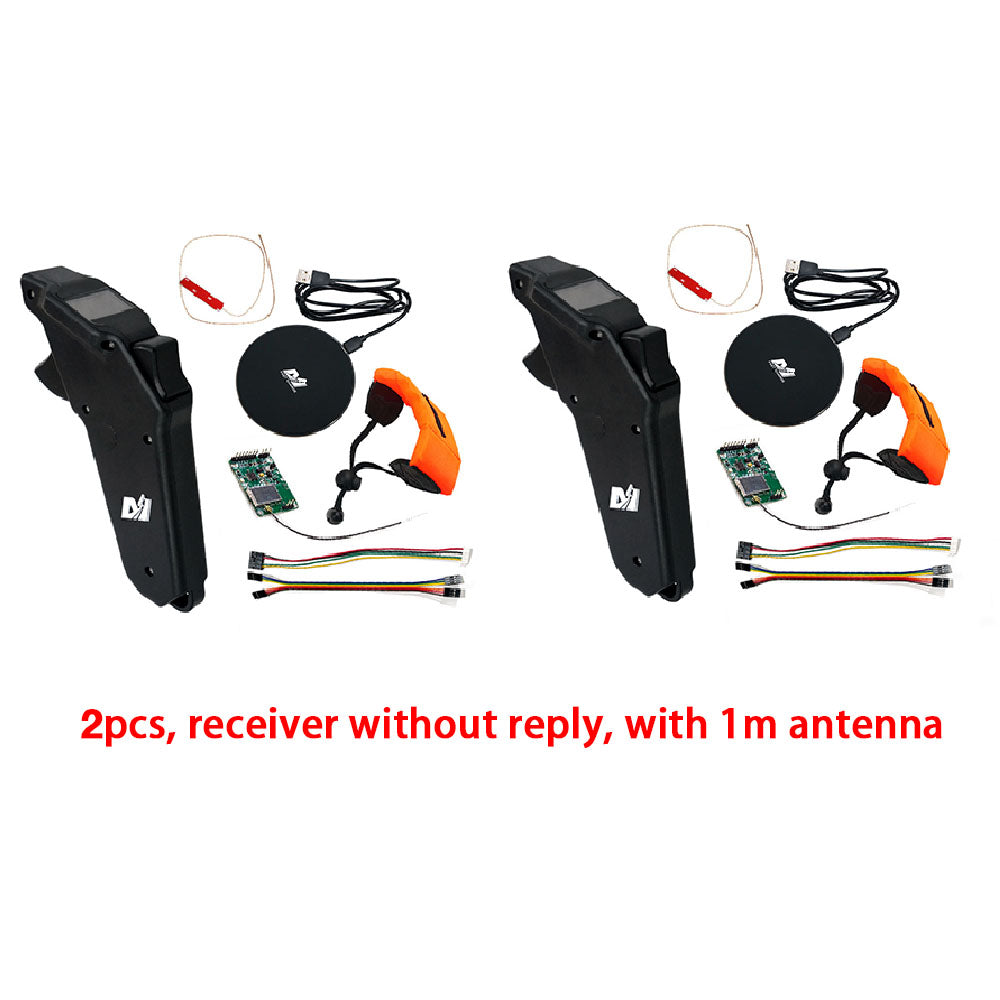

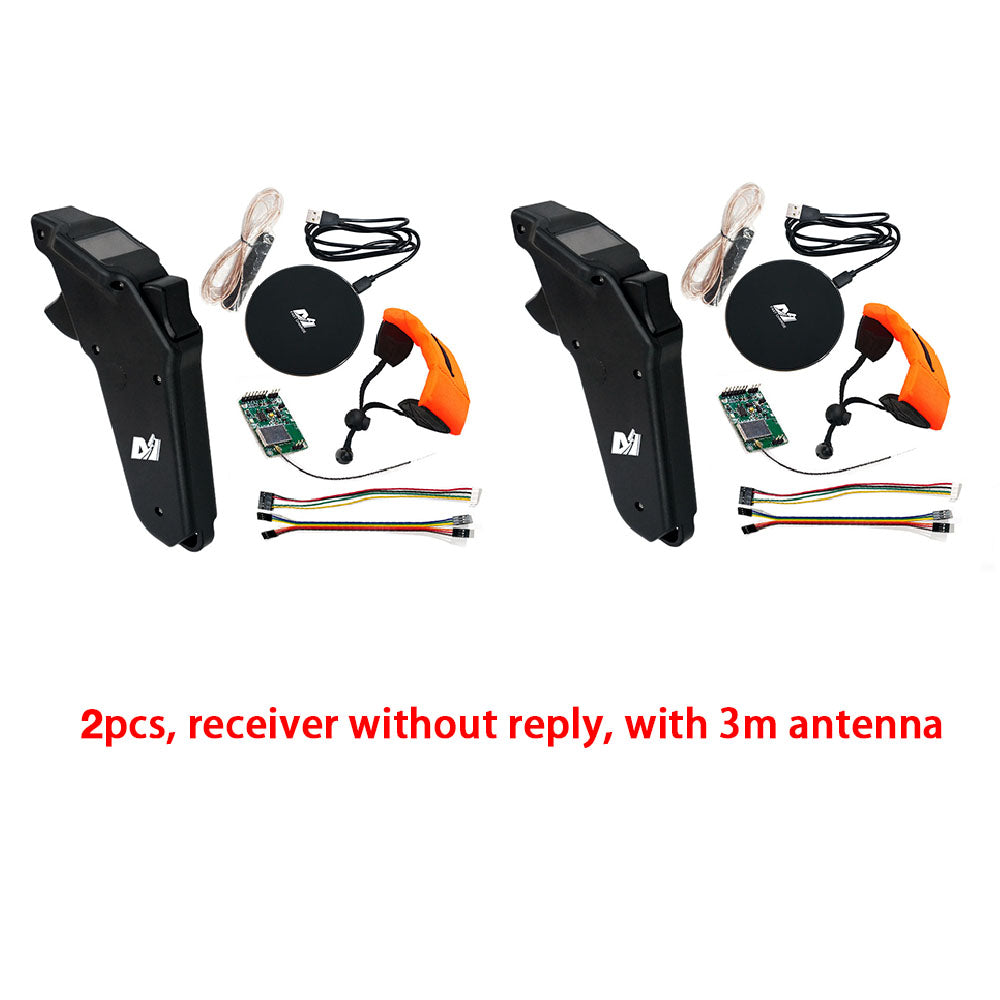

If your surrounded has strong magnetic interference, the signal might easy get lost, suggest you order the version with 1m or 3m extend antenna.


Tips After Using:

In order to avoid being corroded by sea water and to extend the remote life, please wash the remote in fresh water after using; Also please charge when the remote all dry.
Go to the following Youtube Links to check the remote instruction videos:
1. Motor RPM display by MOTOR WIRE: https://youtu.be/N1IV1dJbil0
2. Motor RPM display by Hall Sensor: https://youtu.be/YBRBzAa-3ww
3. Motor RPM display by VESCTOOL compatible controller: https://youtu.be/qqaZf78ilV4
4. Esk8 mode with speed, current, distance, etc: https://youtu.be/ycFya3Xn7YU
5. Adjust Current mode and Duty cycle mode by remote: https://youtu.be/BPRIhySE7lw
6. Connect to controller or VESCTOOL Compatible Controller: https://youtu.be/sDiAPsg0hWc
7. Remote voltage display for Esk8 and Esurf: https://youtu.be/LZf98XgVwwI
8. Remote can control two switches for Esk8 light and Esurf pump: https://youtu.be/USQHbe3tCOs

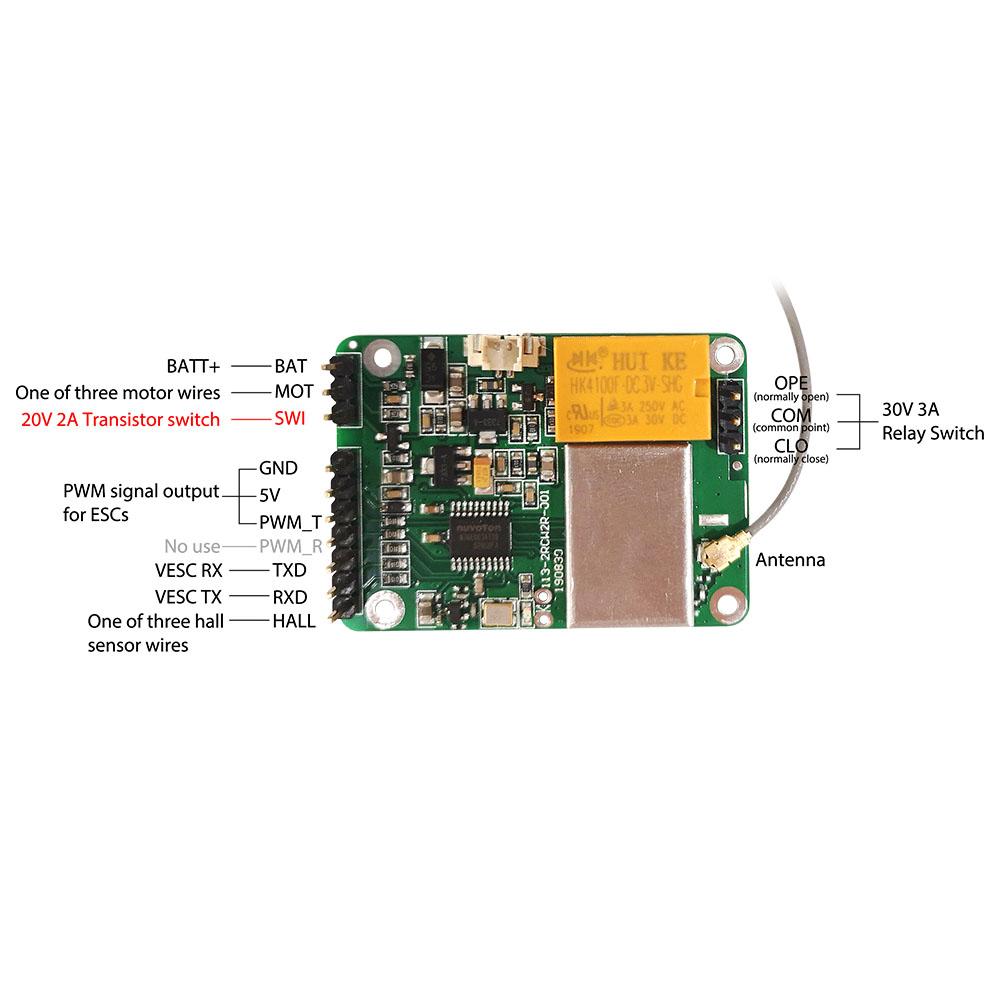

9. Receiver wiring with VESCTOOL compatible speed controller
(You can select the functions you need and connect them accordingly.)
MTSKR1905WF wiring diagram with VESC, VESC_TOOL compatible10. Receiver wiring with Maytech 300A ESC MTSF300A-OPTO
(You can select the functions you need and connect them accordingly.)
MTSKR1905WF waterproof remote for electric skateboard longboard connection 6 functions upgraded11. Maytech MTSF300A-OPTO-WP fully waterproof ESC with built-in UBEC and receiver wiring
maytech electric longboard mountainboard offroad skateboard all terrain12. Maytech MTSF300A-OPTO-WP fully waterproof ESC with Built-in UBEC and External Receiver Diagram
Maytech V2 Fully waterproof remote receiver and MTSF300A-OPTO-WP with built-in UBEC and external receiver


Remote Manual and Instruction
