In Stock! Maytech New Marine 32Bit 300A 75V ESC IP68 Waterproof Smaller Size ESC for Efoil Underwater Thruster Electric Surfboard
In Stock! Maytech New Marine 32Bit 300A 75V ESC IP68 Waterproof Smaller Size ESC for Efoil Underwater Thruster Electric Surfboard
Regular price
$473.60 USD
Regular price
Sale price
$473.60 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

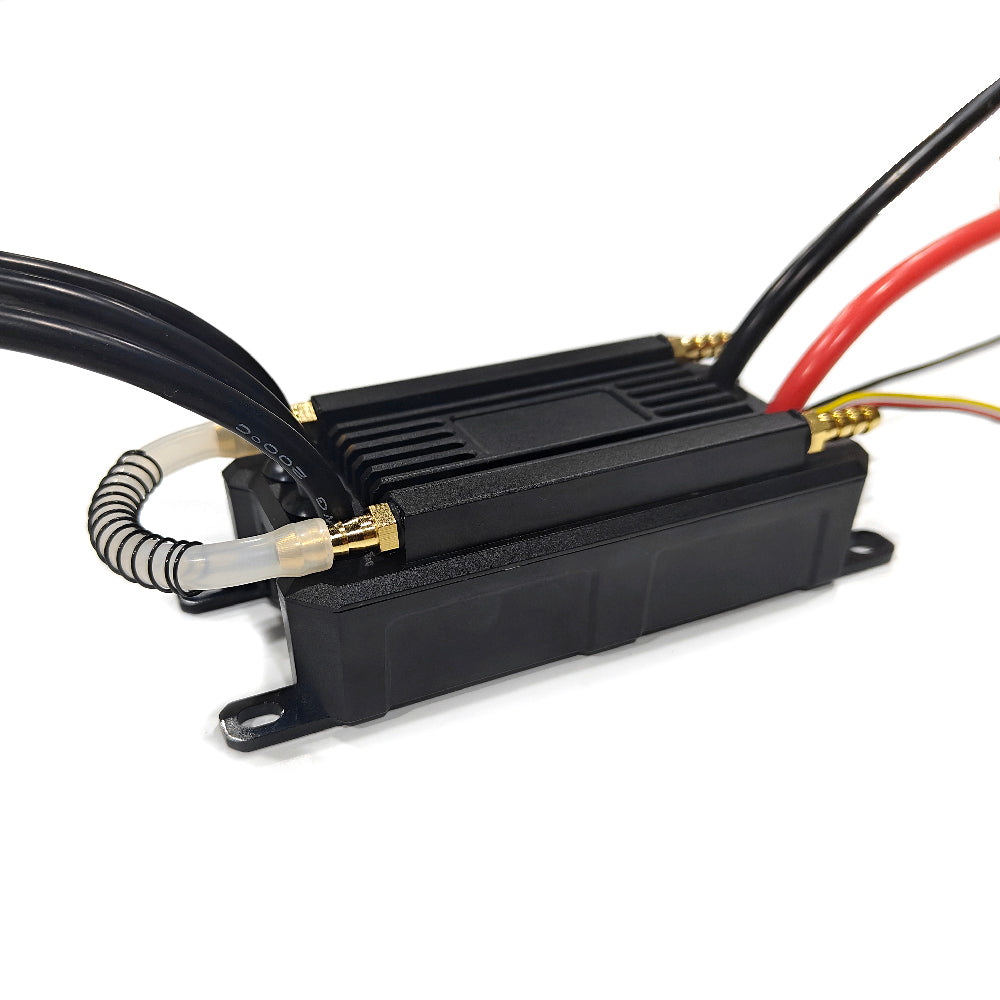

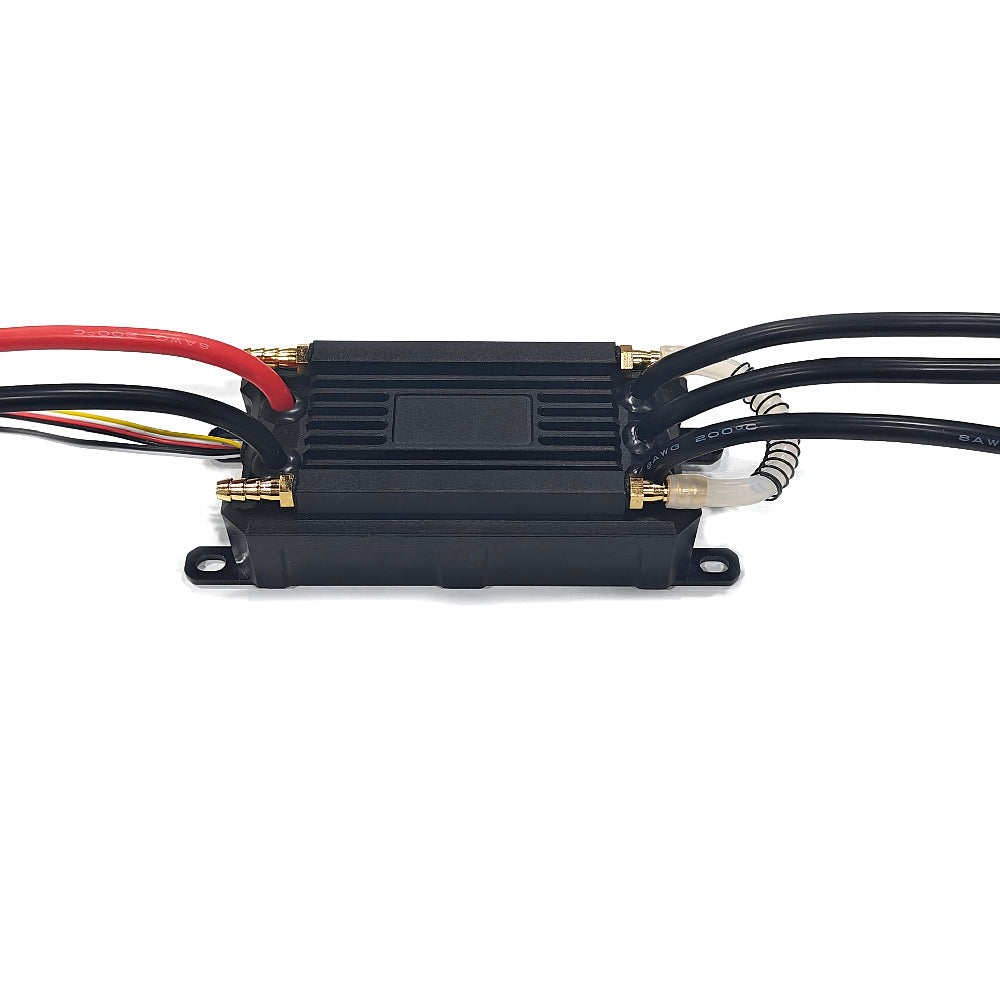

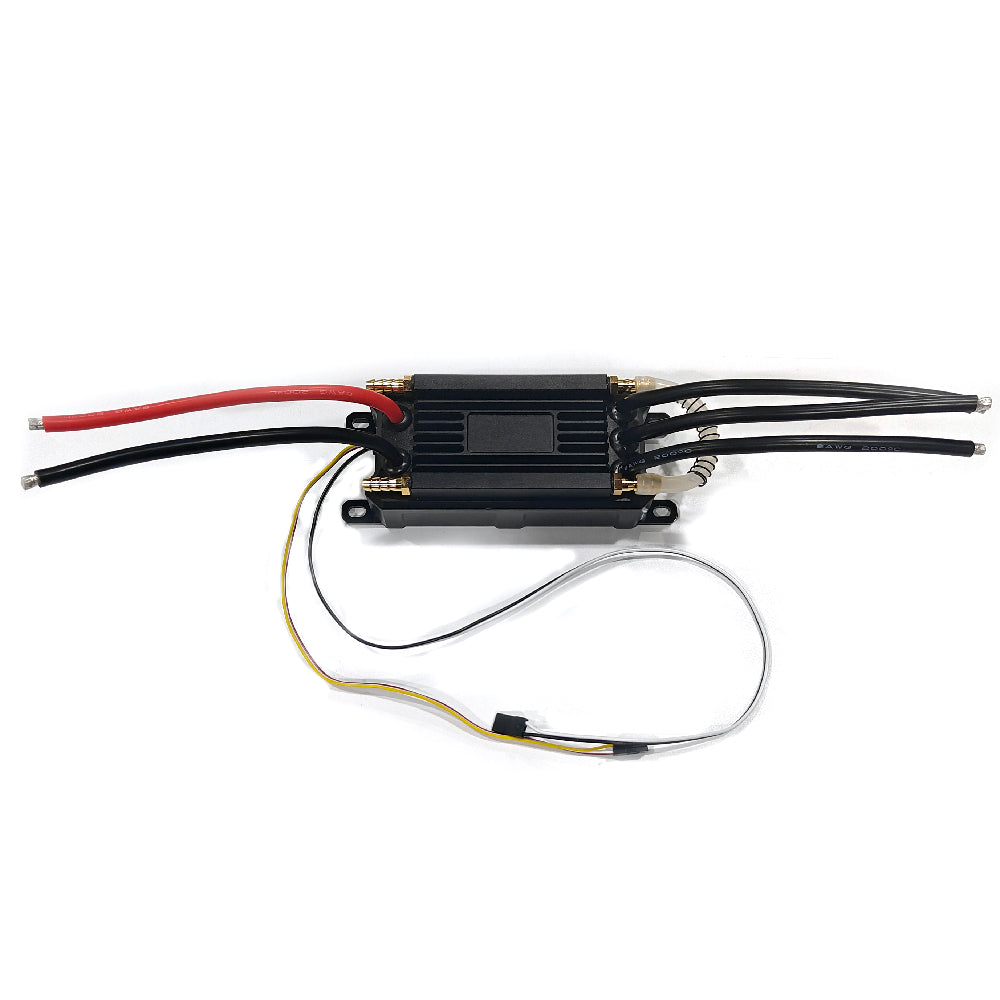

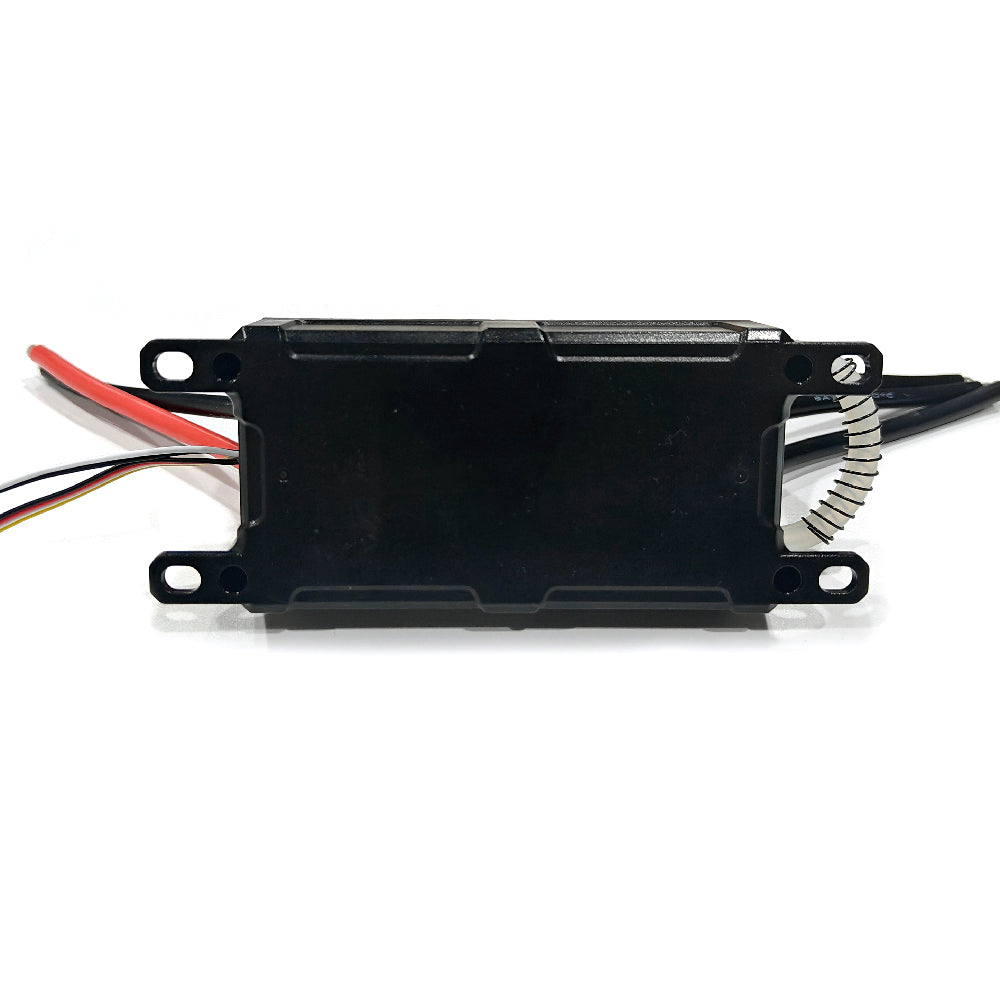

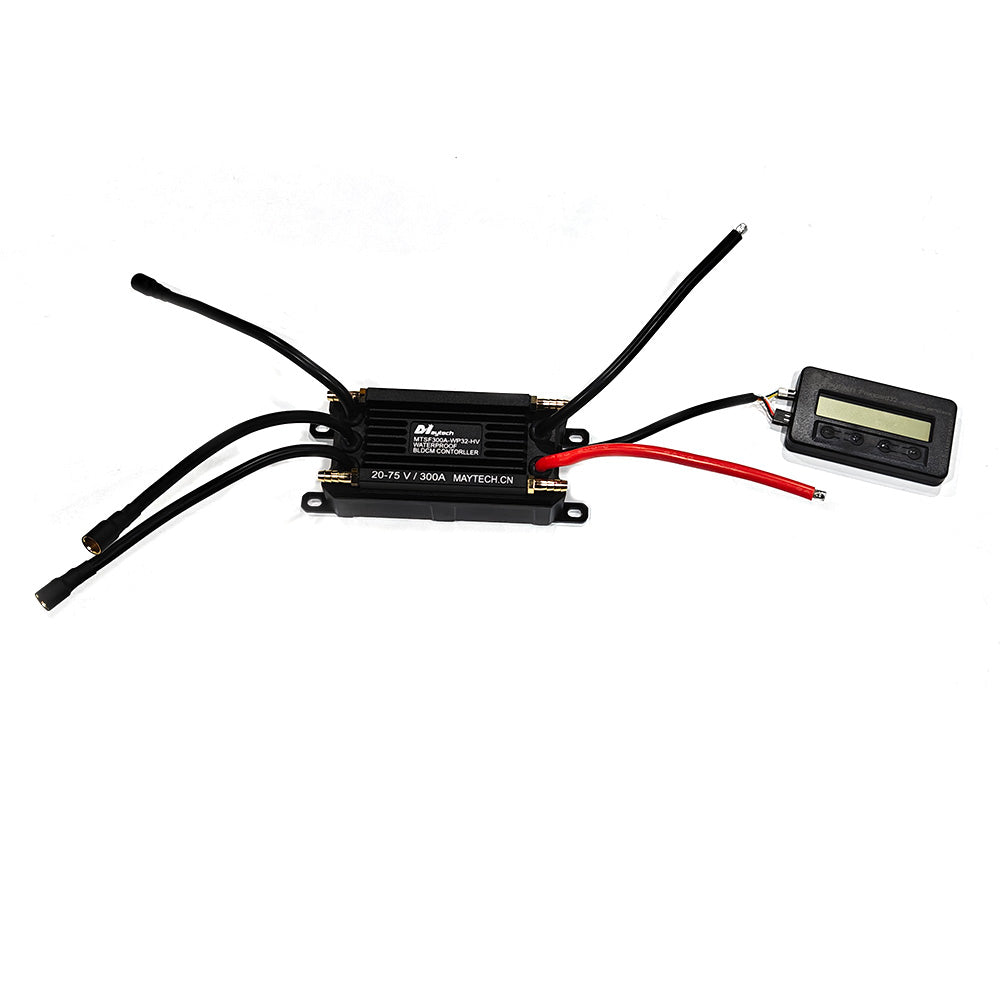

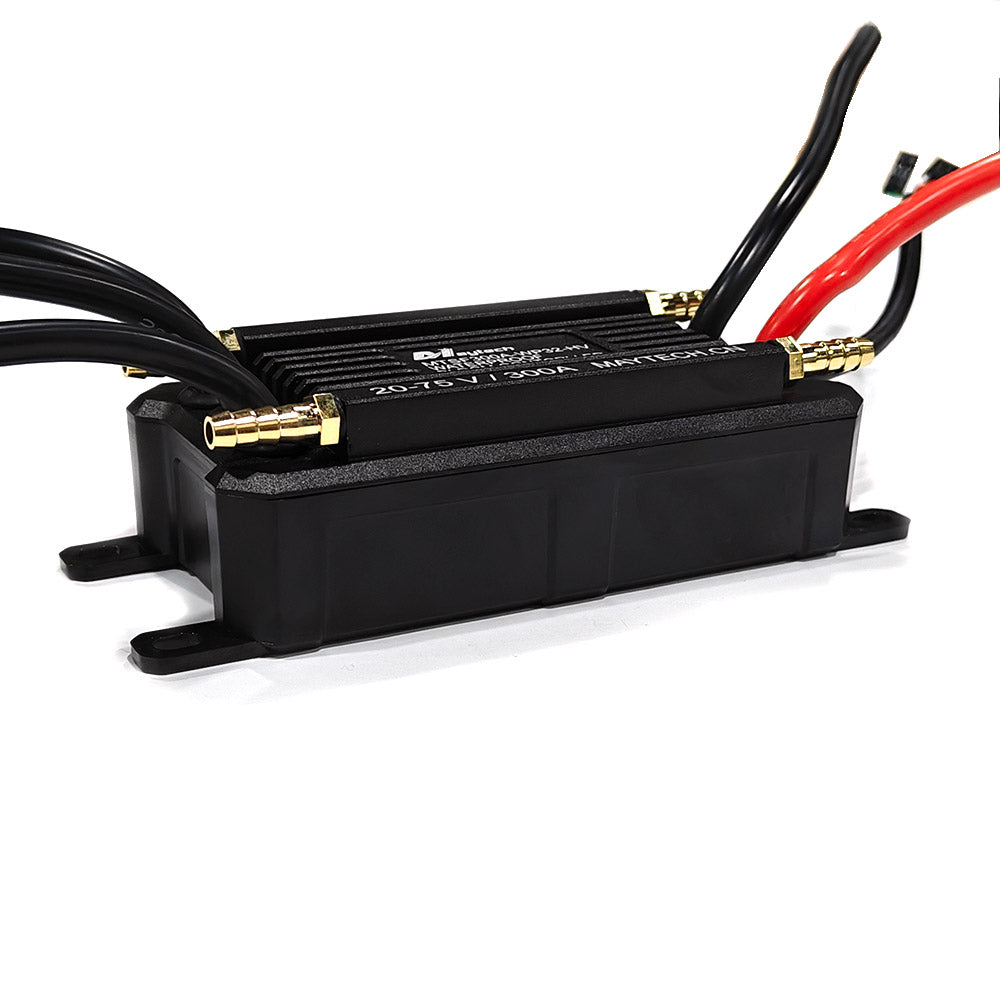

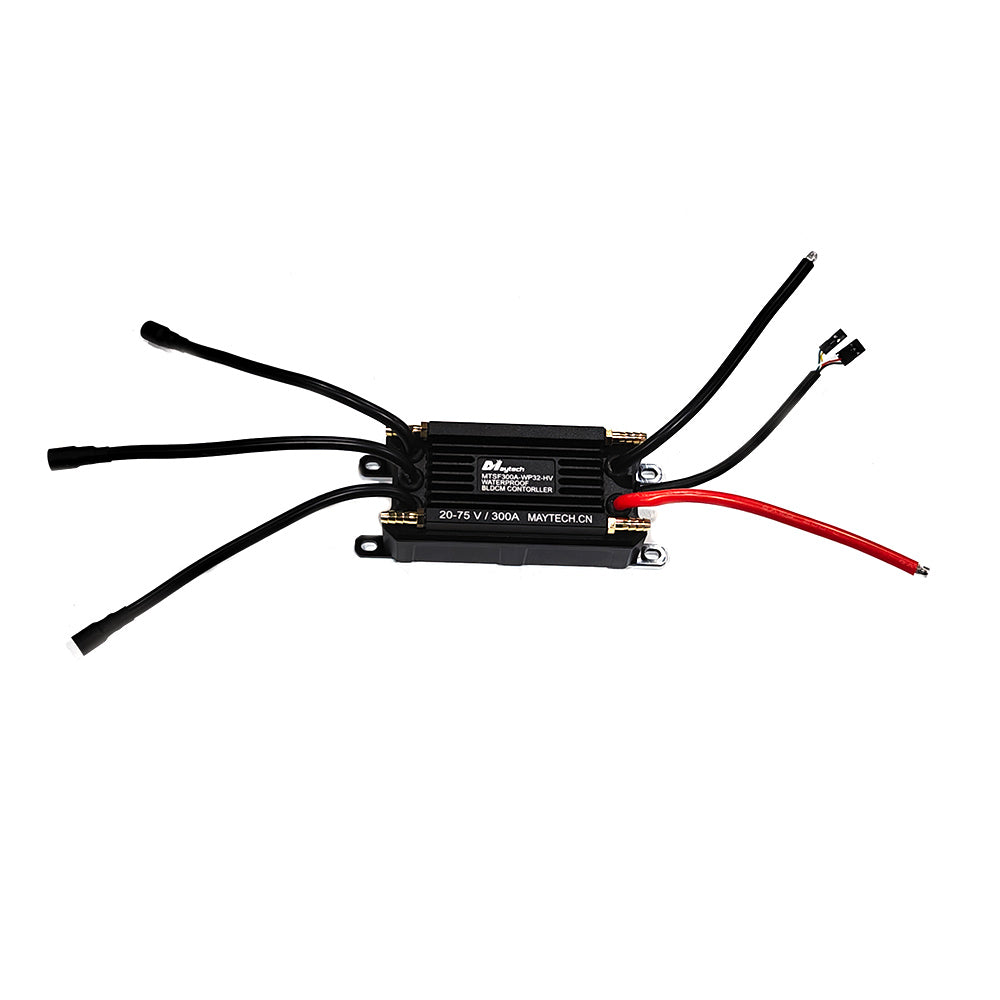

IN STOCK Maytech New 300A 75V Waterproof ESC Smaller Size for Efoil Underwater Thruster Electric Surfbord

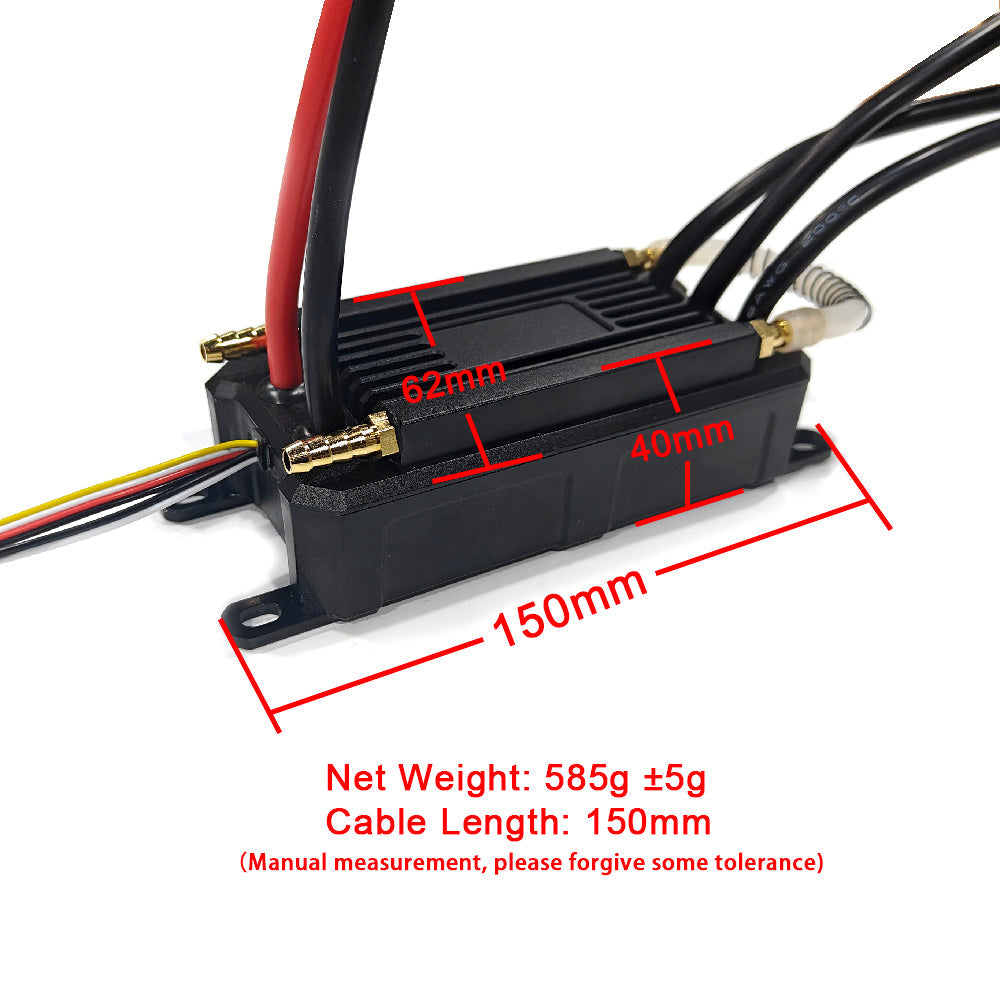

Specification:
Model No.: MTSF300A-WP32-HV
Waterproof Rank: IP68
Cont Current: 300A
Peak Current (at 10S): 320A
Input Voltage: 6-18S Lipo (22.2V-75V)
Cable Guage: 8AWG
Max ERPM: 100000
32BIT Micropprocessor
Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.,

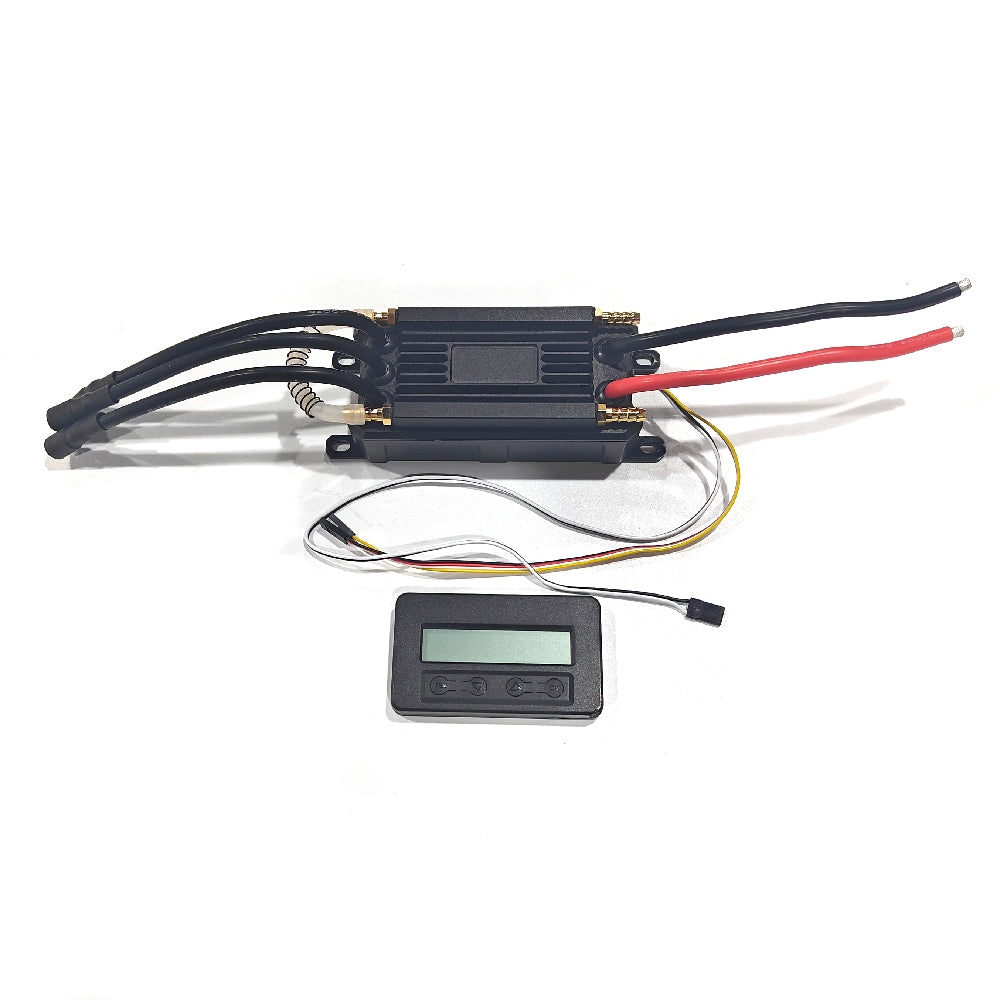

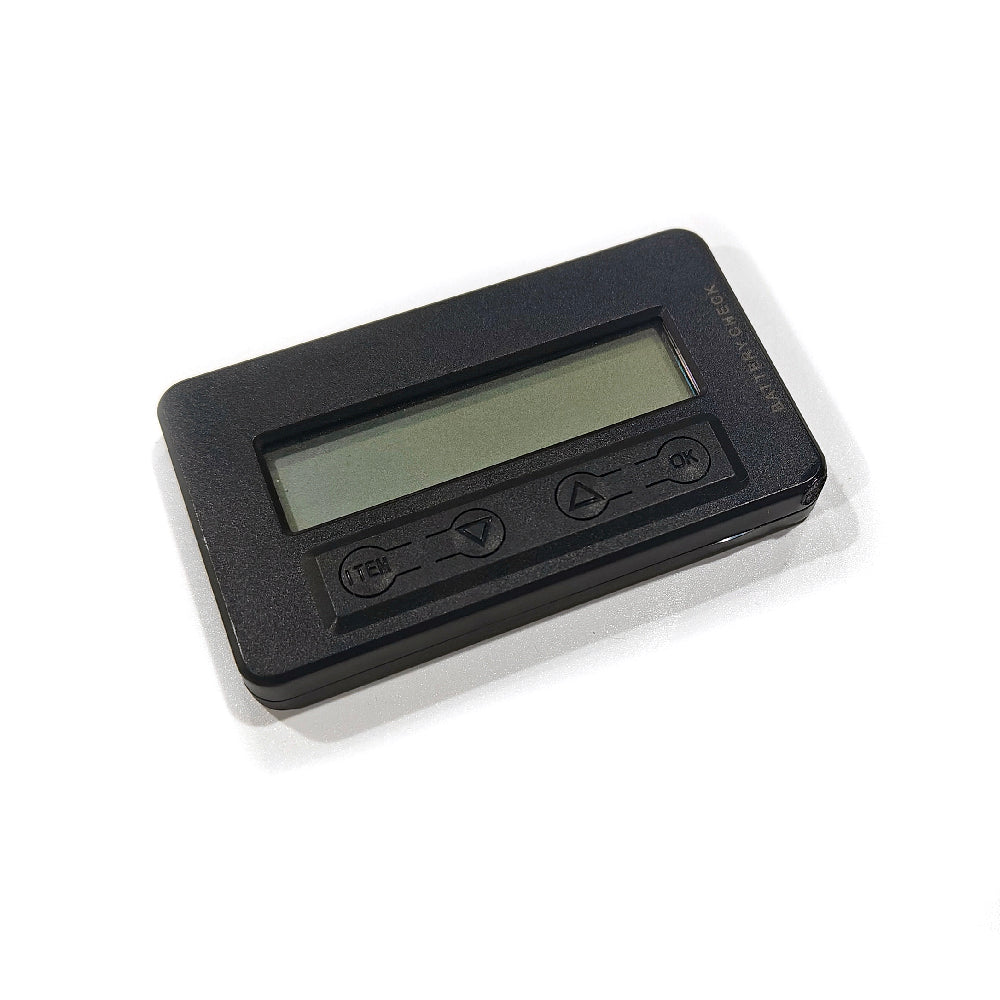

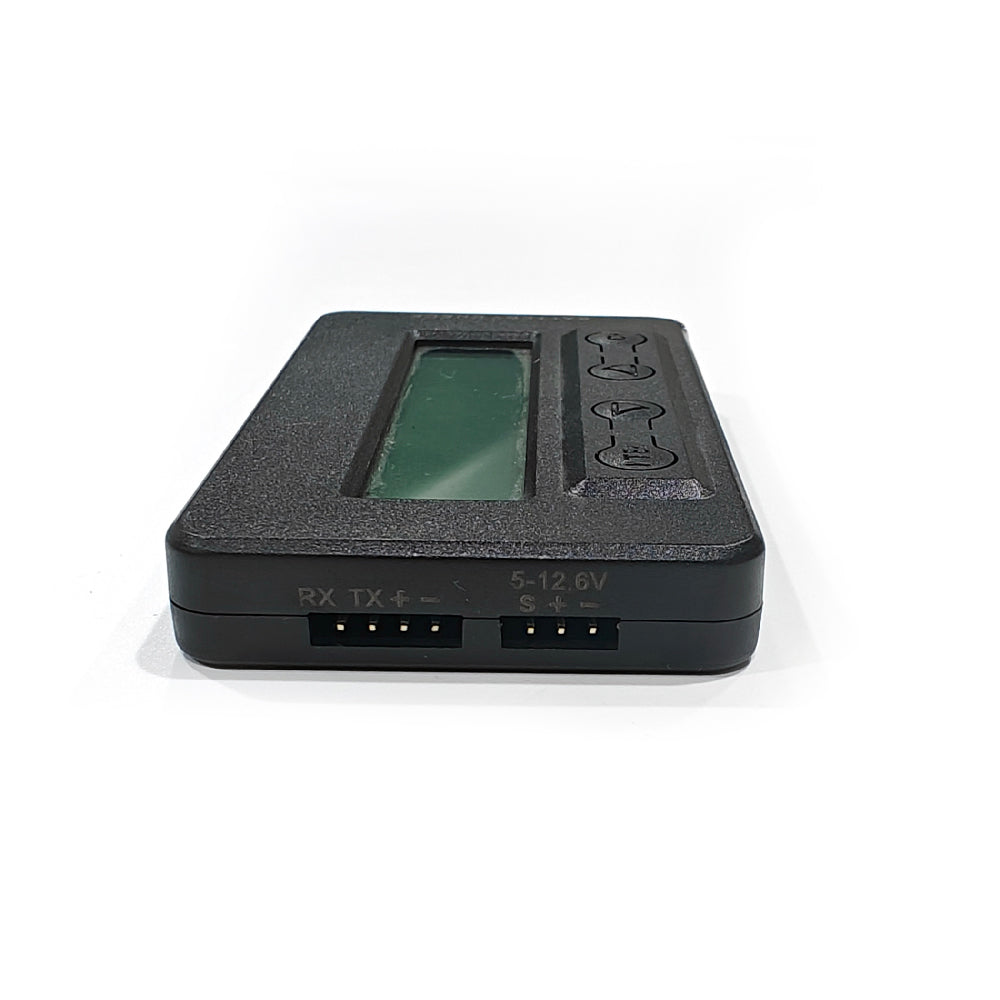

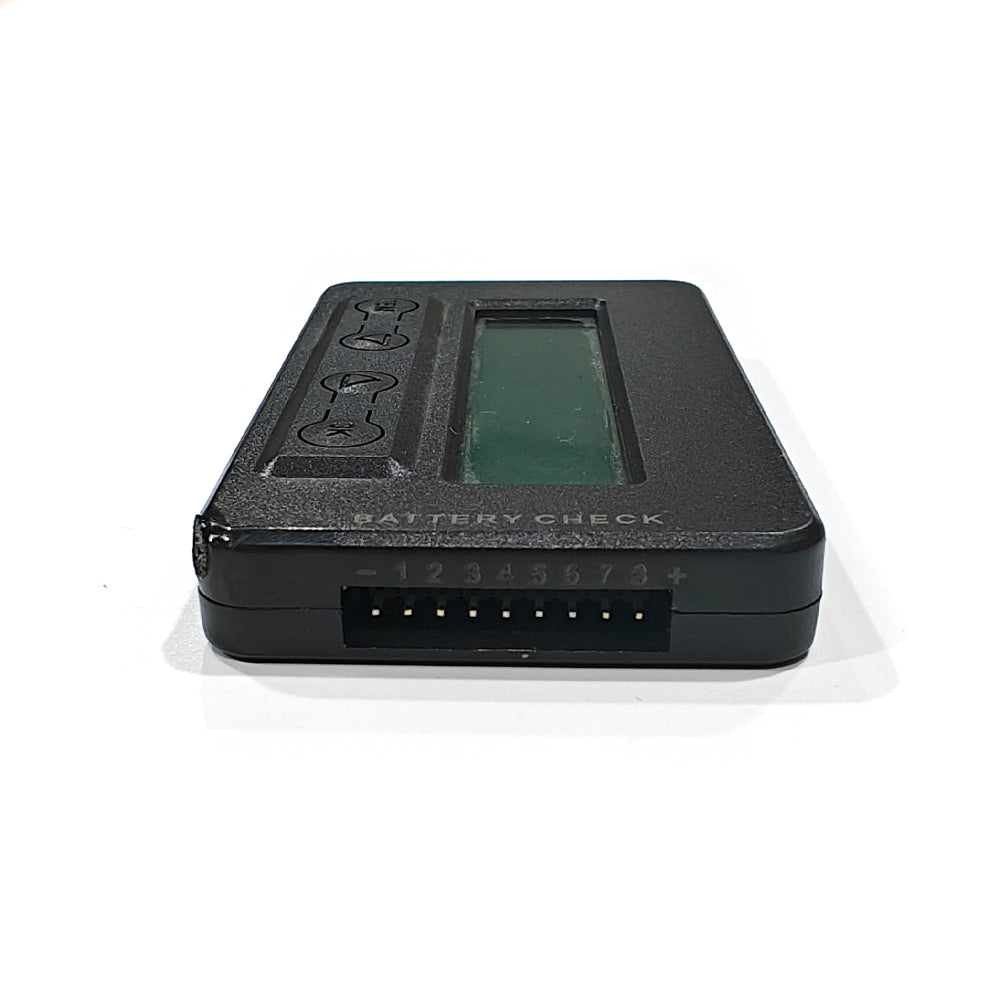

> Click to get ESC Progcard E-manual

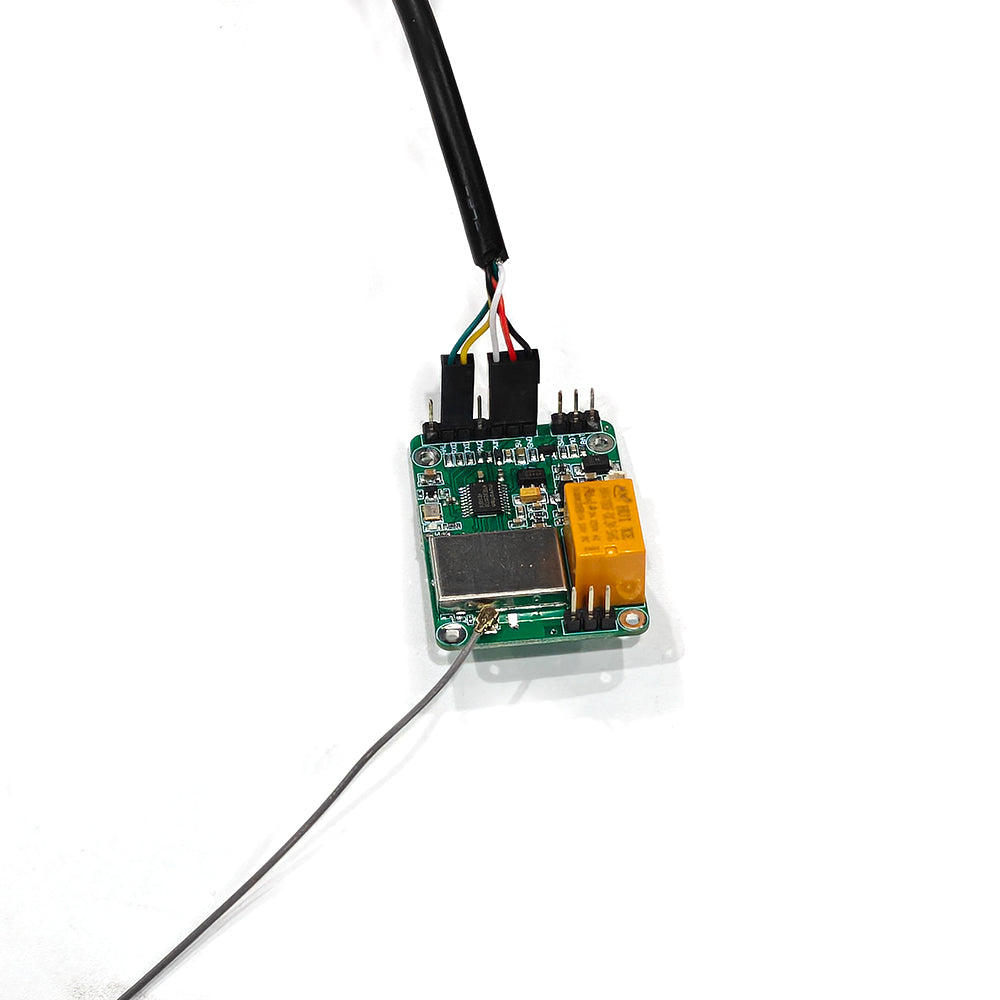

> Click to get Manual work with MTSKR1905WF Remote
> How to set the ESC bidirectional with MTSKR1905WF remote for Boat application?

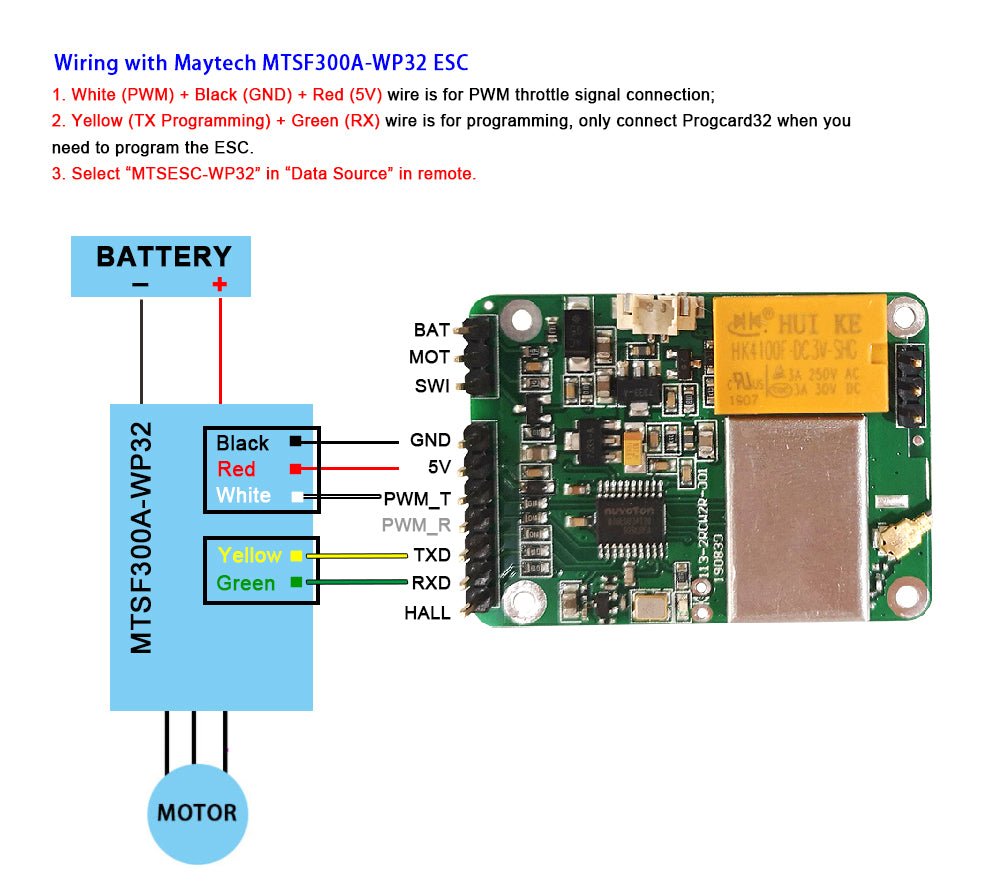

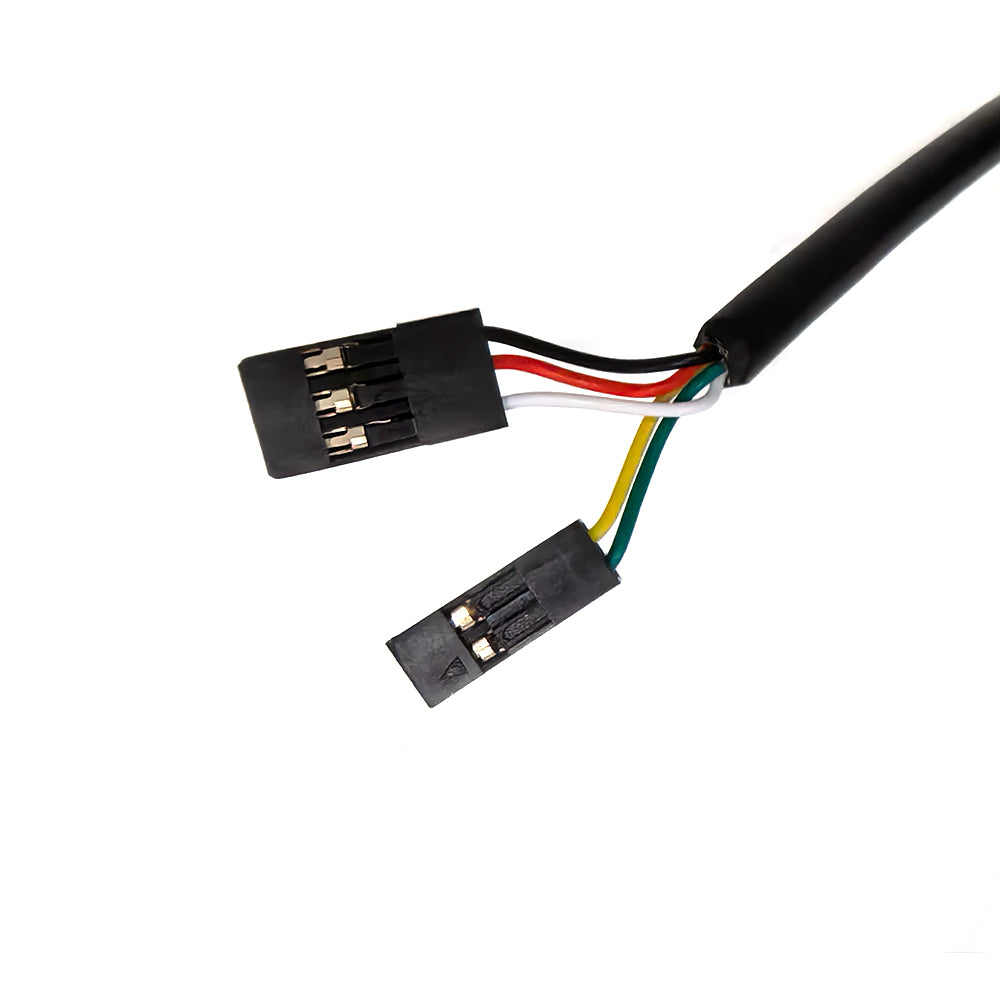

Wiring method for order shipped after November, 14, 2024:
If your order is shipped before November, 14, 2024, please contact agnes@maytech.cn
Strengths:
1. Fully new circuit design, excellent algorithm
--With high performance 32bit MCU processor, greatly improved data computing ability;
--Faster respond, smoother startup;
--Throttle linear is optimized, more accurate and smoother, better compatibility;
2. Seperate control board and power board design
--Elegant PCB layout and circuit design,control board won’t be influenced even when ESC gets heat at high power condition, which makes the ESC more reliable and has stronger anti-interference.
3. Single direction: forward or reverse
--The ESC filled with waterproof glue to make sure its IP68 waterproof, flat water cooling design to make sure high efficient heat dissipation.
--Suitable to use on various water sports like Efoil, surfboard, underwater thruster, etc.,
4. With kinetic energy recovery function
--Save more energy;
--Extend battery working time;
--Reduce heat
5. Multiple protections
--Startup protection;
--Over-temp protection;
--Low voltage protection;
--Phase loss protection;
--Signal loss protection
