In Stock V5 Bluetooth Module Can Automatically Switch VESC Communication with Receiver or Bluetooth Module

In Stock V5 Bluetooth Module Can Automatically Switch VESC Communication with Receiver or Bluetooth Module

Regular price $47.80 USD
Regular price Sale price $47.80 USD
Sale Sold out
Shipping calculated at checkout.
Option

In Stock V5 Bluetooth Module Can Automatically Switch Control VESC by Receiver or Bluetooth Module, Can Monitor and Set Parameters with VESC TOOL App on Android or IOS System.

Application: Electric skateboard, electric longboard, motorized mountainboard, efoil, surfboard, boat, etc.,

Diaplay: Voltage, current, temperature , etc.,

Model No. MTBLEV5 V5 Upgraded version

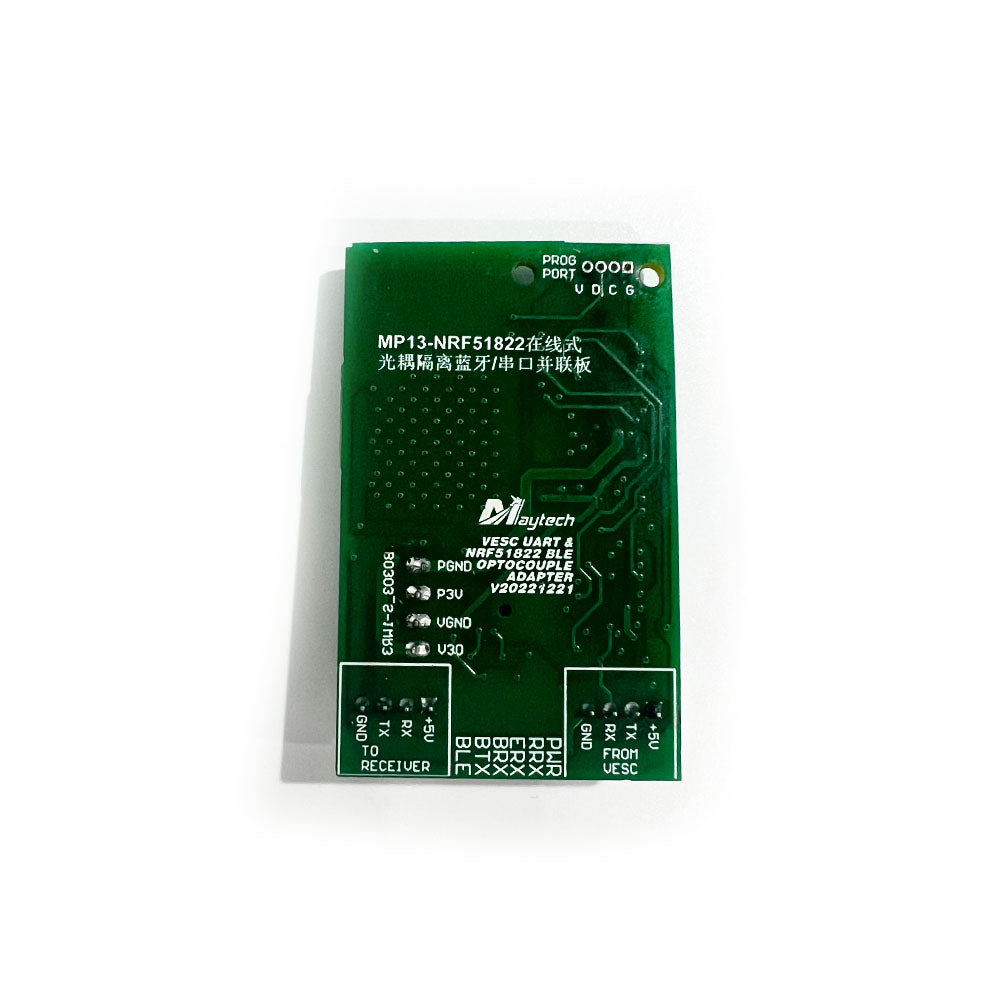

Features With optocoupler isolation, industrial grade anti-interference, and wired long distance communication

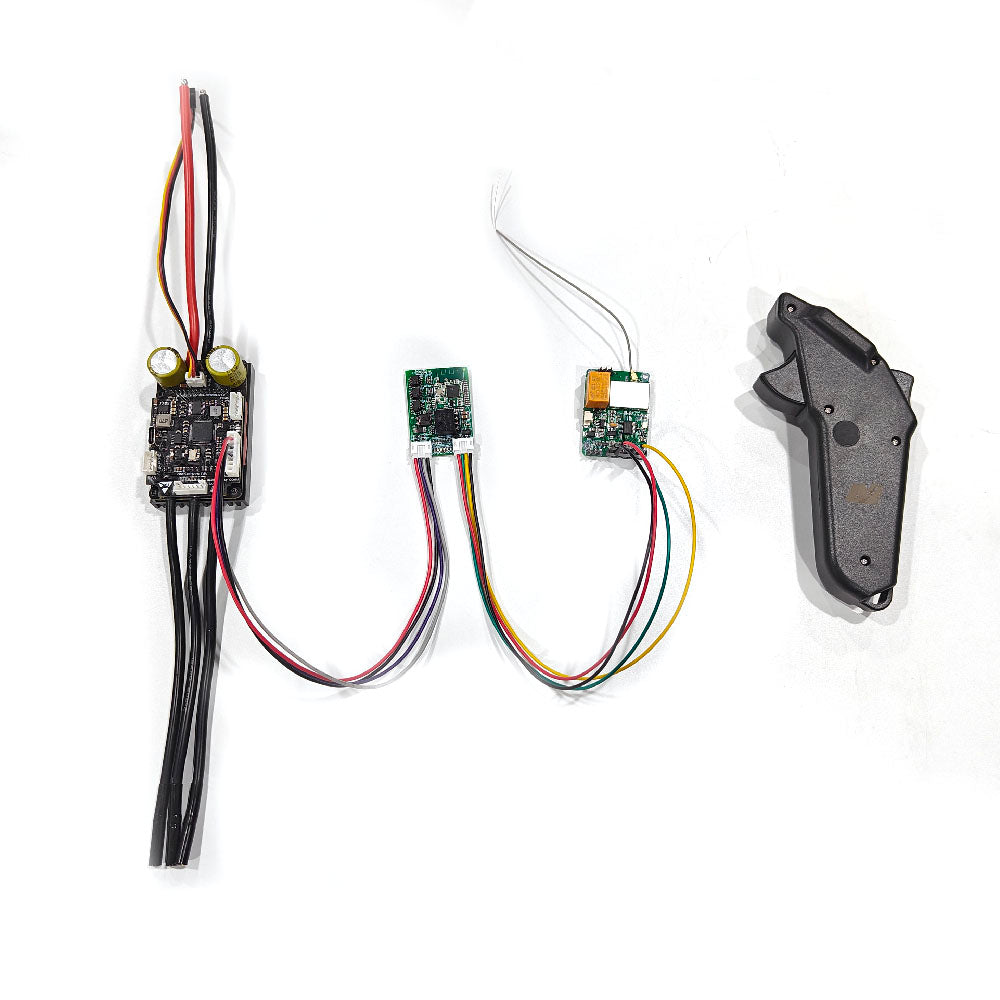

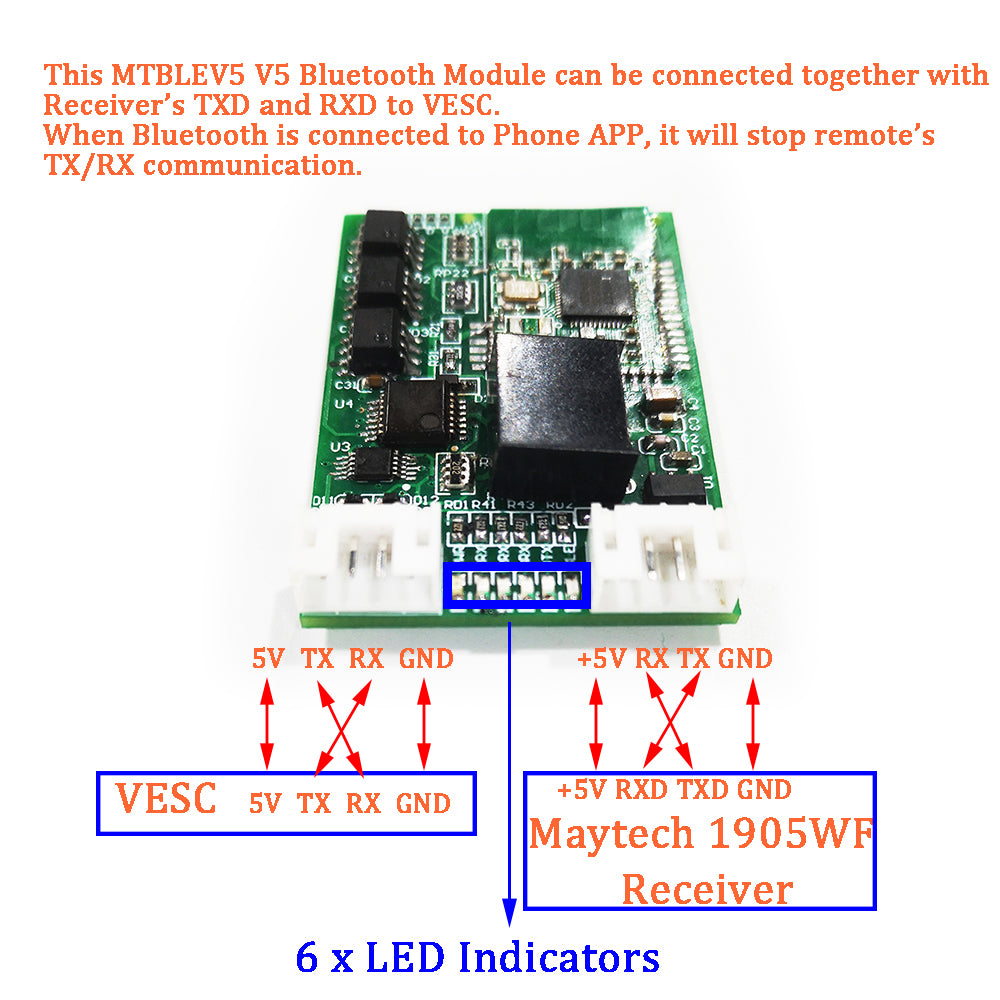

Upgrade Function It supports connection together with receiver TXD and RXD to VESC, so it can automatically switch VESC communication with receiver or bluetooth and you don't need to unplug connections. When bluetooth module connect to VESCTOOL App, it will automatically disconnect receiver TXD and TXD, really convenient.

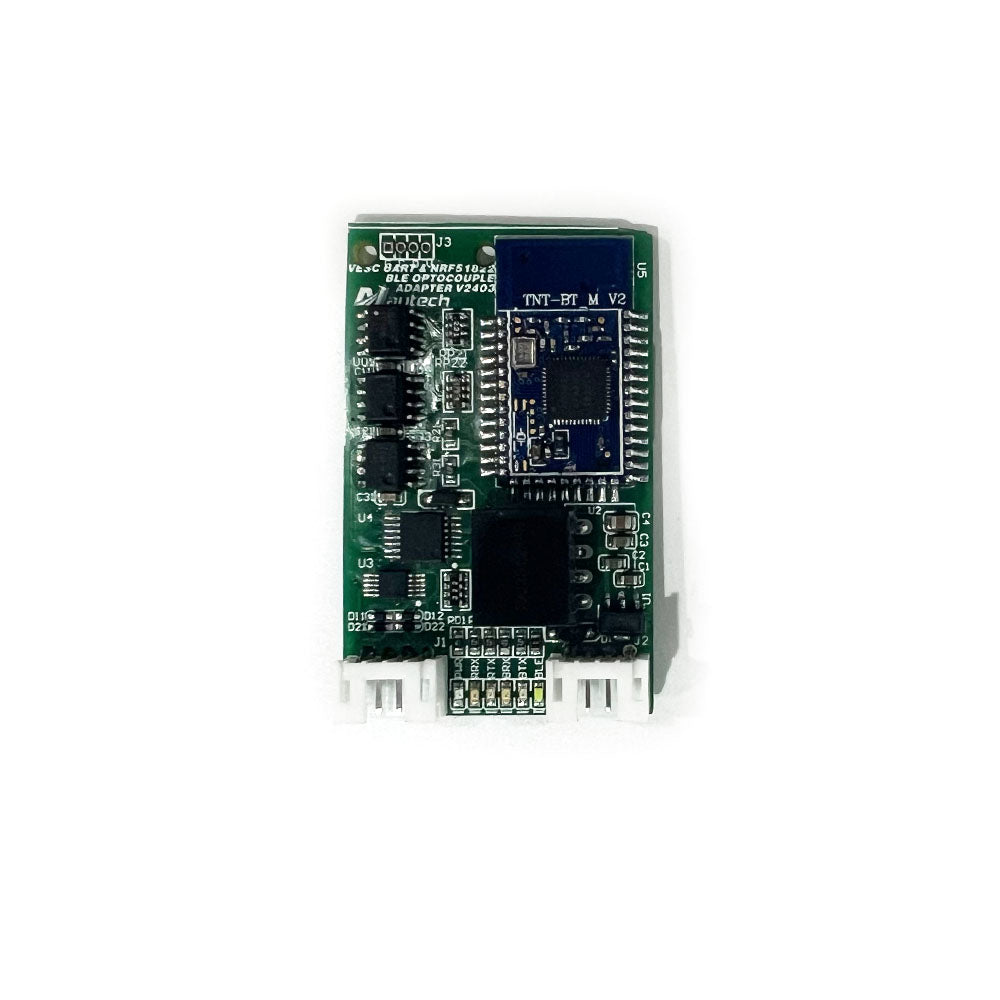

With 6 LED Lights status power, communication, data tranmission
Compatible Controller Hardware V4 / V6 / V75 based SuperESC
Compatible Software VESCTOOL App
Frequency 2.4Ghz
Distance 15m
Input Voltage 3.3-24V
PCB Size 46mm x 32mm
Bluetooth Module 2.4G Wireless bluetooth support Andriod and IOS system OPPO Iphone compatible with VESC TOOL work with VESC speed controller V4 V6 V75/300

Bluetooth Module 2.4G Wireless bluetooth support Andriod and IOS system OPPO Iphone compatible with VESC TOOL work with VESC speed controller V4 V6 V75/300Bluetooth Module 2.4G Wireless bluetooth support Andriod and IOS system OPPO Iphone compatible with VESC TOOL work with VESC speed controller V4 V6 V75/300

Functions:
1. The bluetooth is developed for communication between controller and VESCTOOL via BLE, to display parameters on mobile phone, so you can monitor real time parameters on app easily.
2. Motor current, duty cycle, ERPM, motor power, motor temperature, battery voltage, battery current, MOS temperature, charging current, charging power, etc., are able to display through the bluetooth module.
3. You can adjust parameters for motor settings, Including General, BLDC, FOC, PID controllers, etc informations.

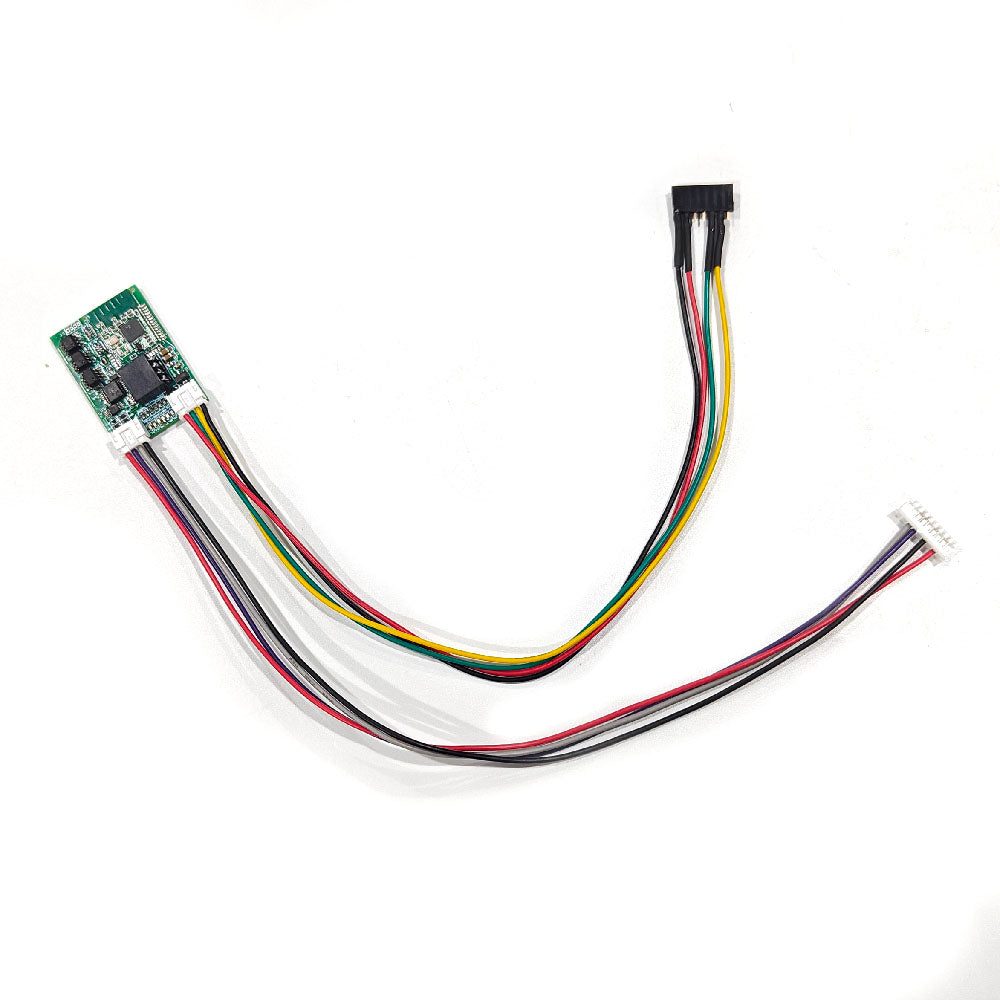

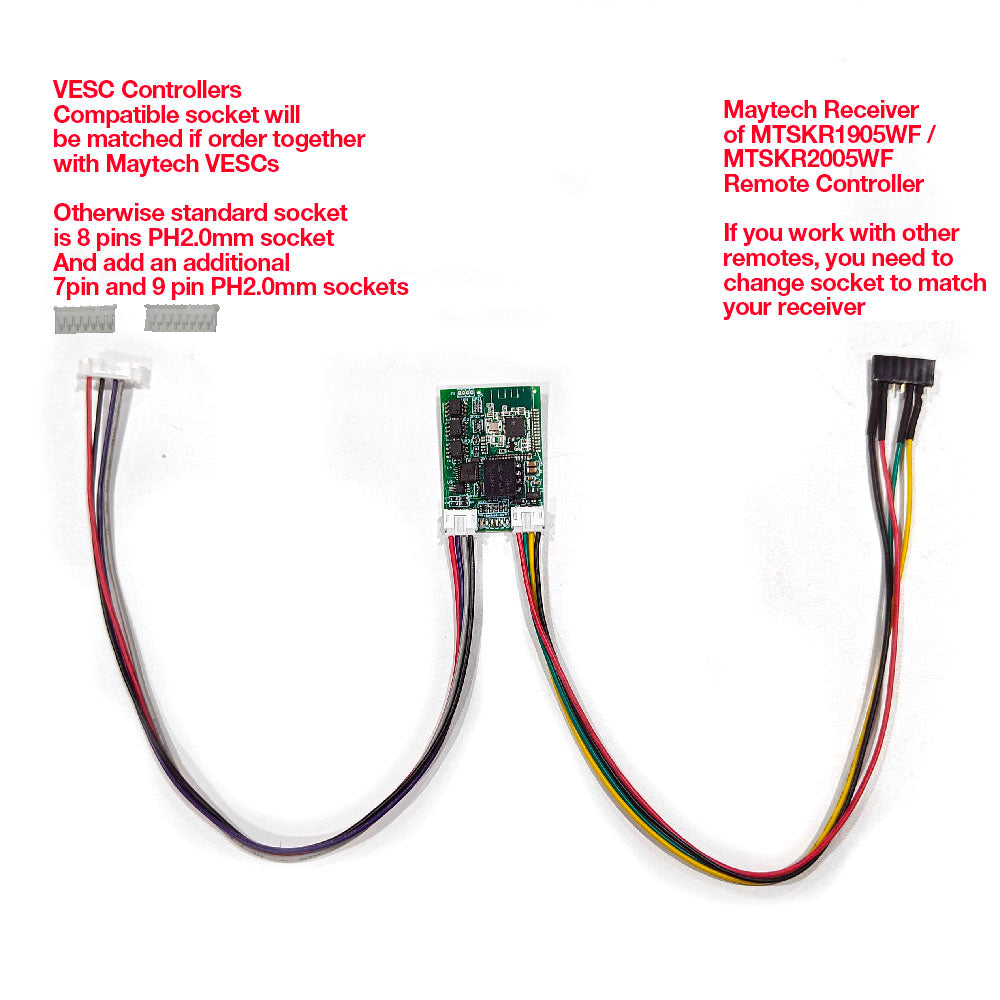

4. It supports VESCTOOL Compatible controller based on V4, V6.0, V75_300 hardware, please choose the correct hardware version of your controller, we will match compatible cable for you.
5. Firmware is updatable.

Bluetooth module for electric skateboard, elongboared , mountainboard on App display current, temperature, power, voltageBluetooth module for electric skateboard, elongboared , mountainboard on App display current, temperature, power, voltage



VESCTOOL Compatible Speed Controllers:

In Stock Buy One Get One ! SuperESC MTSPF50A V4 based 50A Speed Controller 12S Lipo 50V In Stock SUPERFOC6.8 50V V6.0 based Speed Controller Great FOC FunctionIn Stock Maytech Foil Boost VESC 100A V6 Speed Controller with Heat Fin for SUP Foil Esk8 Robots In Stock MTSPF7.5RK 50A 75V V75_300 based Speed Controller SUPERFOC Round Shape VESC

In Stock 2pcs / 5pcs MTSPF7.12K V2 Max 75V 200A V75/300 based Speed Controller SUPERFOC ESC In Stock MTSPF7.5HK SUPERFOC 300A 75V V75_300 based Speed Controller VESC_TOOL Compatible

View full details
Your cart
Variant Variant total Quantity Price Variant total
Bluetooth Module
Bluetooth Module
$47.80
$0.00
$47.80 $0.00

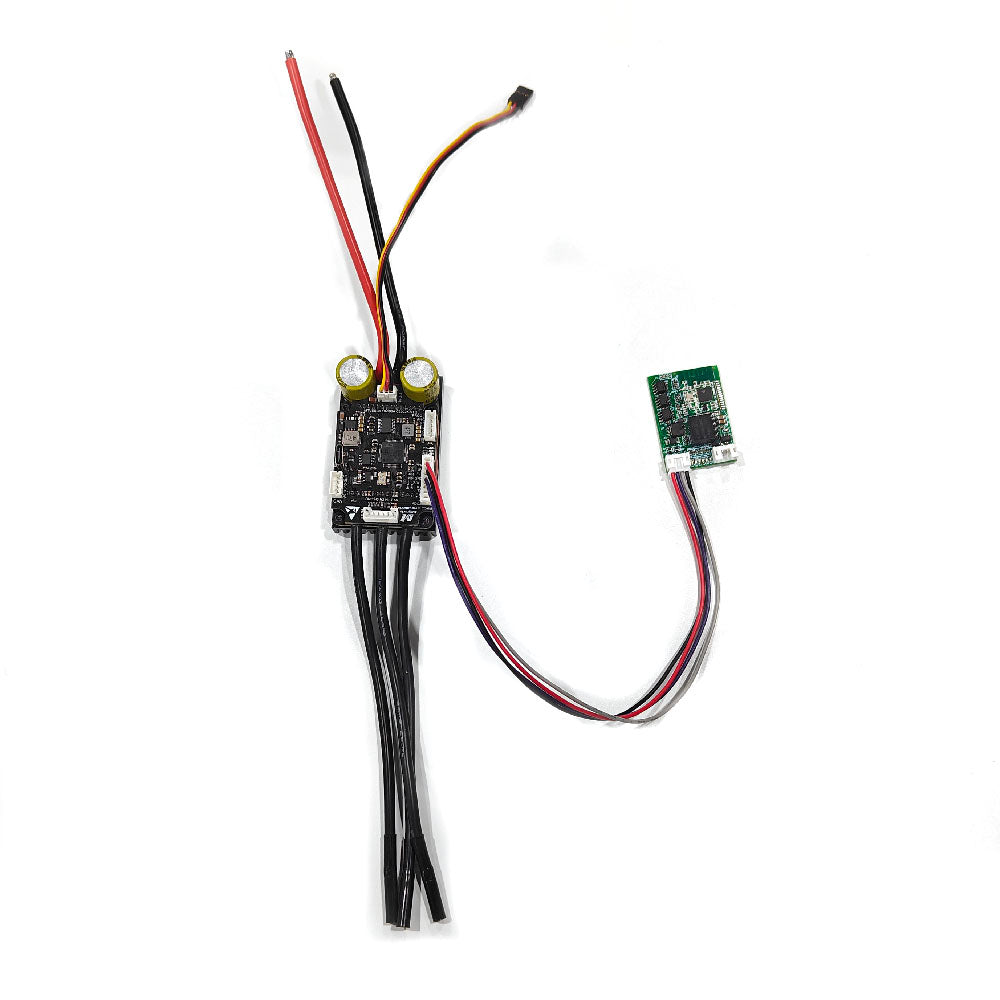

Bluetooth Module + 100A VESC
Bluetooth Module + 100A VESC
$189.60
$0.00
$189.60 $0.00

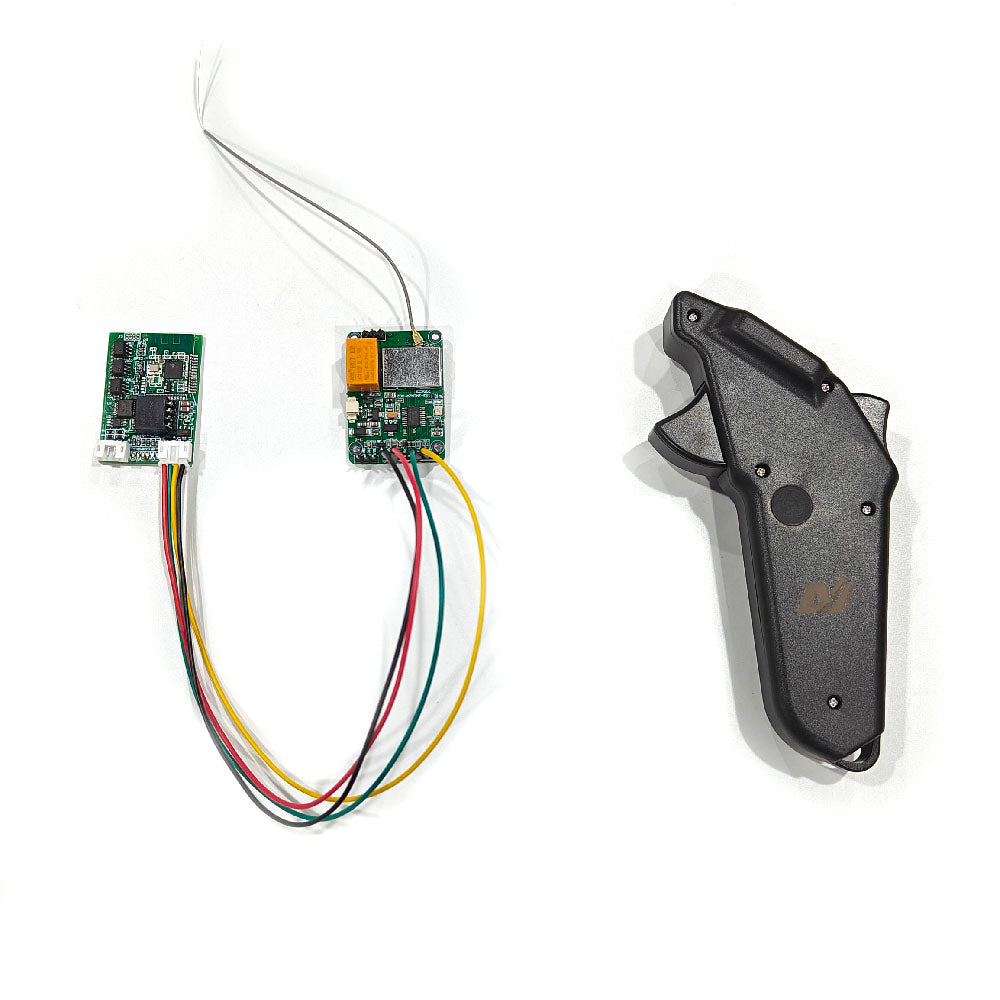

Bluetooth Module + 1905WF Remote
