In Stock MTSPF7.5HK SUPERFOC 300A 75V V75_300 based Speed Controller VESC_TOOL Compatible
In Stock MTSPF7.5HK SUPERFOC 300A 75V V75_300 based Speed Controller VESC_TOOL Compatible
Couldn't load pickup availability
Maytech MTSPF7.5HK 300A 400A 75V Watercooled V75 based Speed Controller SUPERFOC ESC for Electric Surfboard Mountainboard Efoil RC Boat Motorized Motorcycle Controller
Model no
|
MTSPF7.5HK
|
Cont. Current
|
With water cooling 400A
Without water cooling 300A
|
Input Volt
|
5-18S Lipo (18V-75V) |
BEC
|
With
|
Watercooled
|
Yes
|
Hardware version
|
based on V75/300
|
Firmware
|
Upgradable
|
Capacitors
|
9pcs 100V 470μf capacitor
|
Application
|
electric skateboard, fighting robot, e-bike, electric motorcycle, efoil, electric surfboard, watercraft, electric boat, underwater ROV, etc
|
-Absolute Maximum Current: 350A (According to your motor current)
-Battery Current Max: ≤150A (According to your battery discharge current)
![High voltage 85V electric speed controller 300A max 1000A electric surfboard jetsurf jetski electric skateboard electric mountainboard](https://cdn.shopify.com/s/files/1/0089/3065/6320/files/MTSVESC7_01_a95e1251-fc61-4420-b767-be961fb24ac7_600x600.jpg?v=1619333279)
![High voltage 85V electric speed controller 300A max 1000A electric surfboard jetsurf jetski electric skateboard electric mountainboard](https://cdn.shopify.com/s/files/1/0089/3065/6320/files/MTSVESC7_02_5309ca8e-49d6-41c5-a77d-1650dd23add9_600x600.jpg?v=1619333305)

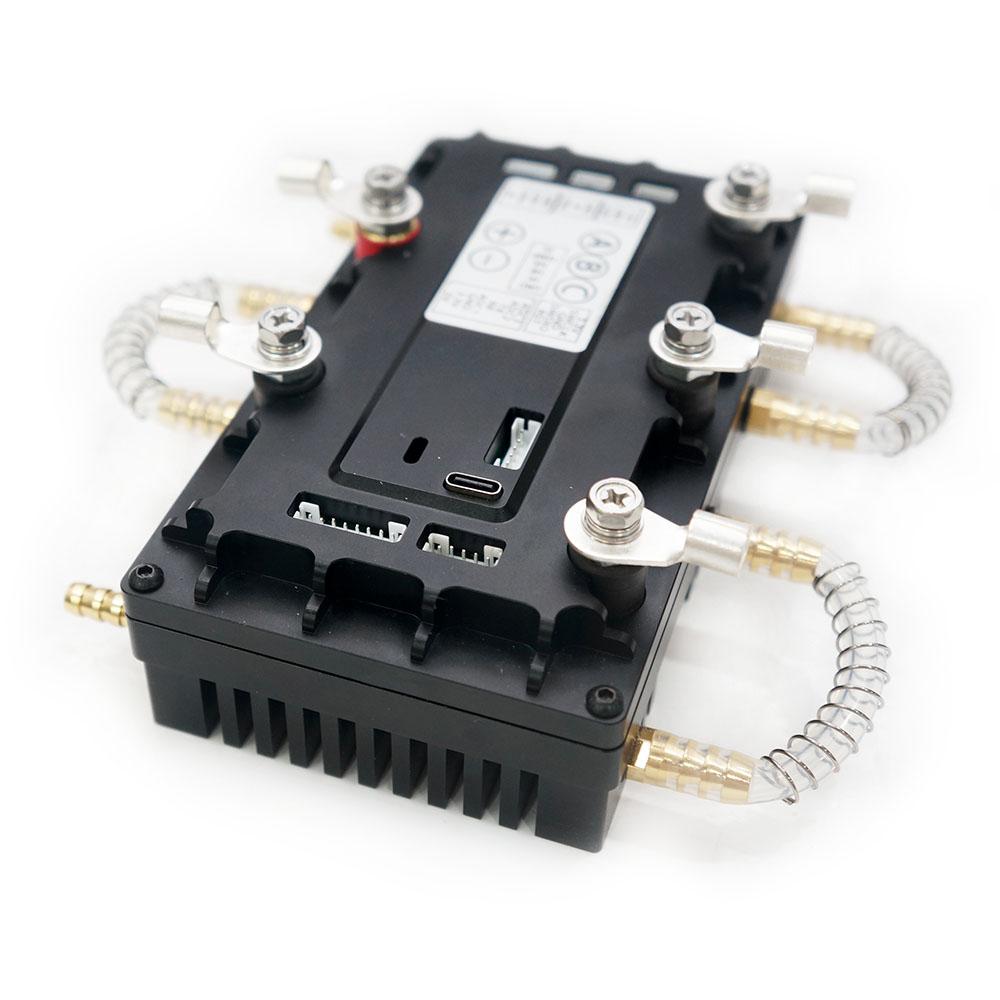

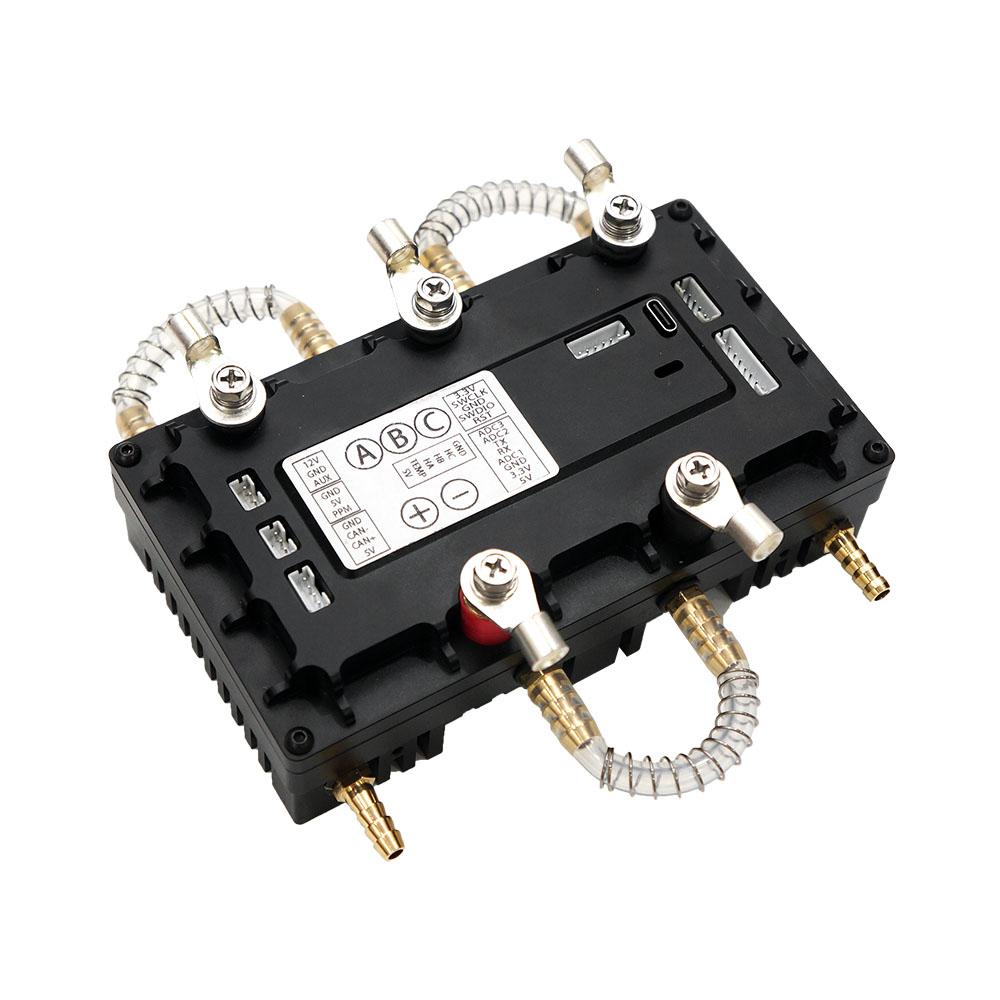

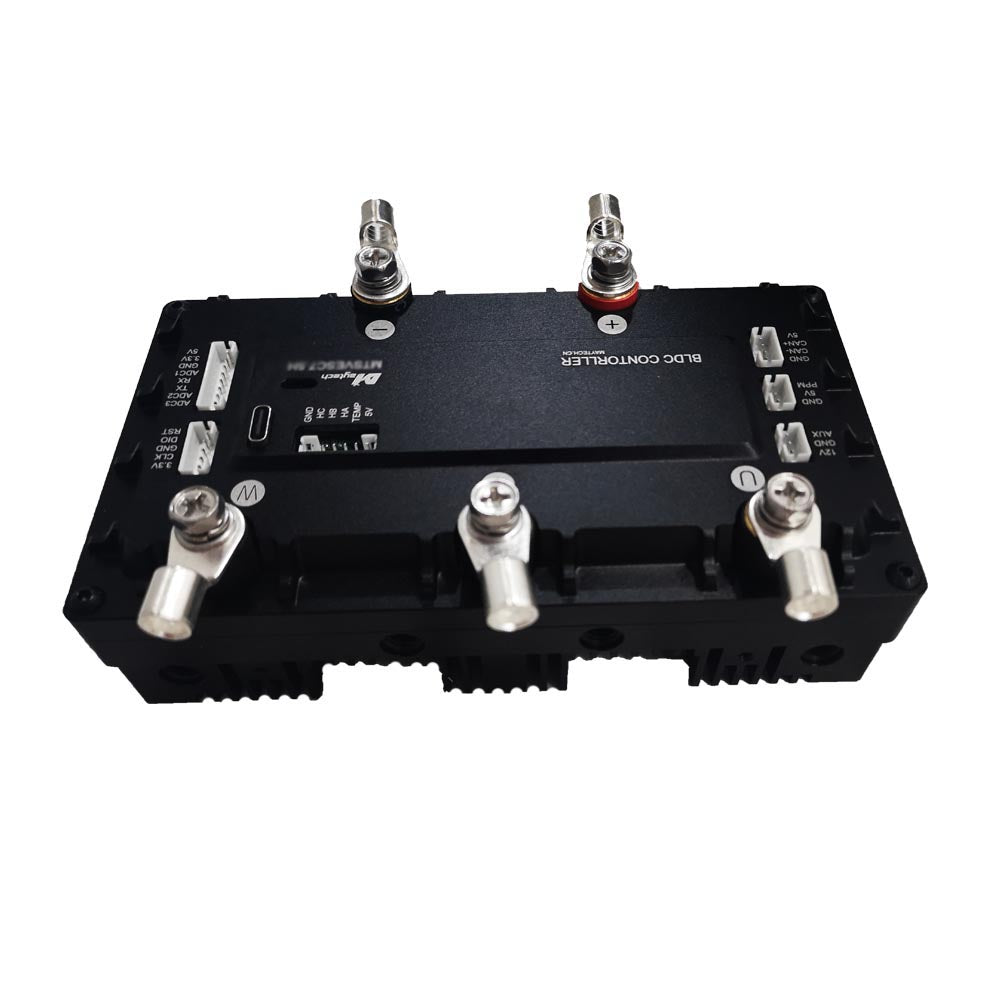

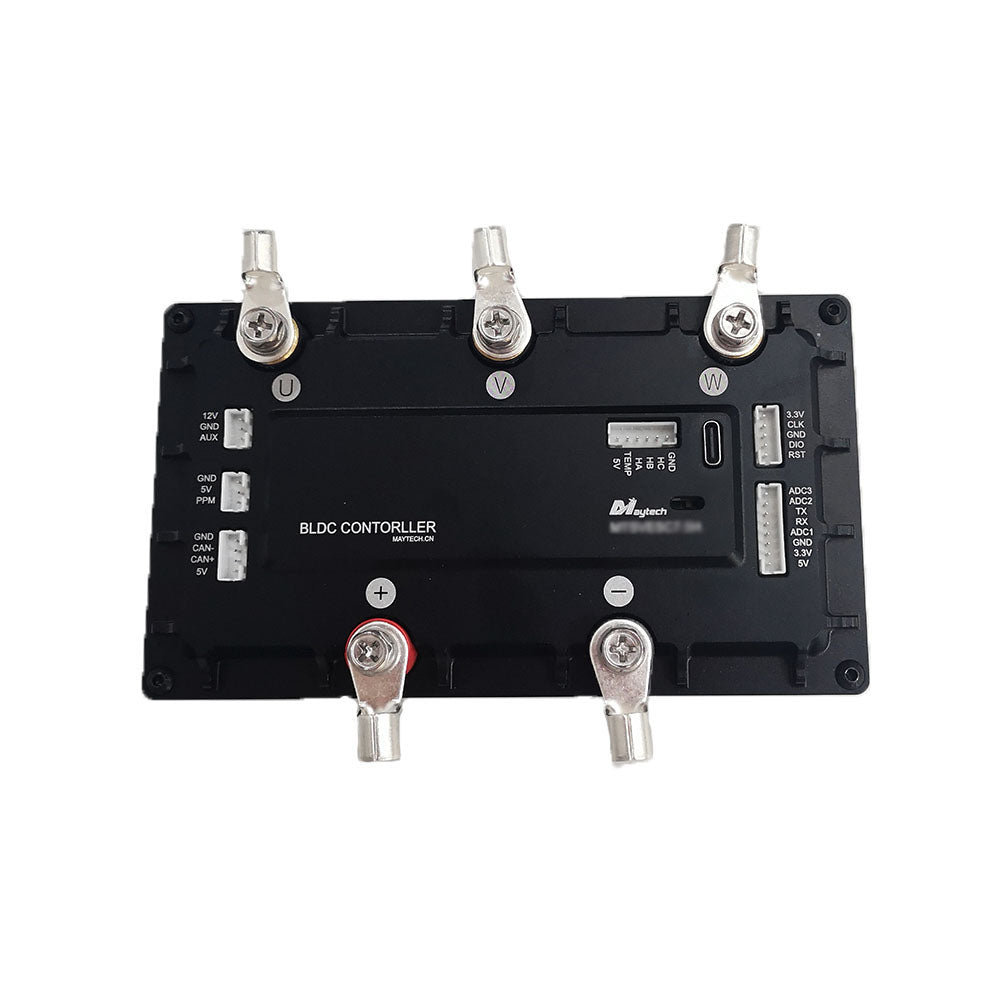

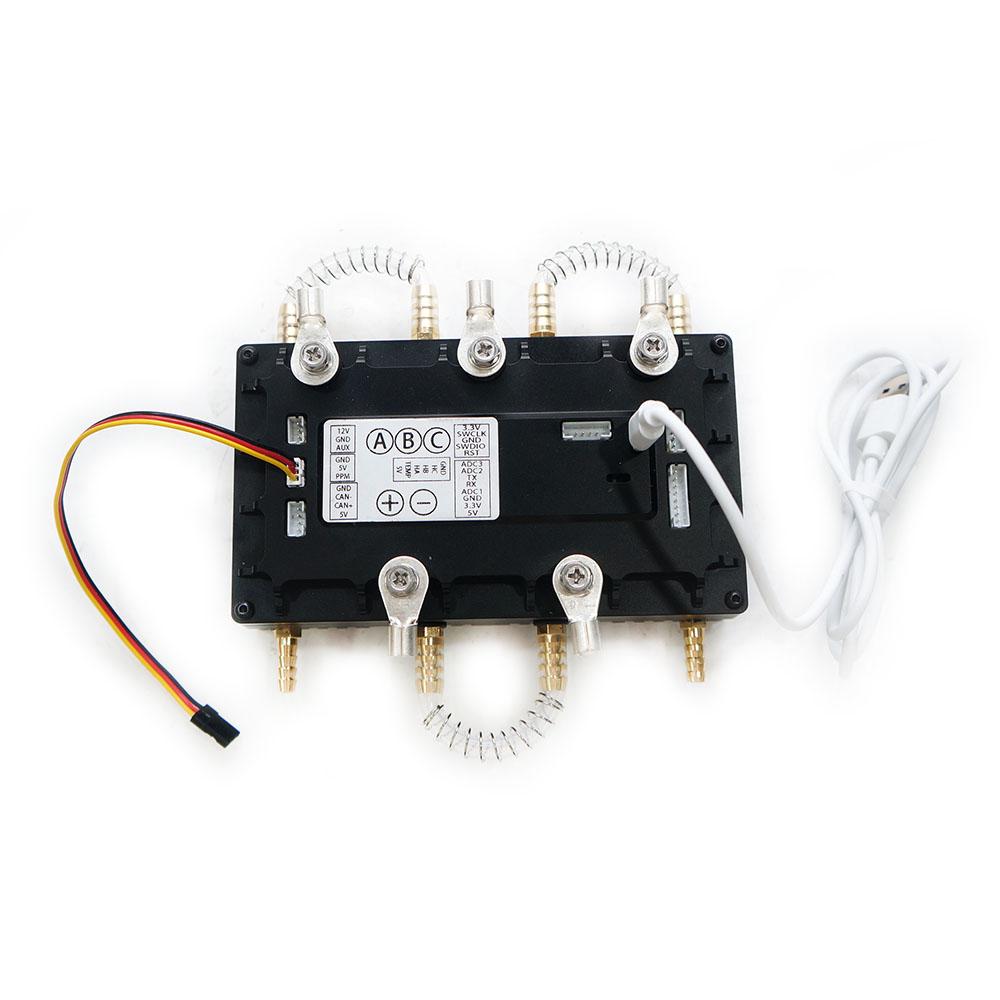

Ports definitions:
- AUX port to supply 12V and 5V to external device;
- PPM port to connect PPM transceivers Never connect one reclever to two or more VESCs in an array ! Permanent damage may result from Y-PPM wiring
- CAN Port for CAN communication with other devices and controller arrays; Only connect CAN L and CAN H ! GND pins and 5V should never be connected in aVESC array.
- Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders);
- SWD port to get direct access to the Chipset. Diagnostics, debugging, and real time data;
- COMM port for various kinds of other communication methods like I2C, ADC, Uart,you can use your Arduino or Raspberry Pi to control the SuperESC!
- USB port for programming.
![High voltage 85V electric speed controller 300A max 1000A electric surfboard jetsurf jetski electric skateboard electric mountainboard](https://cdn.shopify.com/s/files/1/0089/3065/6320/files/MTSVESC7.5H_2.jpg?v=1612338493)
![High voltage 85V electric speed controller 300A max 1000A electric surfboard jetsurf jetski electric skateboard electric mountainboard](https://cdn.shopify.com/s/files/1/0089/3065/6320/files/MTSVESC7.5H_10.jpg?v=1612338552)
![High voltage 85V electric speed controller 300A max 1000A electric surfboard jetsurf jetski electric skateboard electric mountainboard](https://cdn.shopify.com/s/files/1/0089/3065/6320/files/MTSVESC7.5H_3.jpg?v=1612338575)
Compare to Original 75_300 VESC_TOOL compatible controller, what upgraded points and advantages MTSPF7.5HK have?
-

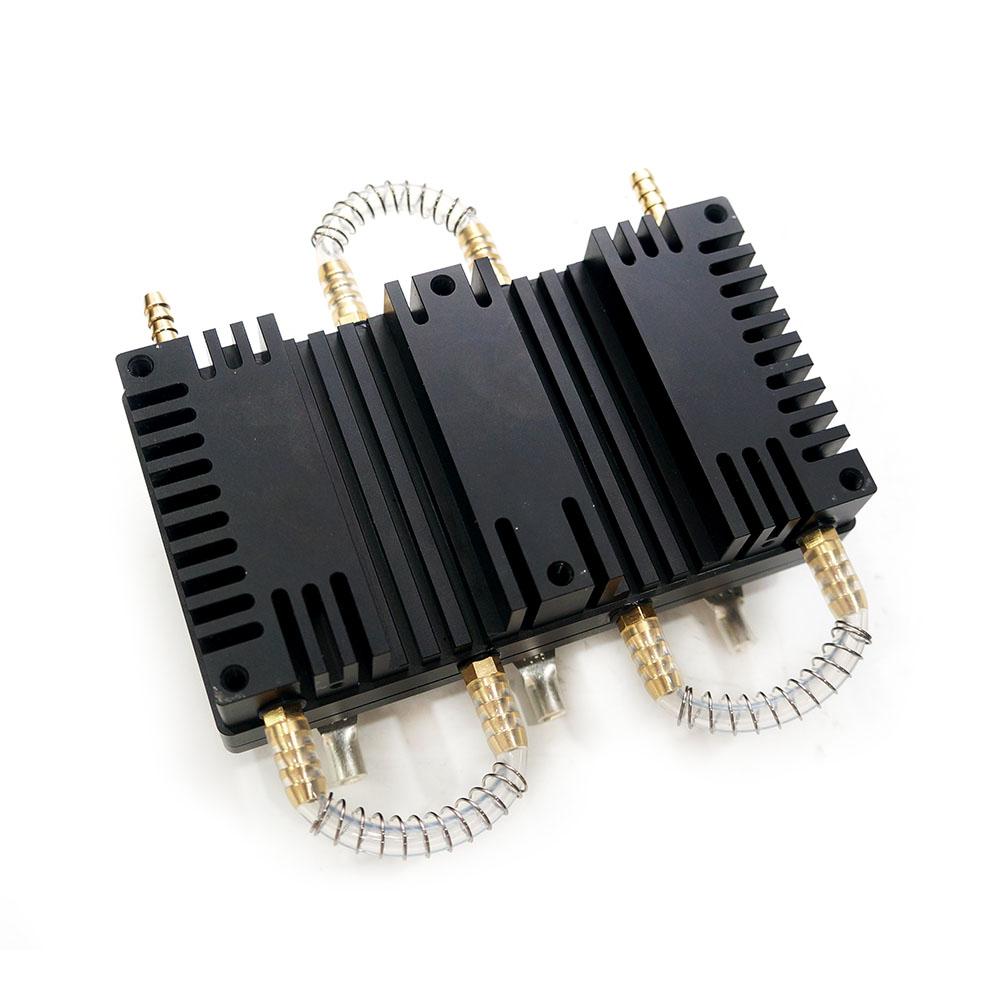

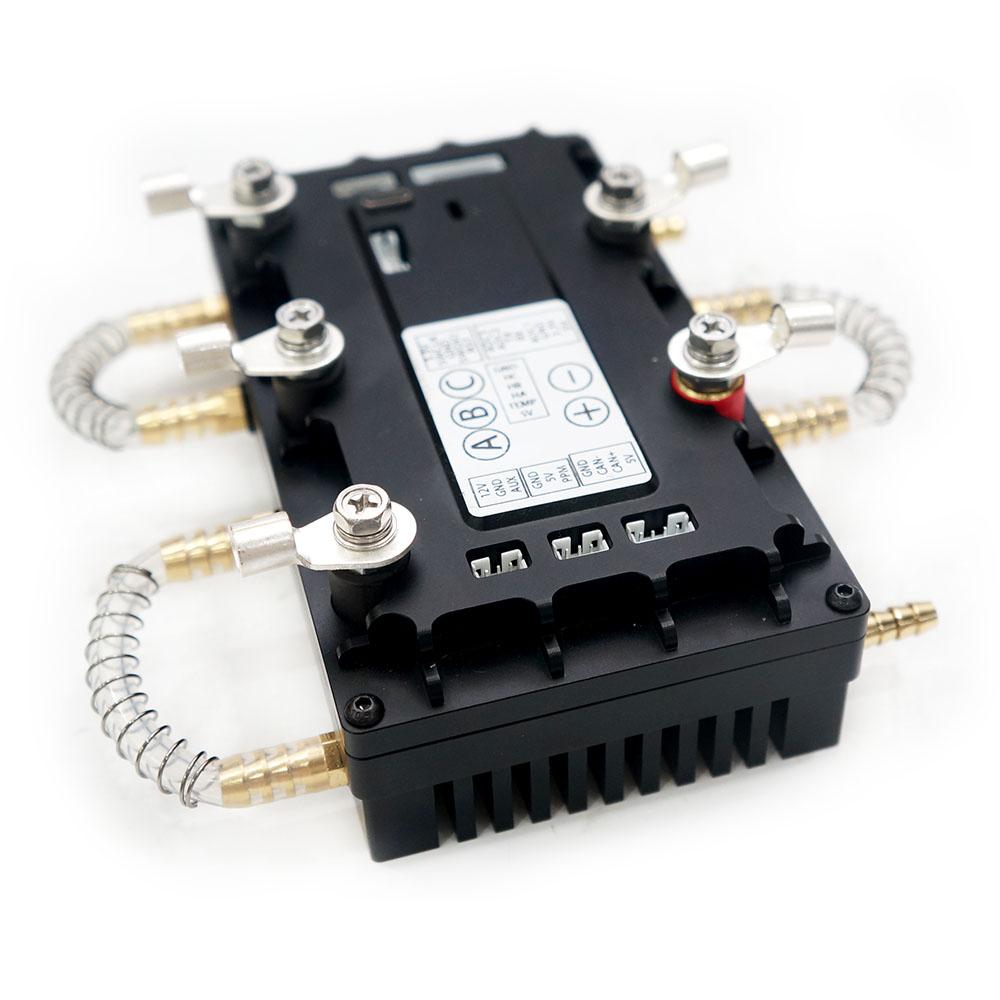

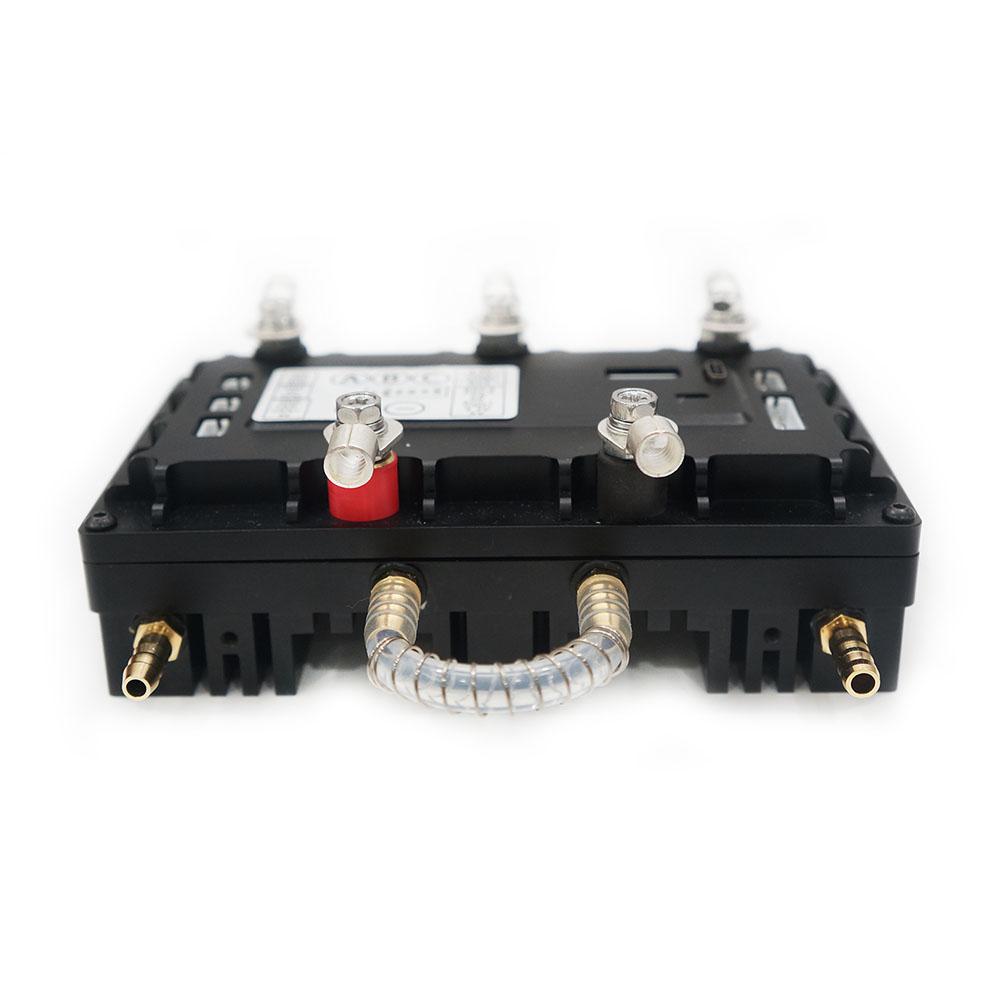

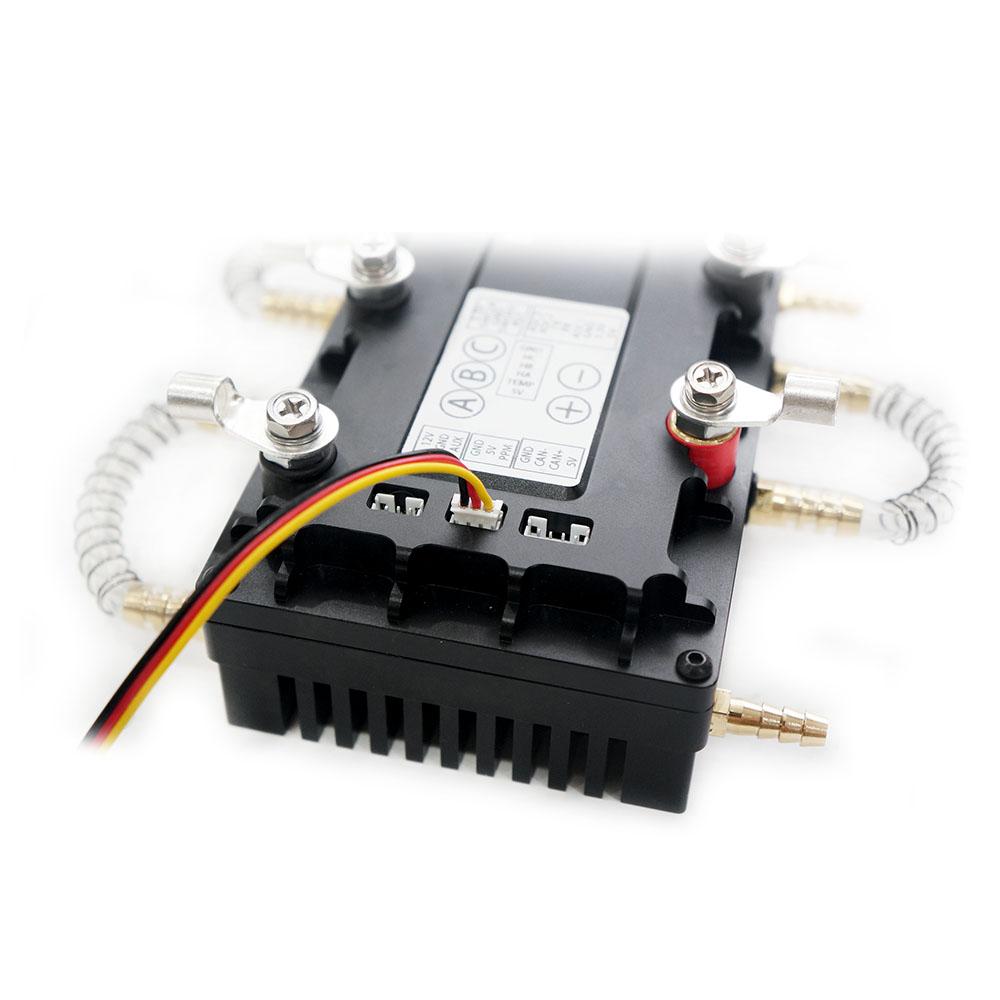

With CNC aluminum alloy heat dissipation case, optional water cooling system and forced air cooling system.
-
With larger heat sink case that has better heat dissipation performance.
-

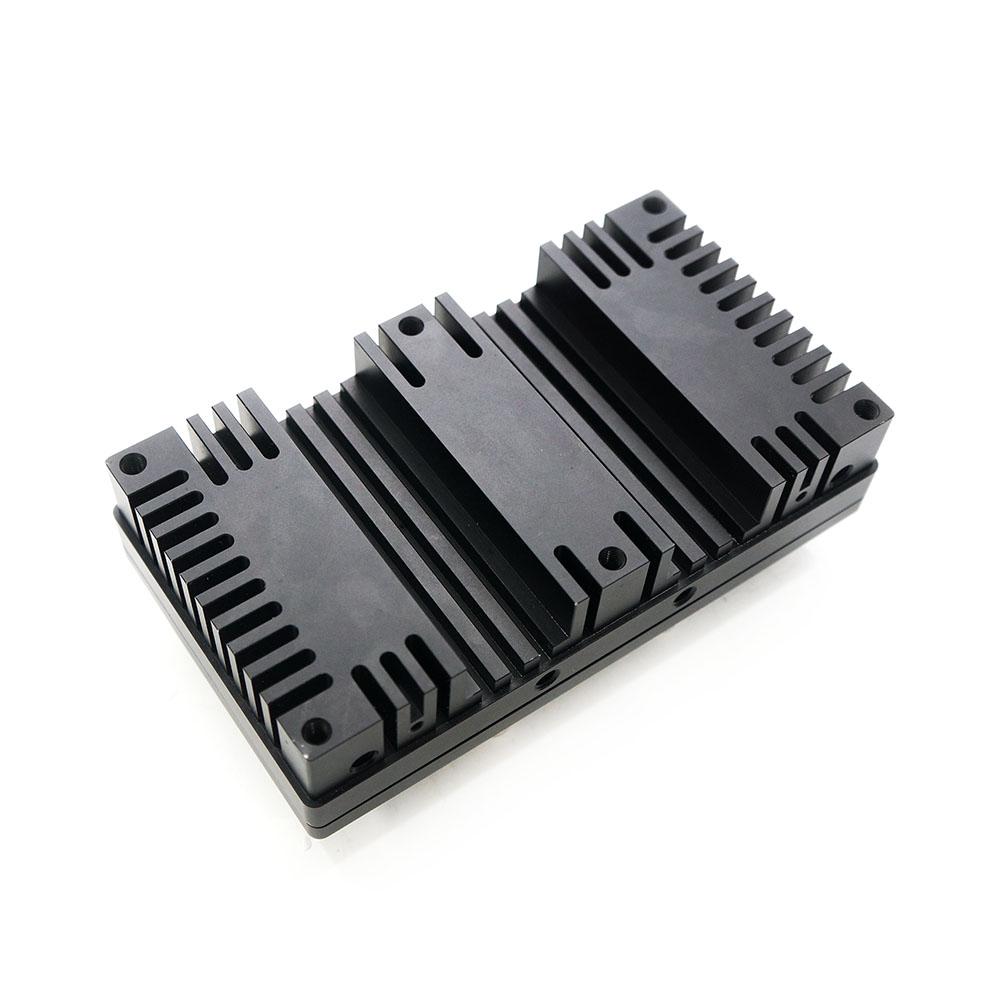

Its heat sink case bottom is coverd by fins that can better heat dissipation.
-
Its PCB board has 4pcs MOS paralleled, could withstand higher current, original version only has 3pcs MOS.
-
Its PCB board with cooper stripe, can reduce resistance in high current, better heat dissipation.
-
With larger capacitor, 9pcs 100V 470μf capacitor, while original version only has 6pcs 80V 470μf.
-
With separate design of strong and weak current circuit board, and between 2 boards added heat sink for better heat dissipation.
-
Exclusive 5V and 12V external power supply interfaces will not cause interference when powering analog circuits such as twist/thumb throttles.
Some Using Tips for this Controller:
2.Must do a good job of heat dissipation! If place it in a sealed container(recommend touse metal container), it must be forced to be cooled with water. Also make sure your container has enough space for the controller, make sure the cooling tube do not bent, otherwise will influence water flow in cooling tube, also make sure water flow is enough for cooling before office use.
3. Before the new ESC is officially used, please test it with a low-voltage and low-throttle, after success, then slowly increase voltage and throttle. Be sure to pay attention to safety during this period!
4. Recommend to add an electronic switch with short circuit protection function between the ESC and battery, such as MTS2009AS 300A electronic switch or BMS with switch function. It is not recommended to use only contactor without short circuit protection!
5. The battery and motor side terminals must be connected tightly, they can’t be loose. Also please make sure terminals not touch case or other wires, here's the video shows you the way to install cold-pressed terminal connector: https://youtu.be/unFfV9RPPCc
6. In actual use, please use hot melt glue to fix the hall/UART interface cables the corresponding sockets of the ESC, to prevent the cables loose due to the bumps of the vehicle!
7. Please do not disconnect relay switch or electronic switch during usage ! Otherwise it will cause electromagnetic interference, which might damage the controller.
Our remote PWM signal output pulselength in Esurf mode is 1-2ms, no brake no stop, and in controller default pulselength is 1ms start, 2ms end, 1.5ms center, so if you will use our remote in Esurf mode, then please adjust below settings in VESC_TOOL:
PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
Videos show you how to connect cables to the controller cold-pressed terminal connector:
