In Stock MTSPF7.5HK SUPERFOC 300A 75V V75_300 based Speed Controller VESC_TOOL Compatible

In Stock MTSPF7.5HK SUPERFOC 300A 75V V75_300 based Speed Controller VESC_TOOL Compatible

$511.90 USD
$511.90 USD
Sale Sold out
Shipping calculated at checkout.
Water Cooling Tube

Maytech MTSPF7.5HK 300A 400A 75V Watercooled V75 based Speed Controller SUPERFOC ESC for Electric Surfboard Mountainboard Efoil RC Boat Motorized Motorcycle Controller

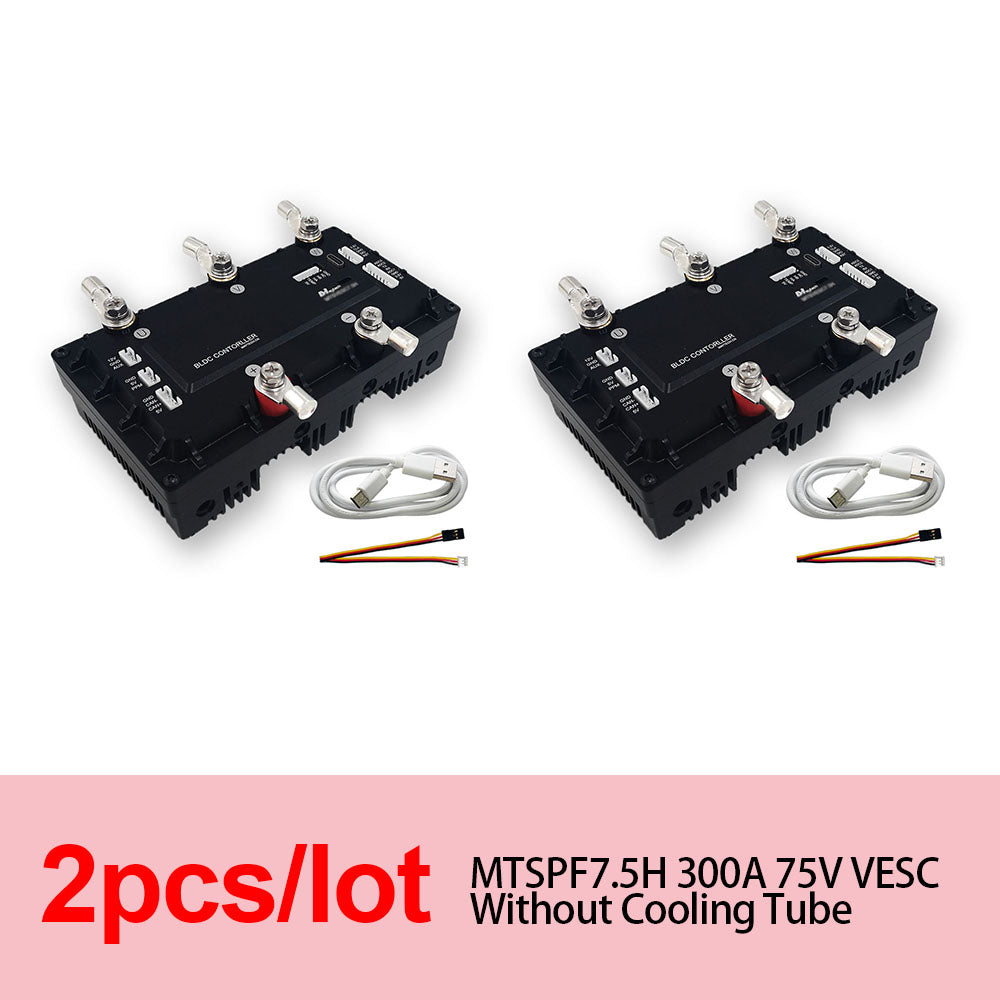

 In Stock 2pcs/ 5pcs MTSPF7.5HK 300A 75V based on V75/300 SuperESC Watercooled Speed Controller

After current stock sell out, price will be adjusted according to new production cost, due to production and material costs are keep rising, new batch will be must higher than current price !
So don't miss out this opportunity, get the great discount !



Model no
MTSPF7.5HK
Cont. Current
With water cooling 400A
Without water cooling 300A
Input Volt
 5-18S Lipo (18V-75V)
BEC
With
Watercooled
Yes
Hardware version
based on V75/300
Firmware
Upgradable
Capacitors
9pcs 100V 470μf capacitor
Application
electric skateboard, fighting robot, e-bike, electric motorcycle, efoil, electric surfboard, watercraft, electric boat, underwater ROV, etc

Set in VESCTOOL:
-Motor Current Max: ≤300A (According to your motor current)
-Absolute Maximum Current: 350A (According to your motor current)
-Battery Current Max: ≤150A (According to your battery discharge current)





High voltage 85V electric speed controller 300A max 1000A electric surfboard jetsurf jetski electric skateboard electric mountainboardHigh voltage 85V electric speed controller 300A max 1000A electric surfboard jetsurf jetski electric skateboard electric mountainboard

          Ports definitions:

  • AUX port to supply 12V and 5V to external device;
  • PPM port to connect PPM transceivers Never connect one reclever to two or more VESCs in an array ! Permanent damage may result from Y-PPM wiring
  • CAN Port for CAN communication with other devices and controller arrays; Only connect CAN L and CAN H ! GND pins and 5V should never be connected in aVESC array.
  • Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders);
  • SWD port to get direct access to the Chipset. Diagnostics, debugging, and real time data;
  • COMM port for various kinds of other communication methods like I2C, ADC, Uart,you can use your Arduino or Raspberry Pi to control the SuperESC!
  • USB port for programming.
High voltage 85V electric speed controller 300A max 1000A electric surfboard jetsurf jetski electric skateboard electric mountainboard
High voltage 85V electric speed controller 300A max 1000A electric surfboard jetsurf jetski electric skateboard electric mountainboard
High voltage 85V electric speed controller 300A max 1000A electric surfboard jetsurf jetski electric skateboard electric mountainboard

Compare to Original 75_300 VESC_TOOL compatible controller, what upgraded points and advantages MTSPF7.5HK have?

  1. With CNC aluminum alloy heat dissipation case, optional water cooling system and forced air cooling system.
  2. With larger heat sink case that has better heat dissipation performance.
  3. Its heat sink case bottom is coverd by fins that can better heat dissipation.
  4. Its PCB board has 4pcs MOS paralleled, could withstand higher current, original version only has 3pcs MOS.
  5. Its PCB board with cooper stripe, can reduce resistance in high current, better heat dissipation.
  6. With larger capacitor, 9pcs 100V 470μf capacitor, while original version only has 6pcs 80V 470μf.
  7. With separate design of strong and weak current circuit board, and between 2 boards added heat sink for better heat dissipation.
  8. Exclusive 5V and 12V external power supply interfaces will not cause interference when powering analog circuits such as twist/thumb throttles.
Features:
-This new controller can work to highest 75V voltage, can use for electric skateboard, surfboard, motorcycle, ATV, etc., fixed the problem of high voltage and compatible with VESC_TOOL that most controller can't do in the current market.
-Compatible with VESC_TOOL, programmable;
-Use High voltage components, more stable, better performance;
-With 24pcs mosfets;
-With high quality machined aluminum case;
-With Great heat dissipation for high voltage and high current applications;
-Compatible with brushed and brushless Motor, intrunner and outrunner motors
-Sensored or Sensorless operation + Hybrid mode
-Adjustable Forward/Backward/Brake
-Regenerative Braking Function
-Configurable RPM, Current, Voltage and Power limits
-Support PPM, Analog (ADC), UART, Canbus input
-Support BLDC square wave mode control and FOC sine wave mode
-Communication ports: USB, CAN, UART
-Throttle curve and ramping for all input sources
-Seamless 4-quadrant operation
-Motor Revolution, Amp Hour, Watt Hour counting
-Real time data analysis and read out via communication ports
-Adjustable protection against:
 Max and Minimum Input(Battery) Voltage
 Max Motor Current and Input(Battery) Current limits
 Max Power (Wattage)
 Max Motor and ESC Temperature
 Max Regenerative Braking Current (separate limits for the motor and the input
 Max ERPM(RPM) (separate limits for each direction)

Some Using Tips for this Controller:

1. If you will use the controller for water sports or other application that will need to use water cooling, then better choose type with water cooling tube, and work with water pump for cooling. Blow has compatible water pump setup recommended, if you need, can order together.

2.Must do a good job of heat dissipation! If place it in a sealed container(recommend touse metal container), it must be forced to be cooled with water. Also make sure your container has enough space for the controller, make sure the cooling tube do not bent, otherwise will influence water flow in cooling tube, also make sure water flow is enough for cooling before office use.

3. Before the new ESC is officially used, please test it with a low-voltage and low-throttle, after success, then slowly increase voltage and throttle. Be sure to pay attention to safety during this period!

4. Recommend to add an electronic switch with short circuit protection function between the ESC and battery, such as MTS2009AS 300A electronic switch or BMS with switch function. It is not recommended to use only contactor without short circuit protection!

5. The battery and motor side terminals must be connected tightly, they can’t be loose. Also please make sure terminals not touch case or other wires, here's the video shows you the way to install cold-pressed terminal connector: https://youtu.be/unFfV9RPPCc

6. In actual use, please use hot melt glue to fix the hall/UART interface cables the corresponding sockets of the ESC, to prevent the cables loose due to the bumps of the vehicle!

7. Please do not disconnect relay switch or electronic switch during usage ! Otherwise it will cause electromagnetic interference, which might damage the controller.


8. If you use the controller to work with our MTSKR1905WF remote on Esurf/ Efoil, please noted below settings:

Our remote PWM signal output pulselength in Esurf mode is 1-2ms, no brake no stop, and in controller default pulselength is 1ms start, 2ms end, 1.5ms center, so if you will use our remote in Esurf mode, then please adjust below settings in VESC_TOOL:

PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms

9. In PPM Control type, do not use Duty Cycle or Duty Cycle No Reverse, this control type only works at fighting robots, 3F Prototyping, drone application, because this control type can't fully disconnect battery power, it needs battery to absorb braking energy.
The above tips are only suggestions based on the experience of our engineers. how to actually operate is up to you.  Parameters for different setup is also different, please noted
