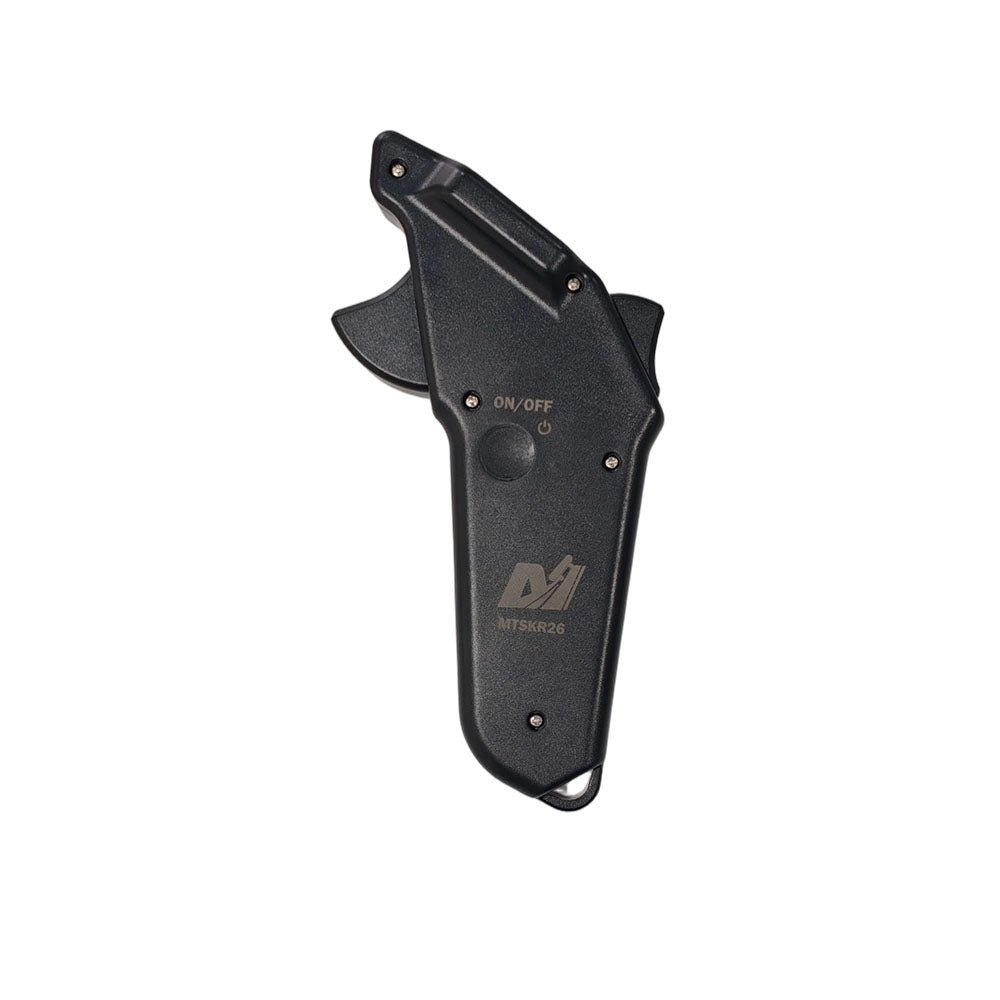

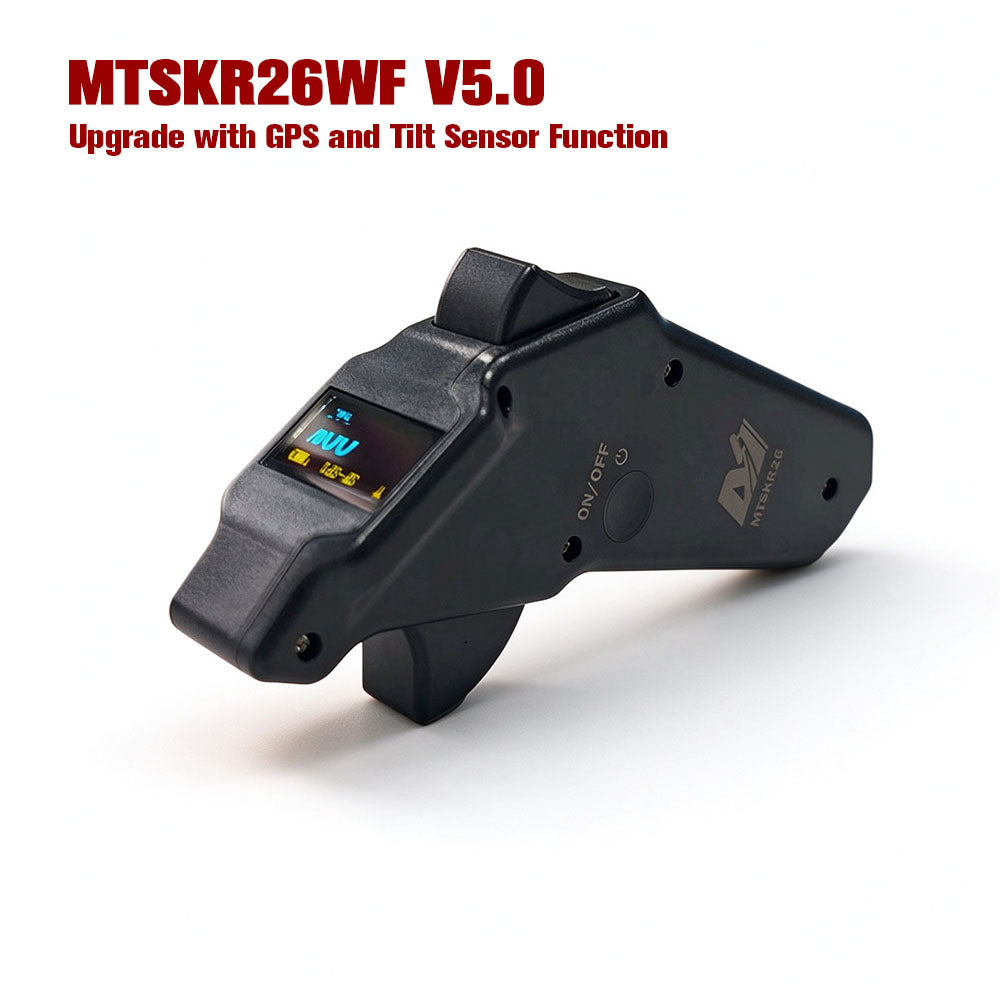

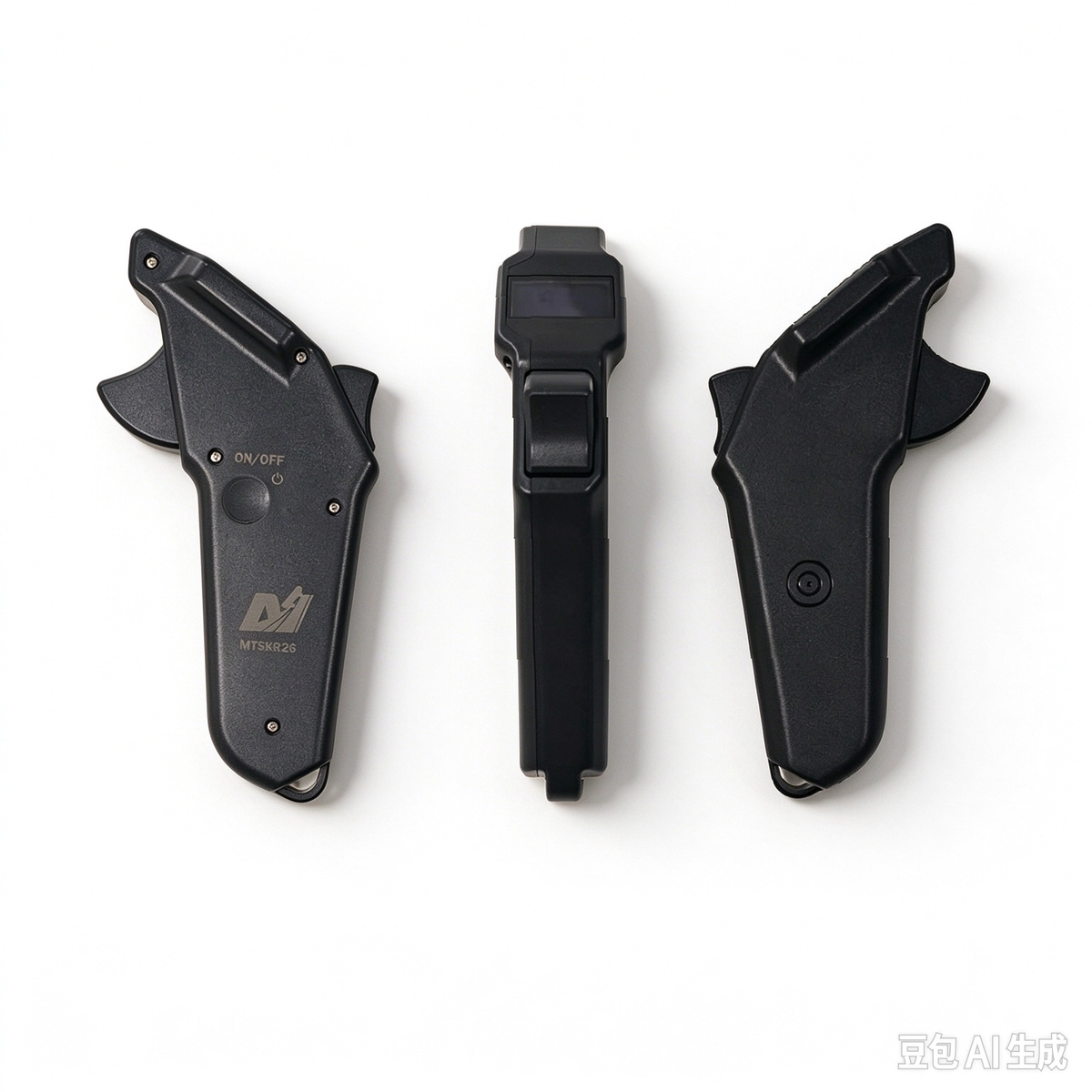

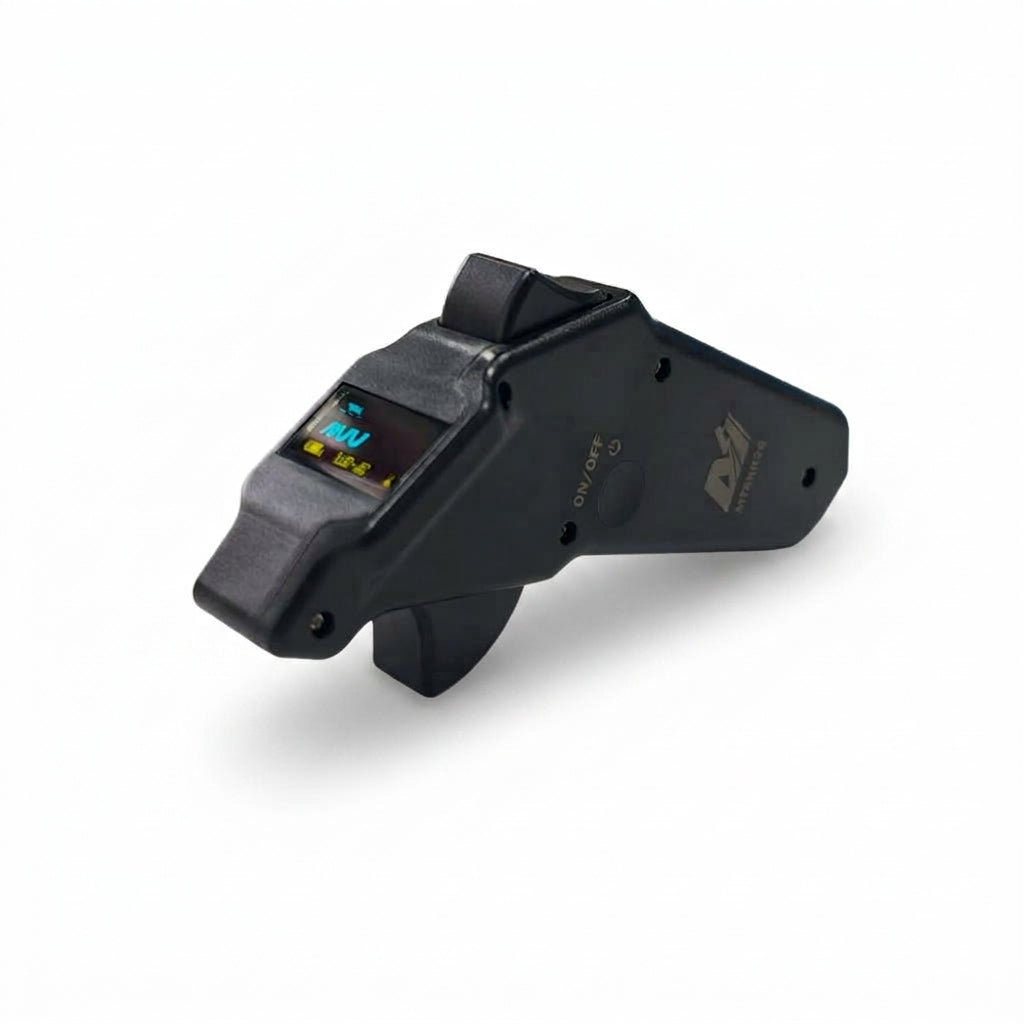

Maytech GPS Remote Controller MTSKR26WF V5.0 – IP68 Waterproof Upgrade with GPS Tracking & Tilt Protection for eFoil, eSurf, eSkate
Maytech GPS Remote Controller MTSKR26WF V5.0 – IP68 Waterproof Upgrade with GPS Tracking & Tilt Protection for eFoil, eSurf, eSkate
Couldn't load pickup availability
If you want to use other cheaper but slower shipping method, please contact eileen@maytech.cn
Shipping time by DHL or UPS is fast, normally 3-7 days arrive to you.
Specification:
| Model No | MTSKR26WF V5.0 |
| Updated Functions |
Equipped with GPS (GPS Speed, Distance, Max Speed, Average Speed) Equipped with Tilted protection (IMU tilt sensor), protection angle can be adjusted to 30°/45°/60° tilt degree of your board in case of flipping over, separation of the rider from the board, or an accidental fall. |
| Waterproof Rank | IP68 Waterproof with 2 Layers Nanometers Coating, both on PCB board and screen |
| Thr Mode | Esurfboard (SF) , with cruise control and ESK8 (SK), can control forward and reverse when use on marine applications |
| 3 Speed Modes | With, adjust throttle % from 20-100%, friendly for beginners |
| Power Modes | 2 levels, Eco (Level 1) & Pro (Level 2) optional Signal strength: Pro ＞ ECO Power Consumption: PRO ＞ ECO |
| Throttle Lock | Yes, 10-120S optional |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | In Esk8(SK) mode: 1.5ms is stop position, 1.5-1ms for brake or reverse (upper trigger), 1.5-2ms for throttle (bottom trigger) In Esurf(SF) mode: 1-2ms for throttle (bottom trigger), no brake or reverse |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display Parameters |
GPS Speed / Distance / Max Speed / Average Speed |

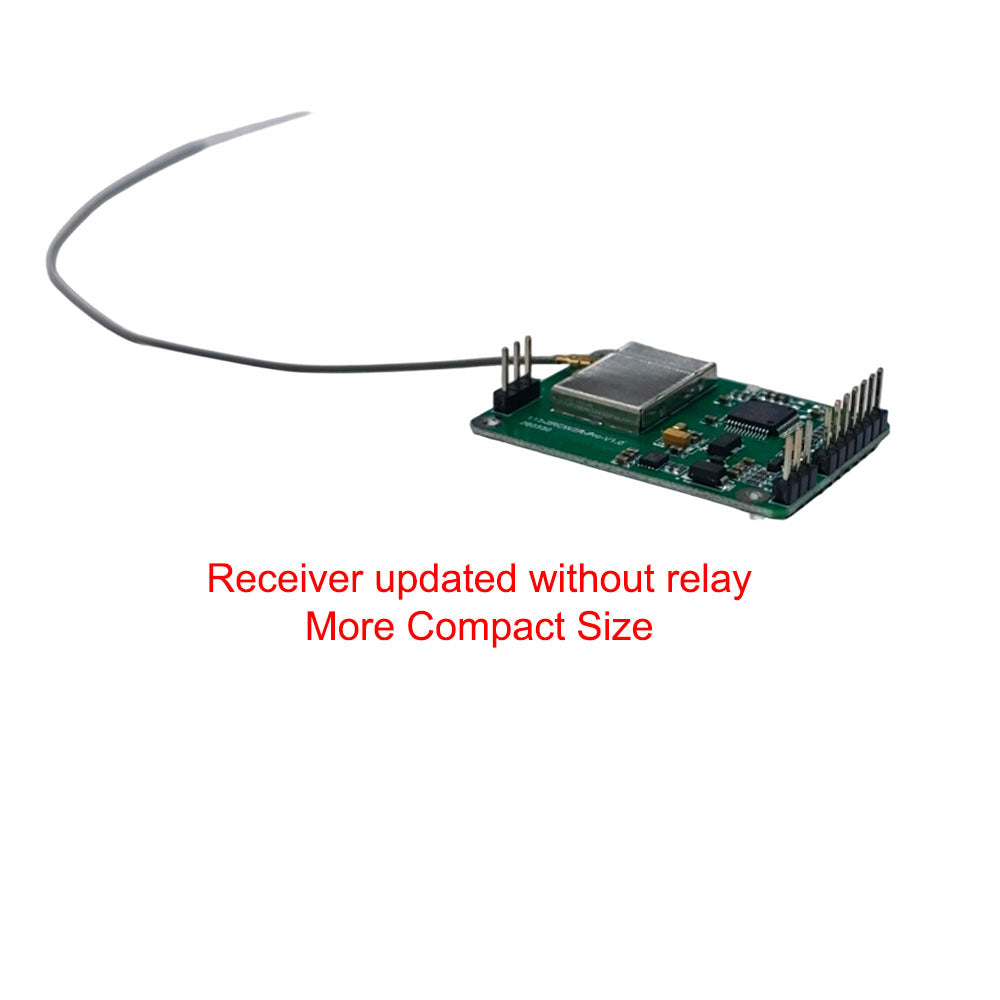

| Relay Switch | No, without Relay Switch on Receiver to save mounting space |
| Control Light | Yes (20V 2A Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake or Reverse | With in Esk8 Mode |

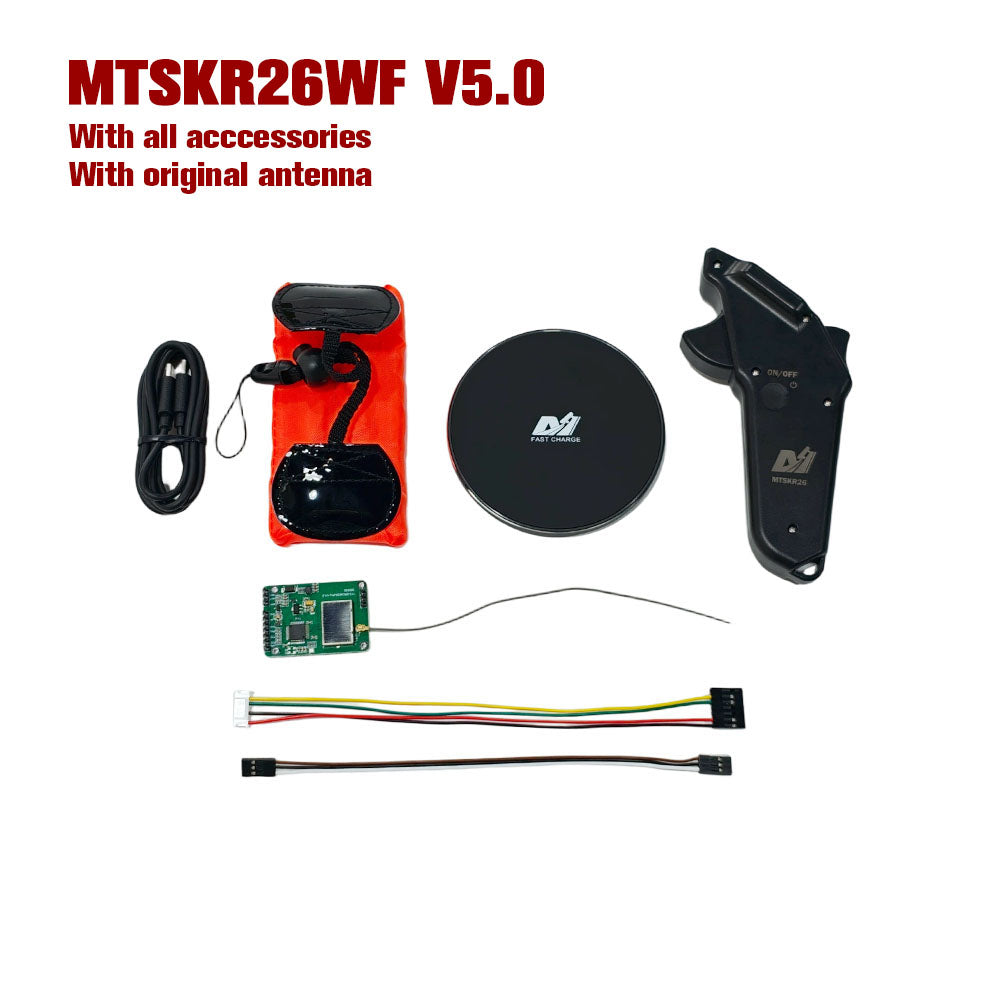

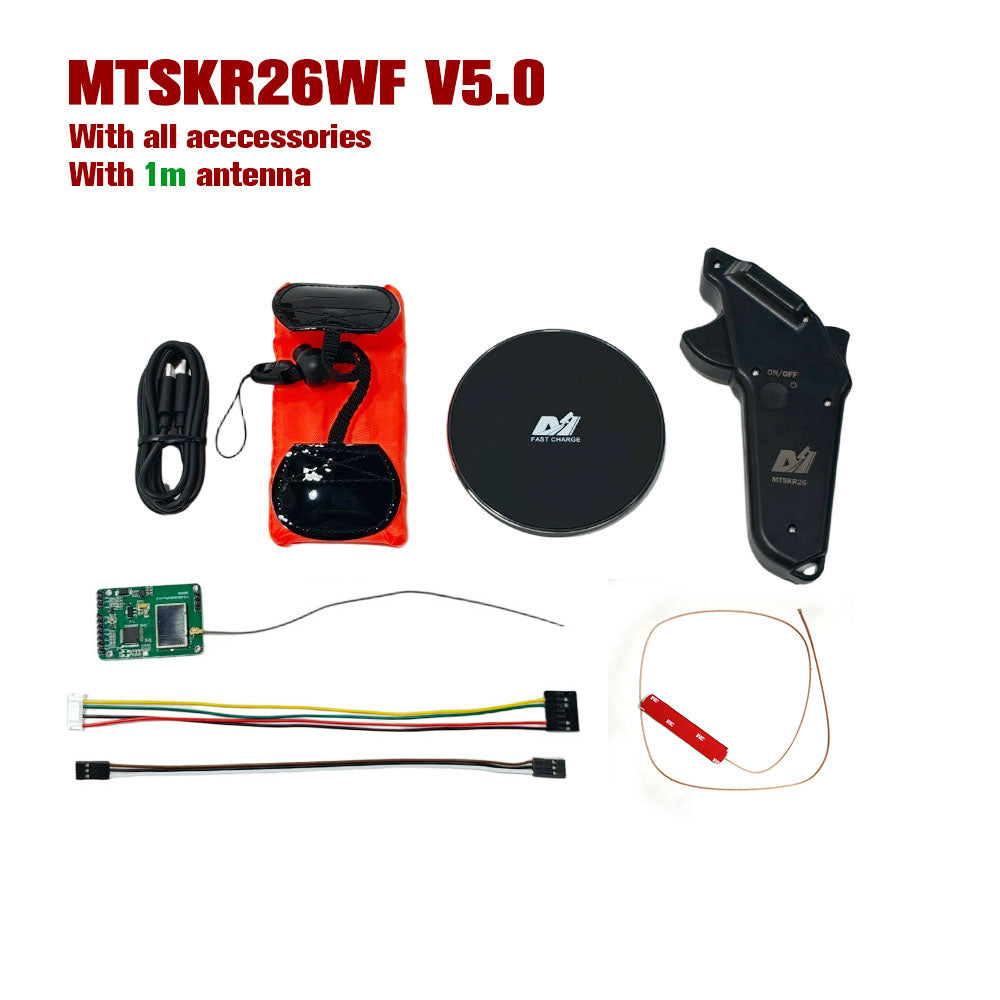

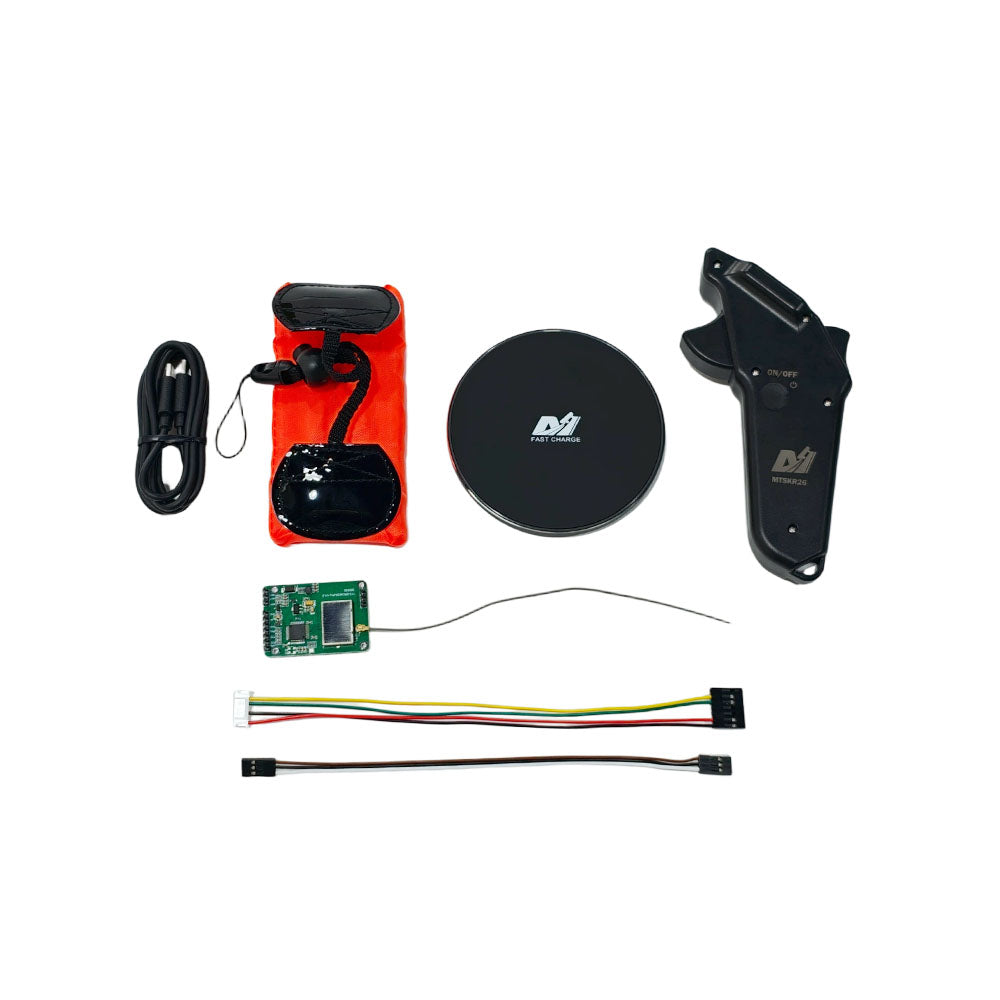

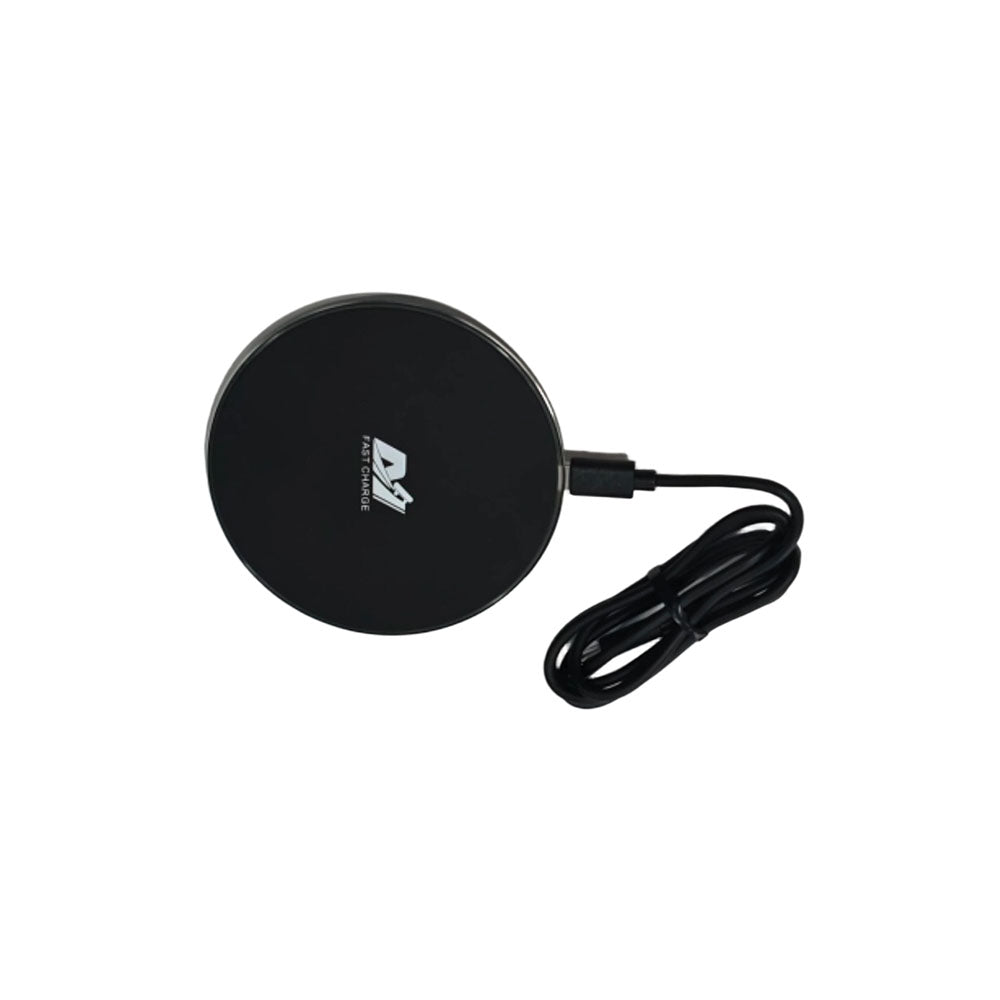

| Accessories | Wirelss charging pad / Receiver / USB cable / Wristband / 1pcs 3 pins cable / 1pcs UART cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
| Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |
Functions:
● Equipped with GPS (GPS Speed / Distance / Max Speed / Average Speed)
● Equipped with Tilted protection (IMU tilt sensor), protection angle can be adjusted to 30°/45°/60° tilt degree of your board in case of flipping over, separation of the rider from the board, or an accidental fall.
IMU degree can be calibrated according to the receiver position to be placed on your board.
And Tilt protection can be turned off for experienced users.
● with 3 adjustable speed modes;
● with throttle lock function for safety;
● with Eco and Pro modes for different signal strength;
● compatible to Maytech new 32bit MTSF160A-WP32 / MTSF300A-WP32 / MTSF300A-WP32-HV / MTSF300A-WP32-HVPRO ESCs to read current/votlage/rpm/temperature datas, etc;
● add a page to display main battery voltage percentage;
● This version contains functions of old firmware versions MTSKSR1905WF V3.0 (excluding the built-in relay switch)
● Waterproof function: Two layers of nanometer-coating are added to remote PCB and Screen, and they're also double protected by waterproof glue.
> Get E-Manual: Remote Manual and Instruction
> Check Video Using Instructions
Click Here: How to Display Volt, Current, RPM with TX and RX?
Parameters display in different Data Source and Throttle Mode:
If you use MTSF160A-WP32/ MTSF300A-WP32 60V / MTSF300A-WP32-HV 75V / MTSF300A-WP32-HVPRO 85V ESC, please refer to below wiring diagram:
If you use VESC controllers based on V4.12 / V6 / V75_300, please refer to below wiring diagram:
If you use MTSF130A-WP32 / MTSF300A-WP / MTSF500A-WP or other ESCs, refer to this diagram:
The remote has 2 Modes, signal output pulse width is different in 2 modes:
- Esurf Mode is 1ms-2ms, no stop no brake, if you use Esurf mode to work with VESCTOOL compatible controller, please use below settings in VESCTOOL and to match with the remote:
PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
Or you can use wizard mode to detect compatible value.
- Esk8 Mode is 1.5ms-1ms (Brake or Reverse), 1.5ms-2ms (Speed up), 1.5ms is stop position.
Please noted to match compatible parameters for different modes in VESC_TOOL.
