Maytech Water-cooling MTI120116 Inrunner Brushless DC Motor for Electric Surfboard/Efoil/Jetski/Boat

Maytech.cn

$890.00 Regular price $990.00
SKU: MTI120116-200-SF

Maytech Brushless 120116 Inrunner Brushless DC Motor for Electric Surfboard/Efoil/Jetski/Boat MTI120116 with Water-cooling Non-waterproof

Model No.  MTI120116-200-SF Idle Current  2.8A/8.4V
Internal Resistance 0.0322Ω Max Current  380A
Input Volt 10-16S Lipo Max Output Watt 18.8KW
Max Pull 20.6 N.m Motor Weight  4400g
Motor Touque @60% 20.6 N.m Shaft  15mm
Motor Size 120x116mm Construction 12N/10P
Max Working Temperature 120℃ Insulation Volt & Leak Current AC500V/10MA/3S
Shaft Extension D15*L30 Lead Wires Extension 6AWGx300mm
Plug 10mm Lifespan 8000h



Options: Please choose the suitable variation you need according to the following table

Model No. KV Fully Waterproof Water-cooling Sensor

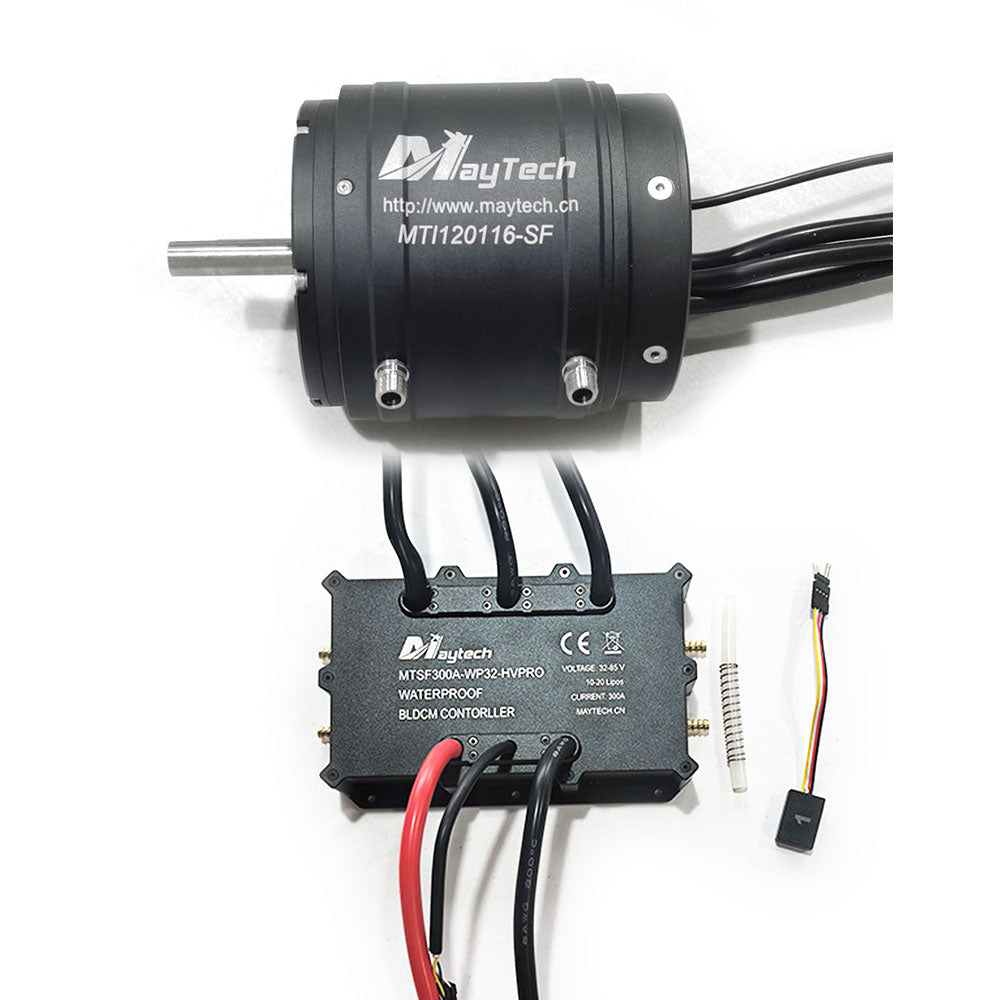

MTI120116-200-SF 200 No Yes No

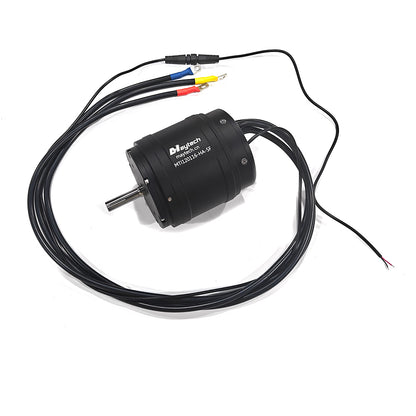

MTI120116-200-HA-SF 200 No Yes Yes
MTI120116-250-SF 250 No Yes No

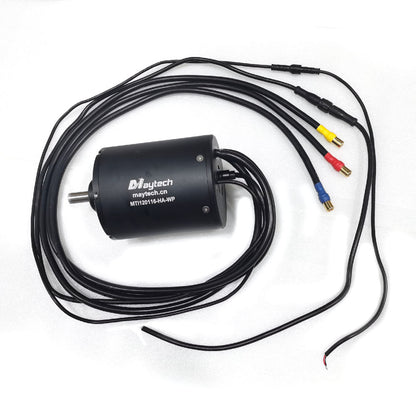

MTI120116-200-HA-WP 200 Yes No Yes
MTI120116-100-WP 100 Yes No No

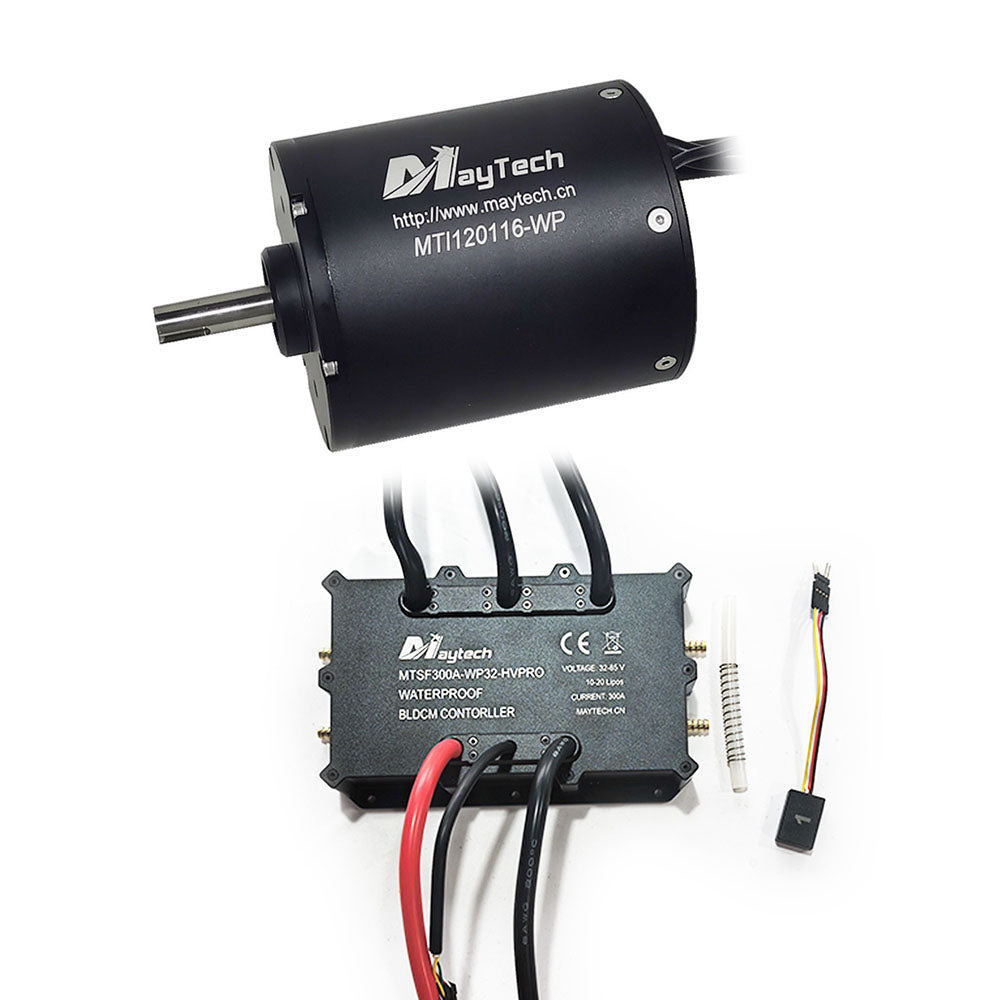

MTI120116-200-WP 200 Yes No No


Application: Electric surfboard, efoil, electric power tools, hydrofoil board, waterboard, RC Boat, foilboat, foiling boat, hydrofoil boat, hydrofoiling boat, electric foil, , foil boat, foiling boat, hydrofoil boat, hydrofoiling boat, etc.,

Dimension:

Maytech Brushless Inrunner Motor for Electric Surfboard, Efoil, Hydrofoil, RC Boat, Waterboard, etc.,

We Upgraded Waterproof Performance from Oil-sealed to Water-sealed, which has better waterproof performance and can extend motor lifespan.

Maytech MTI85165 Fully Waterproof motor with water-cooling and without water-cooling versions
Maytech MTI85165 Fully Waterproof motor with water-cooling and without water-cooling versions

maytech electric jetboard jetsurf waterboard electric speed controller ESC fully waterproof

Warning:

Flier ESCs are not compatible to all Maytech motors, recommend to use our 300A ESC as following recommend products.

Motor Production

Maytech 18.8KW Fully waterproof motor Water-cooling brushless inrunner motor for electric surfboard efoil foilboard electric car hydropfoil rc boat

Maytech 18.8KW Fully waterproof motor Water-cooling brushless inrunner motor for electric surfboard efoil foilboard electric car hydropfoil rc boat

Maytech 18.8KW Fully waterproof motor Water-cooling brushless inrunner motor for electric surfboard efoil foilboard electric car hydropfoil rc boat

Maytech 18.8KW Fully waterproof motor Water-cooling brushless inrunner motor for electric surfboard efoil foilboard electric car hydropfoil rc boat

Maytech 18.8KW Fully waterproof motor Water-cooling brushless inrunner motor for electric surfboard efoil foilboard electric car hydropfoil rc boat  motor with propeller
