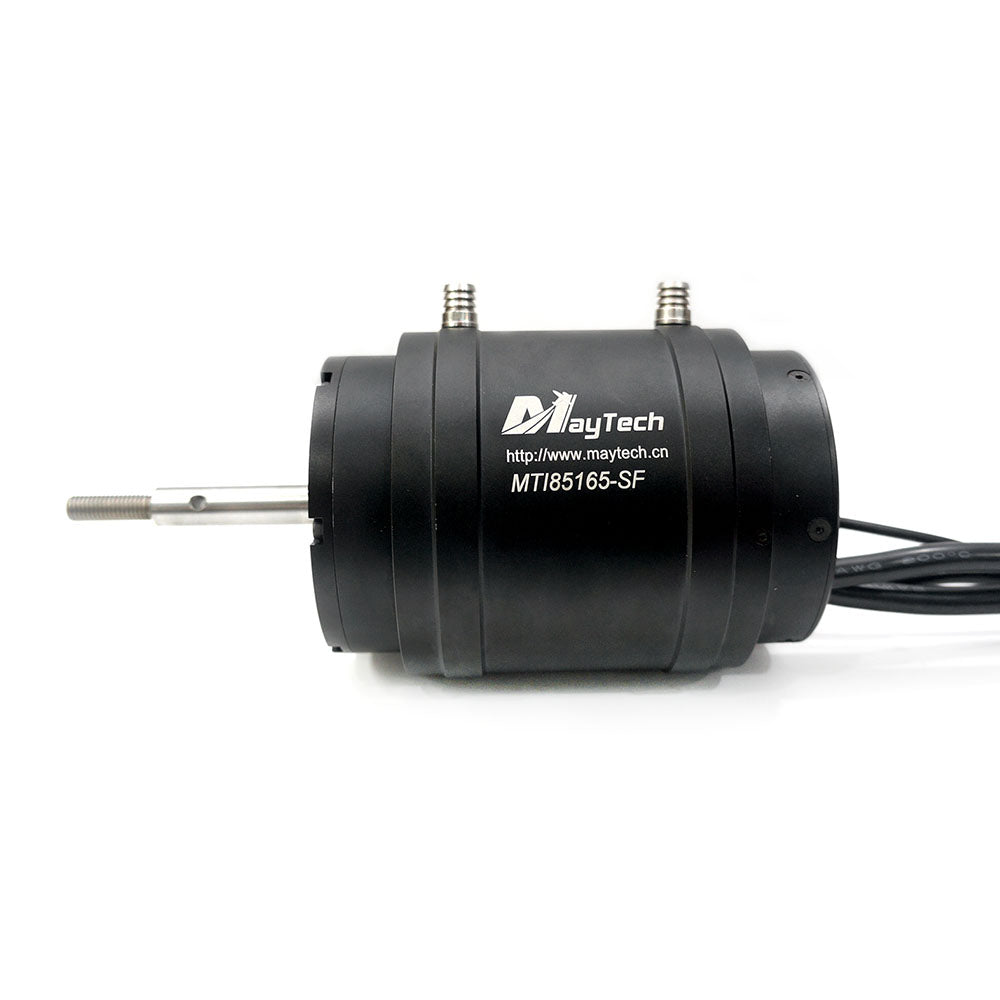

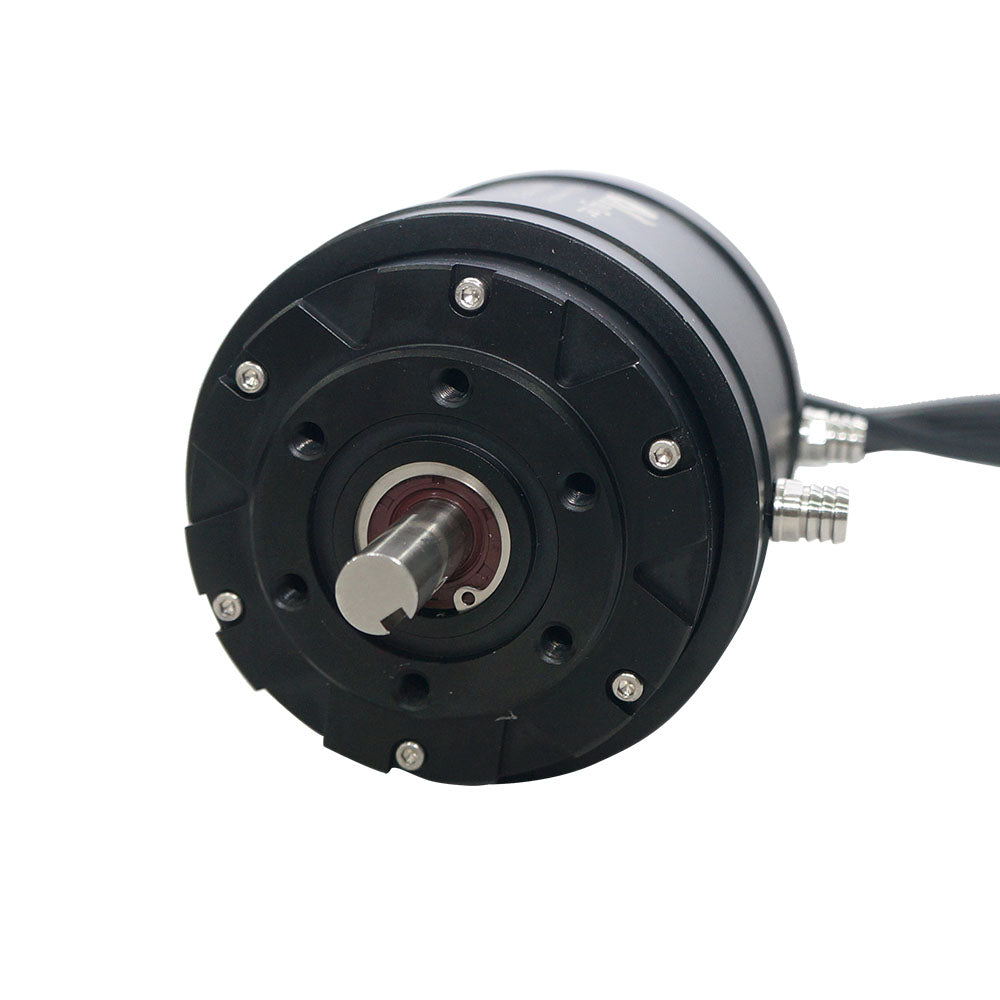

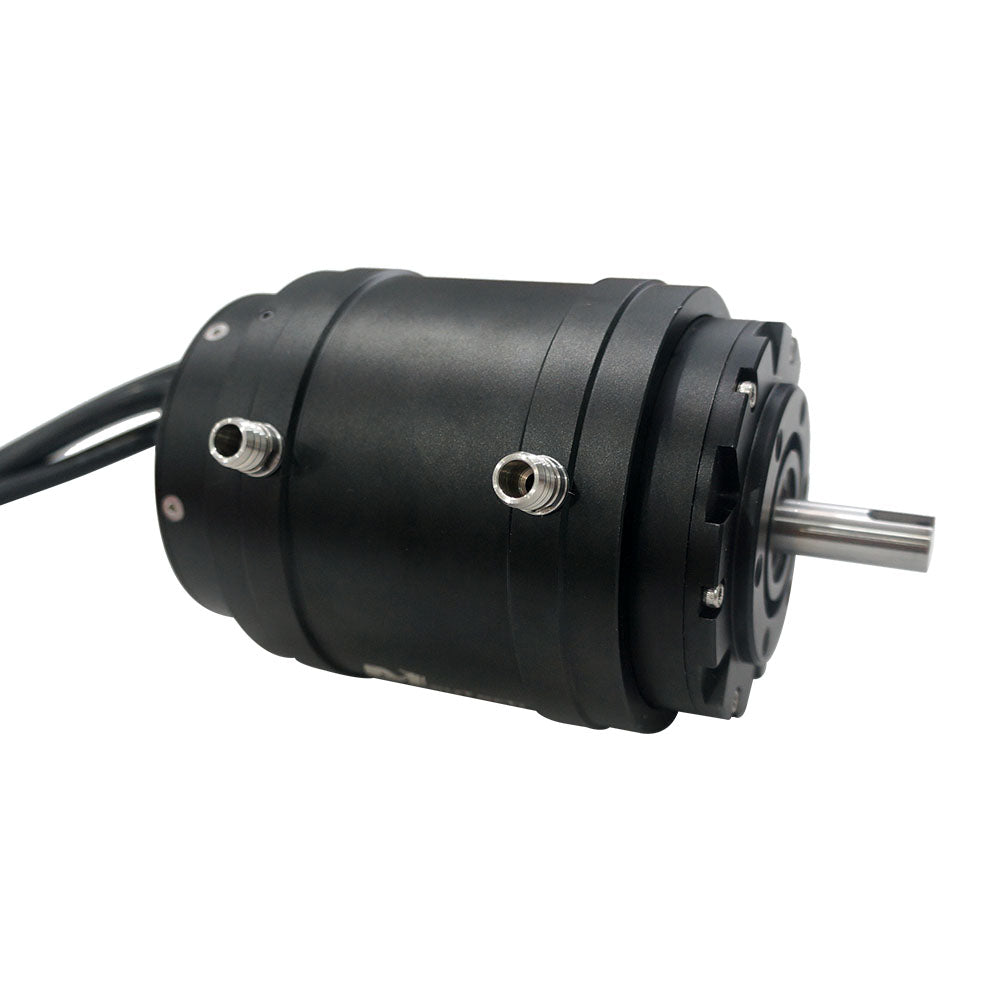

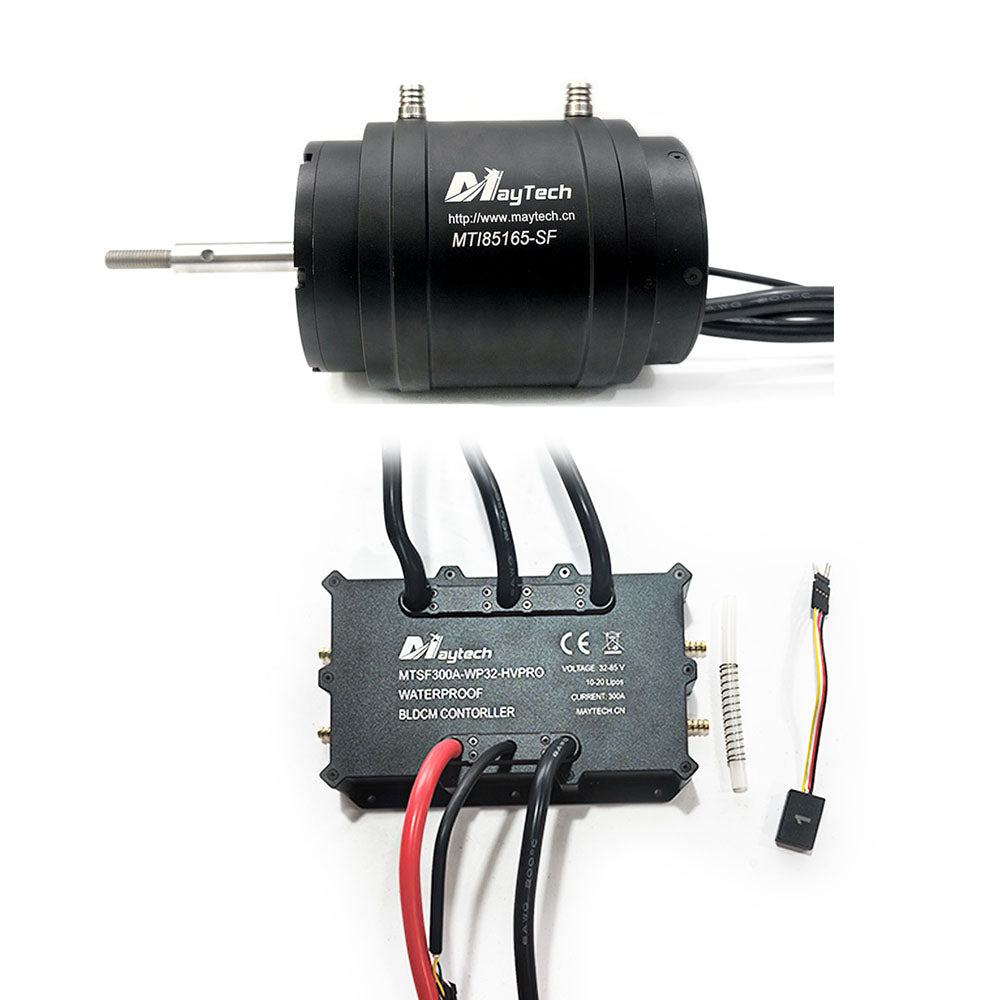

In Stock Maytech Watercooled 85165 Sensorless Motor 10.5KW Brushless DC Engine for Esurf/ Efoil
In Stock Maytech Watercooled 85165 Sensorless Motor 10.5KW Brushless DC Engine for Esurf/ Efoil
Regular price
$405.00 USD
Regular price
Sale price
$405.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Customer Feedback:
Feedback 1: Load with 2 person on surfboard
Feedback 2: Load with 1 person on surfboard
Notice about customer feedback: The customer match with suitable impeller 75mm at 75V for his board. Our recommendation for 200KV is max 50V, if you need to use higher voltage, please be careful of your propeller or impeller size and other setup.
Specification:
| Model No. | MTI85165-200-SF |
| KV | 200, if you want other KV, contact agnes@maytech.cn |
| Max Current | 300A |
| Input Voltage | 6-12S Lipo (25-50V) for 200KV, 6-16S Lipo (25-67V) for 150KV |
| Max Output Voltage | 10.5KW |
| Shaft | Screw Shaft, other shaft can be customized, contact us |
| Hall Sensor | Without, if you want hall sensor, contact agnes@maytech.cn |
| Motor Pole Number | 10 |
| Waterproof Rank | Not waterproof, watercooled version, can't work underwater directly |
| Customize | KV, logo, shaft, cable, connector, etc., contact Email: agnes@maytech.cn |
Different application for Sensored and Sensorless Version:
To meet different customers requirements, we designed one version with hall sensor, one version without hall sensor.
Sensored version can not only be used underwater but also can be used on electric skateboard, fighting robots, electric cars, etc.,
Sensorless version usually use for underwater electric vehicles, electric surfboard, Efoil, hydrofoil, rc boat, water jet propulsion, etc.,
Application:
Electric surfboard/Efoil/Hydrofoil/jetski/jetboard/waterboard/water jet propulsion/surffoil/foilsurf/foilboards/rc boat, foil boat, foiling boat, hydrofoil boat, hydrofoiling boat,etc.,
Stock Notice before Place Order:
The motor stock is limited, please confirm order asap.
And if you need very urgently, please contact us agnes@maytech.cn to check stock first, if in stock, shipping time is about 1-2 days after order confirmed.
If not in stock, production time 30-50 days after order confirmed.
If you want waterproof version, click below picture:
