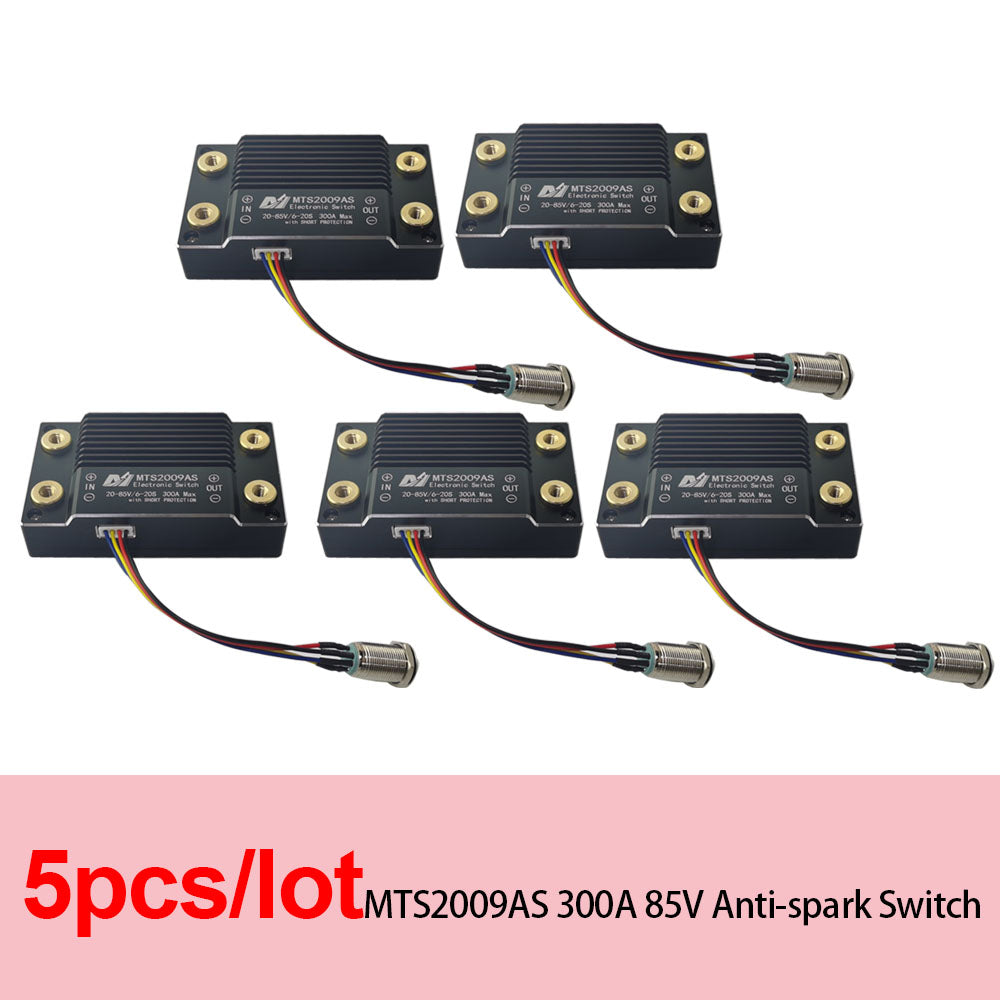

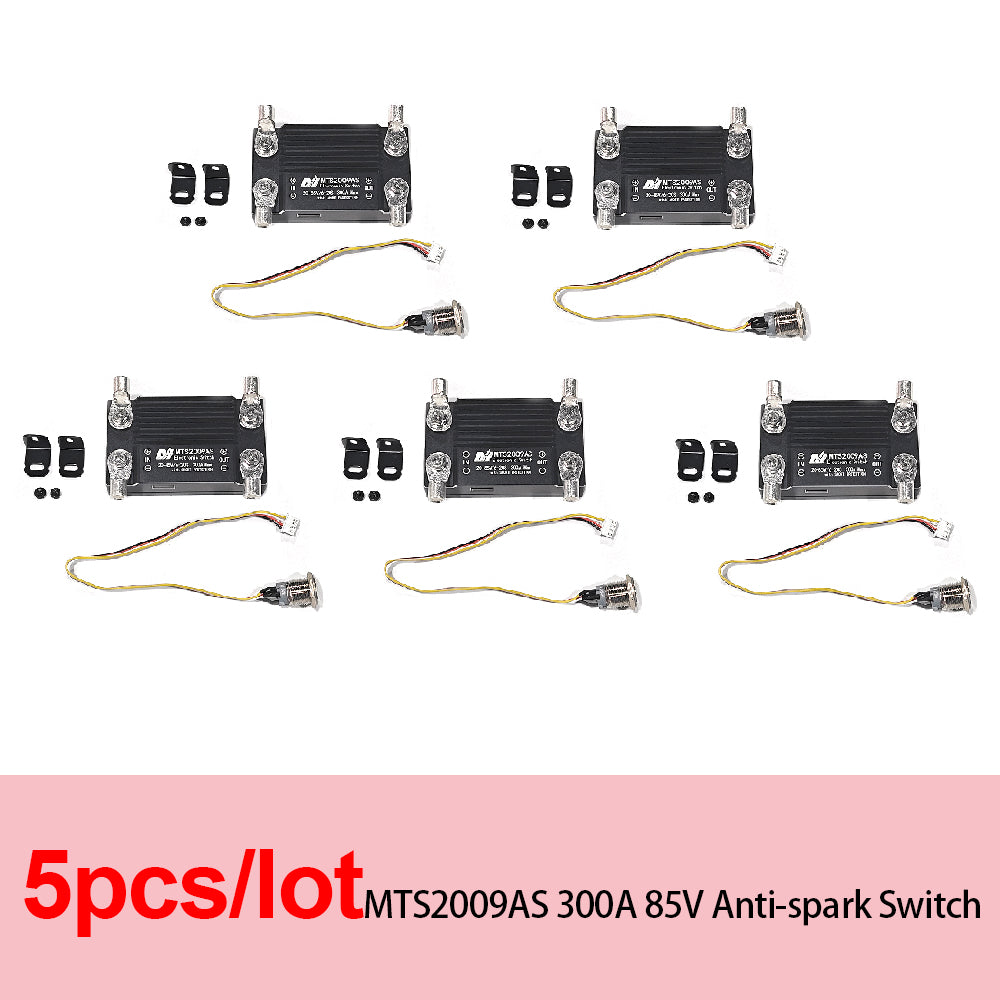

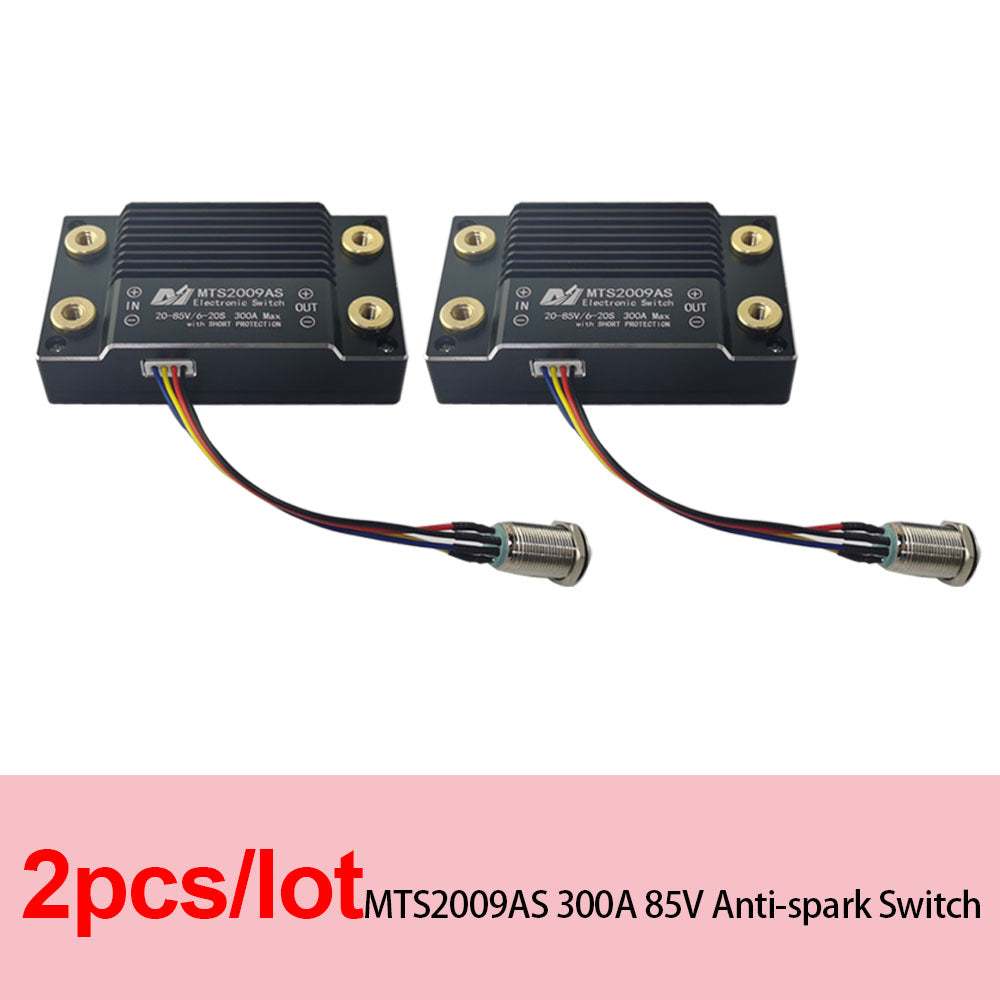

In Stock 2pcs / 5pcs MTS2009AS Max 300A 75V Anti-spark Switch with Short Cirsuit Protection
In Stock 2pcs / 5pcs MTS2009AS Max 300A 75V Anti-spark Switch with Short Cirsuit Protection
Regular price
$389.80 USD
Regular price
$423.70 USD
Sale price
$389.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

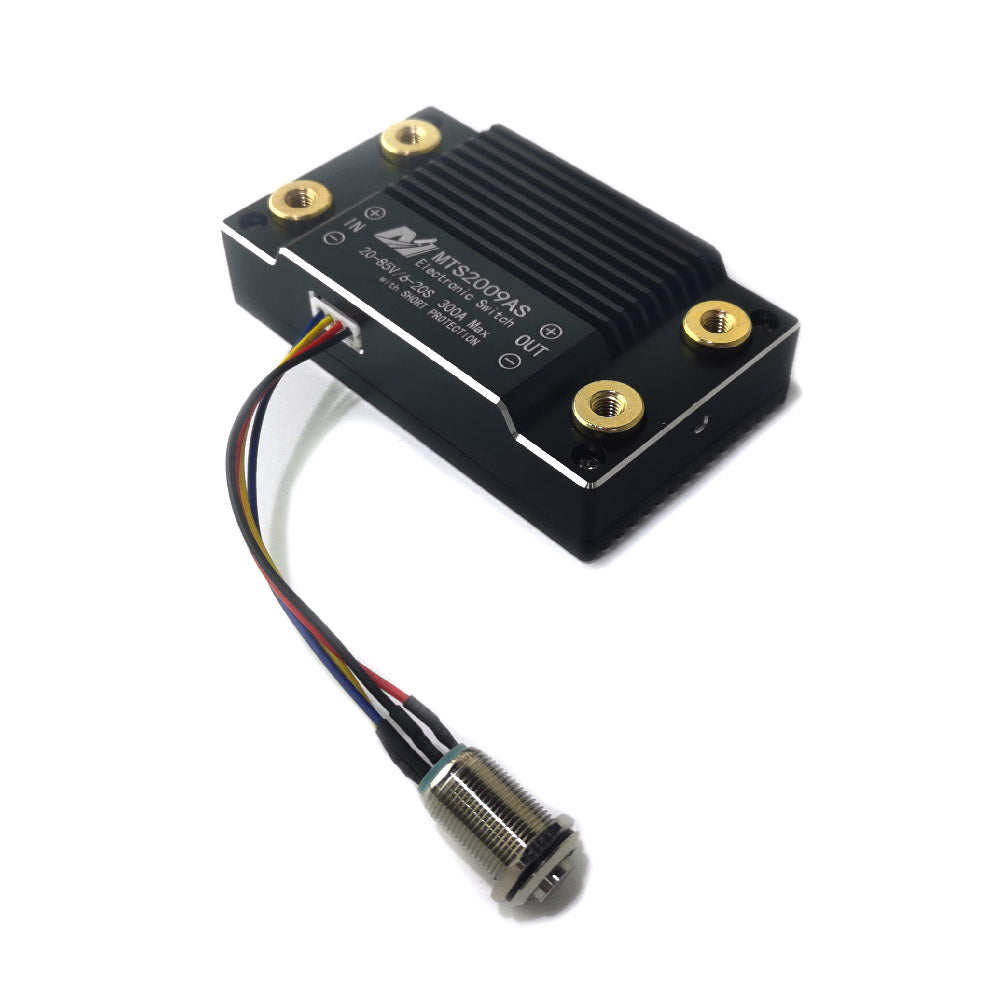

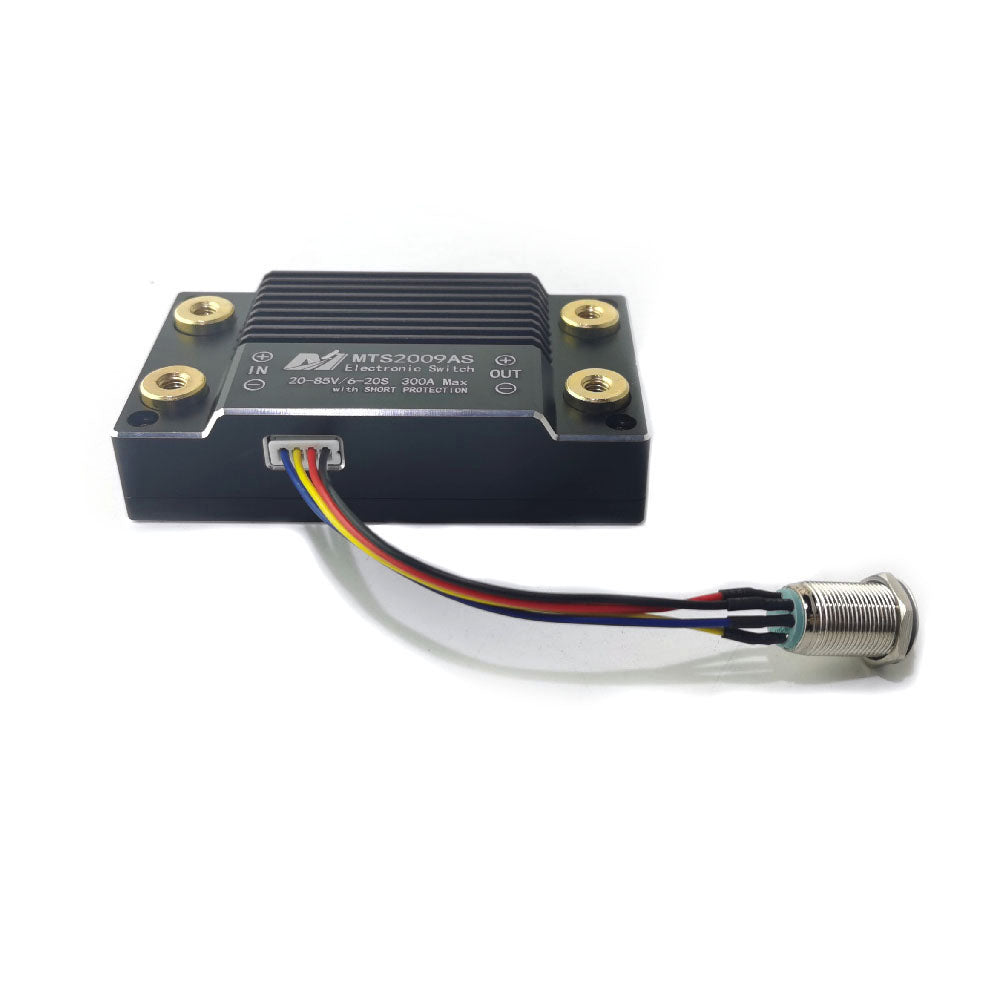

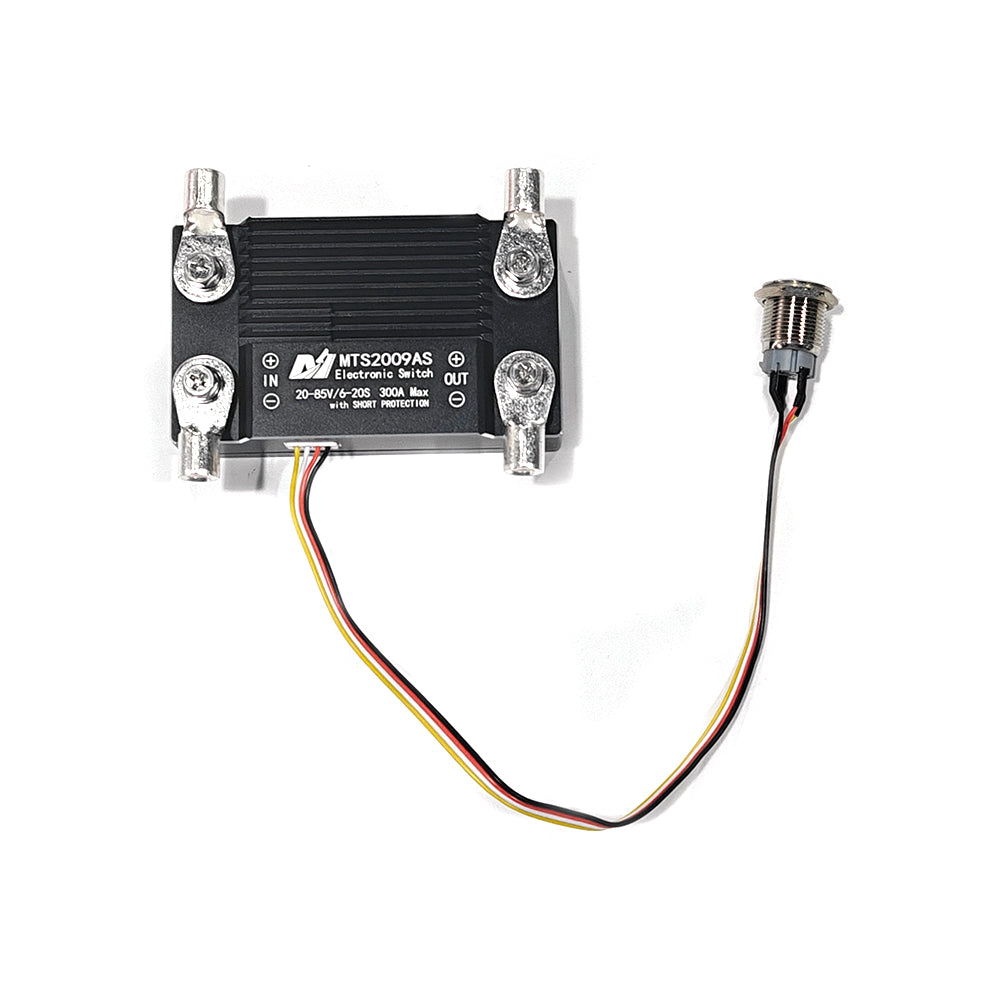

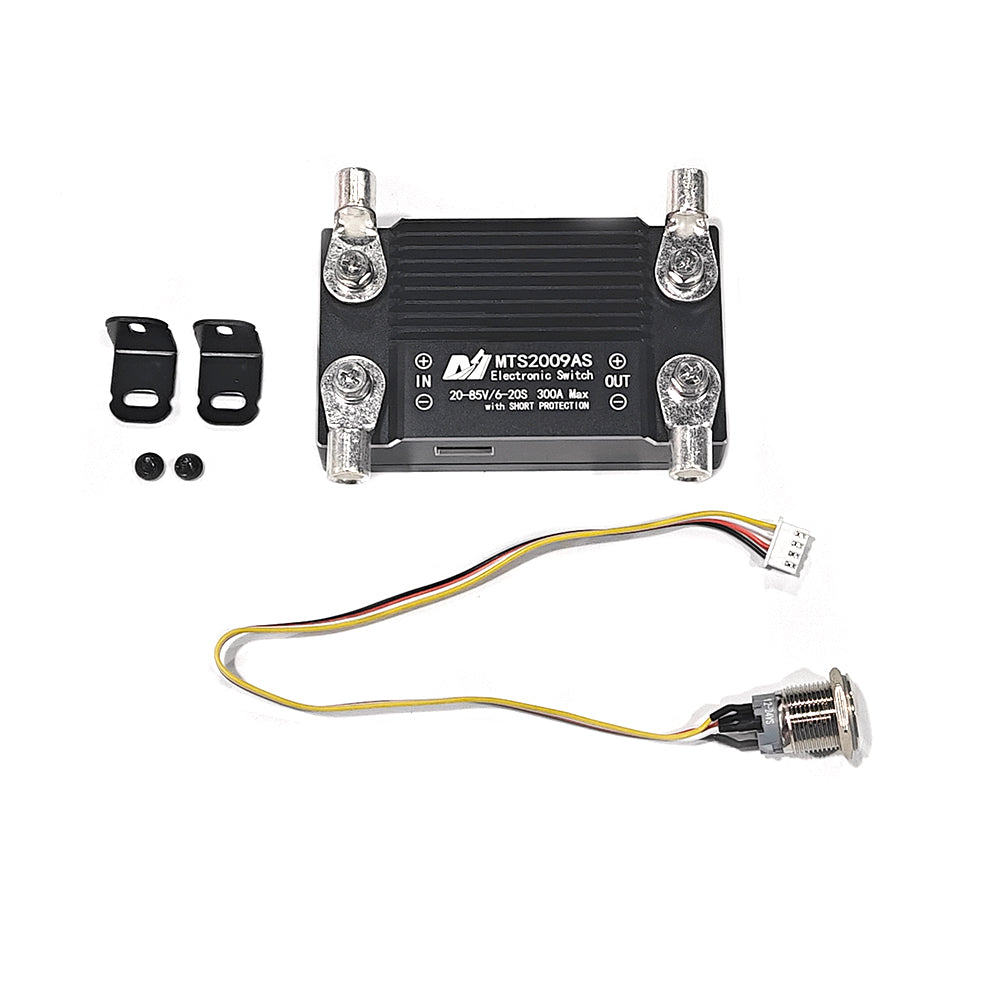

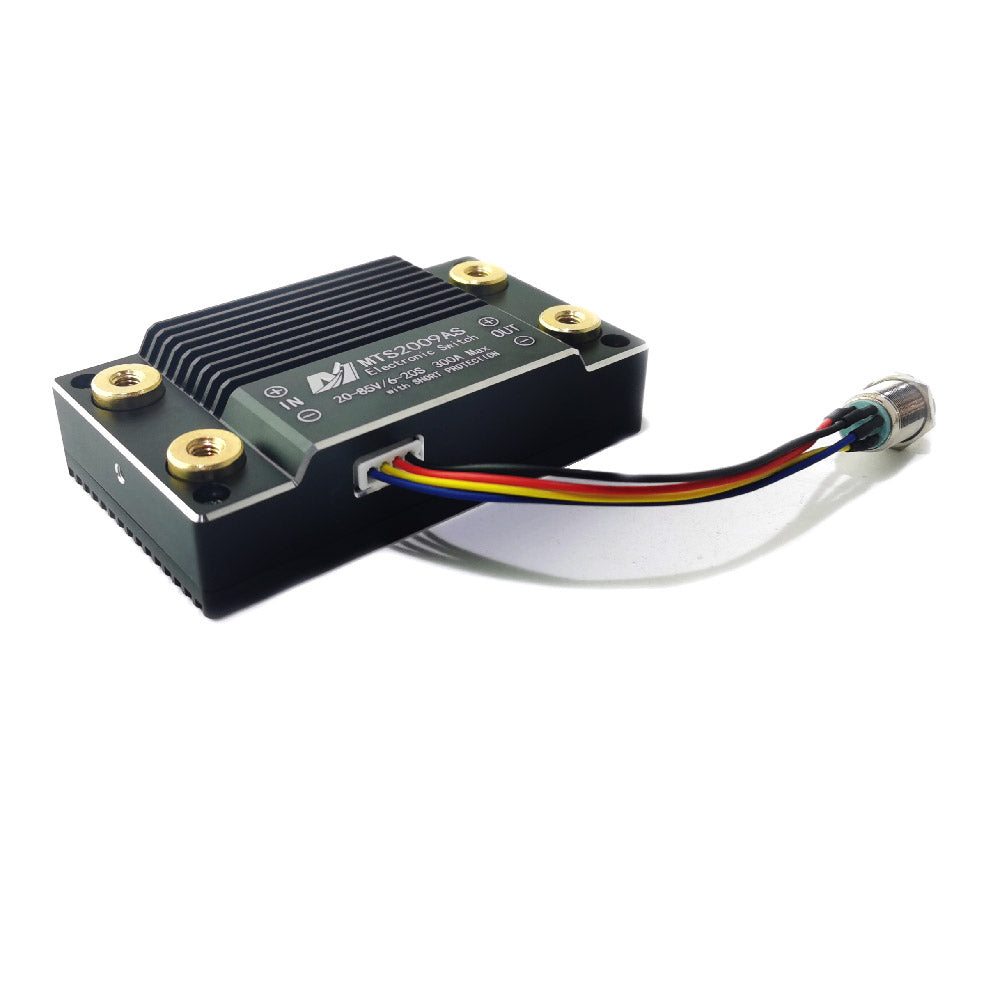

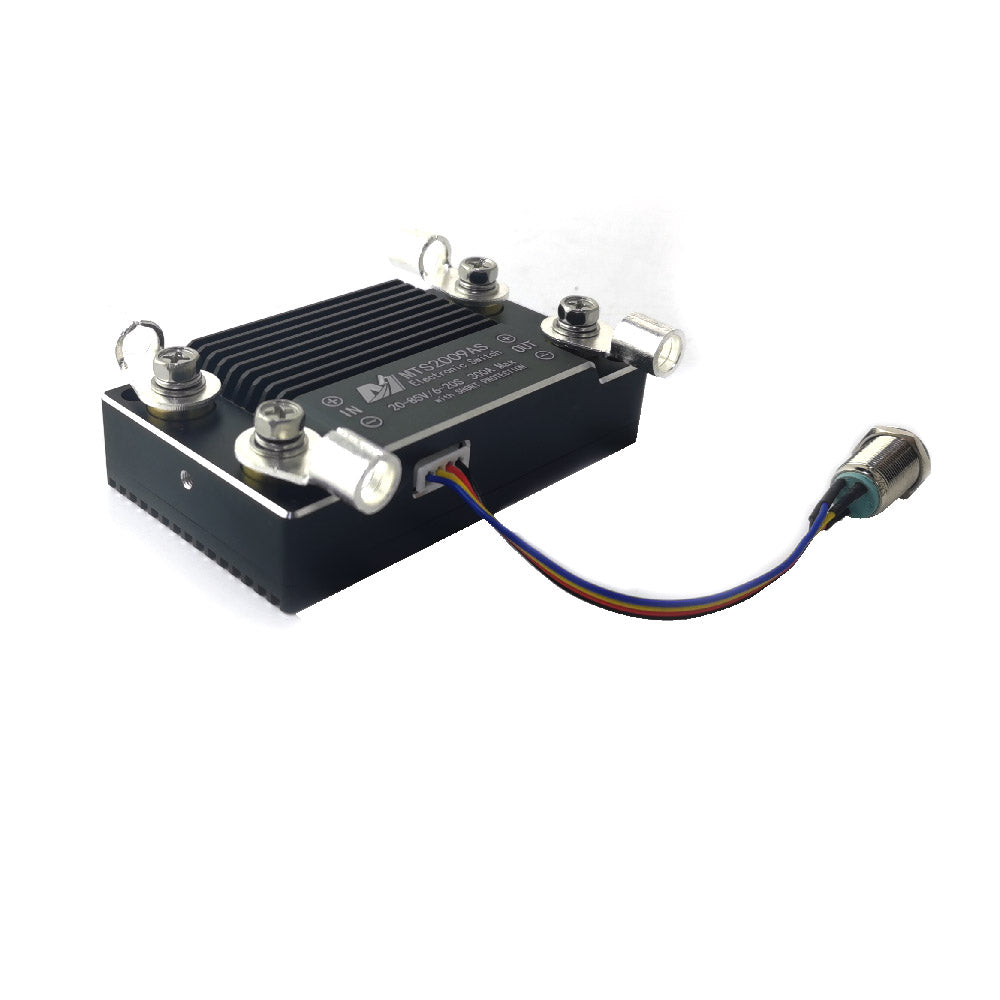

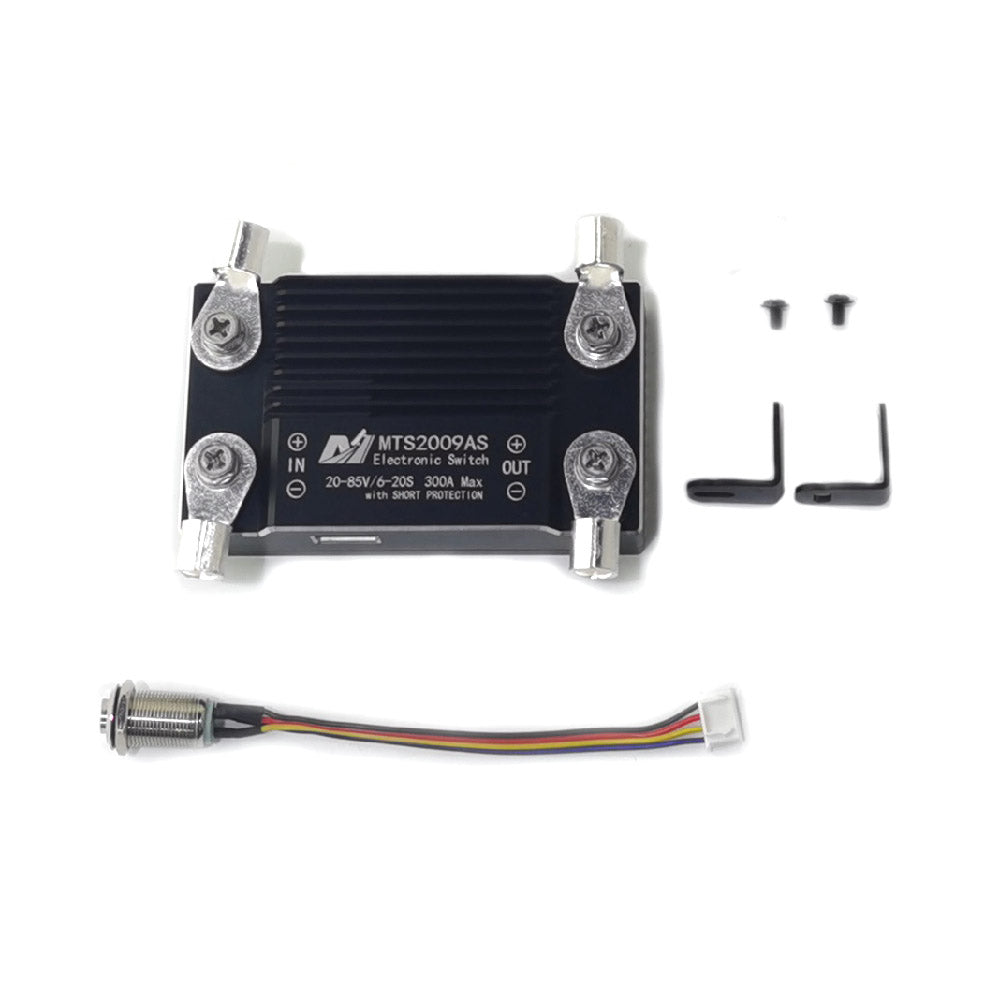

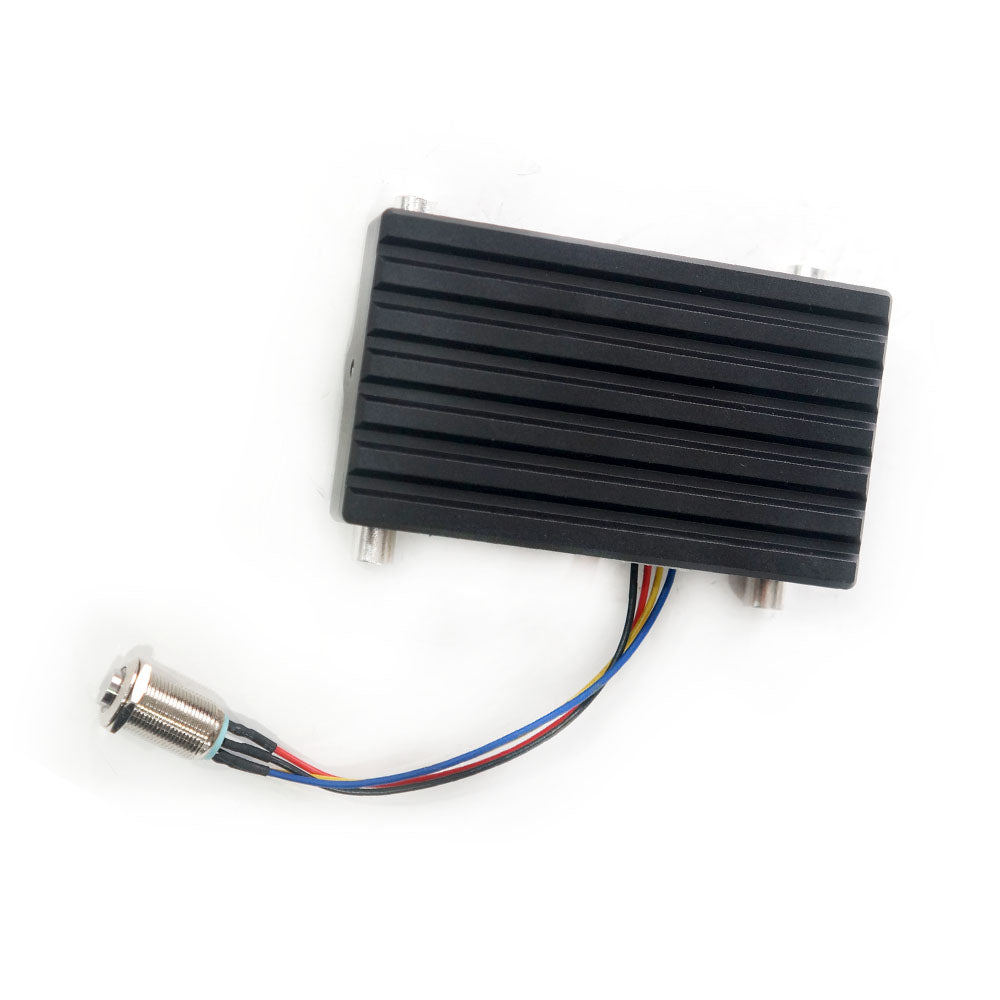

Maytech MTS2009AS Max 300A 75V Electronic Anti-spark Switch Battery Cutoff Switch with Short Circuit Protection for Electric Hydrofoil Efoil Surfboard

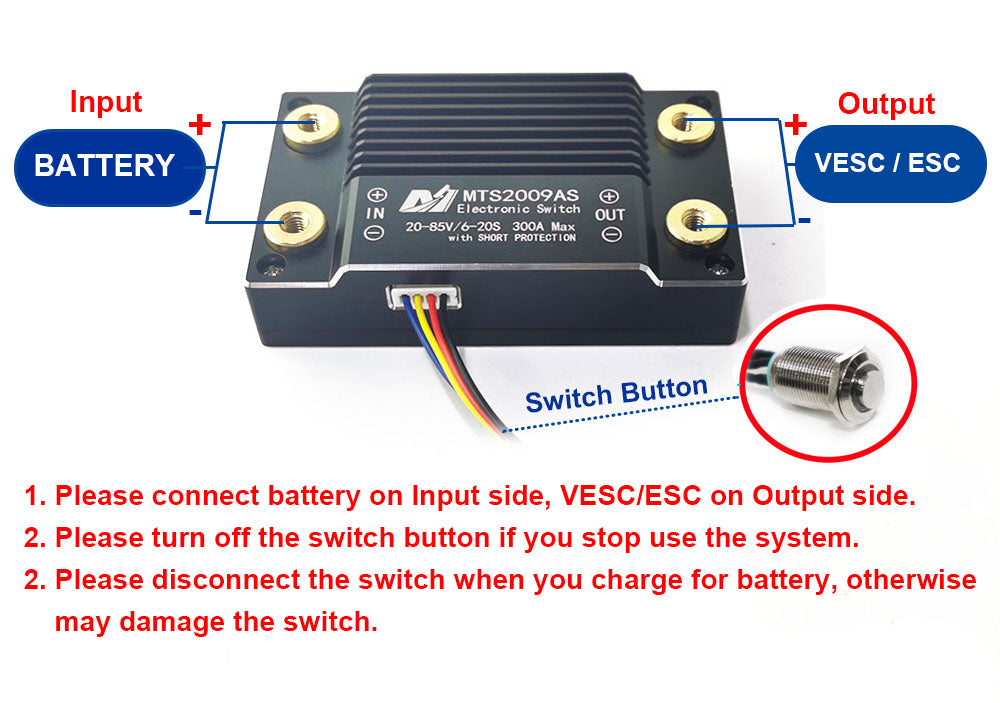

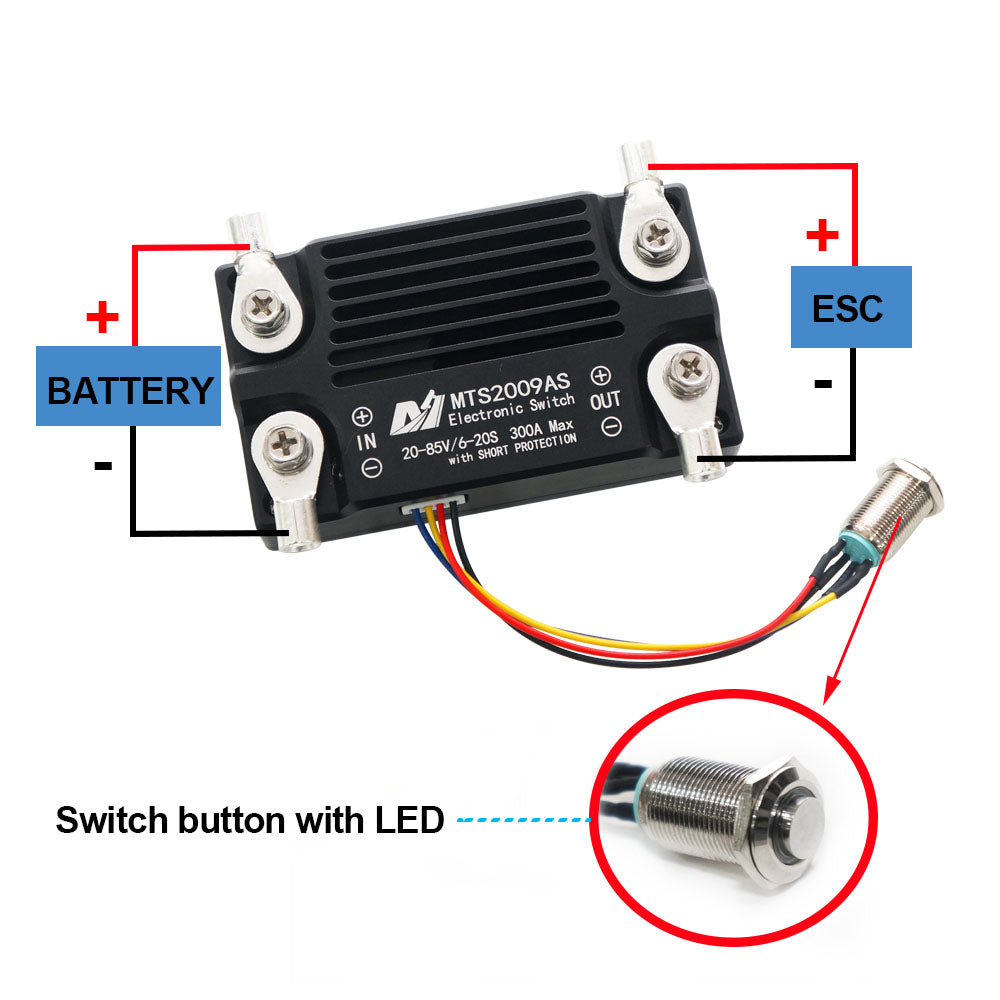

It can cut off positive pole power, much safer when usage and greatly protect your controller and power suppy system.
Specification:
|
Model No. |
MTS2009AS |
|
Max Current |
300A |
|
Max Voltage |
6-20S Lipo (25-85V), recommend better work under 75V |
|

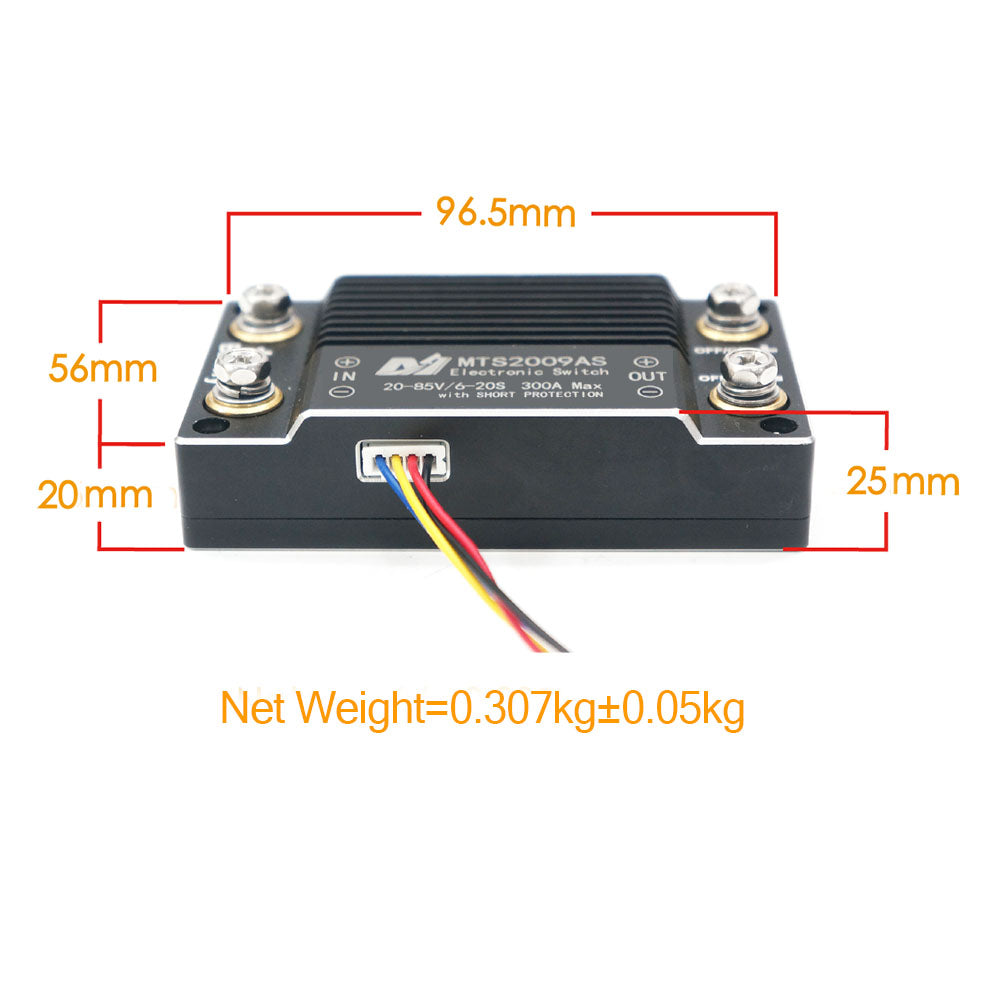

Size |

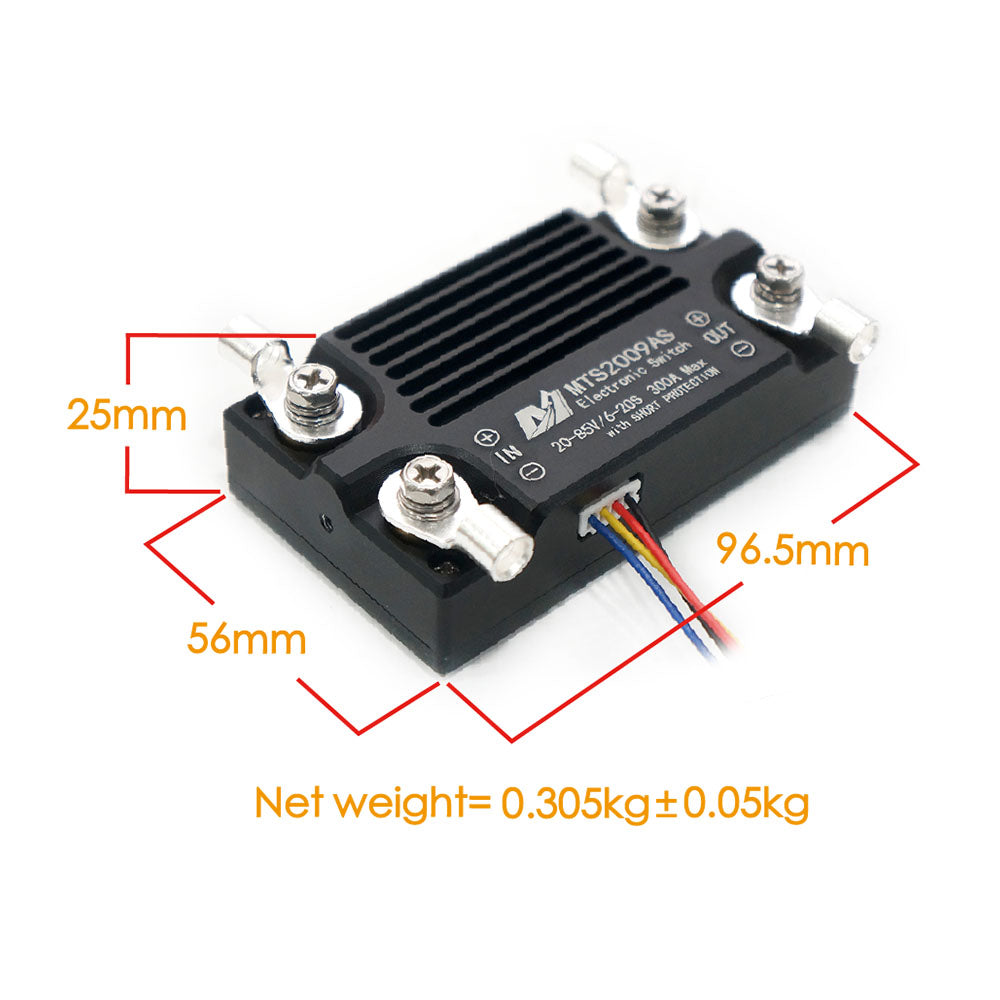

96.5 x 56 x 25 (mm) |
|

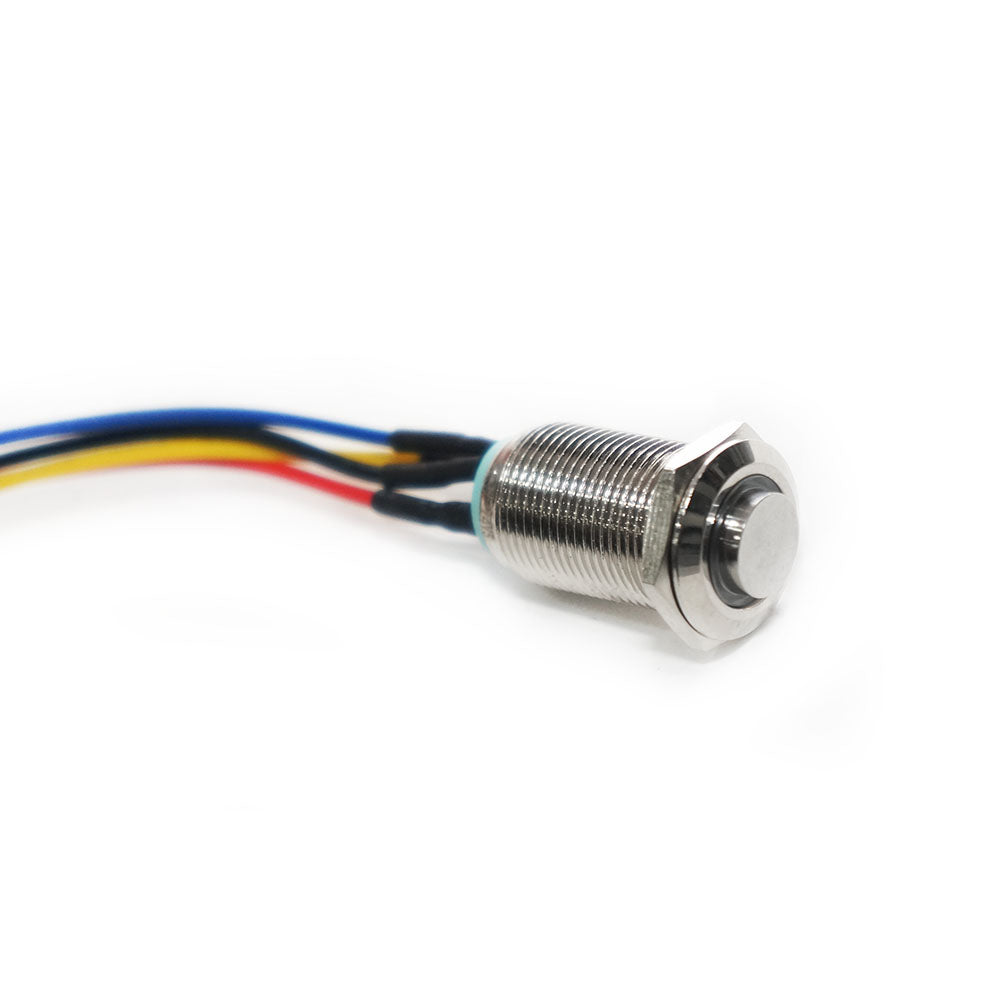

Switch Diameter |
12mm |
|
Switch Type |
Use NMOS to realize switching on/off Power positive |

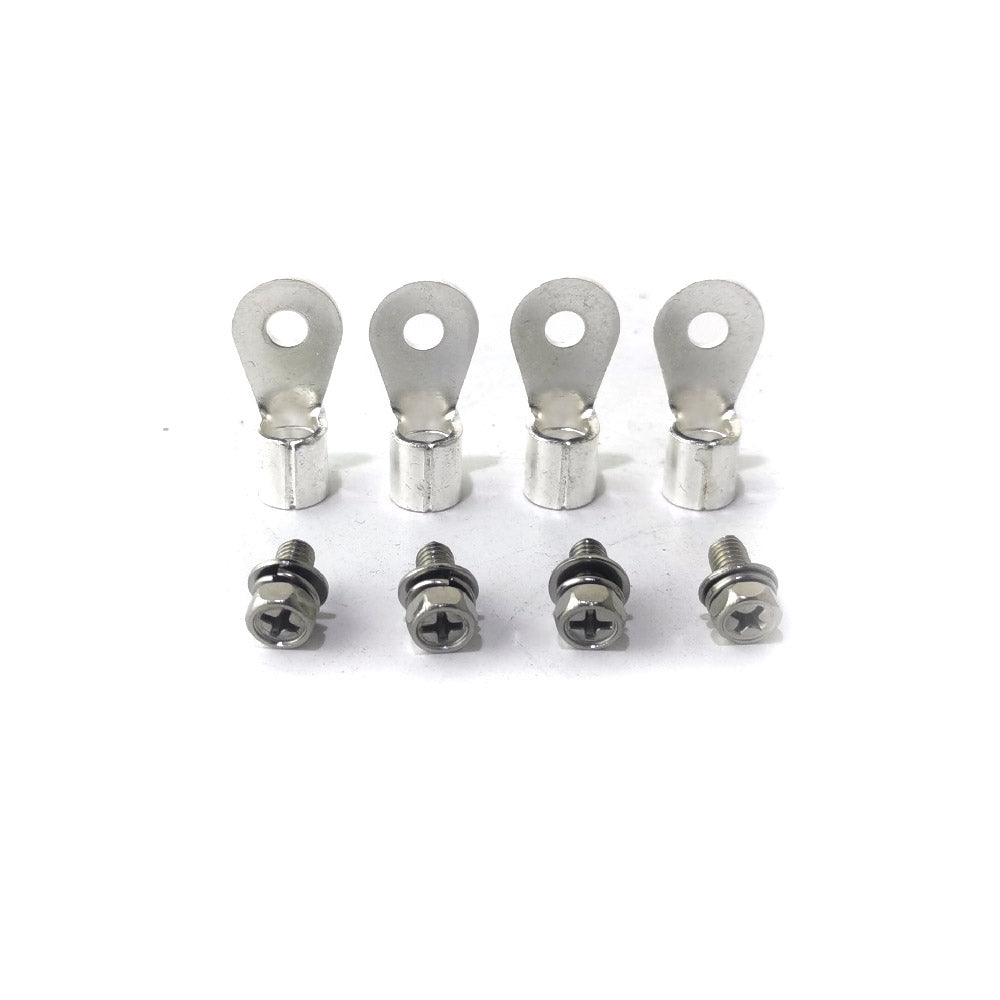

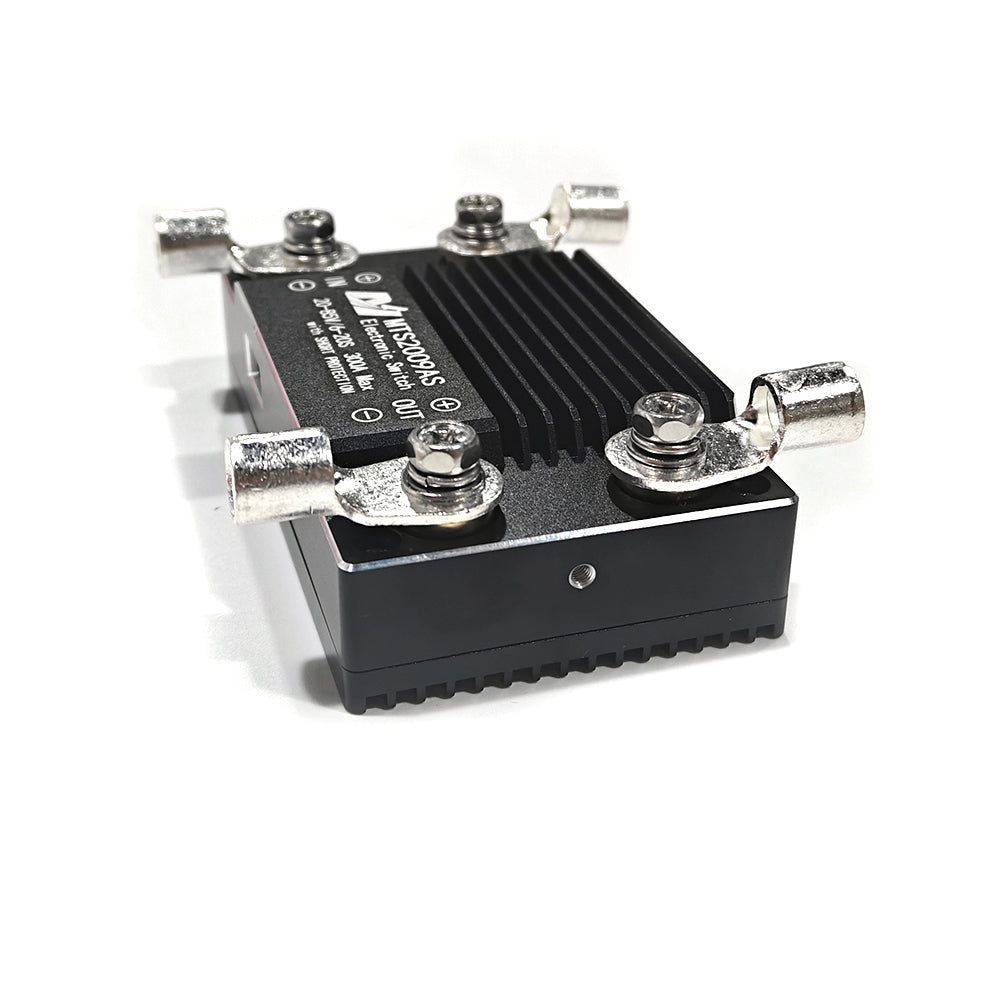

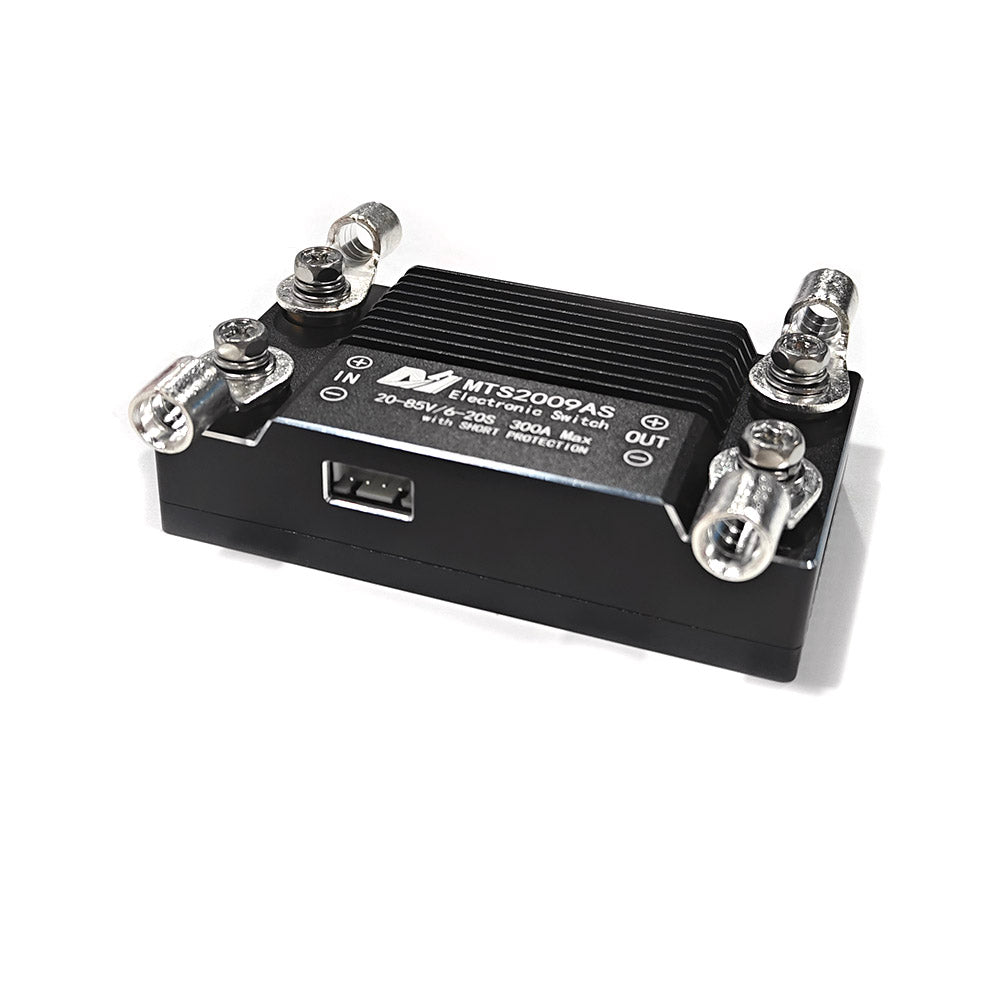

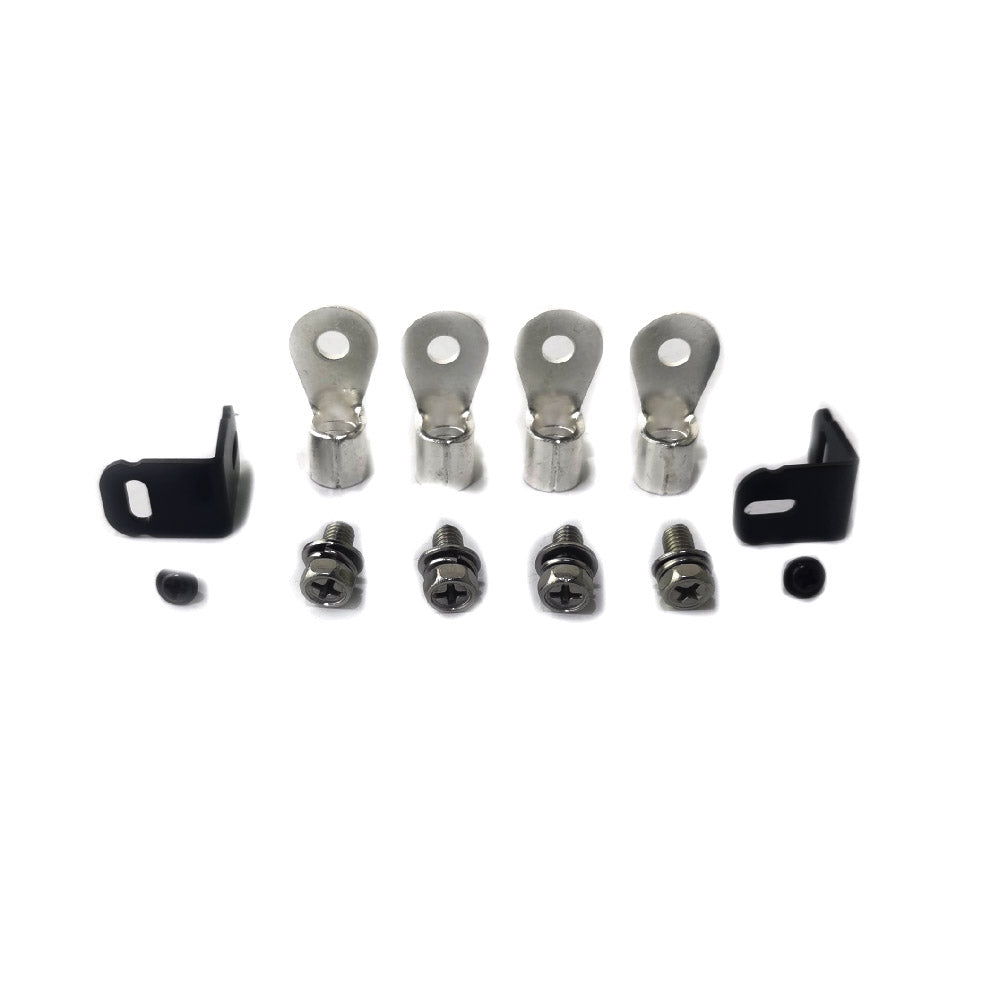

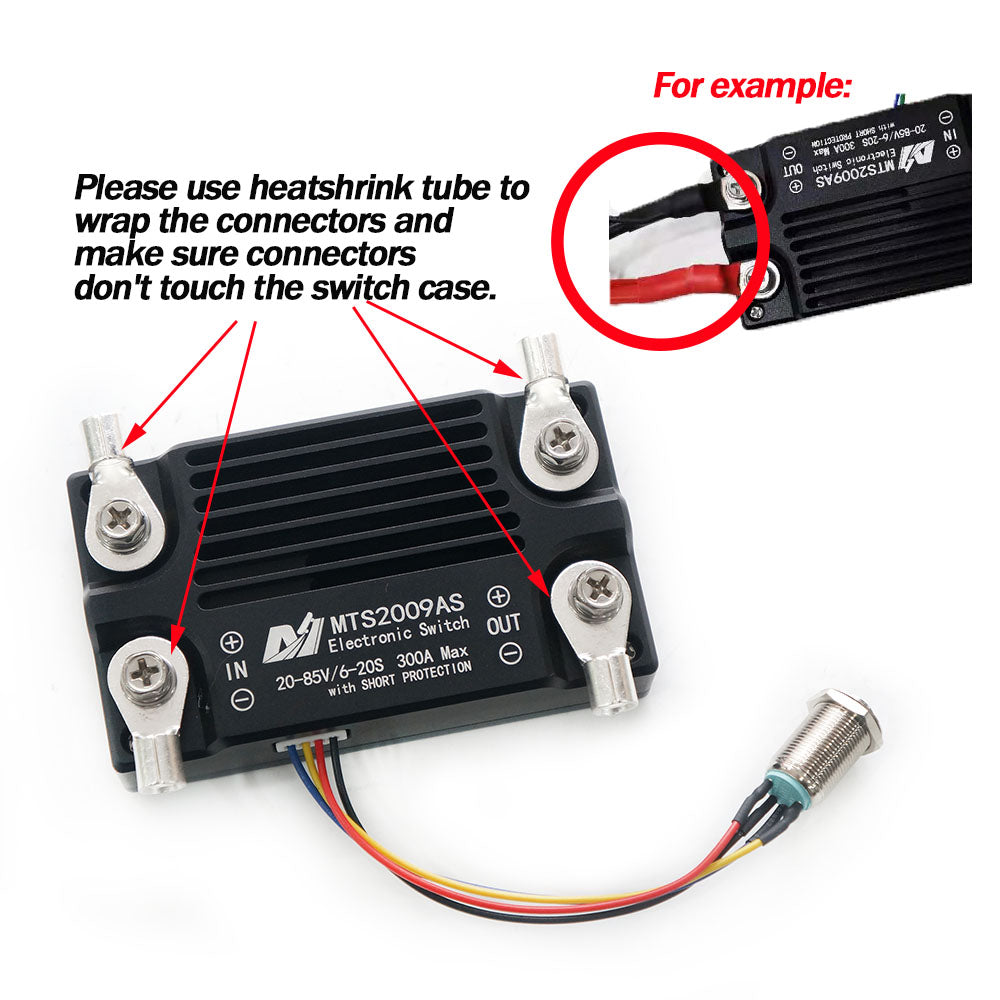

| Connector | With 4pcs Cold-pressed Terminal Connector |
| Function | Protect your controller and power supply system when brake or startup |
| Features |

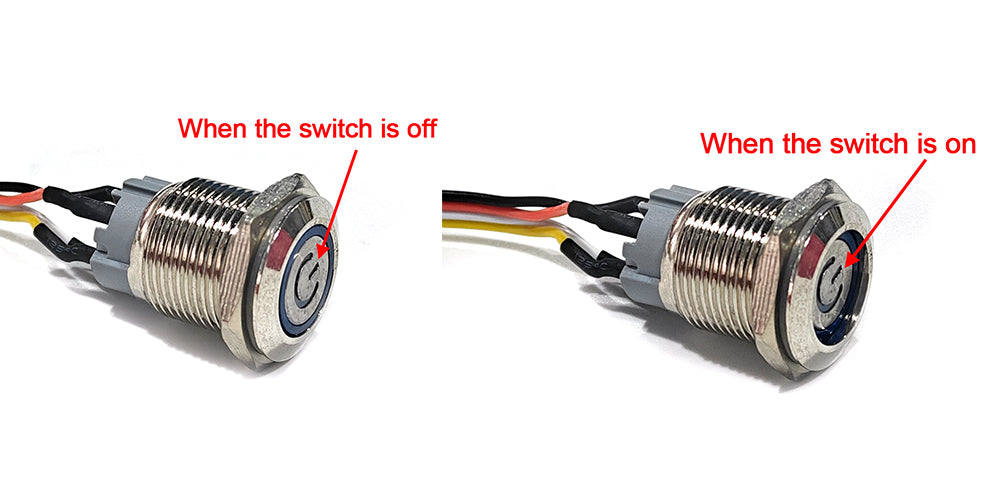

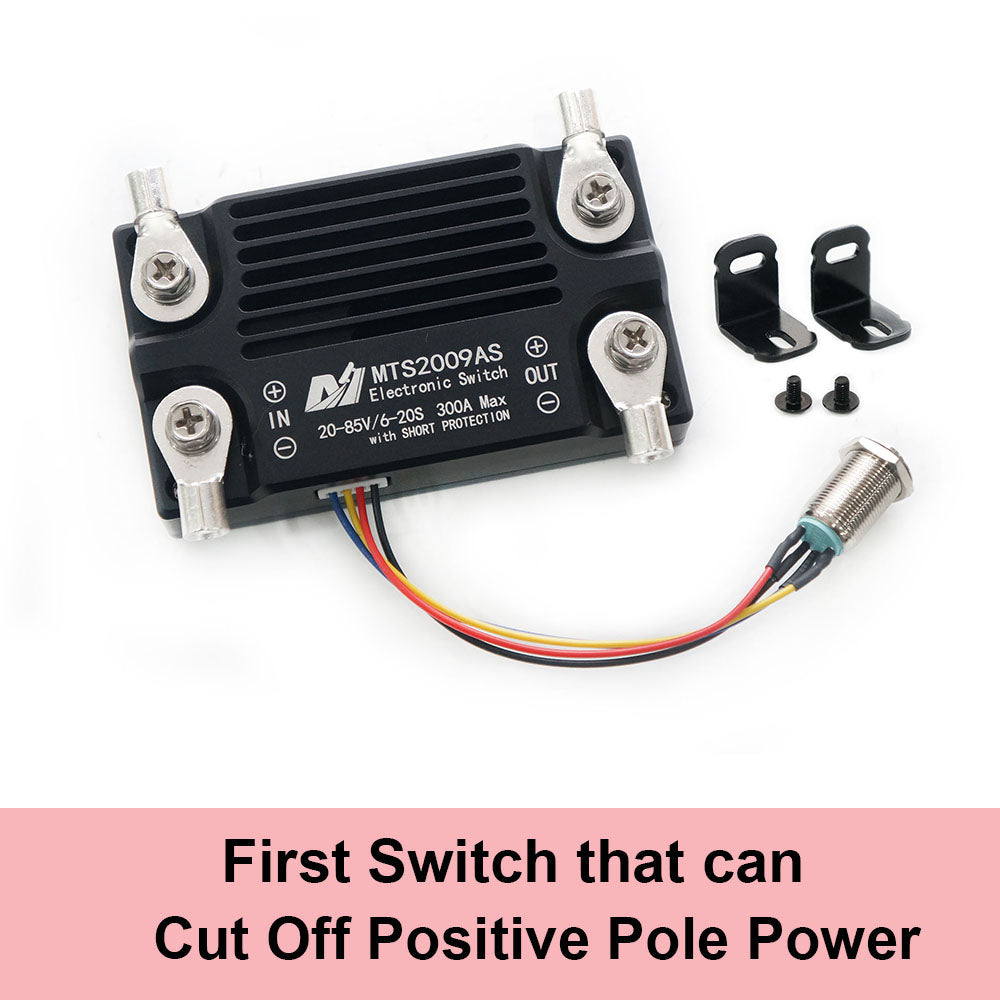

First Switch that can cut off positive pole power in the market; Switch comes with LED light indicator; |
| Application | Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, etc., |
Notice when use with VESCTOOL compatible controllers:
Because VESCTOOL compatible controllers has regenerative brake function, when use it with 56V and above battery, recommend to use current mode no brake (Duty cycle mode or current mode with brake are not recommended for voltage ≥56V)
(This is only for reference accoridng to our engineer experience, different ESCs/ Applications might be different)
