In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil
In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil
Regular price
$99.90 USD
Regular price
Sale price
$99.90 USD
Unit price
/
per
Specification:
Model No | MTSKR1905WF (V2), upgraded waterproof and signal strength |
Waterproof Rank | IP67 with 2 layers nanometers coating |
Control Mode | Esk8/ Esurf |
Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
Output Signal | Max 3.3V |
Display |
Remote and battery power, signal strength, throttle and brake percentage, RPM; speed, mileage; Current, voltage, temp when work with VESC |
Control Pump | Yes (Relay Switch) |
Control Light | Yes (Transistor Switch) |
Safety Button | Support |
Cruise Control | With in Esurf Mode |
Brake | With in Esk8 Mode |
Wireless Charging | Yes |

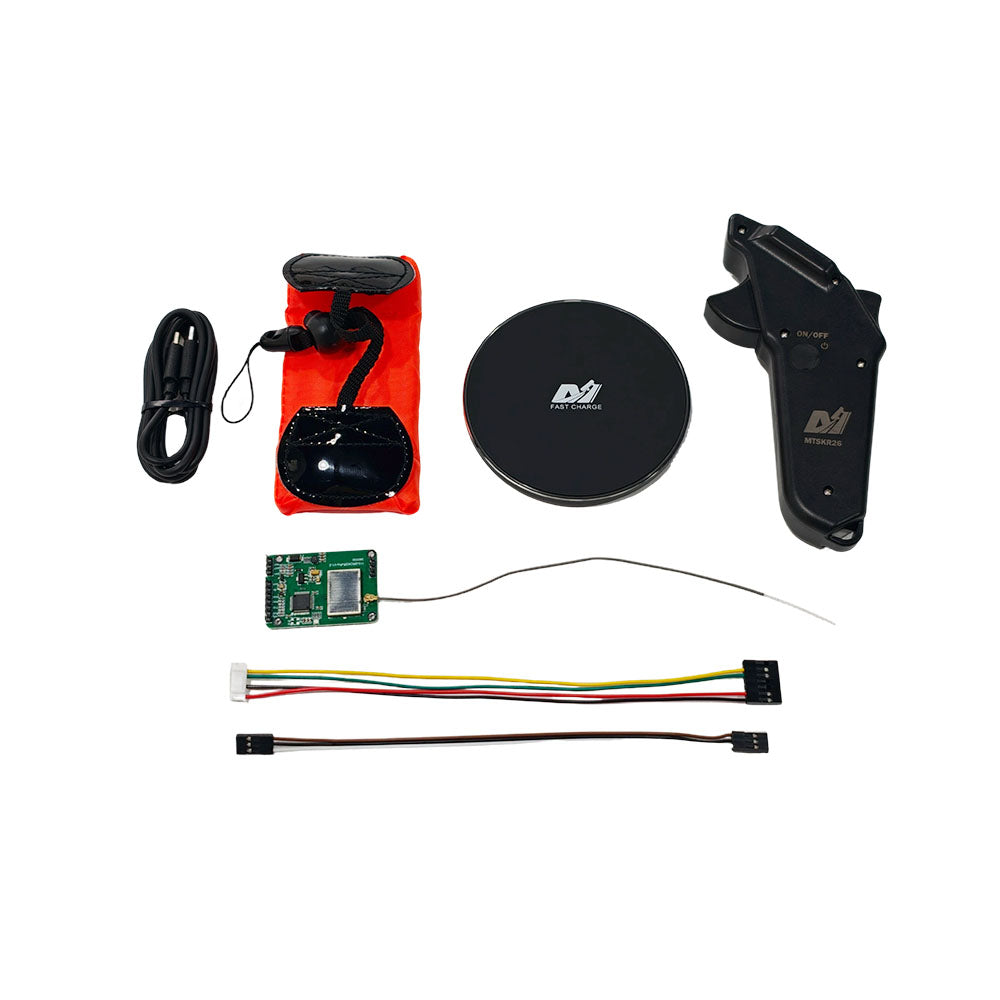

Package Includes | Transmitter, receiver, charging Pad, receiver, wristband, 3pcs dupont cable |
Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |
Features:
1. Display speed (km/h or mph) in Esk8 mode (for electric skateboard)2. Display voltage in V, current, temperature when work with VESC based controller
3. Display RPM (by 3 ways, hall sensor, VESC, motor wire)
> Get Manual: Remote Manual and Instruction
Click Here: How to Display Volt, Current, RPM with TX and RX?
The remote has 2 Modes, signal output pulse width is different in 2 modes:
- Esurf Mode is 1ms-2ms, no stop no brake, if you use Esurf mode to work with VESCTOOL compatible controller, please use below settings in VESCTOOL and to match with the remote:
PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
Or you can use wizard mode to detect compatible value.
- Esk8 Mode is 1.5ms-1ms (Brake), 1.5ms-2ms (Speed up), 1.5ms is stop position.
Please noted to match compatible parameters for different modes in VESC_TOOL.
If your surrounded has strong magnetic interference, the signal might easy get lost, suggest you order the version with 1m or 3m extend antenna.
Tips After Using:
In order to avoid being corroded by sea water and to extend the remote life, please wash the remote in fresh water after using; Also please charge when the remote all dry.
Go to the following Youtube Links to check the remote instruction videos:
1. Motor RPM display by MOTOR WIRE: https://youtu.be/N1IV1dJbil0
2. Motor RPM display by Hall Sensor: https://youtu.be/YBRBzAa-3ww
3. Motor RPM display by VESCTOOL compatible controller: https://youtu.be/qqaZf78ilV4
4. Esk8 mode with speed, current, distance, etc: https://youtu.be/ycFya3Xn7YU
5. Adjust Current mode and Duty cycle mode by remote: https://youtu.be/BPRIhySE7lw
6. Connect to controller or VESCTOOL Compatible Controller: https://youtu.be/sDiAPsg0hWc
7. Remote voltage display for Esk8 and Esurf: https://youtu.be/LZf98XgVwwI
8. Remote can control two switches for Esk8 light and Esurf pump: https://youtu.be/USQHbe3tCOs
9. Receiver wiring with VESCTOOL compatible speed controller
(You can select the functions you need and connect them accordingly.)
10. Receiver wiring with Maytech MTSF300A-OPTO ESC or other OPTO ESC, (You can select the functions you need and connect them accordingly.)
11. Maytech MTSF300A-WP and MTSF500A-WP fully waterproof ESC:
