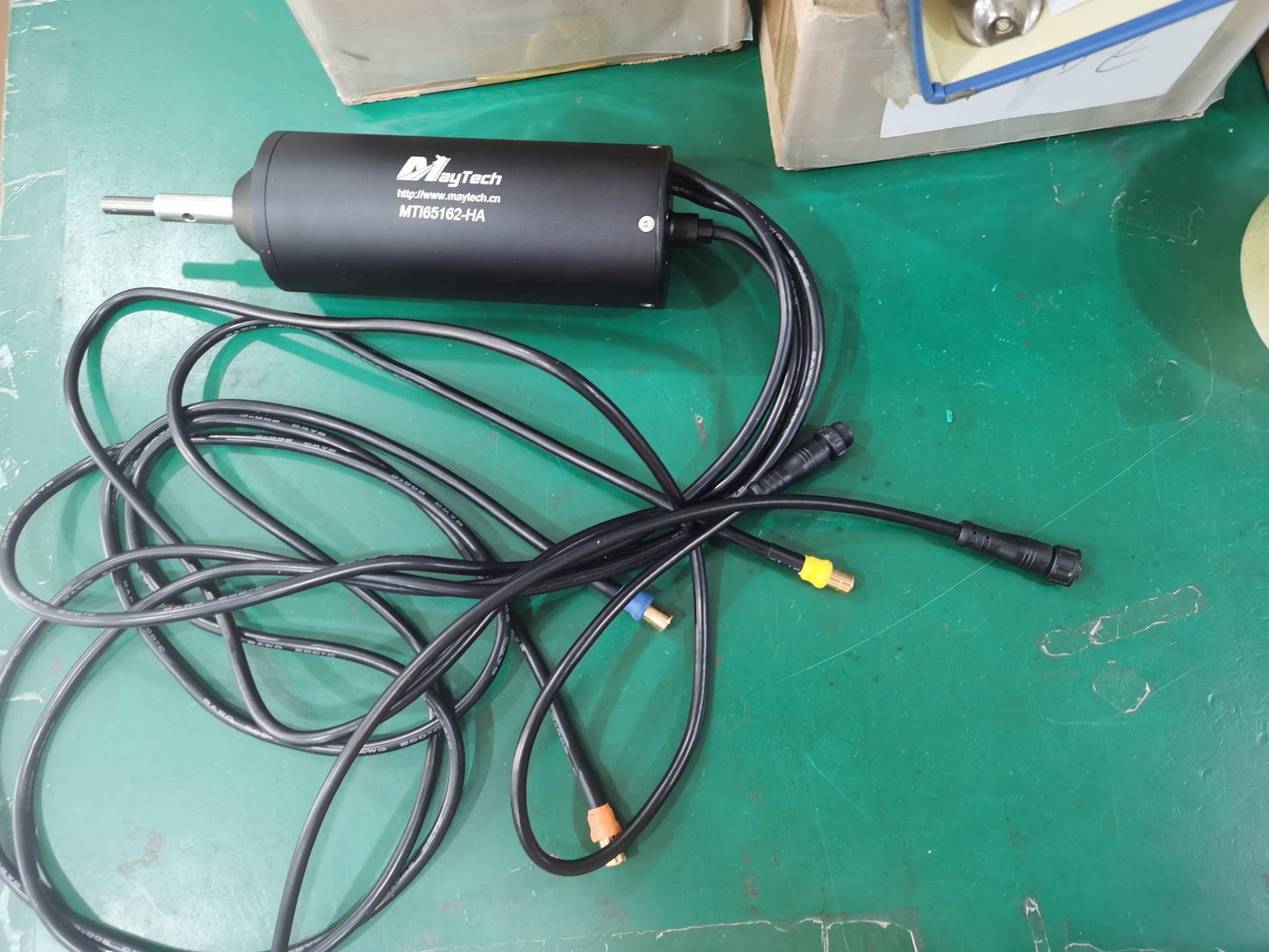

Maytech IP68 Waterproof MTI65162 Brushless Inrunner Motor with Hall Sensor KV Customized Acceptable
Maytech IP68 Waterproof MTI65162 Brushless Inrunner Motor with Hall Sensor KV Customized Acceptable
Prix habituel
$546.21 USD
Prix habituel
$606.90 USD
Prix promotionnel
$546.21 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Maytech IP68 Waterproof MTI65162 Brushless Inrunner Motor with Hall Sensor KV Customized Acceptable for Efoil Jetski Jetfoiler Electric Surfboard
Specification:
| Model No. | MTI65162-100-SF |
| KV | Contact agnes@maytech.cn for the KV you want |
| Max Current | 300A |
| Input Voltage | 6-24S Lipo (25-100V) |
| Max Output Voltage | 9KW |
| Shaft | Screw Shaft |
| Hall Sensor | Without |
| Motor Pole Number | 6 |
| Waterproof Rank | IP68 Waterproof |
| Customize | KV, logo, shaft, cable, connector, etc., contact Email: agnes@maytech.cn |
Stock notification:
The motor is not in stock, if you need the motor, please contact us agnes@maytech.cn to check first.
And KV can be customized, just contact us and let us know the KV you want.
Customer Test Video on Efoil:
Maytech Self Testing: MTI65162-100-SF+MTSP0504 Prop+300A ESC+1905WF Remote:
To make sure the waterproof, we've tested the motor underwater for over 12 hours before released:
Related Products: Clicking the following pictures to check specs
Share
0
Total des articles
$0.00
Sous-total des produits
Retirer les 0 articles de votre panier ?
😍 Handpicked Recommendations
Fully Waterproof Efoil Kits with MTI65162 Motor + 300A ESC + 1905WF Remote + MTS2009AS Switch + 12V 30W Water Pump$1,433.90$1,290.51- +
In Stock Efoil Surfboard Kit 65162 Waterproof Motor + 300A 75V MTSPF7.5H + MTSKR1905WF Remote$1,221.60$1,099.44- +
In Stock Maytech Fully Waterproof Efoil Motor MTI65162 120 Brushless Inrunner Motor$449.00$404.10- +
In Stock 2pcs/ 5pcs MTSPF7.5HK 300A 75V based on V75/300 SuperESC Watercooled Speed Controller$519.00$467.10- +
In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil$99.90- +
In Stock 2pcs / 5pcs MTS2009AS Max 300A 85V Anti-spark Switch with Short Cirsuit Protection$423.70$381.33
×
> Click to get Progcard Manual and Instruction:
$1,433.90$1,194.66
Fully Waterproof Efoil Kits with MTI65162 Motor + 300A ESC + 1905WF Remote + MTS2009AS Switch + 12V 30W Water Pump
Maytech Fully Waterproof Efoil Kits with MTI65162 Motor + 300A ESC + 1905WF Remote + Progcard for Electric surfboard, Efoil, jetfoiler, electric hydrofoil, countercurrent swiming training, etc.,
1. MTSF300A-WP ESC Upgrade Version:
| Model No. | MTSF300A-WP |
| Cont Current | 300A |
| Peak Current | 1000A |
| Watercooling | With |
| Waterproof Rank | IP68 |
| Input Voltage | 6-14S Lipo (25-58.8V) |
| Case Material | Aluminum alloy |
| Signal Format | PWM, 1ms-2ms |
| Connector | 8.0mm female gold-plated bullet connector on 3 motor cables, on battery side without connector. With waterproof protector for connectors |
Features:
- Built in 75V to 5V and 75V to 12V UBEC DC-DC Module, 5V output is for receiver power supply, 12V output is for light and water pump, or other use.
- With waterproof junction box, all functions lead out and with pins in the box, and if you work with Maytech MTSKR1905WF remote, its receiver can be put inside of the box and directly plug in, easier to use and receiver can be waterproofed.
- Both IP68 waterproof and watercooled, which means 2 cooling ways:
- The case can work under seawater because of its IP68 waterproof case; If you don't want to put it underwater, then just cool it with water pump through its cooling tubes.
> Click to get Progcard Manual and Instruction:
2. MTI65162 Inrunner Waterproof Motor
| Model No. | MTI65162-120-SF |
| KV | 120, if you want other KV, contact agnes@maytech.cn |
| Shaft | Screw Shaft |
| Input Voltage | 6-14S Lipo (25V-58.8V) |
| Waterproof Rank | IP68 |
| Max Current | 300A |
| Max Output Power | 9KW |
| Pole Number | 6 poles |
| Max Torque | 10N.m |
| Connector | 8.0mm male gold-plated bullet connector |
| Hall Sensor | Without |
| Propeller | Optional for 120KV |
| Customize | KV, logo, shaft, cable, connector, cover, case, etc., contact agnes@maytech.cn |
3. Remote: MTSKR1905WF IP67 Waterproof Remote for Esurf, with PWM & UART Receiver
| Model No | MTSKR1905WF (V2), upgraded waterproof and signal strength |
| Waterproof Rank | IP67 with 2 layers nanometers coating |
| Control Mode | Esk8/ Esurf |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display |
Remote and battery power, signal strength, throttle and brake percentage, RPM; speed, mileage; Current, voltage, temp when work with VESC |
| Control Pump | Yes (Relay Switch) |
| Control Light | Yes (Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake | With in Esk8 Mode |
| Wireless Charging | Yes |
| Package Includes | Transmitter, receiver, charging Pad, receiver, wristband, 3pcs dupont cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
| Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |
4. MTS2009AS Antispark Switch
| Model No. | MTS2009AS |
| Max Current | 300A |
| Input Voltage | 6-20S Lipo (25-85V), recommend better work under 75V |
| Swith Diameter | 12mm |
| Switch Type | NMOS to realize switching on/off Power positive |
| Waterproof | No, please keep the switch in dry space |
| Connector | With 4pcs Cold-pressed Terminal Connector |
| Function | Protect your controller and power supply system when brake or startup |
| Application | Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, Airplane, VTOL, UAV, Dronesetc., |
| Features: | Switch comes with LED light indicator; Shutdown current less than 1uA; Suitable for load: three phase motor speed controller; Boot soft start; Automatic short circuit protection when boot; Automatic short circuit protection when work. |
5. Water Pump
Feedback Videos on Efoil:
https://youtu.be/iAedKKE7Er4
https://youtu.be/K4SvMuxpIMo
https://youtu.be/bC3pf8GgMHo
https://youtu.be/8dZ4fjnAdoI
https://youtu.be/ZMIyqY0dZkk
Customer feedback showing you how to DIY Efoil:
https://www.thingiverse.com/thing:4686310
Advice after usage:
1. To expand the products life, please better wipe off the waters on the products and keep them for all dry after everytime use.
2. For this kit of the ESC, because the motor is sensorless, suggest to use the default value in the ESC, we have tested the kit before shipment with the default value, do not suggest to modify the values.
If you have other requirement on motor KV, ESC or other questions, please contact us agnes@maytech.cn
×
3. Remote: MTSKR1905WF IP67 Waterproof Remote for Esurf, with PWM & UART Receiver
$1,221.60$965.07
In Stock Efoil Surfboard Kit 65162 Waterproof Motor + 300A 75V MTSPF7.5H + MTSKR1905WF Remote
300A 75V V75_300 based Watercooled Speed Controller + MTI65162 Fully Waterproof Motor + MTSKR1905WF IP67 Waterproof Remote + 300A 85V Anti-spark Switch + Water Pump Set for Efoil, Electric Hydrofoil High Voltage Electric Vehicles, etc.,
Frequently Asked Questions:
- How much voltage can be used for this kit?
-Max voltage can use for this kit is 75V, if use higher motor KV, max voltage can be used is lower.
- Is water pump necessary?
- The controller is both waterproof and watercooled, so it can work underwater directly. If you put it underwater for cooling, water pump is not needed; If you don't want to put it underwater, and want to cool it through its cooling tube, then water pump is needed.
- Is anti-spark switch needed?
- Anti-spark switch function is to protect your battery and VESC systems from damaged by power srges when startup and speed up, especially when use high voltage, so anti-spark switch is recommended to added. Our MTS2009AS antispark switch cal also cut off positive pole power, save your battery power and more convenient to use.
- What applications can this kit be used to?
- Efoil, electric hydrofoil, electric boat, electric kayak, electric motorcycle, ev car, agv car, heavy duty cargo robots, electric water sports, counter current swimming machine, etc.,
1. Motor: MTI65162-SF Inrunner Sensorless Waterproof Brushless Motor
| Model No. | MTI65162-120-SF |
| KV | 120, if you want other KV, contact agnes@maytech.cn |
| Shaft | Screw Shaft |
| Input Voltage | 6-14S Lipo (25V-58.8V) |
| Waterproof Rank | IP68 |
| Max Current | 300A |
| Max Output Power | 9KW |
| Pole Number | 6 poles |
| Max Torque | 10N.m |
| Connector | 8.0mm male gold-plated bullet connector |
| Hall Sensor | Without |
| Propeller | Optional for 120KV |
| Customize | KV, logo, shaft, cable, connector, cover, case, etc., contact agnes@maytech.cn |
2. MTSPF7.5H 300A 75V VESCTOOL Speed Controller
| Model No. | MTSPF7.5HK |
| Current | 300A |
| Waterproof Rank | Not waterproof, with watercooling |
| Input Voltage | 6-18S Lipo (25V-75V) |
| VESC Hardware | VESC75/300 |
| Signal Format | PWM (PPM), UART, ADC |
| Case Material | Alloy aluminum case |
| Connector | Cold-pressed terminal connector |
| Application | Efoil, foilcart, electric hydrofoil, electric kayak, electric sup board, esurf, underwater scooter, etc., |
Suggest Parameters Set in VESCTOOL:
Motor Current Max: ≤300A (According to your motor current)
Absolute Maximum Current: 350A (According to your motor current)
Battery Current Max: ≤150A (According to your battery discharge current)
You can also use default values after "Setup Motors FOC" detection.
The VESC is open source, these values are just for reference based on our engineer experience for your reference.
Ports definitions:
Ports definitions:
1.AUX port to supply 12V and 5V to external device;
2.PPM port to connect PPM transceivers;
3.CAN Port for CAN communication with other devices and VESC arrays;
4.Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders);
5.SWD port to get direct access to the Chipset. Diagnostics, debugging, and real time data;
6.COMM port for various kinds of other communication methods like I2C, ADC, Uart,You can use your Arduino or Raspberry Pi to control the VESC!
7.USB port for programming.
3. Remote: MTSKR1905WF IP67 Waterproof Remote for Esurf, with PWM & UART Receiver
| Model No | MTSKR1905WF (V2), upgraded waterproof and signal strength |
| Waterproof Rank | IP67 with 2 layers nanometers coating |
| Control Mode | Esk8/ Esurf |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display |
Remote and battery power, signal strength, throttle and brake percentage, RPM; speed, mileage; Current, voltage, temp when work with VESC |
| Control Pump | Yes (Relay Switch) |
| Control Light | Yes (Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake | With in Esk8 Mode |
| Wireless Charging | Yes |
| Package Includes | Transmitter, receiver, charging Pad, receiver, wristband, 3pcs dupont cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
| Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skate |
> Get Manual: Remote Manual and Instruction
4. MTS2009AS Antispark Switch
| Model No. | MTS2009AS |
| Max Current | 300A |
| Input Voltage | 6-20S Lipo (25-85V), recommend better work under 75V |
| Swith Diameter | 12mm |
| Switch Type | NMOS to realize switching on/off Power positive |
| Waterproof | No, please keep the switch in dry space |
| Connector | With 4pcs Cold-pressed Terminal Connector |
| Function | Protect your controller and power supply system when brake or startup |
| Application | Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, Airplane, VTOL, UAV, Dronesetc., |
| Features: | Switch comes with LED light indicator; Shutdown current less than 1uA; Suitable for load: three phase motor speed controller; Boot soft start; Automatic short circuit protection when boot; Automatic short circuit protection when work. |
5. Water Pump
Feedback Videos on Efoil:
Advice after usage:
1. To expand the products life, please better wipe off the waters on the products and keep them for all dry after everytime use.
2. For this kit of the ESC, because the motor is sensorless, suggest to use the default value in the ESC, we have tested the kit before shipment with the default value, do not suggest to modify the values.
If you have other requirement on motor KV, ESC or other questions, please contact us agnes@maytech.cn
×
$449.00$404.10
In Stock Maytech Fully Waterproof Efoil Motor MTI65162 120 Brushless Inrunner Motor
Maytech Fully Waterproof Efoil Motor MTI65162 100/120/190KV Brushless Inrunner Motor for Electric Surfboard/Efoil/Jetski/Esk8
Specification:
| Model No. | MTI65162-120-SF |
| KV | 100, 120, if you want other KV, contact agnes@maytech.cn |
| Max Current | 300A |
| Input Voltage | 6-24S Lipo (25-100V) |
| Max Output Voltage | 9KW |
| Shaft | Screw Shaft |
| Hall Sensor | Without |
| Motor Pole Number | 6 |
| Waterproof Rank | IP68 Waterproof |
| Customize | KV, logo, shaft, cable, connector, etc., contact Email: agnes@maytech.cn |
Customer Test Video on Efoil:
Maytech Self Testing: MTI65162-100-SF+MTSP0504 Prop+300A ESC+1905WF Remote:
To make sure the waterproof, we've tested the motor underwater for over 12 hours before released:
Related Products: Clicking the following pictures to check specs
×
$519.00$467.10
In Stock 2pcs/ 5pcs MTSPF7.5HK 300A 75V based on V75/300 SuperESC Watercooled Speed Controller
| Model No. | MTSPF7.5HK |
| Input Voltage | 5-18S Lipo (18V-75V) |
| Hardware | based on V75/300 |
| Firmware | Updatable |
| Current | 300A |
| Software | VESCTOOL Compatible |
| Heat Sink | With |
| Water Cooling | With |
| Capacitors | 9pcs 100V 470μf capacitor |
| Application | electric skateboard, fighting robot, e-bike, electric motorcycle, efoil, electric surfboard, watercraft, electric boat, underwater ROV, agricultural robots, robotic sprayer, etc |
Set in VESCTOOL:
-Motor Current Max: ≤300A (According to your motor current)
-Absolute Maximum Current: 350A (According to your motor current)
-Battery Current Max: ≤150A (According to your battery discharge current)
-Absolute Maximum Current: 350A (According to your motor current)
-Battery Current Max: ≤150A (According to your battery discharge current)
Ports definitions:
- AUX port to supply 12V and 5V to external device;
- PPM port to connect PPM transceivers; Never connect one reclever to two or more VESCs in an array ! Permanent damage may result from Y-PPM wiring
- CAN Port for CAN communication with other devices and controller arrays; Only connect CAN L and CAN H ! GND pins and 5V should never be connected in aVESC array.
- Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders);
- SWD port to get direct access to the Chipset. Diagnostics, debugging, and real time data;
- COMM port for various kinds of other communication methods like I2C, ADC, Uart,you can use your Arduino or Raspberry Pi to control the SuperESC!
- USB port for programming.
Features:
-This new controller can work to highest 75V voltage, can use for electric skateboard, surfboard, motorcycle, ATV, etc., fixed the problem of high voltage and compatible with VESC_TOOL that most controller can't do in the current market.
-Compatible with VESC_TOOL, programmable;
-Use High voltage components, more stable, better performance;
-With 24pcs mosfets;
-With high quality machined aluminum case;
-With Great heat dissipation for high voltage and high current applications;
-Compatible with brushed and brushless Motor, intrunner and outrunner motors
-Sensored or Sensorless operation + Hybrid mode
-Adjustable Forward/Backward/Brake
-Regenerative Braking Function
-Configurable RPM, Current, Voltage and Power limits
-Support PPM, Analog (ADC), UART, Canbus input
-Support BLDC square wave mode control and FOC sine wave mode
-Communication ports: USB, CAN, UART
-Throttle curve and ramping for all input sources
-Seamless 4-quadrant operation
-Motor Revolution, Amp Hour, Watt Hour counting
-Real time data analysis and read out via communication ports
-Adjustable protection against:
Max and Minimum Input(Battery) Voltage
Max Motor Current and Input(Battery) Current limits
Max Power (Wattage)
Max Motor and ESC Temperature
Max Regenerative Braking Current (separate limits for the motor and the input)
Max ERPM(RPM) (separate limits for each direction)
Compare to Original 75_300 VESC_TOOL compatible controller, what upgraded points and advantages MTSPF7.5HK have?
-
With CNC aluminum alloy heat dissipation case, optional water cooling system and forced air cooling system.
-
With larger heat sink case that has better heat dissipation performance.
-
Its heat sink case bottom is coverd by fins that can better heat dissipation.
-
Its PCB board has 4pcs MOS paralleled, could withstand higher current, original version only has 3pcs MOS.
-
Its PCB board with cooper stripe, can reduce resistance in high current, better heat dissipation.
-
With larger capacitor, 9pcs 100V 470μf capacitor, while original version only has 6pcs 80V 470μf.
-
With separate design of strong and weak current circuit board, and between 2 boards added heat sink for better heat dissipation.
-
Exclusive 5V and 12V external power supply interfaces will not cause interference when powering analog circuits such as twist/thumb throttles.
Some Using Tips for this SUPERFOC Controller:
1. If you will use the controller for water sports or other application that will need to use water cooling, then better choose type with water cooling tube, and work with water pump for cooling. Blow has compatible water pump setup recommended, if you need, can order together.
2.Must do a good job of heat dissipation! If place it in a sealed container(recommend touse metal container), it must be forced to be cooled with water. Also make sure your container has enough space for the controller, make sure the cooling tube do not bent, otherwise will influence water flow in cooling tube, also make sure water flow is enough for cooling before office use.
3. Before the new ESC is officially used, please test it with a low-voltage and low-throttle, after success, then slowly increase voltage and throttle. Be sure to pay attention to safety during this period!
4. Recommend to add an electronic switch with short circuit protection function between the ESC and battery, such as MTS2009AS 300A electronic switch or BMS with switch function. It is not recommended to use only contactor without short circuit protection!
5. The battery and motor side terminals must be connected tightly, they can’t be loose. Also please make sure terminals not touch case or other wires, here's the video shows you the way to install cold-pressed terminal connector: https://youtu.be/unFfV9RPPCc
6. In actual use, please use hot melt glue to fix the hall/UART interface cables the corresponding sockets of the ESC, to prevent the cables loose due to the bumps of the vehicle!
7. Please do not disconnect relay switch or electronic switch during usage ! Otherwise it will cause electromagnetic interference, which might damage the controller.
8. If you use the controller to work with our MTSKR1905WF remote on Esurf/ Efoil, please noted below settings:
Our remote PWM signal output pulselength in Esurf mode is 1-2ms, no brake no stop, and in controller default pulselength is 1ms start, 2ms end, 1.5ms center, so if you will use our remote in Esurf mode, then please adjust below settings in VESC_TOOL:
PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
9. In PPM Control type, do not use Duty Cycle or Duty Cycle No Reverse, this control type only works at fighting robots, 3F Prototyping, drone application, because this control type can't fully disconnect battery power, it needs battery to absorb braking energy.
The above tips are only suggestions based on the experience of our engineers. how to actually operate is up to you. Parameters for different setup is also different, please noted
Videos show you how to connect cables to the controller cold-pressed terminal connector:
Recommend Products: Click below pictures to check more information
×
2. Display voltage in V, current, temperature when work with VESC based controller
PPM Control Type: Current no reverse
10. Receiver wiring with Maytech MTSF300A-OPTO ESC or other OPTO ESC, (You can select the functions you need and connect them accordingly.)
In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil
Specification:
| Model No | MTSKR1905WF (V2), upgraded waterproof and signal strength |
| Waterproof Rank | IP67 with 2 layers nanometers coating |
| Control Mode | Esk8/ Esurf |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display |
Remote and battery power, signal strength, throttle and brake percentage, RPM; speed, mileage; Current, voltage, temp when work with VESC |
| Control Pump | Yes (Relay Switch) |
| Control Light | Yes (Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake | With in Esk8 Mode |
| Wireless Charging | Yes |
| Package Includes | Transmitter, receiver, charging Pad, receiver, wristband, 3pcs dupont cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
| Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |
Features:
1. Display speed (km/h or mph) in Esk8 mode (for electric skateboard)2. Display voltage in V, current, temperature when work with VESC based controller
3. Display RPM (by 3 ways, hall sensor, VESC, motor wire)
> Get Manual: Remote Manual and Instruction
Click Here: How to Display Volt, Current, RPM with TX and RX?
The remote has 2 Modes, signal output pulse width is different in 2 modes:
- Esurf Mode is 1ms-2ms, no stop no brake, if you use Esurf mode to work with VESCTOOL compatible controller, please use below settings in VESCTOOL and to match with the remote:
PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
Or you can use wizard mode to detect compatible value.
- Esk8 Mode is 1.5ms-1ms (Brake), 1.5ms-2ms (Speed up), 1.5ms is stop position.
Please noted to match compatible parameters for different modes in VESC_TOOL.
If your surrounded has strong magnetic interference, the signal might easy get lost, suggest you order the version with 1m or 3m extend antenna.
Tips After Using:
In order to avoid being corroded by sea water and to extend the remote life, please wash the remote in fresh water after using; Also please charge when the remote all dry.
Go to the following Youtube Links to check the remote instruction videos:
1. Motor RPM display by MOTOR WIRE: https://youtu.be/N1IV1dJbil0
2. Motor RPM display by Hall Sensor: https://youtu.be/YBRBzAa-3ww
3. Motor RPM display by VESCTOOL compatible controller: https://youtu.be/qqaZf78ilV4
4. Esk8 mode with speed, current, distance, etc: https://youtu.be/ycFya3Xn7YU
5. Adjust Current mode and Duty cycle mode by remote: https://youtu.be/BPRIhySE7lw
6. Connect to controller or VESCTOOL Compatible Controller: https://youtu.be/sDiAPsg0hWc
7. Remote voltage display for Esk8 and Esurf: https://youtu.be/LZf98XgVwwI
8. Remote can control two switches for Esk8 light and Esurf pump: https://youtu.be/USQHbe3tCOs
9. Receiver wiring with VESCTOOL compatible speed controller
(You can select the functions you need and connect them accordingly.)
10. Receiver wiring with Maytech MTSF300A-OPTO ESC or other OPTO ESC, (You can select the functions you need and connect them accordingly.)11. Maytech MTSF300A-WP and MTSF500A-WP fully waterproof ESC:
Related Products: Click the pictures to check specs
Esk8 Products: Brushless Motors
Fully Water Efoil/Esurf/Boat Kit with Inrunner Brushless Motor+Remote MTSKR1905WF+300A ESC
×
$423.70$81.00
In Stock 2pcs / 5pcs MTS2009AS Max 300A 85V Anti-spark Switch with Short Cirsuit Protection
Maytech MTS2009AS Max 300A 85V Electronic Anti-spark Switch Battery Cutoff Switch with Short Circuit Protection for Electric Hydrofoil Efoil Surfboard
It can cut off positive pole power, much safer when usage and greatly protect your controller and power suppy system.
Specification:
|
Model No. |
MTS2009AS |
|
Max Current |
300A |
|
Max Voltage |
6-20S Lipo (25-85V), recommend better work under 75V |
|
Size |
96.5 x 56 x 25 (mm) |
|
Switch Diameter |
12mm |
|
Switch Type |
Use NMOS to realize switching on/off Power positive |
| Connector | With 4pcs Cold-pressed Terminal Connector |
| Function | Protect your controller and power supply system when brake or startup |
| Features |
First Switch that can cut off positive pole power in the market; Switch comes with LED light indicator; |
| Application | Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, etc., |
Notice when use with VESCTOOL compatible controllers:
Because VESCTOOL compatible controllers has regenerative brake function, when use it with 56V and above battery, recommend to use current mode no brake (Duty cycle mode or current mode with brake are not recommended for voltage ≥56V)
(This is only for reference accoridng to our engineer experience, different ESCs/ Applications might be different)
Related Products: (Click the following pictures to check more products)
Maytech Electric Surfboard / Efoil Kits:
Maytech MTSKR1905WF IP67 Waterproof Remote for Esk8/Esurf:
