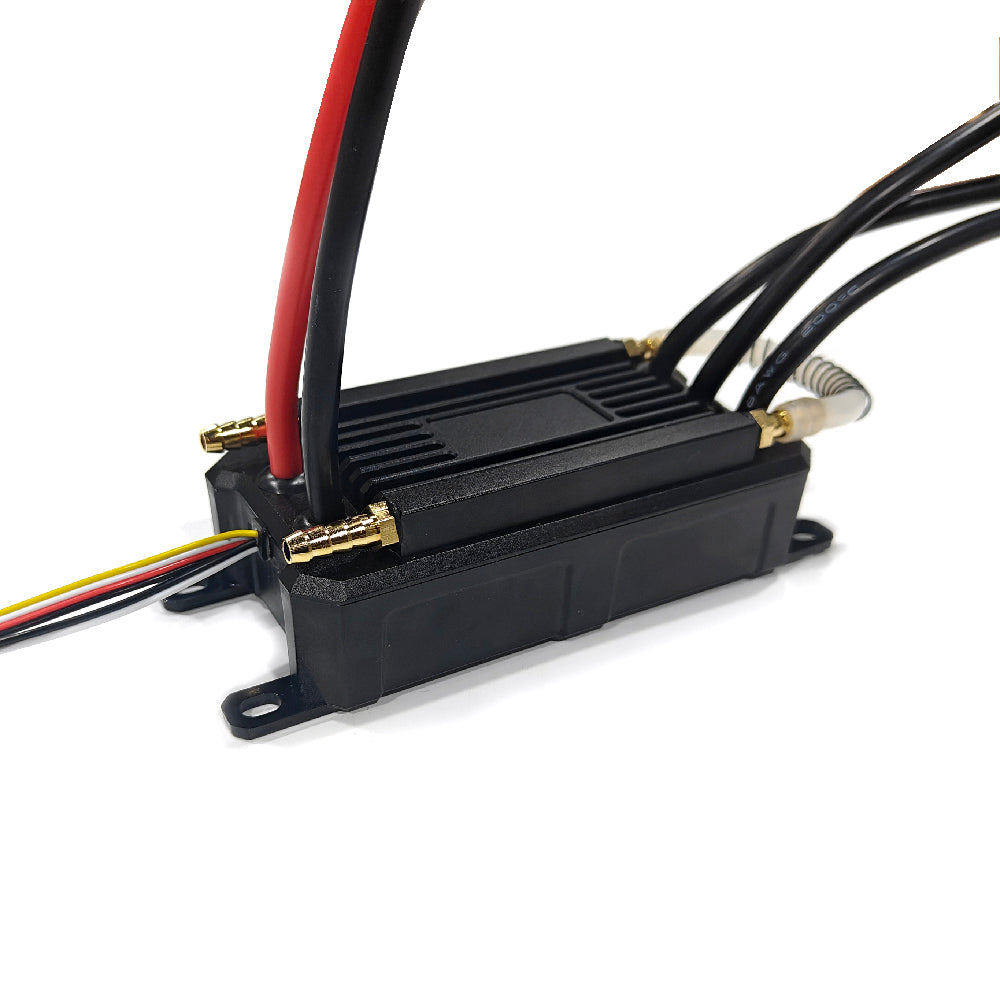

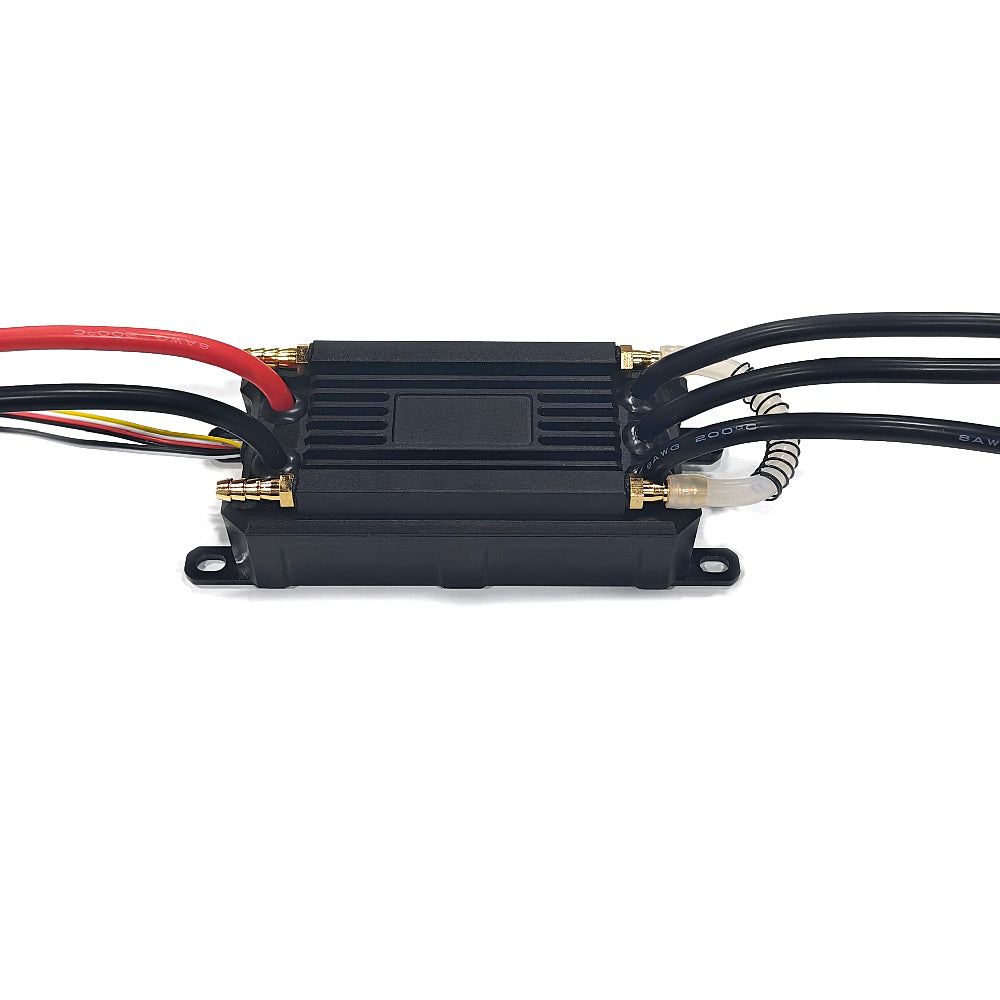

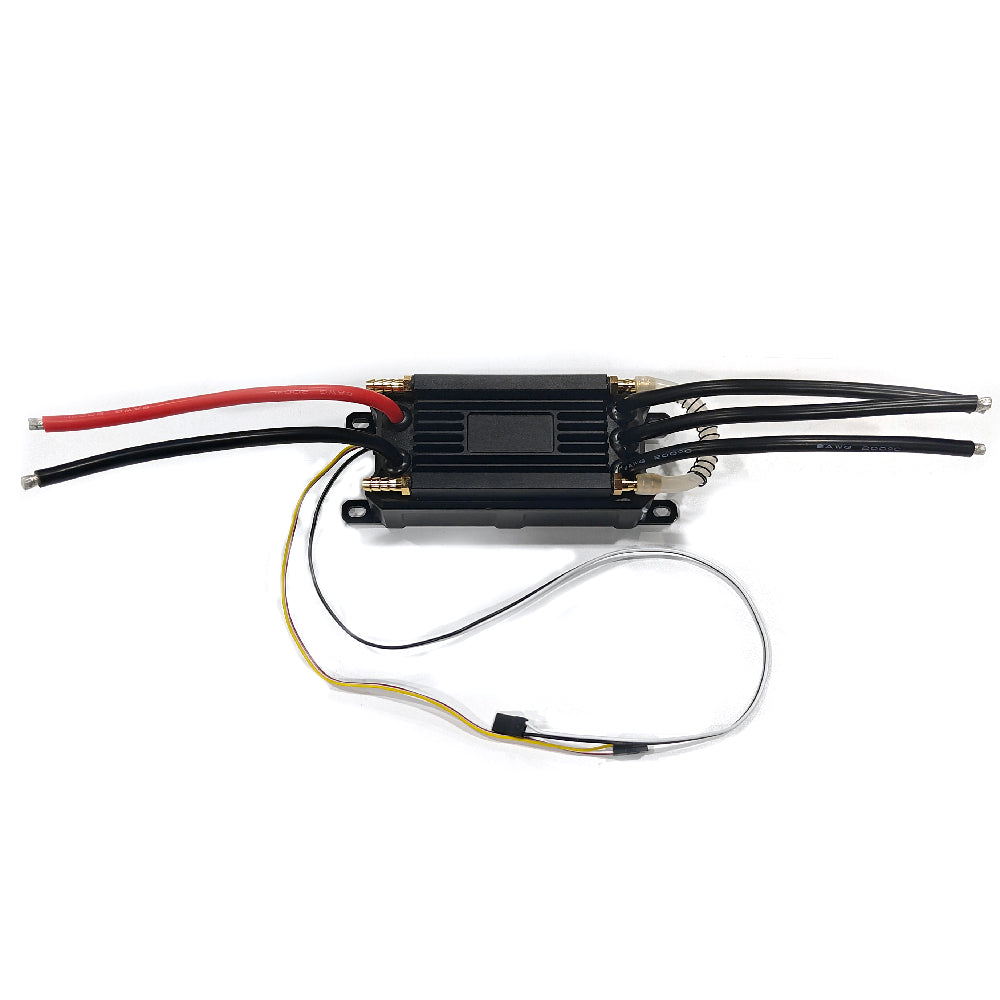

Pre-order Maytech New Marine 32Bit 300A ESC IP68 Waterproof Smaller Size for Efoil Underwater Thruster Electric Surfboard

$286.74 USD

~~$318.60 USD~~ $286.74 USD

En vente Épuisé

Frais d'expédition calculés à l'étape de paiement.

Variantes de produits

Quantité

Pre-order Maytech New 300A 60V Waterproof ESC Smaller Size for Efoil Underwater Thruster Electric Surfbord

Specification:

Model No.: MTSF300A-WP-E

Waterproof Rank: IP68

Cont Current: 300A

Peak Current (at 10S): 320A

Input Voltage: 6-14S Lipo (22.2V-58.8V)

Cable Guage: 8AWG

Max ERPM: 100000

32BIT Micropprocessor

Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.,

Waterproof electric speed controller cheap ESC 300A IP68 fully waterproof ESC motor controller efoil controller marine 300A ESC

Strengths:

1. Fully new circuit design, excellent algorithm

--With high performance 32bit MCU processor, greatly improved data computing ability;

--Faster respond, smoother startup;

--Throttle linear is optimized, more accurate and smoother, better compatibility;

2. Seperate control board and power board design

--Elegant PCB layout and circuit design,control board won’t be influenced even when ESC gets heat at high power condition, which makes the ESC more reliable and has stronger anti-interference.

3. Support forward and reverse rotation

--The ESC filled with waterproof glue to make sure its IP68 waterproof, flat water cooling design to make sure high efficient heat dissipation.

--Suitable to use on various water sports like Efoil, surfboard, underwater thruster, etc.,

4. With kinetic energy recovery function

--Save more energy;

--Extend battery working time;

--Reduce heat

5. Multiple protections

--Startup protection;

--Over-temp protection;

--Low voltage protection;

--Phase loss protection;

--Signal loss protection
