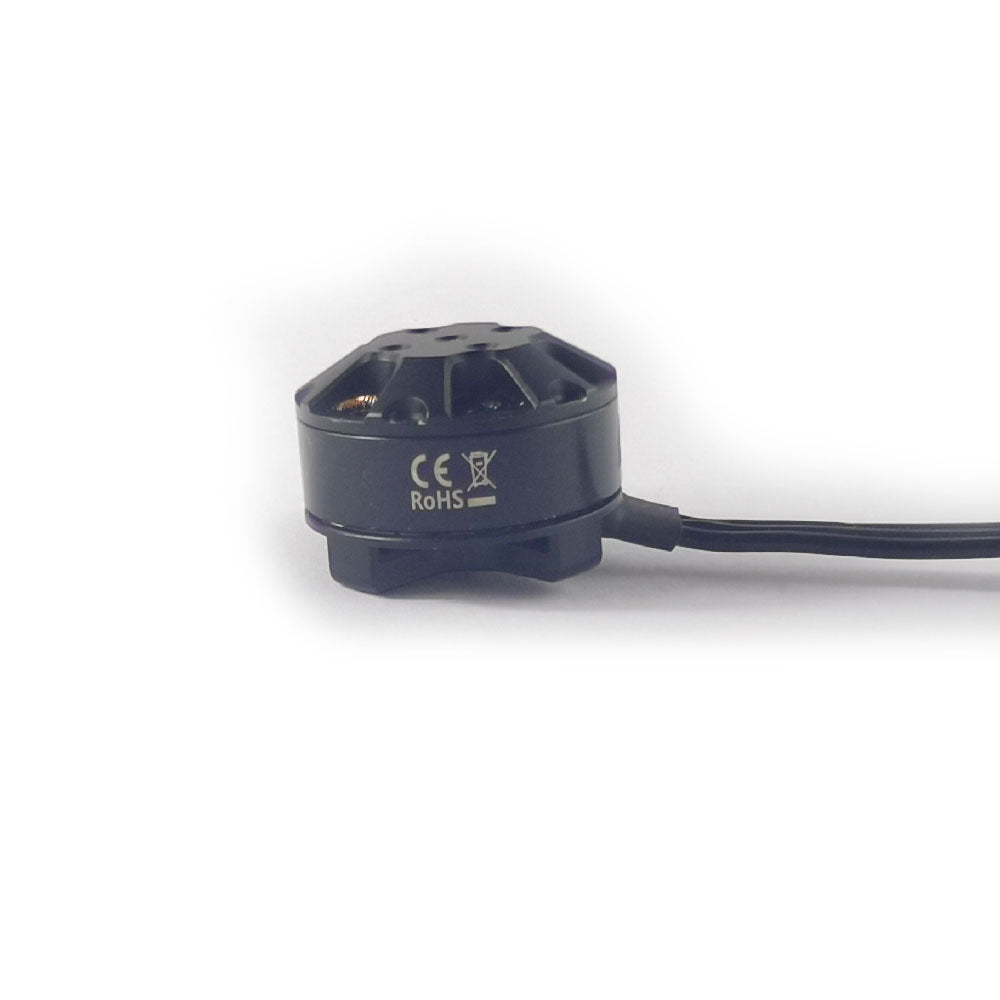

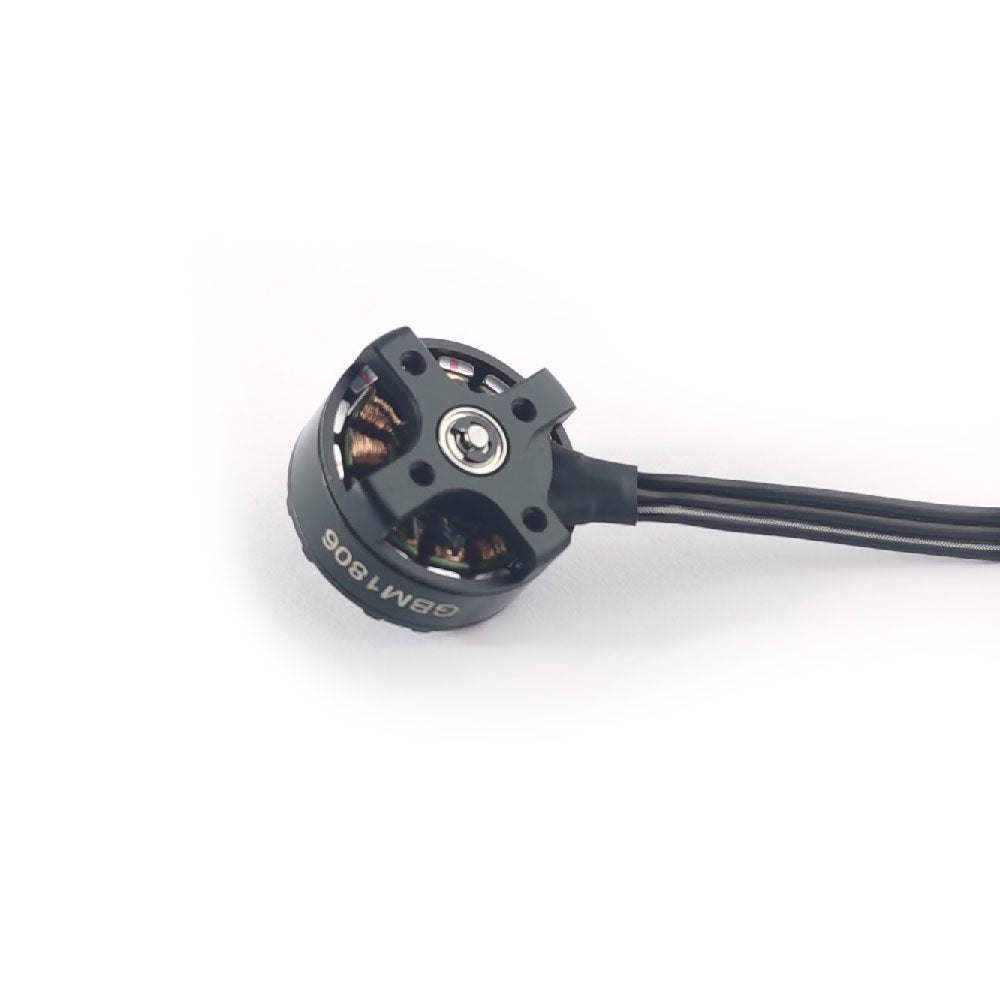

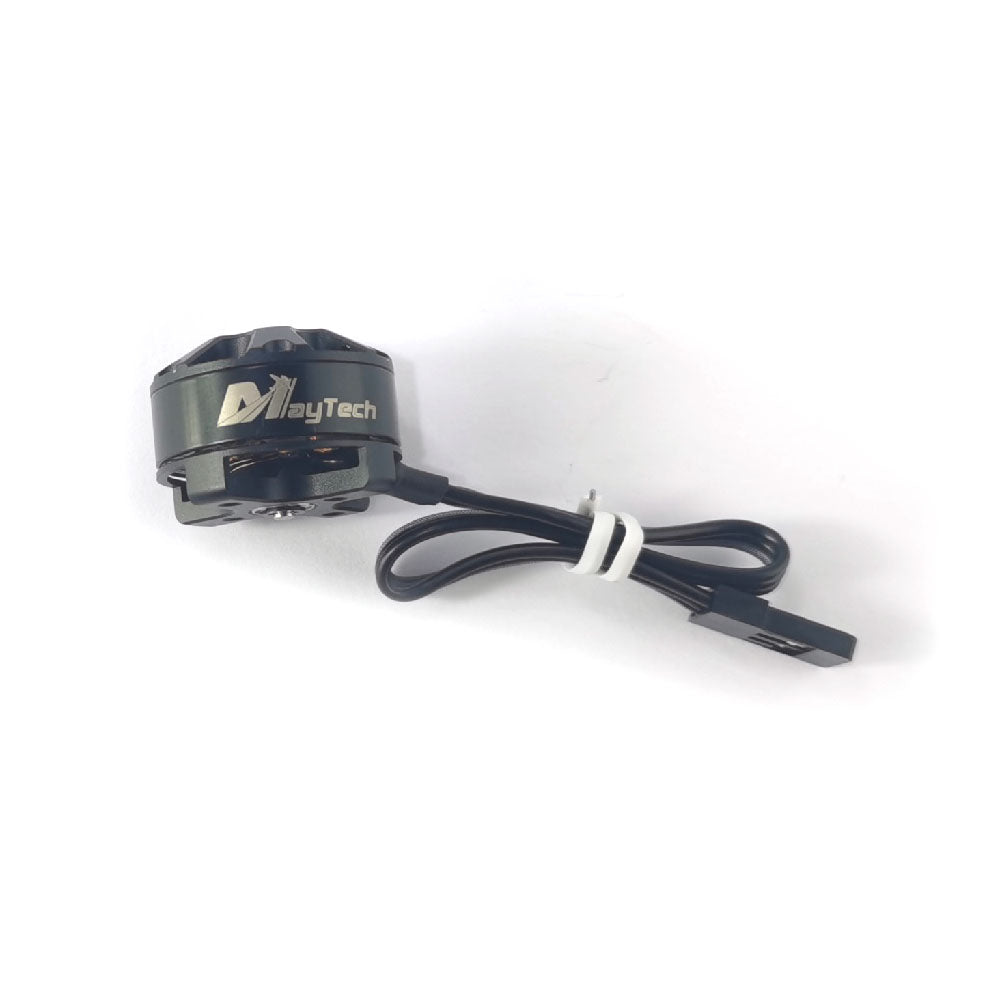

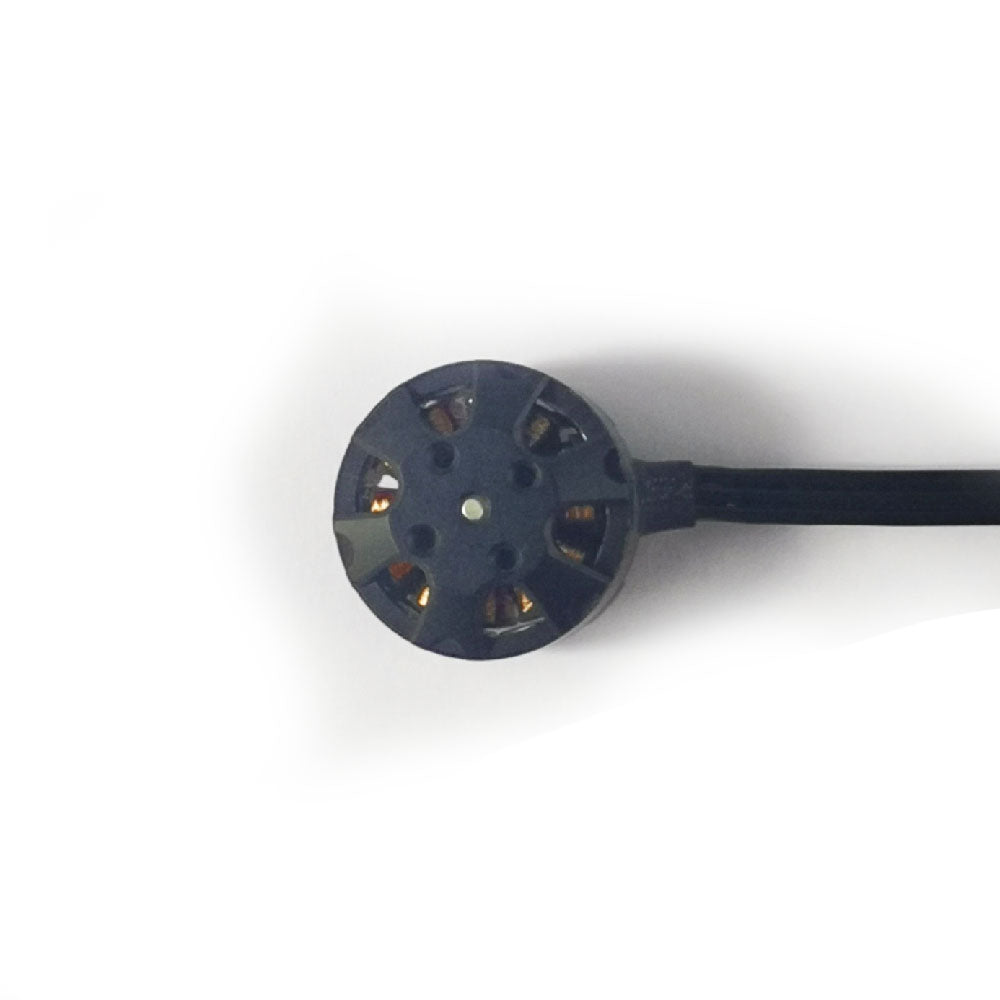

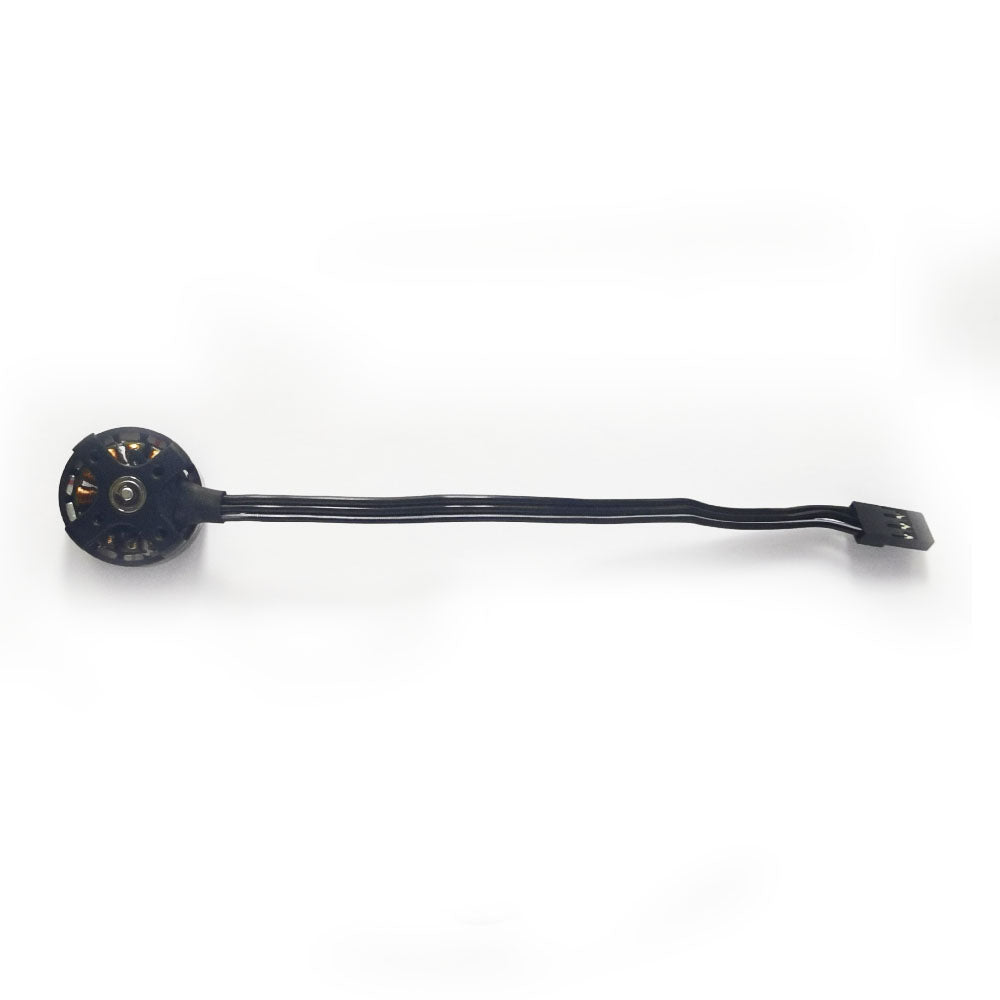

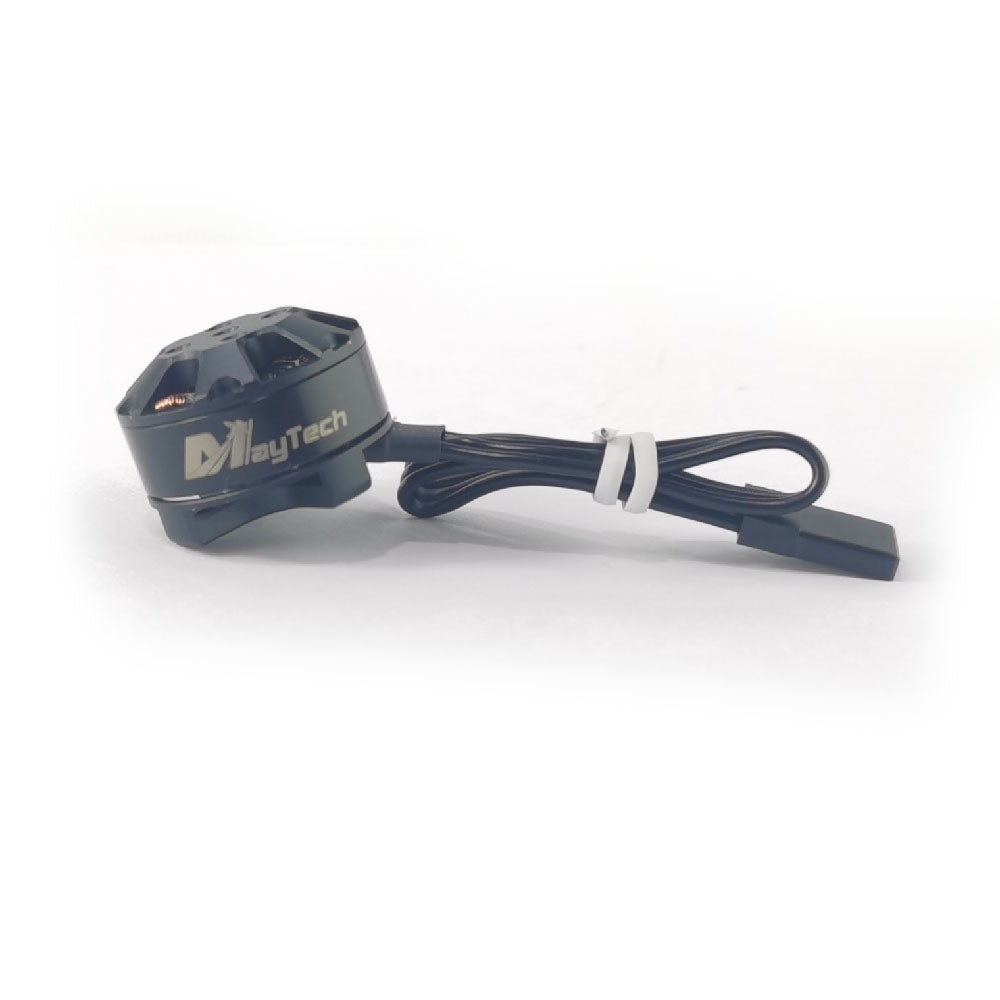

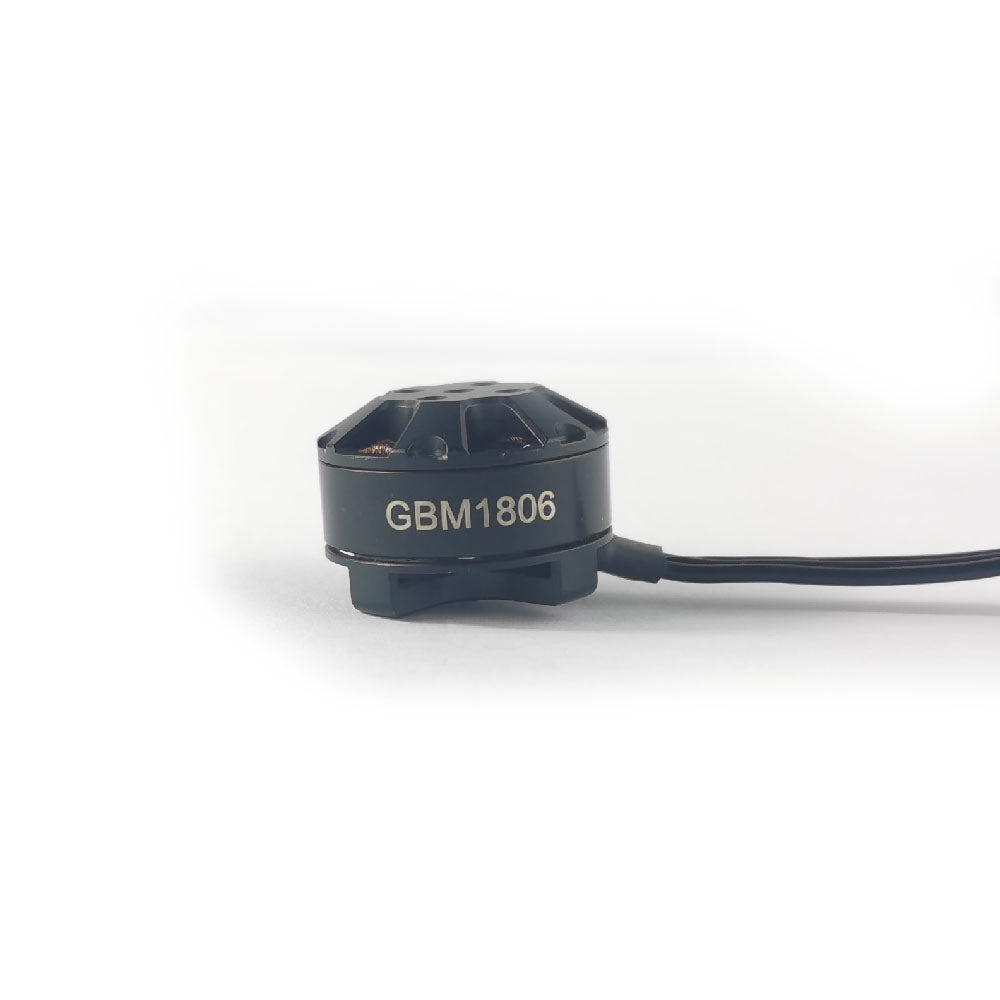

500pcs Maytech 1806-80T Brushless Gimbal Motor 12N14P

500pcs Maytech 1806-80T Brushless Gimbal Motor 12N14P for Mobius action cam or topcam

Model No.: MTGBM1806-80T

Turns: 80

Copper Size: 0.12mm

Configuration: 12S14P

Stator Size: φ18x6mm

Motor Size: φ23x16.5mm

Net Weight: 20g/pcs

KV: 70

No-load current: 0.015A

Internal Resistance: 20mΩ

Application: Mobius action cam or topcam

Stock Notification:

The motor is not stock item, MOQ is 500pcs, lead time is about 25-35 working days after order confirmed.

Cable, shaft, connectors, logo, etc can be customized, please contact us if you need to customize.

Maytech brushless motor, all parts are made of a high-precision CNC machining center, and all surfaces are made with oxidation treatment. High temperature and high purity oxygen-free copper wires were used. The motors use high-grade magnets and 0.2 mm lamination to improve efficiency.

Product description

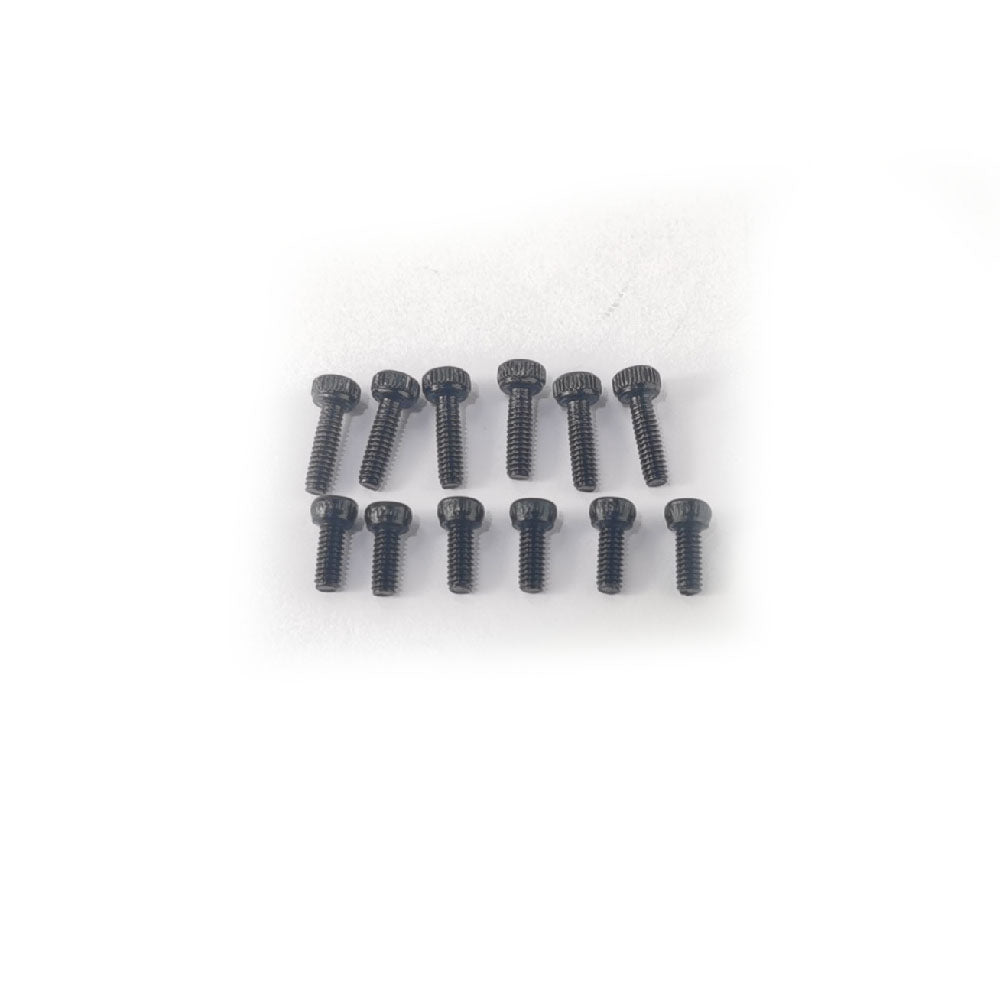

1. Mount your motor with the included screws tightly on your front cover of model.

2. Our motors provide high efficiency stator design.

3. Small size, lightweight and long life.

ATTENTION

1. Please make sure your motor has enough cooling while running.

2. Our motors providing best performance with the recommended propeller size. If you consider changing the propeller size, pls be aware that motor beoverheat and damaged.

3. Keep motors away from moisture, dust, scrap and small items to avoid damages.

FAQ: What is the difference between Ghost and Sunshine series motors?

The difference is the motor wire direction. For Ghost motors, motor wires and shafts at the same direction. Sunshine series different direction

We welcome OEM orders, KV value, motor color, logo all can be customized. Pls contact us agnes@maytech.cn for more details.
