Esurf / Boat Kit: Waterproof 120116 Motor 18.8KW 500A Waterproof ESC MTSKR26WF Remote Water Pump
Esurf / Boat Kit: Waterproof 120116 Motor 18.8KW 500A Waterproof ESC MTSKR26WF Remote Water Pump
Couldn't load pickup availability
Esurf / Boat Kit: Waterproof 120116 Motor 18.8KW 500A Waterproof ESC MTSKR26WF Remote Water Pump
Display parameters correctly, please follow:

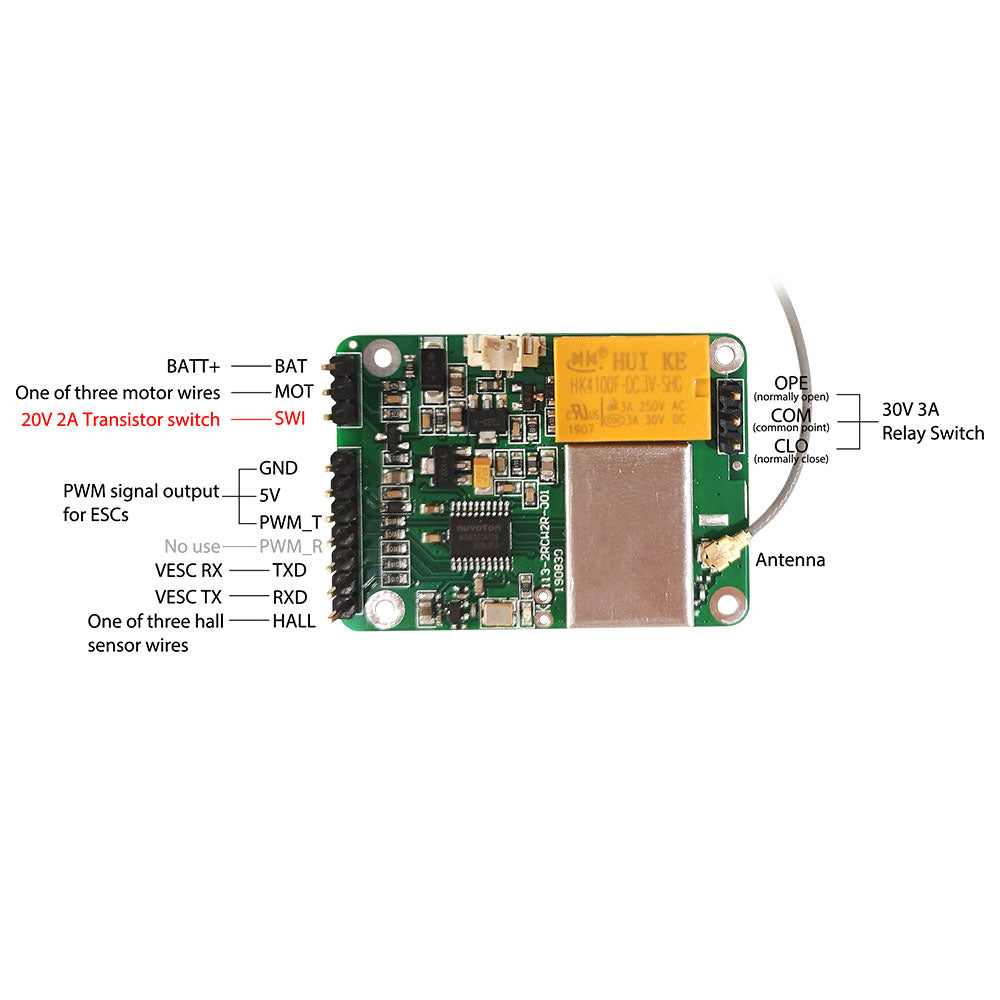

Connect your main battery + to Receiver "BAT" can display battery power bars and voltage %.
Connect one of 3 motor wires to Receiver "MOT" can display RPM
Settings in remote and Wiring for this kit:
| 1)Thr Mode: | Surfboard |
| --5) and 6) Batt Type and Batt Ser Num | Please set according to your battery. |
| 9) Data Source | MOT |
| 10) M.Pole Pairs | Motor pole pairs (motor magents/2) (120116 motor is 5pairs) |

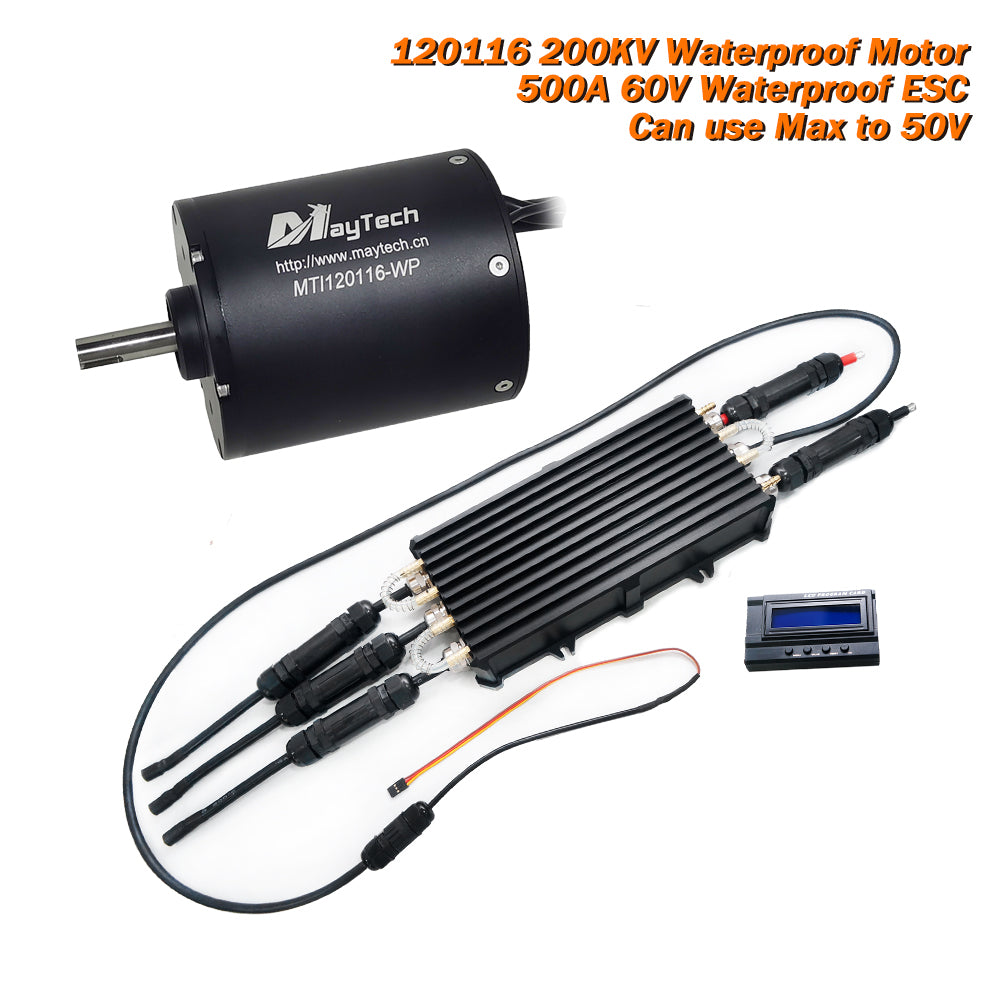

In this kit, the ESC can use max voltage is 14S Lipo (58.8V)
And motor can withstand max about 10000 RPM, so if use 200KV, please use voltage under 50V.

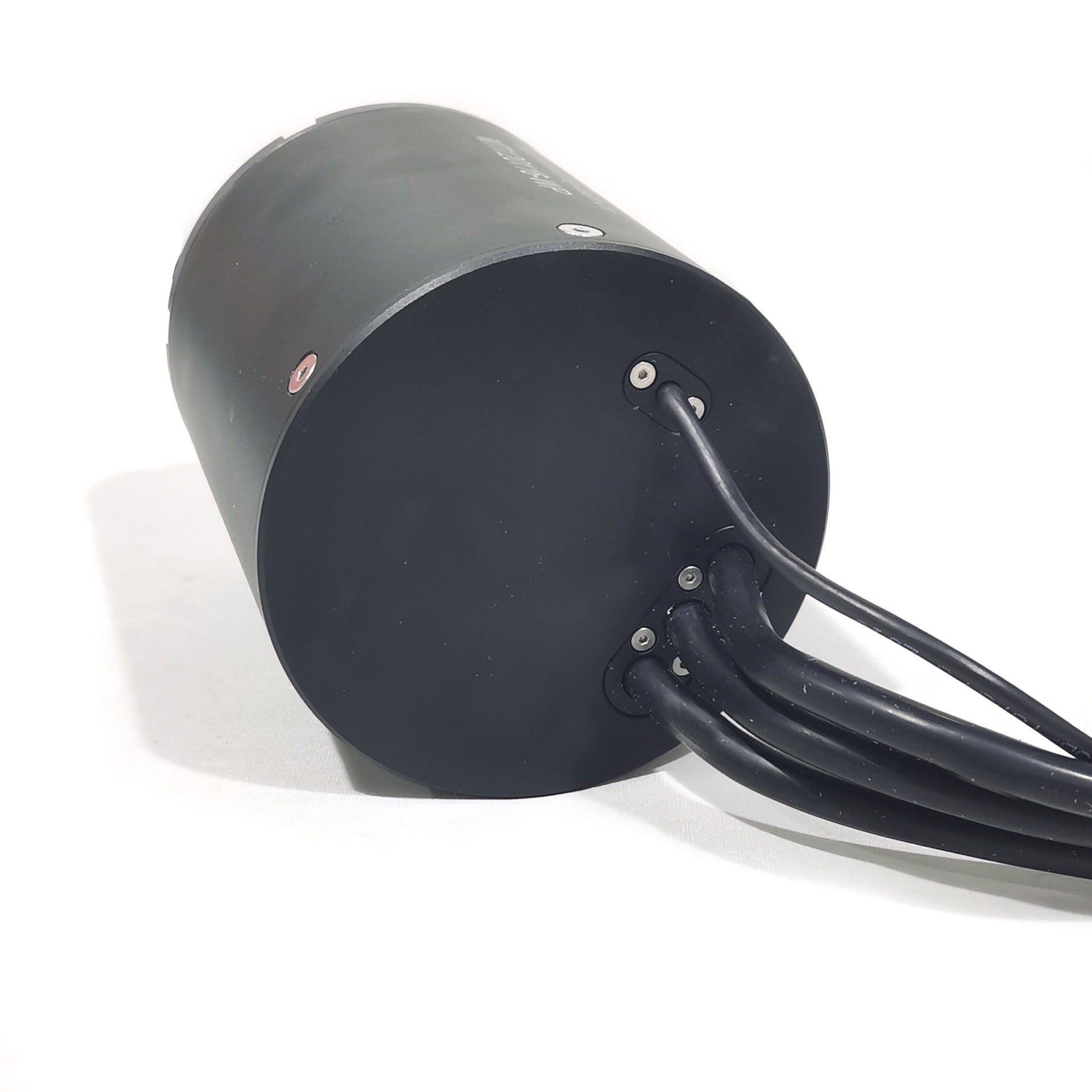

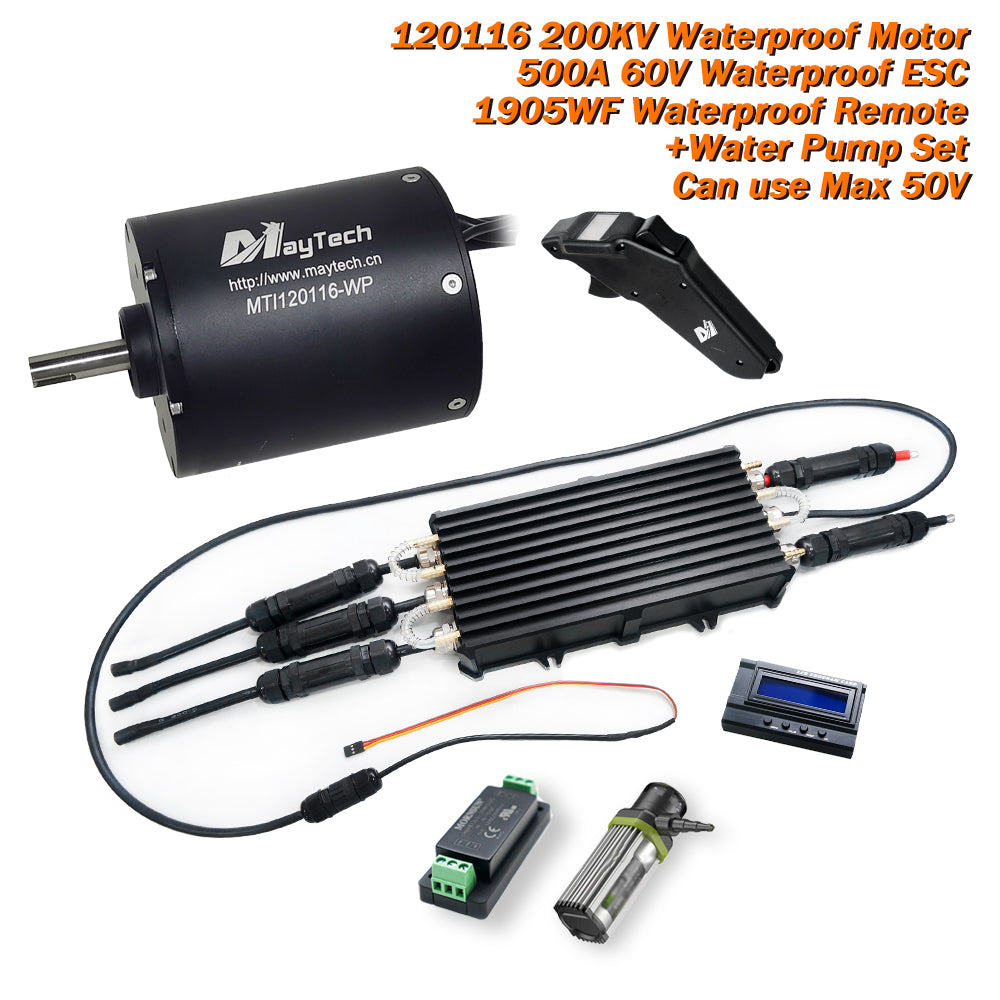

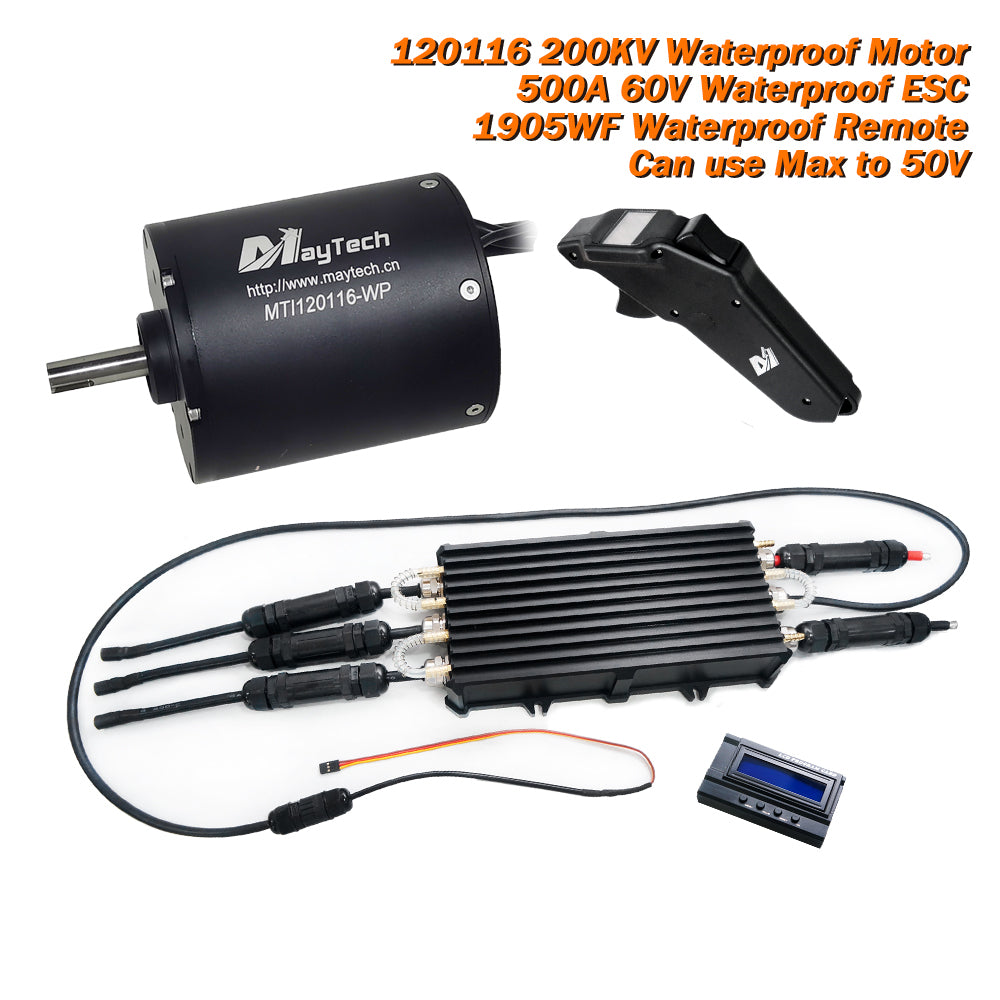

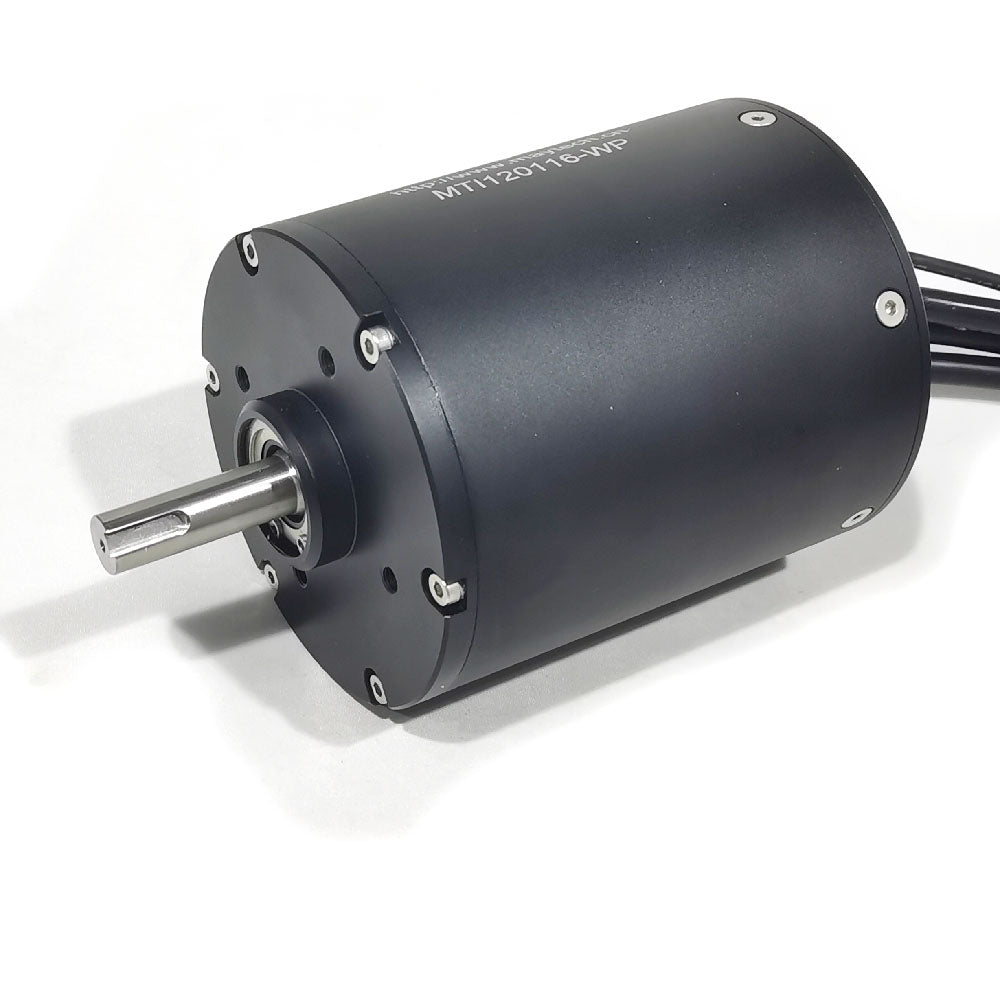

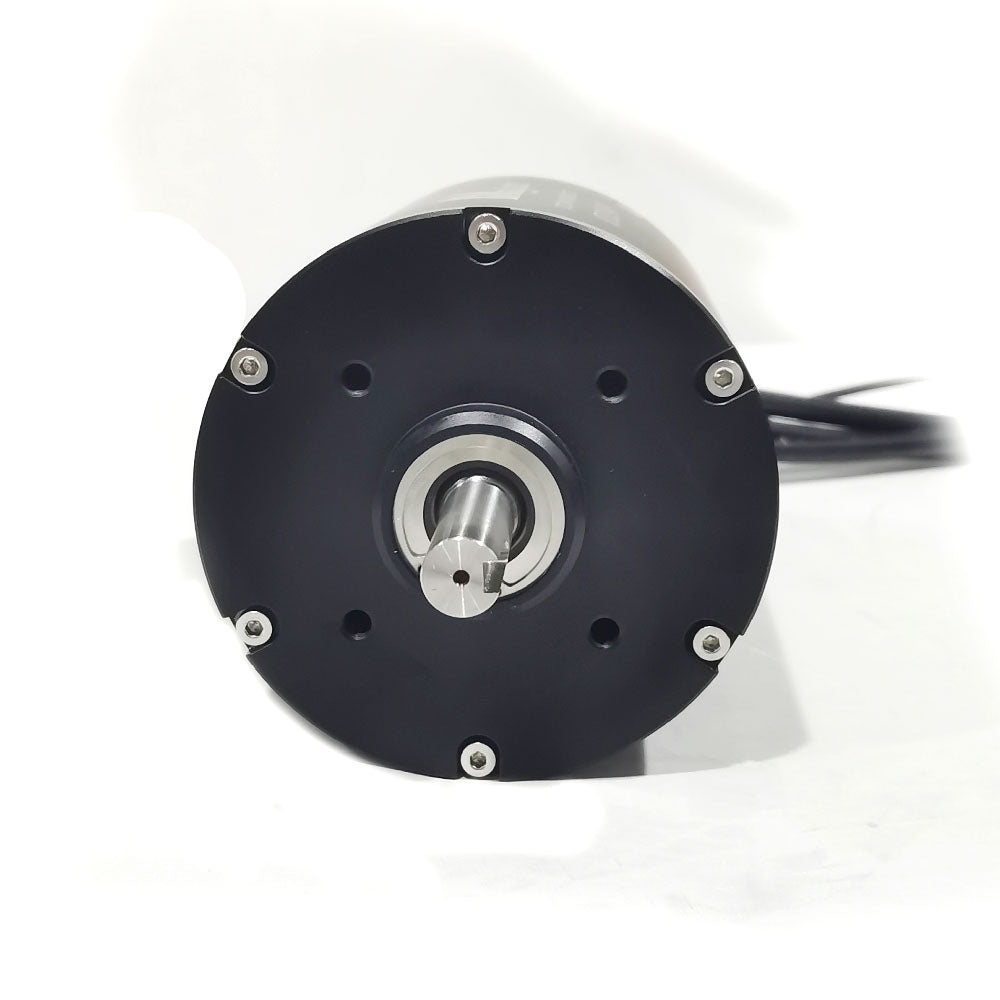

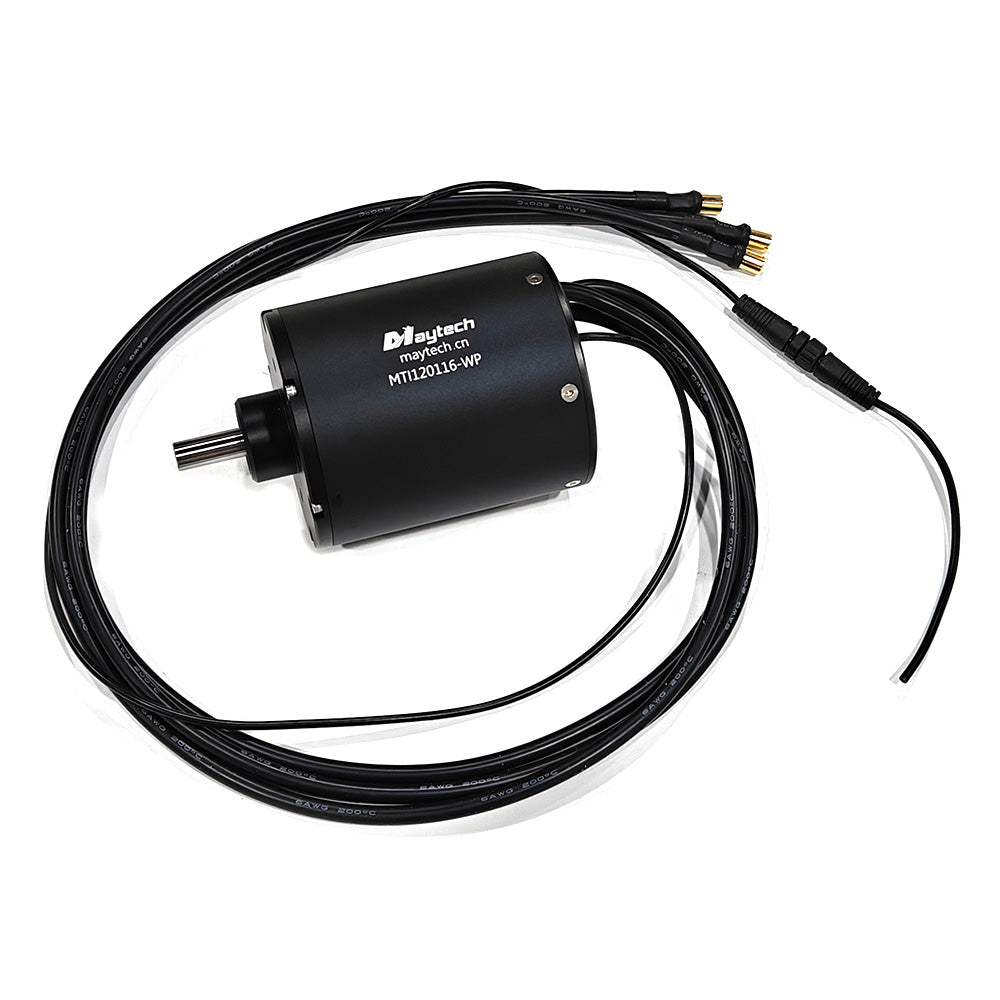

-Motor: MTI12016-WP Waterproof Sensorless Inrunner BLDC Motor

100KV Test Datasheet:

-ESC: MTSF500A-WP Waterproof & Watercooled 300A ESC Speed Controller, with Internal DC-DC Module (Convert from 18-75V to 5V, power for receiver)

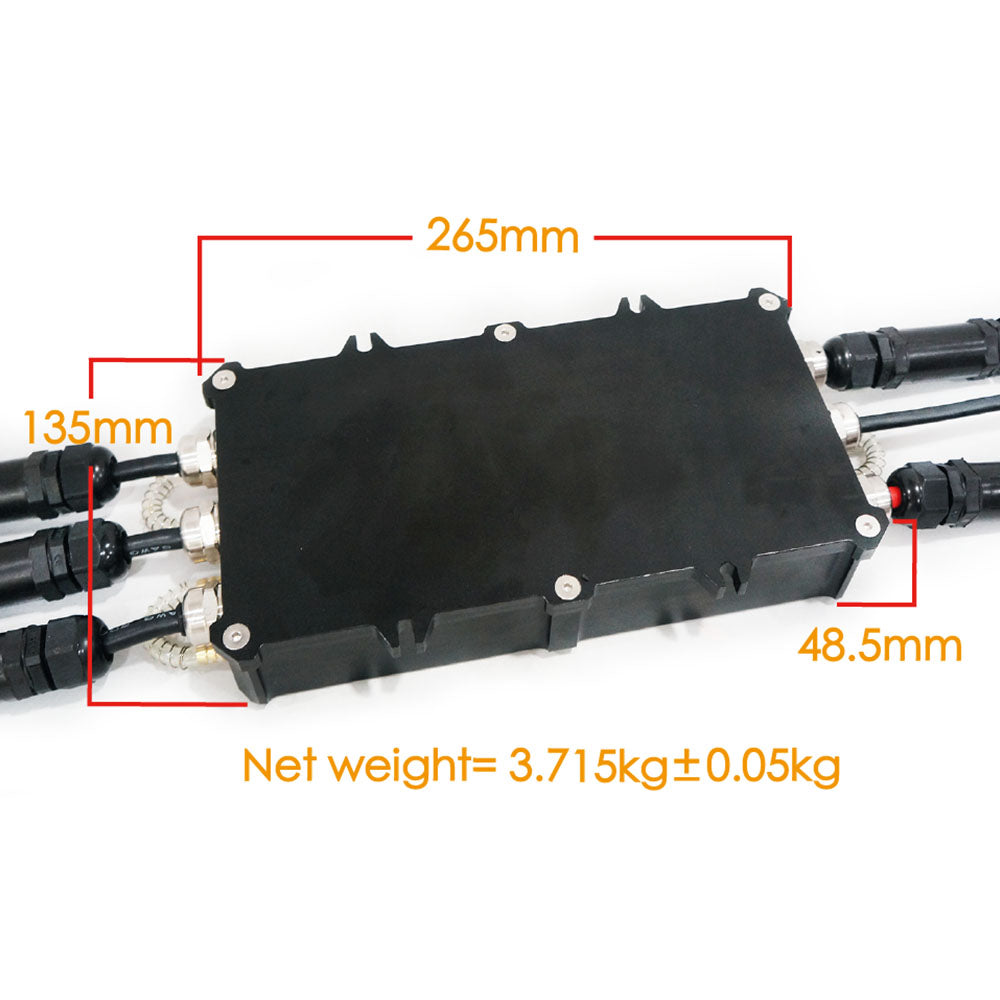

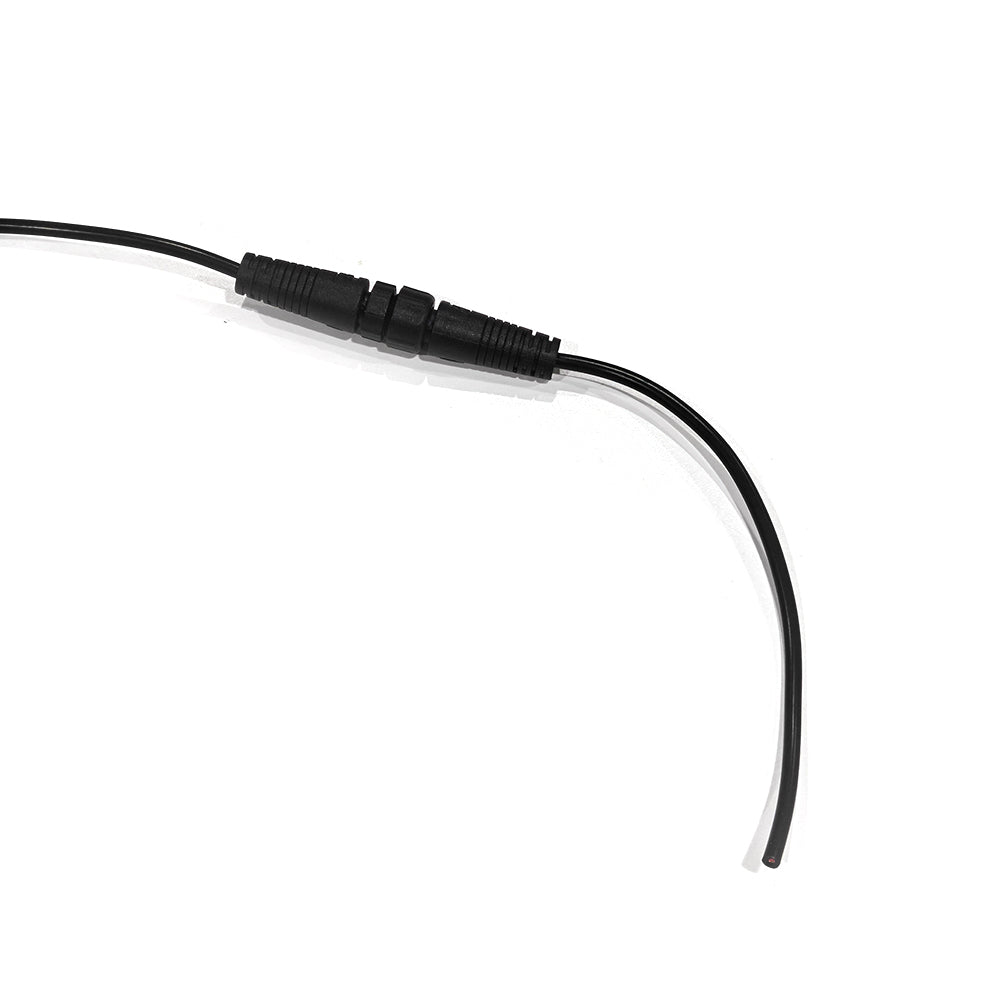

Please note: ESC has been upgraded with a waterproof junction box as beow picture:




- Can I put the ESC underwater directly? Is it ok to work in sea water?
--Yes, the ESC is with waterproof case, you can put underwater directly, it can use work in sea water, but because sea water has corrosion, to expand the ESC lifespan, please use fresh water to clean the sea water on the surface, and put the ESC for all dry for next time use.
- I don't want to put the ESC underwater directly, what should I do?

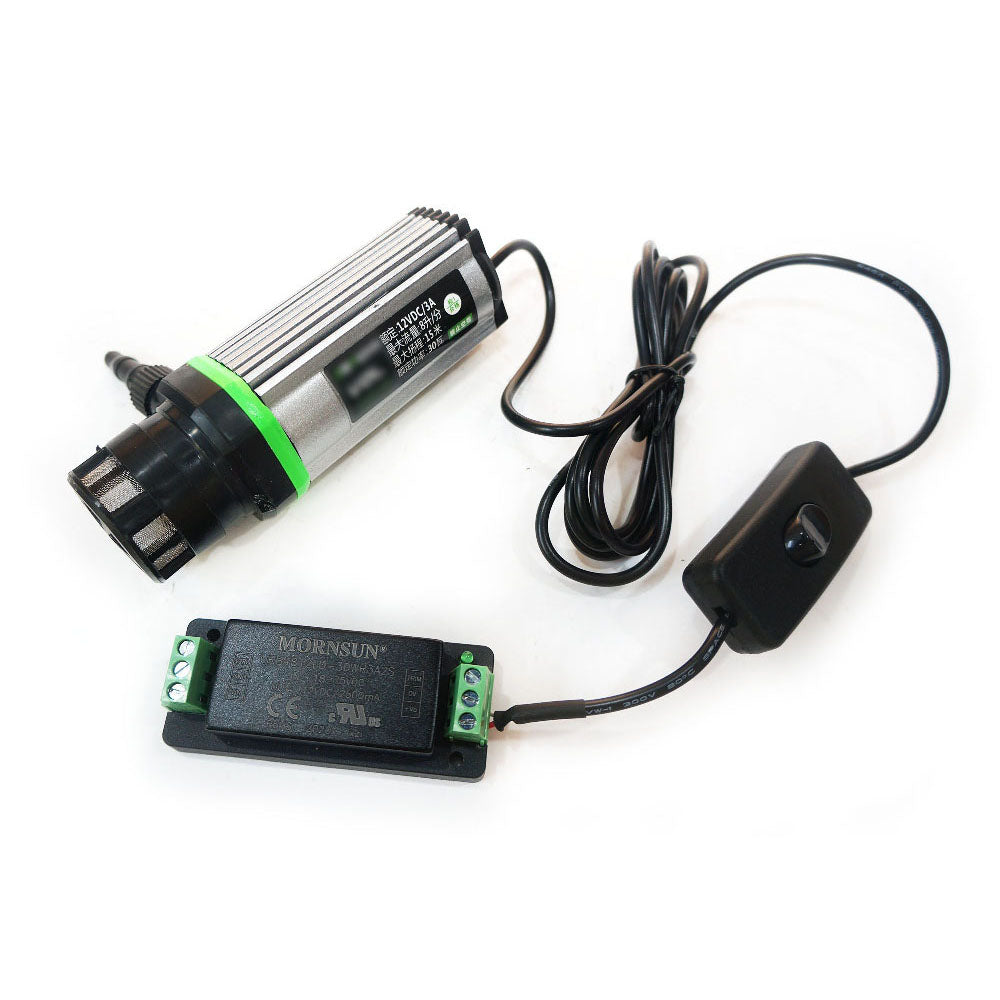

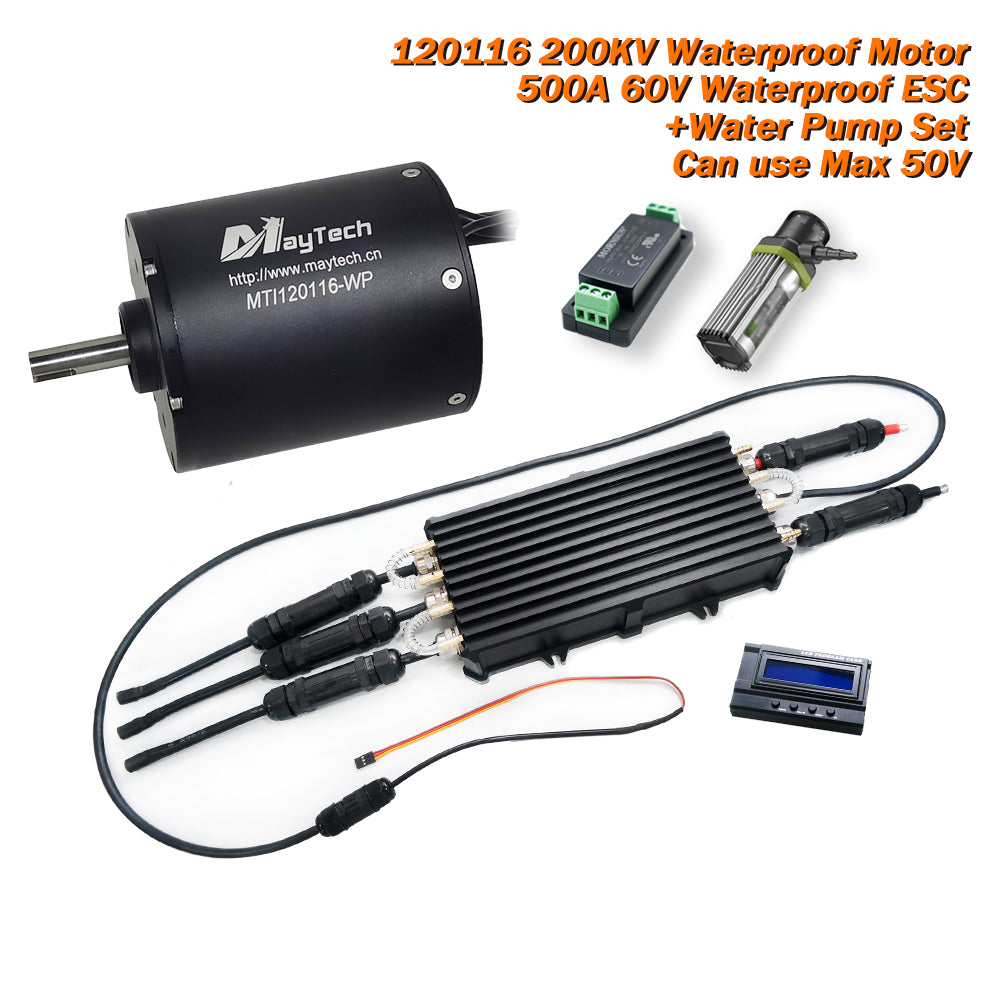

--If you don't want to put the ESC underwater, don't worry, it's also watercooled, you just need to connect a water pump to cooling the ESC, and if so, please order the kit with 2 sets water pump, each motor pump can only cool for 1 item, in this kit the motor is watercooled also needs water pump for cooling.

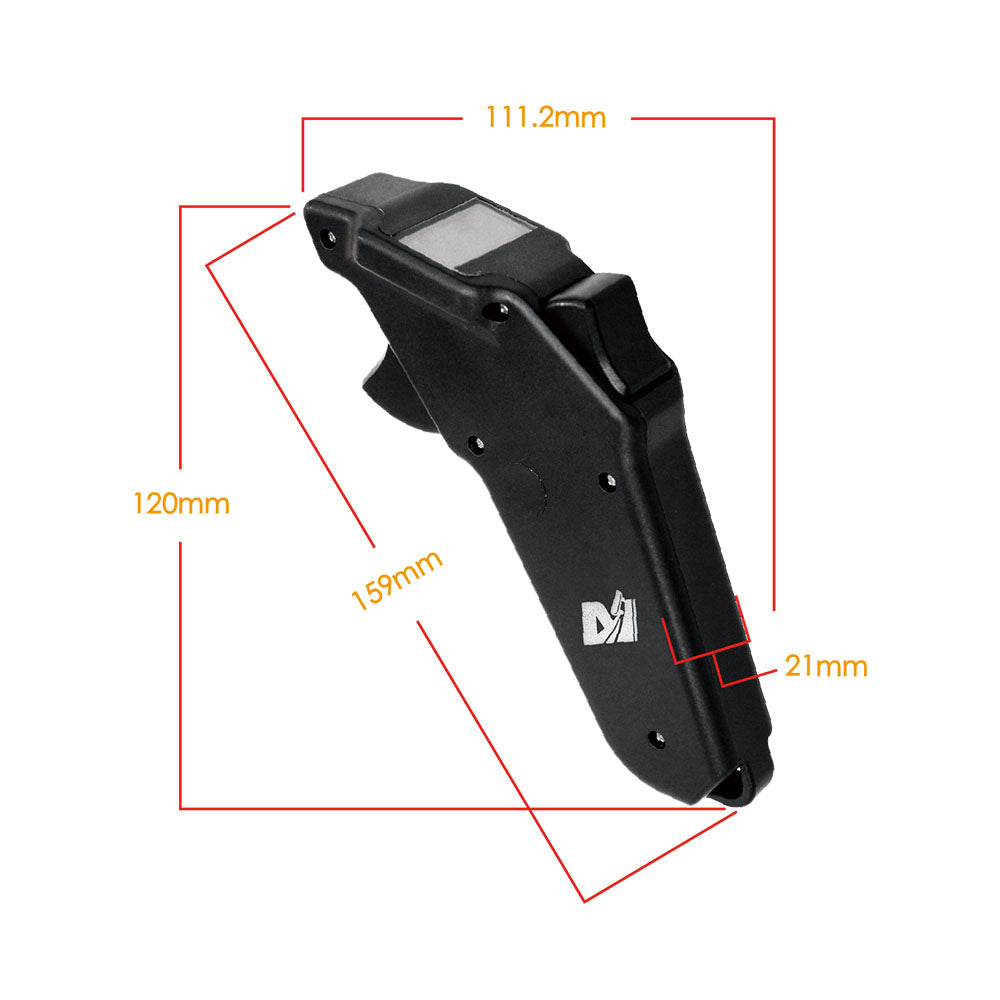

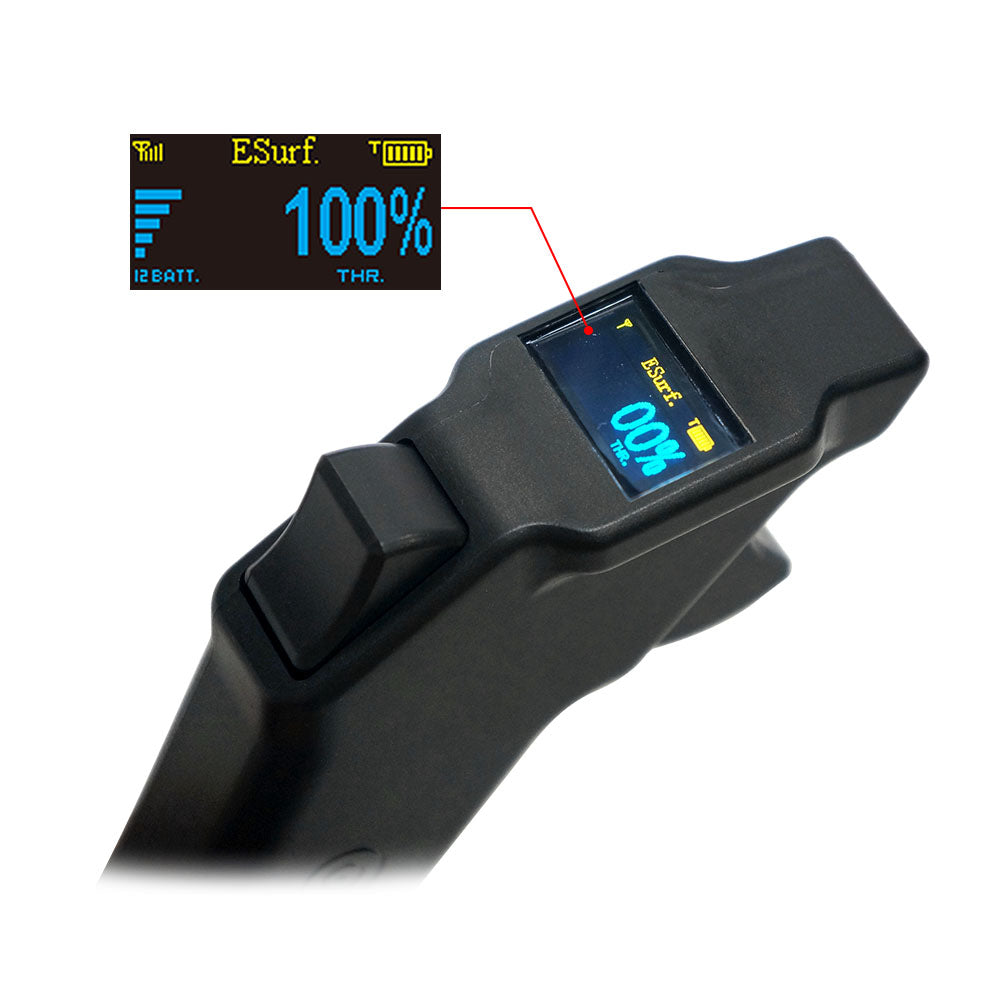

-Remote: MTSKR26WF V5.0 Waterproof Remote for Esurf, with PWM & UART Receiver
| Model No | MTSKR26WF V5.0 |
| Updated Functions |
Equipped with GPS (GPS Speed, Distance, Max Speed, Average Speed) Equipped with Tilted protection (IMU tilt sensor), protection angle can be adjusted to 30°/45°/60° tilt degree of your board in case of flipping over, separation of the rider from the board, or an accidental fall. |
| Waterproof Rank | IP68 Waterproof with 2 Layers Nanometers Coating, both on PCB board and screen |
| Thr Mode | Esurfboard (SF) , with cruise control and ESK8 (SK), can control forward and reverse when use on marine applications |
| 3 Speed Modes | With, adjust throttle % from 20-100%, friendly for beginners |
| Power Modes | 2 levels, Eco (Level 1) & Pro (Level 2) optional Signal strength: Pro > ECO Power Consumption: PRO > ECO |
| Throttle Lock | Yes, 10-120S optional |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | In Esk8(SK) mode: 1.5ms is stop position, 1.5-1ms for brake or reverse (upper trigger), 1.5-2ms for throttle (bottom trigger) In Esurf(SF) mode: 1-2ms for throttle (bottom trigger), no brake or reverse |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display Parameters |
GPS Speed / Distance / Max Speed / Average Speed |
| Relay Switch | No, without Relay Switch on Receiver to save mounting space |
| Control Light | Yes (20V 2A Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake or Reverse | With in Esk8 Mode |

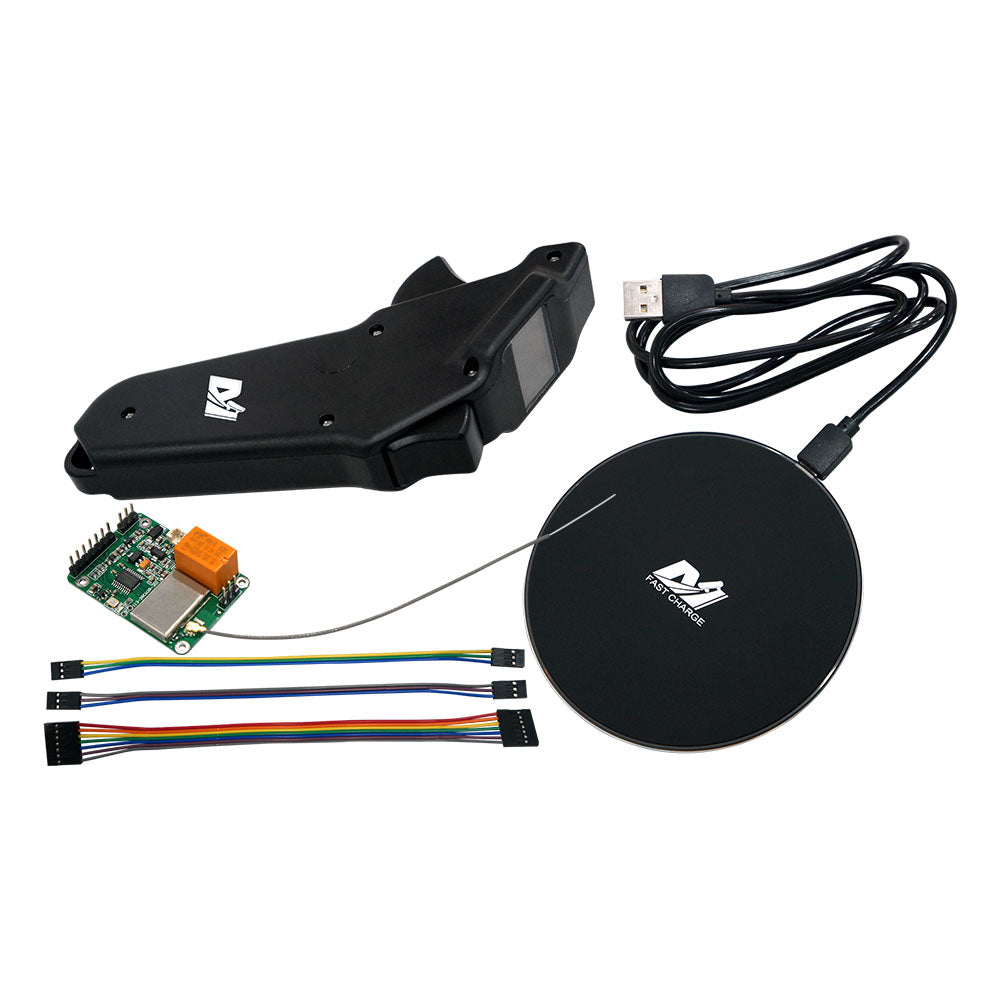

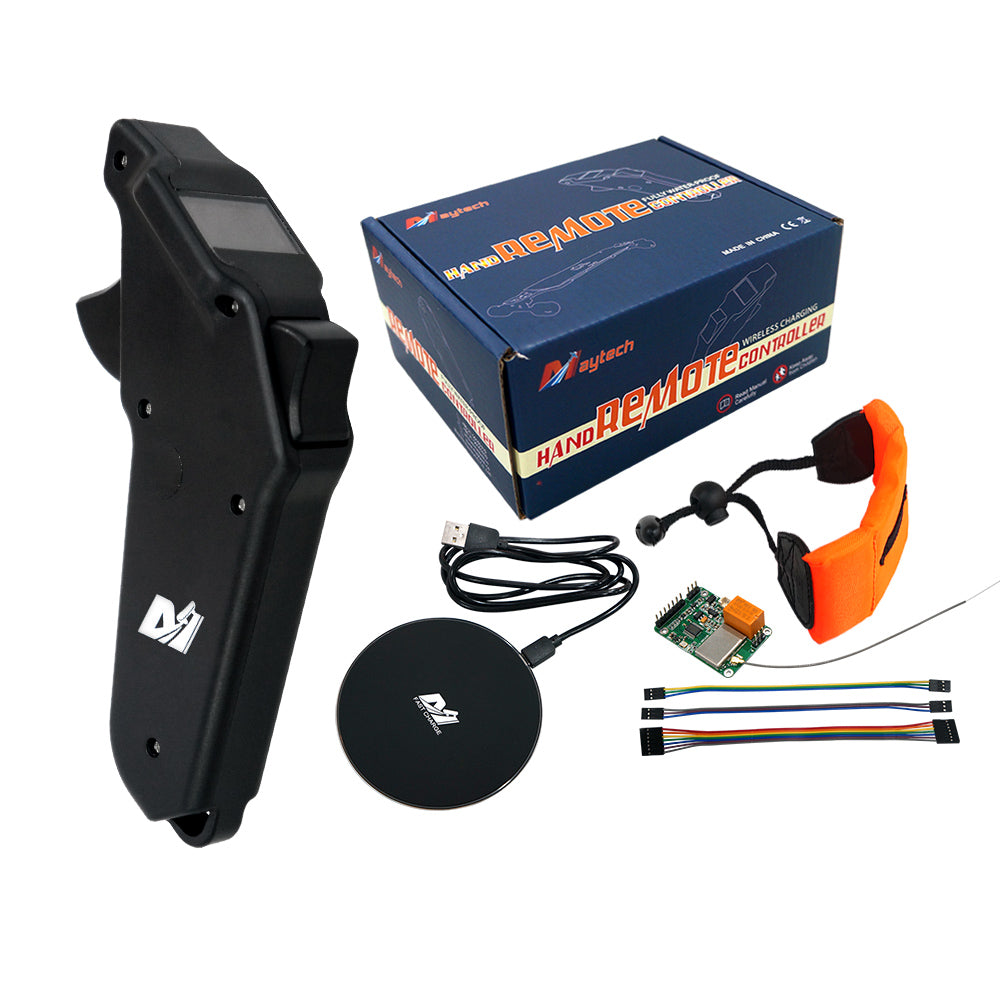

| Accessories | Wirelss charging pad / Receiver / USB cable / Wristband / 1pcs 3 pins cable / 1pcs UART cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
| Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |
Bench Test with 120116 Motor:
Related Products: Click the folloing picture to check more details:

Waterproof / Watercooled Esurf Kit with 18.8KW 120116 Motor + 300A ESC + MTSKR1905WF
