Maytech.cn

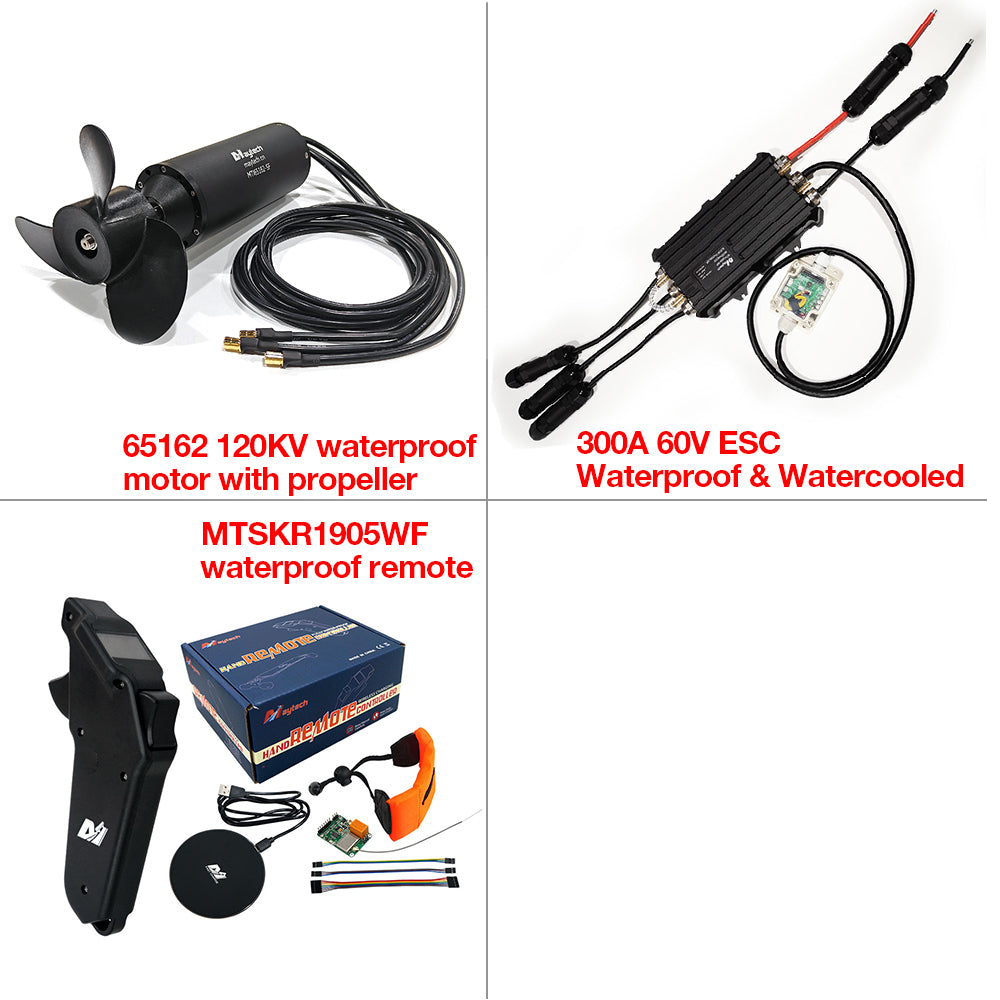

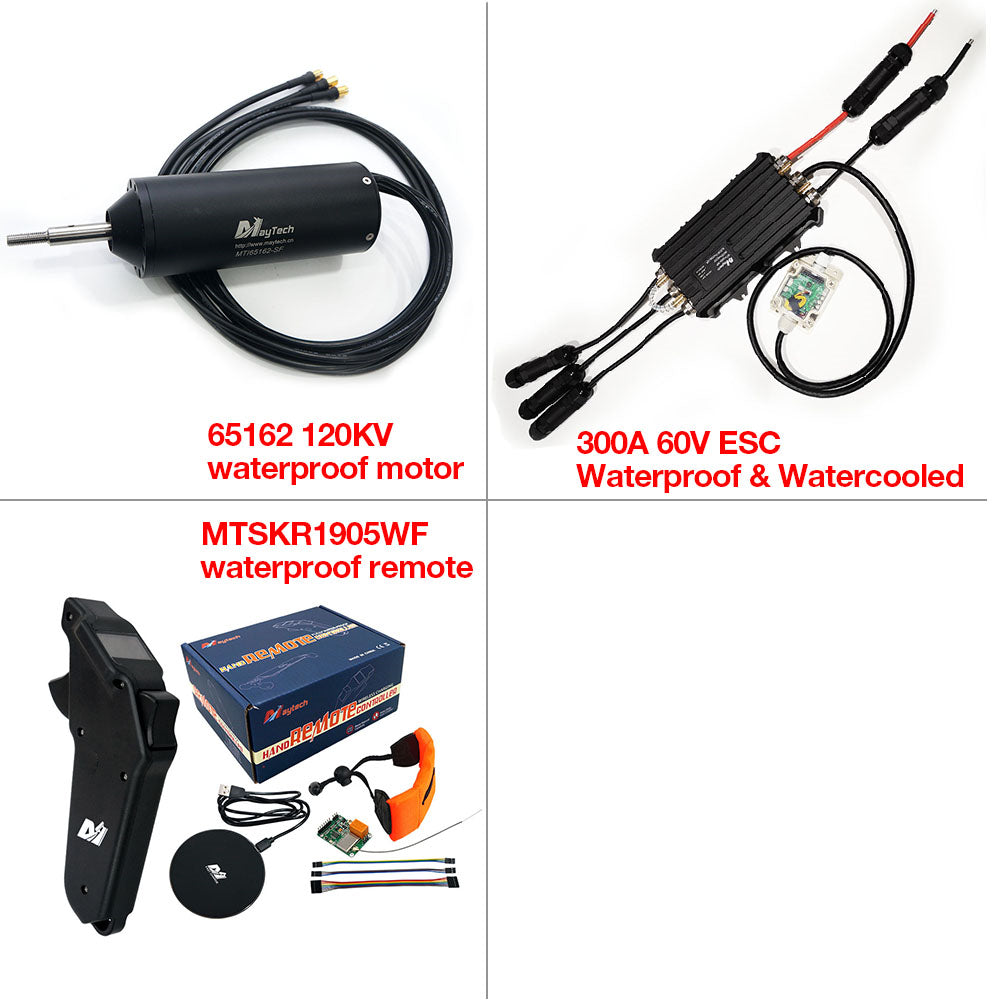

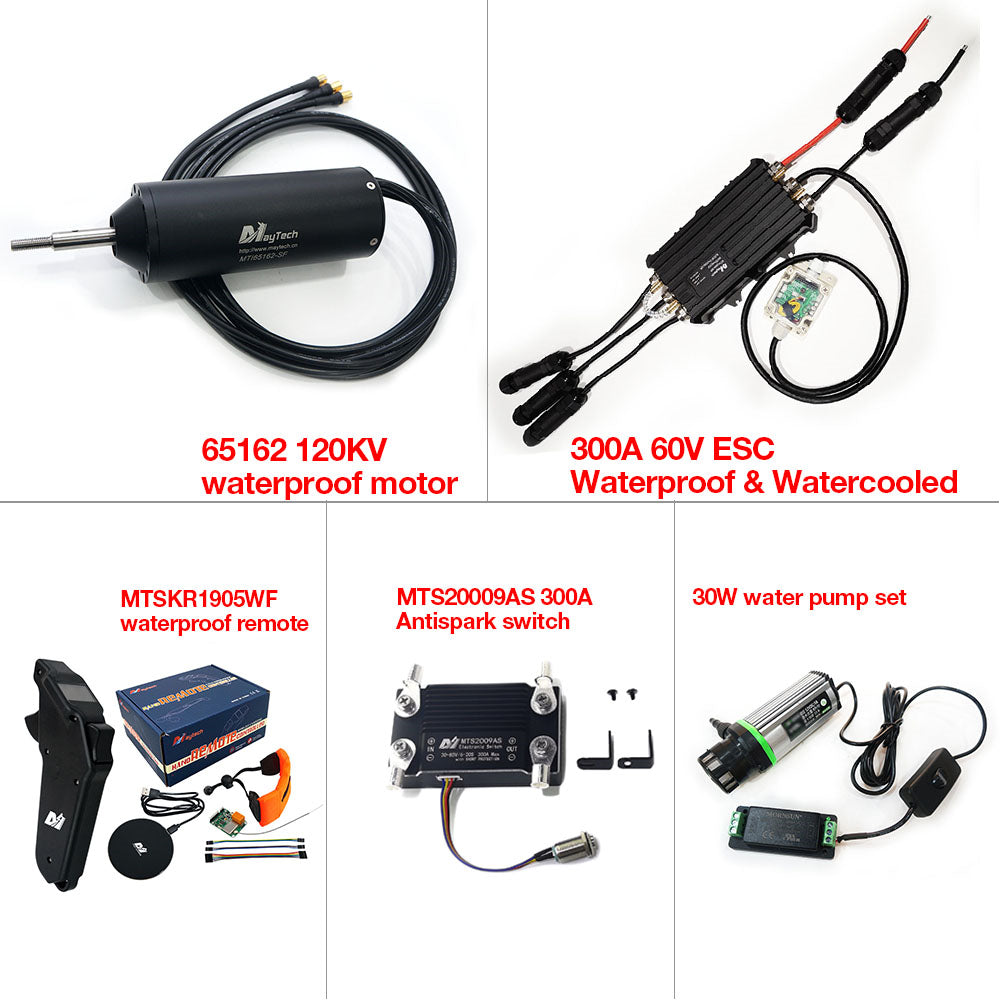

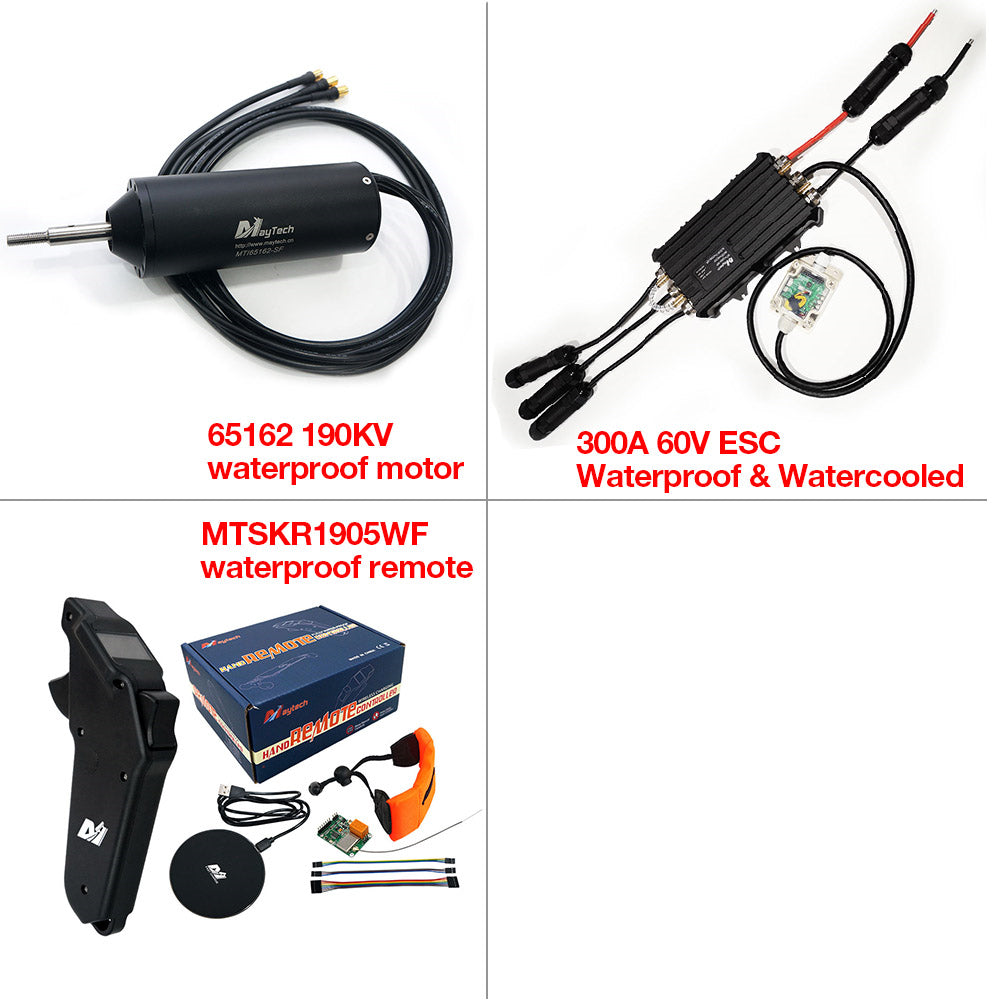

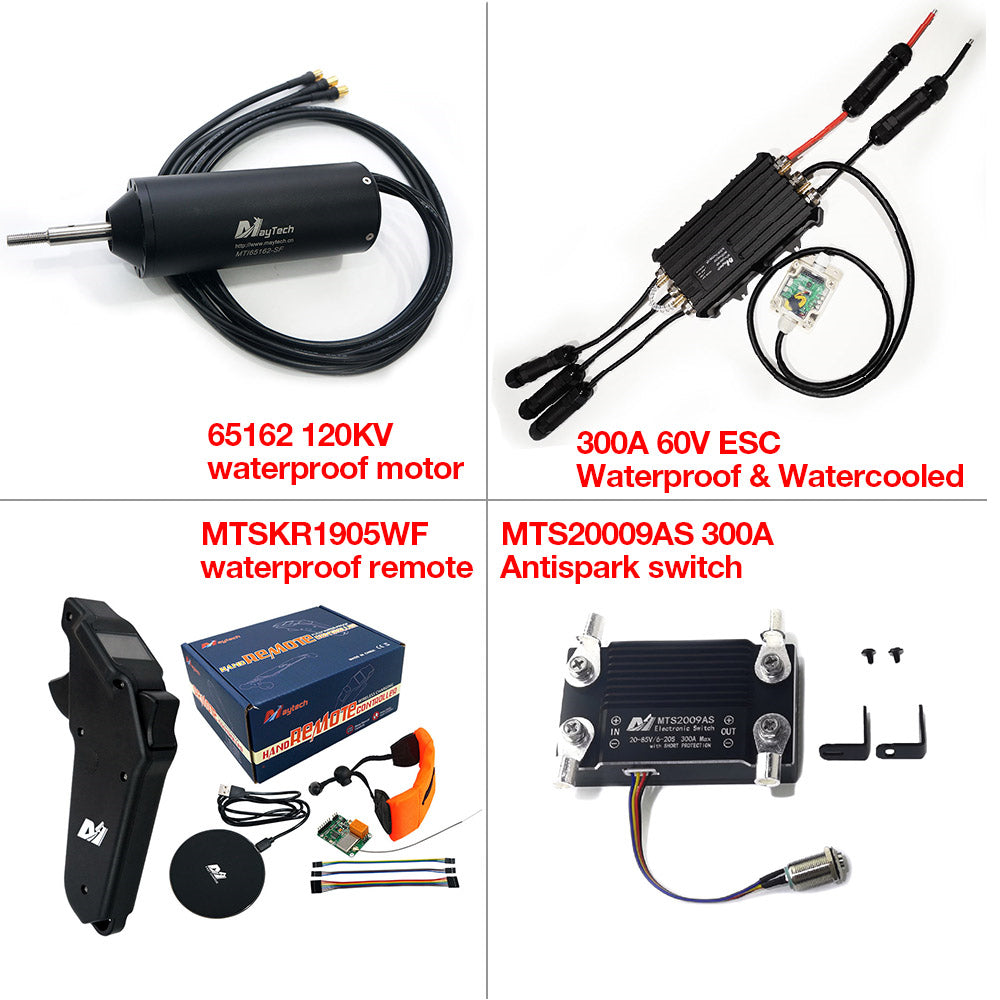

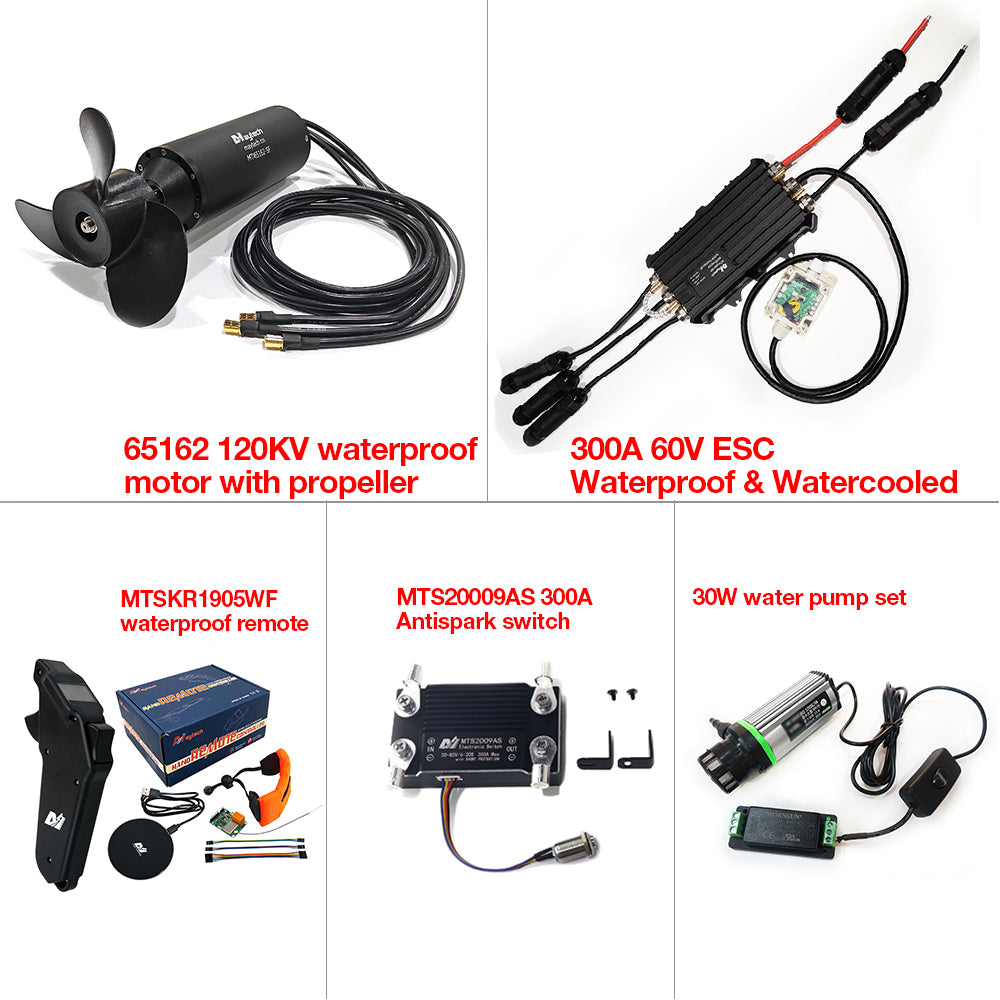

Fully Waterproof Efoil Kits with MTI65162 Motor + 300A ESC + 26WF Remote + MTS2009AS Switch + 12V 30W Water Pump

Fully Waterproof Efoil Kits with MTI65162 Motor + 300A ESC + 26WF Remote + MTS2009AS Switch + 12V 30W Water Pump

Regular price $1,373.80 USD
Regular price Sale price $1,373.80 USD
Sale Sold out
Shipping calculated at checkout.
KV
Water Pump
300A 80V Anti-Spark Switch

Maytech Fully Waterproof Efoil Kits with MTI65162 Motor + 300A ESC + 1905WF Remote + Progcard for Electric surfboard, Efoil, jetfoiler, electric hydrofoil, countercurrent swiming training, etc.,

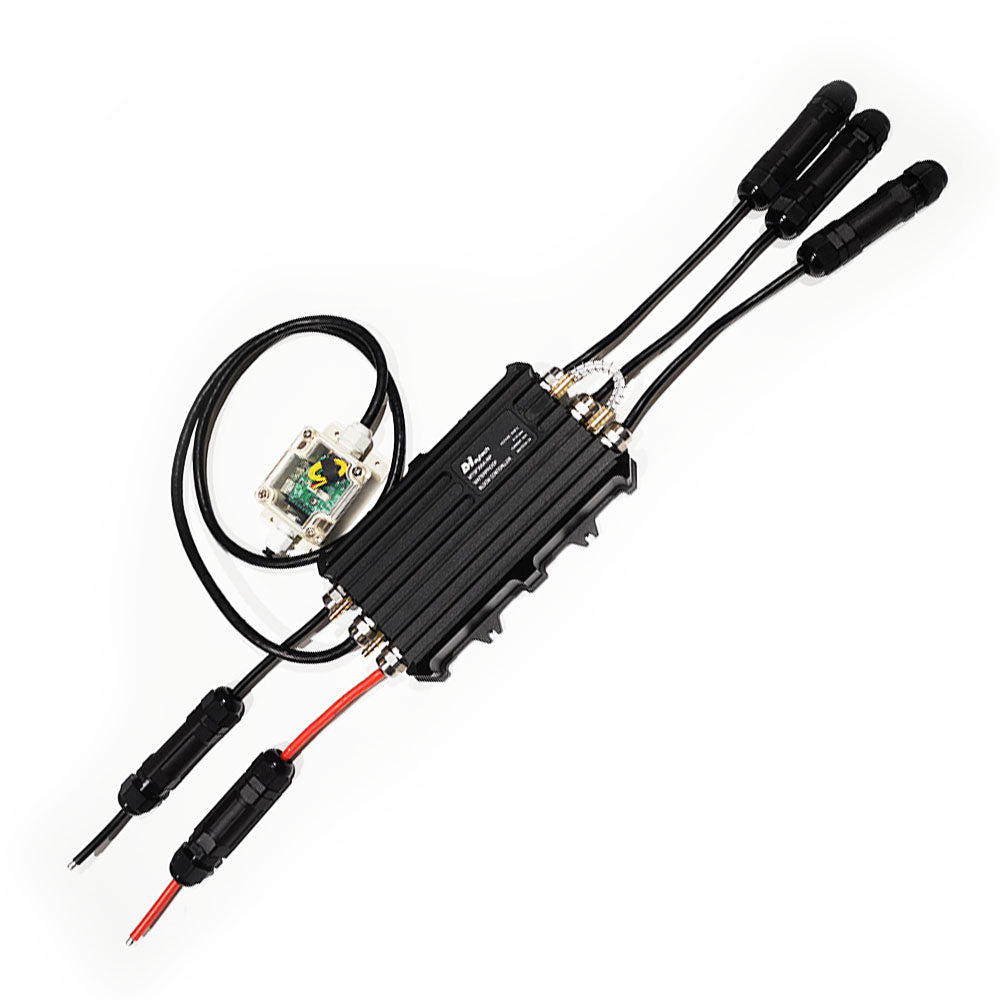

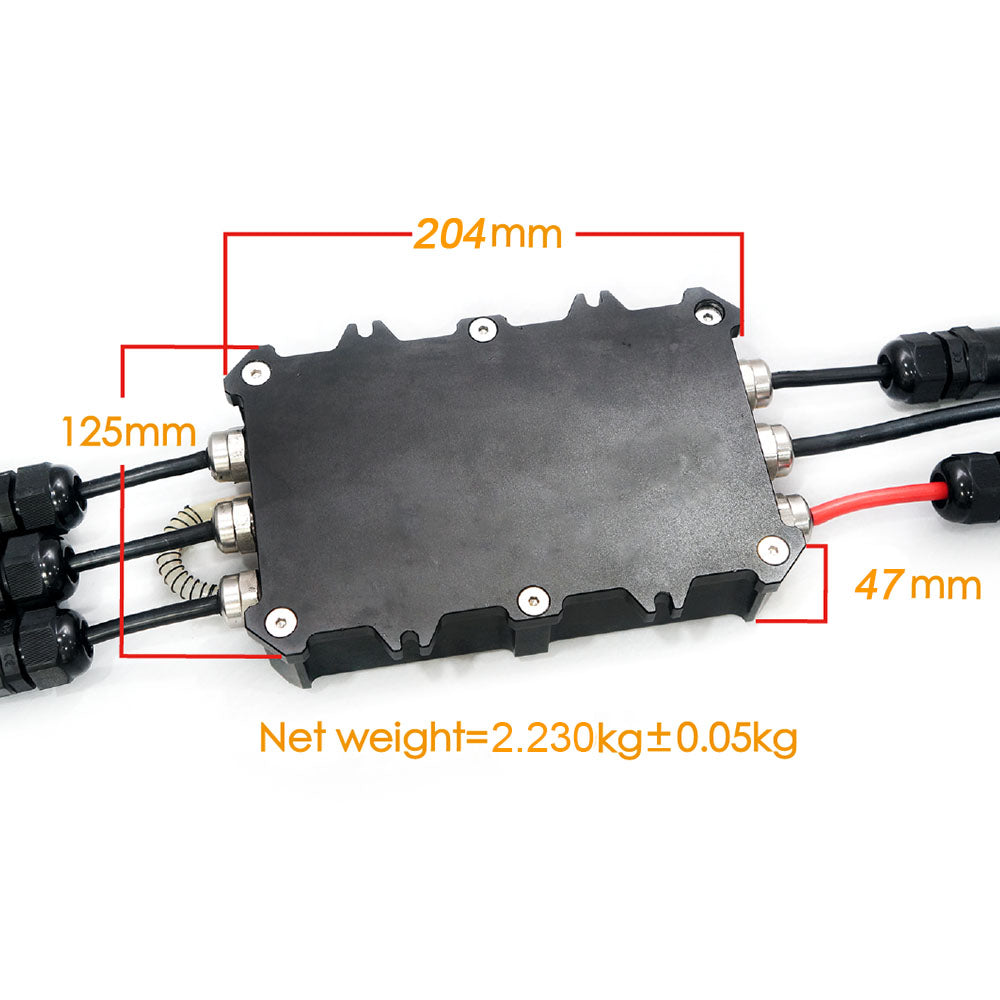

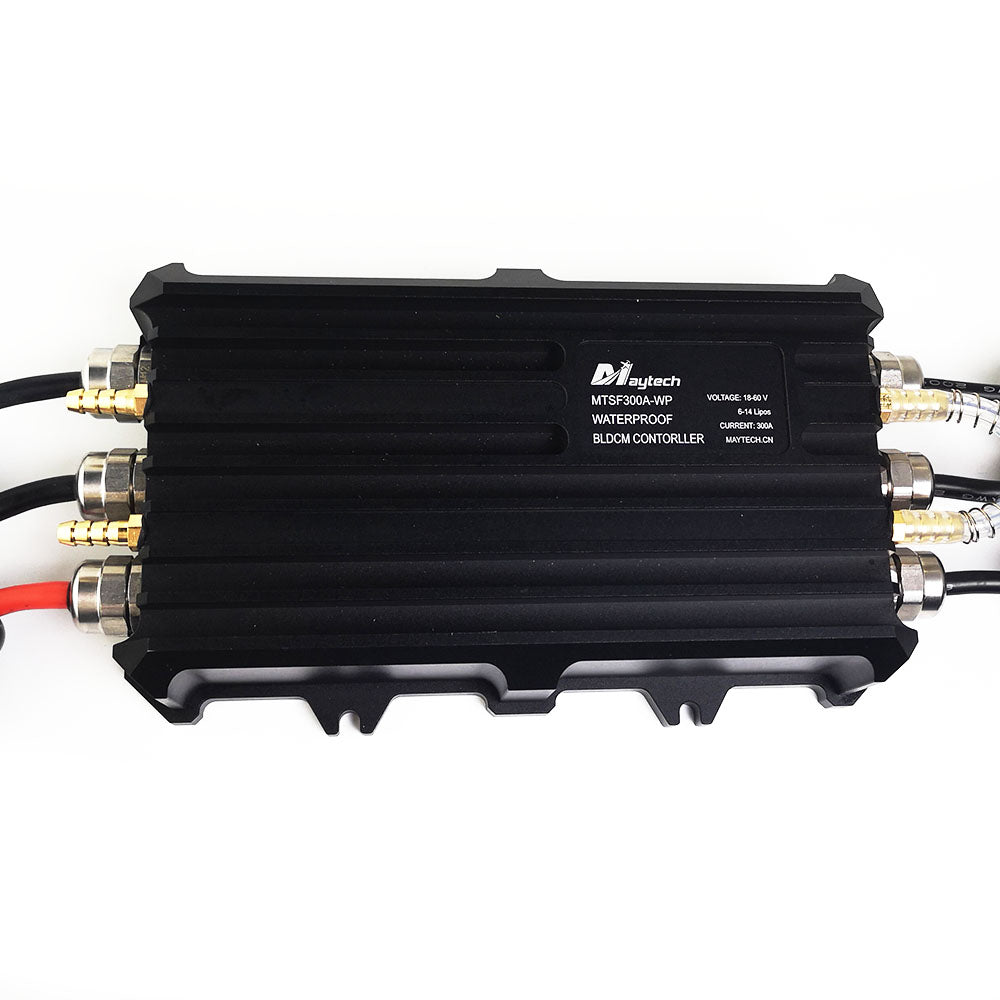

1. MTSF300A-WP ESC Upgrade Version:

Model No. MTSF300A-WP
Cont Current 300A
Peak Current 1000A
Watercooling With
Waterproof Rank IP68
Input Voltage 6-14S Lipo (25-58.8V)
Case Material Aluminum alloy
Signal Format PWM, 1ms-2ms
Connector 8.0mm female gold-plated bullet connector on 3 motor cables, on battery side without connector. With waterproof protector for connectors

Features:

  • Built in 75V to 5V and 75V to 12V UBEC DC-DC Module, 5V output is for receiver power supply, 12V output is for light and water pump, or other use.

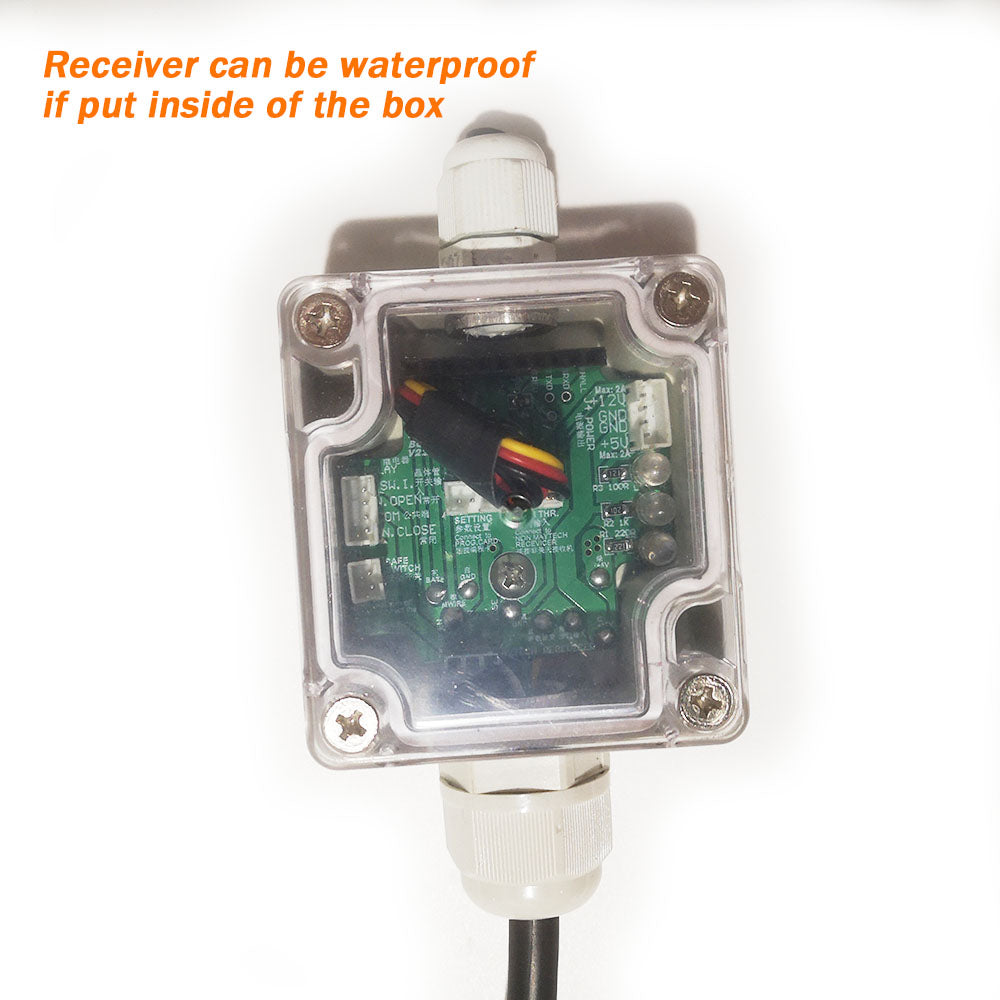

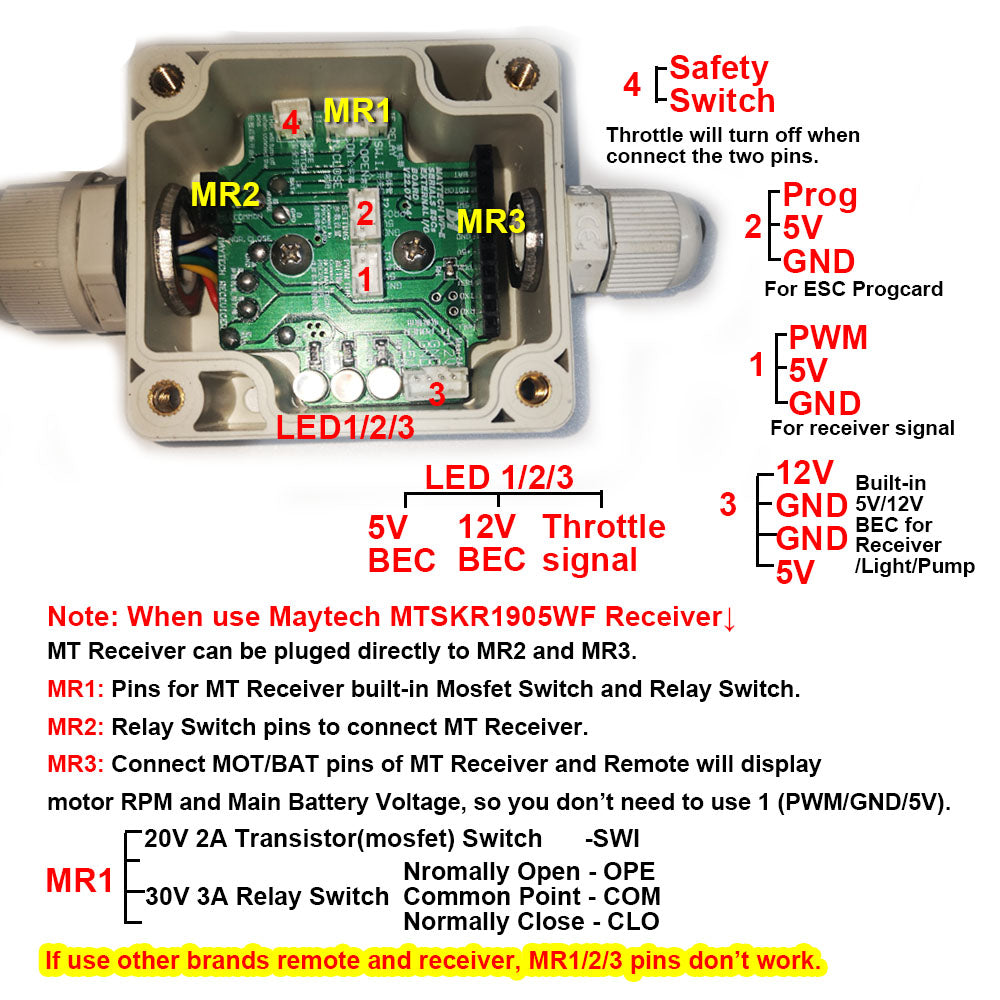

  • With waterproof junction box, all functions lead out and with pins in the box, and if you work with Maytech MTSKR1905WF remote, its receiver can be put inside of the box and directly plug in, easier to use and receiver can be waterproofed.

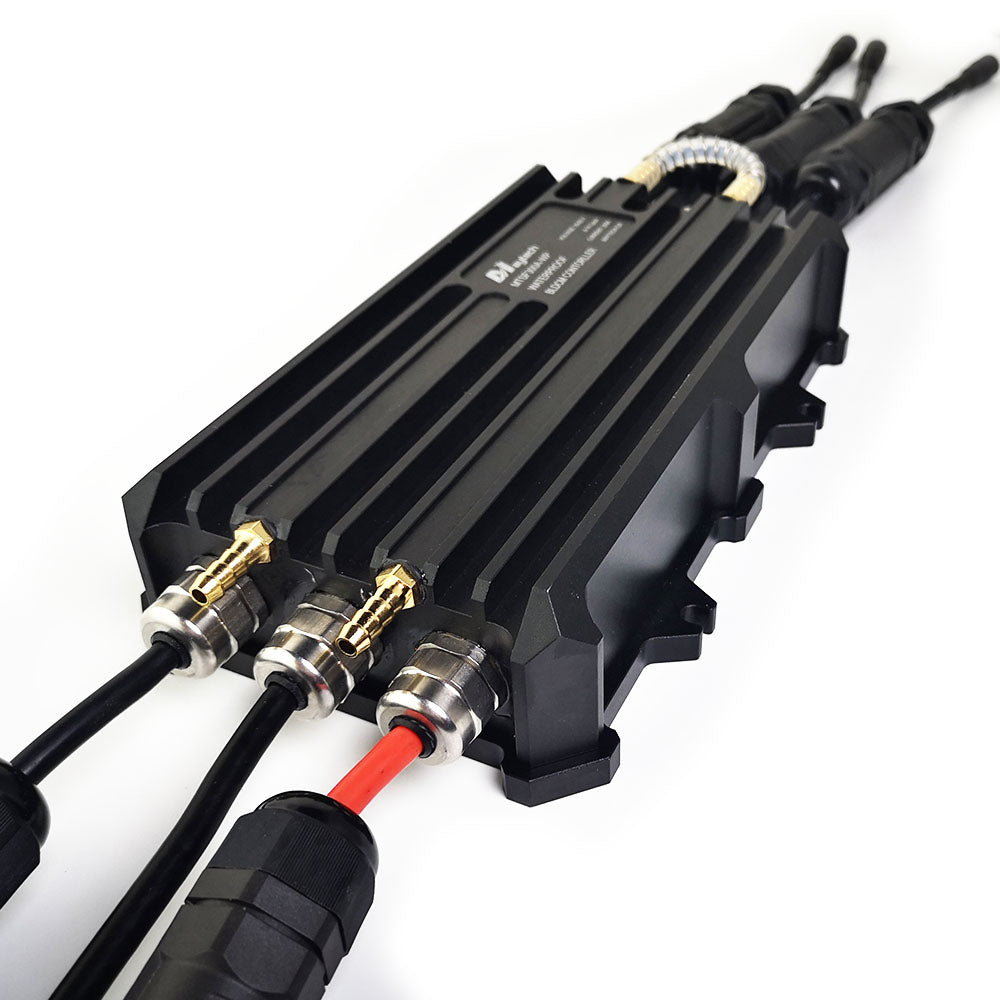

  • Both IP68 waterproof and watercooled, which means 2 cooling ways:
  • The case can work under seawater because of its IP68 waterproof      case; If you don't want to put it underwater, then just cool it with water pump through its cooling tubes.
Maytech 300A ESC waterproof speed controller for Efoil electric surfboard motorized boat powerful speed control with cooling tubeMaytech 300A ESC waterproof speed controller for Efoil electric surfboard motorized boat powerful speed control with cooling tube

efoil waterproof ESC 300A powerful electric speed controller waterproof motor controller with watercooling function for water sports electric surfboard jet board jetsurf underwater robots electric propulsion system



MTSF300A-WP programmable parameters, waterproof ESC, watercooled ESC, 300a esc

> Click to get Progcard Manual and Instruction:

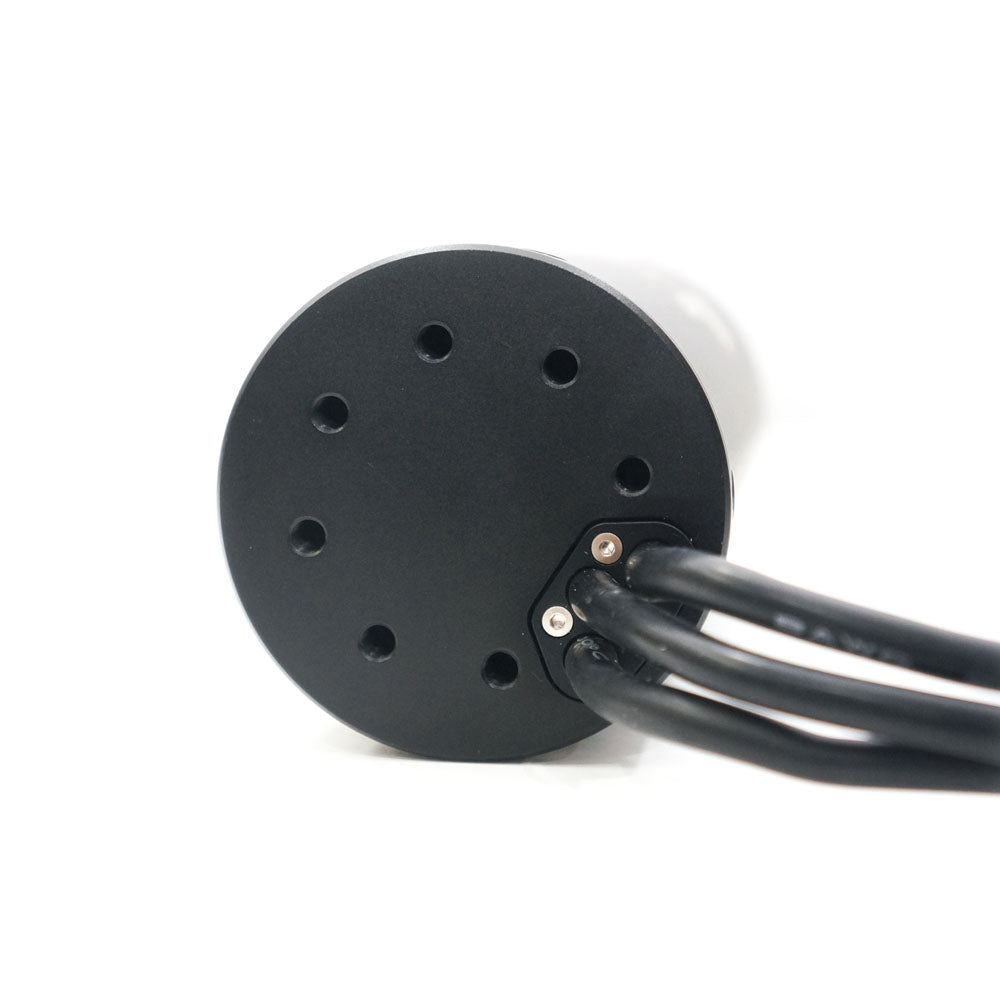

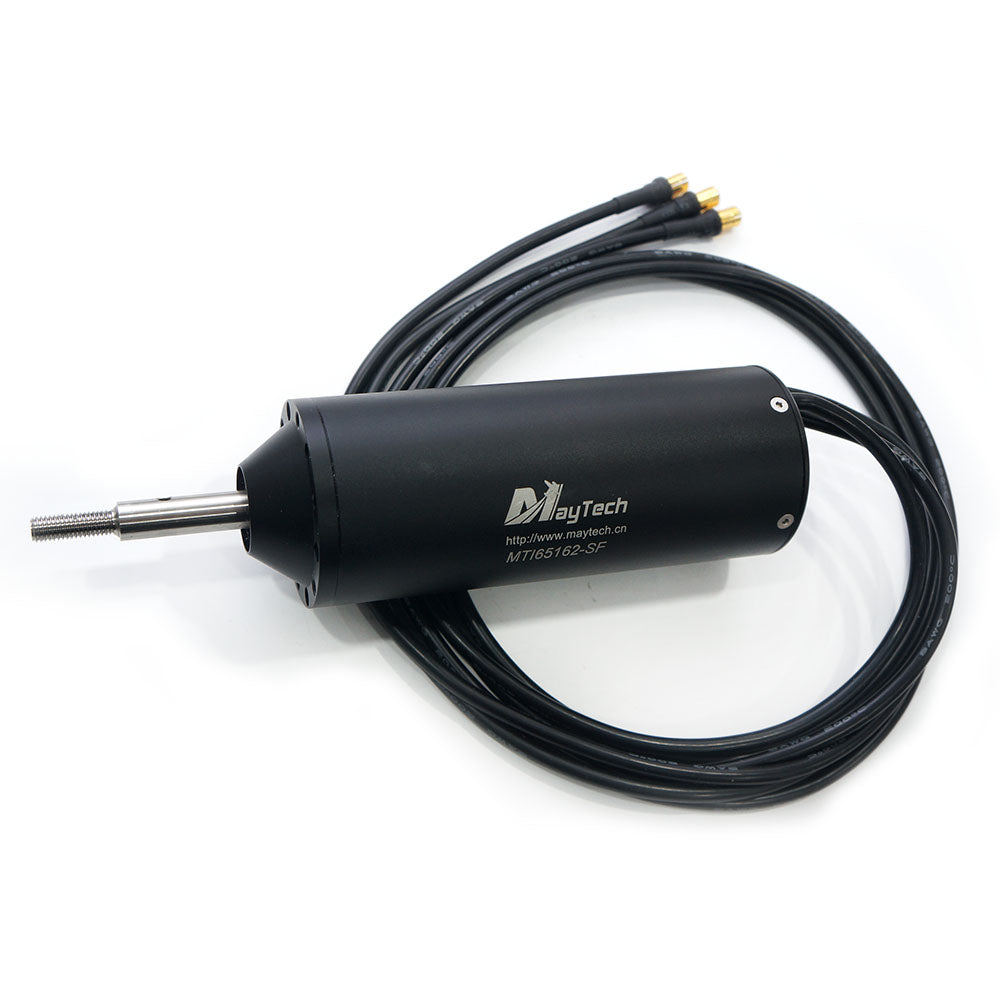

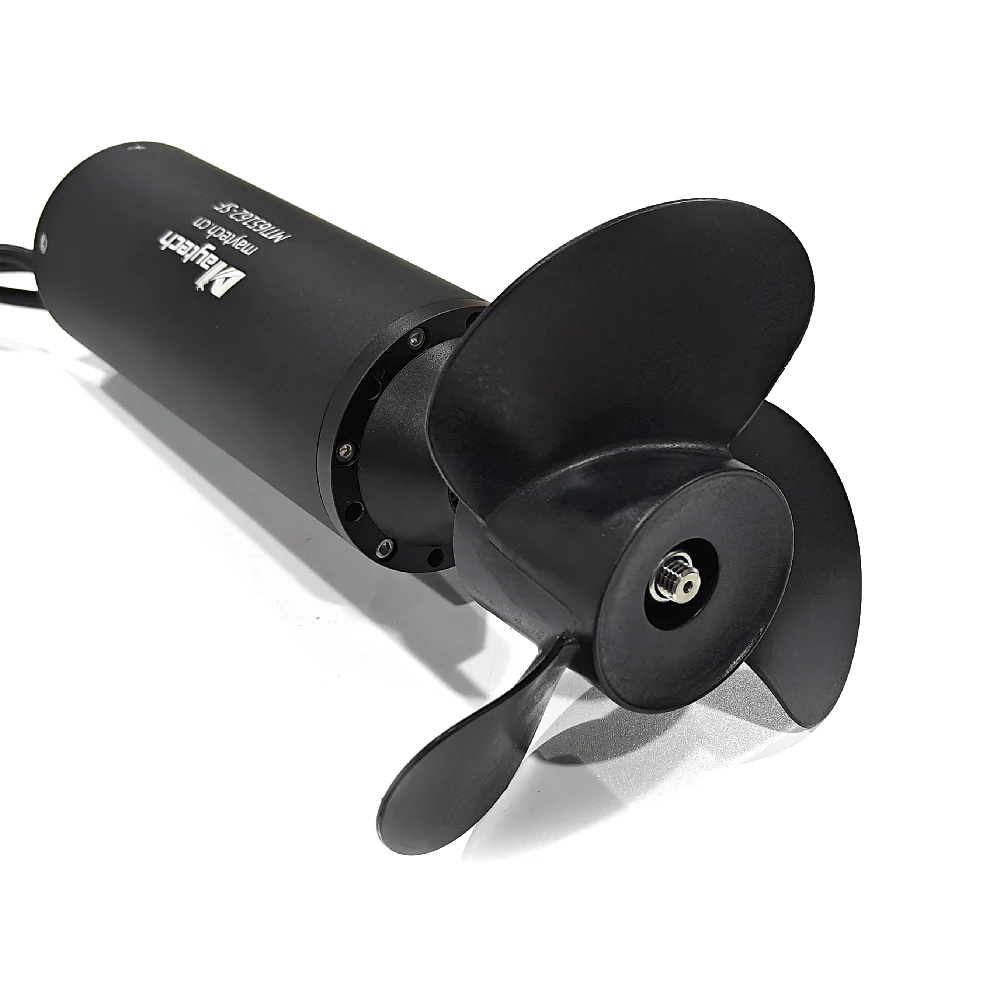

2. MTI65162 Inrunner Waterproof Motor

Model No. MTI65162-120-SF
KV 120, if you want other KV, contact eileen@maytech.cn
Shaft Screw Shaft
Input Voltage 6-14S Lipo (25V-58.8V)
Waterproof Rank IP68
Max Current 300A
Max Output Power 9KW
Pole Number 6 poles
Max Torque 10N.m
Connector 8.0mm male gold-plated bullet connector
Hall Sensor Without

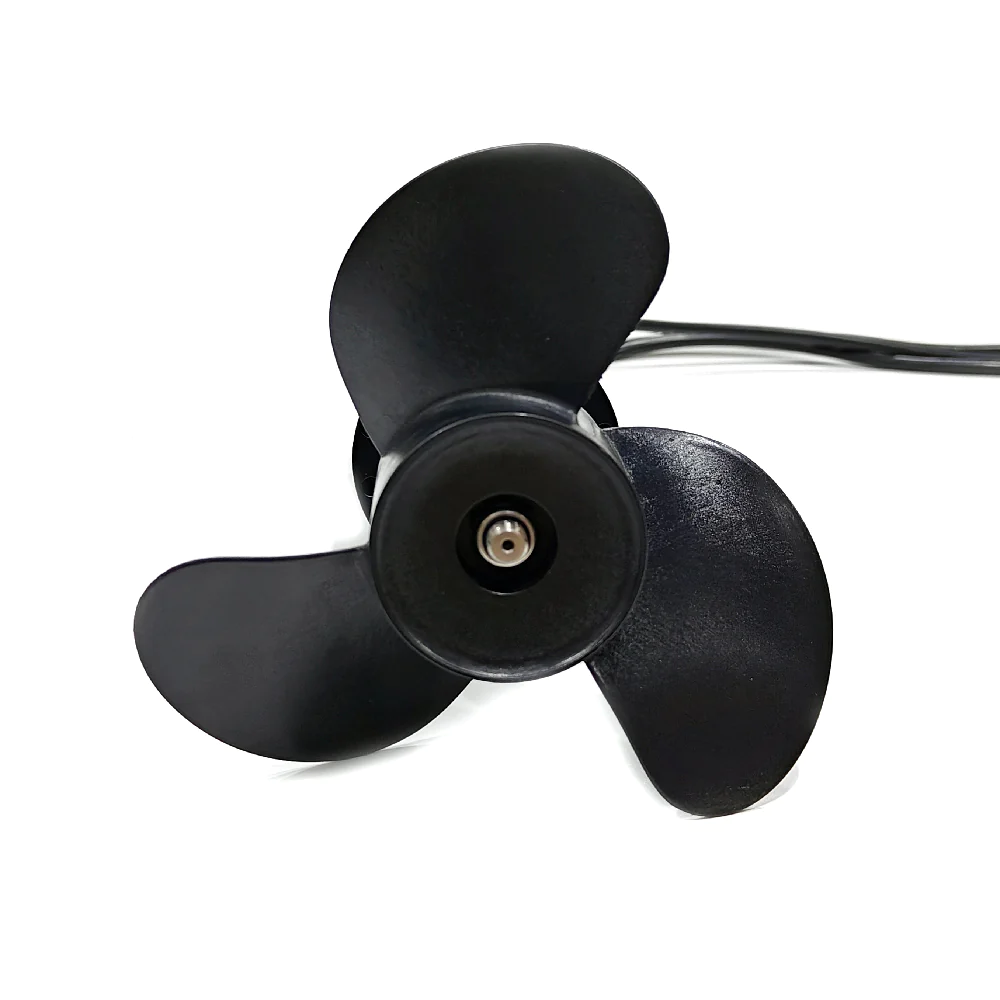

Propeller Optional for 120KV
Customize KV, logo, shaft, cable, connector, cover, case, etc., contact eileen@maytech.cn



maytech 65162, Flipsky 65161 waterproof motor, fully waterproof motor, sensorless motor, 100KV motor, 20S voltage motor, 9KW engine, powerful engine, efoil motor, foilboard, electric hydrofoil

maytech 65162, Flipsky 65161 waterproof motor, fully waterproof motor, sensorless motor, 100KV motor, 20S voltage motor, 9KW engine, powerful engine, efoil motor, foilboard, electric hydrofoilmaytech 65162, Flipsky 65161 waterproof motor, fully waterproof motor, sensorless motor, 100KV motor, 20S voltage motor, 9KW engine, powerful engine, efoil motor, foilboard, electric hydrofoil

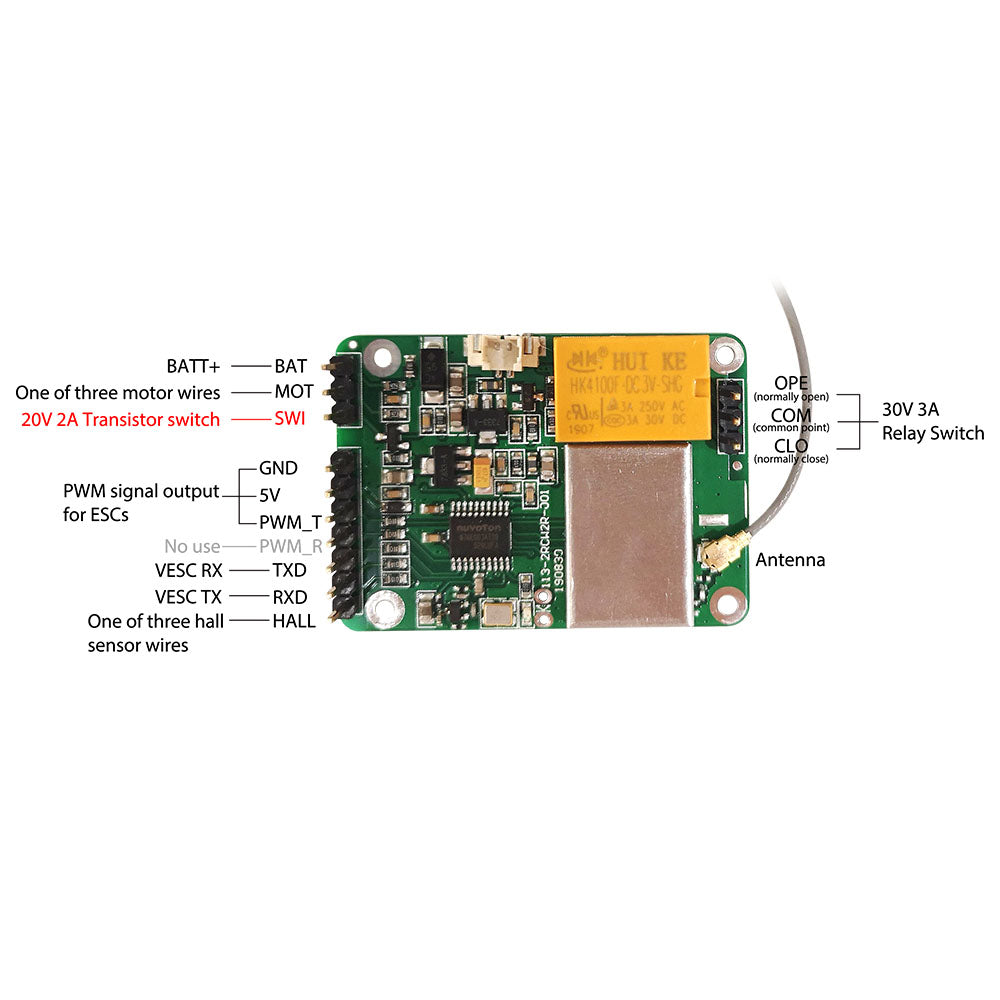

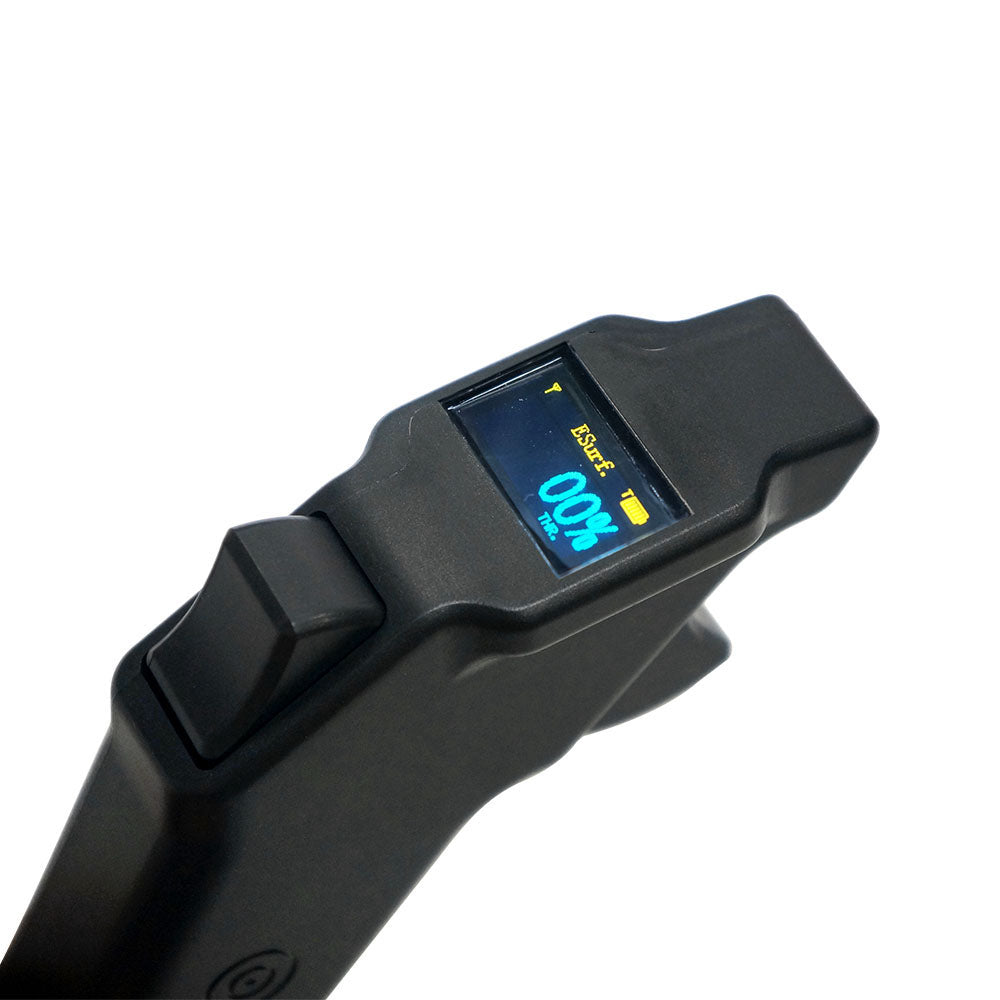

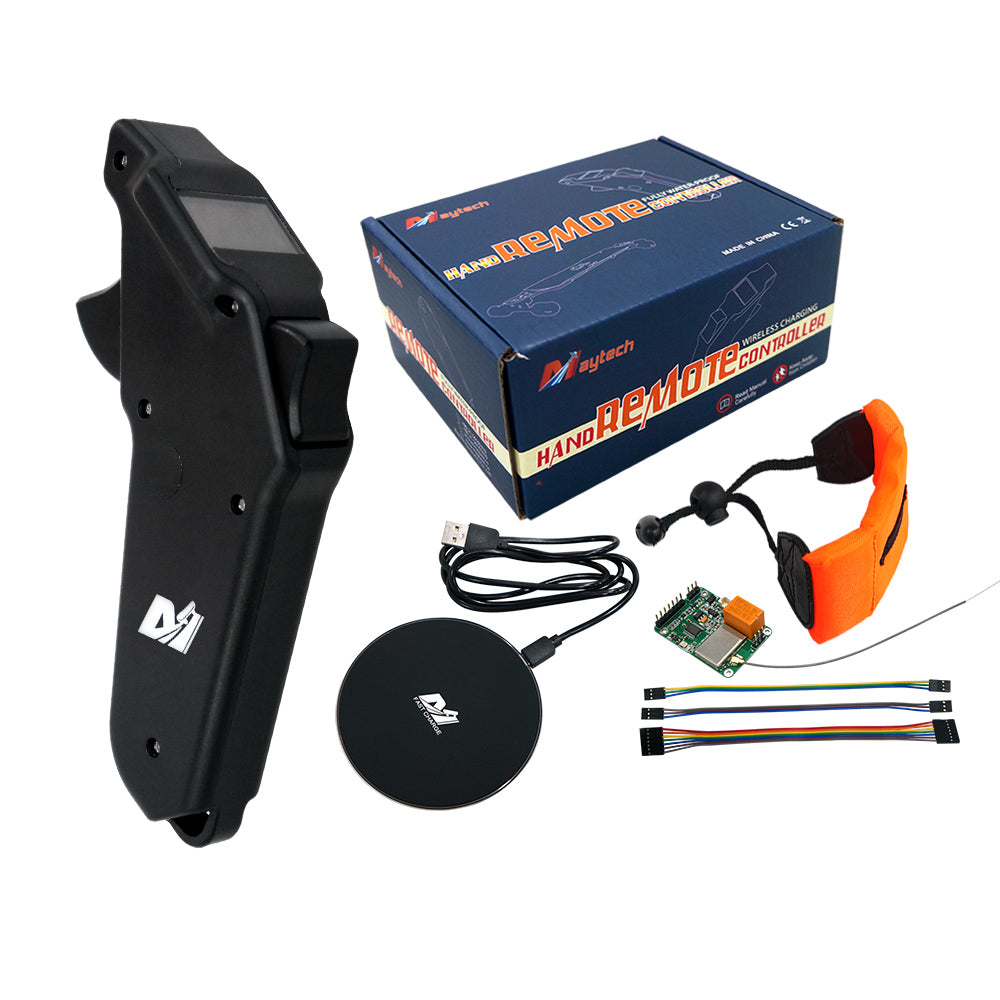

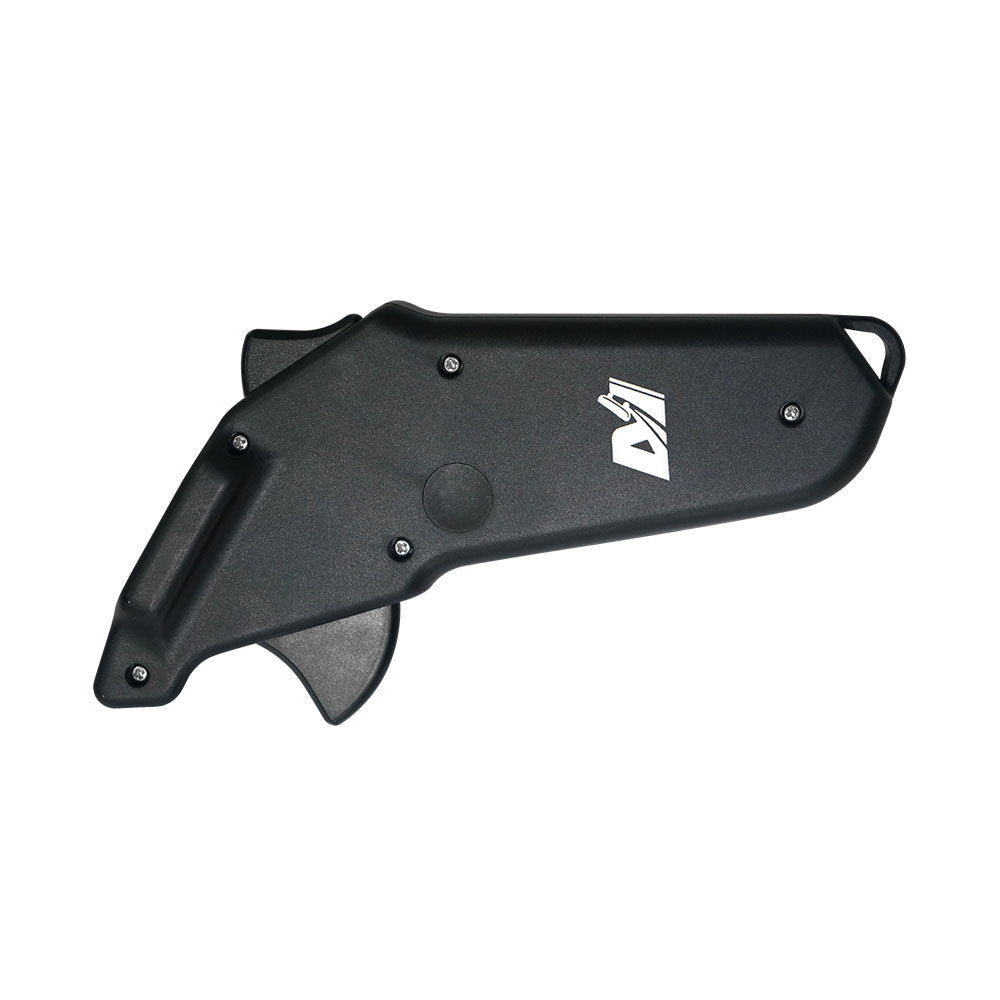

3. Remote: V5.0 MTSKR26WF Waterproof GPS Remote for Esurf, with PWM & UART Receiver

Model No MTSKR26WF V5.0
Updated Functions

Equipped with GPS (GPS Speed, Distance, Max Speed, Average Speed)

Equipped with Tilted protection (IMU tilt sensor), protection angle can be adjusted to  30°/45°/60° tilt degree of your board in case of flipping over, separation of the rider from the board, or an accidental fall.
IMU degree can be calibrated according to the receiver position to be placed on your board. And Tilt protection can be turned off for experienced users.

Waterproof Rank IP68 Waterproof with 2 Layers Nanometers Coating, both on PCB board and screen
Thr Mode Esurfboard (SF) , with cruise control
and ESK8 (SK), can control forward and reverse when use on marine applications
3 Speed Modes With, adjust throttle % from 20-100%, friendly for beginners
Power Modes 2 levels, Eco (Level 1) & Pro (Level 2) optional
Signal strength: Pro > ECO
Power Consumption: PRO > ECO
Throttle Lock Yes, 10-120S optional
Signal Format Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%.
PWM Signal Output Range In Esk8(SK) mode: 1.5ms is stop position, 1.5-1ms for brake or reverse (upper trigger), 1.5-2ms for throttle (bottom trigger)
In Esurf(SF) mode: 1-2ms for throttle (bottom trigger), no brake or reverse
Double Source Power Supply Accept 5V power by ESC built-in BEC or extra 5V power
Output Signal Max 3.3V
Display Parameters

GPS Speed / Distance / Max Speed / Average Speed
Tilt sensor angle
RPM+Current+Voltage+Temp(When work with VESC and MTSF-WP32 series ESCs)

Signal strength, remote and battery power bars, battery voltage%, RPM, speed (km/miles), with VESC, Maytech WP32 ESC and other ESCs

Relay Switch No, without Relay Switch on Receiver to save mounting space
Control Light Yes (20V 2A Transistor Switch)
Safety Button Support
Cruise Control With in Esurf Mode
Brake or Reverse With in Esk8 Mode
Accessories Wirelss charging pad / Receiver / USB cable / Wristband / 1pcs 3 pins cable / 1pcs UART cable
Compatible Controllers VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote.
Application foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc.,

4. MTS2009AS Antispark Switch

Model No. MTS2009AS
Max Current 300A
Input Voltage 6-20S Lipo (25-85V), recommend better work under 75V
Swith Diameter 12mm
Switch Type NMOS to realize switching on/off Power positive
Waterproof No, please keep the switch in dry space
Connector With 4pcs Cold-pressed Terminal Connector
Function Protect your controller and power supply system when brake or startup
Application Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, Airplane, VTOL, UAV, Dronesetc.,
Features:  Switch comes with LED light indicator;
Shutdown current less than 1uA;
Suitable for load: three phase motor speed controller;
Boot soft start;
Automatic short circuit protection when boot;
Automatic short circuit protection when work.

Maytech 300A electric switch protection for electric skateboard elimanite sparks when connection high current high power switch antispark switch on and off switchMaytech 300A electric switch protection for electric skateboard elimanite sparks when connection high current high power switch antispark switch on and off switchMaytech 300A electric switch protection for electric skateboard elimanite sparks when connection high current high power switch antispark switch on and off switch

5. Water Pump

water pump for electric surfboard esurf efoil jetski jetfoiler for electric efoiling 12V 30W water pump

Feedback Videos on Efoil:

https://youtu.be/iAedKKE7Er4

https://youtu.be/K4SvMuxpIMo

https://youtu.be/bC3pf8GgMHo

https://youtu.be/8dZ4fjnAdoI

https://youtu.be/ZMIyqY0dZkk

Customer feedback showing you how to DIY Efoil:

https://www.thingiverse.com/thing:4686310

Advice after usage:

1. To expand the products life, please better wipe off the waters on the products and keep them for all dry after everytime use.

2. For this kit of the ESC, because the motor is sensorless, suggest to use the default value in the ESC, we have tested the kit before shipment with the default value, do not suggest to modify the values.

If you have other requirement on motor KV, ESC or other questions, please contact us eileen@maytech.cn
