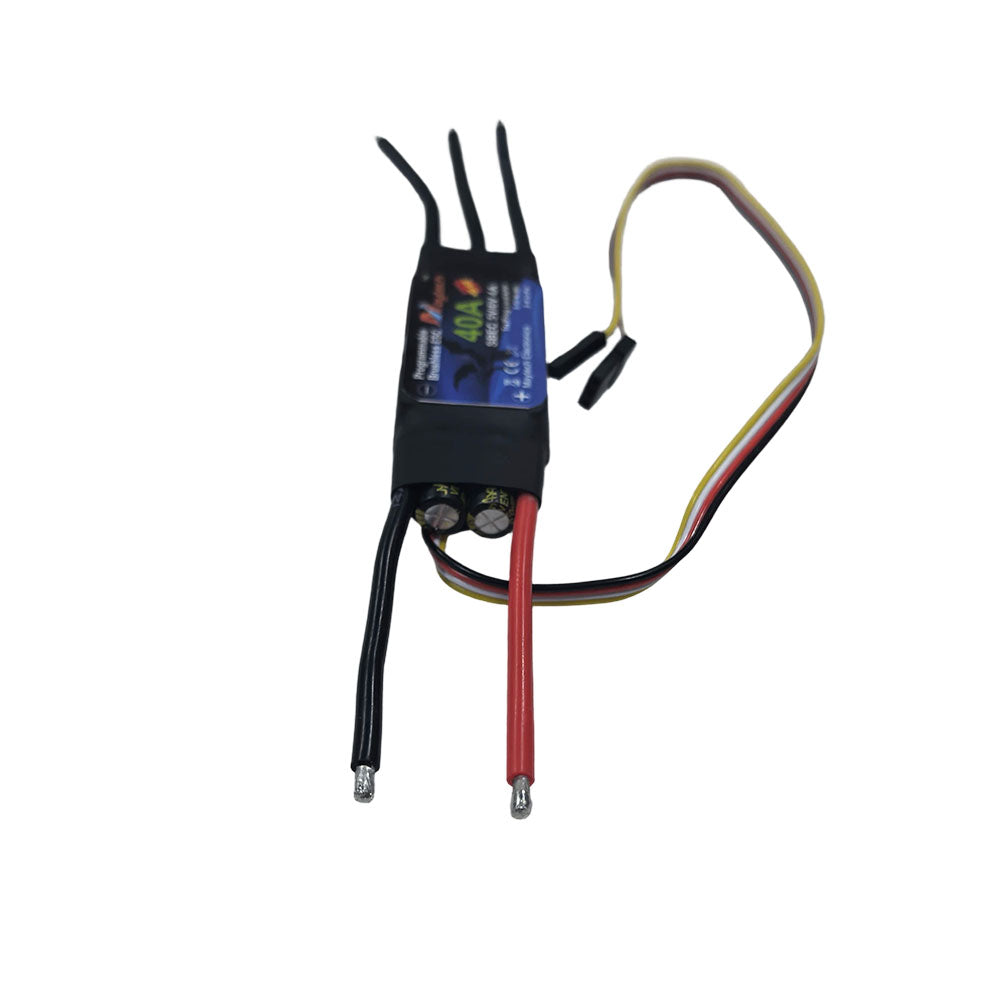

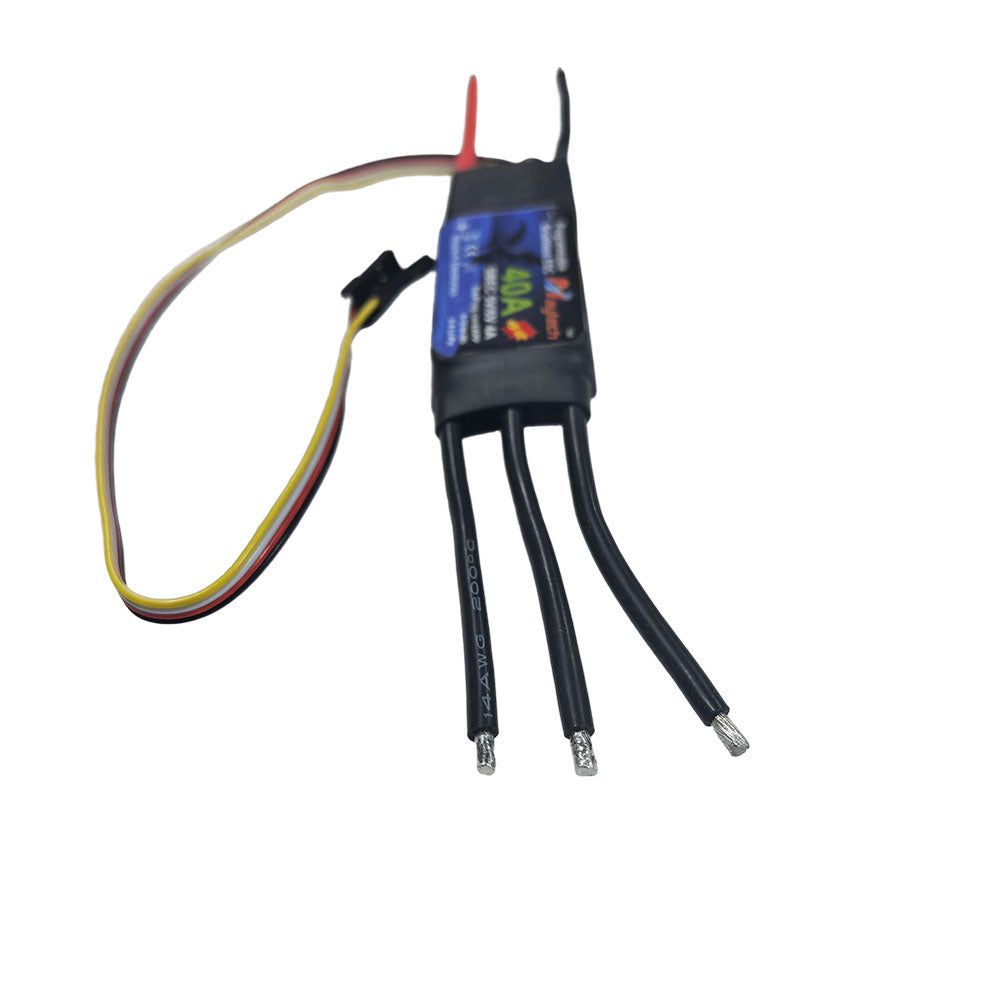

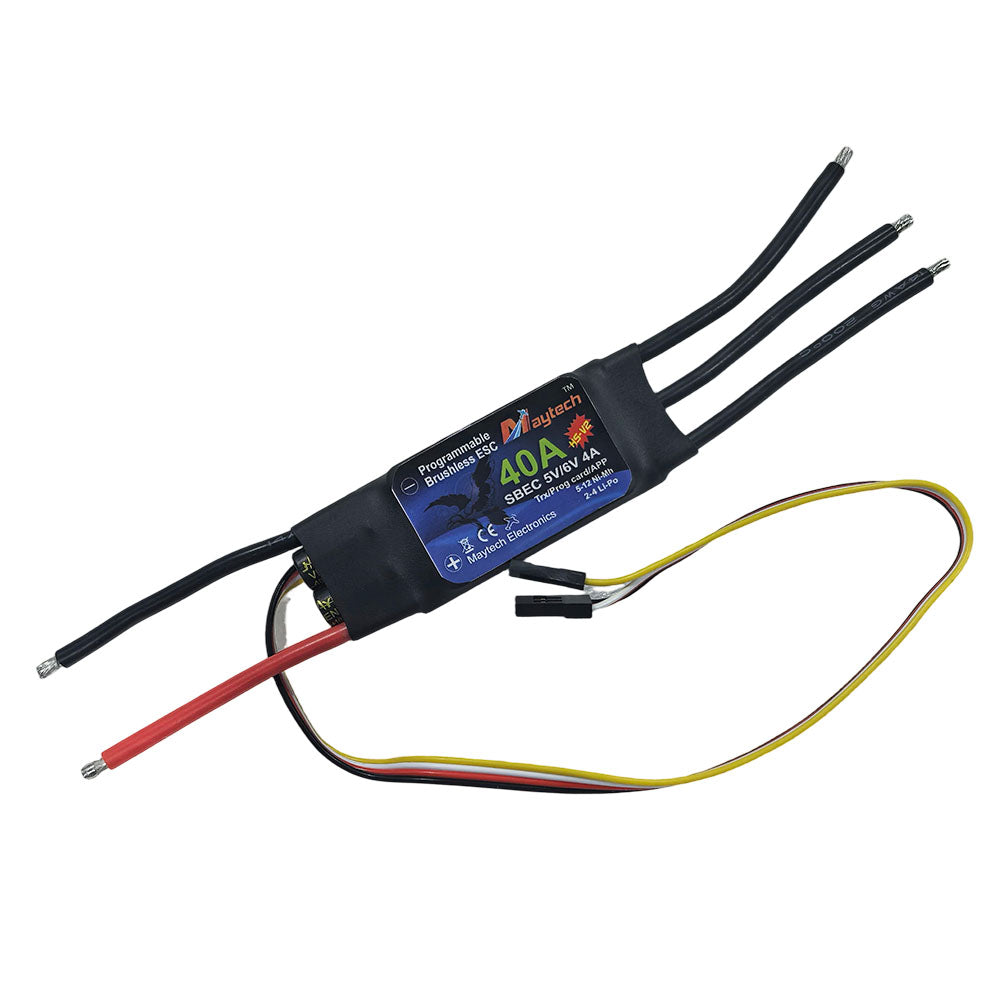

40A 45A 50A 55A MT-BEC-HS2 Harrier Suprem V2 32bit ESC Firmware Brushless ESC for RC Fixed Wing RC Airplane Helicopter

32bit Micro-processor, greatly improve computing capability which makes the ESC responds more faster.

Application: Airplane/RC Airplane/3D flying/RC Hobby Applications/sport flying/aggressive aerobatics/helicopter/racing airplane/ROV/ROVEEE/remote operated vehicle, underwater robot, Underwater Robotics/underwater remotely operated vehicles, subsea robots,cablecam, broadcast, IBC2019, Ultra drones, etc.,

Main features:

1. Excellent startup performance, great throttle linear and quick throttle response, excellent low-speed performance.
2. Separate voltage regulator IC for MCU (Micro Controller Unit), high capability of anti-interference.
3. Low-voltage protection, block-rotation protection and signal lose protection, etc. All these functions can effectively prolong ESC service life.
4. Programmable by Trx or by a Maytech programming card (optional). Program-Card has a simple and visual surface to conveniently change parameters at any time anywhere.
5. Safe start-up. The motor won’t be started no matter which position the throttle stick is on when battery connected.
6. Motor rotating direction can be changed by exchanging two of three wires from ESC or setting by the Program-Card.

Specifications:

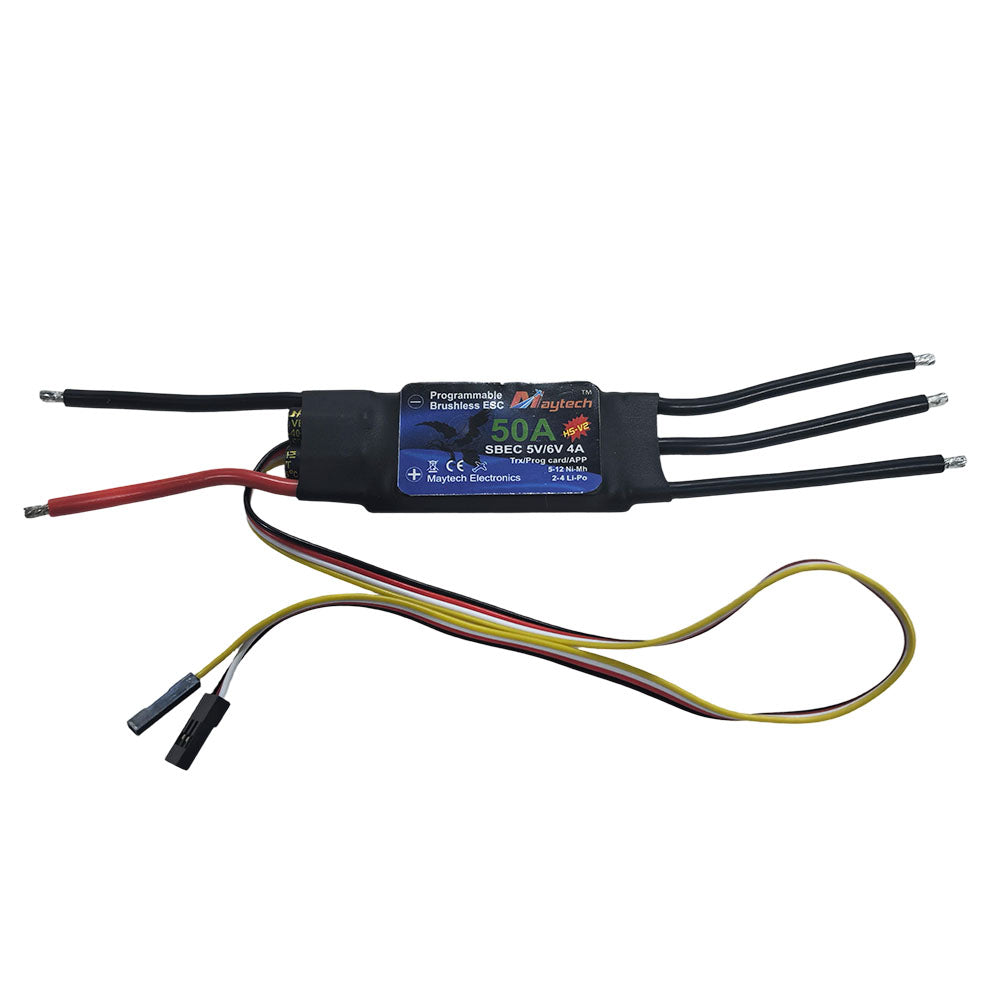

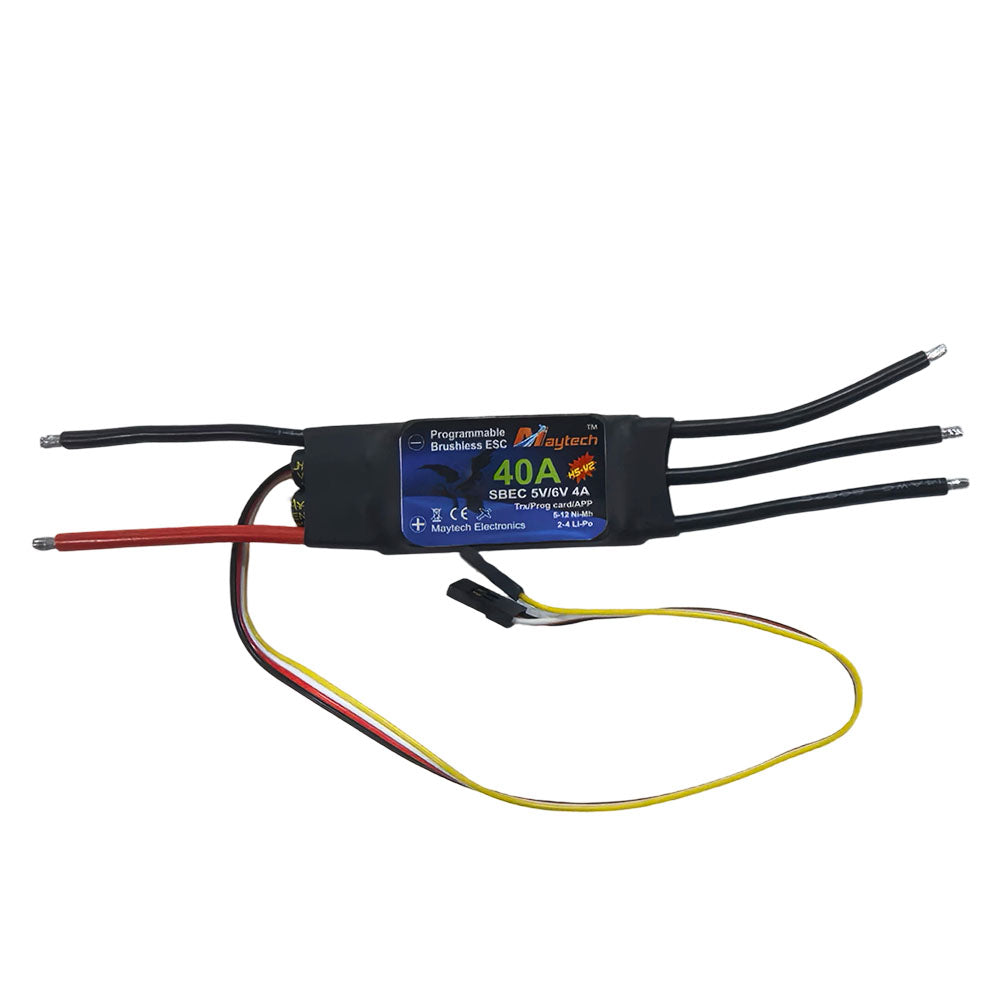

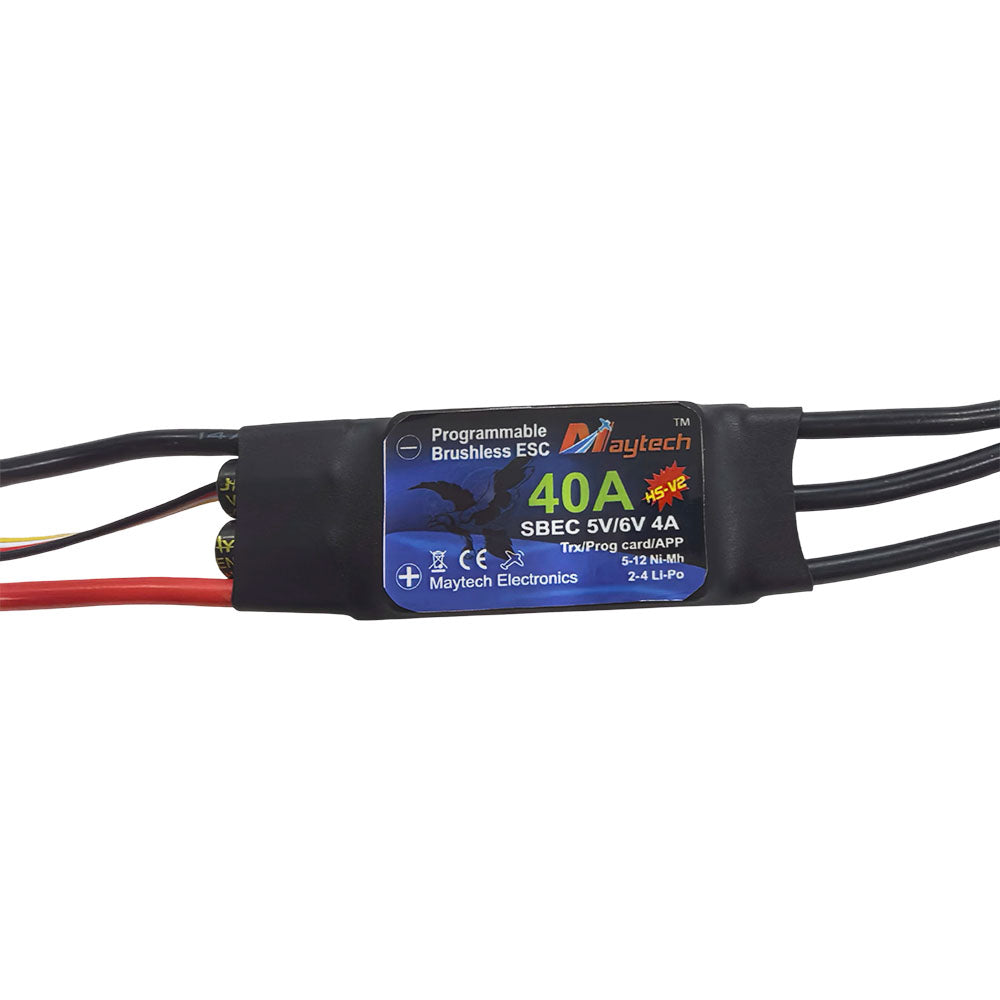

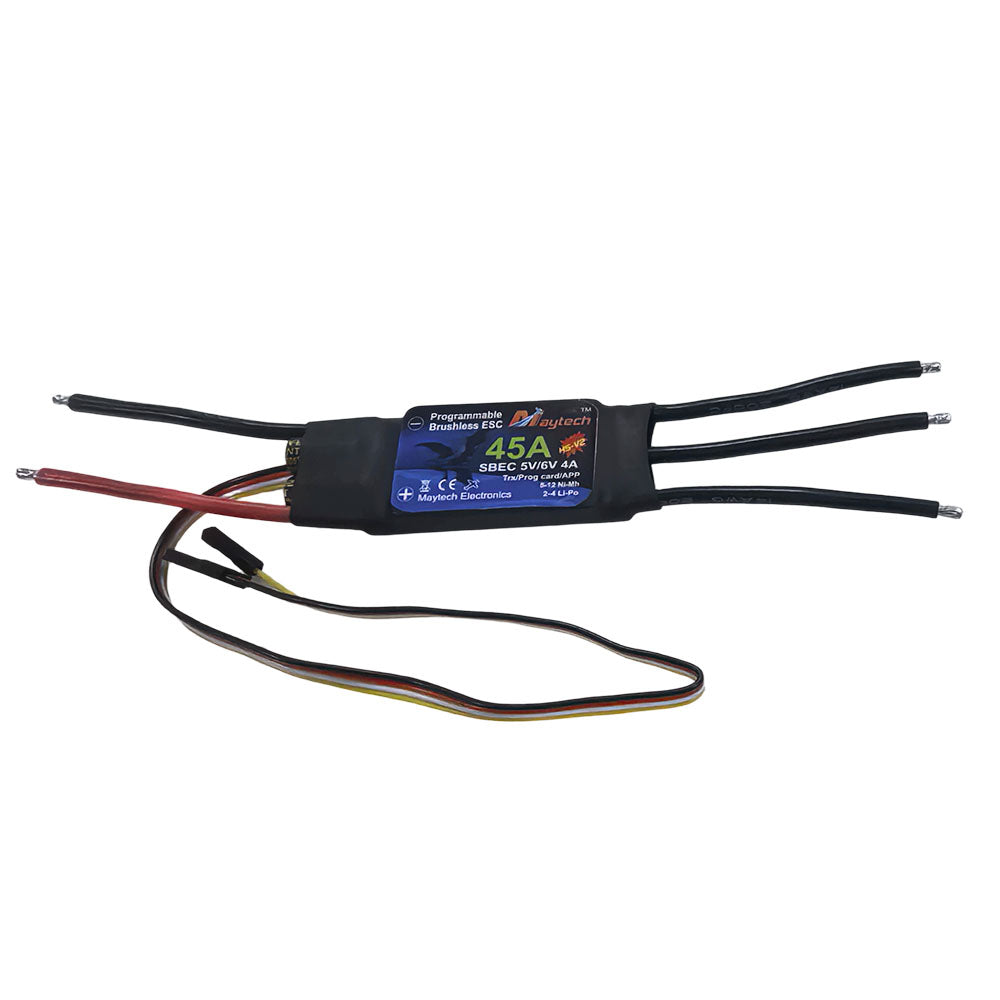

Model NO.:  MT40A-BEC-HS2/ MT45A-BEC-HS2 / MT50A-BEC-HS2 / MT55A-BEC-HS2

Firmware: Harrier Suprem V2 32bit firmware

Cont Current: 40A / 45A / 50A / 55A

Burst Current: 50A / 55A / 60A / 65A

BEC: 5.V/4A

Input Voltage: 2-4 Cells

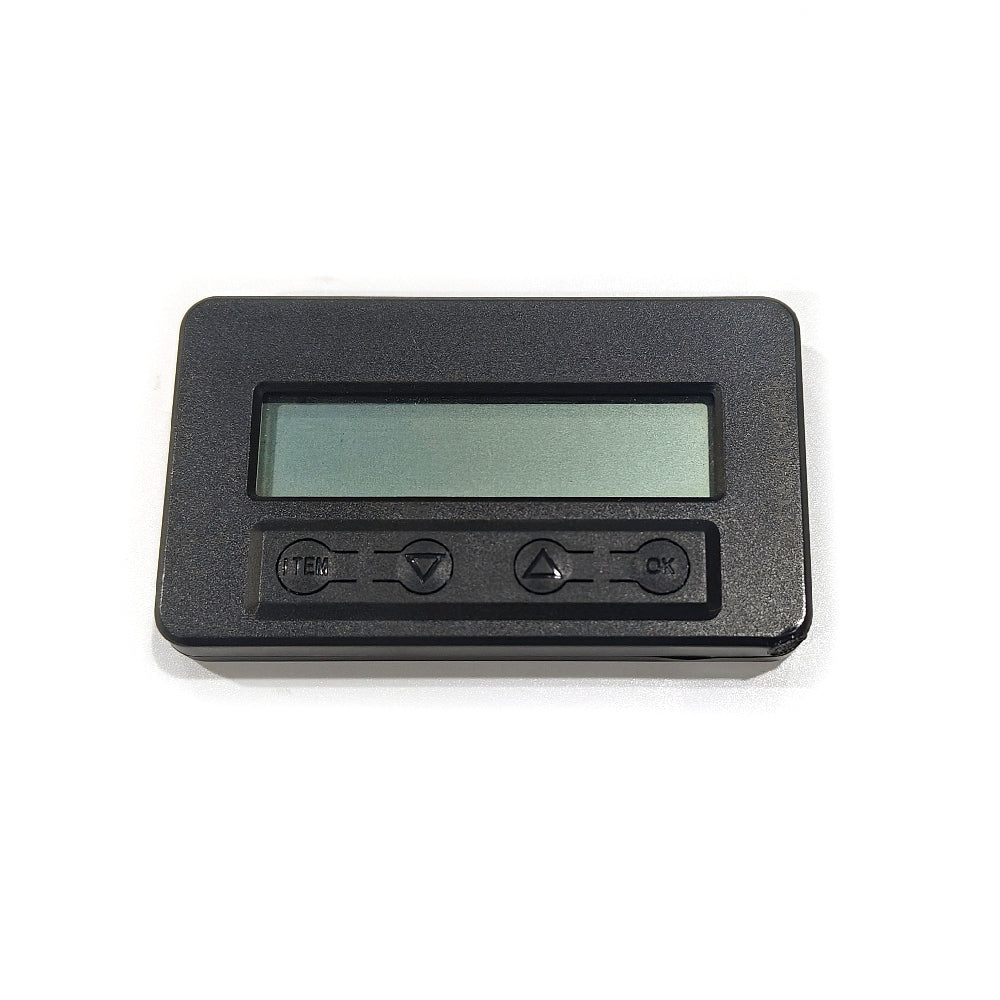

Compatible Prog-card:
