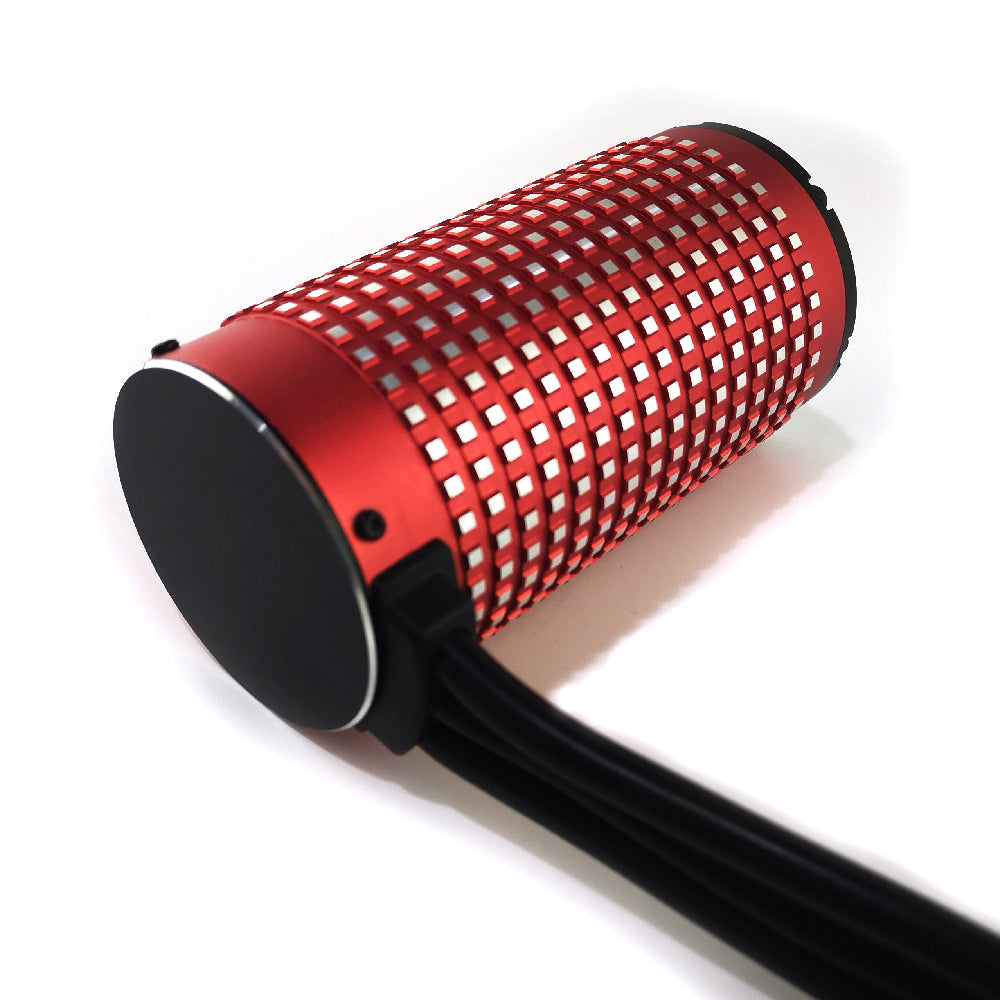

Maytech 58113 Brushless Inrunner Motor 12N4P High RPM Sensorless Motor for Electric Boat Car Under Thruster , underwater treadmill, counter-current swimming traning machine, etc
Specification:
| Model No. | MTI58113 | KV | 530, can be customized |
| Idle Current | 2.5A | Max Current | 110A |
| Input Volt | 22-50V | Max Output Watt | 5.5KW |
| Max Torque | 2.5N.m | Hall Sensor | Without |
| Rated Current | 60A | Max RPM | 27000 |
| Max Working Temp | 120℃ | Insulation Voltage & Leak Current | AC500V/10MA/3S |
| Waterproof Rank | IP57 | Construction | 12N4P |
| Max Efficiency | ≥90% | Application | Electric boat, rc car, rc boat, small boat, efoil, etc., |
Related Products:
MTSVESC7.5H Watercooled 400A 85V VESC and MTSF500A-WP Waterproof watercooled ESC:
MTSKR1905WF IP67 Waterproof Remote with Display:
