Bait Boat Brushless Motor ESC Kit 3548 BLDC Motor 60A Speed Controller for Carp Baitboats

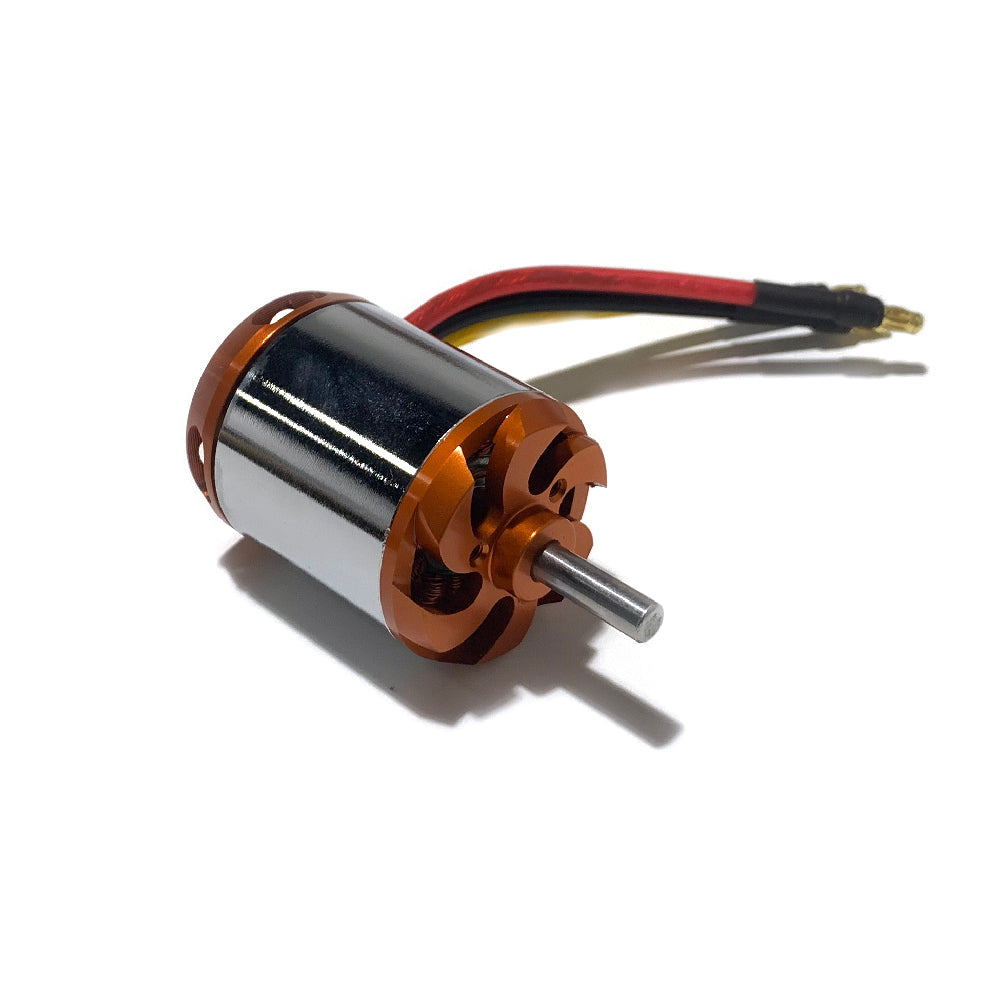

1. Motor: MTO3548-G Brushless Sensorless Motor KV can be customized for Carp Fishing Boat
Model No.: MTO3548-G
KV: 790/ 900, Can be customized
Shaft: φ5mm
Max Current: 42.5A
Input Volt: 3-5S Lipo
Stator Size: 28x26mm
Thrust: 1650g
Motor Drawing:
2. ESC: MTB60A-SBEC-SS 60A 6S Lipo Brushless Watercooled ESC Speed Controller for RC Boat/ Fishing Boat
Model No.: MTB60A-SBEC-SS
Cont Current: 60A
SBEC Output: 5.5V/6A
Input Volt: 2-6S Lipo
Size (mm): 52 x 32 x 12
Net Weight: 60g
Feature: With forward and reverse; With water cooling tube
Series Type: TigerShack

Characteristics:
◆ Use new generation of MOSFETs to make sure the ESC low heating and more efficiency;
◆ Secondary submenu setting is easier to be programmed by MayTech LED card;
◆ Adjustable BEC output 5.0V/5.5V/6V and continuous 5A current supplies much stronger power for servos;
◆ Advance governor mode has the Harrier-Suprem V2 ESCs to keep motor speed even though the load is changed;
◆ More optional motor timing setup and soft acceleration start-ups make the motors run smoothly;
◆ Super smooth and accurate throttle linearity
◆ Supports high RPM motors, can match with most of the motors in RC market;
◆ Power arming protection (prevents the motor from accidentally running when switched ON)
◆ New Advanced programming software
◆ Built-in Intelligent ESC Safety Functions:
1. Over-heat protection: When the temperature of ESC exceeds 110 deg C, the ESC will reduce the output power to allow it too cool.
2. Lost Throttle signal protection: The ESC will automatically reduces output power to the motor when it detects throttle signal loss for 2 second, a subsequent loss of throttle signal beyond 2 seconds, will cause the ESC automatically to cut power to the motor.
◆ All functions are programmable, to meet your specific needs, which makes it very efficient and user friendly.
◆ Use new generation of MOSFETs to make sure the ESC low heating and more efficiency;
◆ Secondary submenu setting is easier to be programmed by MayTech LED card;
◆ Adjustable BEC output 5.0V/5.5V/6V and continuous 5A current supplies much stronger power for servos;
◆ Advance governor mode has the Harrier-Suprem V2 ESCs to keep motor speed even though the load is changed;
◆ More optional motor timing setup and soft acceleration start-ups make the motors run smoothly;
◆ Super smooth and accurate throttle linearity
◆ Supports high RPM motors, can match with most of the motors in RC market;
◆ Power arming protection (prevents the motor from accidentally running when switched ON)
◆ New Advanced programming software
◆ Built-in Intelligent ESC Safety Functions:
1. Over-heat protection: When the temperature of ESC exceeds 110 deg C, the ESC will reduce the output power to allow it too cool.
2. Lost Throttle signal protection: The ESC will automatically reduces output power to the motor when it detects throttle signal loss for 2 second, a subsequent loss of throttle signal beyond 2 seconds, will cause the ESC automatically to cut power to the motor.
◆ All functions are programmable, to meet your specific needs, which makes it very efficient and user friendly.
