In Stock V2 Upgraded Bluetooth Module for VESCTOOL Compatible Speed Controller based on V6 / V4.12 / V75_300 Hardware Based
In Stock V2 Upgraded Bluetooth Module for VESCTOOL Compatible Speed Controller based on V6 / V4.12 / V75_300 Hardware Based
Couldn't load pickup availability
In Stock V2 Upgraded Bluetooth Module for VESCTOOL Compatible Speed Controller based on V6 / V4.12 / V75_300 Hardware Based
Application: Electric skateboard, electric longboard, motorized mountainboard, efoil, surfboard, boat, etc.,
Diaplay: Voltage, current, temperature , etc.,

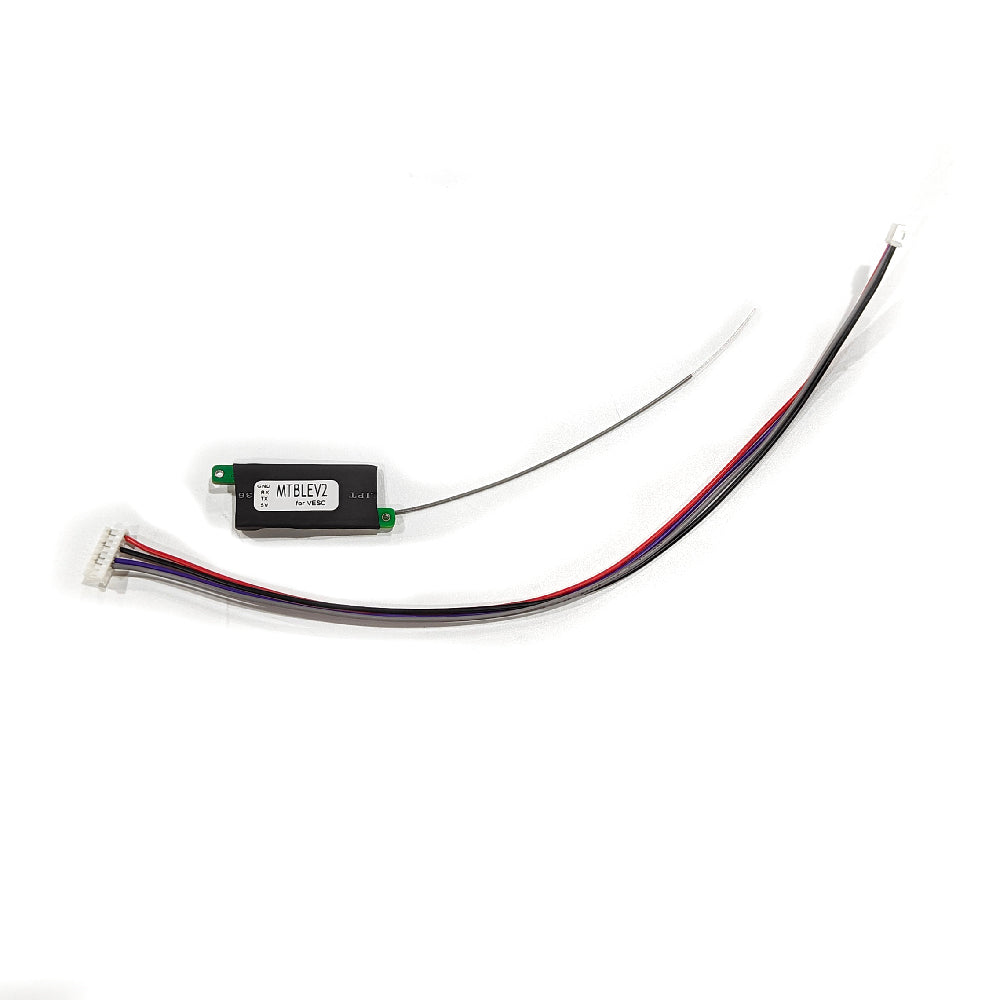

Model No. | MTBLEV2 V2 Version |

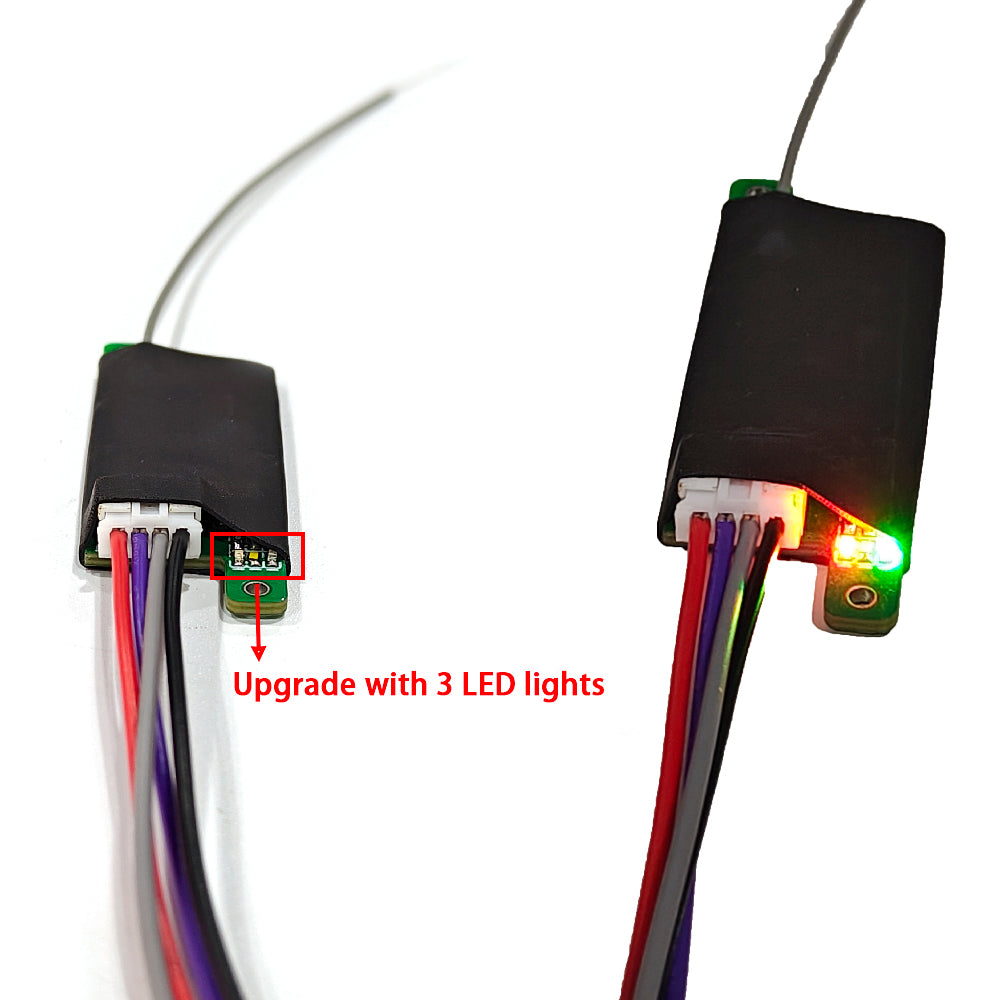

With 3 LED Lights status | power, communication, database |
Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
Compatible Software |
VESCTOOL App |
Frequency | 2.4Ghz |
ARM Processor | ARM Cortex-M0 32 bit processor 256kB flash&16kB RAM |

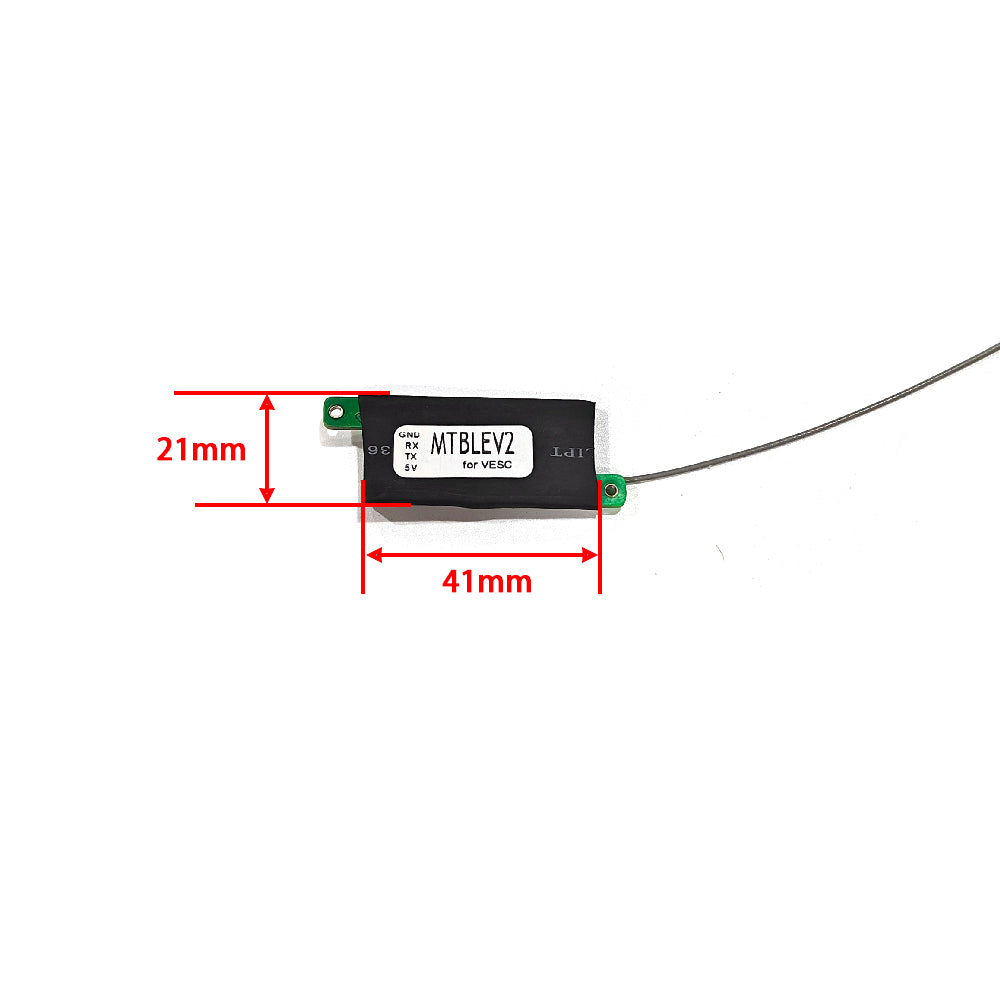

PCB Size | 41mm x 21mm |
Net Weight | 5g |
Antenna Length | 90mm |

VESCTOOL Compatible Speed Controllers:

Share










😍 Frequently Bought Together
- In Stock V5 Bluetooth Module Can Automatically Switch VESC Communication with Receiver or Bluetooth Module
$47.80$43.02 - +
- In Stock 2pcs / 5pcs MTSPF7.12K V2 Max 75V 200A V75/300 based Speed Controller SUPERFOC ESC
$1,136.90$1,023.21 - +
- In Stock 2pcs/ 5pcs MTSPF7.5HK 300A 75V based on V75/300 SuperESC Watercooled Speed Controller
$519.00$467.10 - +
- In Stock Buy One Get One ! SuperESC MTSPF50A V4 based 50A Speed Controller 12S Lipo 50V
$109.90 - +
- In Stock DIY Foil Boost Motor 6374 Waterproof Outrunner 150KV Sensorless Motor for Electric Propulsion System Power Assist Efoil
$120.90$108.81 - +
- In Stock Maytech Foil Boost VESC 100A V6 Speed Controller with Heat Fin for SUP Foil Esk8 Robots
$141.70$127.53 - +
- In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil
$99.90 - +
- In Stock MTS1810AS 180A Anti-spark Switch Protection for ESC Battery
$21.50$19.35 - +
- In Stock MTSPF7.5RK 50A 75V V75_300 based Speed Controller SUPERFOC Round Shape VESC
$270.20$243.18

In Stock V5 Bluetooth Module Can Automatically Switch VESC Communication with Receiver or Bluetooth Module
In Stock V5 Bluetooth Module Can Automatically Switch Control VESC by Receiver or Bluetooth Module, Can Monitor and Set Parameters with VESC TOOL App on Android or IOS System.
Application: Electric skateboard, electric longboard, motorized mountainboard, efoil, surfboard, boat, etc.,
Diaplay: Voltage, current, temperature , etc.,
Model No. | MTBLEV5 V5 Upgraded version |
Features | With optocoupler isolation, industrial grade anti-interference, and wired long distance communication |
Upgrade Function | It supports connection together with receiver TXD and RXD to VESC, so it can automatically switch VESC communication with receiver or bluetooth and you don't need to unplug connections. When bluetooth module connect to VESCTOOL App, it will automatically disconnect receiver TXD and TXD, really convenient. |
With 6 LED Lights status | power, communication, data tranmission |
Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
Compatible Software | VESCTOOL App |
Frequency | 2.4Ghz |
Distance | 15m |
Input Voltage | 3.3-24V |
PCB Size | 46mm x 32mm |

VESCTOOL Compatible Speed Controllers:

In Stock 2pcs / 5pcs MTSPF7.12K V2 Max 75V 200A V75/300 based Speed Controller SUPERFOC ESC
Maytech Upgraded High Current 200A Speed Controller VESCTOOL Compatible based on V75/300 Speed Controller Comb with 20W Cooling Fan and 12V DC-DC Module for Esk8/Fighting Robots
2 Options:
Specification:
Model No. | MTSPF7.12K | Dust-proof | Yes |
Cont Current | 200A | Splash Waterproof | Yes |
Software | VESC_TOOL | BEC | 5V/1.5A |
Input Volt |
18-75V If do not use brake, can use max to 75V, if use brake, please use no exceed 50V. |
PCB Size | 92*52*22mm |
Hardware | Based on V75_300 | Firmware Updatable | Yes |
Case Size | 98.5*56*35mm |
PCB Net Weight | 160g |
Fan Power | 20W | UBEC | 75V convert to 12V, power for cooling fan |
Feature |
12pcs mosfets; 8-layer PCB; separate high current components and low-curent components to two PCBs; etc |
Application | Electric skateboard, mountainboard, elongboard, all terrain skateboard, fighting robots, combat robots, walking robots, ROV, Esurf, Efoil, foilsurf, jetski, electric hydrofoil, etc., |
Notice:
Never connect one reclever to two or more V6/V75 based SUPERFOC ESCs or VESCs in an array! Permanent damage may result from Y-PPM wiring.
Only connect CAN L and CAN H ! GND pins and 5V should never be connected in a V6/V75 based SUPERFOC ESCs or VESC array.
Motor Current Max: ≤200A (According to your motor current)
Absolute Maximum Current: 250A (According to your motor current)
Battery Current Max: ≤100A (According to your battery discharge current)

Port definations:
- Type C USB port to connect computer for programming;
- LED Port for connecting customer’s LED light to show ESC is on or off;
- Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders);
- CAN Port for CAN communication with other devices and controller arrays;
- COMM port for various kinds of other communication methods like I2C, ADC, Uart,You can use your Arduino or Raspberry Pi to control the SuperESC!
- PPM port to connect PPM transceivers.
Features:
- High voltage 18S, High curent 200A, tiny size and compact design, light weight.
- Superior Safety: With over-current protection, over-voltage protection, over-heat protection.
- 2pcs PCBs to separate high and low power components (more stable and reliable).
- 8-layer 3oz PCB Board, 3.4mm thick, supports high current and has efficient heat-dissipation capability. (Other brand PCB is only 1-2mm thick).
- 12pcs high quality Mosfets, greater efficiency, handle higher current.
- ARM 32bit processor, faster data transfer and storage.
- 3pcs Capacitors 63V 820μf, prevent power circuit impact.
- 3pcs Current sampling chips, It can make the current sampling faster and more accurate, and has a good improvement on the FOC and over-current protection functions.
- 6061 Premium Alu-Alloy Case, Quick heat-dissipation, Sleek aluminum finish, comfortable hand-feeling.
- Removable cooling fan, 20W high power for quick cooling. Ensure reliable performance with excellent temperature control technology
- USB Type C port- easy to connect and program settings.
- Firmware standard: VESCTOOL automatically recognizes this ESC as 7.5_300. This firmware can be used.
Features:
- High voltage: If use current mode, without brake, max voltage is 75V; If use current mode with brake or duty cycle mode, max voltage is 12S lipo (Max 50.4V).
- High current: 200A
- Compatible with brushed and brushless motors, intrunner and outrunner motors Sensored or Sensorless operation + Hybrid mode
- Adjustable Forward/Backward/Brake
- Regenerative Braking Function
- Configurable RPM, Current, Voltage and Power limits
- Support PPM, Analog (ADC), UART, Canbus input
- Communication ports: USB, CAN, UART
-
Support FOC sine wave mode
-
Throttle curve and ramping for all input sources
- Seamless 4-quadrant operation
- Motor Revolution, Amp Hour, Watt Hour counting
- Real time data analysis and read out via communication ports
- Adjustable protection against:
Max Motor Current and Input(Battery) Current limits
Max ERPM(RPM) (separate limits for each direction)
Max Power (Wattage)
Max Motor and ESC Temperature
Max Regenerative Braking Current (separate limits for the motor and the input)
Attention Points when you receive the controller Please:
- When you receive the controller, please test without load and do not connect motor, first check if the controller can successfully connect to your computer, if ok, then connect to motor and you can start to adjust parameters.
- Do not use switching power supply, the instant voltage when switching power supply connect to controlleris very high, which would easy damage the controller.
- Do not push the throttle too hard when test without load, gently and slowly speed up.
- Be cautious when adjust parameters, if parameters set mistake, would also easy damage the controller.
- Do not recommend to work with BLDC mode, please use FOC mode.
- If you use UART port, the wire better do not over 0.5m or even shorter, and better use Stranded wire.
Above notices are only suggestions based on the experience of our engineers. how to actually operate is up to you. Parameters for different setup is also different, please noted.
Related Products: Click the following pictures to check specs
Maytech MTSKR2005WF New Waterproof Remote for Esk8 Only with 3 Speed Modes
Maytech Brushless Outrunner Sensored Motors
Maytech VESCTOOL Compitable SuperESC:
Application:
Electric skateboard, Esk8, Eskate, Elongboard, Mountainboard, Offroad skateboad, All terrain skateboard, Eskate, E-bike, Electric bike, Electirc motorcycle, E-scooter, Electric scooter, motorized skateboard, ROV/RPVEE, Remote operated vehicles, underwater robots, Underwater robotics, Underwater remotely operated vehicles, Subsea robots, Cablecam, Cable camera, Broadcast, IBC2019, Ultra drones, Security monitoring robots, Robots for security and safety monitoring in harsh terrain, Agile robots, SAutonomous agile robots, Security robots, Autonomously monitor security, Combat robots, Fighting robots, Electric surfboard, Efoil, etc.,

In Stock 2pcs/ 5pcs MTSPF7.5HK 300A 75V based on V75/300 SuperESC Watercooled Speed Controller
Model No. | MTSPF7.5HK |
Input Voltage | 5-18S Lipo (18V-75V) |
Hardware | based on V75/300 |
Firmware | Updatable |
Current | 300A |
Software | VESCTOOL Compatible |
Heat Sink | With |
Water Cooling | With |
Capacitors | 9pcs 100V 470μf capacitor |
Application | electric skateboard, fighting robot, e-bike, electric motorcycle, efoil, electric surfboard, watercraft, electric boat, underwater ROV, agricultural robots, robotic sprayer, etc |
-Absolute Maximum Current: 350A (According to your motor current)
-Battery Current Max: ≤150A (According to your battery discharge current)


Ports definitions:
- AUX port to supply 12V and 5V to external device;
- PPM port to connect PPM transceivers; Never connect one reclever to two or more VESCs in an array ! Permanent damage may result from Y-PPM wiring
- CAN Port for CAN communication with other devices and controller arrays; Only connect CAN L and CAN H ! GND pins and 5V should never be connected in aVESC array.
- Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders);
- SWD port to get direct access to the Chipset. Diagnostics, debugging, and real time data;
- COMM port for various kinds of other communication methods like I2C, ADC, Uart,you can use your Arduino or Raspberry Pi to control the SuperESC!
- USB port for programming.



Features:
Max ERPM(RPM) (separate limits for each direction)
-
With CNC aluminum alloy heat dissipation case, optional water cooling system and forced air cooling system.
-
With larger heat sink case that has better heat dissipation performance.
-
Its heat sink case bottom is coverd by fins that can better heat dissipation.
-
Its PCB board has 4pcs MOS paralleled, could withstand higher current, original version only has 3pcs MOS.
-
Its PCB board with cooper stripe, can reduce resistance in high current, better heat dissipation.
-
With larger capacitor, 9pcs 100V 470μf capacitor, while original version only has 6pcs 80V 470μf.
-
With separate design of strong and weak current circuit board, and between 2 boards added heat sink for better heat dissipation.
-
Exclusive 5V and 12V external power supply interfaces will not cause interference when powering analog circuits such as twist/thumb throttles.
2.Must do a good job of heat dissipation! If place it in a sealed container(recommend touse metal container), it must be forced to be cooled with water. Also make sure your container has enough space for the controller, make sure the cooling tube do not bent, otherwise will influence water flow in cooling tube, also make sure water flow is enough for cooling before office use.
3. Before the new ESC is officially used, please test it with a low-voltage and low-throttle, after success, then slowly increase voltage and throttle. Be sure to pay attention to safety during this period!
4. Recommend to add an electronic switch with short circuit protection function between the ESC and battery, such as MTS2009AS 300A electronic switch or BMS with switch function. It is not recommended to use only contactor without short circuit protection!
5. The battery and motor side terminals must be connected tightly, they can’t be loose. Also please make sure terminals not touch case or other wires, here's the video shows you the way to install cold-pressed terminal connector: https://youtu.be/unFfV9RPPCc
6. In actual use, please use hot melt glue to fix the hall/UART interface cables the corresponding sockets of the ESC, to prevent the cables loose due to the bumps of the vehicle!
7. Please do not disconnect relay switch or electronic switch during usage ! Otherwise it will cause electromagnetic interference, which might damage the controller.
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
Recommend Products: Click below pictures to check more information

In Stock Buy One Get One ! SuperESC MTSPF50A V4 based 50A Speed Controller 12S Lipo 50V
Model No. | MTSPF50A |
Input Voltage | 3-12S Lipo (12.6V-50V) |
Hardware | VESC4.0 |
Firmware | Updatable |
Cont Current | 50A |
Burst Current | 240A |
Software | VESCTOOL Compatible |
Heat Sink | Order together if you need, optional |
Application | Electric skateboard, elongboard, fighting robots, ebike, escooter, electric vehicles, friction drive ebike, etc., |


- When you receive the SuperESC, please test without load and do not connect motor, first check if the SuperESC can successfully connect to your computer, if ok, then connect to motor and you can start to adjust parameters.
- Do not use switching power supply, the instant voltage when switching power supply connect to SuperESC is very high, which would easy damage the SuperESC.
- Do not push the throttle too hard when test without load, gently and slowly speed up.
- Be cautious when adjust parameters, if parameters set mistake, would also easy damage the SuperESC.
- Please must remember to change to corresponding modes when you adjust parameters, for example, the SuperESC default mode is BLDC mode, but if you want to detect FOC mode and adjusted FOC parameters, at this time if mode in VESC_TOOL didn't change to FOC mode, then when you push throttle, would easy burn the SuperESC, same as FOC mode.
-
In FOC mode, ERPM suggest to control in 30000-40000; In BLDC moed, ERPM suggest to control in 50000-60000, otherwise driver IC would easy to be damaged. ERPM= motor pole pairs number * KV * Voltage
ERPM= motor pole pairs number * KV * Voltage - If you use UART port, the wire better do not over 0.5m or even shorter, and better use Stranded wire.
- For V4 based SuperESC:
If need to use FOC mode, then must use voltage under 20V.
-
The above are only suggestions based on the experience of our engineers. how to actually operate is up to you. Parameters for different setup is also different, please noted
V5 Bluetooth Module:
Model No. | MTBLEV5 V5 Upgraded version |
Features | With optocoupler isolation, industrial grade anti-interference, and wired long distance communication |
Upgrade Function | It supports connection together with receiver TXD and RXD to VESC, so it can automatically switch VESC communication with receiver or bluetooth and you don't need to unplug connections. When bluetooth module connect to VESCTOOL App, it will automatically disconnect receiver TXD and TXD, really convenient. |
With 6 LED Lights status | power, communication, data tranmission |
Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
Compatible Software | VESCTOOL App |
Frequency | 2.4Ghz |
Distance | 15m |
Input Voltage | 3.3-24V |
PCB Size | 46mm x 32mm |
V2 Bluetooth Module:
Model No. | MTBLEV2 V2 Version |
With 3 LED Lights status | power, communication, database |
Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
Compatible Software |
VESCTOOL App |
Frequency | 2.4Ghz |
ARM Processor | ARM Cortex-M0 32 bit processor 256kB flash&16kB RAM |
PCB Size | 41mm x 21mm |
Net Weight | 5g |
Antenna Length | 90mm |
Recommend Products: Click below pictures to check more information

In Stock DIY Foil Boost Motor 6374 Waterproof Outrunner 150KV Sensorless Motor for Electric Propulsion System Power Assist Efoil
Specifictions:
Model No | MTO6374-150-WPC Motor |
KV | 150, can customize, contact agnes@maytech.cn if you want other KV |
Idle Current | 0.8A |
Max Current | 65A |
Rated Current | 60A |
Input Voltage | 3-12S Lipo (12-50V) |
Max Output Watt | 3550W |
Shaft | No output shaft |
Hall Sensor | Without |
Waterproof Rank | IPX8 |
Mounting Hole Pattern | 28mm, 30mm, 44mm Hole distance |
Mounting Hole Diameter | M4 |
Bearing | Ceramic bearing, better waterproof |
Customize | KV, logo, shaft, mounting hole pattern, color, connector, cable, etc. contact agnes@maytech.cn |
Application:
DIY foil assist on wing foil, wind surf foil, sup foil board, kite foil, underwater thruster, sup foil assist, paddle assist, wind foil board, sup board, downwind, hull cleaning device, underwater rov, underwater cleaning robot, boat cleaner, quariums or submerged environments, tank cleaning, underwater drone, etc.,
Difference between ceramic bearing and stainless steel bearing:
Stainless Steel Bearing:
1. Because seawater is corrosive, after some time use may get rust, need to wash with fresh water everytime after use, and keep the motor all dry, so to expand lifespan.
2. Can withstand higher speed.
3. Cost is less than cermic bearing.
Ceramic Bearing:
1. Better anti-rust performance, good for sea water condition
2. It’s brittle, can’t withstand very high speed, easier damage at high speed
3. cost is higher than stainless steel bearing.

Customers Feedbacks:
Stock Notice Before Place Order:
1. The motor 150KV is in limited stock, so please confirm your order asap, or please contact us agnes@maytech.cn to check stock first if you need very urgently.
2. Shipping time is about 24 working hours after your order confirmed for stock item, if not in stock, lead time is about 30-40 days.
3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
Related Products: (Click the following pictures to check more products)

In Stock Maytech Foil Boost VESC 100A V6 Speed Controller with Heat Fin for SUP Foil Esk8 Robots
Model No. | MTSPF60100 VESC Controller |
Input Voltage | 3-12S Lipo (12.6V-50V) |
Hardware | VESC6.0 |
Firmware | Updatable |
Cont Current | 100A |
Burst Current | 240A |
Software | VESCTOOL Compatible |
Heat Sink | With, attach to mosfet, better heat dissipation |
Waterproof | No, not waterproof, please do good waterproof job if you use it for water sports |
Click Here: How to Display Volt, Current, RPM with TX and RX?
Application:
V5 Bluetooth Module:
Model No. | MTBLEV5 V5 Upgraded version |
Features | With optocoupler isolation, industrial grade anti-interference, and wired long distance communication |
Upgrade Function | It supports connection together with receiver TXD and RXD to VESC, so it can automatically switch VESC communication with receiver or bluetooth and you don't need to unplug connections. When bluetooth module connect to VESCTOOL App, it will automatically disconnect receiver TXD and TXD, really convenient. |
With 6 LED Lights status | power, communication, data tranmission |
Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
Compatible Software | VESCTOOL App |
Frequency | 2.4Ghz |
Distance | 15m |
Input Voltage | 3.3-24V |
PCB Size | 46mm x 32mm |

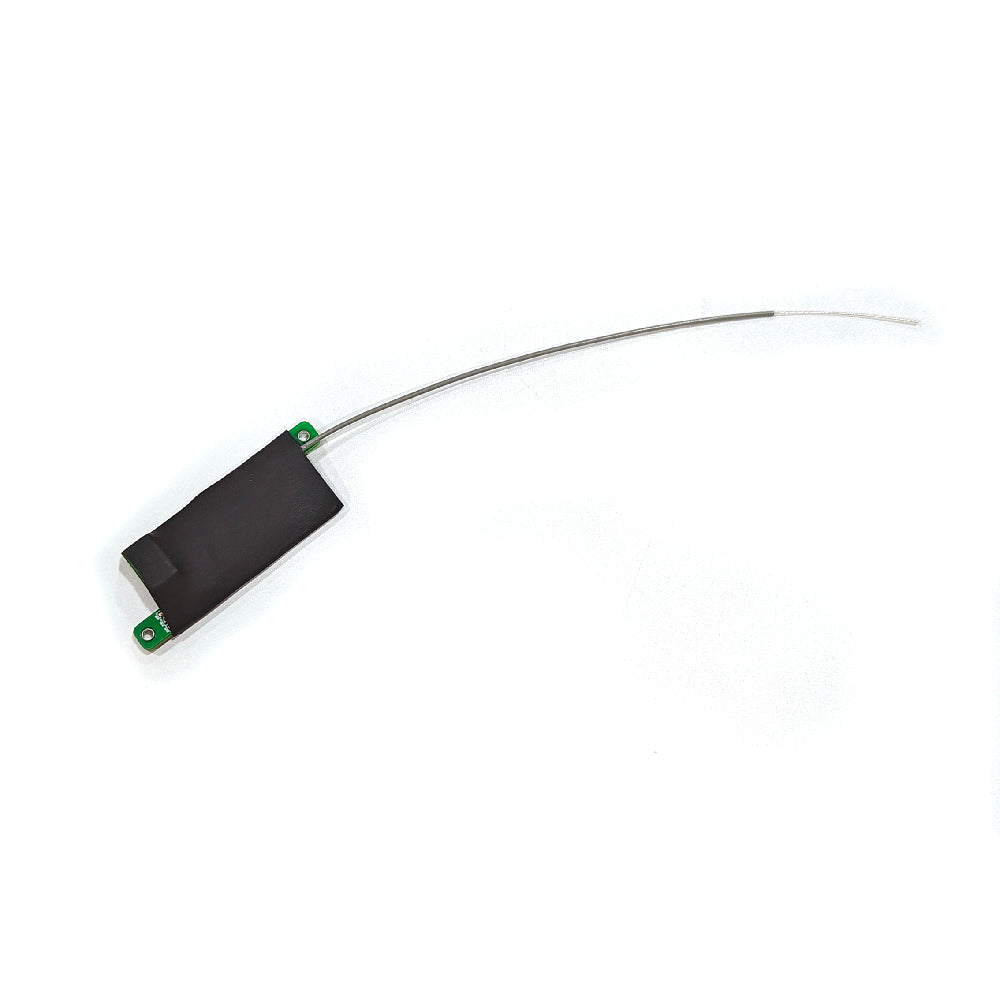

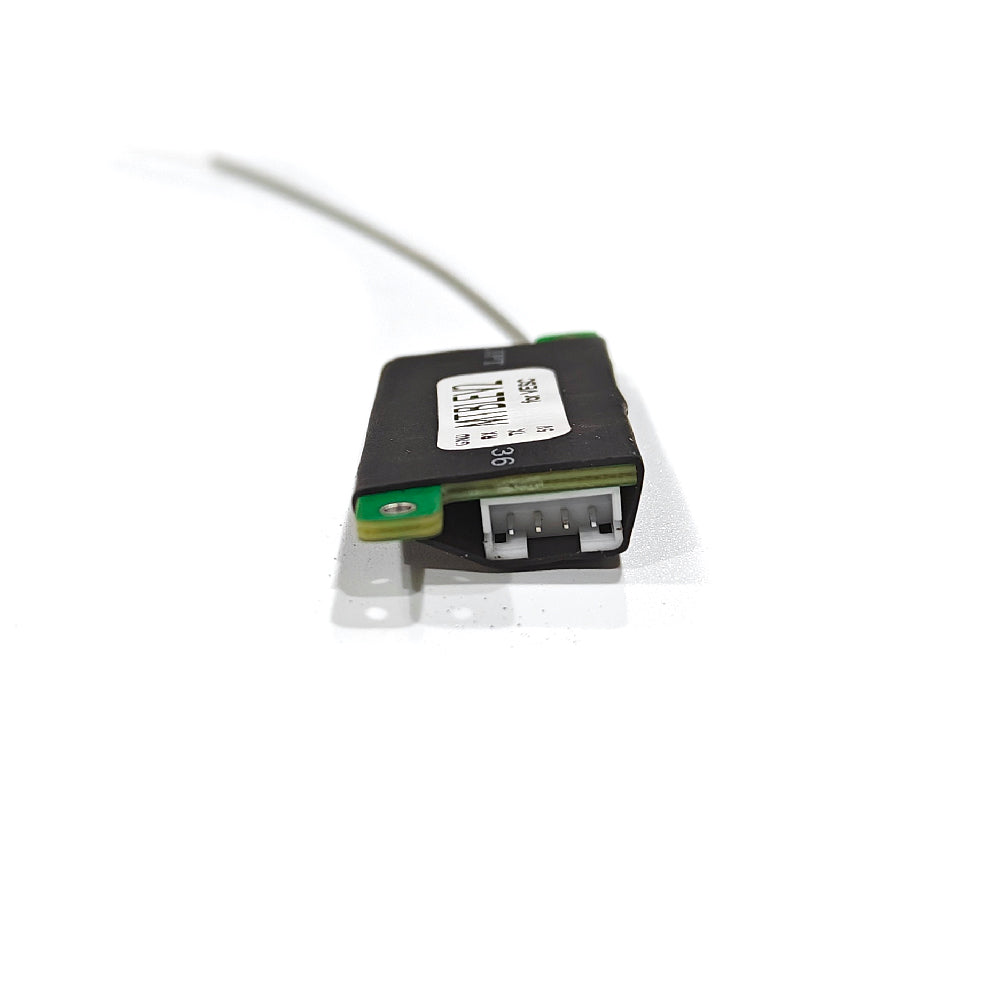

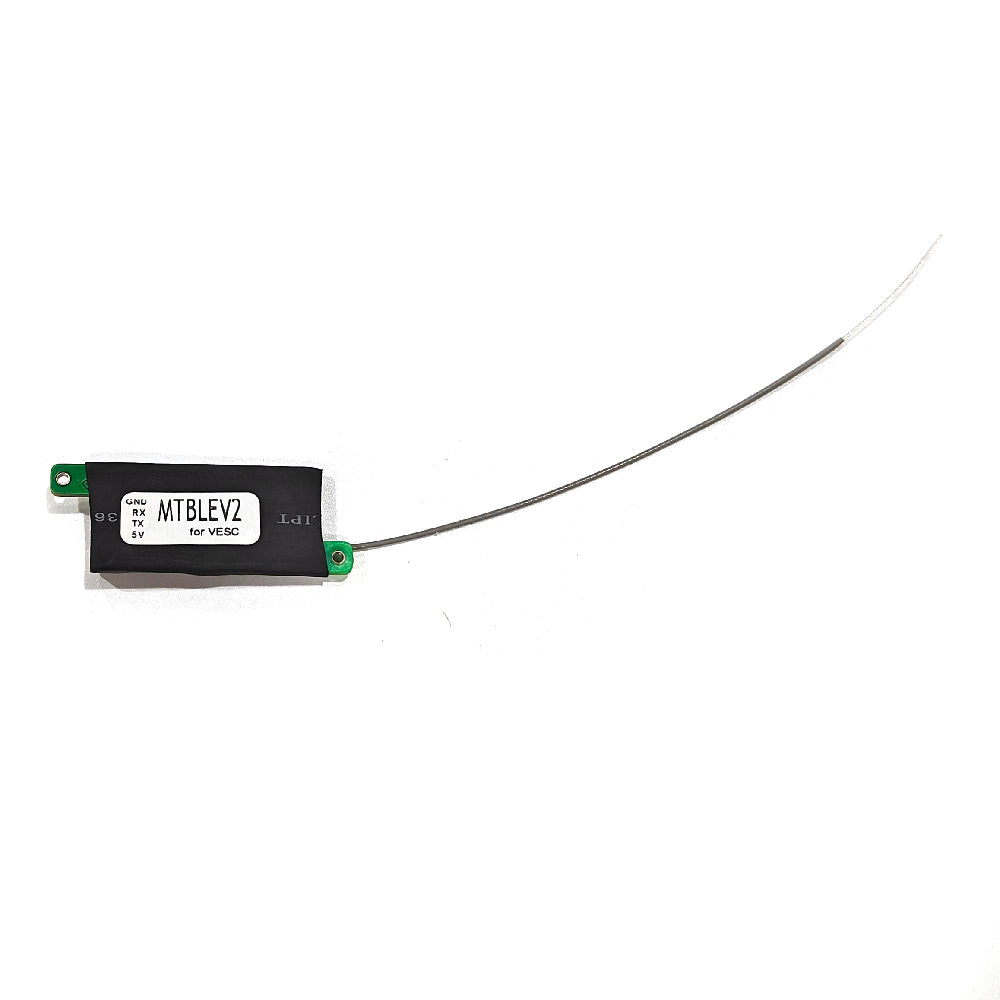

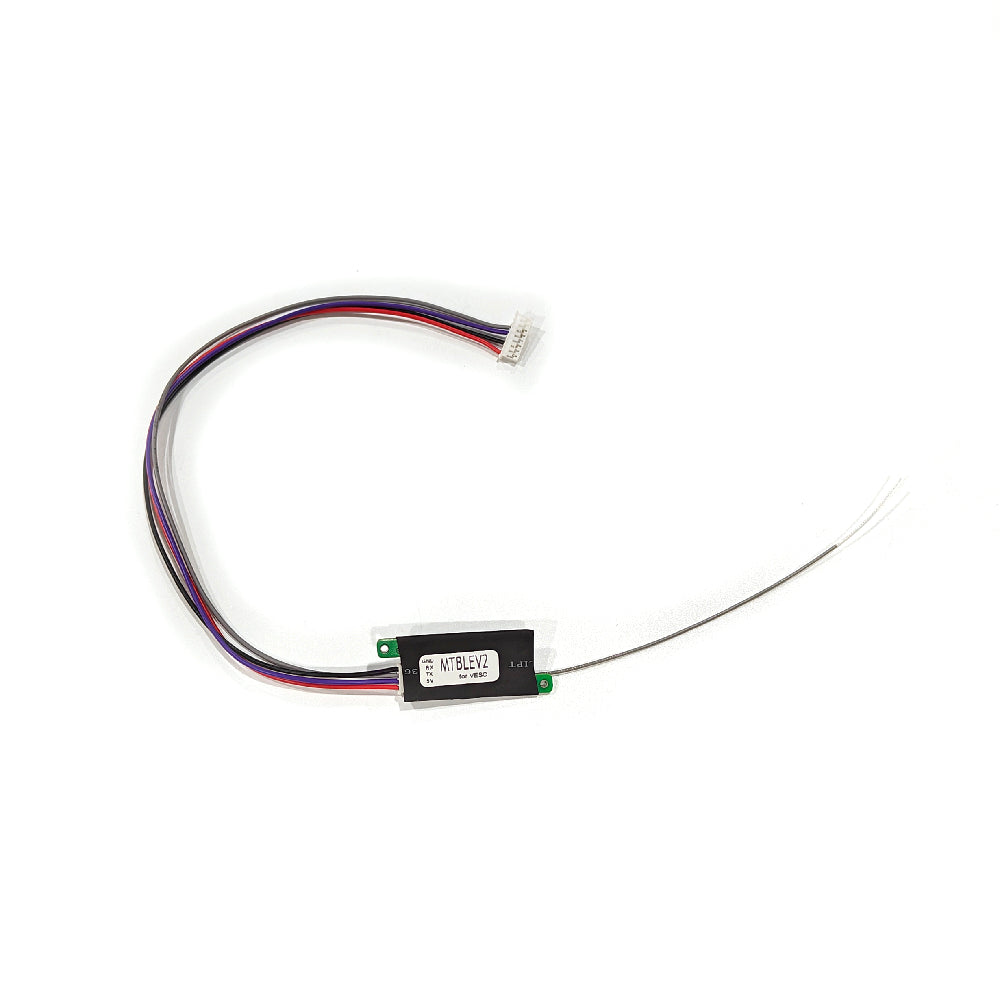

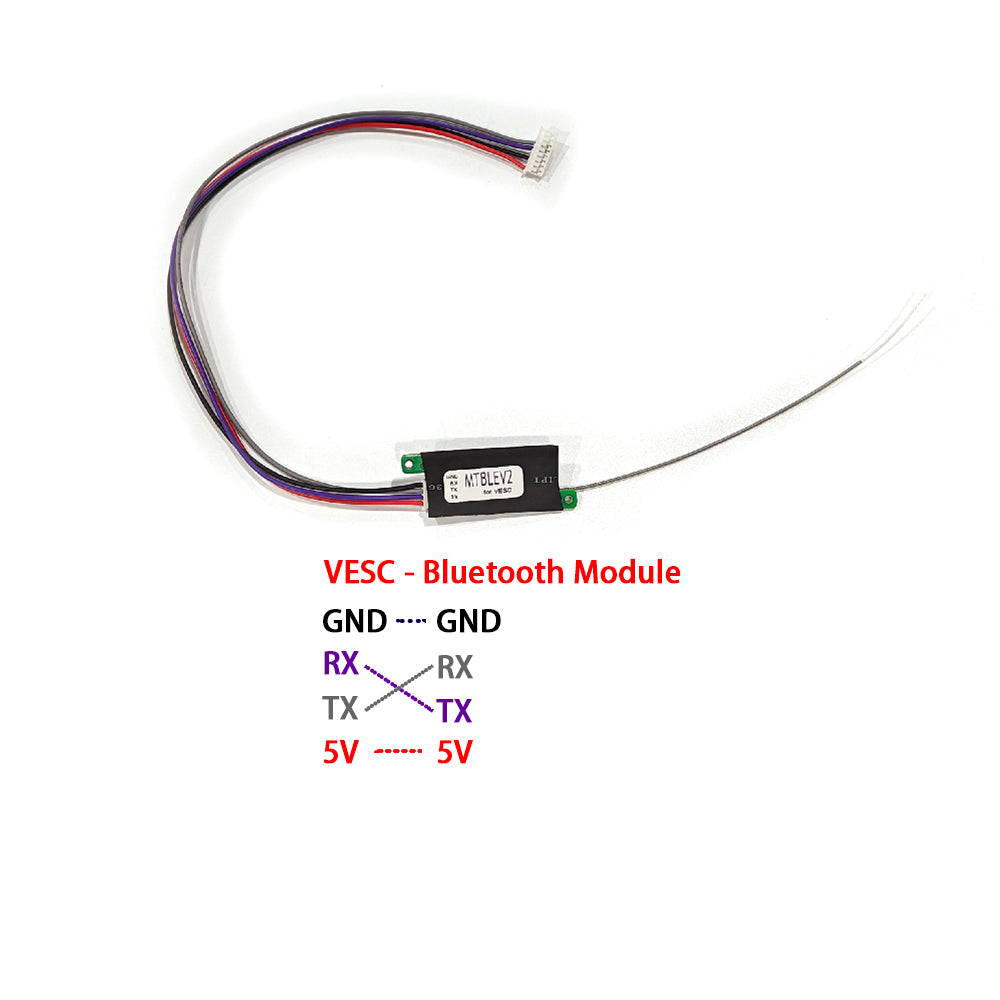

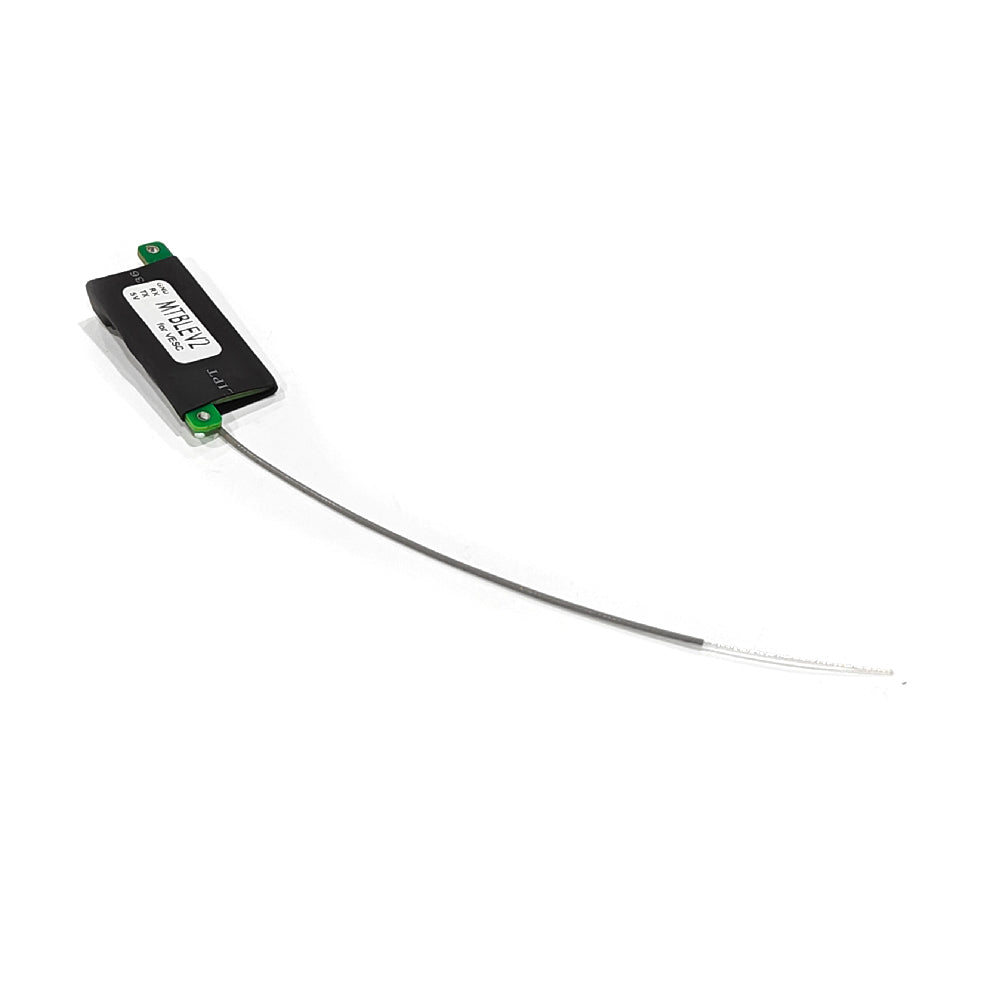

V2 Bluetooth Module:
Model No. | MTBLEV2 V2 Version |
With 3 LED Lights status | power, communication, database |
Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
Compatible Software |
VESCTOOL App |
Frequency | 2.4Ghz |
ARM Processor | ARM Cortex-M0 32 bit processor 256kB flash&16kB RAM |
PCB Size | 41mm x 21mm |
Net Weight | 5g |
Antenna Length | 90mm |
Recommend Products: Click below pictures to check more information

In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil
Specification:
Model No | MTSKR1905WF (V2), upgraded waterproof and signal strength |
Waterproof Rank | IP67 with 2 layers nanometers coating |
Control Mode | Esk8/ Esurf |
Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
Output Signal | Max 3.3V |
Display |
Remote and battery power, signal strength, throttle and brake percentage, RPM; speed, mileage; Current, voltage, temp when work with VESC |
Control Pump | Yes (Relay Switch) |
Control Light | Yes (Transistor Switch) |
Safety Button | Support |
Cruise Control | With in Esurf Mode |
Brake | With in Esk8 Mode |
Wireless Charging | Yes |
Package Includes | Transmitter, receiver, charging Pad, receiver, wristband, 3pcs dupont cable |
Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |
Features:
1. Display speed (km/h or mph) in Esk8 mode (for electric skateboard)2. Display voltage in V, current, temperature when work with VESC based controller
> Get Manual: Remote Manual and Instruction
Click Here: How to Display Volt, Current, RPM with TX and RX?


The remote has 2 Modes, signal output pulse width is different in 2 modes:
- Esurf Mode is 1ms-2ms, no stop no brake, if you use Esurf mode to work with VESCTOOL compatible controller, please use below settings in VESCTOOL and to match with the remote:
PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
Or you can use wizard mode to detect compatible value.
- Esk8 Mode is 1.5ms-1ms (Brake), 1.5ms-2ms (Speed up), 1.5ms is stop position.
Please noted to match compatible parameters for different modes in VESC_TOOL.


Tips After Using:




In Stock MTS1810AS 180A Anti-spark Switch Protection for ESC Battery
MTS1810AS Anti-spark Switch with On and Off for Electric Skateboard/Mountainboard/Ebike/E-scooter/Fighting Robots/Lawnmower Robots
Maytech Anti-spark on-off power switch board MTS1810AS for VESCTOOL Compatible controller
Function: To protect your controller and battery, eliminate surge current when startup and speed up, because when startup and speed up surge current would be bery high, the antispark switch is protection function.
Anti spark on-off switch for electric skateboard, longboard, bike, scooter e.t.c. Same function as Vedder Anti-Spark.
This switch is a small, efficient, safe and reliable way to power on/off your DIY Electric Skateboard. When doing this, it also protects delicate components (such as the VESC or other ESC's) from unwanted power surges. This anti Spark Switch is recommended to anyone looking to build the ultimate DIY Electric Longboard.
Electric Skateboard Power Switch ON OFF DIY Switch Anti-Spark High Voltage High Amp 100A 6v-50v Electric Longboard.
Model No. |
MTS1810AS |
Dimension |
48mm(L)*22.5mm(W) *5.0(H) |
Current |
180A |
Voltage |
50V |
Power side Cable |
10# 160mm Red and black |
Switch Cable |
30tin 160mmwith 4pin JR male plug |
Related Products: (Click the following pictures to check more products)
Maytech MTSKR2005WF New Waterproof Remote for Esk8 Only with 3 Speed Modes
Maytech Brushless Outrunner Sensored Motors
Maytech VESCTOOL Compitable Controller:
Maytech MTSKR1712 Small and Light Cheap Remote:

In Stock MTSPF7.5RK 50A 75V V75_300 based Speed Controller SUPERFOC Round Shape VESC
-
Overview:
- Specifications:
- Application:
- Features:
Notice:
Only connect CAN L and CAN H ! GND pins and 5V should never be connected in a V6/V75 based SUPERFOC ESCs or VESC array.

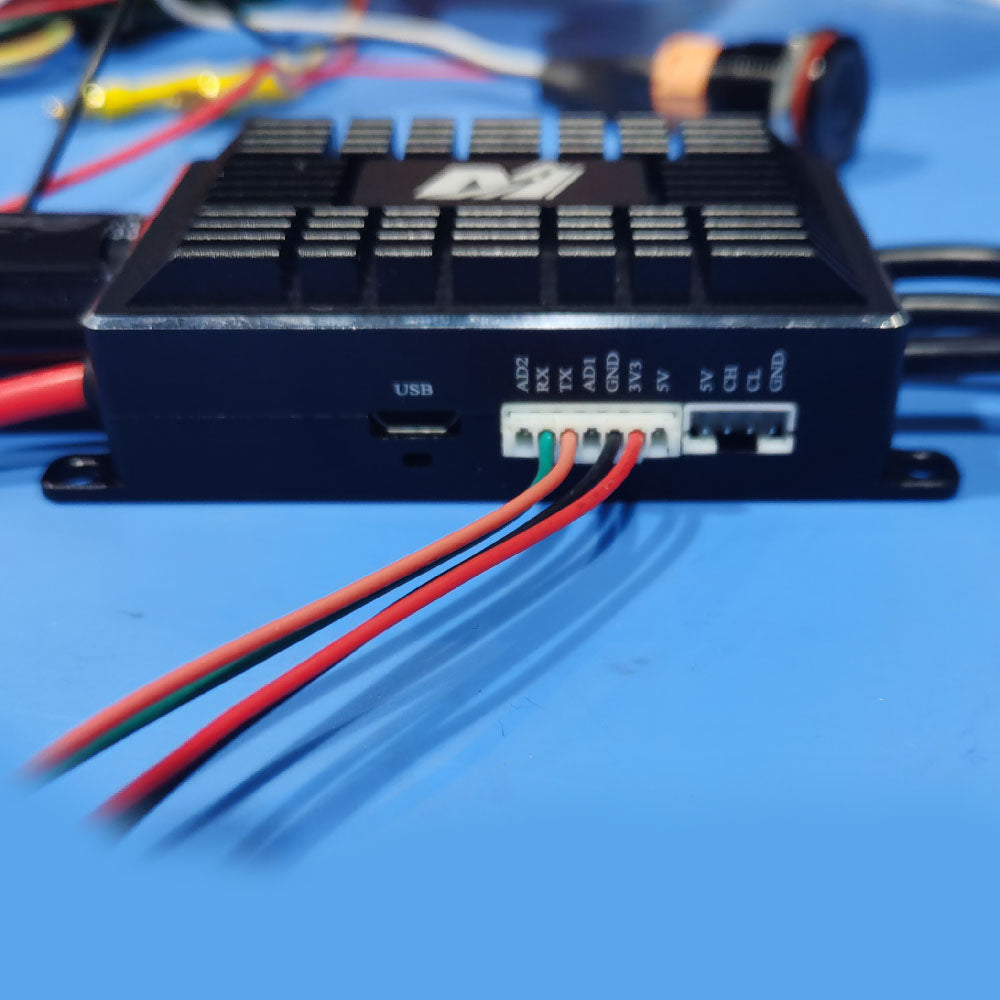

- 1. USB: For programming;
- 2. PPM: To connect PPM transceivers;
- 3. SWD: To get direct access to the Chipset. Diagnostics, debugging, and real time data;
- 4. CAN: For CAN communication with other devices and VESCTOOL compatible controller arrays;
- 5. COMM: For various kinds of other communication methods like I2C, ADC, Uart,You can use your Arduino or Raspberry Pi to control the SuperESC!
- 6. Hall Sensor: PH2.0mm JST Port, for motor Hall sensors (ABI, HALL, magnetic precision encoders).



- PCB layout, size and heat dissipationIt adopts a double-sided 6-layer board layout and a separate design for strong and weak electricity. The production process is 6x3oz immersion gold. Increase the MOS copper area to facilitate heat dissipation, and at the same time by adding via holes to conduct heat, the heat is transferred from the metal bottom surface of the MOS to the back surface of the PCB and to the heat sink. Compared with the traditional heat dissipation from MOS resin surface, the thermal resistance is lower and it’s conducive to work in confined spaces.
- MOSFET: American Fairchild FDBL0150N80 ( Fairchild, which has been acquired by ON Semiconductor).
- Driver IC: American TI company UCC27211. This chip is also used on MTSPF7.5H 300A 85V Controller On MTSPF7.5H, the driver IC drives four parallel MOS without any pressure; while on 7.5R, it only drives one, which is even more fearless.
- Current High-Speed Sampling Chip: American TI Company INA240. It can make the current sampling faster and more accurate, and has a good improvement on the FOC and over-current protection functions.
- DC-DC module: The first stage DC-DC uses TI's LM5161 to convert the main power supply voltage to 12V; The second level of DC-DC uses Microchip's MCP16311 to convert 12V to 3.3V and 5V. The current of the two-stage voltage conversion chip is 1A. Considering that the internal circuit needs 100ma, the external output current is controlled within 900ma.
- CANBUS interface chip: TJA1051 of NXP Company.
- Capacitor: 4pcs Japanese Rubycon ZLH 80V 330uf.
- Encoder: This ESC does not integrate the AS5047 encoder chip. If necessary, please purchase the encoder board separately.
- Firmware standard: VESCTOOL automatically recognizes this ESC as 75_300. This firmware can be used.
- When you receive the controller, please test without load and do not connect motor, first check if the controller can successfully connect to your computer, if ok, then connect to motor and you can start to adjust parameters.
- Do not use switching power supply, the instant voltage when switching power supply connect to controller is very high, which would easy damage the controller.
- Do not push the throttle too hard when test without load, gently and slowly speed up.
- Be cautious when adjust parameters, if parameters set mistake, would also easy damage the controller.
- Please must remember to change to corresponding modes when you adjust parameters, for example, the controller default mode is BLDC mode, but if you want to detect FOC mode and adjusted FOC parameters, at this time if mode in VESCTOOL didn't change to FOC mode, then when you push throttle, would easy burn the controller, same as FOC mode.
- In FOC mode, ERPM suggest to control in 30000-40000; In BLDC moed, ERPM suggest to control in 50000-60000, otherwise driver IC would easy to be damaged. ERPM= motor pole pairs number * KV * Voltage
ERPM= motor pole pairs number * KV * Voltage - If you use UART port, the wire better do not over 0.5m or even shorter, and better use Stranded wire.
- The above are only suggestions based on the experience of our engineers. how to actually operate is up to you. Parameters for different setup is also different, please noted
