Brushless 2826 930/1250/2200KV Sensorless Outrunner Motor for RC Hobby/Plane/Helicopter

$21.80 Regular price $27.25

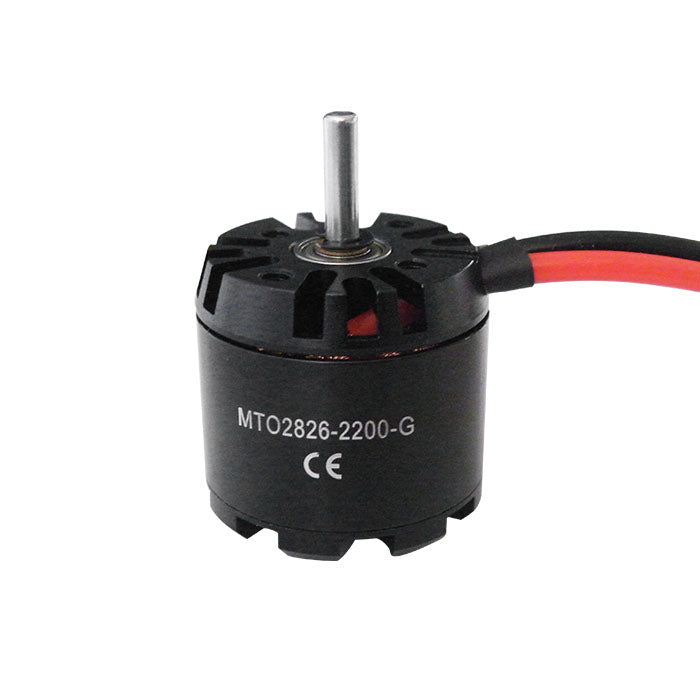

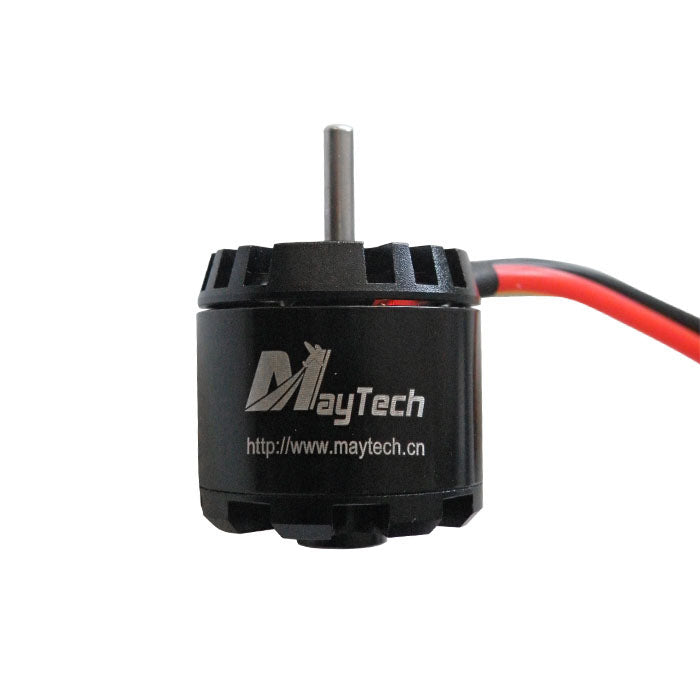

Brushless 2826 930/1250/2200KV Sensorless Outrunner Motor for RC Hobby/Plane/Helicopter MTO2826-G

Application: Airplane/RC Airplane/3D flying/RC Hobby Applications/sport flying/aggressive aerobatics/helicopter/racing airplane/ROV/ROVEEE/remote operated vehicle, underwater robot, Underwater Robotics/underwater remotely operated vehicles, subsea robots, etc.,

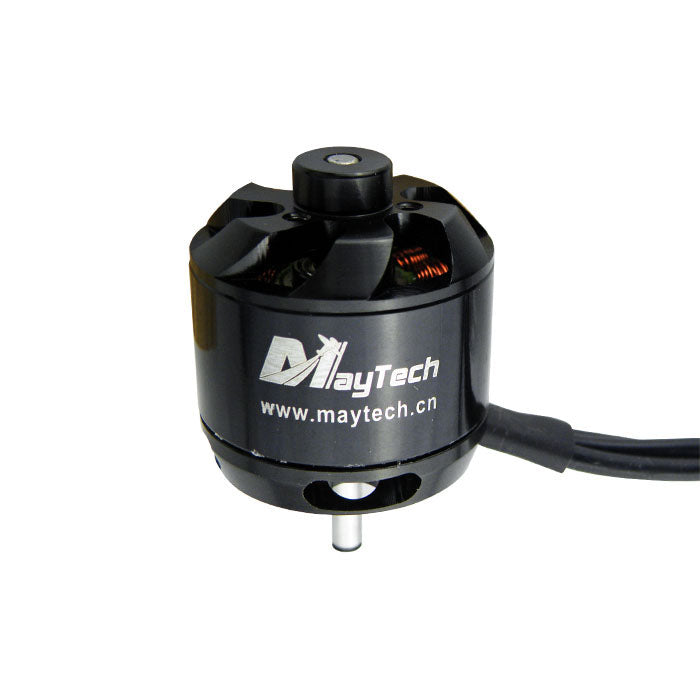

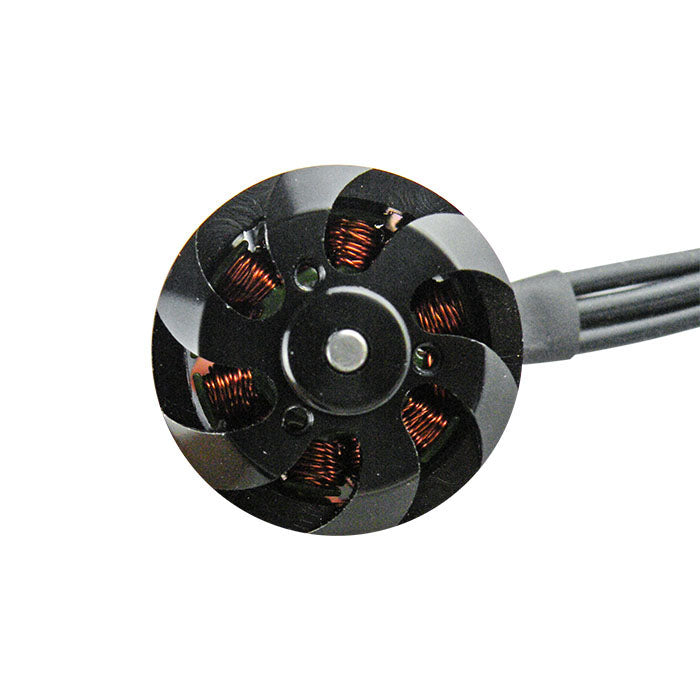

Maytech brushless motor, all parts are made of a high-precision CNC machining center, and all surfaces are made with oxidation treatment. High temperature and high purity oxygen-free copper wires were used. The motors use high-grade magnets and 0.2 mm lamination to improve efficiency.

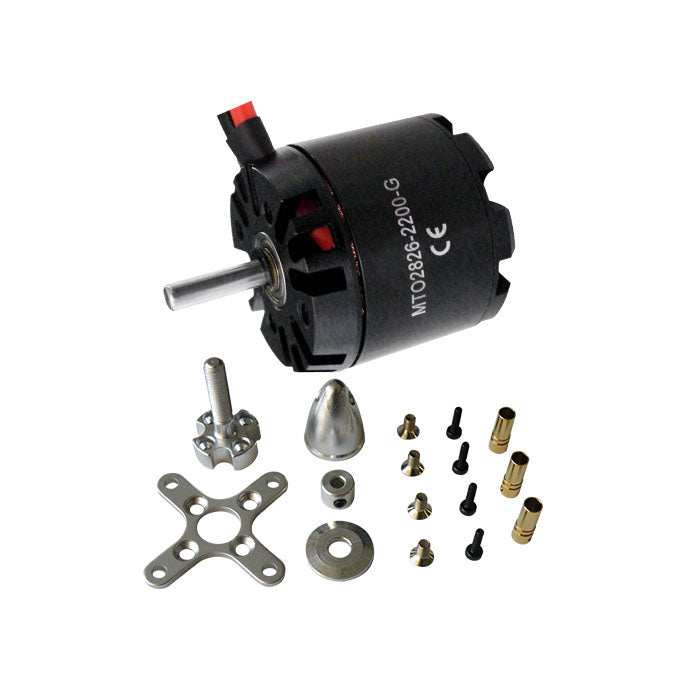

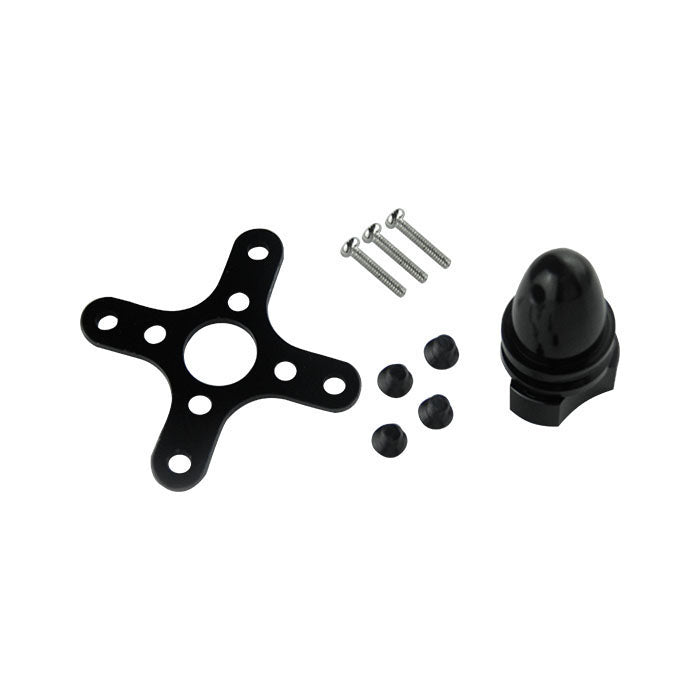

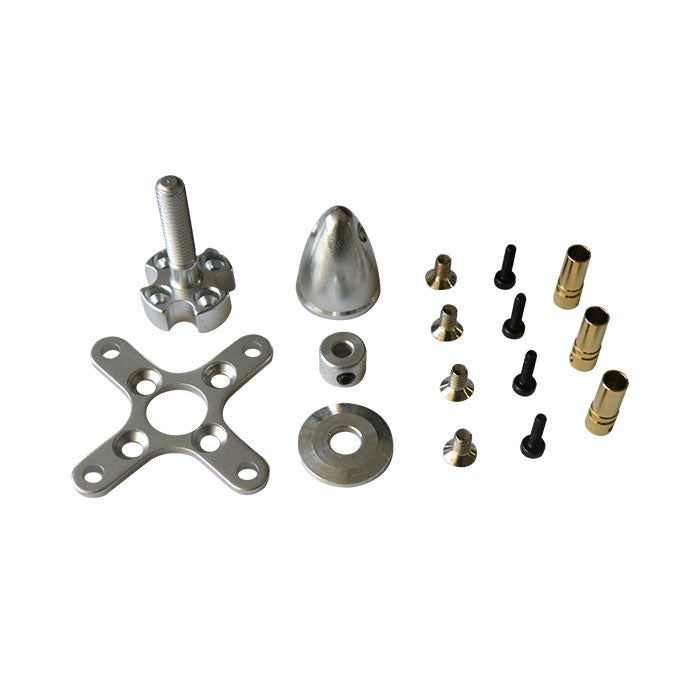

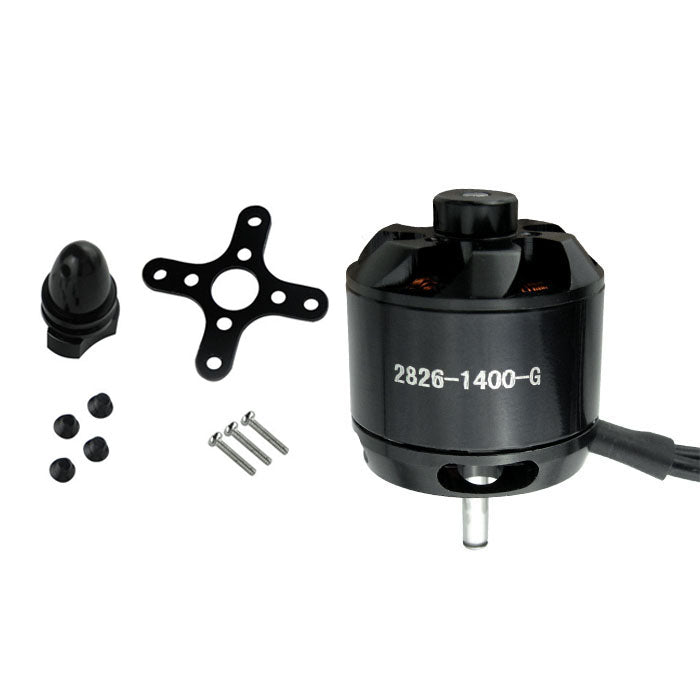

The motor comes with a complete set of propeller mount accessories, as well as the perfect packaging to protect the motor and its accessories.

Model NO.: MTO2826-G

Motor KV …………………………………. 930/1000/1250/1400/2200(RPM/V)

Shaft…………………………………………3.17mm

Stator size……………………………………Ф22.0X8.0

Motor Size……………………………………Ф27.8x29.5

Max. Current…………………………………12A/13.8A/13.8A/18.9A/31.5A

Input Volt. ……………………………………3S Lipo cell

NET Weight …………………………………53g/53g/53g/53g/43g

Thrust………………………………………………………645g/660g/660g/680g/960g

Watt. ……………………………………………………130W/150W/150W/205W/342W

Product description

  1. 1.   Mount your motor with the included screws tightly on your front cover of model.
  2.   Our motors provide high efficiency stator design.
  3.   Small size, lightweight and long life.

ATTENTION

  1.   Please make sure your motor has enough cooling while running.
  2.   Our motors providing best performance with the recommended propeller size. If you consider changing the propeller size, pls be aware that motor beoverheat and damaged.
  3.   Keep motors away from moisture, dust, scrap and small items to avoid damages.

FAQ: What is the difference between Ghost and Sunshine series motors?

The difference is the motor wire direction. For Ghost motors, motor wires and shafts at the same direction. Sunshine series different direction

We welcome OEM orders, KV value, motor color, logo all can be customized. Pls contact us Maytech@maytech.cn  for more details.
