Maytech Brushless 3536 750/1250/1400 KV Sensorless Outrunner Motor for RC Airplane/Helicopter

Maytech.cn

$25.99 Regular price $42.25
SKU: MTO3536-750-G

Brushless 3536 750/1250/1400 KV Sensorless Outrunner Motor with Accessories for RC Airplane/Helicopter MTO3536-G

Model NO.: MTO3536-G

Motor KV …………………………………. 750/910/1100/1250/1400(RPM/V)

Shaft…………………………………………5mm

Stator size……………………………………Ф28.0X14.0

Motor Size……………………………………Ф35.0x36.5

Max. Current…………………………………24.5A/25.5A/29.8A/34.2A/45.2A

Input Volt. ……………………………………4S Lipo cell

NET Weight …………………………………100g/100g/102g/99g/102g

Thrust…………………………………………1000g/1050g/1160g/1270g/1380g

Watt. …………………………………………..350W/370W/432W/492W/655W

Model No.  MTO3536-G KV (RPM/V) 750/910/1100/1250/1400
Shaft 5mm Stator Size 28x14mm
Motor Size 35x36.5mm Max Current 24.5/25.5/29.8/34.2/45.2A
Input Volt 4S Lipo Cell Net Weight (g) 100/100/120/99/102
Thrust (g) 1000/1050/1160/1270/1380 Watt (W) 350/370/432/492/655



Application: Airplane/RC Airplane/3D flying/RC Hobby Applications/sport flying/aggressive aerobatics/helicopter/racing airplane/ROV/ROVEEE/remote operated vehicle, underwater robot, Underwater Robotics/underwater remotely operated vehicles, subsea robots, etc.,

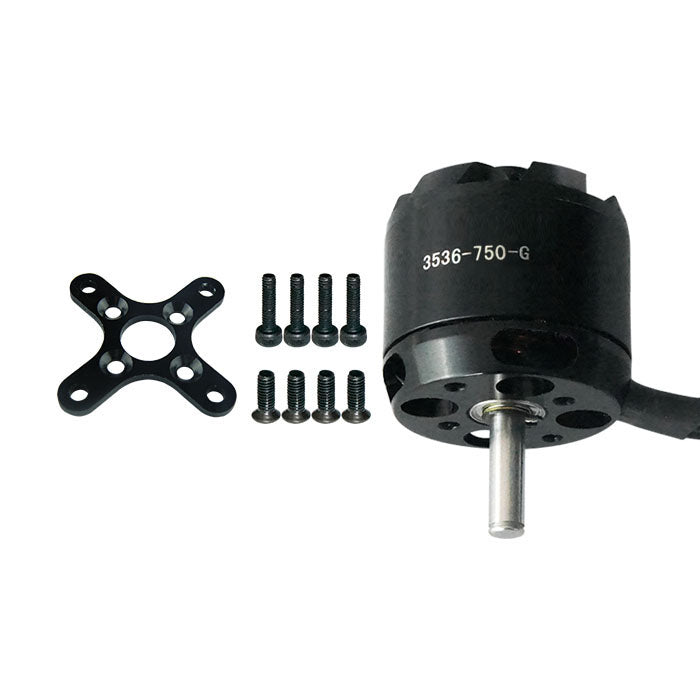

maytech 3536 motor with accessories adapter screw X mount engine for racing airplane, helicopter

Maytech brushless motor, all parts are made of a high-precision CNC machining center, and all surfaces are made with oxidation treatment. High temperature and high purity oxygen-free copper wires were used. The motors use high-grade magnets and 0.2 mm lamination to improve efficiency.

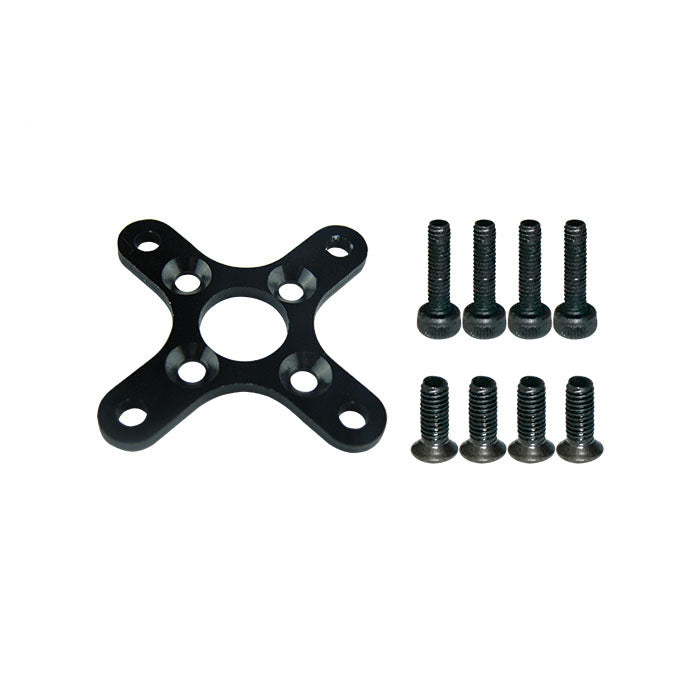

The motor comes with a complete set of propeller mount accessories, as well as the perfect packaging to protect the motor and its accessories.



Product description

  1. 1.   Mount your motor with the included screws tightly on your front cover of model.
  2.   Our motors provide high efficiency stator design.
  3.   Small size, lightweight and long life.

ATTENTION

  1.   Please make sure your motor has enough cooling while running.
  2.   Our motors providing best performance with the recommended propeller size. If you consider changing the propeller size, pls be aware that motor beoverheat and damaged.
  3.   Keep motors away from moisture, dust, scrap and small items to avoid damages.

FAQ: What is the difference between Ghost and Sunshine series motors?

The difference is the motor wire direction. For Ghost motors, motor wires and shafts at the same direction. Sunshine series different direction

We welcome OEM orders, KV value, motor color, logo all can be customized. Pls contact us Maytech@maytech.cn  for more details.

Description/Tag: brushless motor, rc brushless motor, brushless esc

maytech 3536 brushless motor drawing for electric skateboard fighting robots robotics underwater
