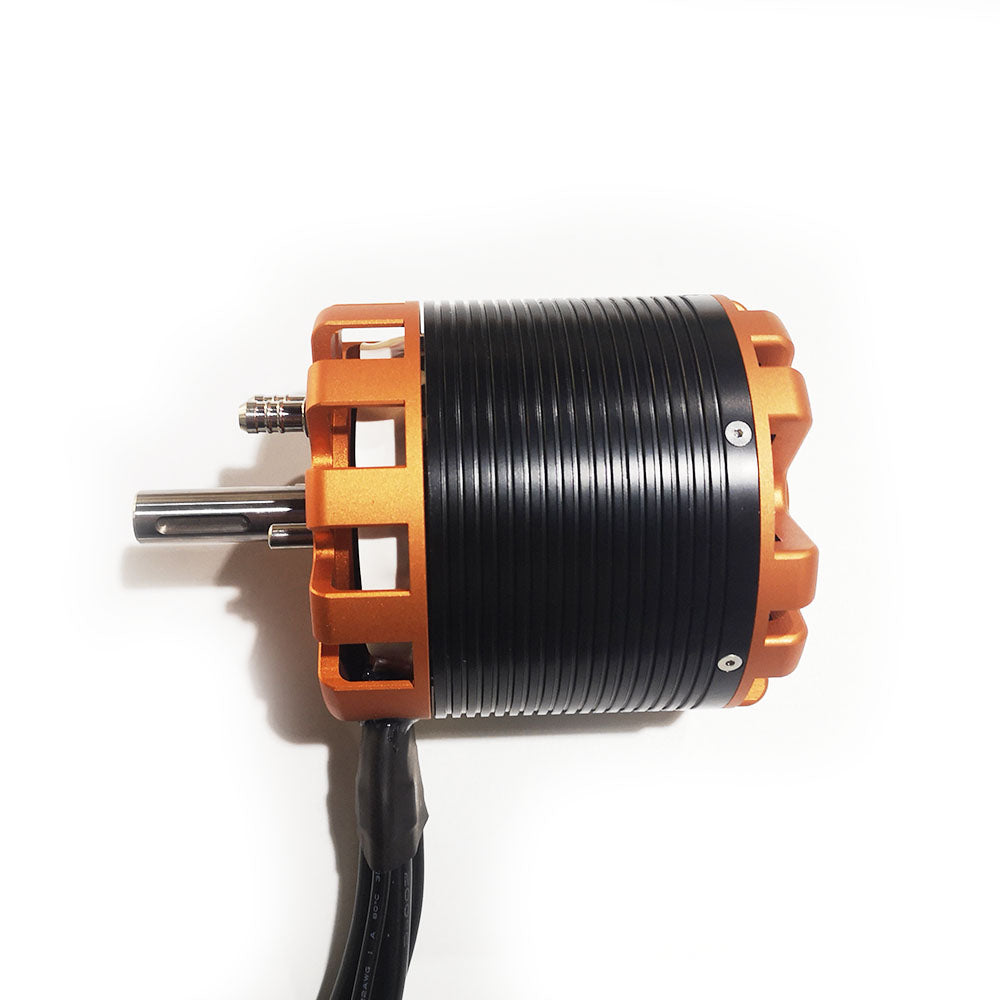

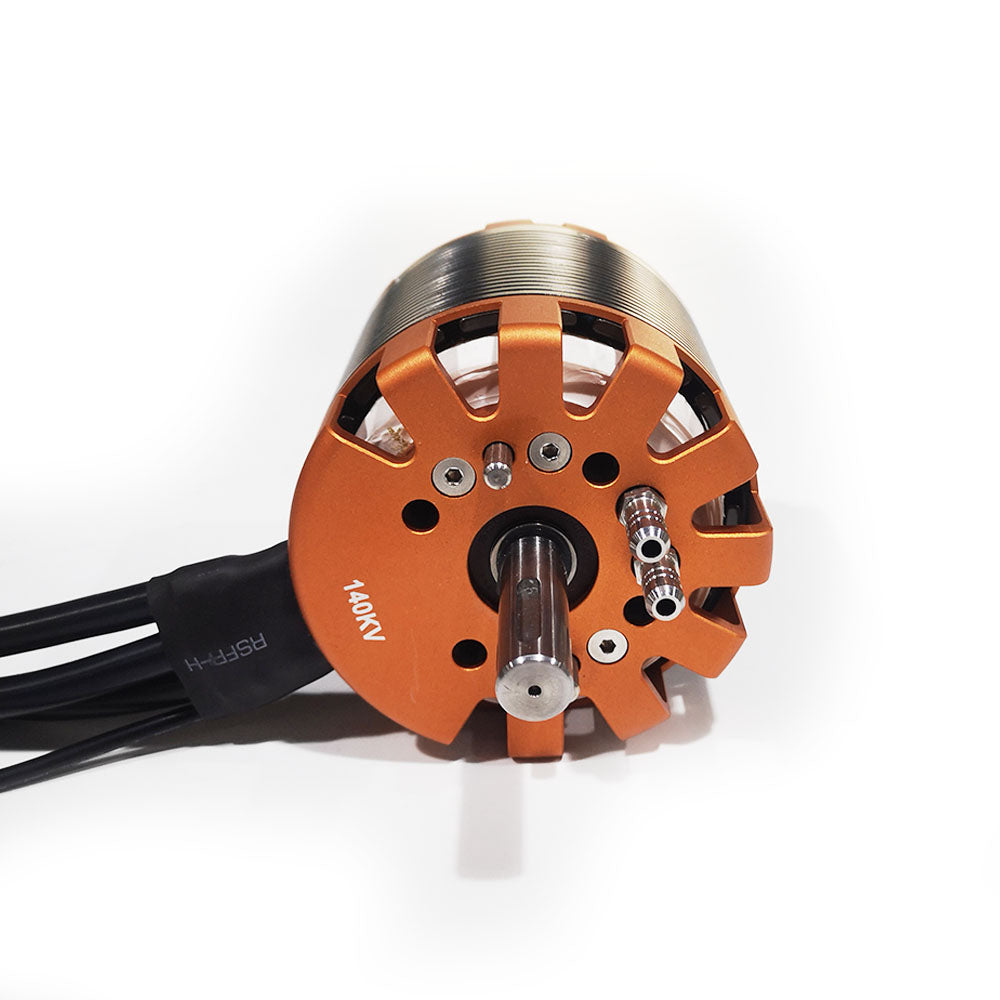

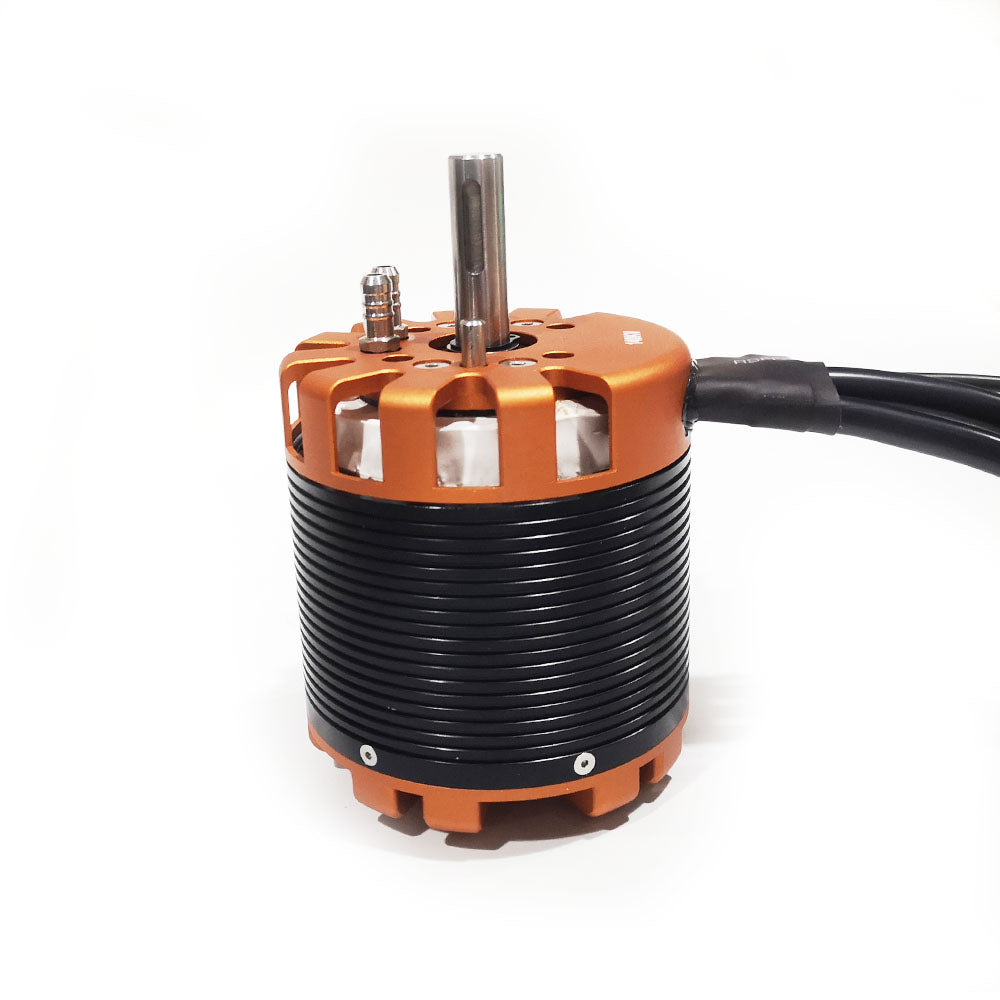

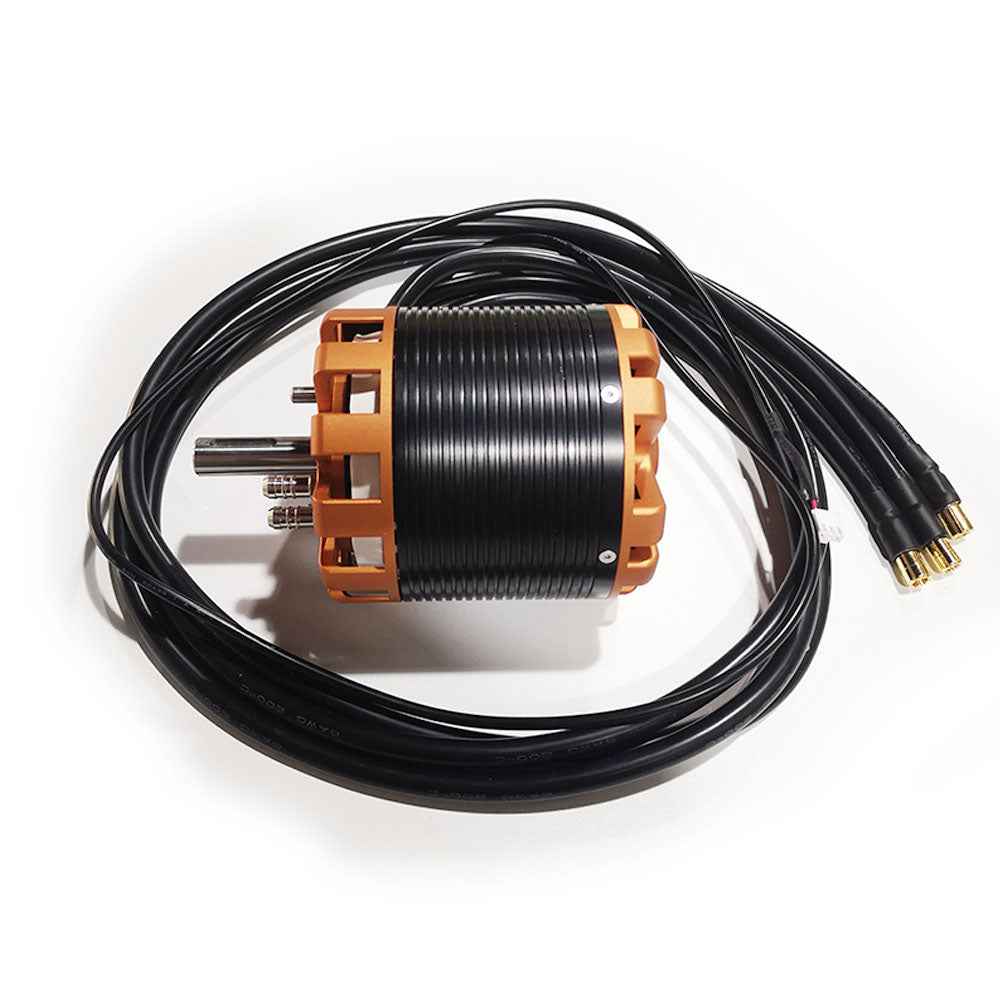

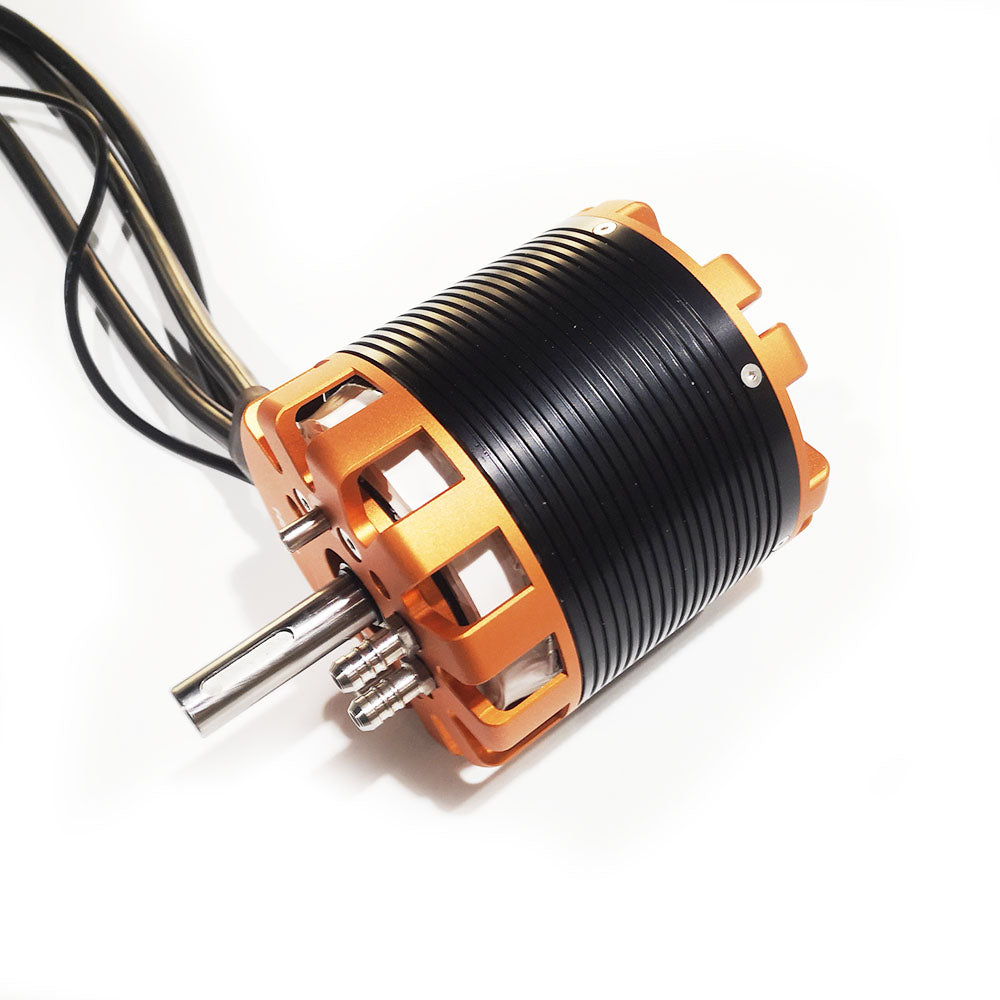

Brushless 9096 18KW Outrunner Watercooled Motor
Brushless 9096 18KW Outrunner Watercooled Motor
Couldn't load pickup availability
Maytech 9096 Brushless Outrunner Sensorless Motor for Fighting Robots Built-in Armour and Weapon DIY Motor for Electric Motorcycle, Boats, AGV Car, Gaint Robots, Electric car, electric boat, rc car, underwater treadmill, counter-current swimming traning machine, etc
Specification:
Model No. | MTO9096-150-WC | KV | 150, can be customized |
Idle Current | 2.2A | Max Current | 350A |
Input Volt | 42-92.5V | Max Output Watt | 18KW |
Internal Resistance | 0.045Ω | Shaft | D12mm |
Max Torque | 20.5N.m | Hall Sensor | Without, can customize |
Rated Current | 175A | Output Shaft Length | Can be customized |
Max Working Temp | 120℃ | Insulation Voltage & Leak Current | AC500V/10MA/3S |
Customize Options | Shaft, KV, motor cable, Output shaft length, etc., | Construction | 24N20P |
Efficiency | ≥87% | Application | fighting robots, combat robots, weapon, armour weapons, gaint robotics, Yacht, electric motorcycle, etc., |

Related Products:
MTSVESC7.5H Watercooled 400A 85V VESC and MTSF500A-WP Waterproof watercooled ESC:
MTSKR1905WF IP67 Waterproof Remote with Display:
Share












😍 Frequently Bought Together
- Maytech MTSF500A-WP 500A Waterproof ESC with Watercooling Tube for Powerful Surfboard Boat
$1,130.80$1,017.72 - +
- In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil
$99.90 - +
- Maytech Waterproof 300A 14S 60V Watercooled ESC for Efoil Electric Surfboard Jetsurf
$762.30$686.07 - +
- In Stock Maytech MTI120116 18.8KW Watercooled BLDC Motor Inrunner Sensorless Engine for Esurf/ RC Boat
$764.30$687.87 - +
- In Stock Maytech Fully Waterproof MTI120116 18.8KW Powerful Brushless Inrunner Motor for Electric Surfboard/RC Boat/Jetski
$879.00$791.10 - +
- In Stock 12V 30W Water Pump 18-75V 40-160V Convert to 12V DC-DC Module UBEC Power Supply
$54.90$49.41

Maytech MTSF500A-WP 500A Waterproof ESC with Watercooling Tube for Powerful Surfboard Boat
Maytech MTSF500A-WP 500A Waterproof ESC with Watercooling Tube with Progcard Speed Controller for Powerful Surfboard Boat
Upgrade Notice:
From 2022, October, the ESC upgrade with below waterproof junction box for receiver wiring, easier connection for receiver, relay and mosfet switches and receiver can be waterproof, also add indicator light for BEC and throttle signal.




Related Products: Click below titles to check related products
Waterproof & Watercooled Inrunner Motors 9KW/ 10KW/ 18.8KW
MTSKR1905WF IP67 Waterproof Remote Controller PWM
MTS2009AS 300A 85V Anti-spark Switch

In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil
Specification:
Model No | MTSKR1905WF (V2), upgraded waterproof and signal strength |
Waterproof Rank | IP67 with 2 layers nanometers coating |
Control Mode | Esk8/ Esurf |
Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
Output Signal | Max 3.3V |
Display |
Remote and battery power, signal strength, throttle and brake percentage, RPM; speed, mileage; Current, voltage, temp when work with VESC |
Control Pump | Yes (Relay Switch) |
Control Light | Yes (Transistor Switch) |
Safety Button | Support |
Cruise Control | With in Esurf Mode |
Brake | With in Esk8 Mode |
Wireless Charging | Yes |
Package Includes | Transmitter, receiver, charging Pad, receiver, wristband, 3pcs dupont cable |
Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |
Features:
1. Display speed (km/h or mph) in Esk8 mode (for electric skateboard)2. Display voltage in V, current, temperature when work with VESC based controller
> Get Manual: Remote Manual and Instruction
Click Here: How to Display Volt, Current, RPM with TX and RX?


The remote has 2 Modes, signal output pulse width is different in 2 modes:
- Esurf Mode is 1ms-2ms, no stop no brake, if you use Esurf mode to work with VESCTOOL compatible controller, please use below settings in VESCTOOL and to match with the remote:
PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
Or you can use wizard mode to detect compatible value.
- Esk8 Mode is 1.5ms-1ms (Brake), 1.5ms-2ms (Speed up), 1.5ms is stop position.
Please noted to match compatible parameters for different modes in VESC_TOOL.


Tips After Using:




Maytech Waterproof 300A 14S 60V Watercooled ESC for Efoil Electric Surfboard Jetsurf
Maytech MTSF300A-WP IP68 Waterproof 300A ESC 300A 85V Anti-spark Switch Water Pump Esurf Kit Speed Controller for Efoil/RC Boat
Upgraded Notice Since July 29, 2022.
Upgrade with waterproof junction box for wiring as below picture:
Receiver can be put in the junction box to be waterproof, too:


Please noted for usage:
Max ERPM recommended to use for the ESC is 50000.
ERPM = RPM x Motor pole pairs number




Related Products: (Clicking the following pictures to check specs)
1. IP67 Waterproof Esk8 Remote MTSKR1905WF:
2. Waterproof Watercooled Esurf/Efoil/RC Boat Kit:
3. Maytech Watercooled 300A ESC Not Waterproof:

In Stock Maytech MTI120116 18.8KW Watercooled BLDC Motor Inrunner Sensorless Engine for Esurf/ RC Boat
Maytech Fully Waterproof MTI120116 18.8KW Powerful Brushless Inrunner Motor for Electric Surfboard/RC Boat/Jetski Multiple Versions
Specification:
Model No. | MTI120116 | Idle Current | 2.8A/8.4V |
Internal Resistance | 0.0322Ω | Max Current | 380A |
Input Volt | 10-16S Lipo | Max Output Watt | 18.8KW |
Max Pull | 20.6 N.m | Motor Weight | 4400g |
Motor Touque @60% | 20.6 N.m | Shaft | Keyway Shaft |
Motor Size | 120x116mm | Construction | 12N/10P |
Max Working Temperature | 120℃ | Insulation Volt & Leak Current | AC500V/10MA/3S |
Shaft Extension | D15*L30 | Lead Wires Extension | 6AWGx300mm |
Plug | 8mm | Lifespan | 8000h |
Options: Please choose the suitable variation you need according to the following table
Model No. | KV | Fully Waterproof | Water-cooling | Sensor |
MTI120116-100-HA-WP | 100 | Yes | No | Yes |
MTI120116-100-HA-SF | 100 | No | Yes | Yes |
MTI120116-100-WP | 100 | Yes | No | No |
MTI120116-100-SF | 100 | No | Yes | No |
MTI120116-200-HA-WP | 200 | Yes | No | Yes |
MTI120116-200-HA-SF | 200 | No | Yes | Yes |
MTI120116-200-WP | 200 | Yes | No | No |
MTI120116-200-SF | 200 | No | Yes | No |
Different application for Sensored and Sensorless Version:
Application:


Stock Notice before Place Order:
The motor stock is limited, please confirm order asap.
And if you need very urgently, please contact us agnes@maytech.cn to check stock first, if in stock, shipping time is about 1-2 days after order confirmed.
If not in stock, production time 30-50 days after order confirmed.
Warning:
Flier ESCs are not compatible to all Maytech motors, recommend to use our 300A ESC as following recommend products.
Esurf Kit Test: MTI120116-200-WP+MTSF300A-OPTO-WP+MTSKR1905WF
Related Products: (Clicking the following pictures to check specs)
1. Maytech Fully Waterproof Efoil kit MTI65162 Motor+1905WF+300A ESC
2. Maytech MTSKR1905WF IP67 Waterproof V2 Remote:
3. Maytech Fully Waterproof Efoil Kit MTI85165 Motor+1905WF+300A ESC
4. Maytech Fully Waterproof Esurf/RC Boat Kit 18.8KW 120116 Motor+1905WF+300A ESC:
5. Maytech MTSF300A-OPTO-WP Fully Waterproof 300A ESC:

In Stock Maytech Fully Waterproof MTI120116 18.8KW Powerful Brushless Inrunner Motor for Electric Surfboard/RC Boat/Jetski
Maytech Fully Waterproof MTI120116 18.8KW Powerful Brushless Inrunner Motor for Electric Surfboard/RC Boat/Jetski Multiple Versions
Specification:
Model No. | MTI120116 |
Options | IP68 Waterproof / Watercooled / Sensorless / Sensored, choose the one you want, sensorless is normally in stock, sensored version is not stock item, if you need urgently, contact agnes@maytech.cn to check stock first before place order |
KV | 100/200, can customize, contact us |
Max Current | 380A |
Input Voltage | 6-20S Lipo (25-84V) for 100KV, 6-20S Lipo (25-50V) for 200KV |
Max Output Voltage | 18.8KW |
Shaft | Keyway Shaft |
Hall Sensor | With |
Motor Pole Number | 10 |
Customize | KV, logo, shaft, cable, connector, etc., contact Email: agnes@maytech.cn |
Appliacation | Electric surfboard, boat, jetsurf, jetboard, watercraft, jetski, electric outboard, etc., |
Different application for Sensored and Sensorless Version:
To meet different customers requirements, we designed one version with hall sensor, one version without hall sensor.
Sensored version can not only be used underwater but also can be used on electric skateboard, fighting robots, electric cars, etc.,
Sensorless version usually use for underwater electric vehicles, electric surfboard, Efoil, hydrofoil, rc boat, water jet propulsion, etc.,
Application:
Electric surfboard/Efoil/Hydrofoil/jetski/jetboard/waterboard/water jet propulsion/surffoil/foilsurf/foilboards/rc boat, foil boat, foiling boat, hydrofoil boat, hydrofoiling boat, rescue boat, metal cutting machine, drilling and wrenching machines for rails, etc.,



Stock Notice before Place Order:
The motor stock is limited, please confirm order asap.
And if you need very urgently, please contact us agnes@maytech.cn to check stock first, if in stock, shipping time is about 1-2 days after order confirmed.
If not in stock, production time 30-50 days after order confirmed.
About Fully Waterproof Version:
We Upgraded Waterproof Performance from Oil-sealed to Water-sealed, which has better waterproof performance and can extend motor lifespan.
Esurf Kit Test: MTI120116-200-WP+MTSF300A-OPTO-WP+MTSKR1905WF

In Stock 12V 30W Water Pump 18-75V 40-160V Convert to 12V DC-DC Module UBEC Power Supply
Maytech 12V 30W Water Pump 18-75V 40-160V Convert to 12V DC-DC Module UBEC Power Supply Comb for Electric Surfboard Efoil Jetski
Specifications:
UBEC 1: 18-75V Input DC Convert to 12V Output DC
If you use voltage from 18-75V voltage, please choose this option.

UBEC 2: 40-160V Input DC Convert to 12V Output DC
If you use voltage from 40-160V voltage, please choose this option.

If you order the water pump together with UBEC, we will solder the UBEC to the water pump for your convenient to use:
