Brushless 5570 Sealed Motor 8mm Shaft Sensored 190KV 70KV With Big Ball Bearing

$77.50 USD

Sale Sold out

Shipping calculated at checkout.

KV 190KV 70KV

Quantity

Maytech Brushless 5570 70KV 190KV Closed Cover Sensored Splash proof and Dustproof Motor for Esk8/E-bike/Robots/Mountainboard/E-scooter/Efoil/Esurf

Model No	MTO5570-HA-C3	KV	70 / 190
Idle Current	1.2A	Max Current	50A
Inpur Voltage	2-10s Lipo	Max Output Watt	1815W
Max Pull	6700g	Rated Current	42.5A
Motor Weight	660g	Shaft	8mm
Output Shaft Length	45.5mm	Internal Resistance	0.0361

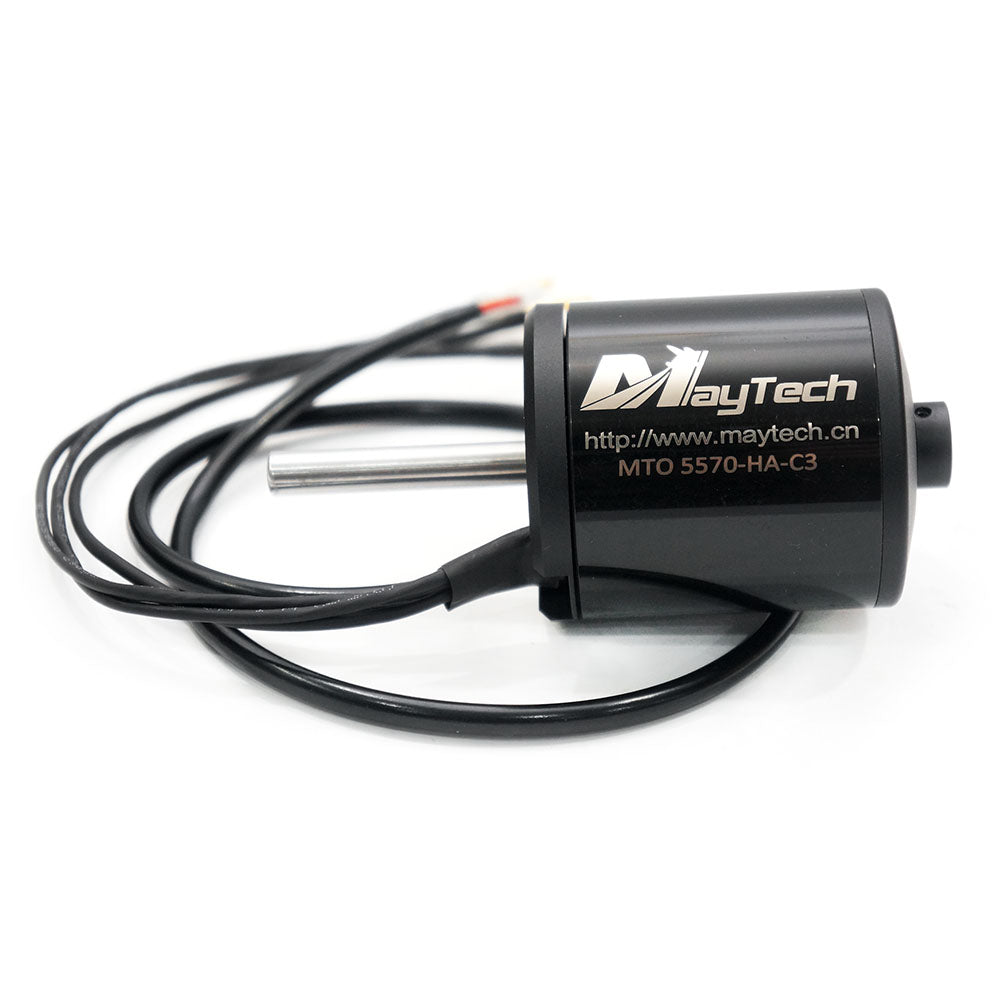

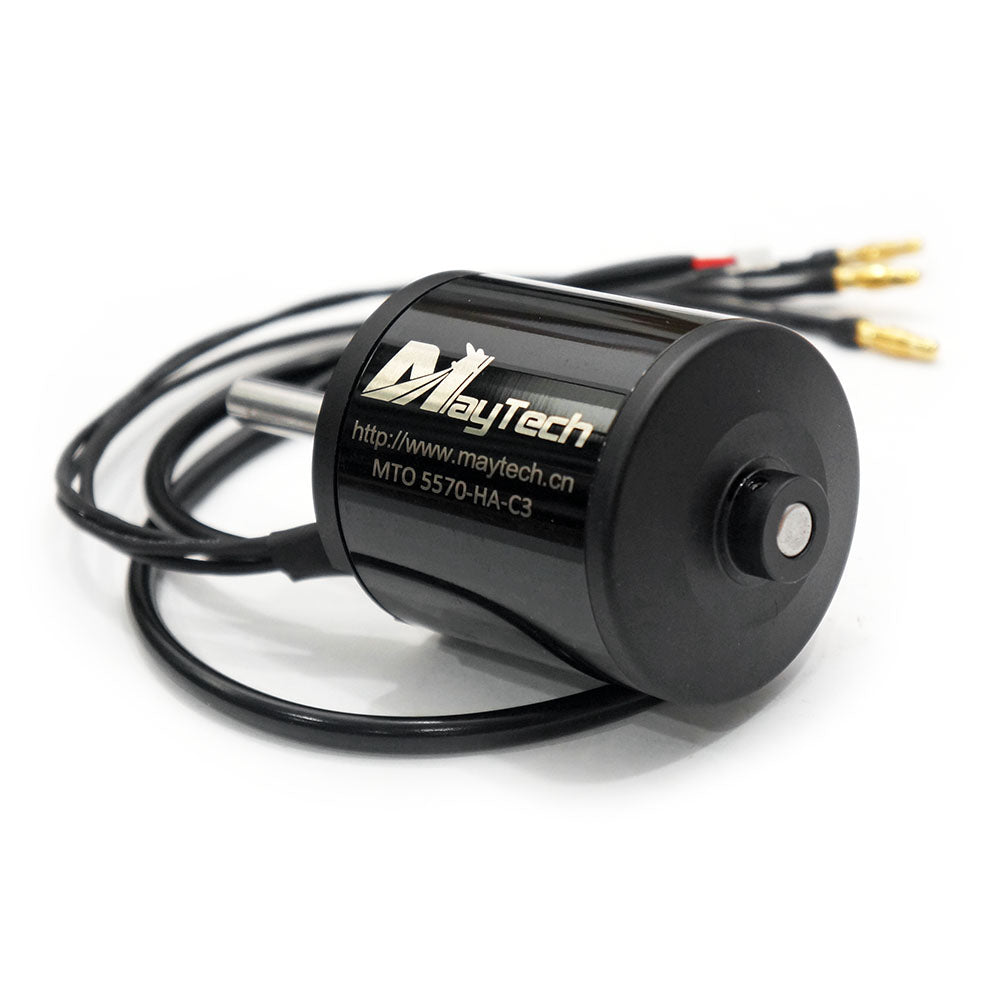

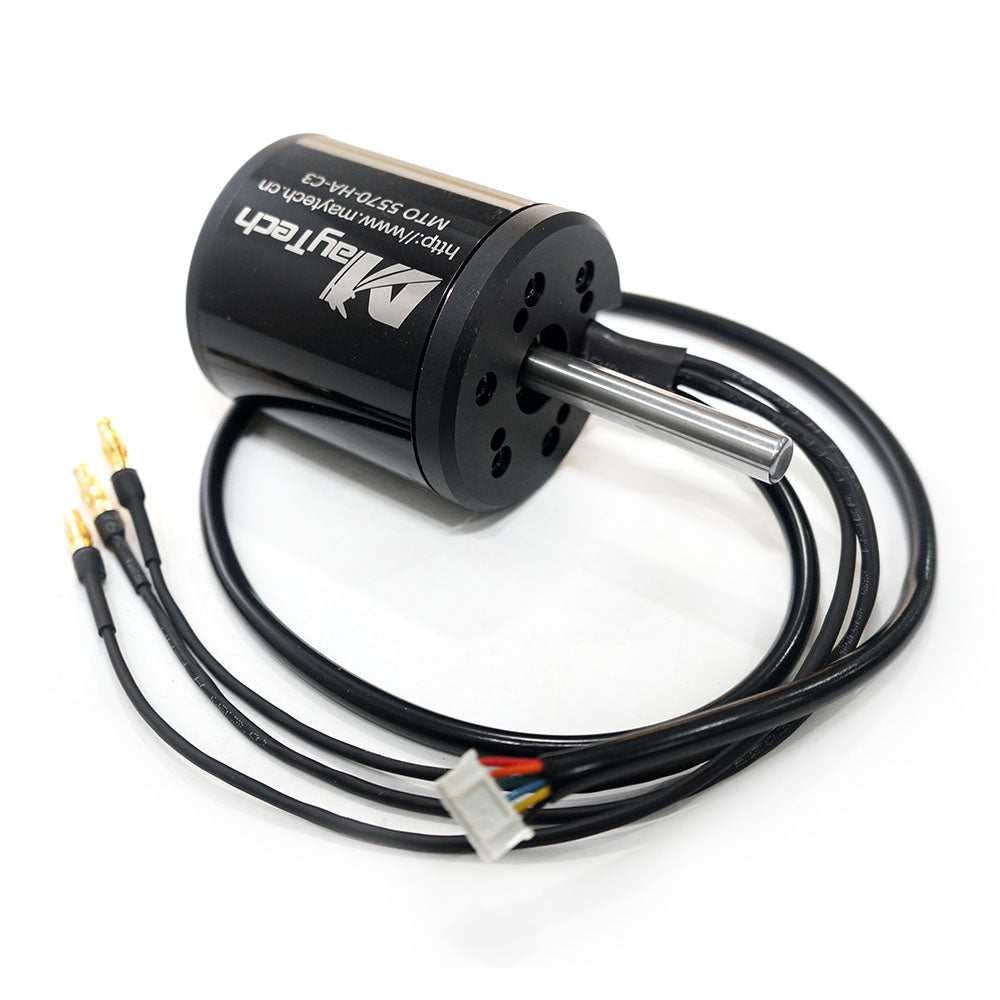

This motor top cover is upgraded, in the picture is sample, the motor you will received will be with Maytech logo and model number on motor case.

maytech brushless outrunner sensored motor 5570 190KV 170KV with big ball bearing great shake resistance for electric skateboard lognboard mountainboard long output shaft suitable for fire fighting robots walking robots combat robotics cable camera

Notice before order:

1. The motor is stock item, but stock is limited, so please confirm your order asap.
2. Shipping time is about 24 working hours after your order confirmed if the product you ordered is in stock, if not in stock, lead time is about 35-55 days.
3. If you need the product very urgent, please contact us agnes@maytech.cn to check stock first.
4. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.

Application: for electric skateboard, ebike, electric bike, underwater robots, Marine robots, fighting robots, War robots, delivery robots, electric power tools, hydrofoil board, MegaBots, Battlebots, Robot combat, Combat Robots, etc.

Motor Drawing:

maytech 5570 190KV new cover sealed closed cover splash proof and dust proof with big ball bearing BLDC sensored brushless motor for electric skateboard longboard mountainboard fighting robots fire fighting walking robotic
