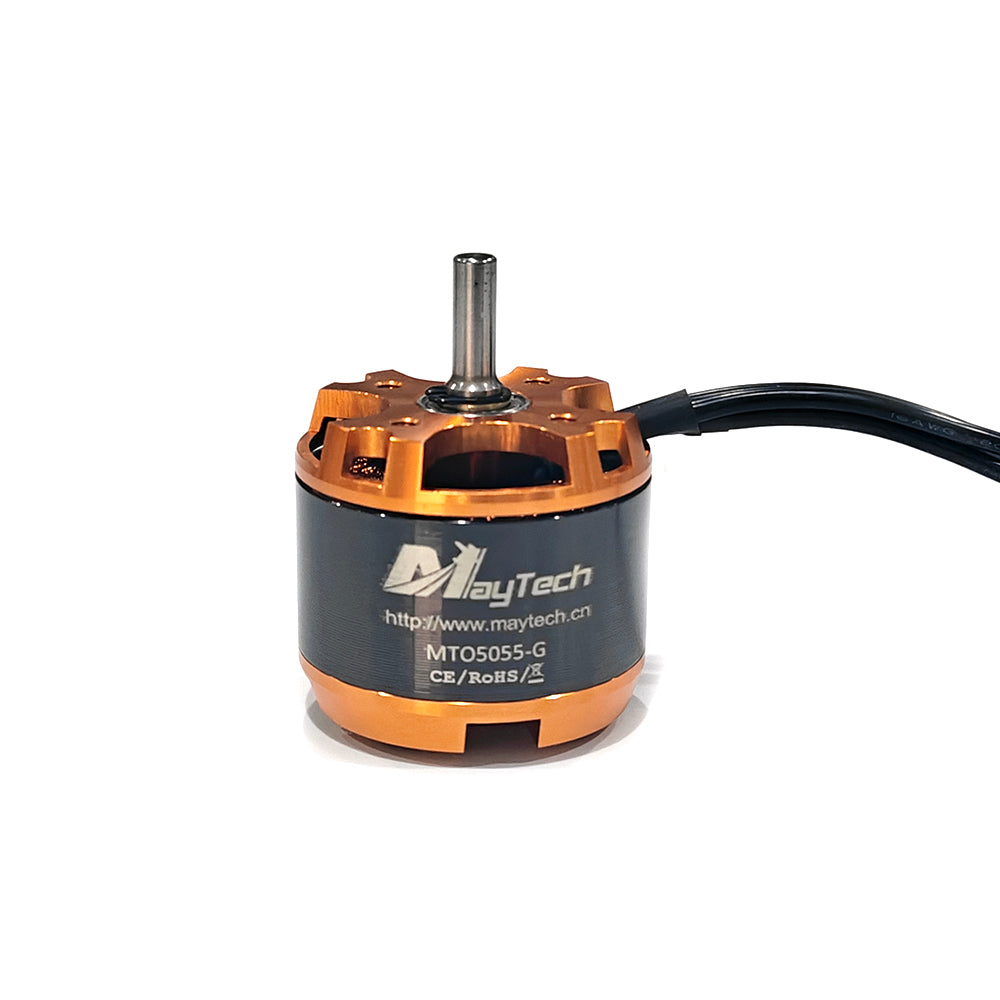

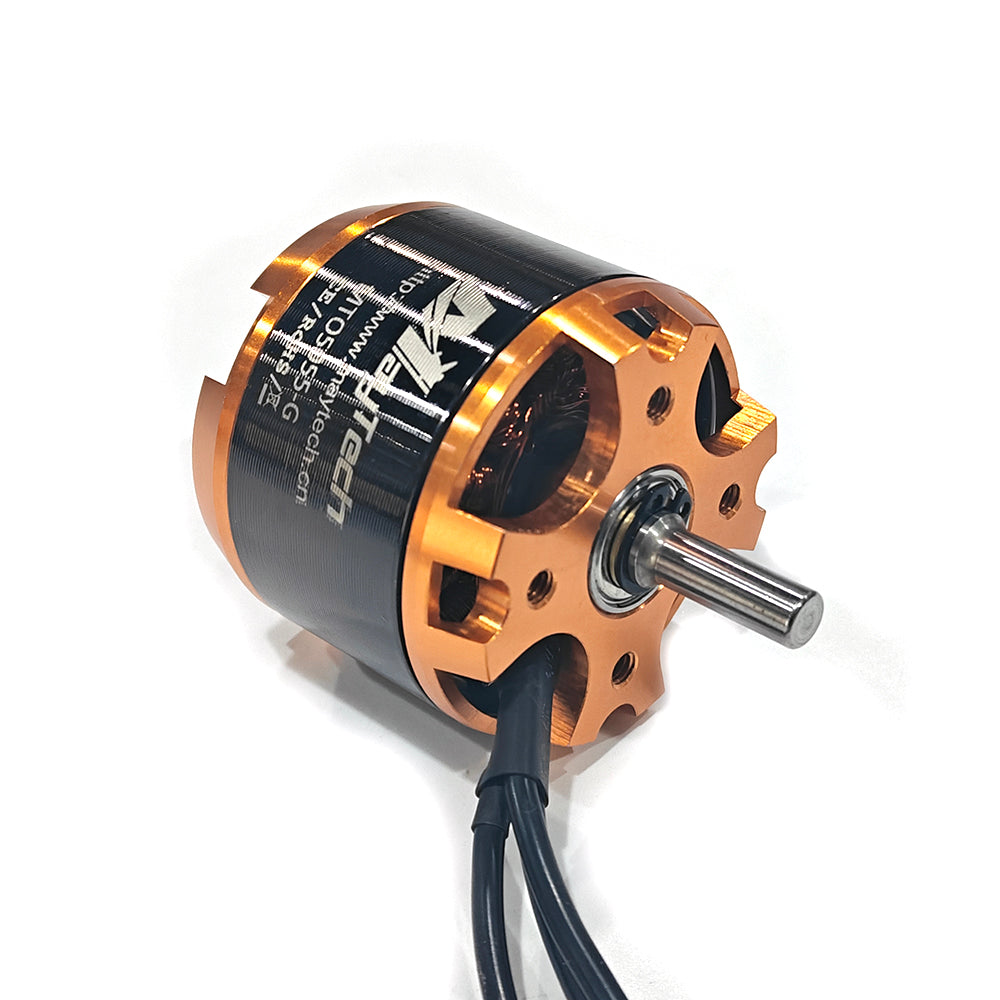

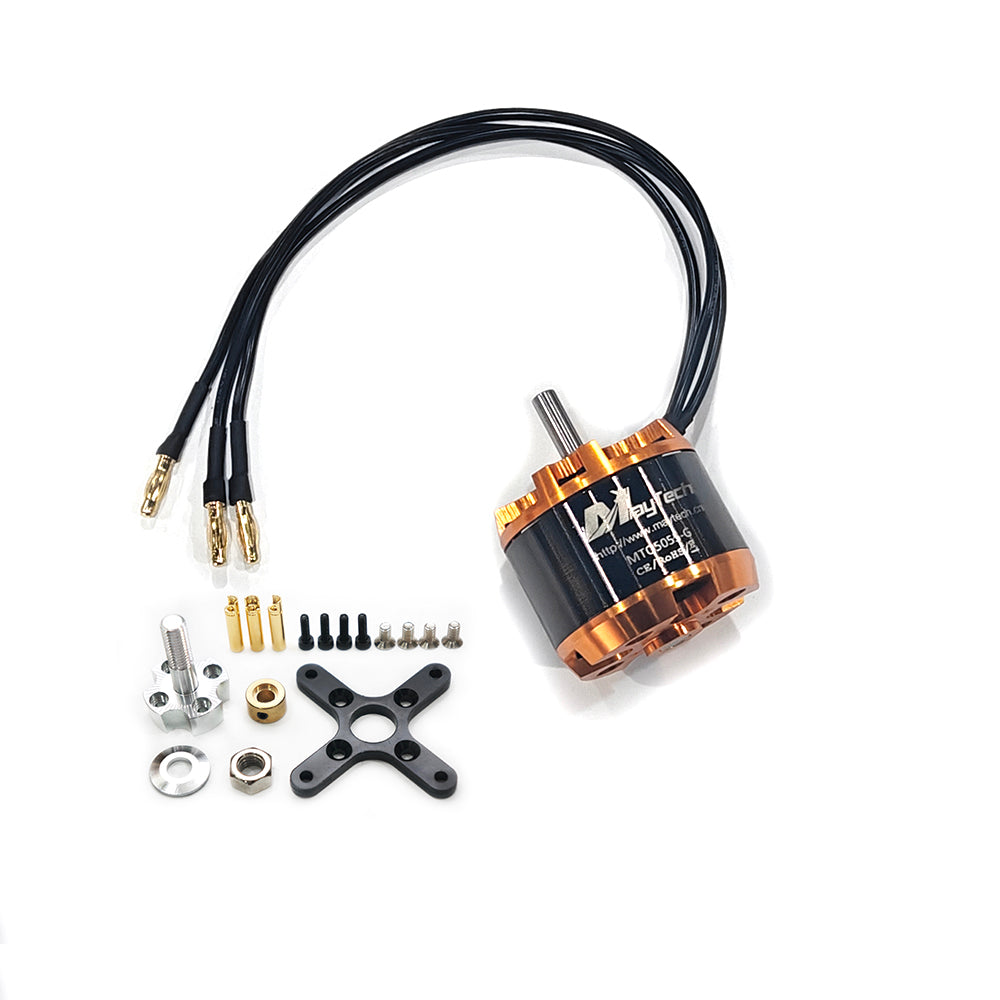

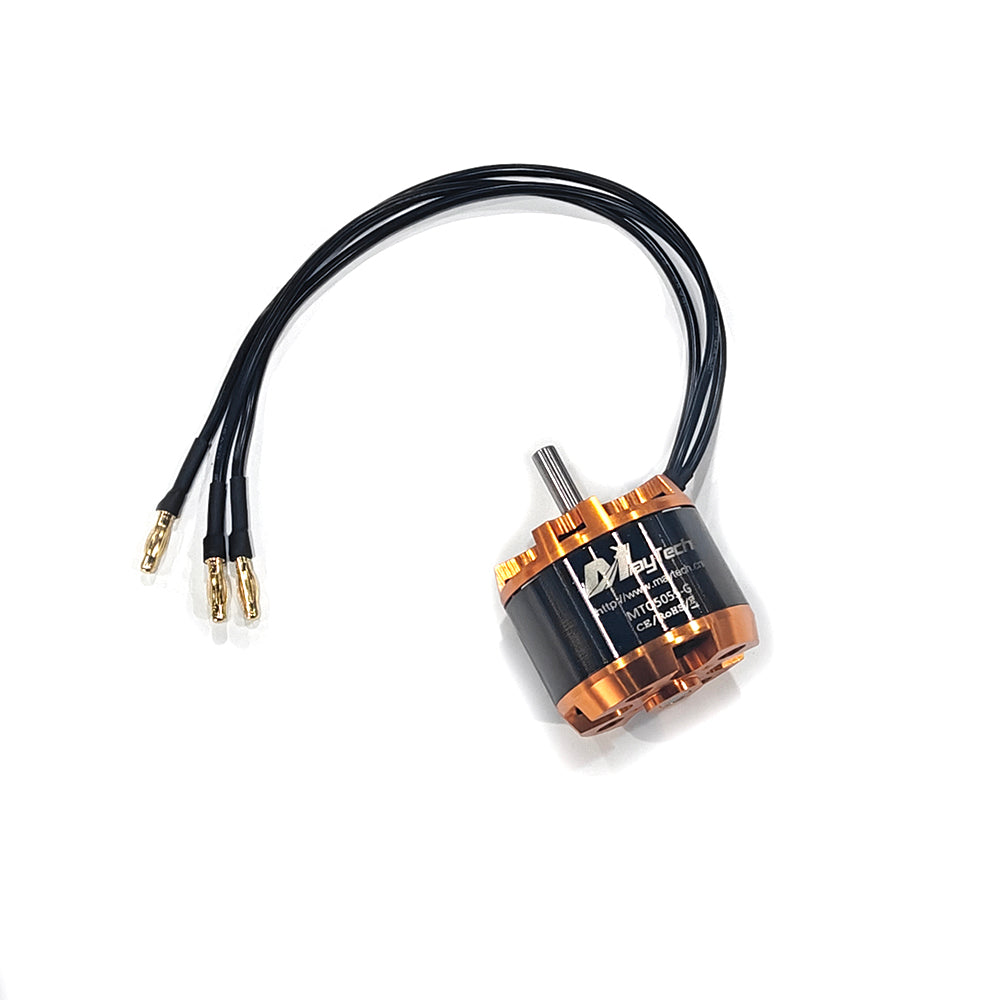

Brushless Sensorless Motor MTO5055-220-G

  • Sale
  • $93.90
  • Regular price $199.90

This outrunner motor can be used for electric skateboard, robotics, RC airplanes, RC helicopter, UAV drones. etc.

All parts are made of a high-precision CNC machining center, and all surfaces are made with oxidation treatment. High temperature and high purity oxygen-free copper wires were used. The motors use high-grade magnets and 0.2 mm lamination to improve efficiency.

Better efficiency means you get more mechanical energy per unit of power,

After a lot of development, we have put together what we know works best for an electric skateboard or ebike motor and made it small and compact.

Model NO.: MTO5055-220-G

Idle Current: 0.5A
Max. Current: 30A
Input Volt.: 2-10s Lipo
Max. Output Watt:1170W
Max. Pull: 5400g
Rated Current:25.5A
Motor Weight: 270g
Shaft: 6mm
Motor dimension: Φ49.2x 42.5mm
Internal Resistance: 0.1022
With no Hall Sensor
Price does not include accessory

Application: for electric skateboard, ebike, electric bike, underwater robots, Marine robots, fighting robots, War robots, delivery robots, electric power tools, hydrofoil board, MegaBots, Battlebots, Robot combat, Combat Robots, etc.


Maytech 5055 motor
