Maytech Brushless 8085 160/250KV Sensorless Outrunner Motor for Esk8/Large Airplane

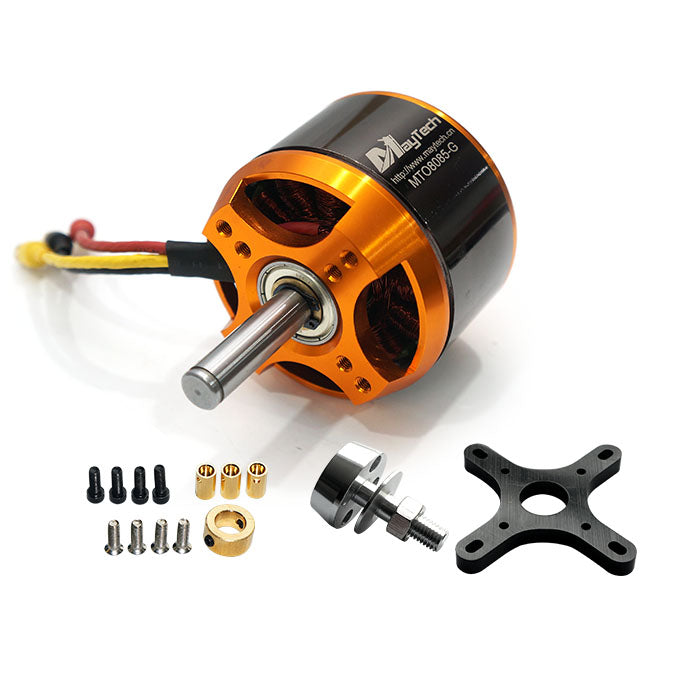

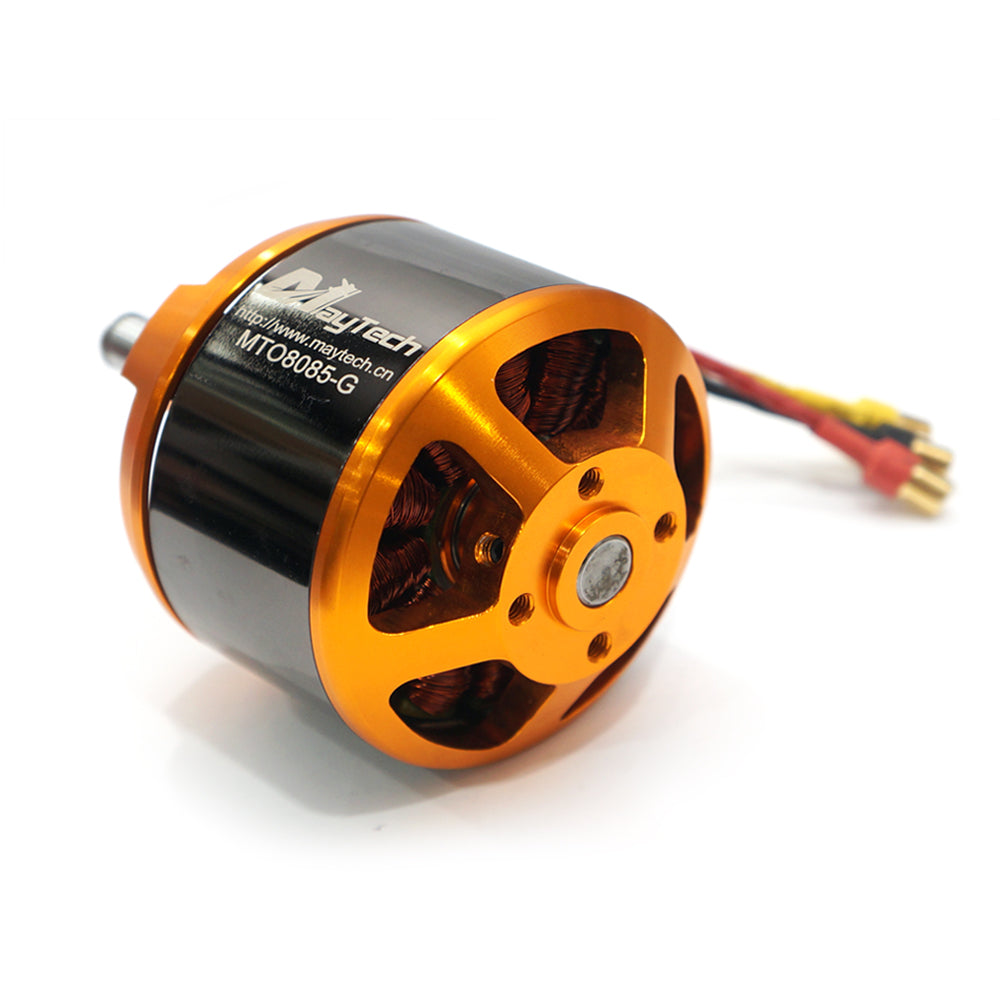

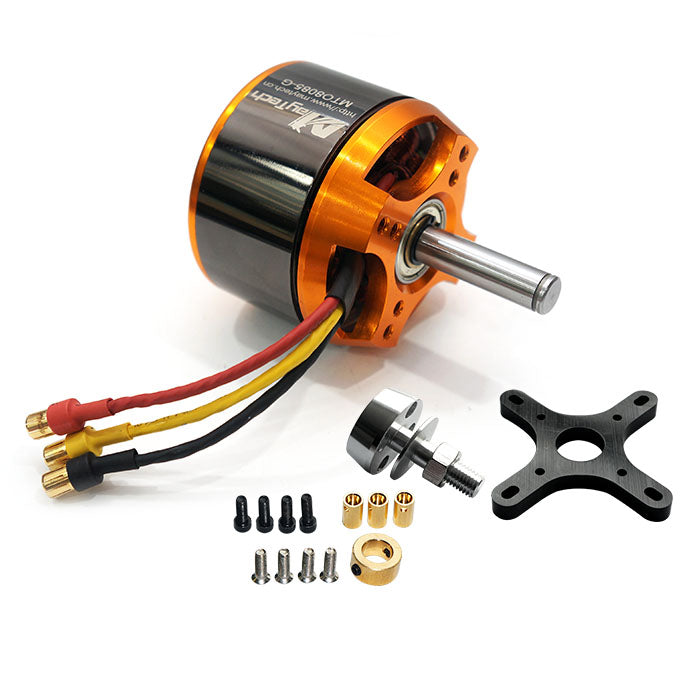

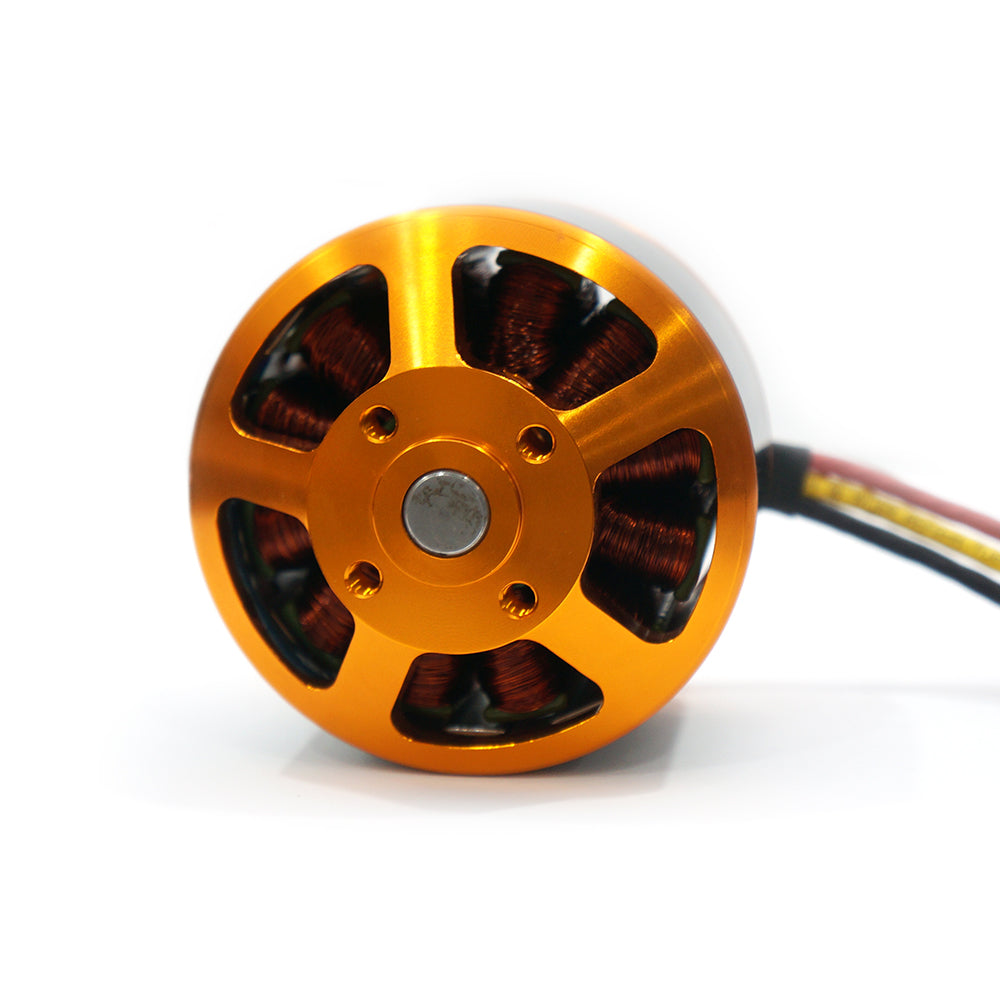

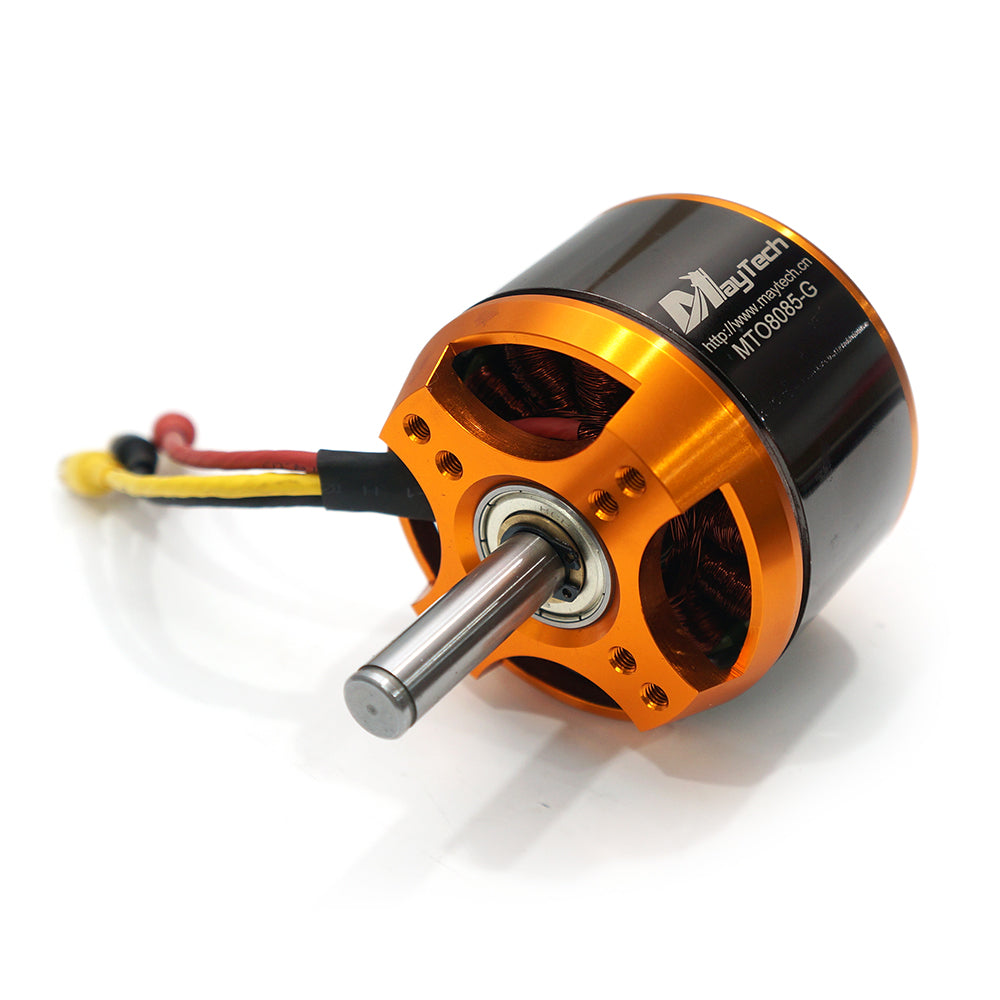

Maytech Brushless 8085 160KV Non-sealed Sensorless Outrunner Motor for Esk8/Large Airplane/Helicopter MTO8085-160-G
|Model No.||MTO8085-G||KV (RPM/V)||160|
|Max Current||90A||Input Volt||6-14|
|Max Output Watt||5330W||Max Pull||15500g|
|Rated Current||64A||Motor Weight||1800g|
|Internal Resistance||0.028||Hall Sensor||Without|
This motor is not in stock, production takes about 35-55 days after your order confirmed, please noted before place order.

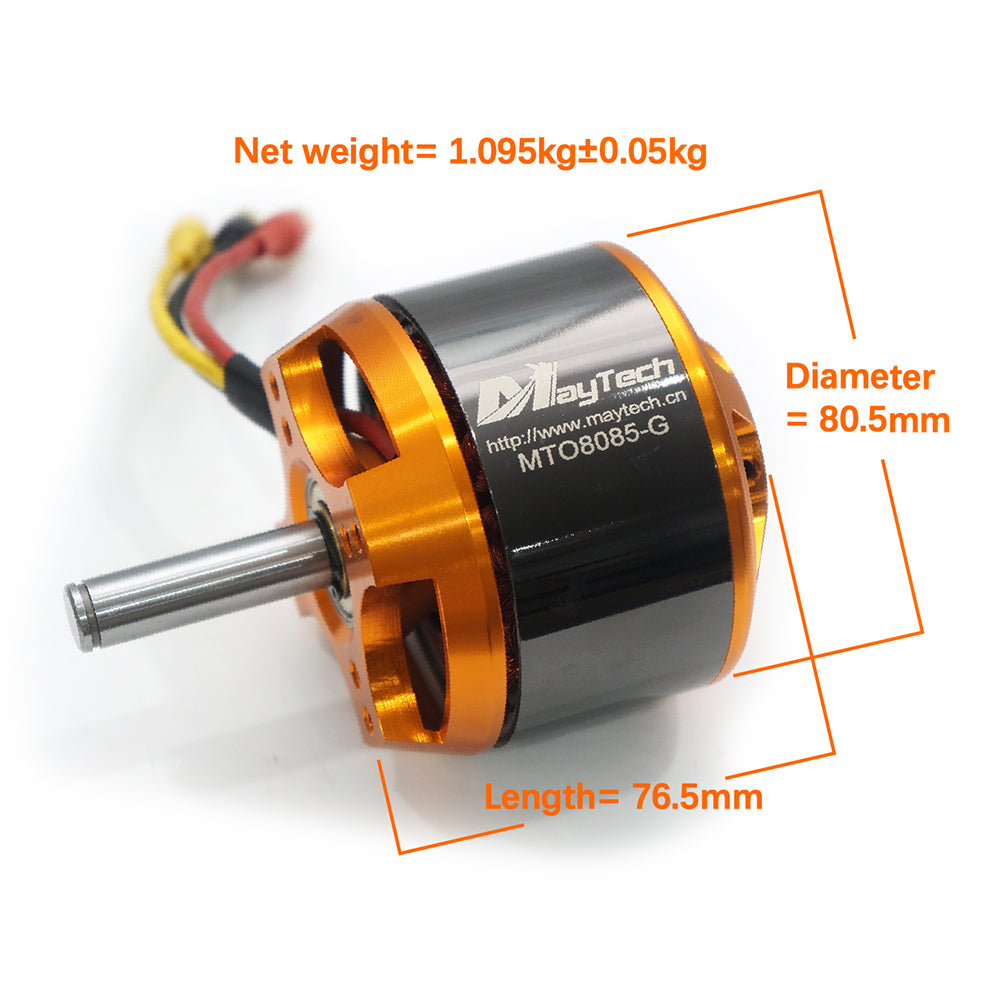

This motor actual length is not 85mm, according to customers needs, we have modified the motor length once, but model number is not changed, the motor actual length is 74mm.
And the motor stator size is 68 (diameter )* 30 (height) * 25 (inner diameter), to make the motor more stable and to have better heat dissipation, to extend motor lifespan, the motor top and bottom cover is much thicker than other motors, so the stator height is not as longer than other motors, but the motor diameter is much larger than other motors, power is higher.
Application: for electric skateboard, ebike, electric bike, underwater robots, Marine robots, fighting robots, War robots, delivery robots, electric power tools, hydrofoil board, MegaBots, Battlebots, Robot combat, Combat Robots, etc.
