Maytech Esurf Efoil Kit with 18.8KW Waterproof / Watercooled 120116 Motor + Watercooed 300A ESC with Progcard UBEC + MTSKR1905WF IP67 Waterproof Remote+ Water Pump+ 300A 80V Antispark Switch

Maytech Esurf Efoil Kit with 18.8KW Waterproof / Watercooled 120116 Motor + Watercooed 300A ESC with Progcard UBEC + MTSKR1905WF IP67 Waterproof Remote+ Water Pump+ 300A 80V Antispark Switch

$1,009.52 USD
$1,097.30 USD $1,009.52 USD
Sale Sold out
Shipping calculated at checkout.
Motor Type and KV
Water Pump
300A 80V Anti-spark Switch

Maytech Esurf Efoil Kit with 18.8KW Waterproof / Watercooled 120116 Motor + Watercooed 300A ESC with Progcard UBEC + MTSKR1905WF+ Water Pump+ 300A 80V Antispark Switch IP67 Waterproof Remote for Electric Jetboard/Jetski/Motorized Surfboard/ Efoil /Hydrofoil

4 Options:

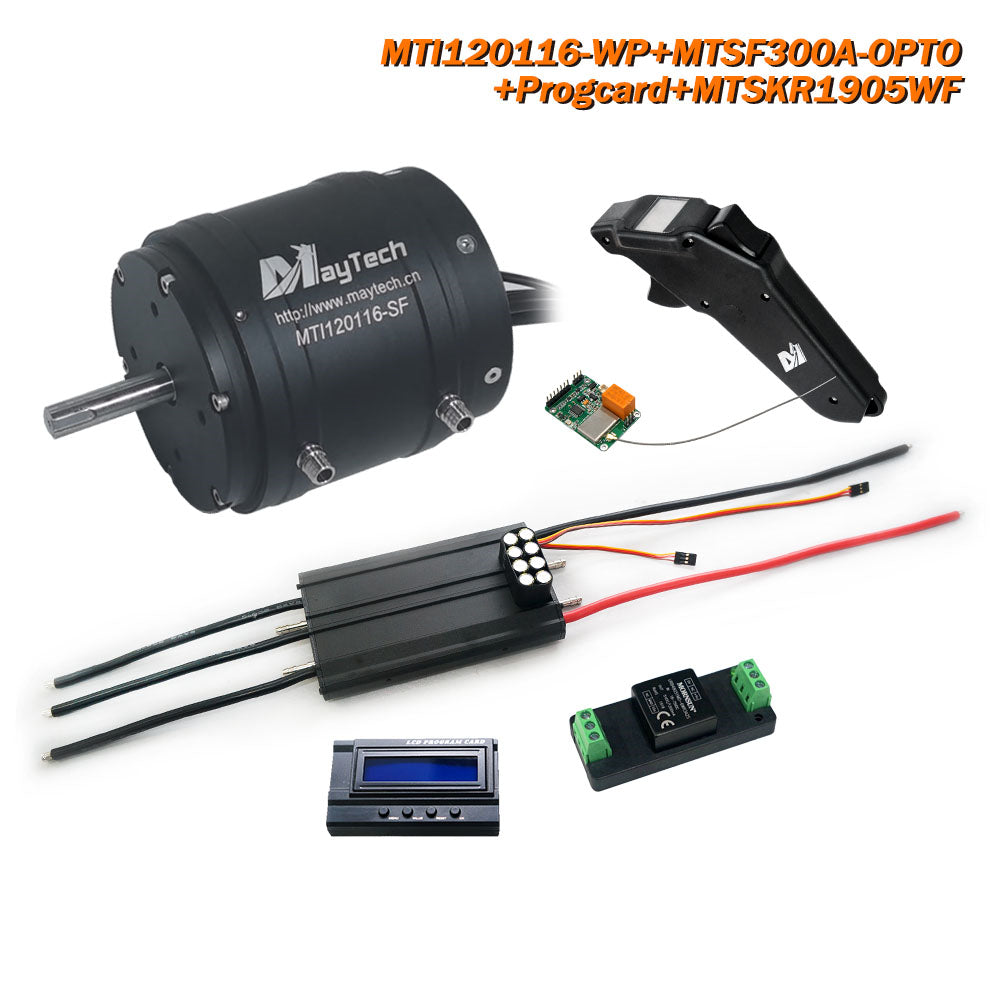

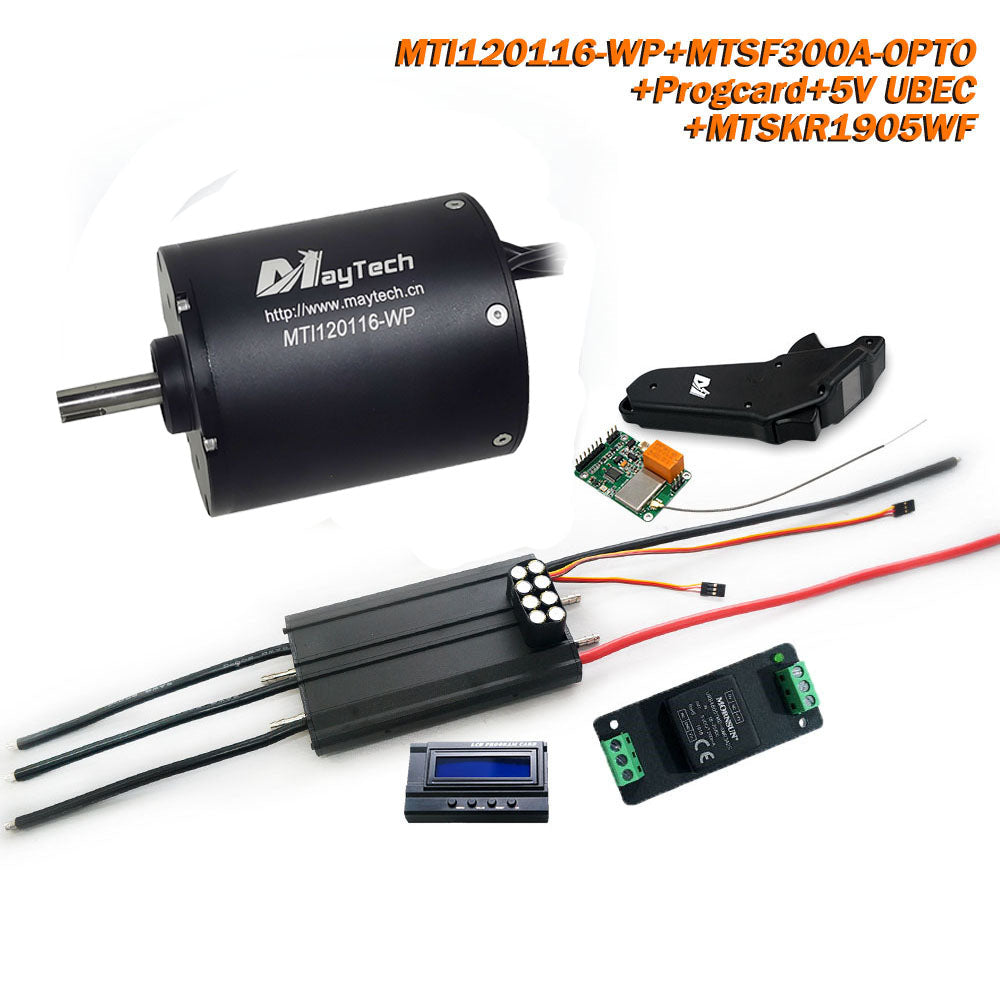

1. MTI120116-SF/-WP+MTSF300A-OPTO+Progcard+5V UBEC+MTSKR1905WF Remote

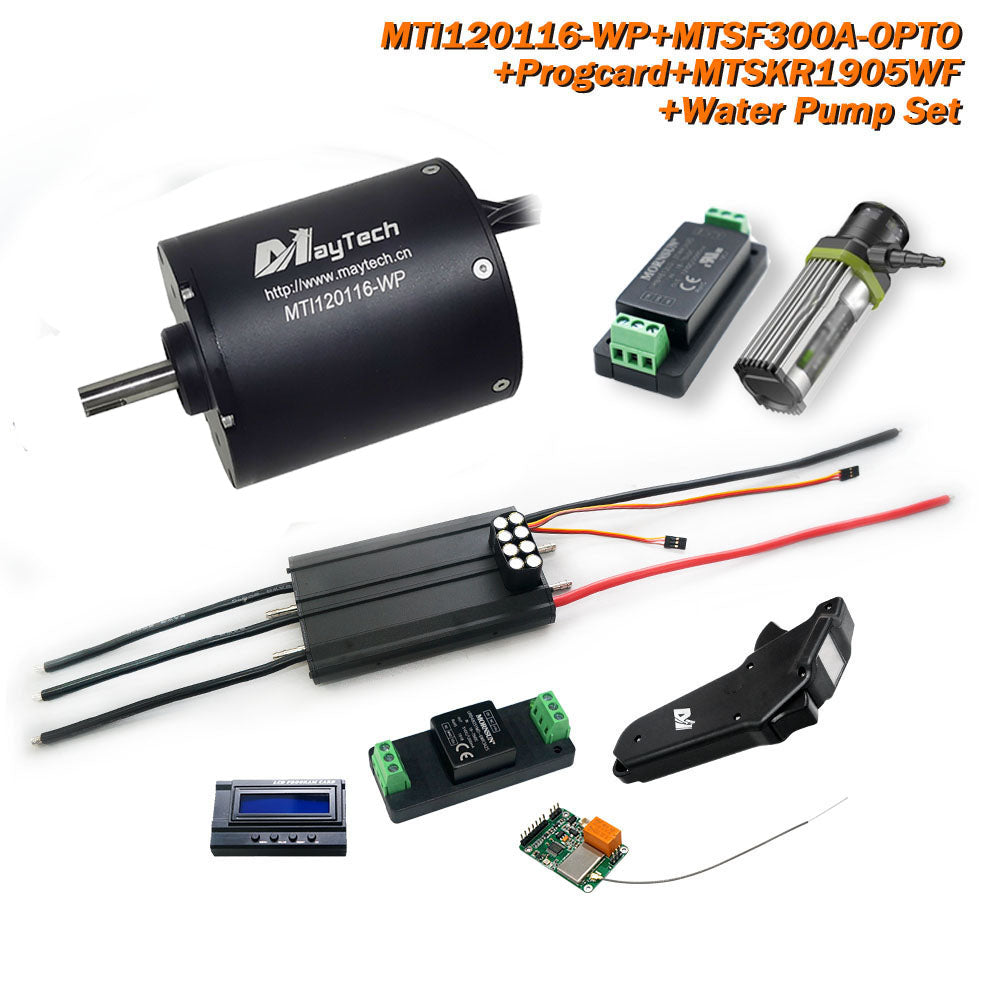

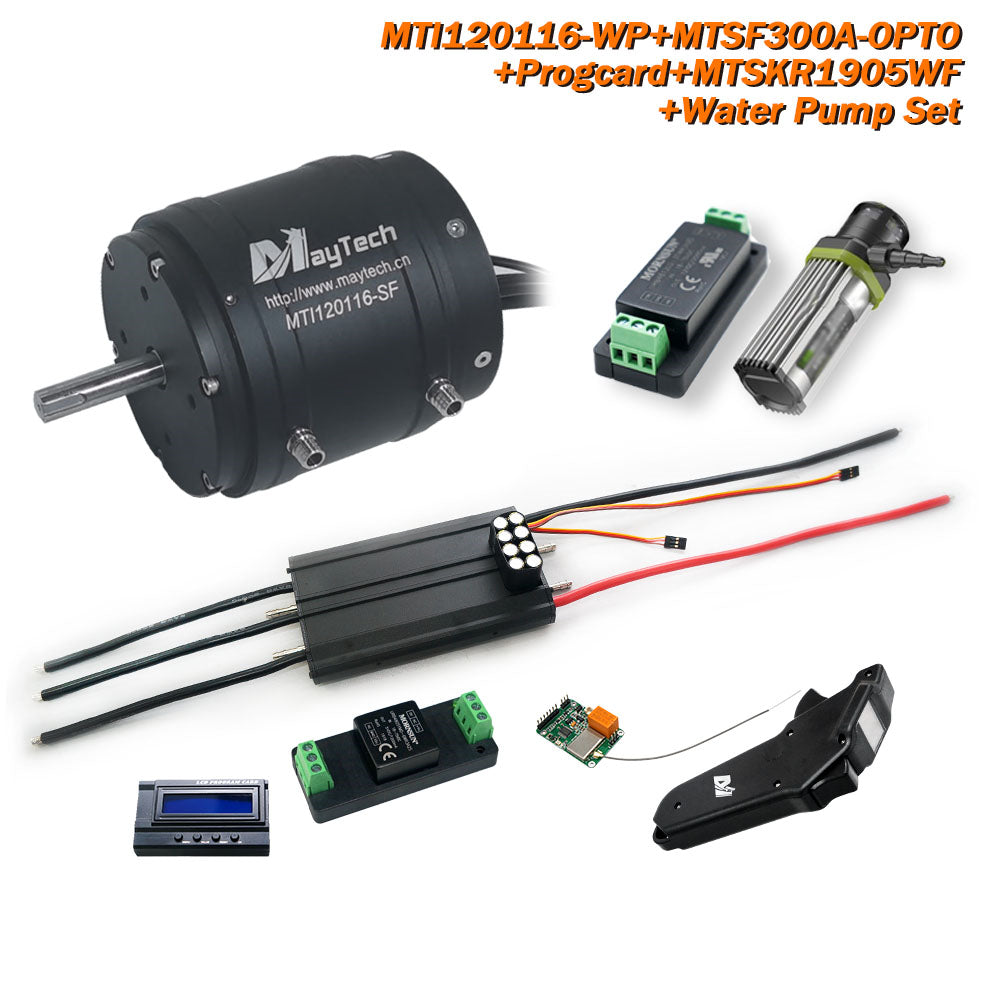

2. MTI120116-SF/-WP+MTSF300A-OPTO+Progcard+5V UBEC+MTSKR1905WF Remote+Water Pump Set

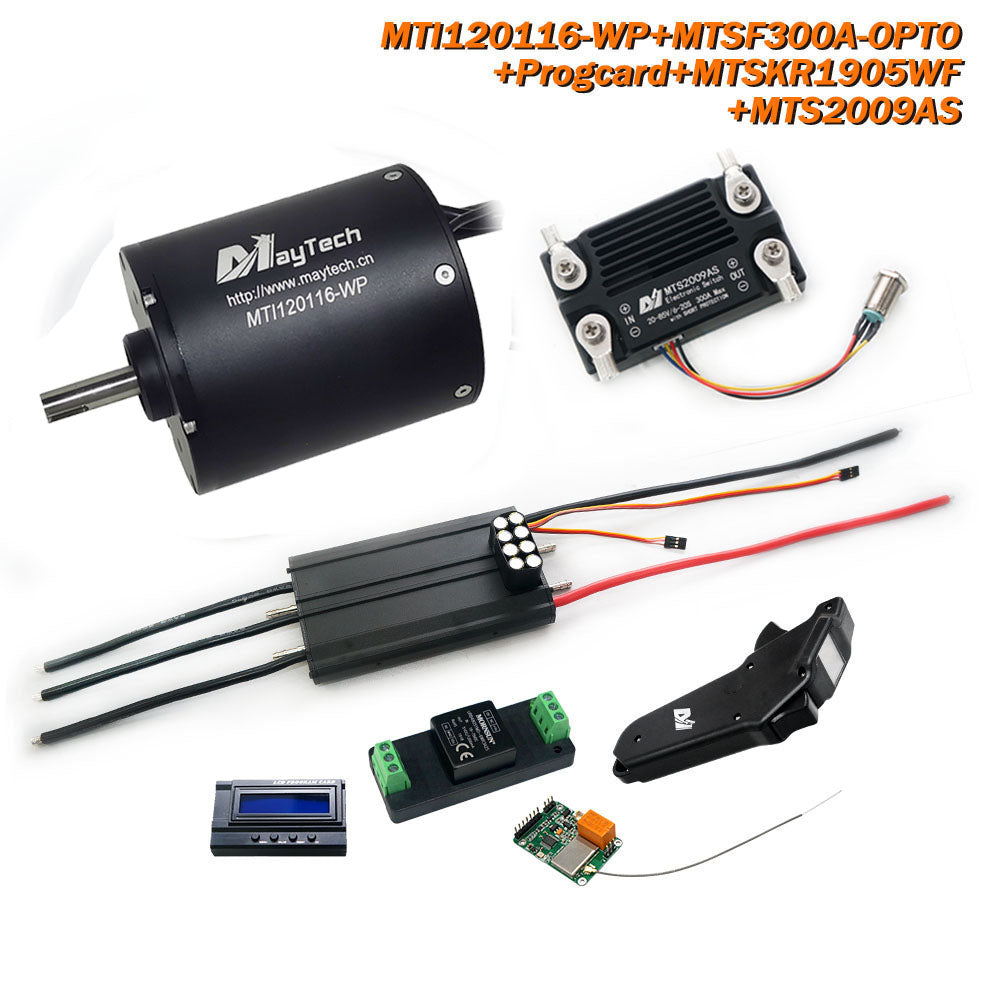

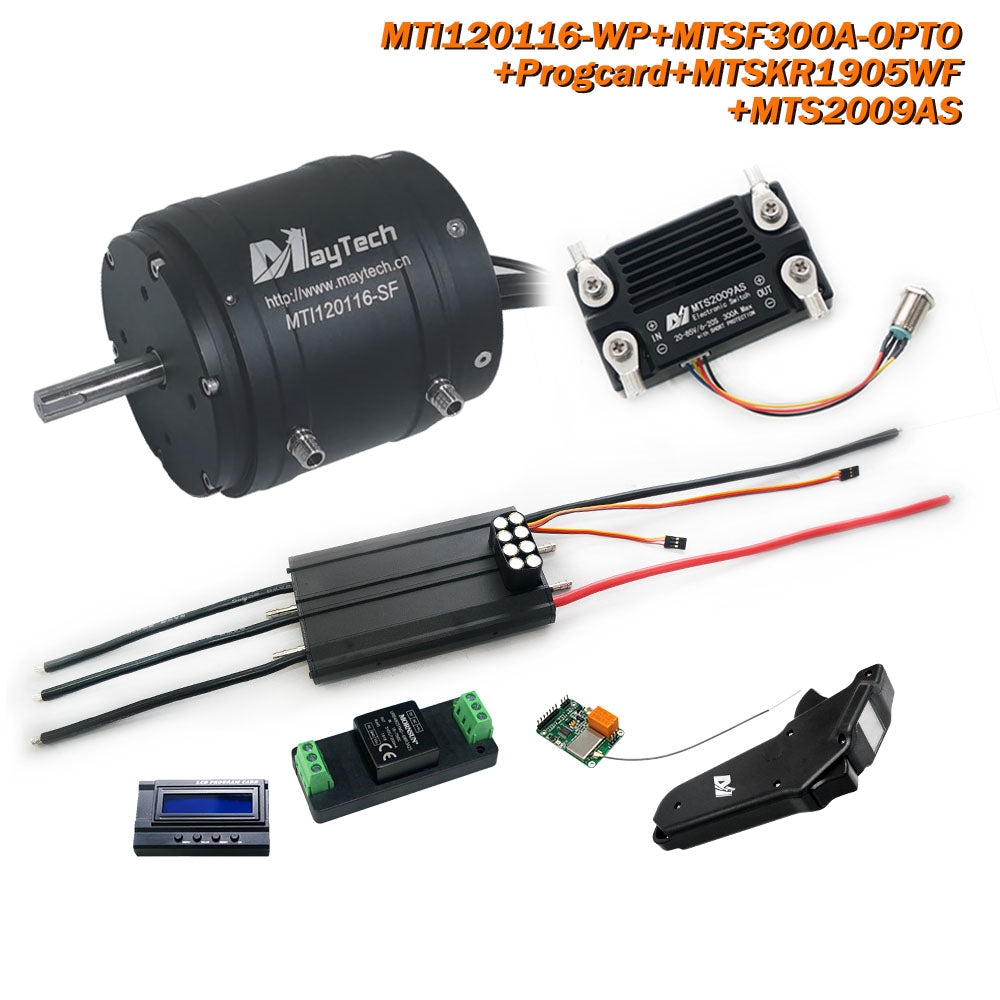

3. MTI120116-SF/-WP+MTSF300A-OPTO+Progcard+5V UBEC+MTSKR1905WF Remote+MTS2009AS Anti-spark Switch

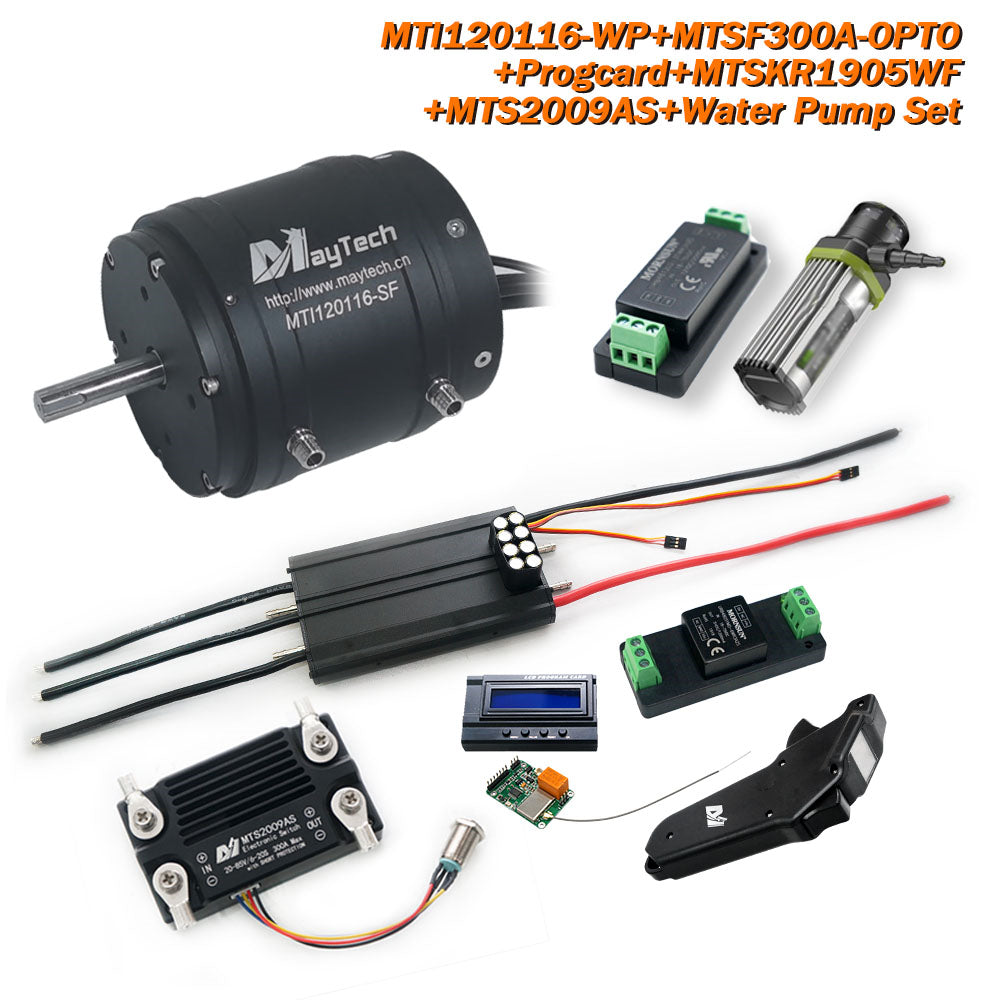

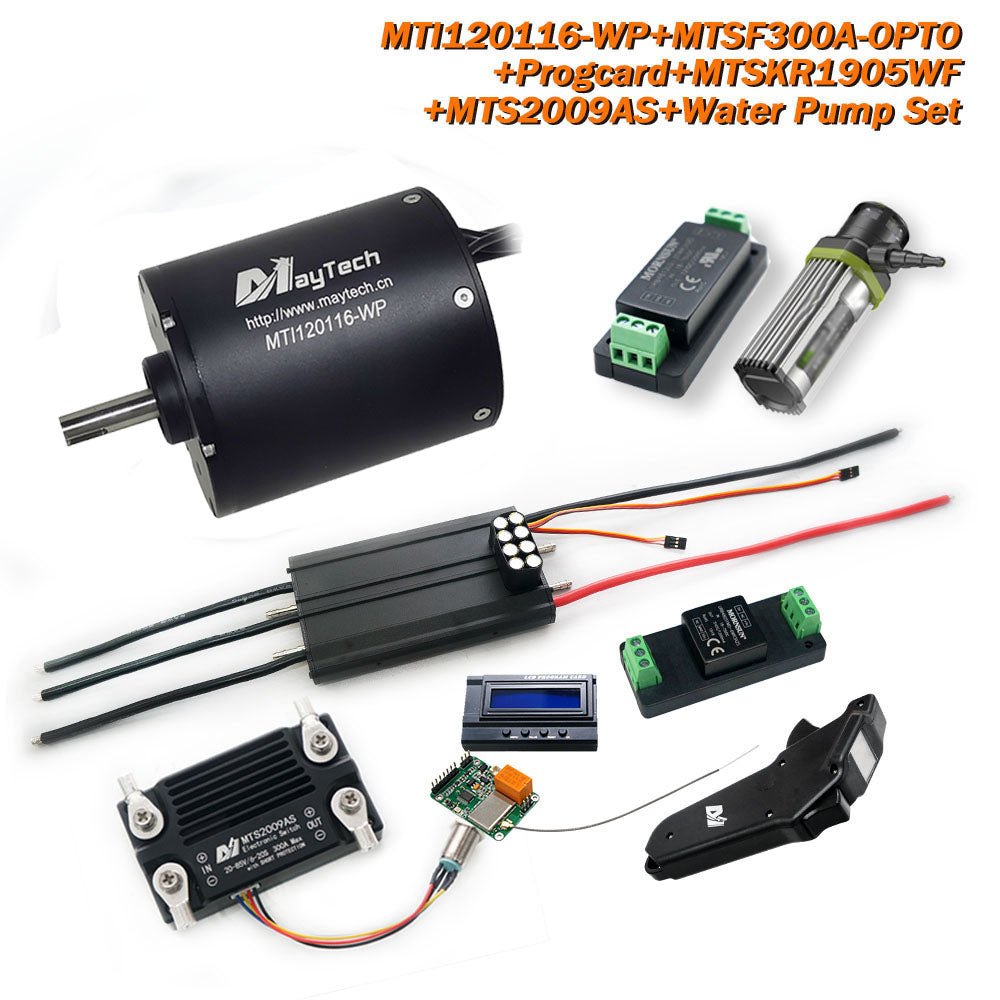

4. MTI120116-SF/-WP+MTSF300A-OPTO+Progcard+5V UBEC+MTSKR1905WF Remote+Water Pump Set+MTS2009AS Anti-spark Switch

Specifications:

Noted Please:

In this kit, the ESC max volt is 14S Lipo (58.8V), so max voltage can use for this kit is 14S Lipo (58.8V).

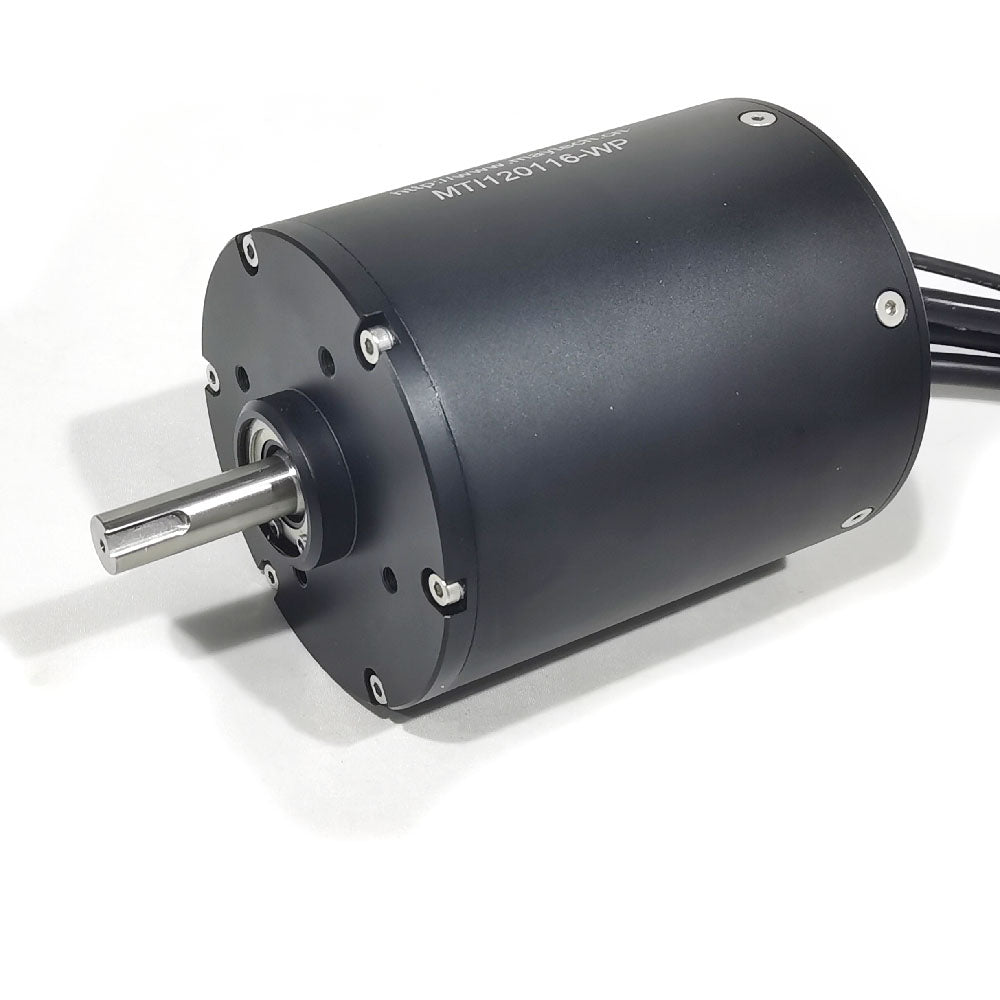

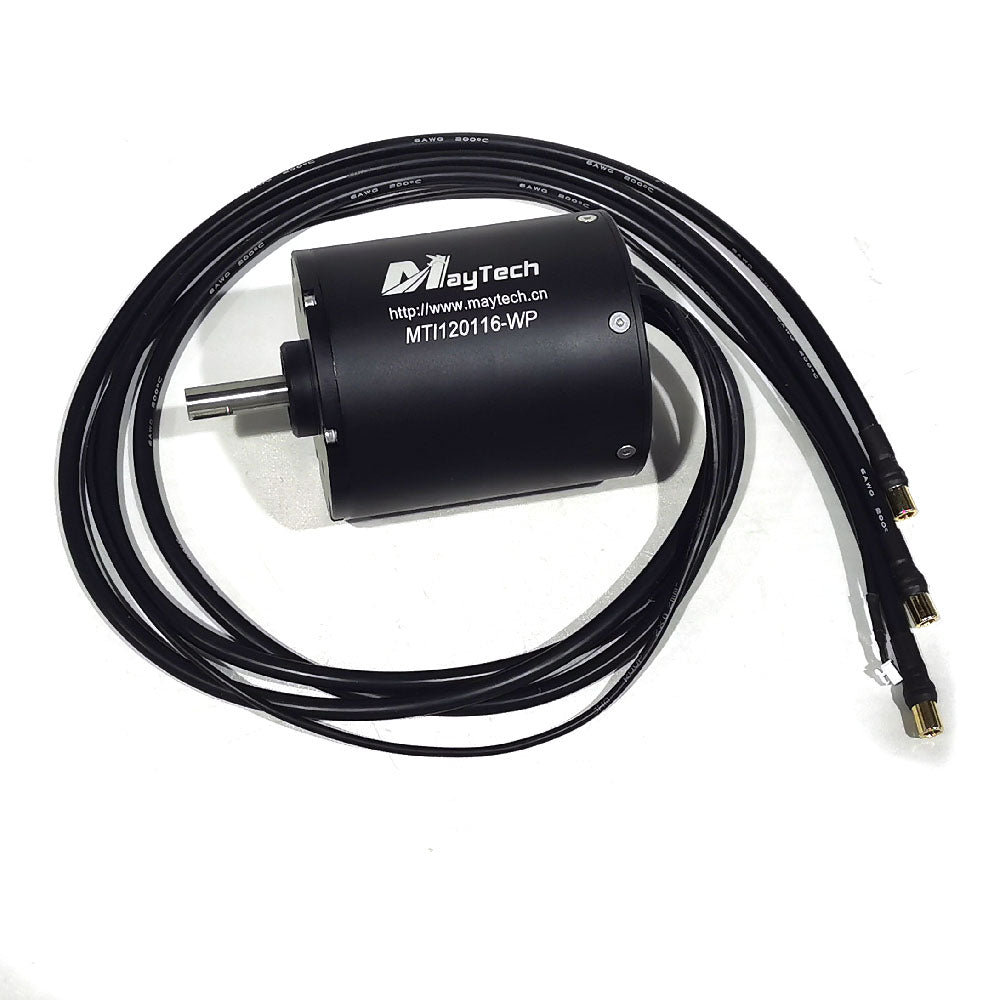

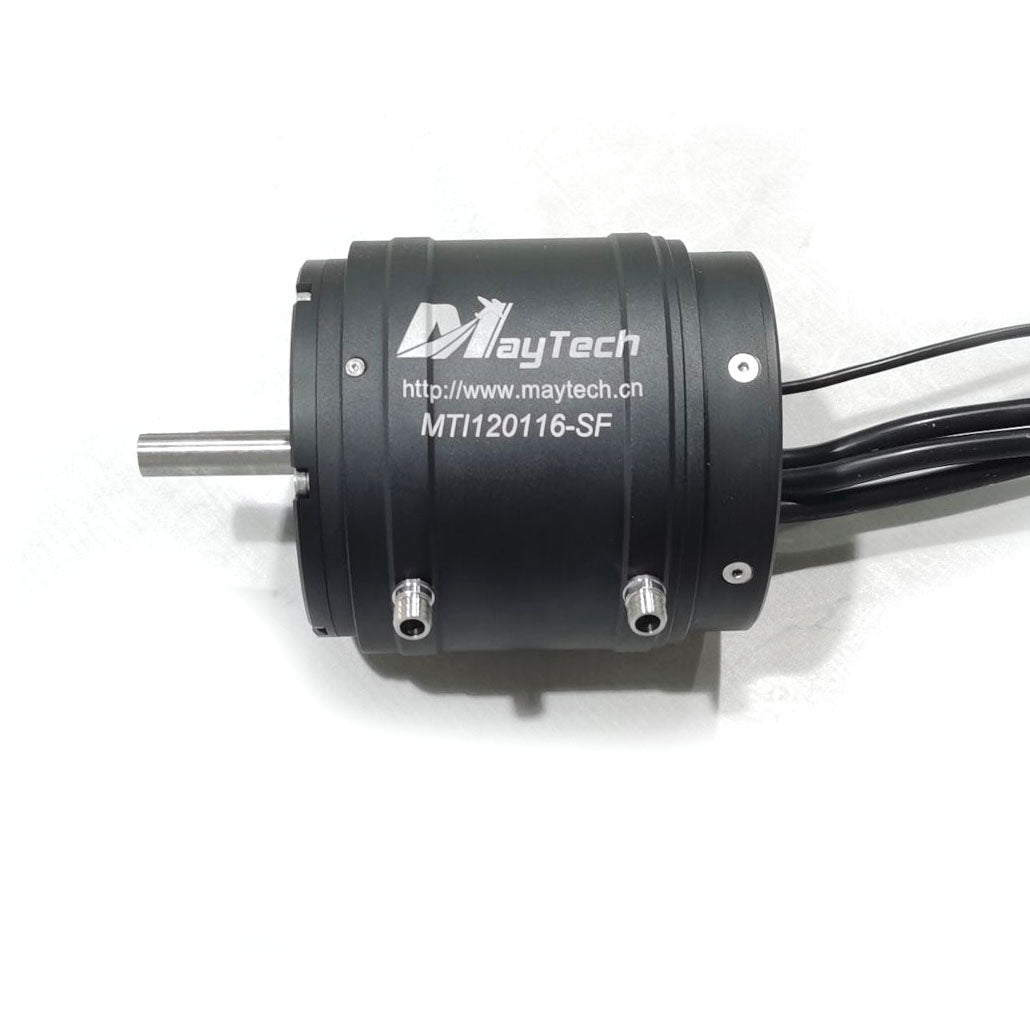

120116 watercooled motor drawing, electric surfboard motor, RC boat motor, brushless dc motor, BLDC motor, powerful engine120116 motor test, watercooled motor, watercooling tube, water cooling system, 18.8KW motor, electric motorcycle motor

120116 motor test, watercooled motor, watercooling tube, water cooling system, 18.8KW motor, electric motorcycle motor

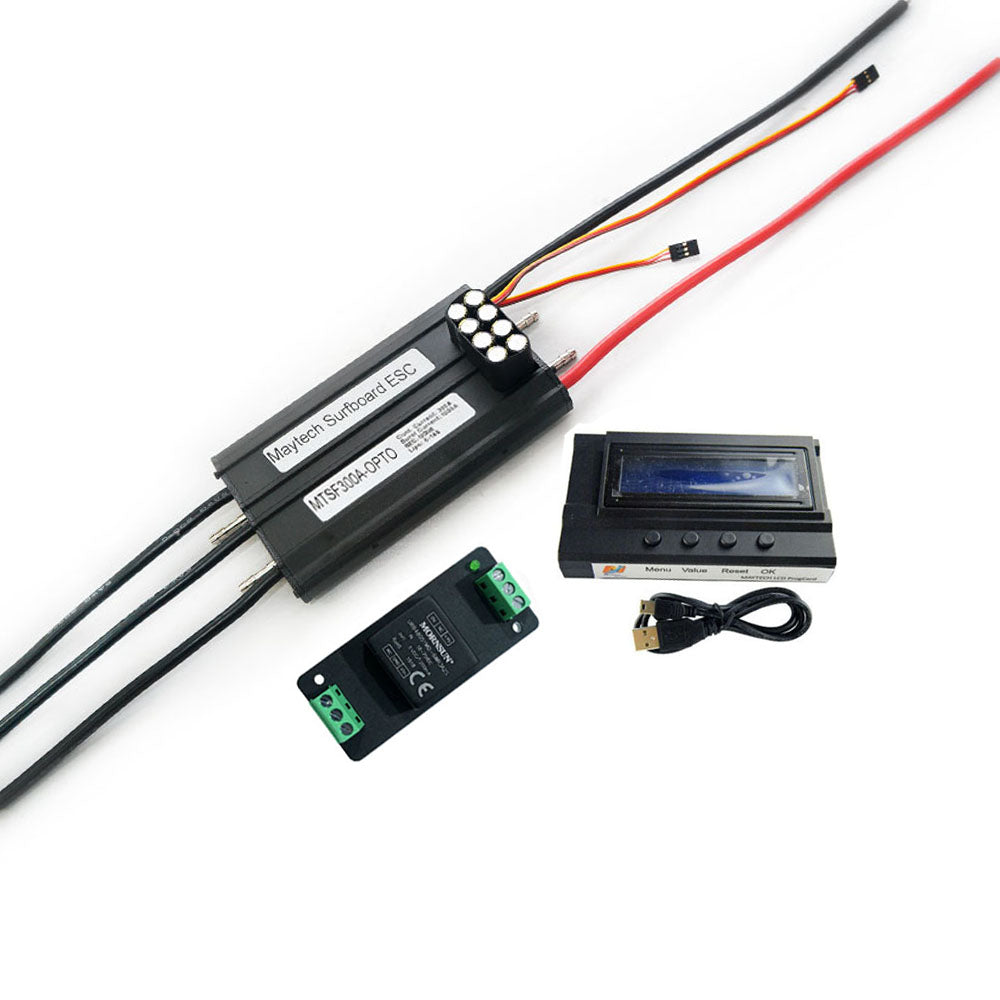

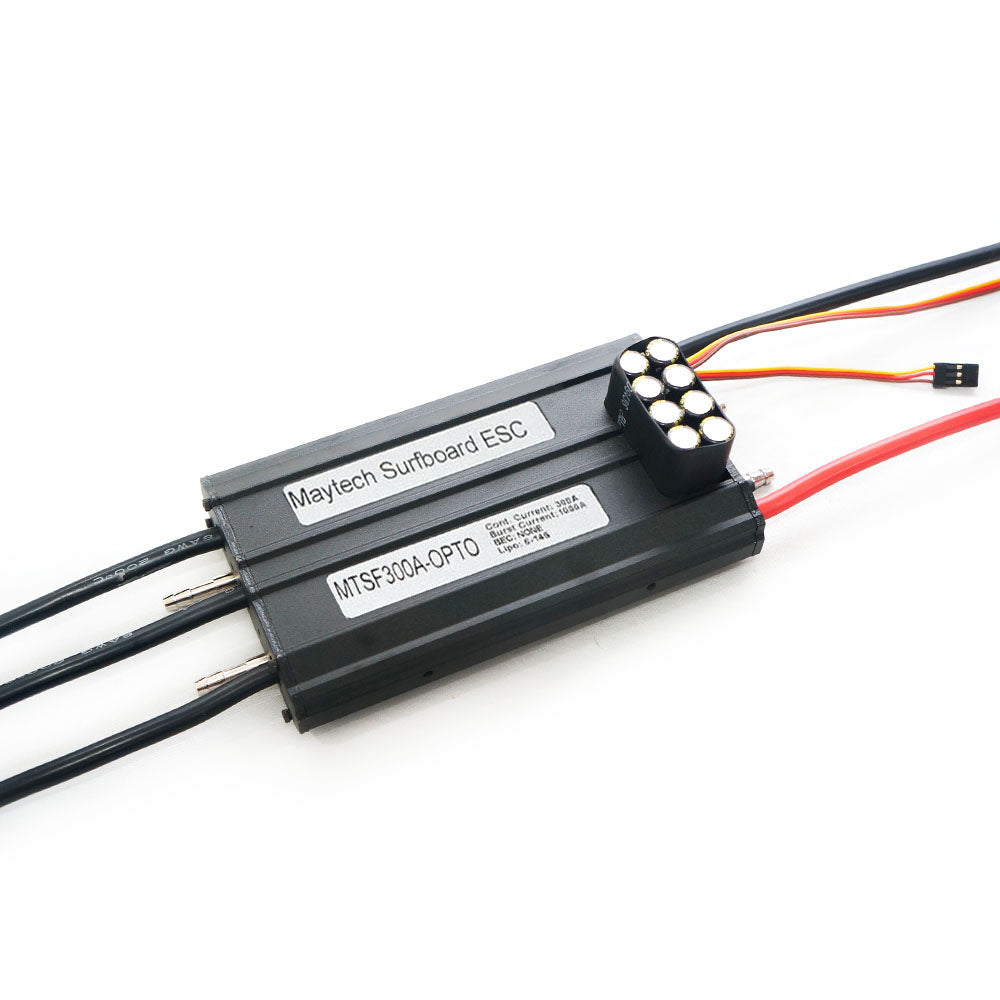

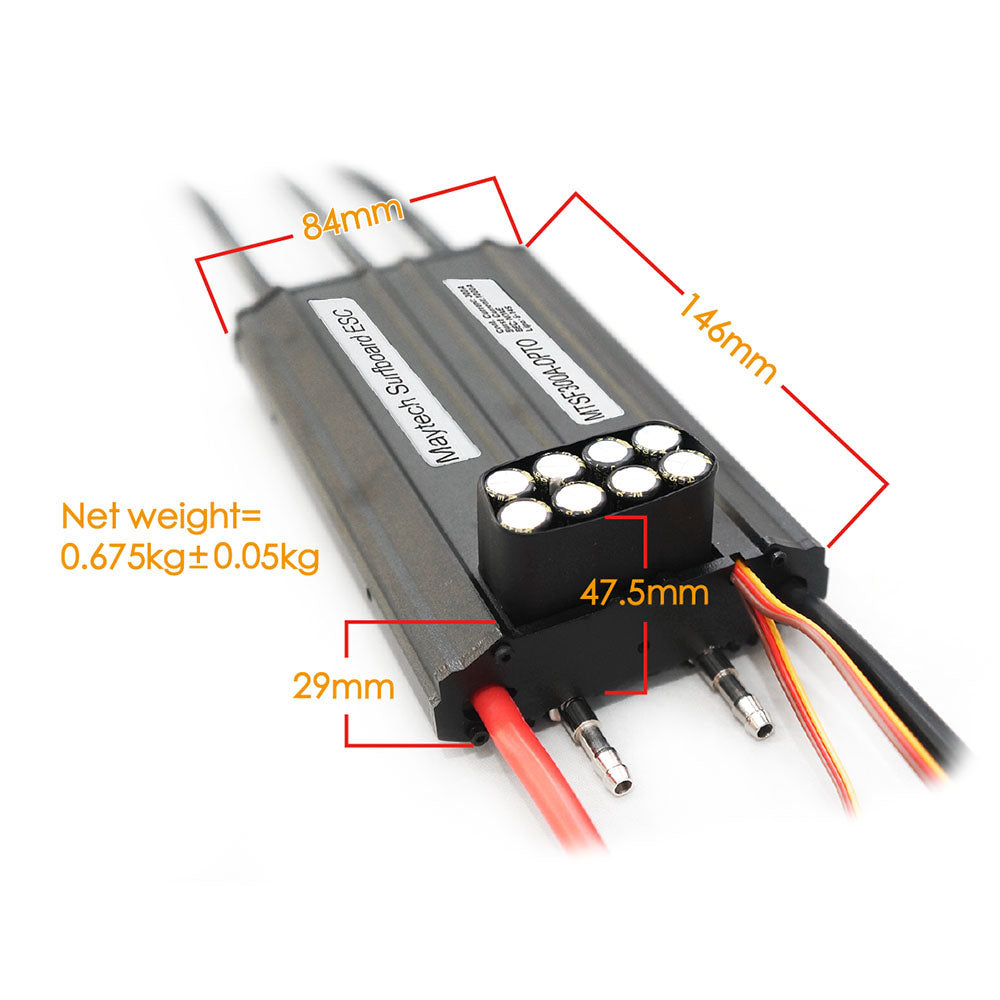

-ESC: MTSF300A-OPTO Watercooled 300A ESC Speed Controller


Model No.:  MTSF300A-OPTO
Cont Current: 300A
Max Current: 1000A
Waterproof Rank: Splash proof
Watercooling: Yes, with
Input Volt: 6-14S Lipo (24V-58.8V)
BEC: Internal with 18-75V convert to 5V DC-DC Module
Signal Format: PWM (PPM)
Signal Output: 1-2ms
maytech 300A ESC, waterproof ESC, electric speed controller, 300A sped controller, controller, powerful ESC, 1000A max current, 300amp, efoil esc, esc controller, watercooling, watercooled ESC

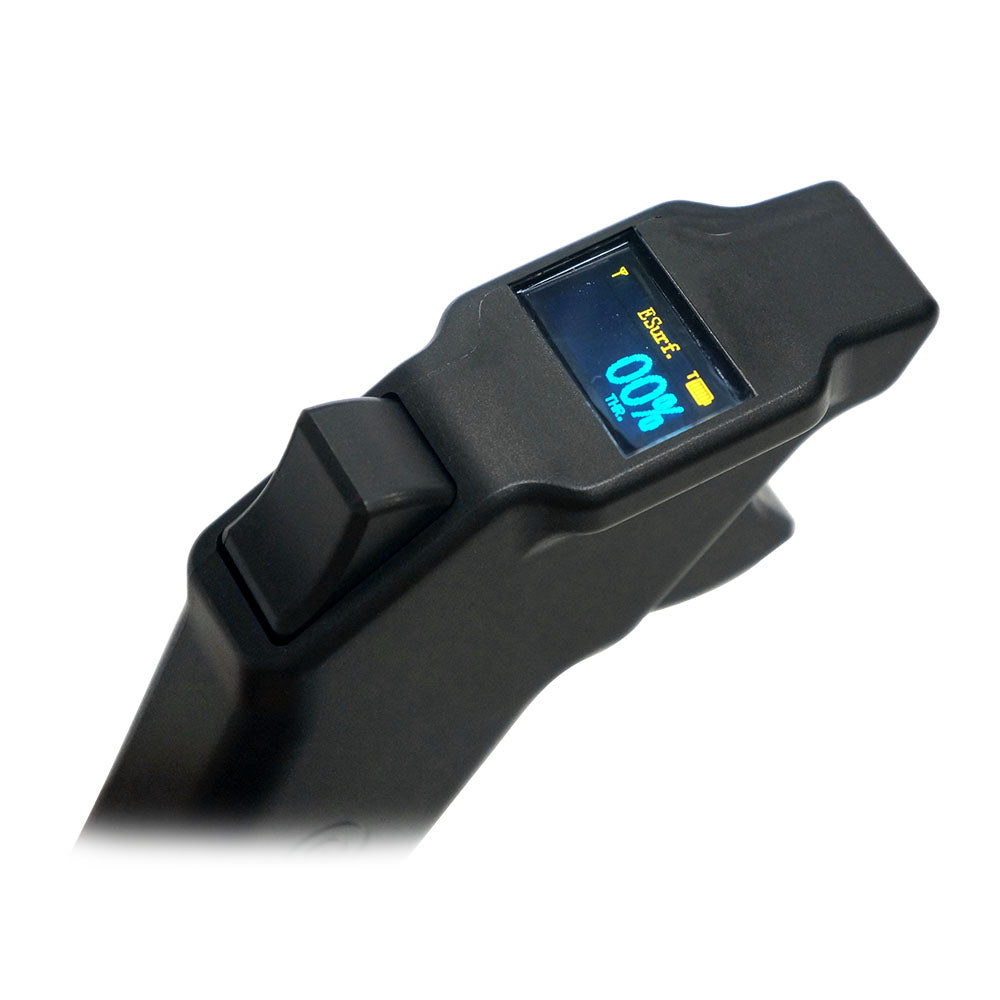

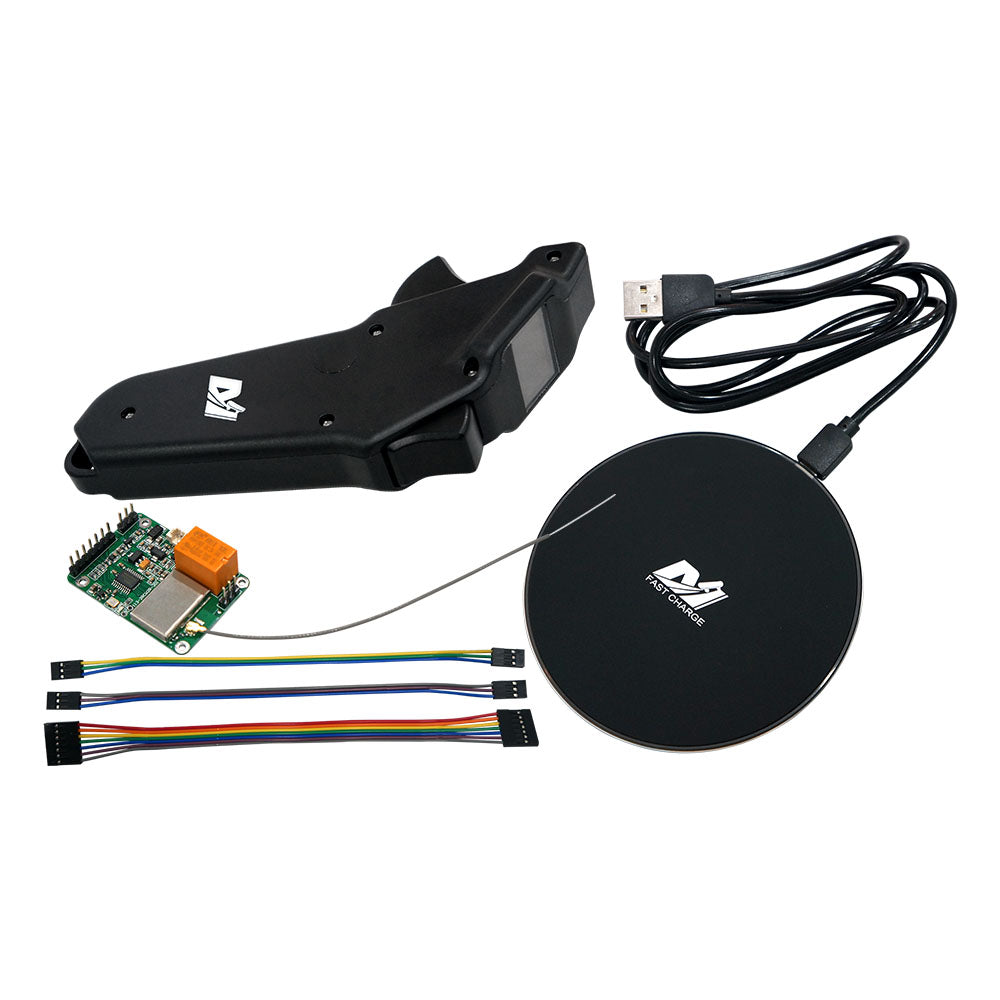

-Remote: MTSKR1905WF IP67 Waterproof Remote for Esurf, with PWM & UART Receiver


Model No MTSKR1905WF
Waterproof Rank IP67 double waterproof
Thr Mode ESURF (SF) and ESK8 (SK)
3 Speed Modes With, adjust throttle % from 20-100%
Power Modes 2 levels, Eco (Level 1) < Pro (Level 2)
Throttle Lock Yes, 10-30S optional
Signal Format Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%.
PWM Signal Output Range 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode.
Double Source Power Supply Accept 5V power by ESC built-in BEC or extra 5V power
Output Signal Max 3.3V
Display Parameters

Current, voltage, temperature only when work with VESC or Maytech MTSF300A-WP32 ESC;
Signal strength, remote and battery power bars, battery voltage, RPM with VESC and other ESCs
Control Pump Yes (Relay Switch)
Control Light Yes (Transistor Switch)
Safety Button Support
Cruise Control With in Esurf Mode
Brake With in Esk8 Mode
Accessories Wirelss charging pad / Receiver / USB cable / Wristband / 3pcs Dupond cable
Compatible Controllers VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote.
Application foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc.,

> Get E-Manual: Remote Manual and Instruction

> Check Video Using Instruction

Click Here: How to Display Volt, Current, RPM with TX and RX?

Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoil

Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoilMTSKR1905WF V2 Maytech remote, waterproof remote, Esk8 remote, esurf remote, efoil remote, IP67 waterproof


Water Pump and Its Power Supply:
water pump for electric surfboard esurf efoil jetski jetfoiler for electric efoiling 12V 30W water pump

Maytech 75V Convert to 12V High Power UBEC DC-DC Module Power Supply 20W Cooling Fan Set

Advice for Usage:
1. To expand the products life, please better wipe off the waters on the products and keep them for all dry after everytime use.
2. For this kit of the ESC, because the motor is sensorless, suggest to use the default value in the ESC, we have tested the kit before shipment with the default value, do not suggest to modify the values.

About Stock:

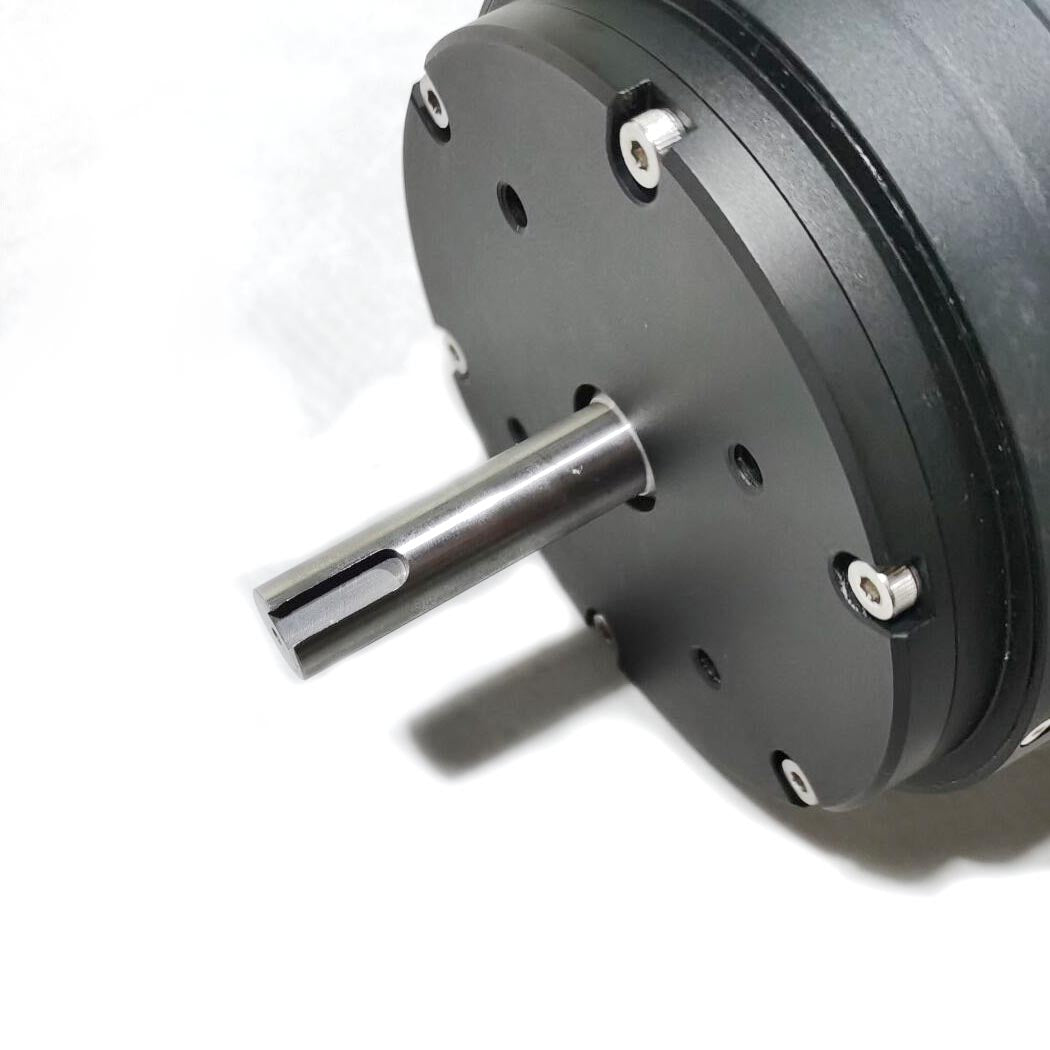

1. Standard stock for the motor is 100KV, shaft as on the picture shows, if you need 200KV or other KV, lead time is about 45-90 days after your order confirmed, and please contact us agnes@maytech.cn to tell us your requirement.
2. The standard stock is also limited, please confirm your order asap, and if you need very urgent, please contact us agnes@maytech.cn to check stock first.
