Waterproof Efoil Kit: 65162 Motor+300A Waterproof ESC+MTSKR26WF Remote
Waterproof Efoil Kit: 65162 Motor+300A Waterproof ESC+MTSKR26WF Remote
Regular price
$1,120.40 USD
Regular price
Sale price
$1,120.40 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Maytech Fully Waterproof Efoil Kits with MTI65162 Motor + 300A ESC + 1905WF Remote + Progcard for Electric surfboard, Efoil, jetfoiler, electric hydrofoil, countercurrent swiming training, etc.,

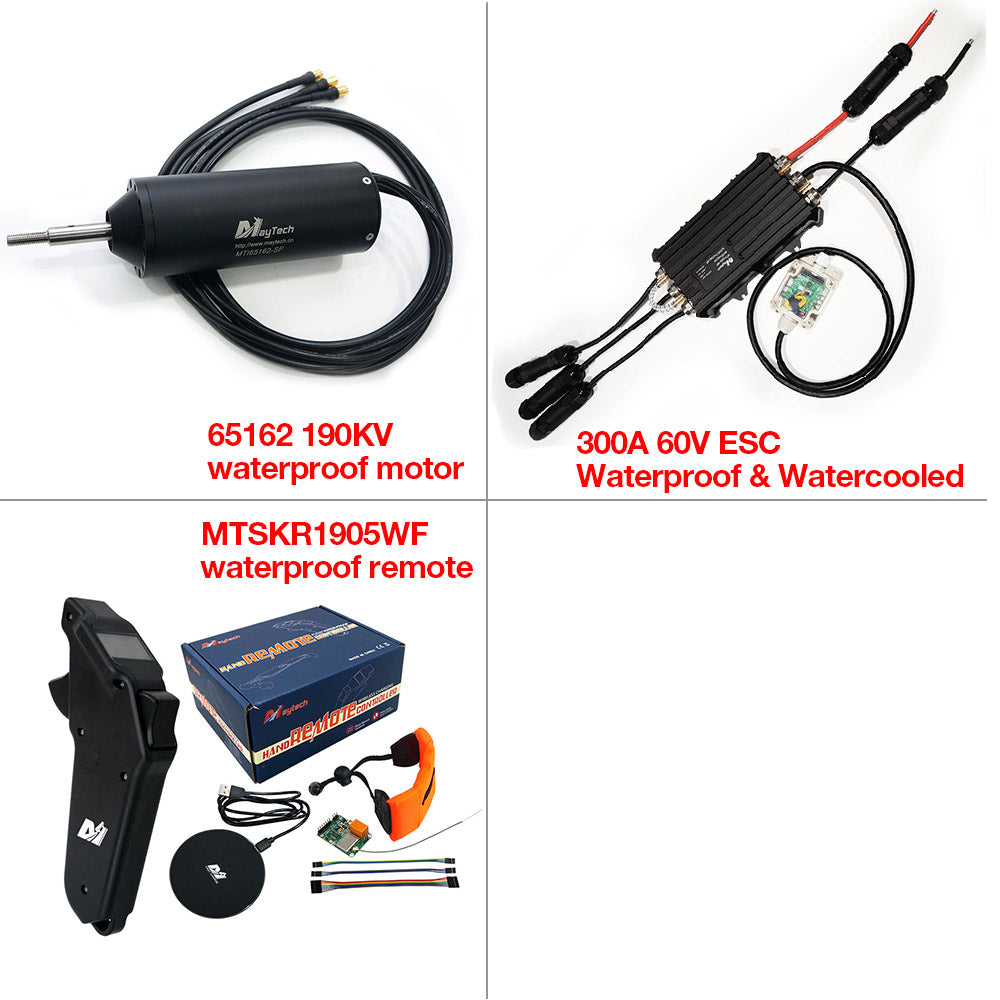

The Kit Includes:
-Motor: MTI65162-SF, (120KV, 190KV), screw shaft, optional propeller for 120KV
-ESC: MTSF300A-WP ESC, with progcard
-Remote: MTSKR26WF Waterproof Remote

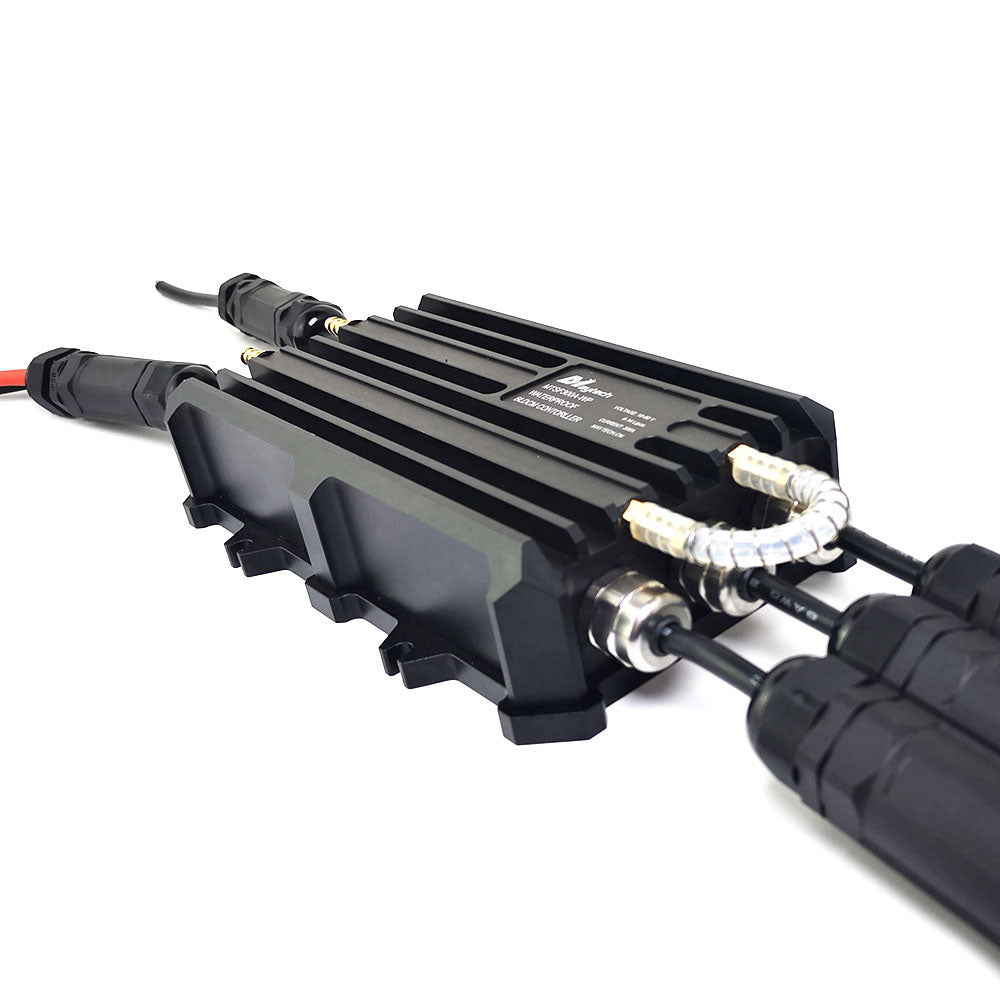

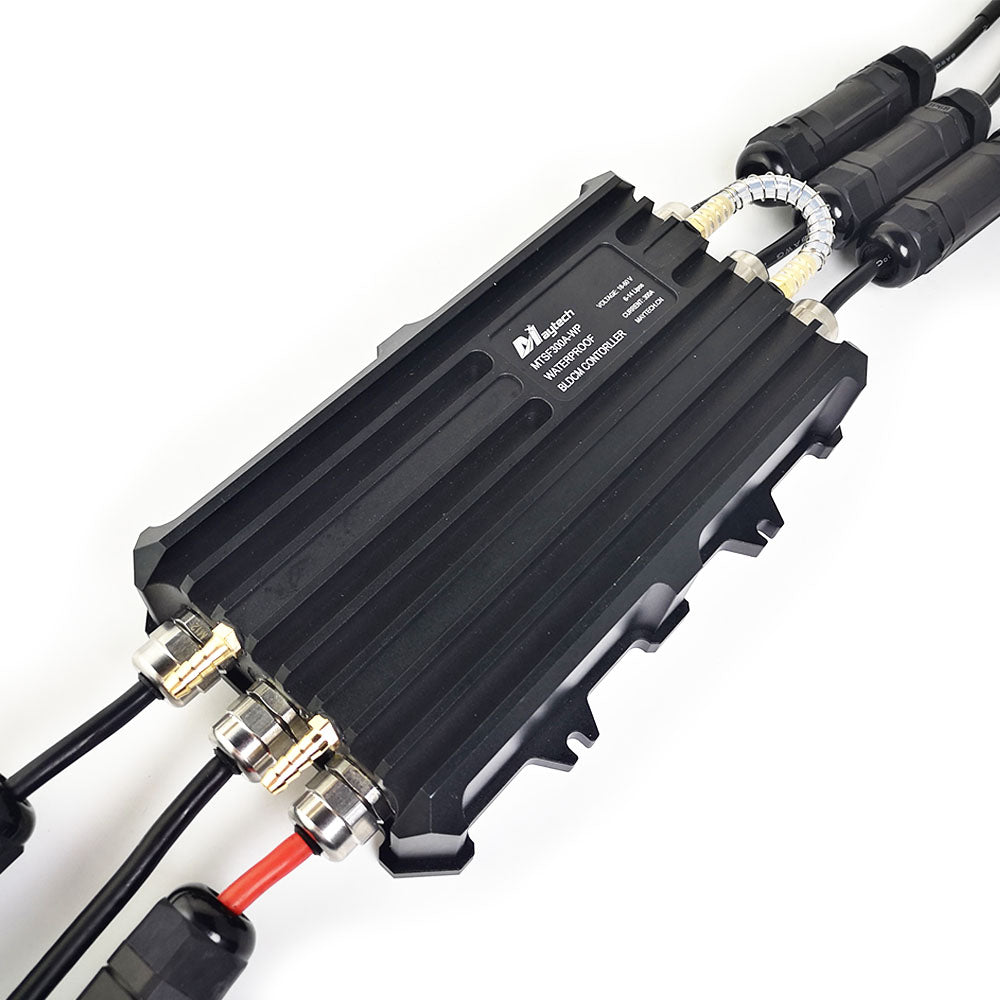

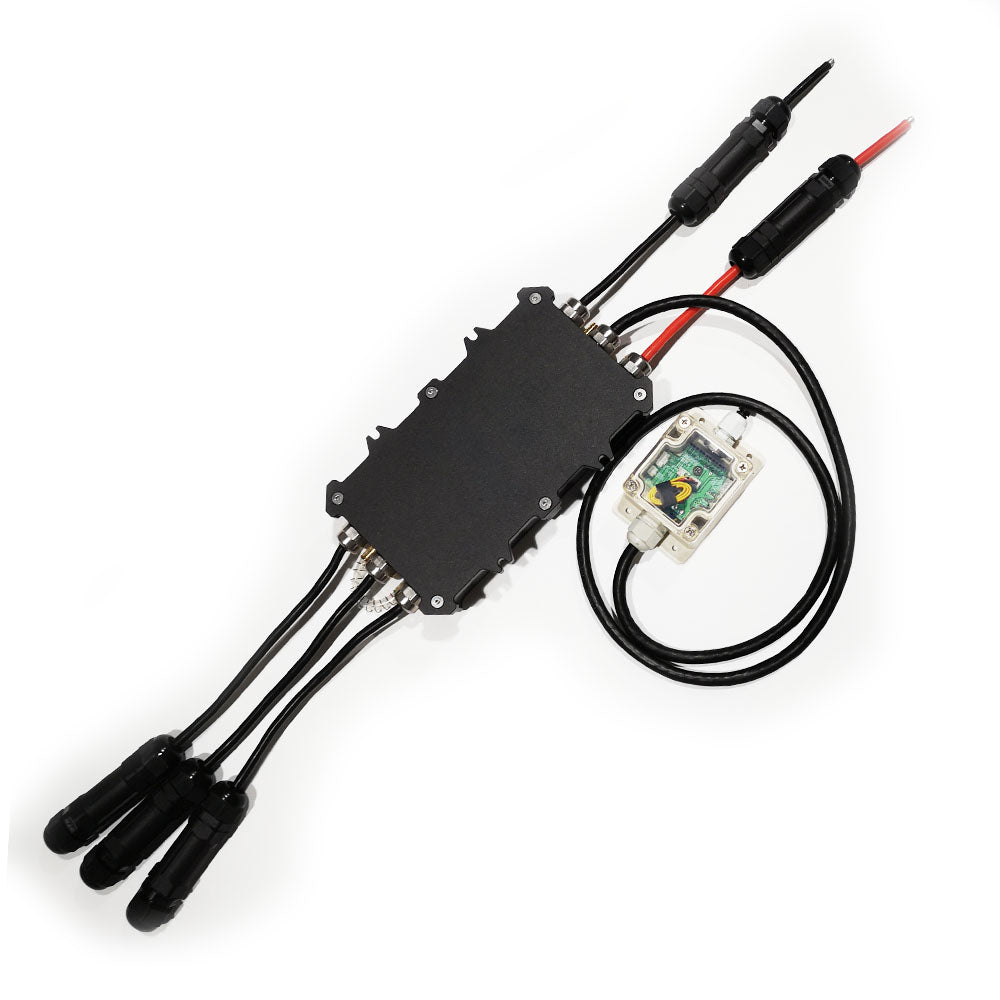

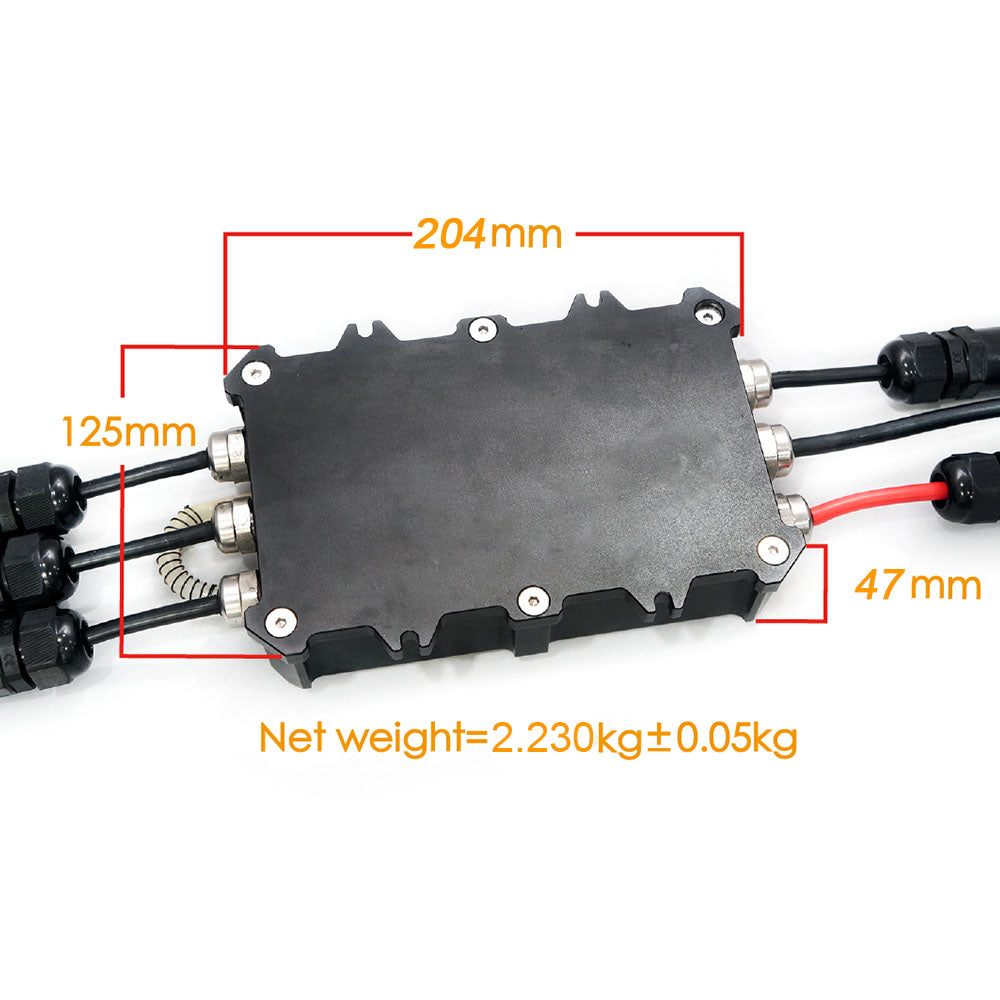

1. MTSF300A-WP ESC Upgrade Version:
| Model No. | MTSF300A-WP |
| Cont Current | 300A |
| Peak Current | 1000A |
| Watercooling | With |
| Waterproof Rank | IP68 |
| Input Voltage | 6-14S Lipo (25-58.8V) |
| Case Material | Aluminum alloy |
| Signal Format | PWM, 1ms-2ms |
| Connector | 8.0mm female gold-plated bullet connector on 3 motor cables, on battery side without connector. With waterproof protector for connectors |
Features:
- Built in 75V to 5V and 75V to 12V UBEC DC-DC Module, 5V output is for receiver power supply, 12V output is for light and water pump, or other use.

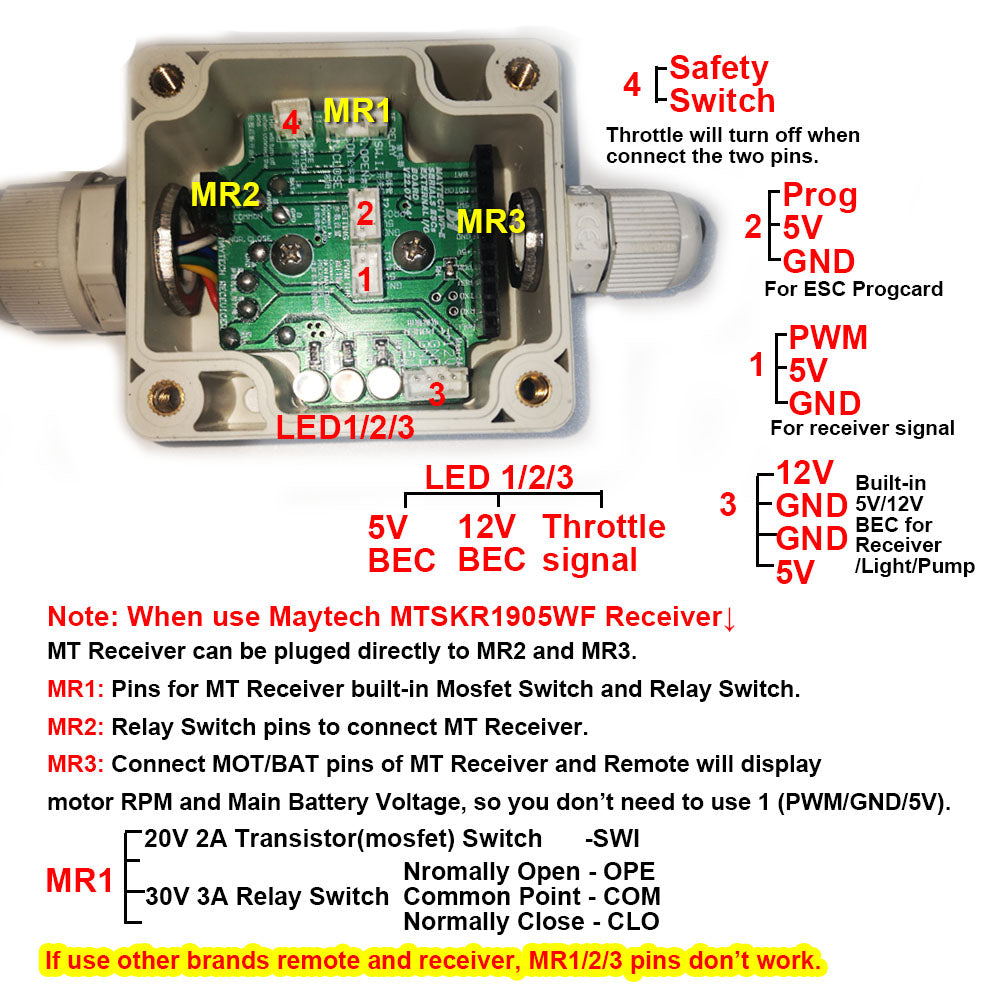

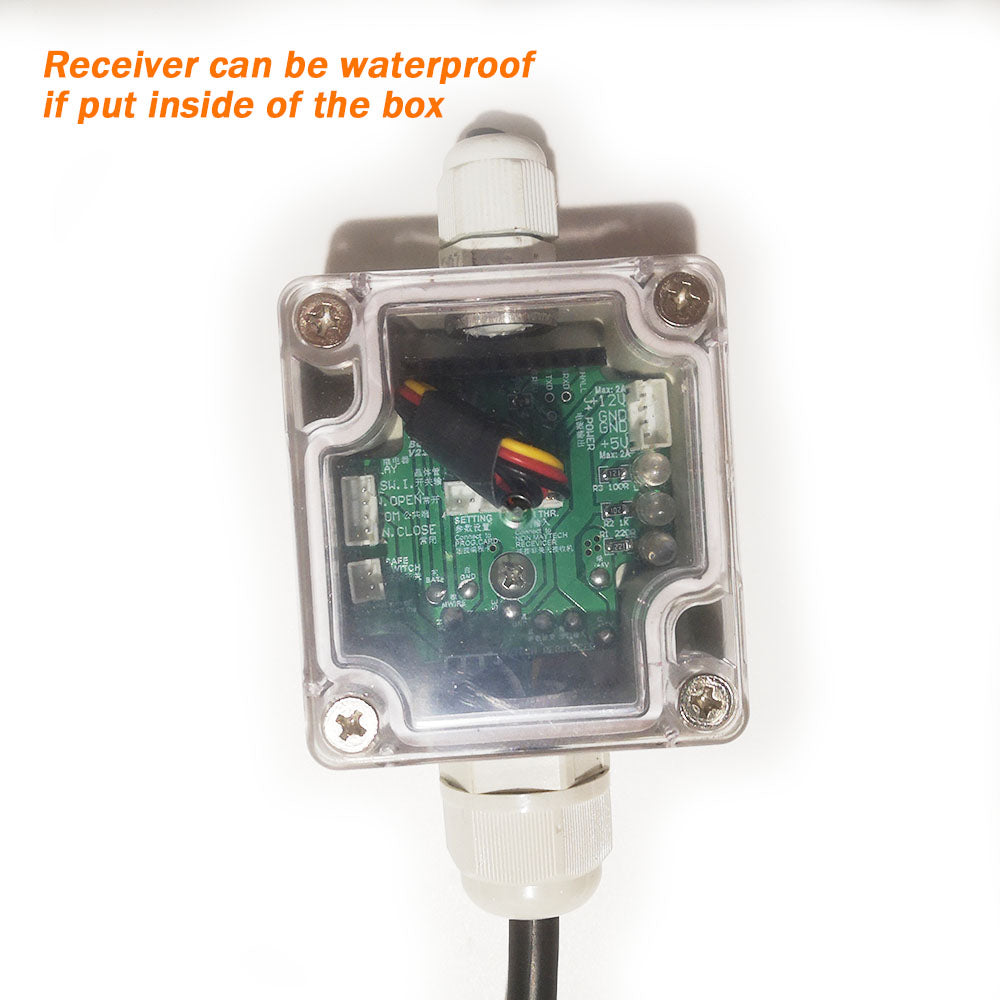

- With waterproof junction box, all functions lead out and with pins in the box, and if you work with Maytech MTSKR1905WF remote, its receiver can be put inside of the box and directly plug in, easier to use.
- Both IP68 waterproof and watercooled, which means 2 cooling ways:

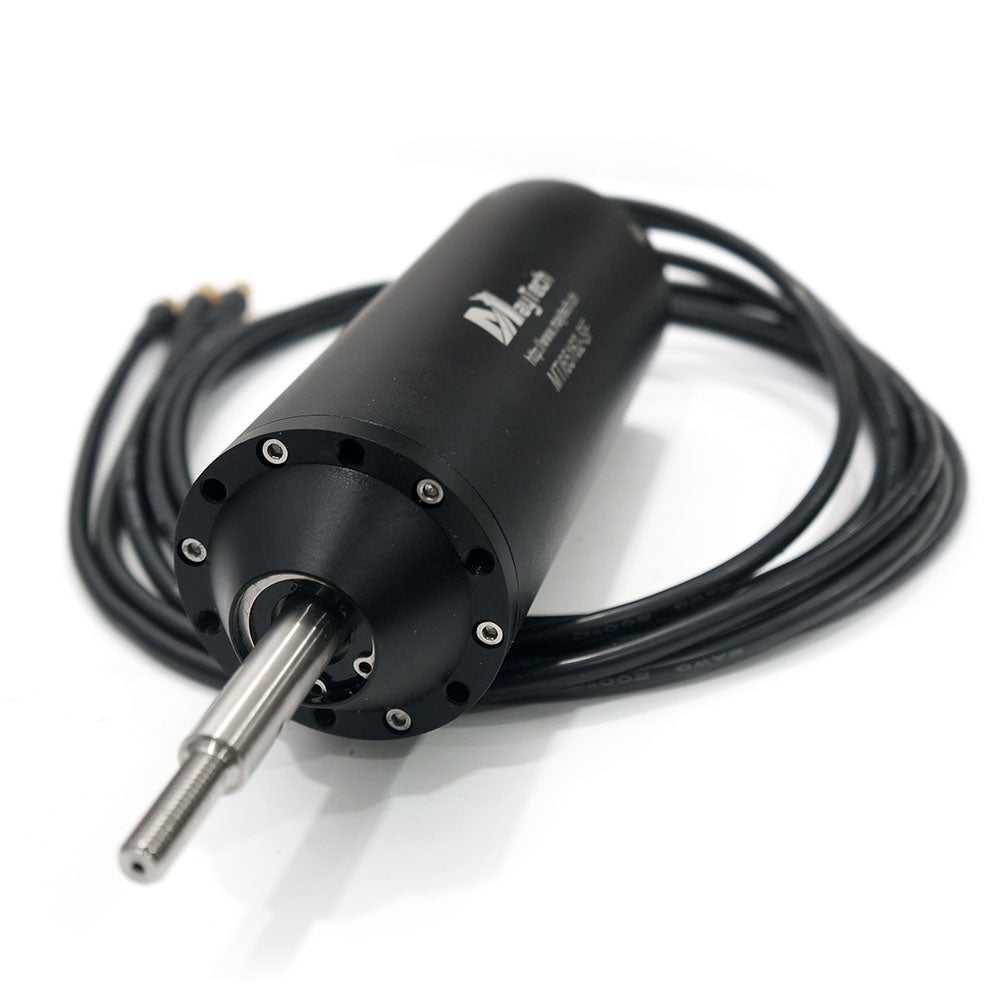

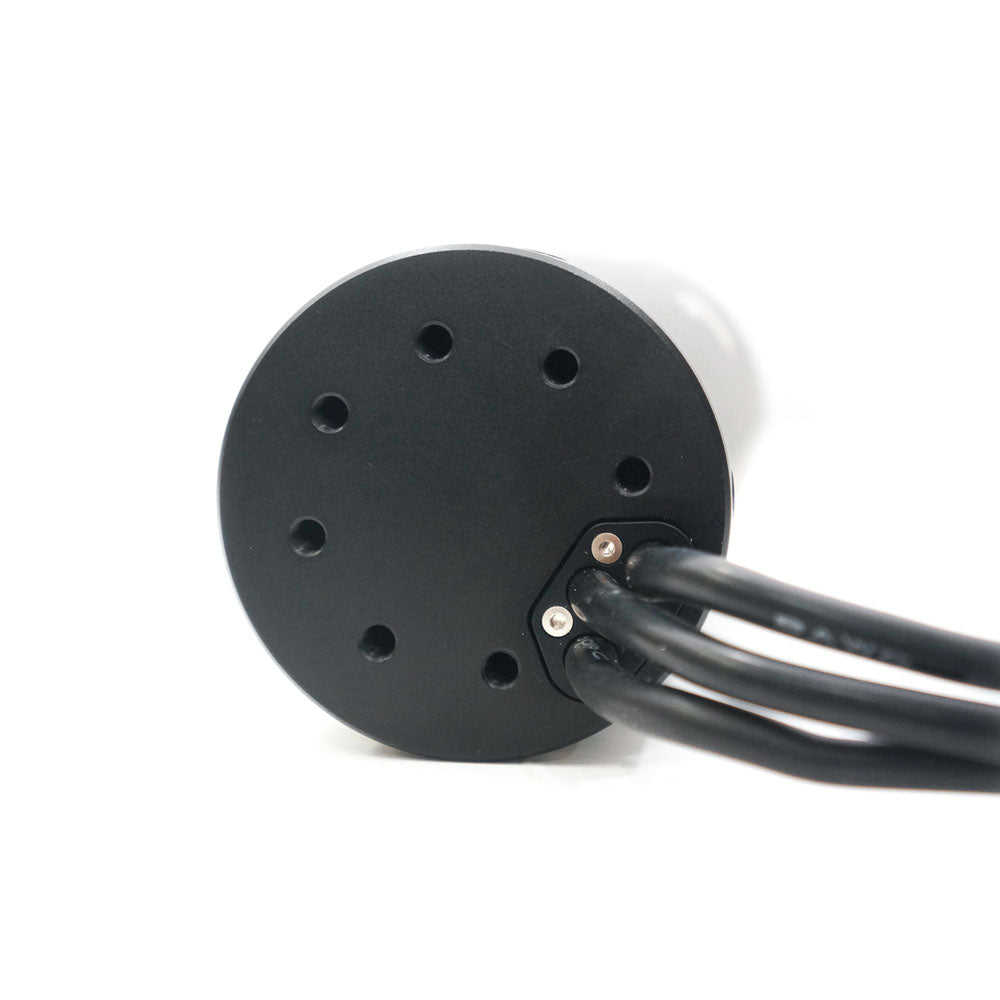

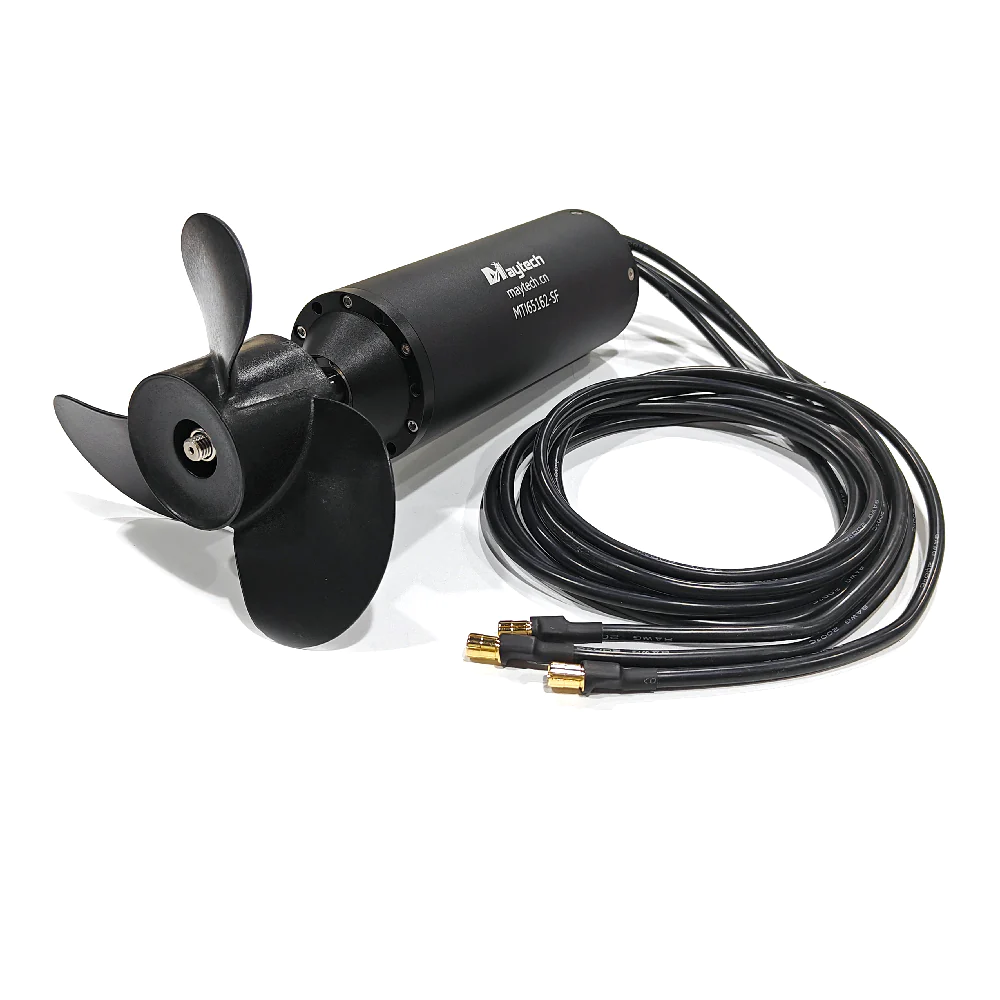

2. MTI65162 Inrunner Waterproof Motor
| Model No. | MTI65162-120-SF |
| KV | 120, if you want other KV, contact eileen@maytech.cn |
| Shaft | Screw Shaft |
| Input Voltage | 6-14S Lipo (25V-58.8V) |
| Waterproof Rank | 300A |
| Max Current | 6-14S Lipo (25-58.8V) |
| Max Output Power | 9KW |
| Pole Number | 6 poles |
| Max Torque | 10N.m |
| Connector | 8.0mm male gold-plated bullet connector |
| Hall Sensor | Without |

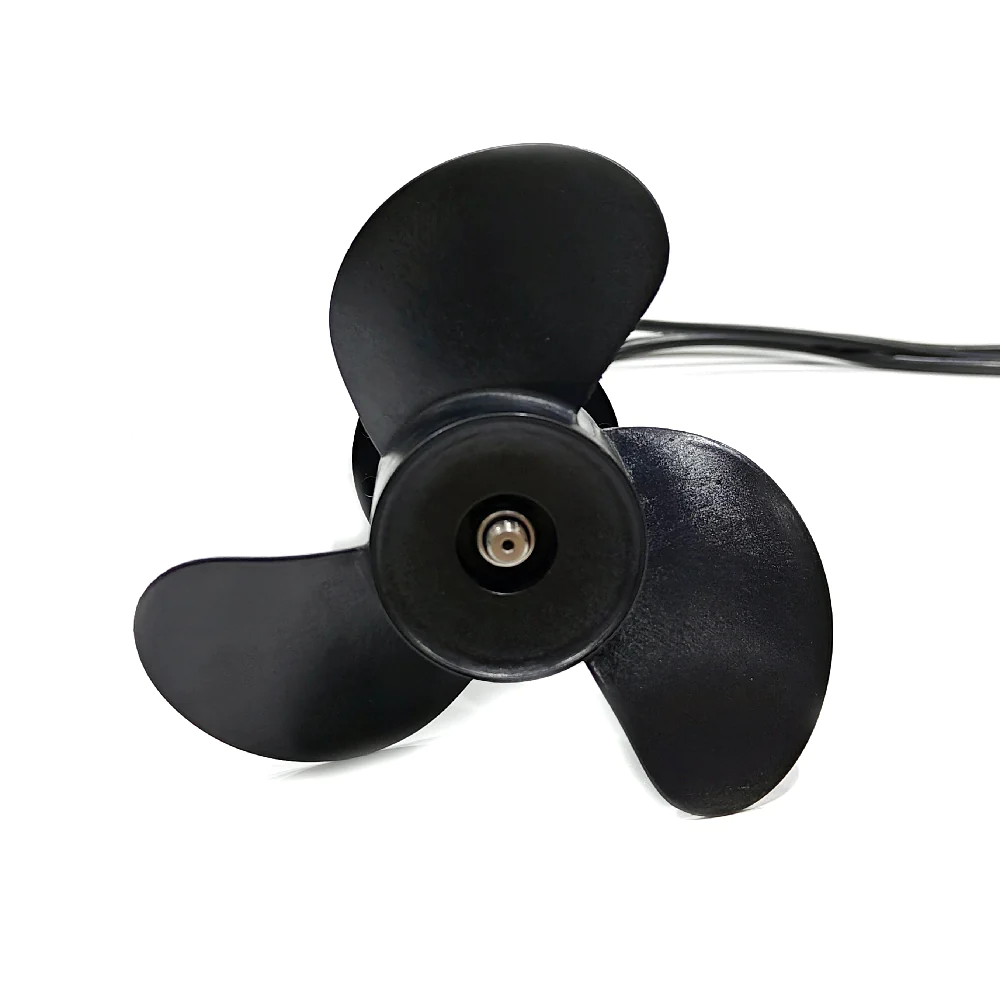

| Propeller | Optional for 120KV |
| Customize | KV, logo, shaft, cable, connector, cover, case, etc., contact eileen@maytech.cn |

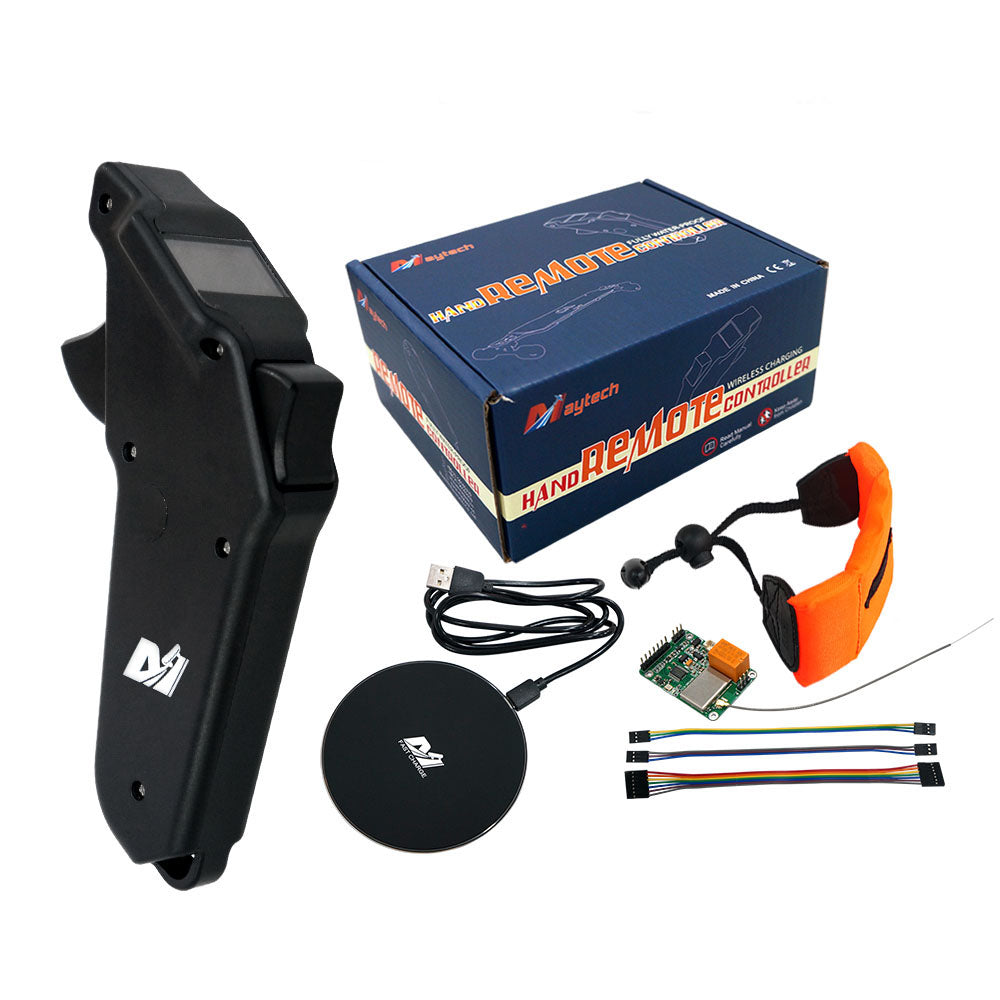

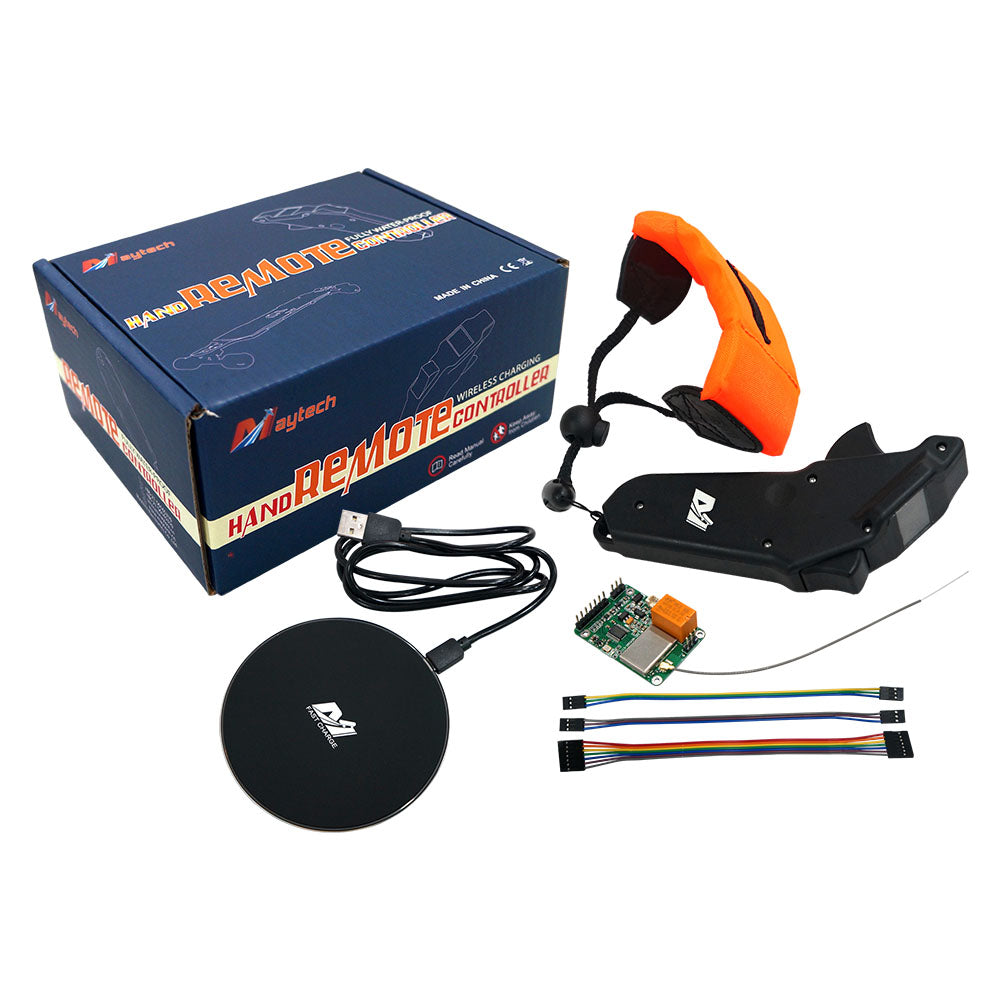

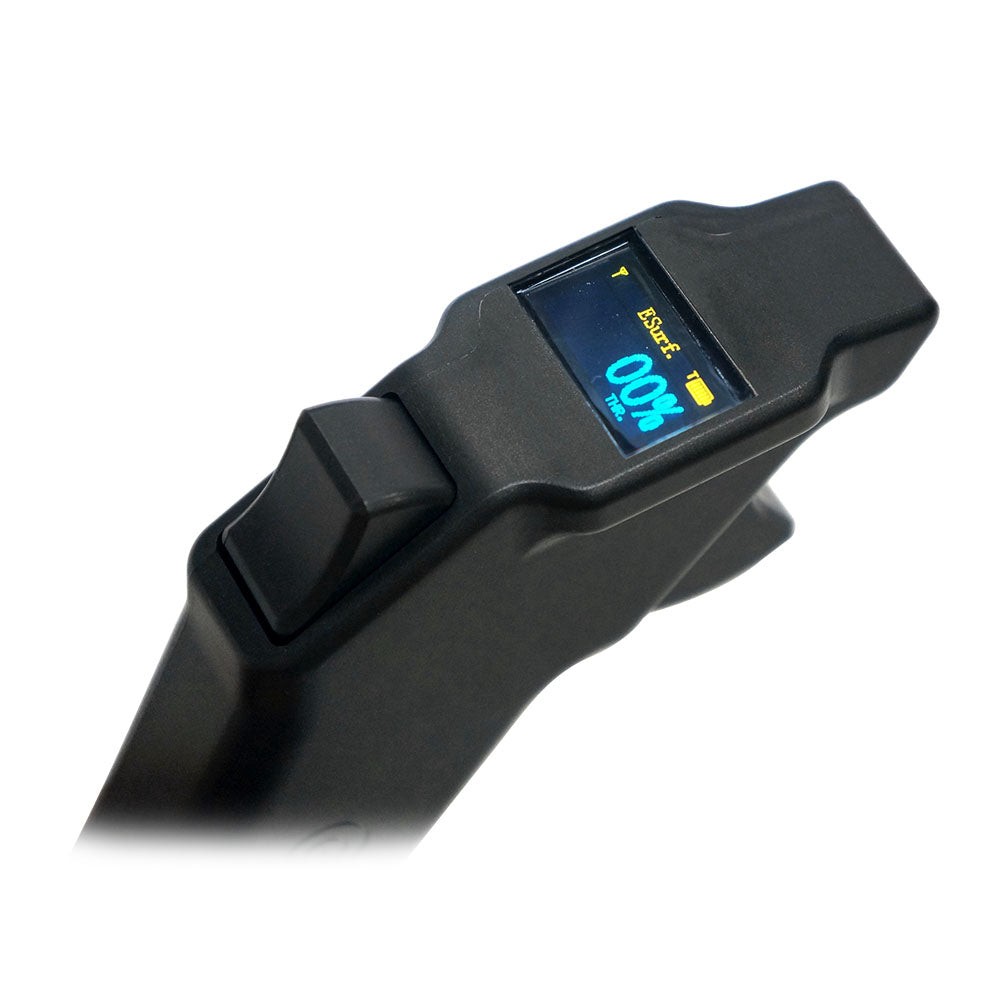

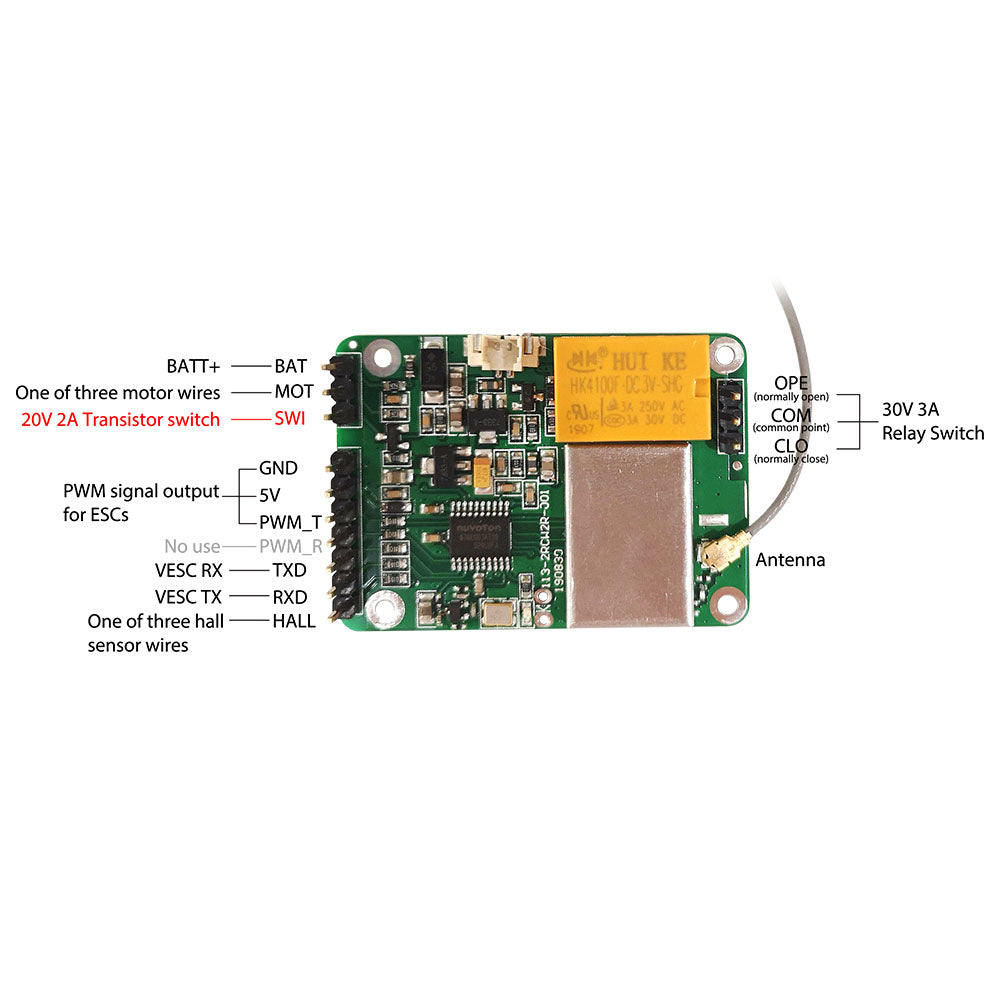

3. Remote: V5.0 MTSKR26WF Waterproof GPS Remote for Esurf, with PWM & UART Receiver
| Model No | MTSKR26WF V5.0 |
| Updated Functions |
Equipped with GPS (GPS Speed, Distance, Max Speed, Average Speed) Equipped with Tilted protection (IMU tilt sensor), protection angle can be adjusted to 30°/45°/60° tilt degree of your board in case of flipping over, separation of the rider from the board, or an accidental fall. |
| Waterproof Rank | IP68 Waterproof with 2 Layers Nanometers Coating, both on PCB board and screen |
| Thr Mode | Esurfboard (SF) , with cruise control and ESK8 (SK), can control forward and reverse when use on marine applications |
| 3 Speed Modes | With, adjust throttle % from 20-100%, friendly for beginners |
| Power Modes | 2 levels, Eco (Level 1) & Pro (Level 2) optional Signal strength: Pro > ECO Power Consumption: PRO > ECO |
| Throttle Lock | Yes, 10-120S optional |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | In Esk8(SK) mode: 1.5ms is stop position, 1.5-1ms for brake or reverse (upper trigger), 1.5-2ms for throttle (bottom trigger) In Esurf(SF) mode: 1-2ms for throttle (bottom trigger), no brake or reverse |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display Parameters |
GPS Speed / Distance / Max Speed / Average Speed |
| Relay Switch | No, without Relay Switch on Receiver to save mounting space |
| Control Light | Yes (20V 2A Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake or Reverse | With in Esk8 Mode |
| Accessories | Wirelss charging pad / Receiver / USB cable / Wristband / 1pcs 3 pins cable / 1pcs UART cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
| Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |


Feedback Videos on Efoil:
Customer feedback showing you how to DIY Efoil:
Advice after usage:
1. To expand the products life, please better wipe off the waters on the products and keep them for all dry after everytime use.
2. For this kit of the ESC, because the motor is sensorless, suggest to use the default value in the ESC, we have tested the kit before shipment with the default value, do not suggest to modify the values.
If you have other requirement on motor KV, ESC or other questions, please contact us eileen@maytech.cn
