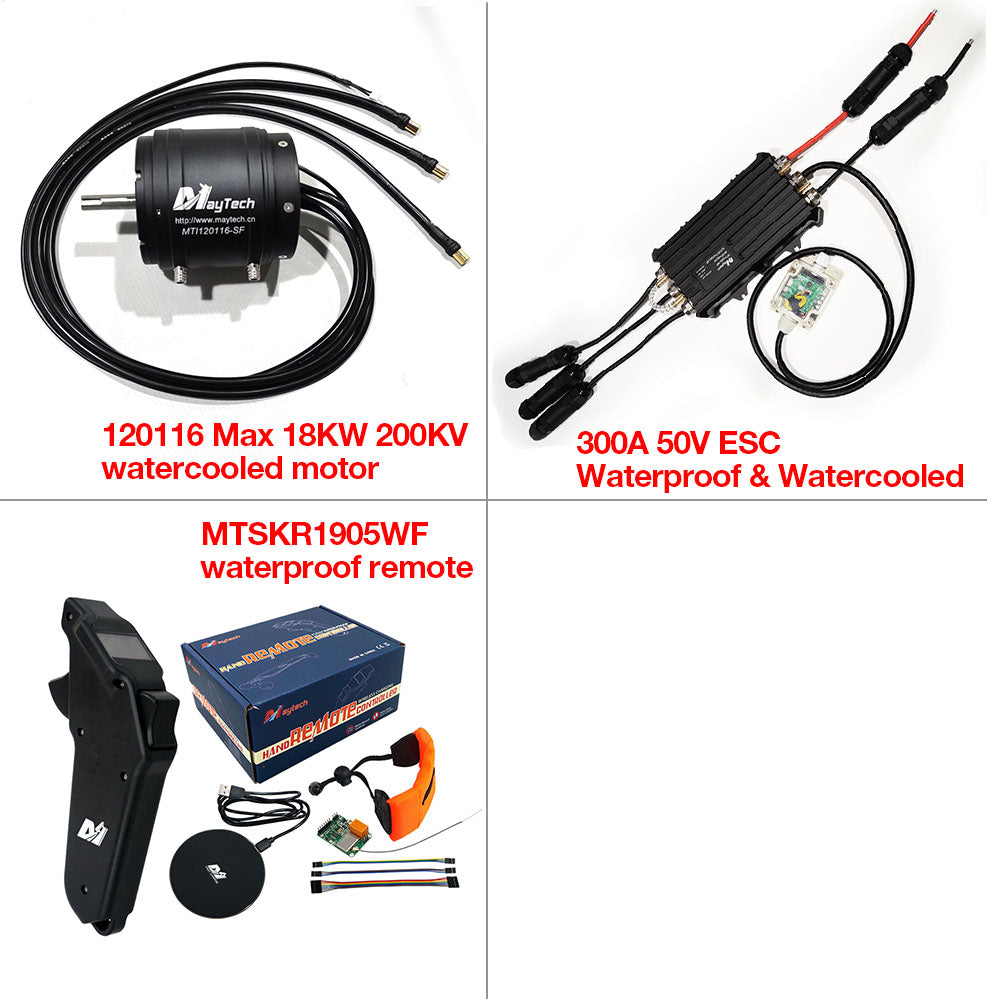

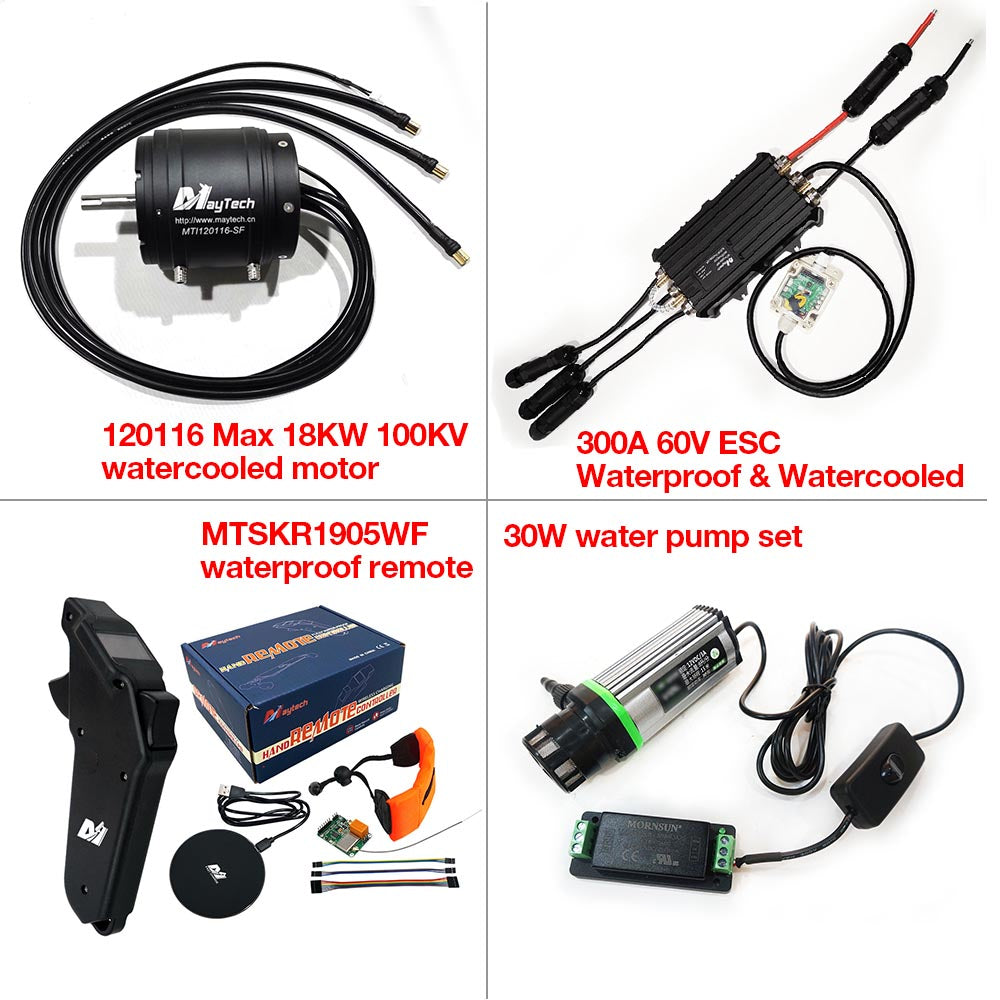

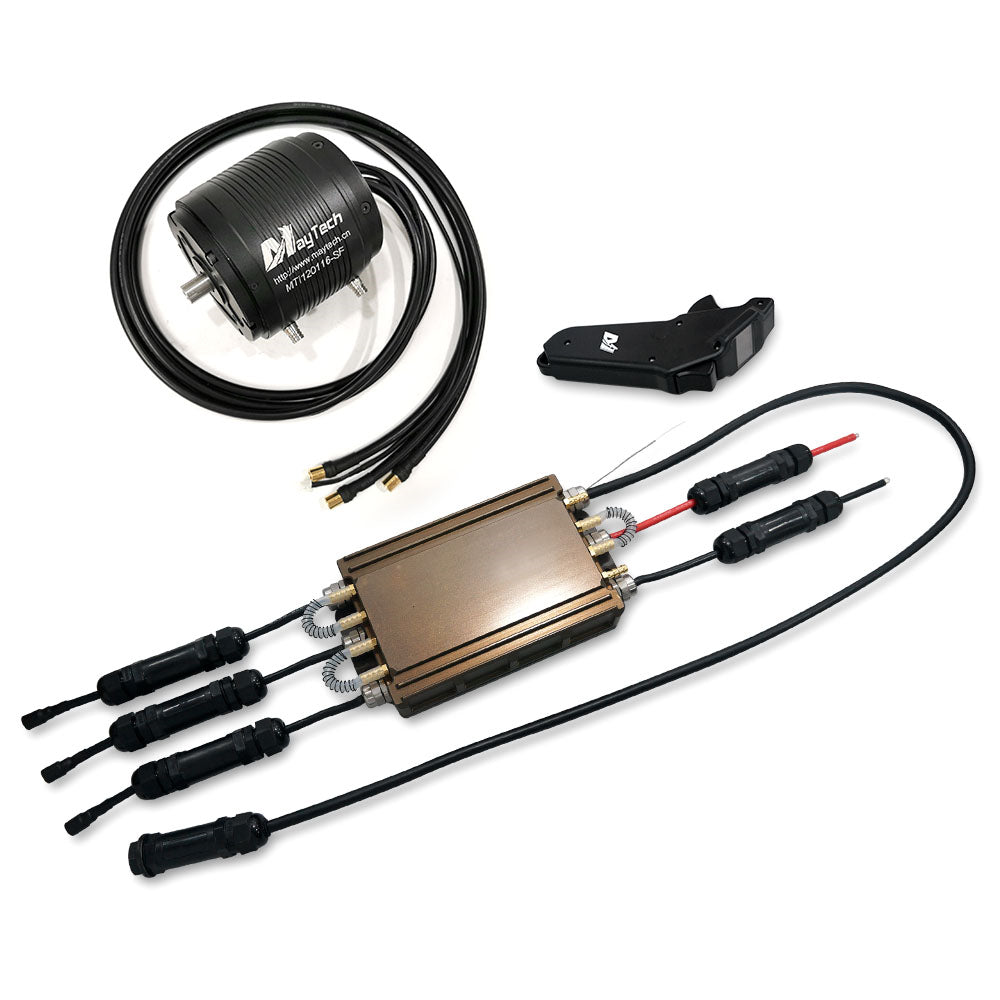

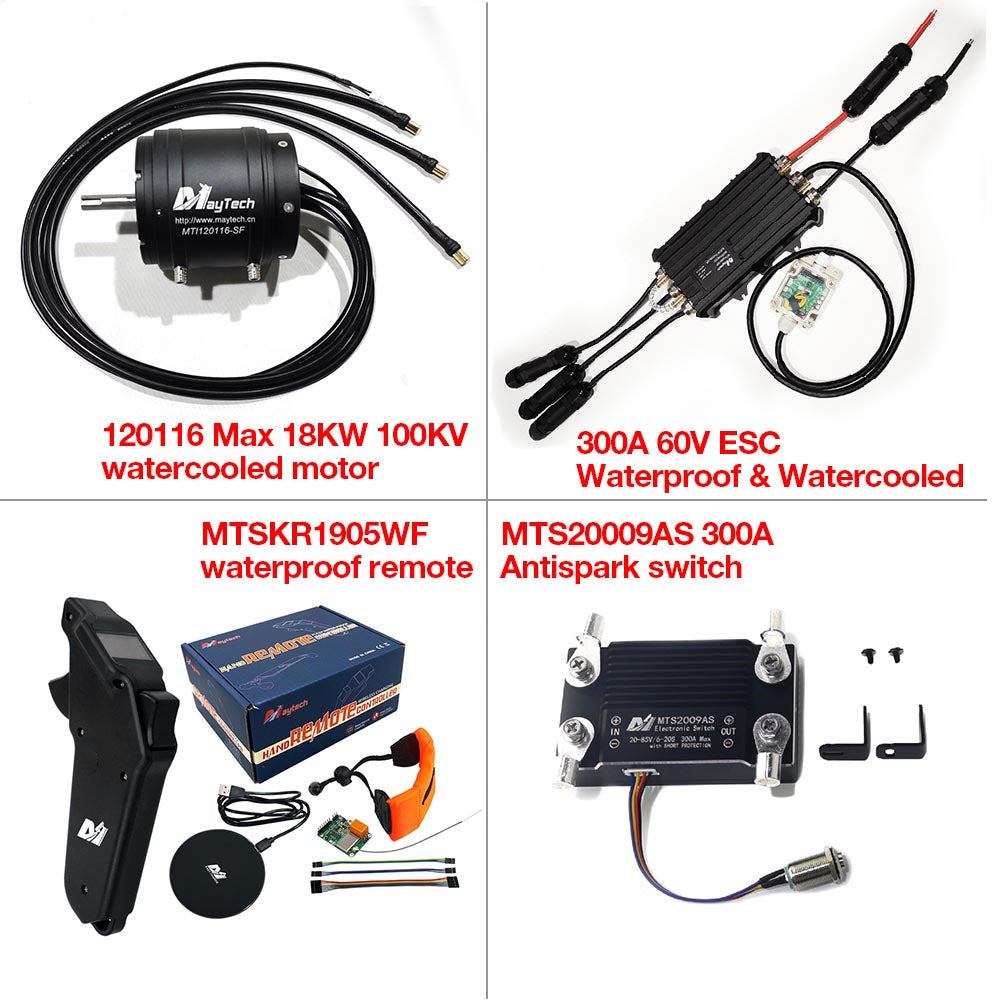

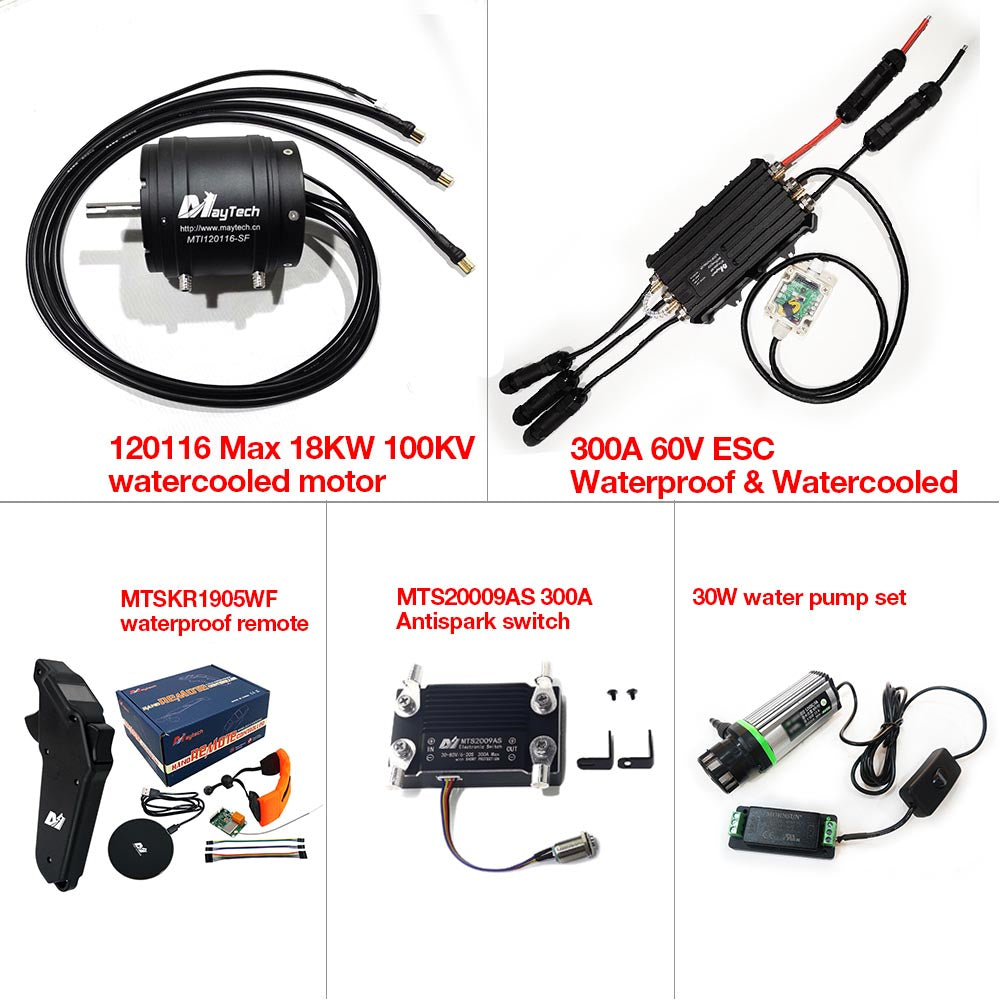

ESURF/ RC Boat Kit WATERCOOLED 120116 18.8KW MOTOR + WATERPROOF 300A ESC+ MTSKR1905WF REMOTE + 300A 85V SWITCH + WATER PUMP
ESURF/ RC Boat Kit WATERCOOLED 120116 18.8KW MOTOR + WATERPROOF 300A ESC+ MTSKR1905WF REMOTE + 300A 85V SWITCH + WATER PUMP
Regular price
$1,427.84 USD
Regular price
$1,552.00 USD
Sale price
$1,427.84 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

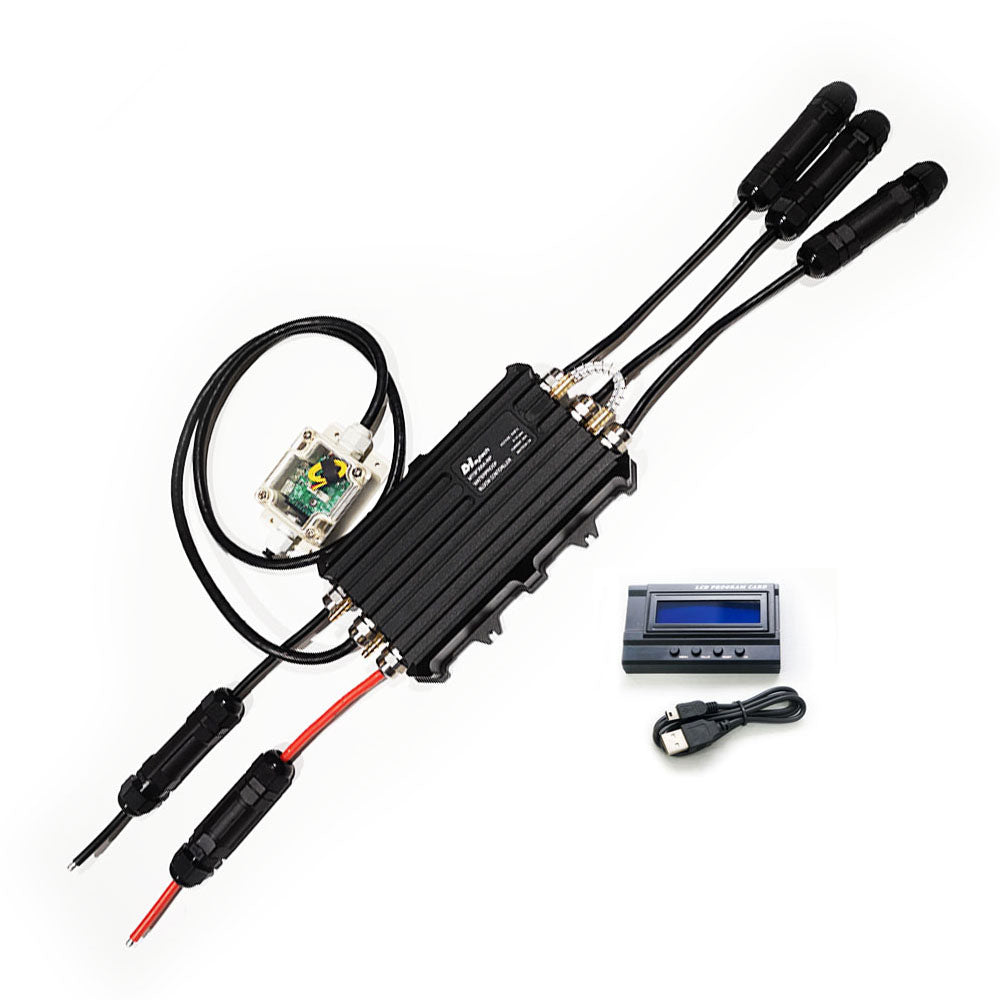

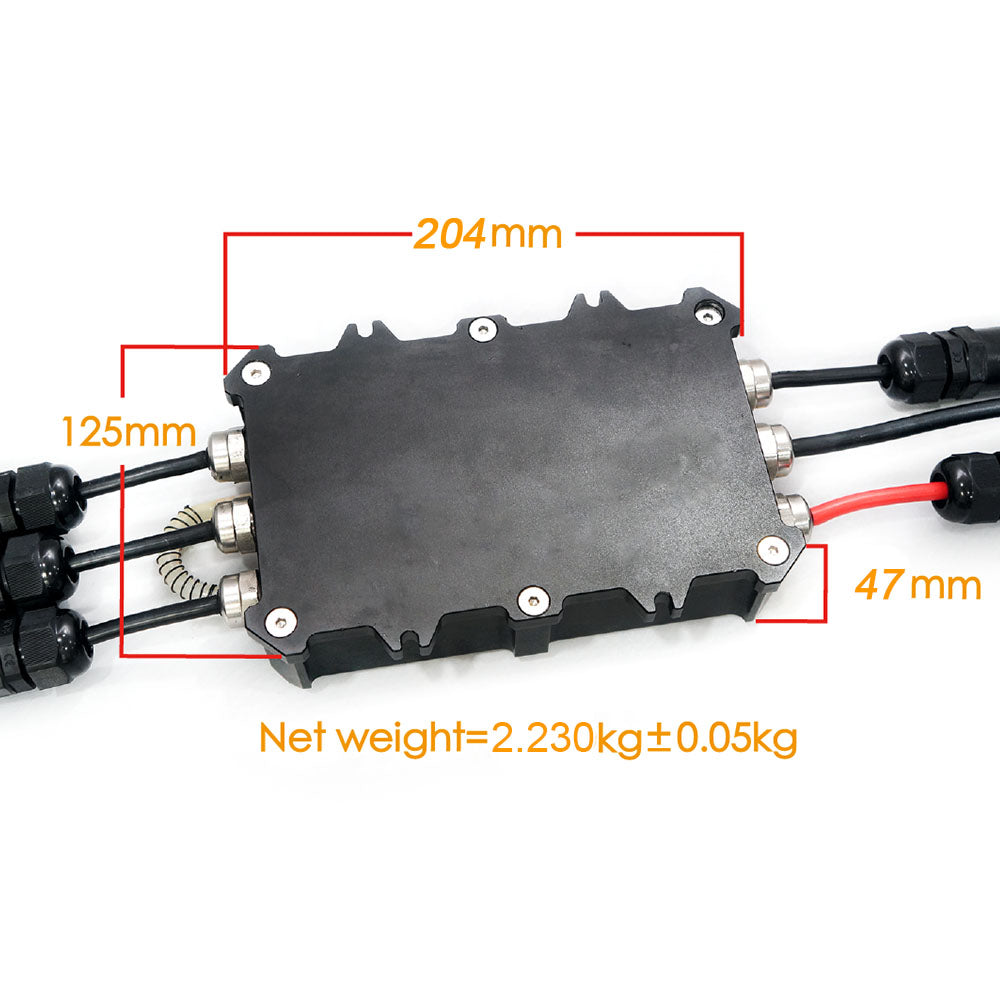

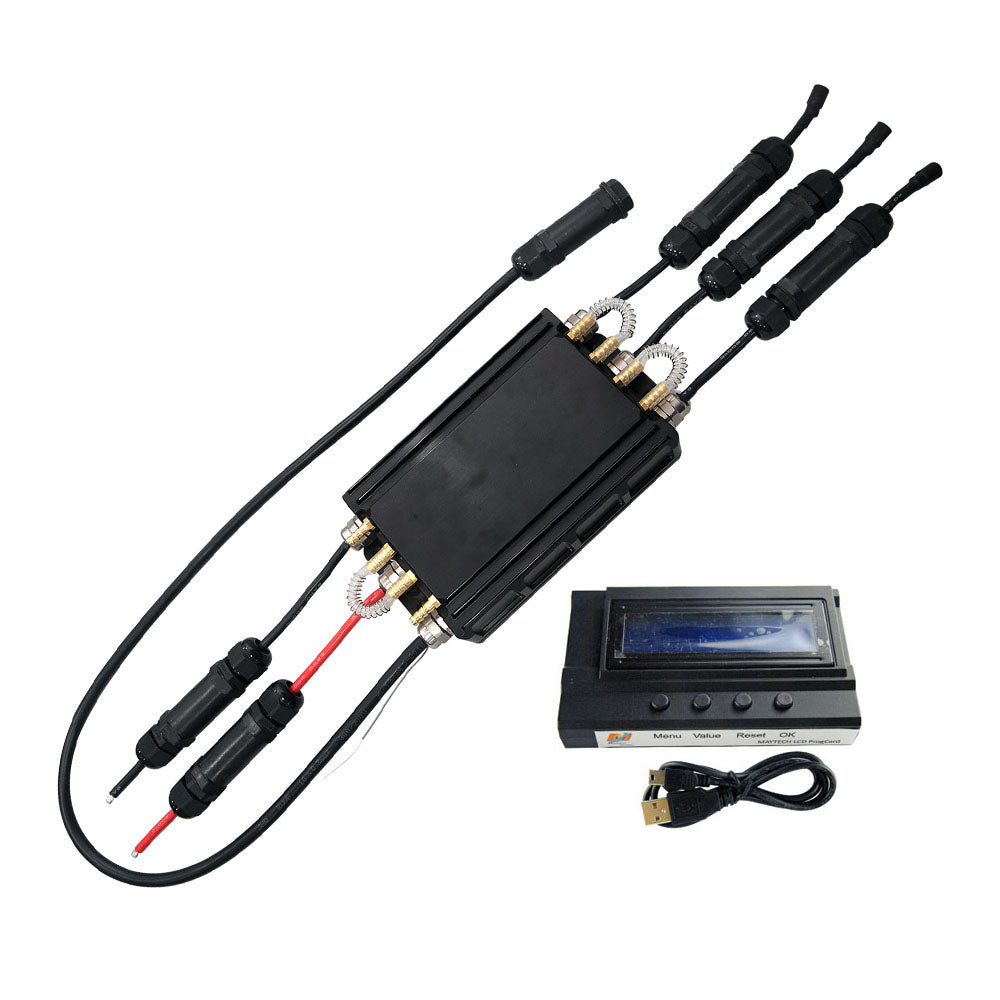

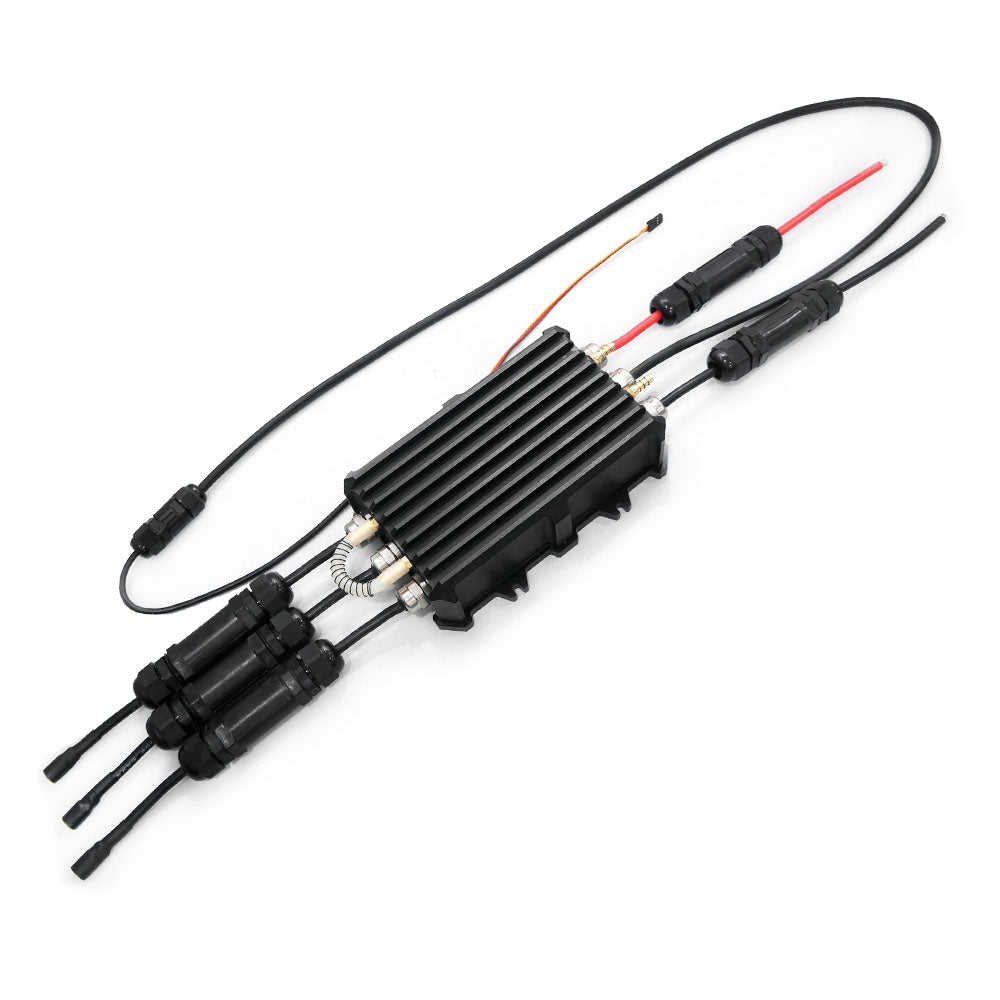

1. MTSF300A-WP ESC Upgrade Version:
| Model No. | MTSF300A-WP |
| Cont Current | 300A |
| Peak Current | 1000A |
| Watercooling | With |
| Waterproof Rank | IP68 |
| Input Voltage | 6-14S Lipo (25-58.8V) |
| Case Material | Aluminum alloy |
| Signal Format | PWM, 1ms-2ms |

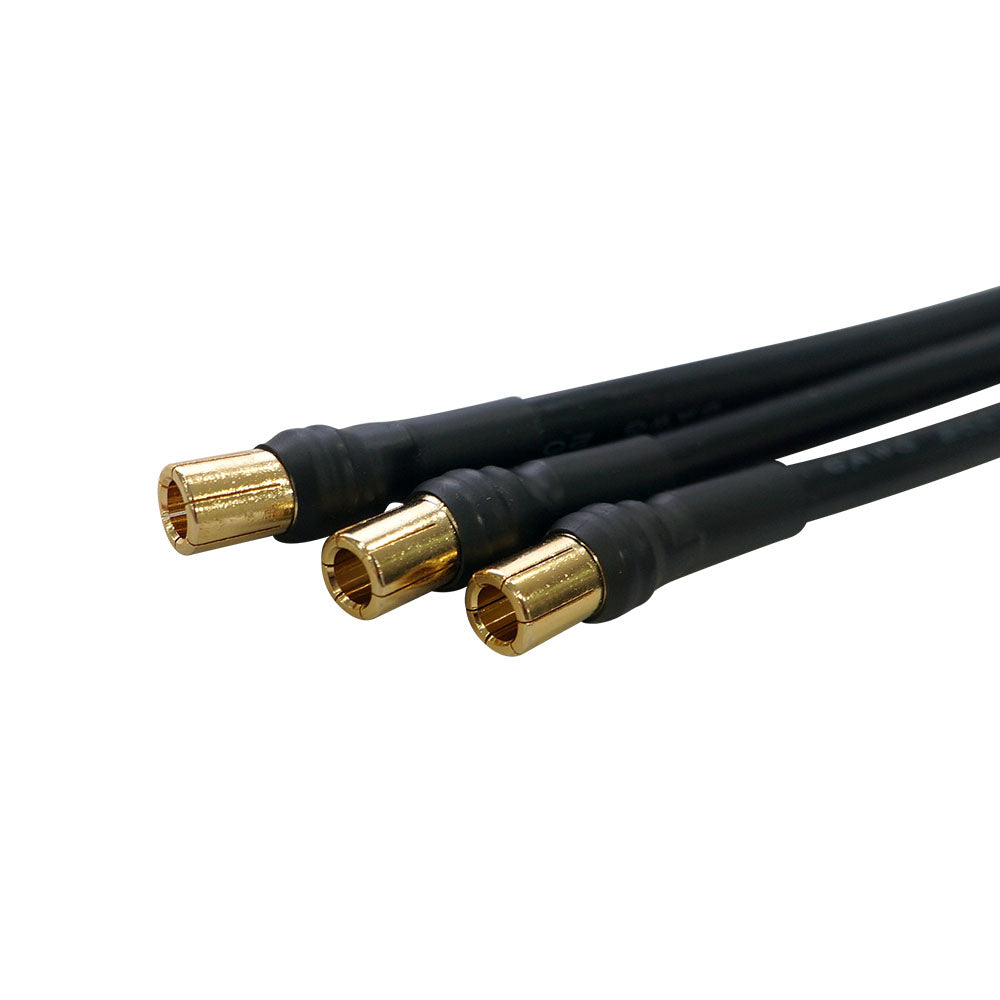

| Connector | 8.0mm female gold-plated bullet connector on 3 motor cables, on battery side without connector. With waterproof protector for connectors |
Features:

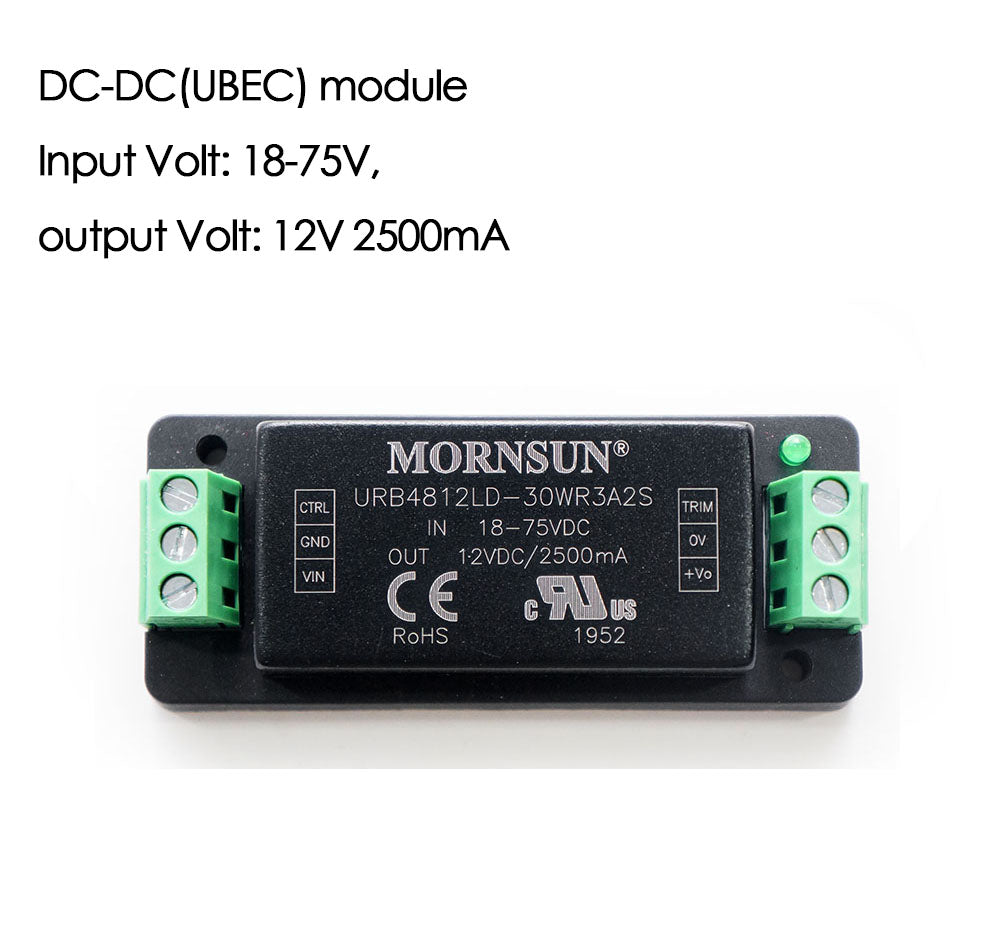

- Built in 75V to 5V and 75V to 12V UBEC DC-DC Module, 5V output is for receiver power supply, 12V output is for light and water pump, or other use.

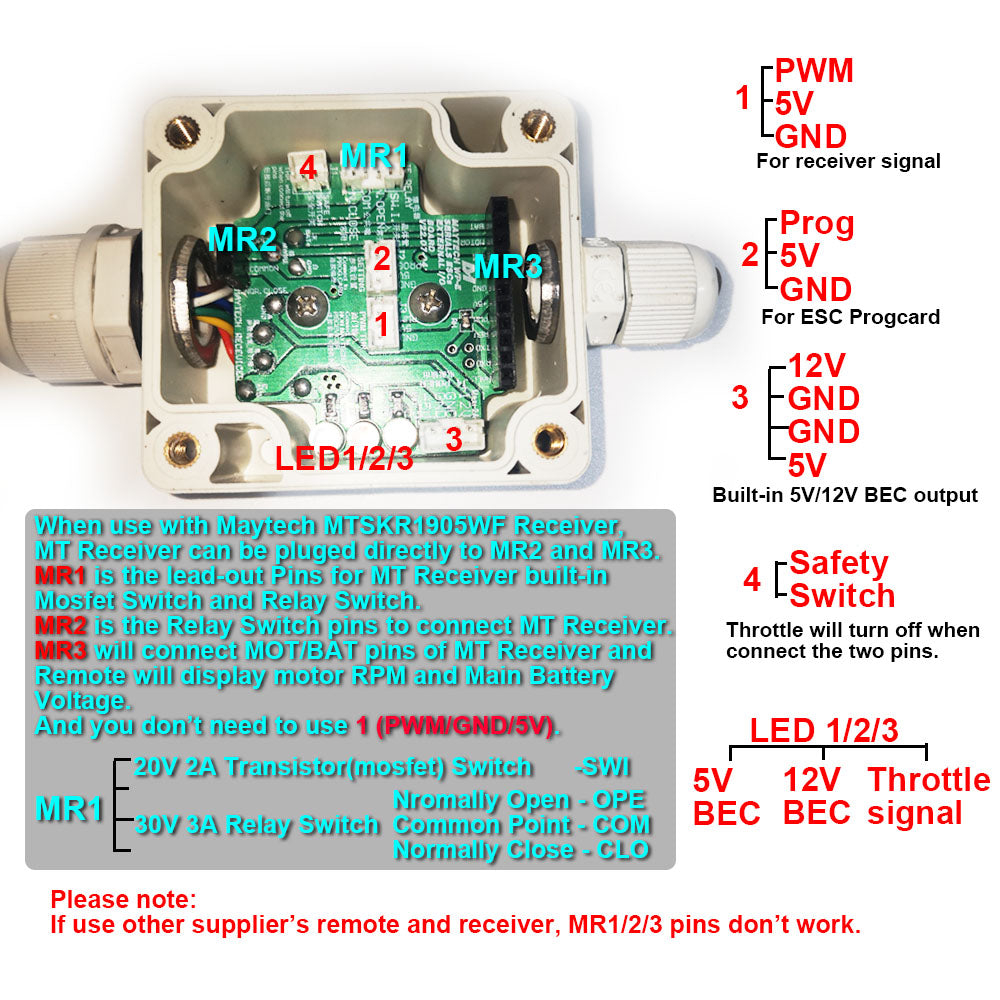

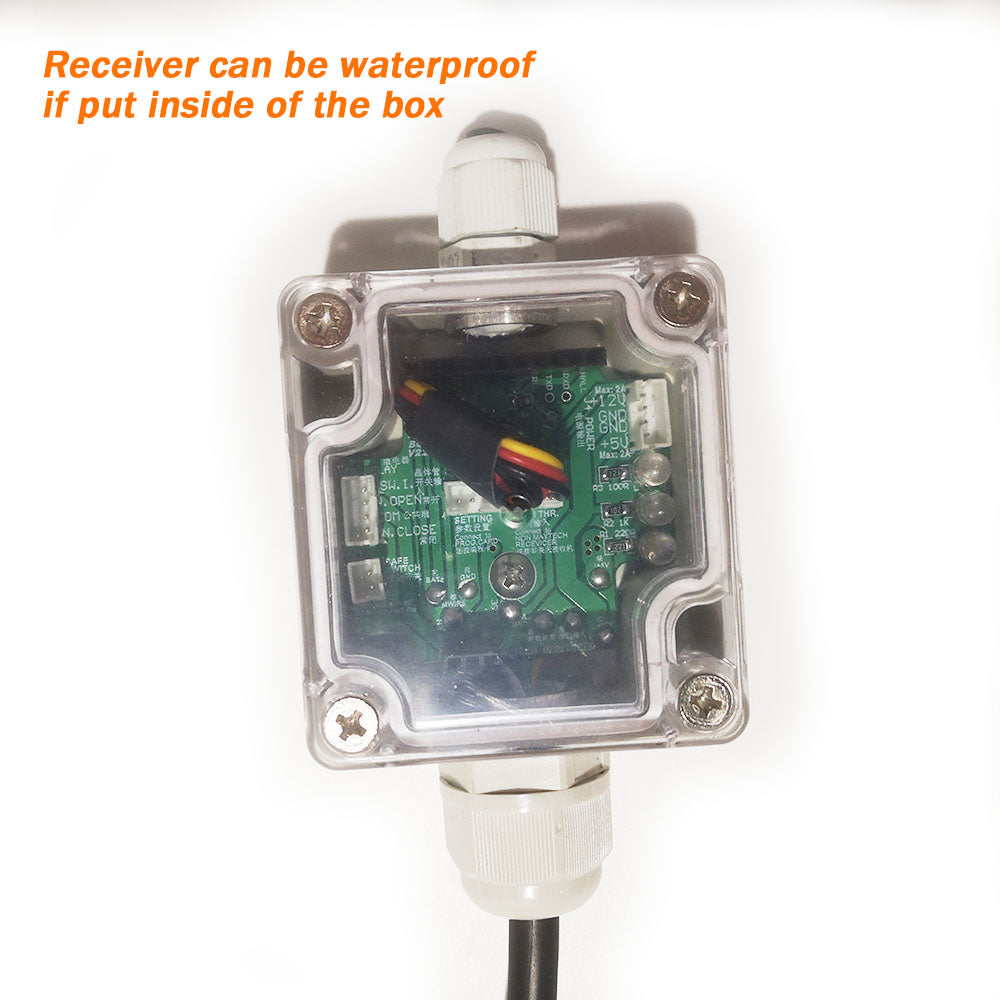

- With waterproof junction box, all functions lead out and with pins in the box, and if you work with Maytech MTSKR1905WF remote, its receiver can be put inside of the box and directly plug in, easier to use and receiver can be waterproofed.
- Both IP68 waterproof and watercooled, which means 2 cooling ways:
- The case can work under seawater because of its IP68 waterproof case; If you don't want to put it underwater, then just cool it with water pump through its cooling tubes.
> Click to get Progcard Manual and Instruction:

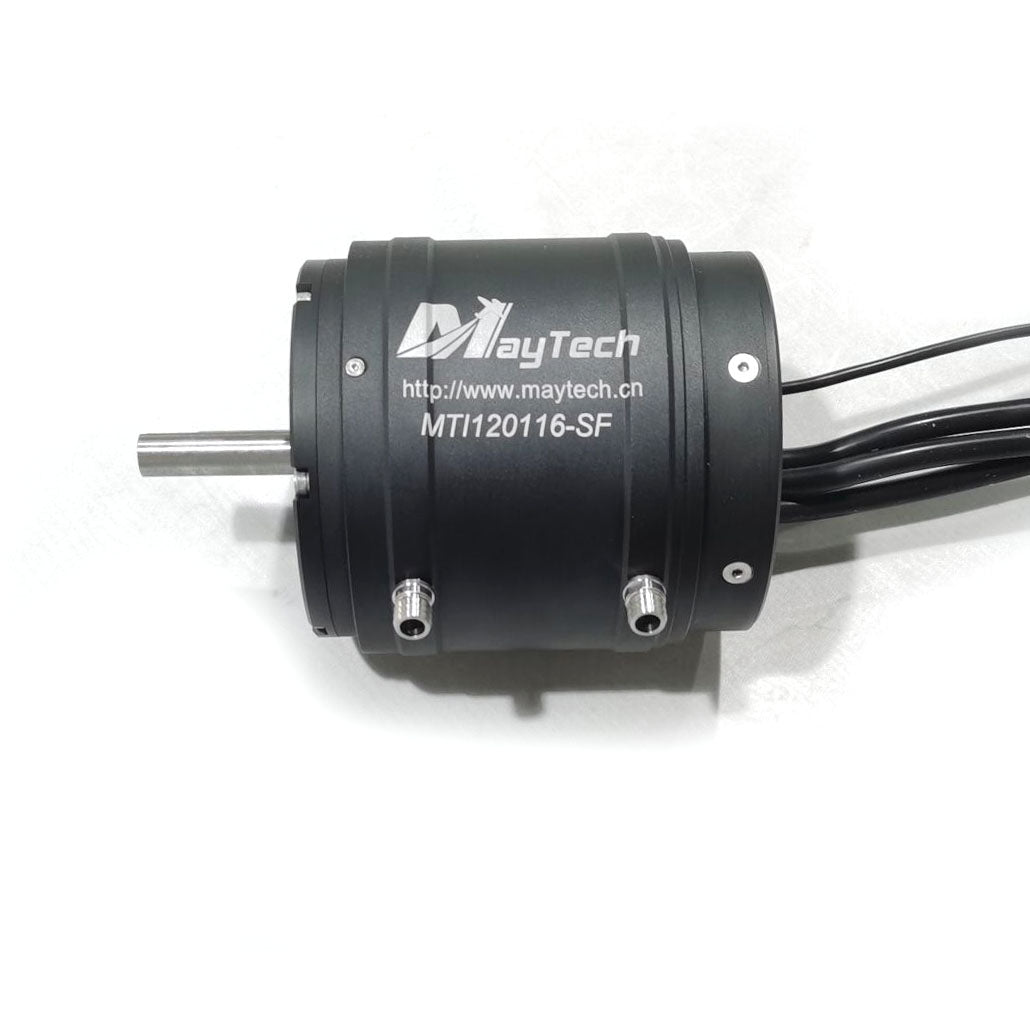

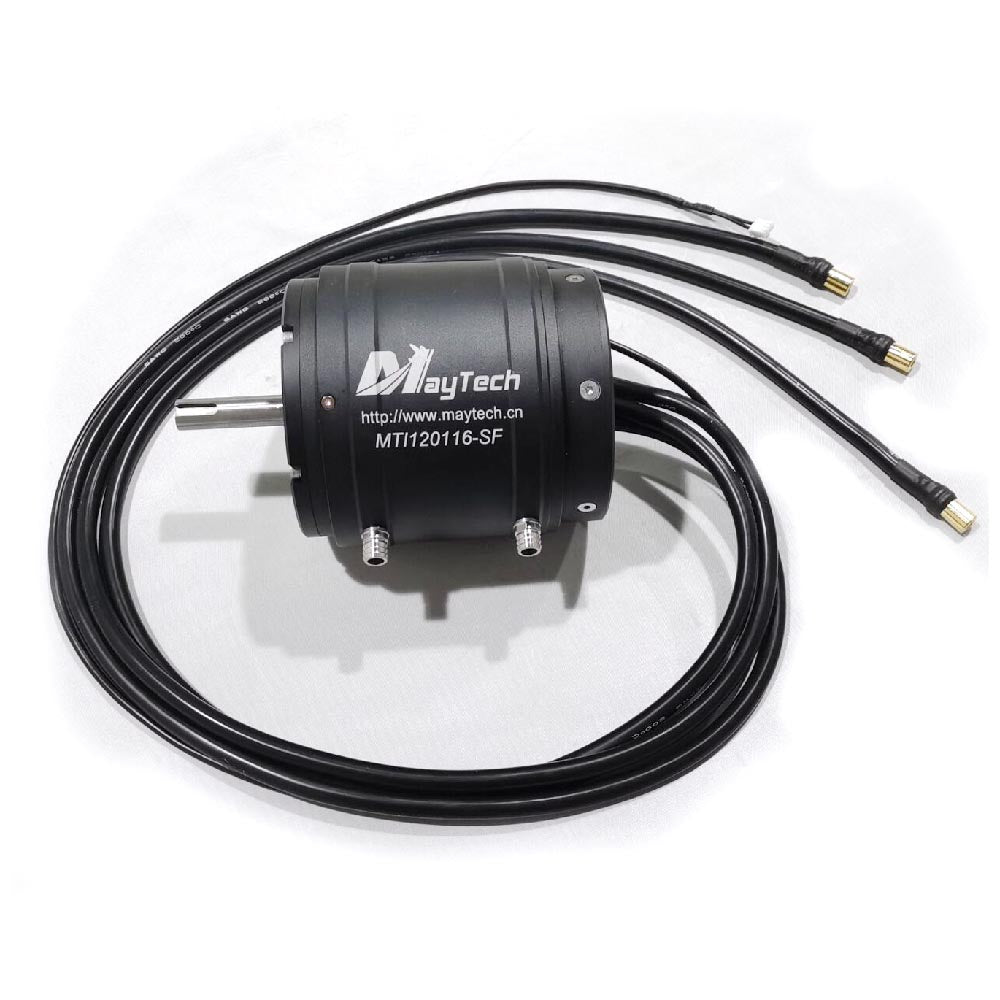

2. MTI120116 Inrunner Watercooled Motor
| Model No. | MTI120116-SF |
| KV | 100 / 200, if you want other KV, contact agnes@maytech.cn |

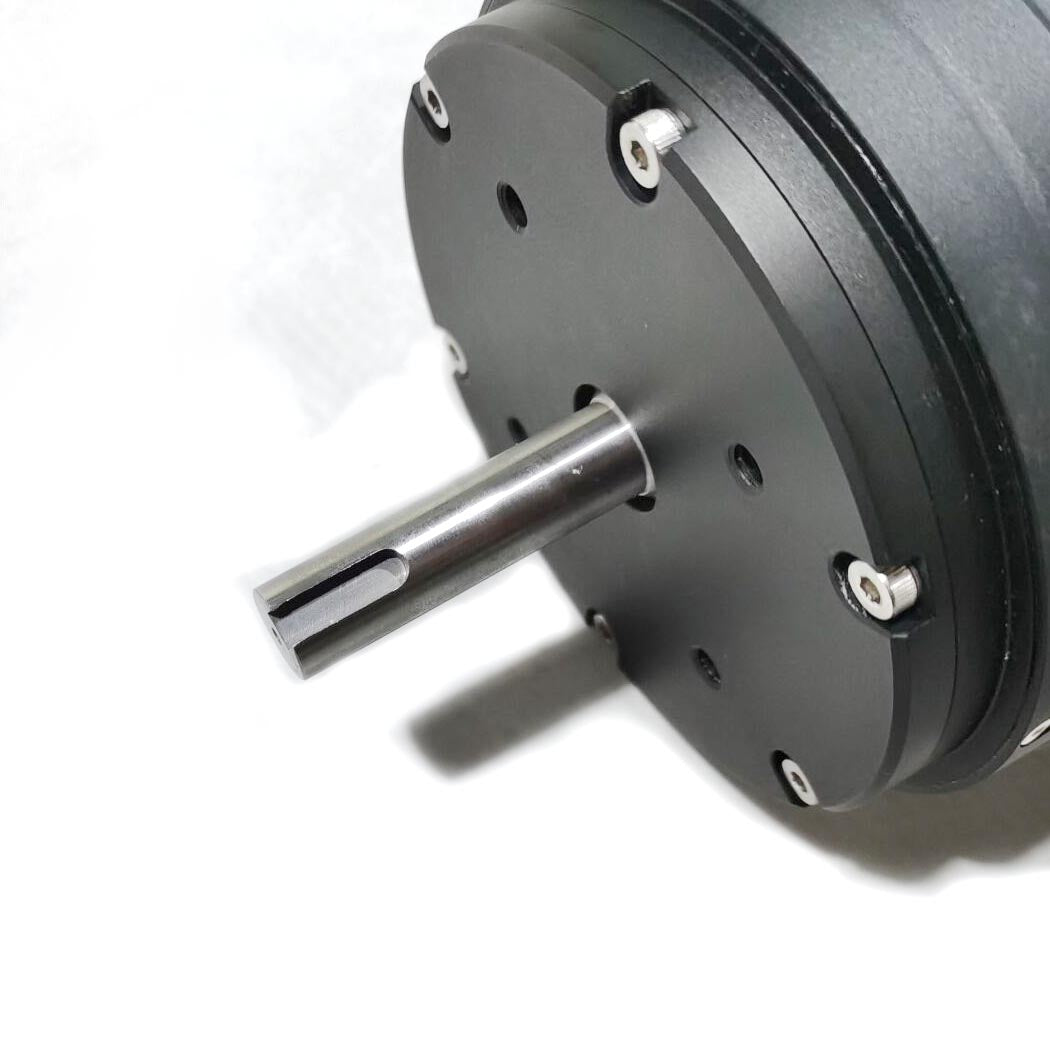

| Shaft | Keyway Shaft |
| Input Voltage |
6-14S Lipo (25V-60V) for 100KV in this kit; 6-12S Lipo (25-50V) for 200KV |
| Waterproof Rank | Not Waterproof |
| Watercooling | With |
| Max Current | 380A |
| Max Output Power | 18.8KW |
| Pole Number | 10 poles |
| Max Torque | 20.6N.m |
| Connector | 10.0mm male golden-plated bullet connector |
| Hall Sensor | Without |
| Customize | KV, logo, shaft, cable, connector, cover, case, etc., contact agnes@maytech.cn |

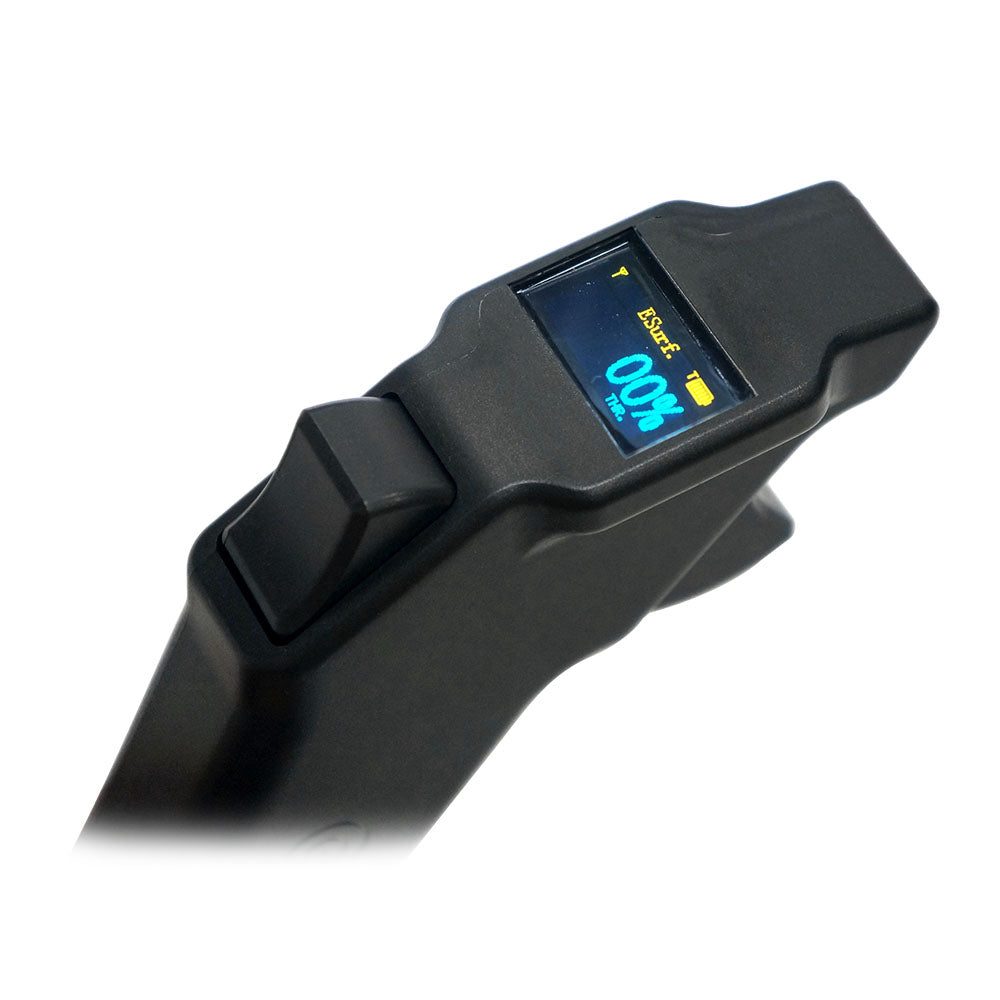

3. Remote: MTSKR1905WF IP67 Waterproof Remote for Esurf, with PWM & UART Receiver
| Model No | MTSKR1905WF V3.0 |
| Waterproof Rank | IP67 double waterproof |
| Thr Mode | ESURF (SF) and ESK8 (SK) |
| 3 Speed Modes | With, adjust throttle % from 20-100% |
| Power Modes | 2 levels, Eco (Level 1) < Pro (Level 2) |
| Throttle Lock | Yes, 10-30S optional |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display Parameters |
Current, voltage, temperature only when work with VESC or Maytech MTSF300A-WP32 ESC; |
| Control Pump | Yes (Relay Switch) |
| Control Light | Yes (Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake | With in Esk8 Mode |
| Accessories | Wirelss charging pad / Receiver / USB cable / Wristband / 3pcs Dupond cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |

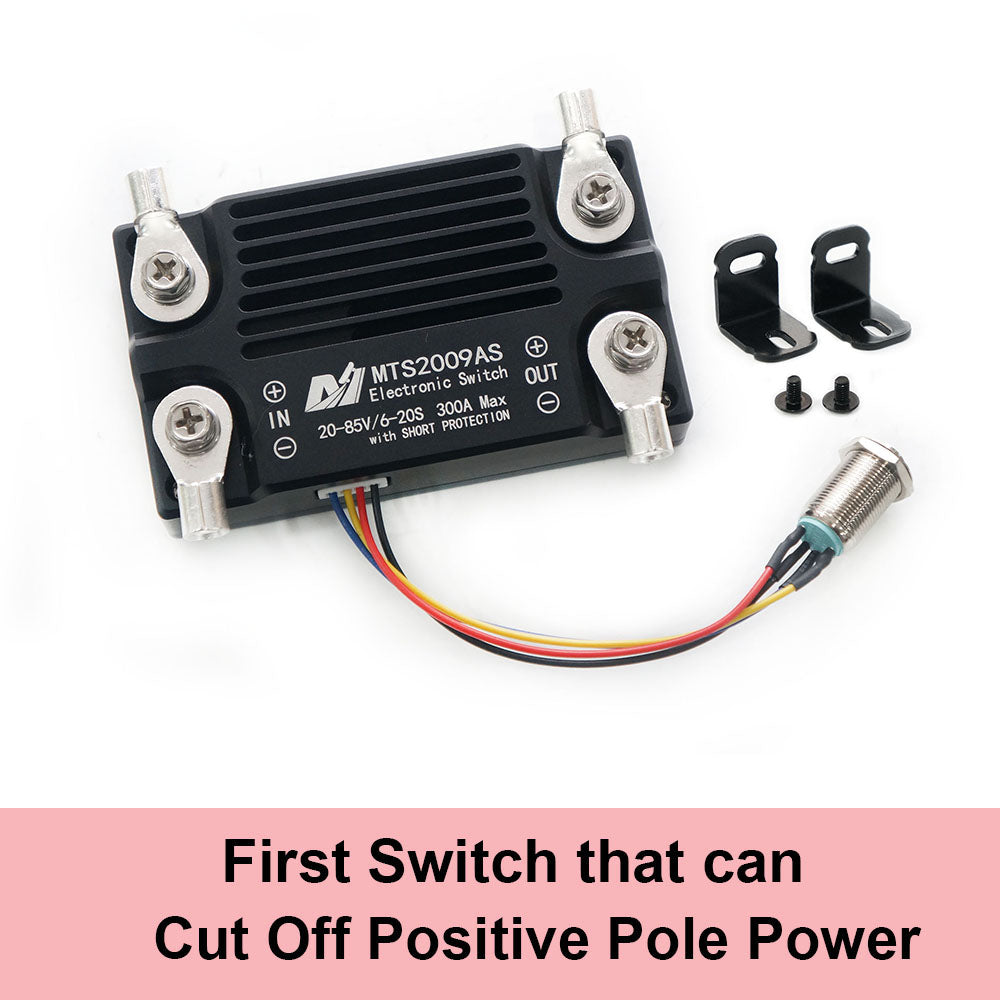

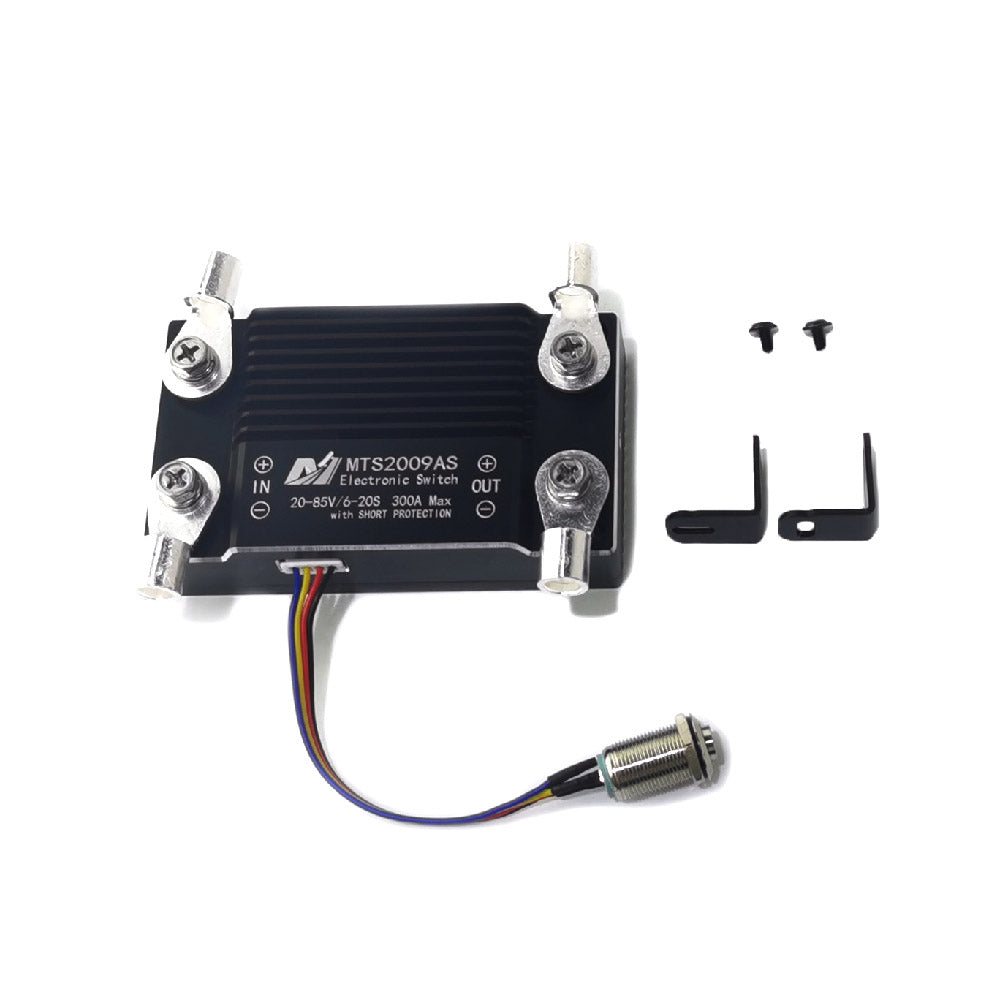

4. MTS2009AS Antispark Switch
| Model No. | MTS2009AS |
| Max Current | 300A |
| Input Voltage | 6-20S Lipo (25-85V), recommend better work under 75V |
| Swith Diameter | 12mm |
| Switch Type | NMOS to realize switching on/off Power positive |
| Waterproof | No, please keep the switch in dry space |
| Connector | With 4pcs Cold-pressed Terminal Connector |
| Function | Protect your controller and power supply system when brake or startup |
| Application | Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, Airplane, VTOL, UAV, Dronesetc., |
| Features: | Switch comes with LED light indicator; Shutdown current less than 1uA; Suitable for load: three phase motor speed controller; Boot soft start; Automatic short circuit protection when boot; Automatic short circuit protection when work. |

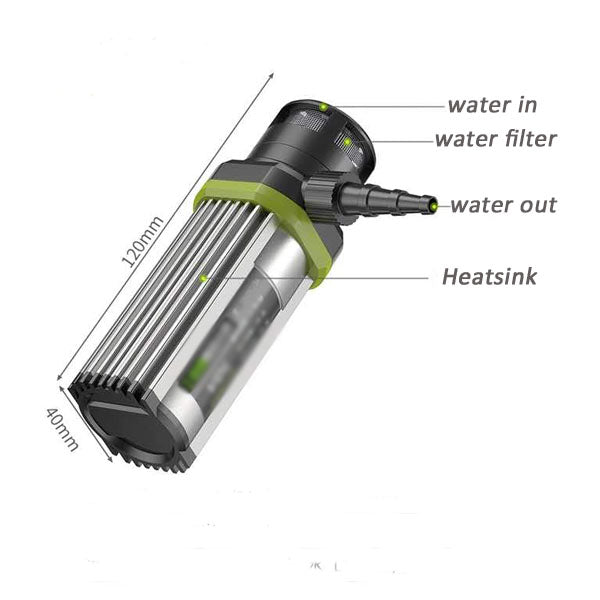

5. Water Pump
Advice after usage:
1. The motor is watercooled, please do not make the motor touch with water, it need to be cooled with its cooling tube.
2. For this kit of the ESC, because the motor is sensorless, suggest to use the default value in the ESC, we have tested the kit before shipment with the default value, do not suggest to modify the values.
If you have other requirement on motor KV, ESC or other questions, please contact us agnes@maytech.cn
