In Stock Efoil Surfboard Kit 65162 Waterproof Motor + 300A 75V MTSPF7.5H + MTSKR1905WF Remote
In Stock Efoil Surfboard Kit 65162 Waterproof Motor + 300A 75V MTSPF7.5H + MTSKR1905WF Remote
Regular price
$1,021.82 USD
Regular price
$1,075.60 USD
Sale price
$1,021.82 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

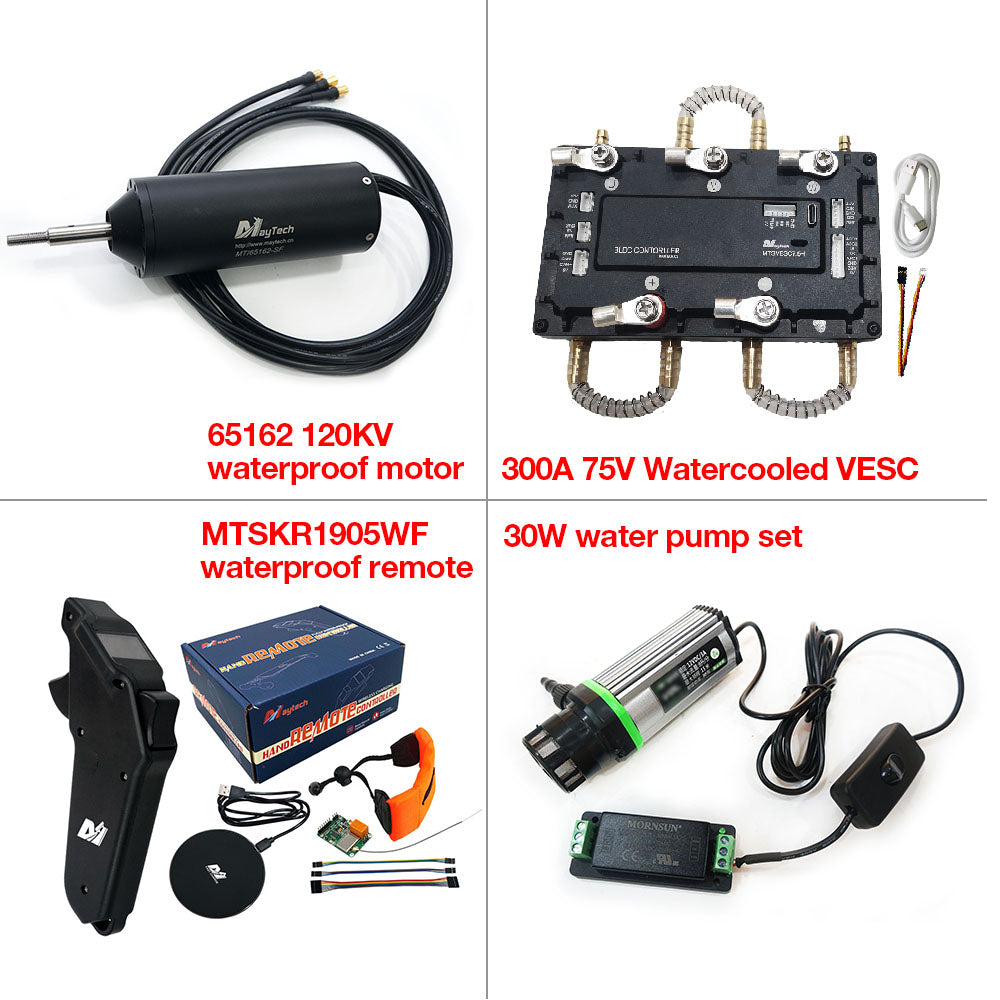

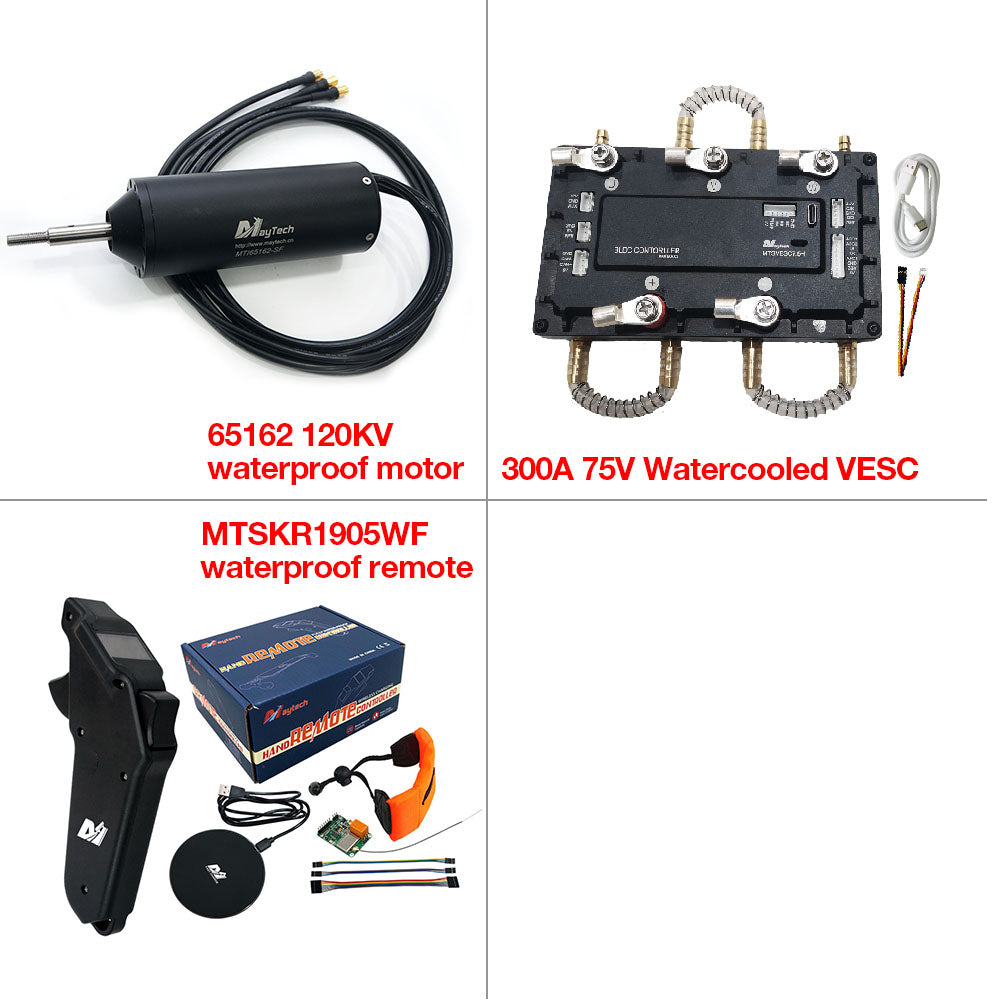

300A 75V V75_300 based Watercooled Speed Controller + MTI65162 Fully Waterproof Motor + MTSKR1905WF IP67 Waterproof Remote + 300A 85V Anti-spark Switch + Water Pump Set for Efoil, Electric Hydrofoil High Voltage Electric Vehicles, etc.,
Frequently Asked Questions:
How much voltage can be used for this kit?
-Max voltage can use for this kit is 75V, if use higher motor KV, max voltage can be used is lower.
Is water pump necessary?
- The controller is both waterproof and watercooled, so it can work underwater directly. If you put it underwater for cooling, water pump is not needed; If you don't want to put it underwater, and want to cool it through its cooling tube, then water pump is needed.
Is anti-spark switch needed?
- Anti-spark switch function is to protect your battery and VESC systems from damaged by power srges when startup and speed up, especially when use high voltage, so anti-spark switch is recommended to added. Our MTS2009AS antispark switch cal also cut off positive pole power, save your battery power and more convenient to use.
What applications can this kit be used to?
- Efoil, electric hydrofoil, electric boat, electric kayak, electric motorcycle, ev car, agv car, heavy duty cargo robots, electric water sports, counter current swimming machine, etc.,
1. Motor: MTI65162-SF Inrunner Sensorless Waterproof Brushless Motor
| Model No. | MTI65162-120-SF |
| KV | 120, if you want other KV, contact agnes@maytech.cn |
| Shaft | Screw Shaft |
| Input Voltage | 6-14S Lipo (25V-58.8V) |
| Waterproof Rank | IP68 |
| Max Current | 300A |
| Max Output Power | 9KW |
| Pole Number | 6 poles |
| Max Torque | 10N.m |
| Connector | 8.0mm male gold-plated bullet connector |
| Hall Sensor | Without |
| Propeller | Optional for 120KV |
| Customize | KV, logo, shaft, cable, connector, cover, case, etc., contact agnes@maytech.cn |
2. MTSPF7.5H 300A 75V VESCTOOL Speed Controller
| Model No. | MTSPF7.5HK |
| Current | 300A |
| Waterproof Rank | Not waterproof, with watercooling |
| Input Voltage | 6-18S Lipo (25V-75V) |
| VESC Hardware | VESC75/300 |
| Signal Format | PWM (PPM), UART, ADC |
| Case Material | Alloy aluminum case |
| Connector | Cold-pressed terminal connector |
| Application | Efoil, foilcart, electric hydrofoil, electric kayak, electric sup board, esurf, underwater scooter, etc., |
Suggest Parameters Set in VESCTOOL:
Motor Current Max: ≤300A (According to your motor current)
Absolute Maximum Current: 350A (According to your motor current)
Battery Current Max: ≤150A (According to your battery discharge current)
You can also use default values after "Setup Motors FOC" detection.
The VESC is open source, these values are just for reference based on our engineer experience for your reference.
Ports definitions:
Ports definitions:
1.AUX port to supply 12V and 5V to external device;
2.PPM port to connect PPM transceivers;
3.CAN Port for CAN communication with other devices and VESC arrays;
4.Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders);
5.SWD port to get direct access to the Chipset. Diagnostics, debugging, and real time data;
6.COMM port for various kinds of other communication methods like I2C, ADC, Uart,You can use your Arduino or Raspberry Pi to control the VESC!
7.USB port for programming.

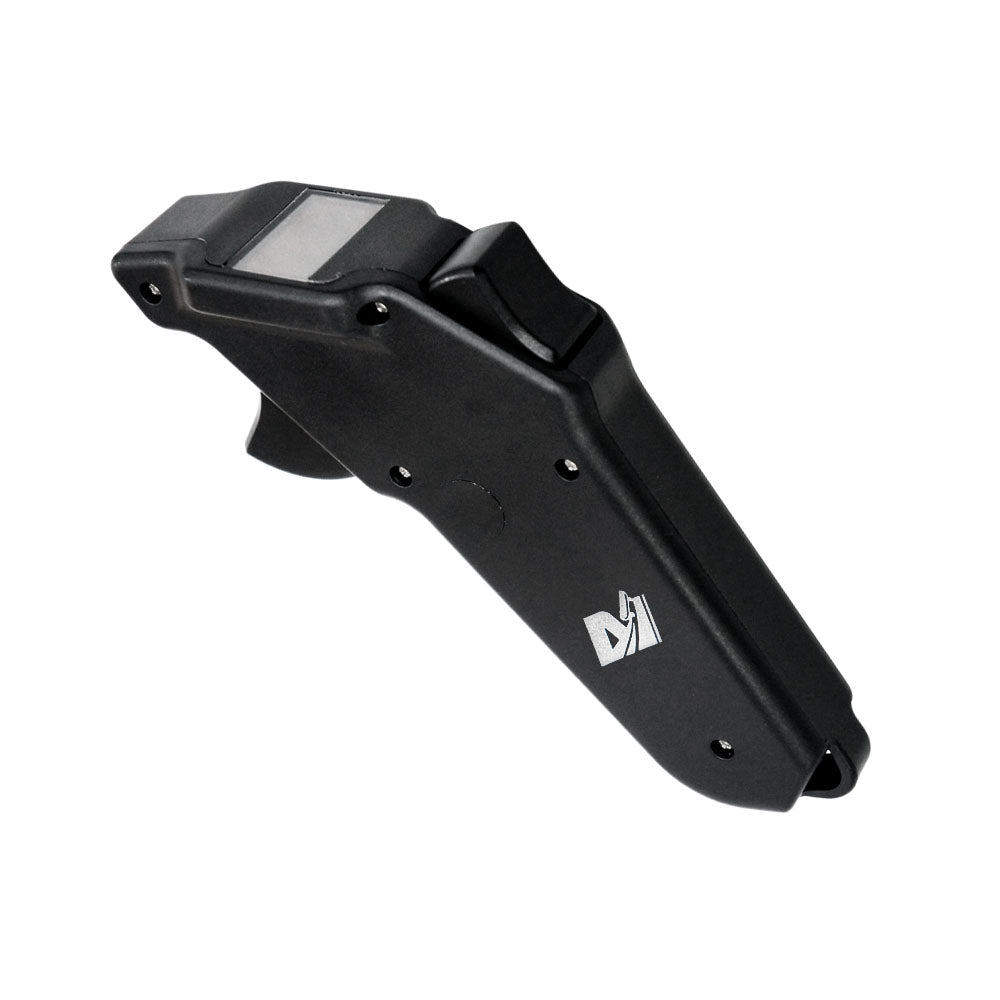

3. MTSKR1905WF IP67 waterproof remote
| Model No | MTSKR1905WF |
| Waterproof Rank | IP67 double waterproof |
| Thr Mode | ESURF (SF) and ESK8 (SK) |
| 3 Speed Modes | With, adjust throttle % from 20-100% |
| Power Modes | 2 levels, Eco (Level 1) < Pro (Level 2) |
| Throttle Lock | Yes, 10-30S optional |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display Parameters |
Current, voltage, temperature only when work with VESC or Maytech MTSF300A-WP32 ESC; |
| Control Pump | Yes (Relay Switch) |
| Control Light | Yes (Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake | With in Esk8 Mode |

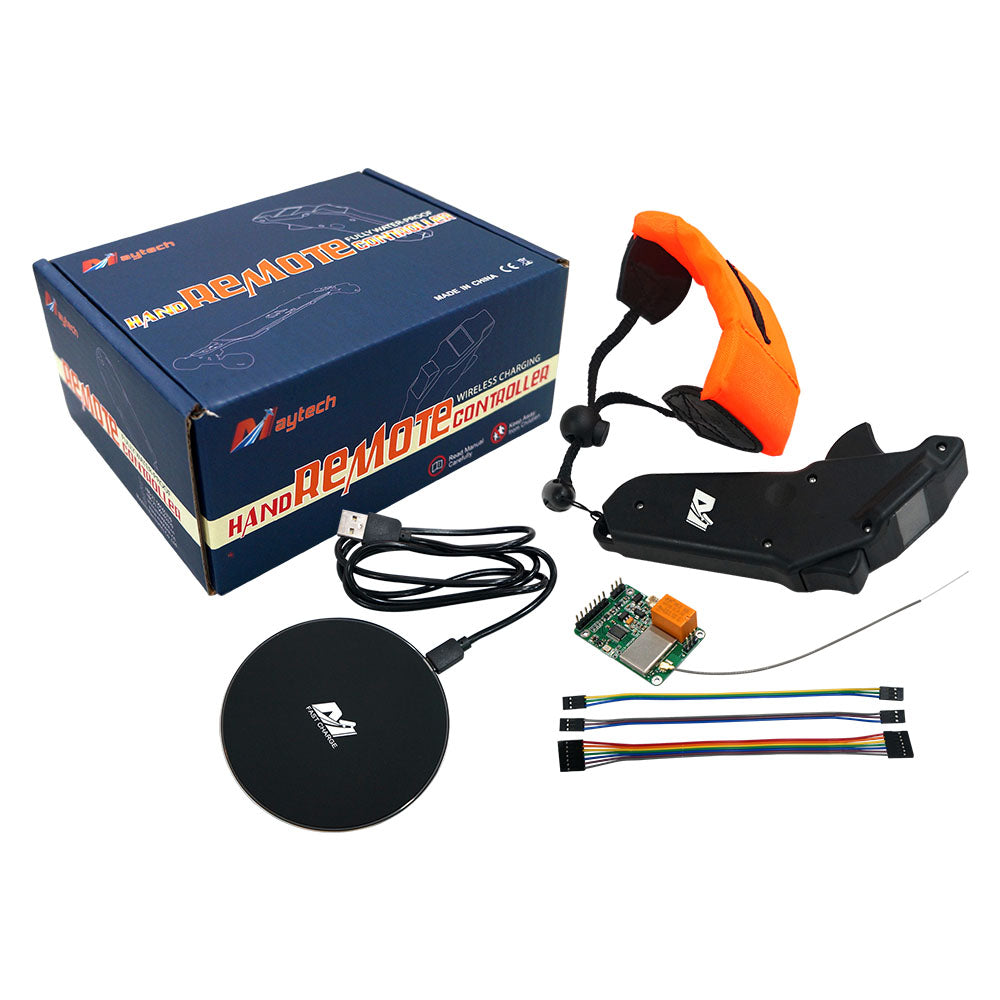

| Accessories | Wirelss charging pad / Receiver / USB cable / Wristband / 3pcs Dupond cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
| Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |
> Get E-Manual: Remote Manual and Instruction
> Check Video Using Instruction
Click Here: How to Display Volt, Current, RPM with TX and RX?

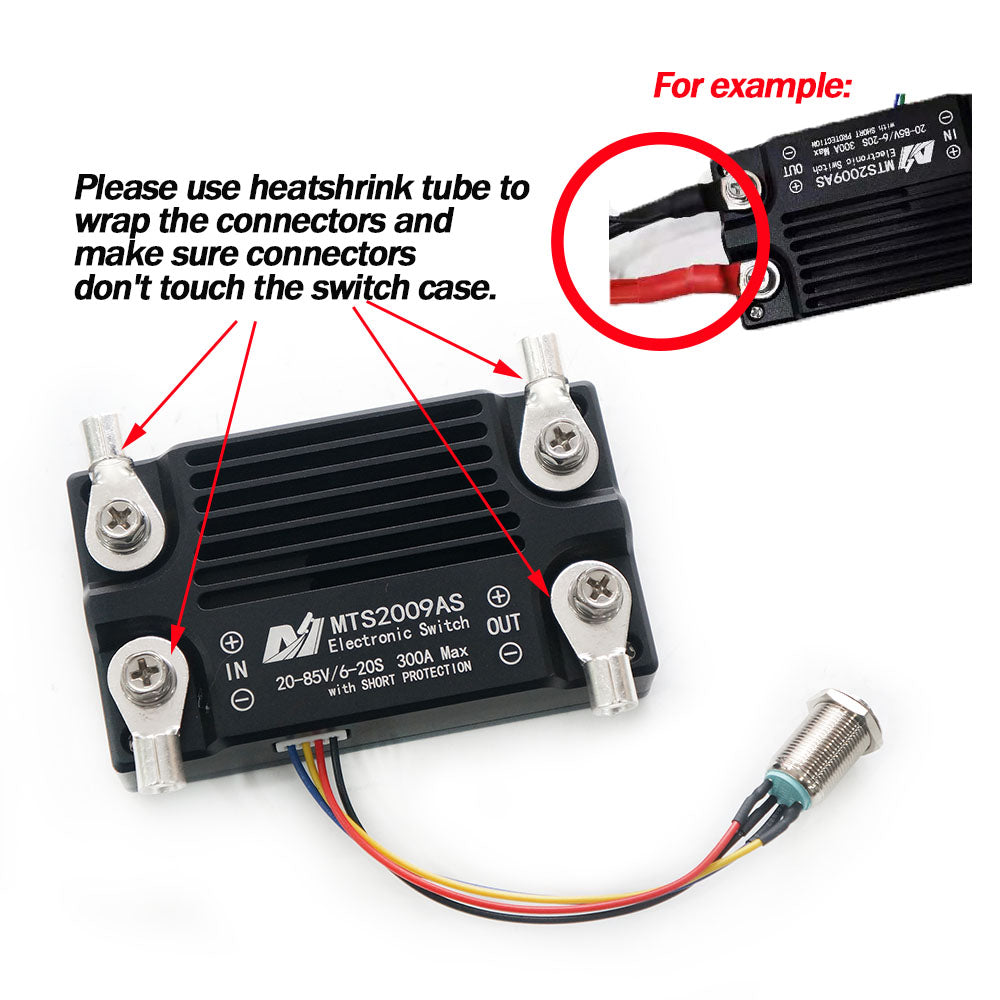

4. MTS2009AS Antispark Switch
| Model No. | MTS2009AS |
| Max Current | 300A |
| Input Voltage | 6-20S Lipo (25-85V), recommend better work under 75V |
| Swith Diameter | 12mm |
| Switch Type | NMOS to realize switching on/off Power positive |
| Waterproof | No, please keep the switch in dry space |
| Connector | With 4pcs Cold-pressed Terminal Connector |
| Function | Protect your controller and power supply system when brake or startup |
| Application | Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, Airplane, VTOL, UAV, Dronesetc., |
| Features: | Switch comes with LED light indicator; Shutdown current less than 1uA; Suitable for load: three phase motor speed controller; Boot soft start; Automatic short circuit protection when boot; Automatic short circuit protection when work. |

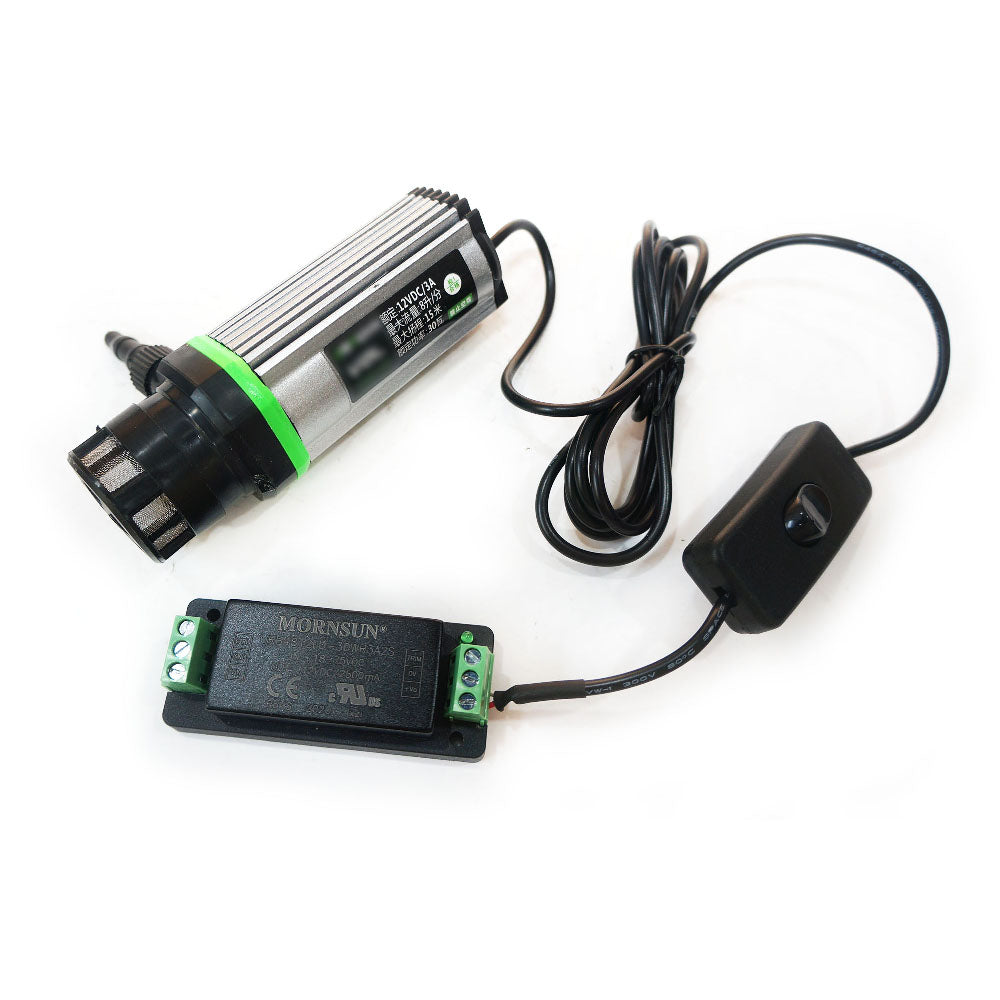

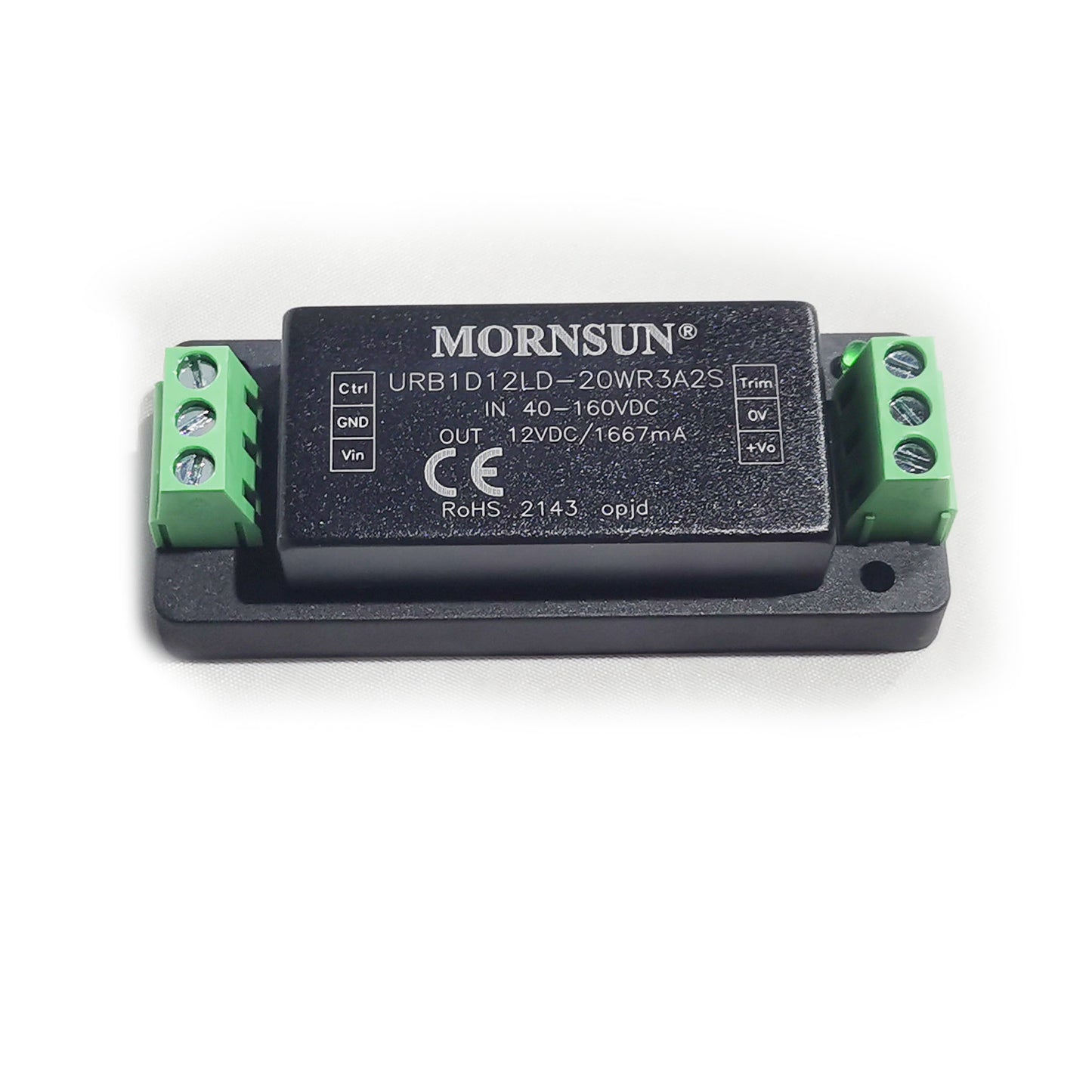

5. Water Pump
Feedback Videos on Efoil:
Advice after usage:
1. To expand the products life, please better wipe off the waters on the products and keep them for all dry after everytime use.
2. For this kit of the ESC, because the motor is sensorless, suggest to use the default value in the ESC, we have tested the kit before shipment with the default value, do not suggest to modify the values.
If you have other requirement on motor KV, ESC or other questions, please contact us agnes@maytech.cn
