Electric Boat DIY Kit with 100KV 200KV 120116 Motor 500A ESC with Twist Throttle for Motorized Boats Jetski Catamaran

Electric Boat DIY Kit with 100KV 200KV 120116 Motor 500A ESC with Twist Throttle for Motorized Boats Jetski Catamaran

Regular price $1,568.60 USD
Regular price Sale price $1,568.60 USD
Sale Sold out
Shipping calculated at checkout.
Motor KV
Motor Type

Electric Boat DIY Kit with 100KV 200KV 120116 Motor 500A ESC with Twist Throttle Catamaran Motorized Boats Electric Outboard Jetski Yacht Combo

Different Options:

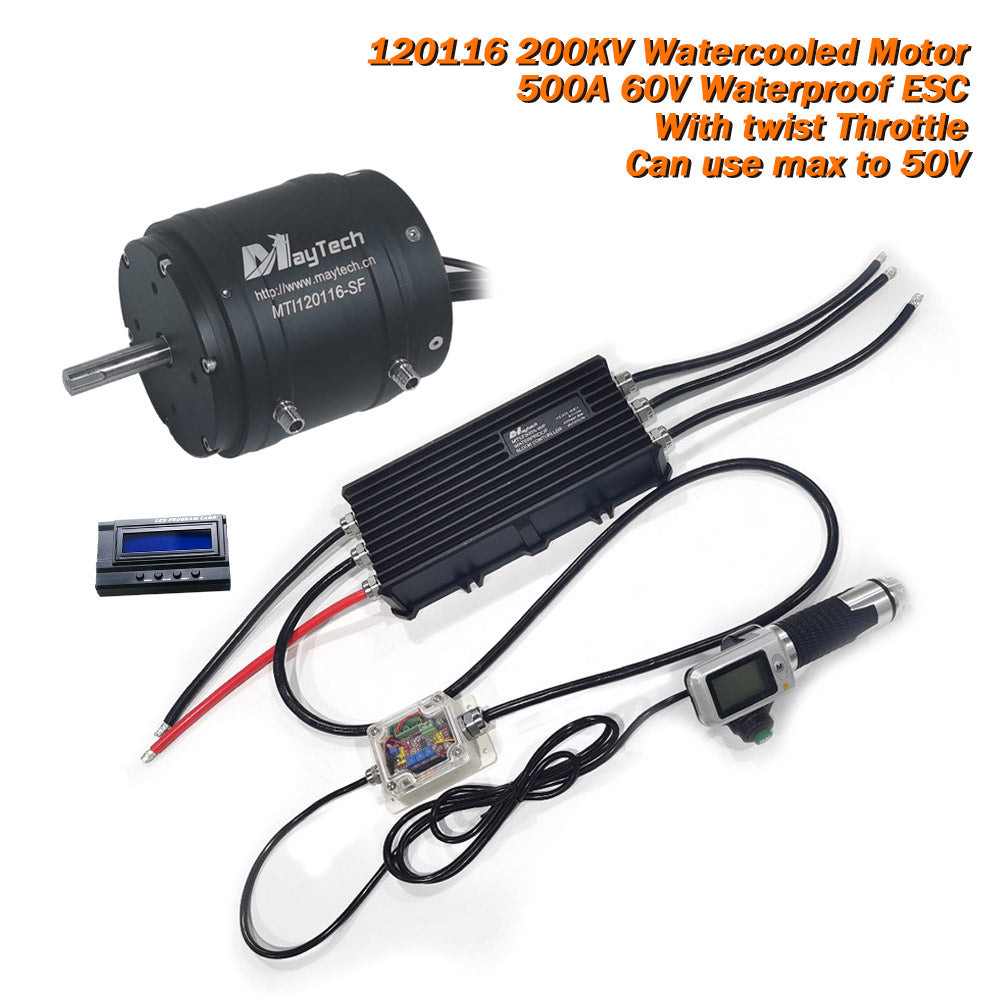

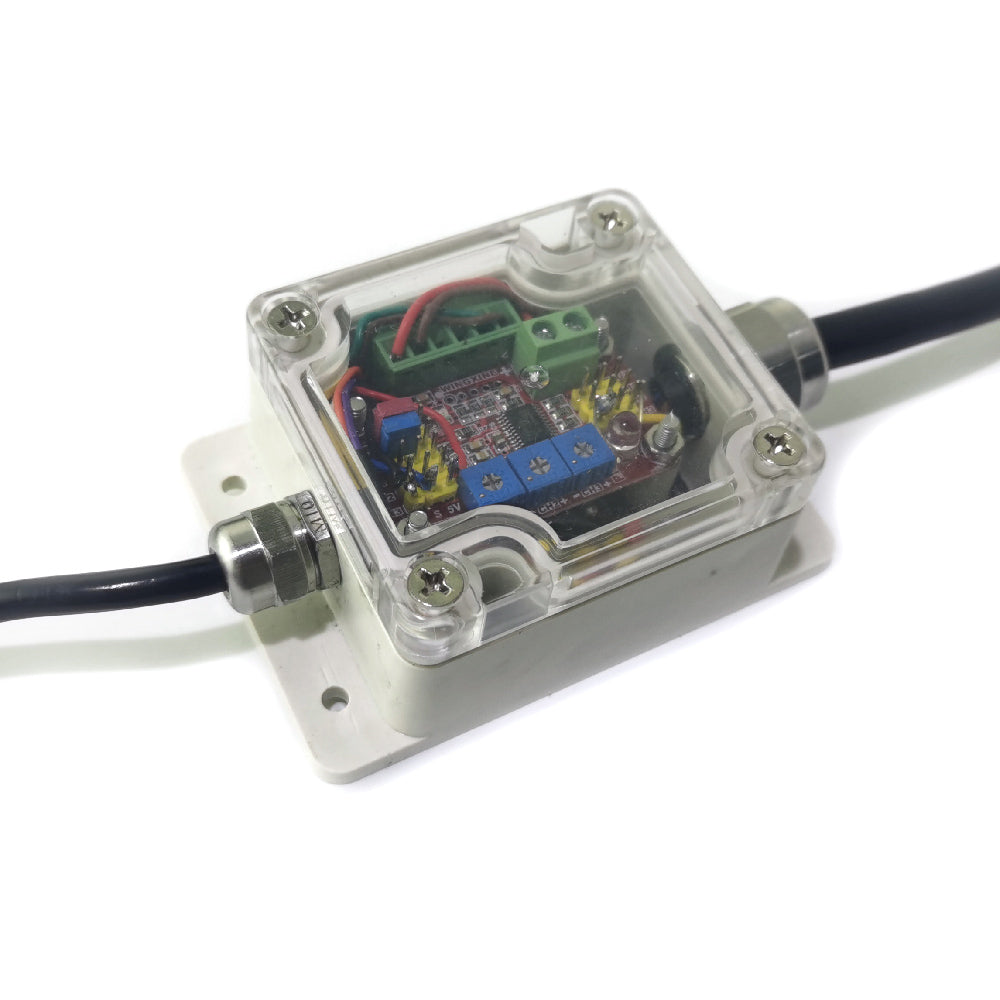

  • MTI120116-SF 200KV Watercooled motor + MTSF500A-WP ESC + MTAP22 Signal convertor + MTW1702 Twist throttle

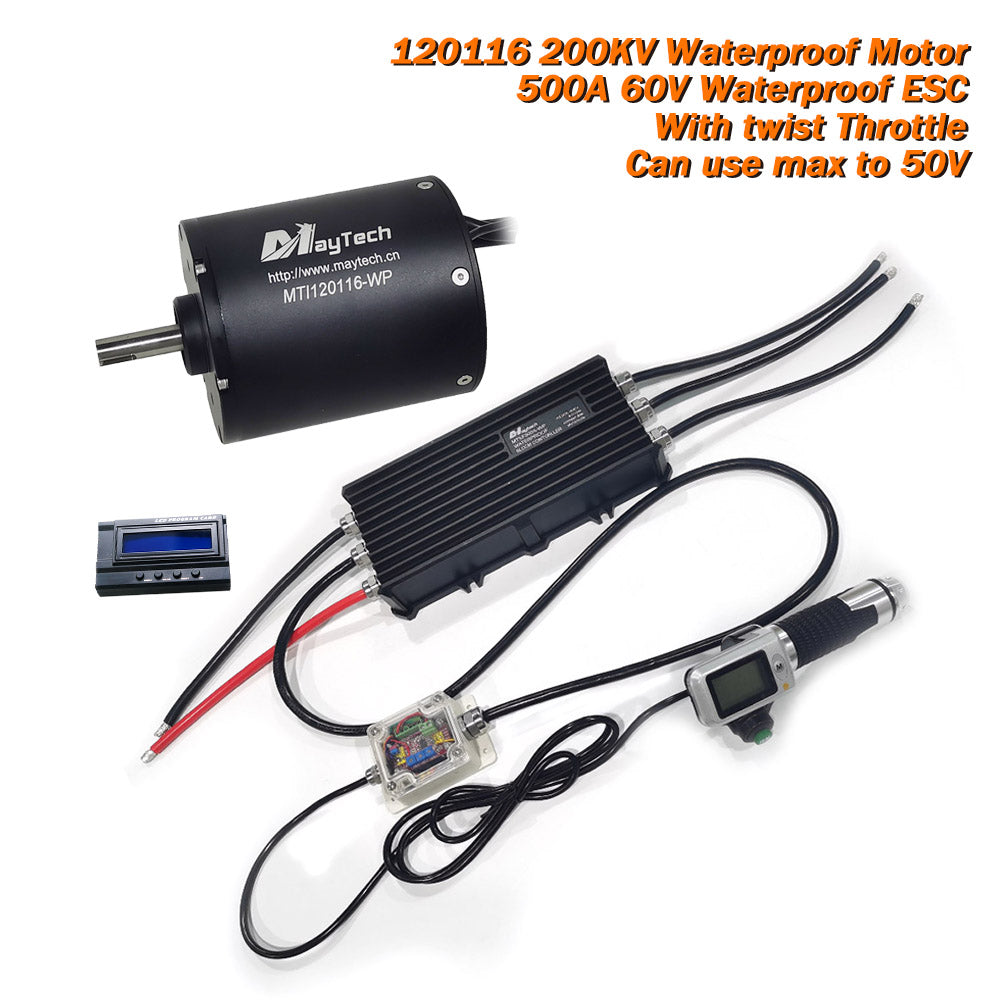

  • MTI120116-SF 200KV Waterproof motor + MTSF500A-WP ESC + MTAP22 Signal convertor + MTW1702 Twist throttle
  • MTI120116-SF 200KV Waterproof motor + MTSF500A-WP ESC + MTAP22 Signal convertor + MTW1702 Twist throttle

Notice

In this kit, the ESC can use max voltage is 14S Lipo (58.8V)

And motor can withstand max about 10000 RPM, so if use 200KV, please use voltage under 50V.

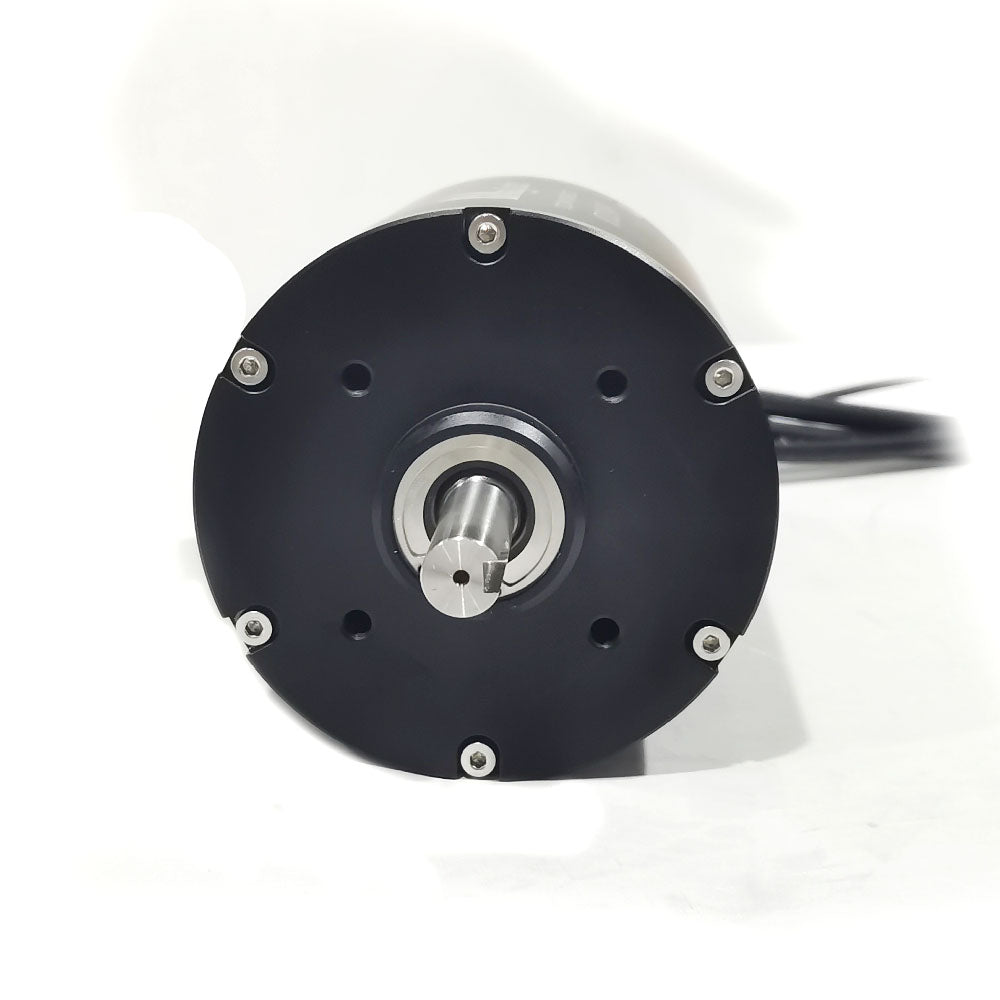

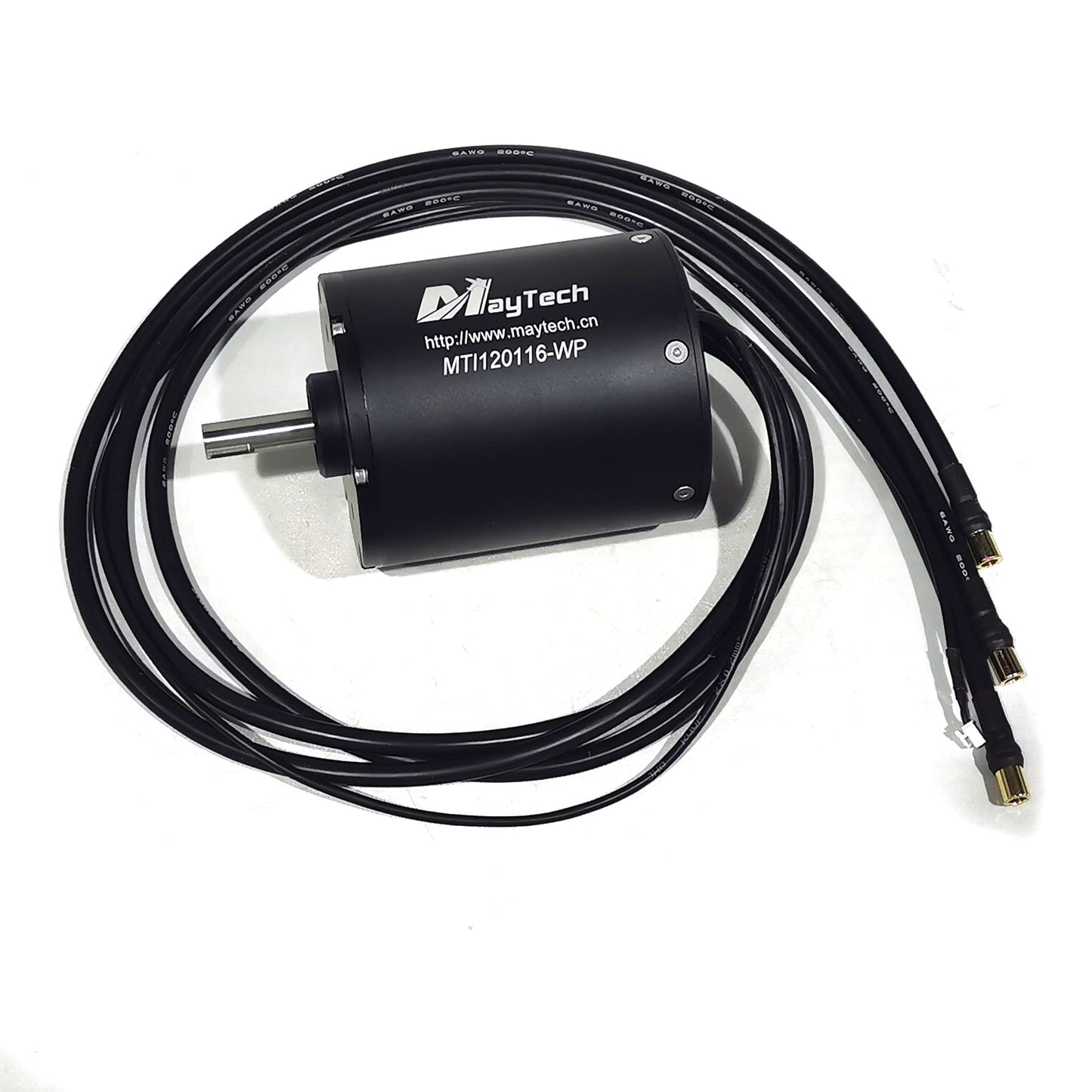

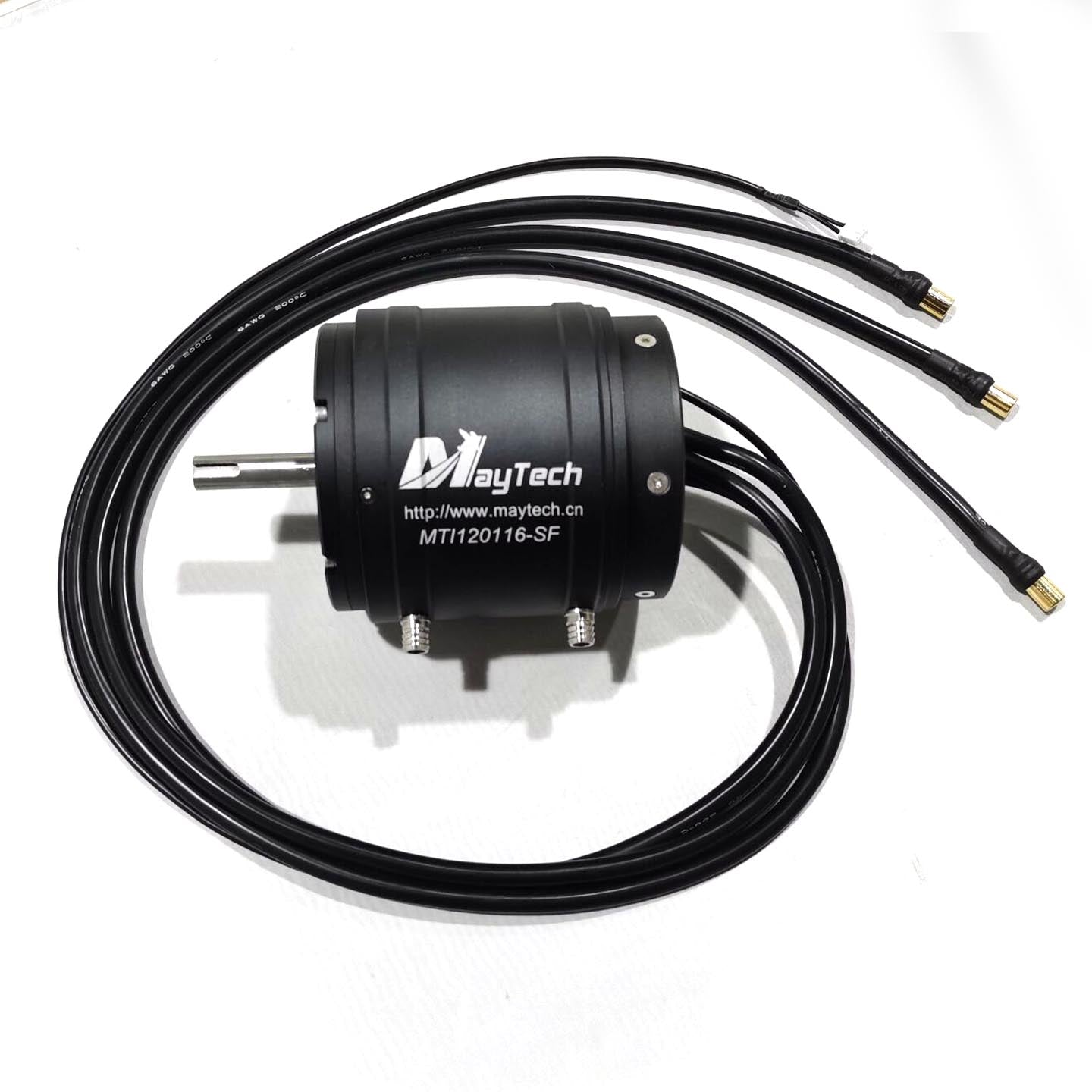

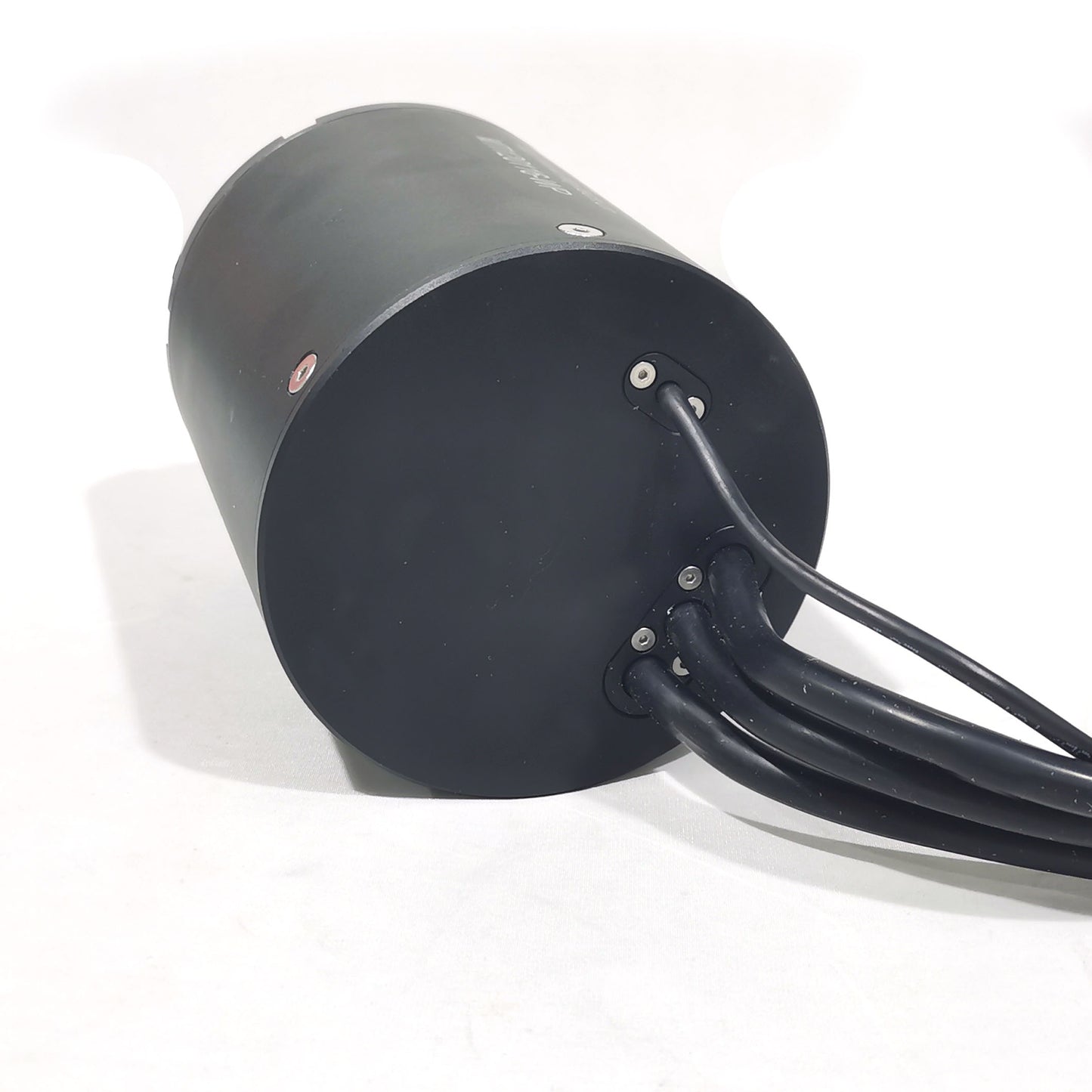

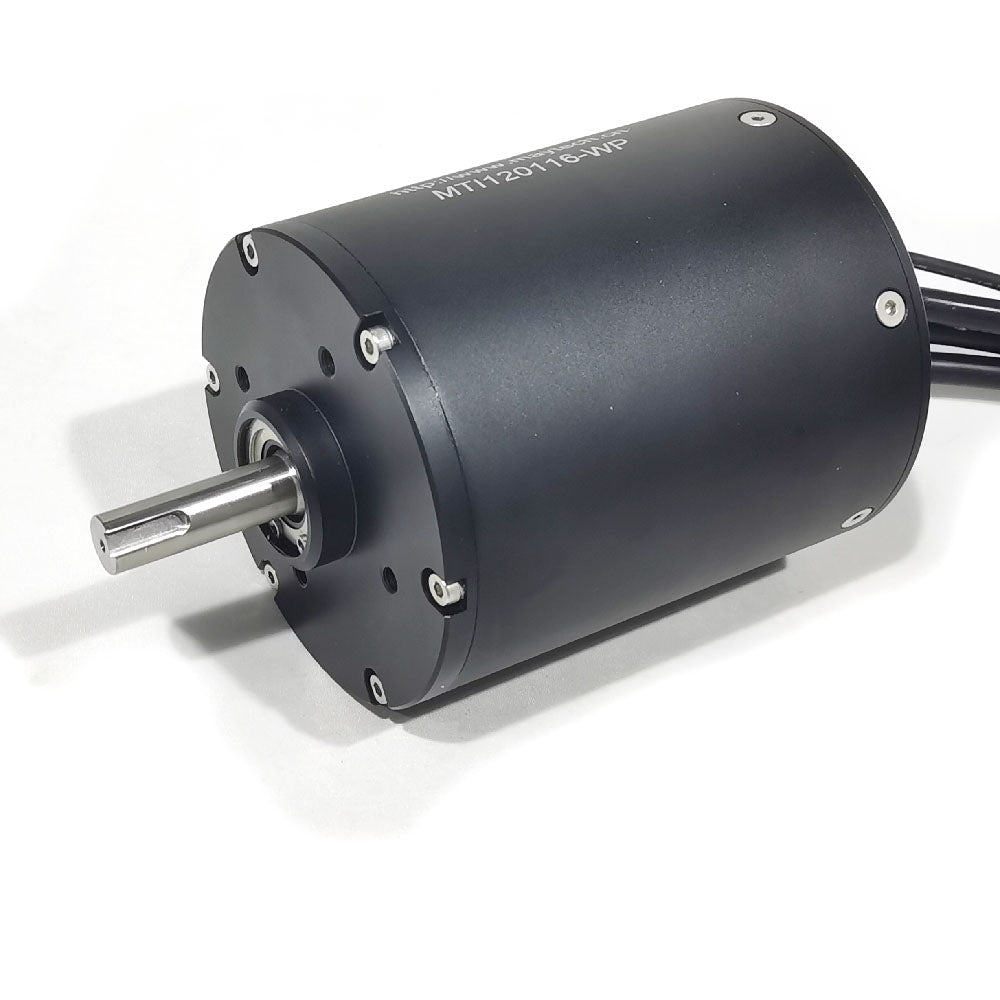

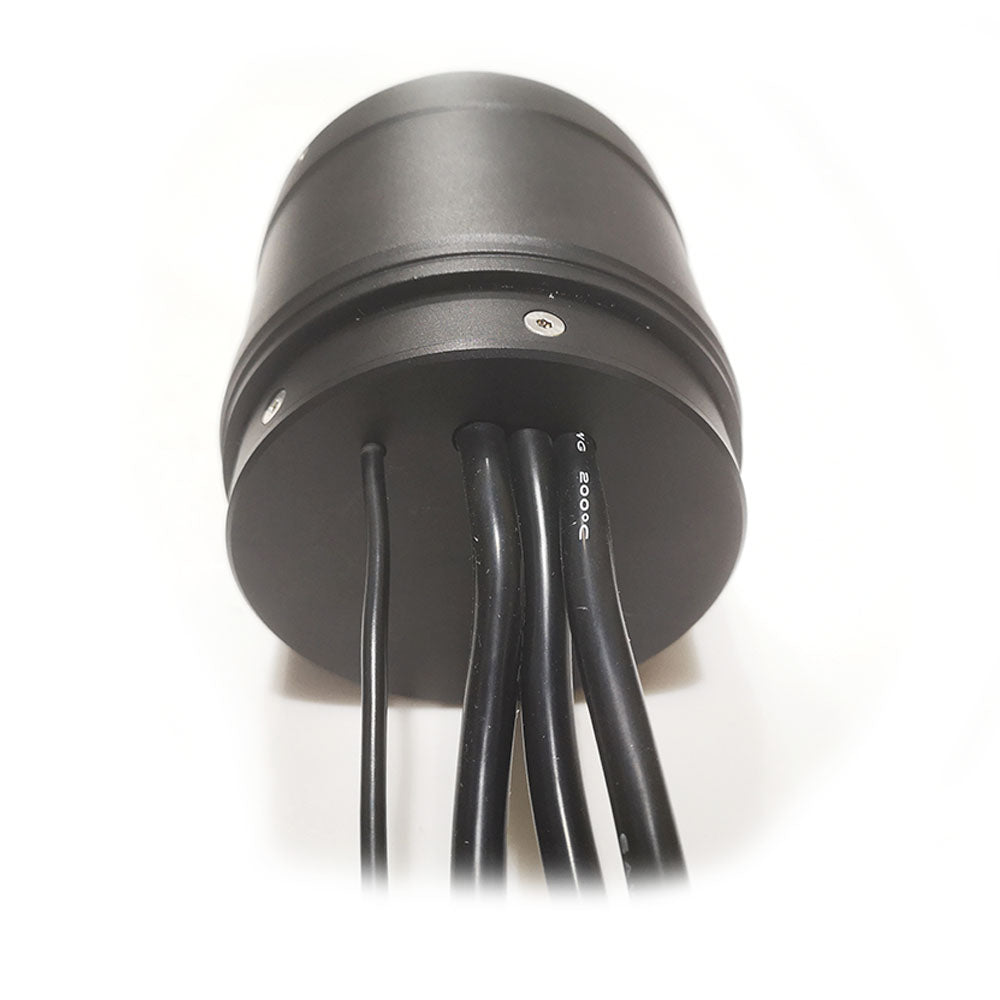

-Motor: MTI12016 Watercooled / Waterproof Sensorless Inrunner BLDC Motor

Model No.: MTI120116-SF / MTI120116-WP
KV: 100KV / 200KV
Shaft: Keyway Shaft
Input Volt: In this kit, 100KV max to 60V, 200KV max to 50V.
Max RPM: No more than 10000
Max Current: 380A
Max Output Watt: 18.8KW
Max Torque: 20.6N.m
Hall Sensor: Without
Temp Sensor: With NTC10k thermister
Cooling Way: Watercooled version to be cooled through cooling tube, waterproof version cooled directly by water
Net Weight: About 4.76kg/pcs

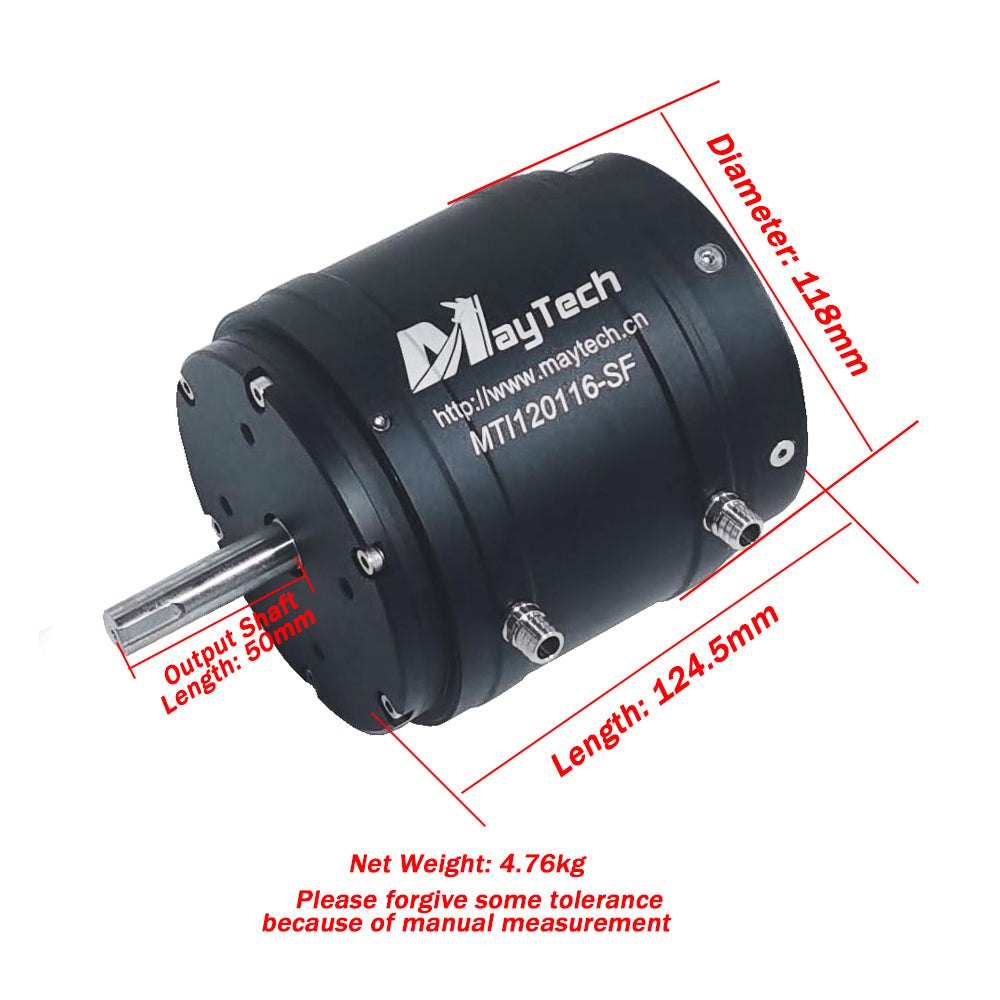

120116 watercooled motor drawing, electric surfboard motor, RC boat motor, brushless dc motor, BLDC motor, powerful engine

100KV Test Datasheet:

120116 motor test, watercooled motor, watercooling tube, water cooling system, 18.8KW motor, electric motorcycle motor

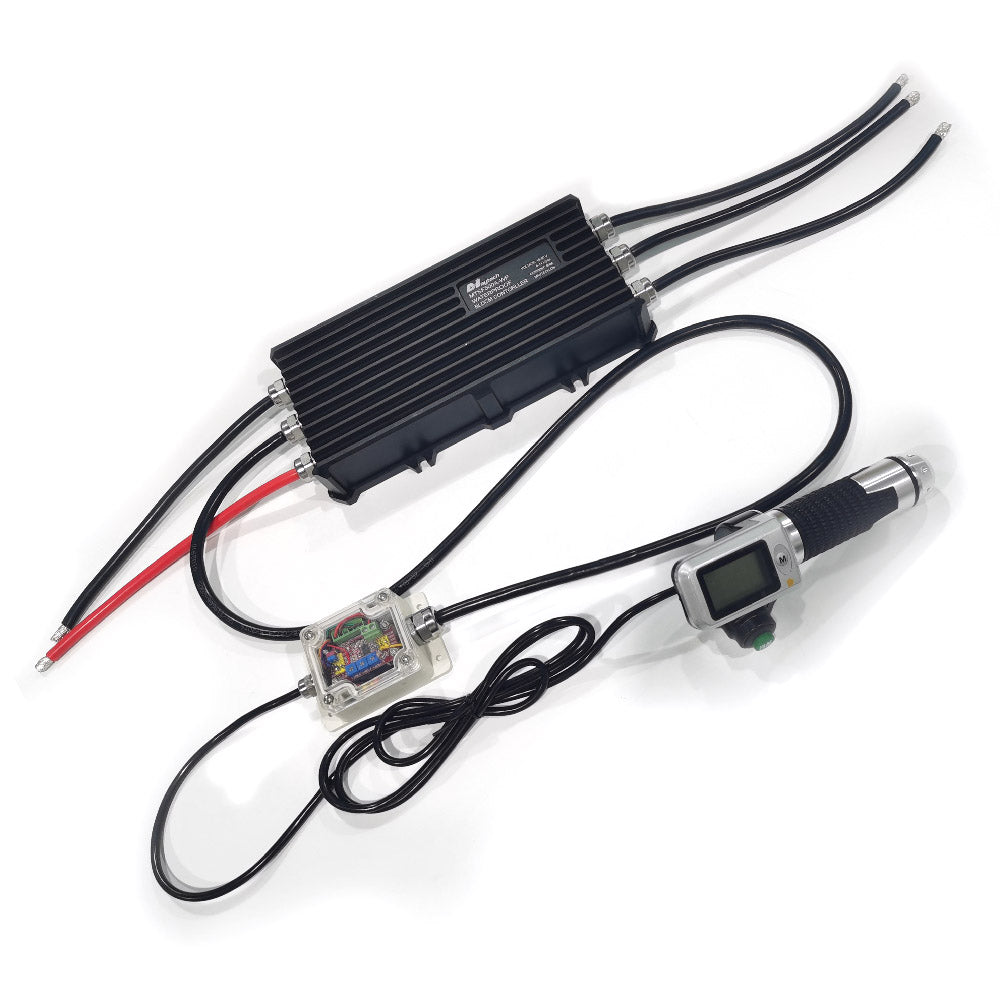

-ESC: MTSF500A-WP Waterproof & Watercooled 500A ESC Speed Controller, with Internal 5V and 12V DC-DC Module, with 36V 48V 60V Twist Throttle and Signal Convertor


Model No.:  MTSF500A-WP with Twist Throttle and signal convertor
Cont Current: 500A
Max Current: 1000A
Waterproof Rank: IP68 Waterproof
Watercooling: Yes, with
Input Volt: 6-14S Lipo (24V-58.8V)
BEC: Built 5V and 12V DC-DC Module, support water pump and lamp
Signal Format: Covert from ADC to PWM (PPM)
Signal Output: 1-2ms
Case Material: Alloy aluminum case

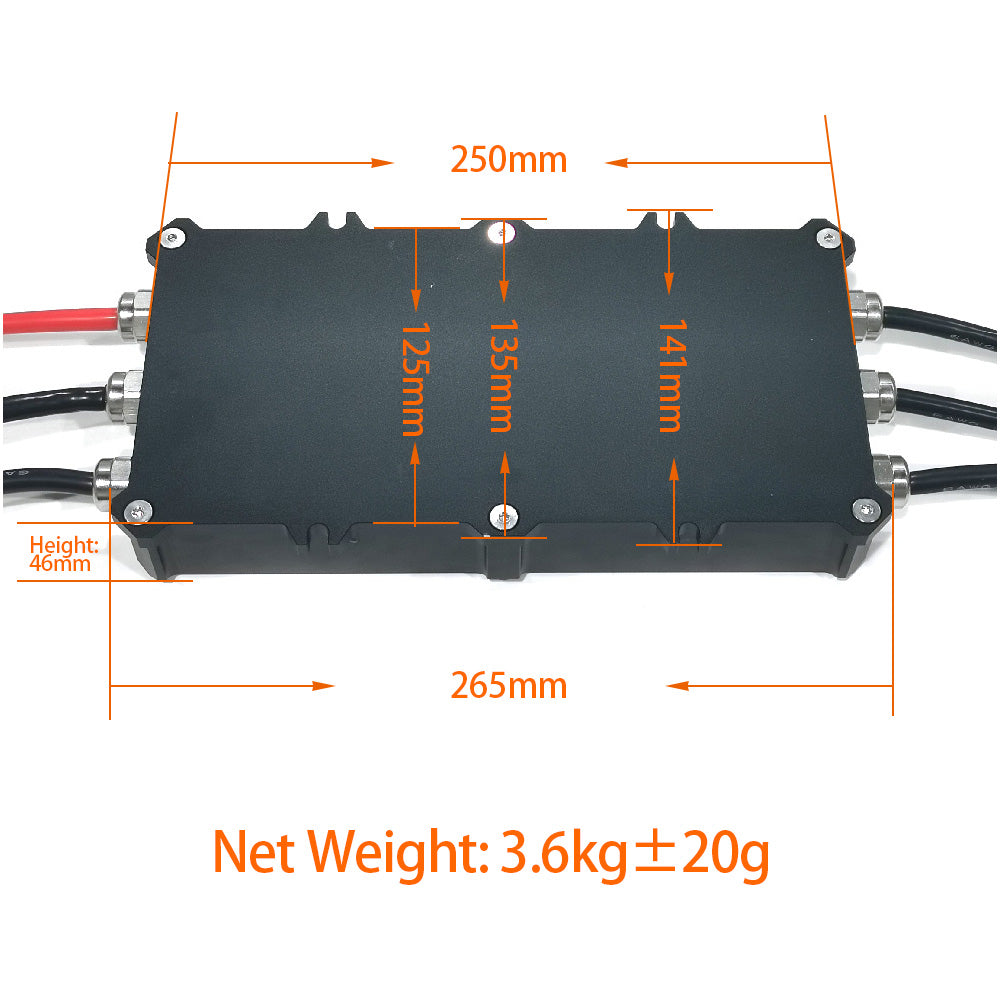

Net Weight: 3.6kg/set
Cooling Way: By water directly or by water pump through water cooling tube
Connector: Standard is 10.0mm golden female connector on motor cable side, battery size is not with connector, with IP68 waterproof protector for connectors
Application: Electric surfboard, electric boat, motorized boat, boat from oil power to electric powered, fishing boat, outboards, yacht, jetski, catamaran, etc.,

 watercrat electric boat motorized boats marine catamaran jetski electric surfboard ESC speed controller powerful fully waterproof

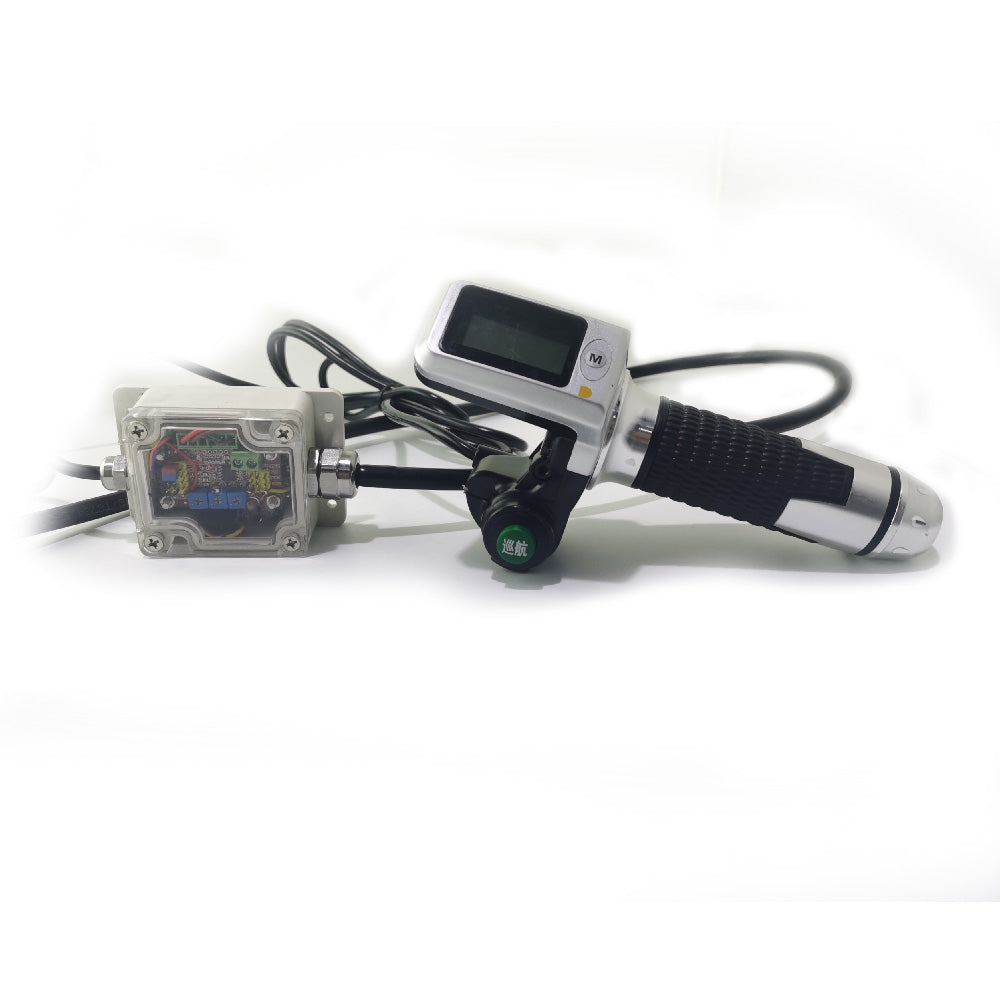

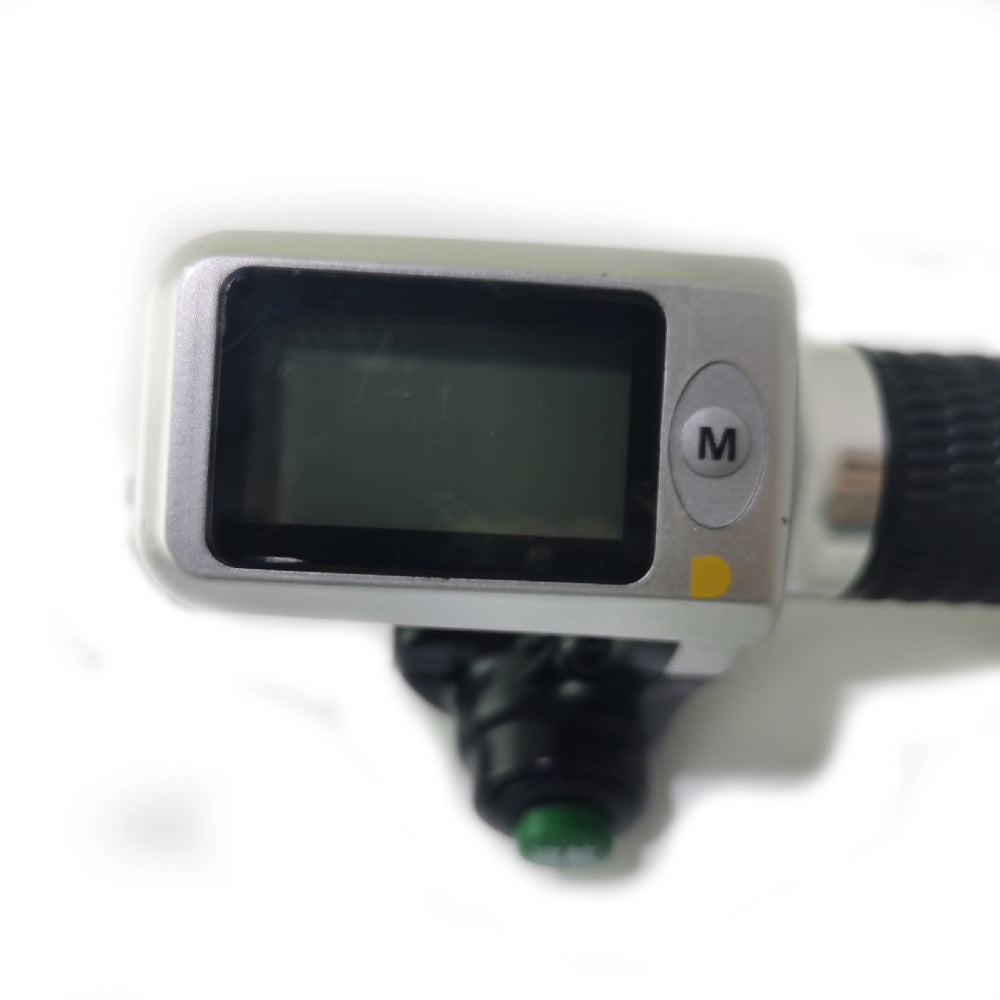

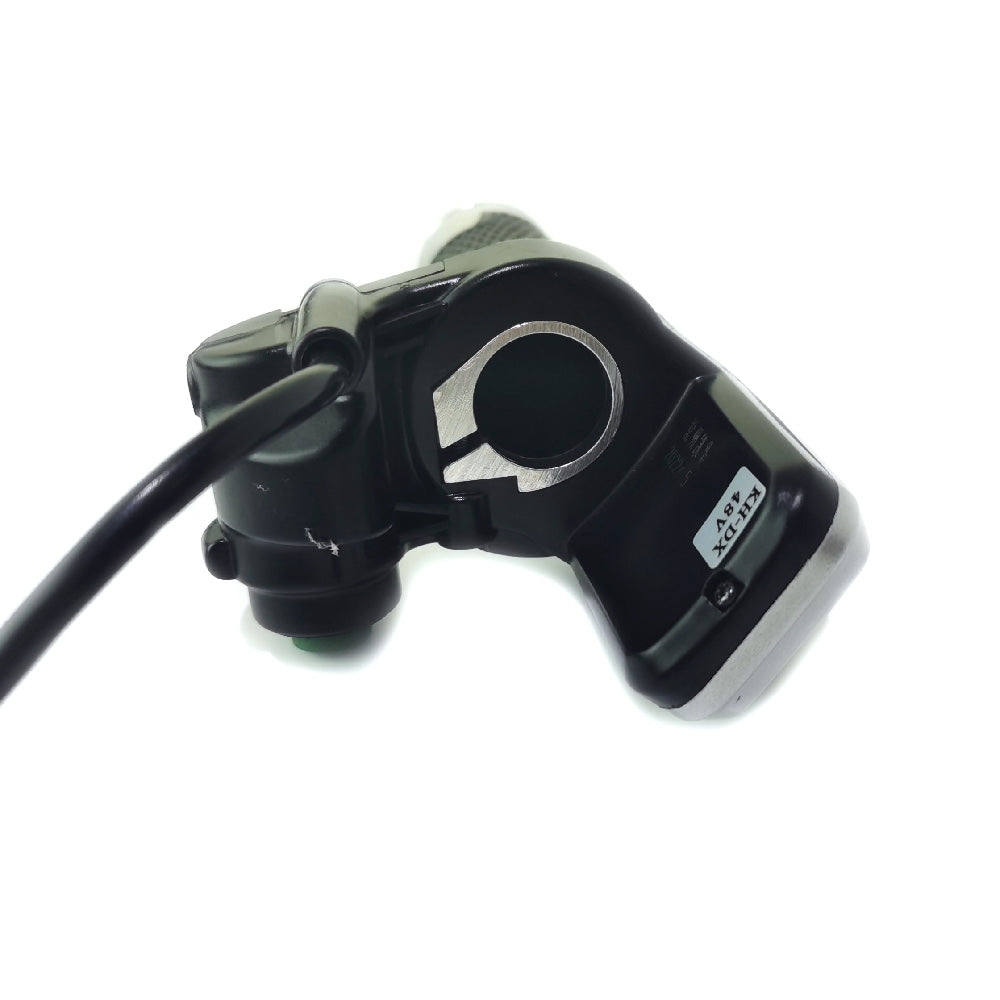

Twist throttle with display speed km/h mph covert from ADC to PPM signal wired throttle for boatsTwist throttle with display speed km/h mph covert from ADC to PPM signal wired throttle for boatsTwist throttle with display speed km/h mph covert from ADC to PPM signal wired throttle for boats

MTSF500A-WP 500A ESC Speed controller Maytech ESCs powerful 60V regulator for electric surfboard jetsurf rc boat rescue boat
MTSF500A-WP 500A ESC Speed controller Maytech ESCs powerful 60V regulator for electric surfboard jetsurf rc boat rescue boat
Questions You May Ask:
  • Can I put the ESC underwater directly? Is it ok to work in sea water?

     --Yes, the ESC is with waterproof case, you can put underwater directly, it can use work in sea water, but because sea water has corrosion, to expand the ESC lifespan, please use fresh water to clean the sea water on the surface, and put the ESC for all dry for next time use.

  • I don't want to put the ESC underwater directly, what should I do?

    --If you don't want to put the ESC underwater, don't worry, it's also watercooled, you just need to connect a water pump to cooling the ESC, and if so, please order the kit with 2 sets water pump, each motor pump can only cool for 1 item, in this kit the motor is watercooled also needs water pump for cooling.

With Progcard, below parameters are adjustable by progcard:

MTSF300A-WP programmable parameters, waterproof ESC, watercooled ESC, 300a esc




Advice for Usage:
1. To expand the products life, please better wipe off the waters on the products and keep them for all dry after everytime use.
2. For this kit of the ESC, because the motor is sensorless, suggest to use the default value in the ESC, we have tested the kit before shipment with the default value, do not suggest to modify the values.

About Stock:
1. Standard stock for the motor is 100KV and 200KV with keyway shaft as picture, if you want other KV lead time is about 60-90 days after your order confirmed, and please contact us agnes@maytech.cn to tell us your requirement.
2. The standard stock is also limited, please confirm your order asap, and if you need very urgent, please contact us agnes@maytech.cn to check stock first.
3. The ESC waterproof case and inner circuit are handmade by our engineer, it will be start make after your order confirmed, takes about 5-10 days after your order confirmed, but the material are limited, so please better confirm your order earlier.
Any other questions and requirements, contact us agnes@maytech.cn
