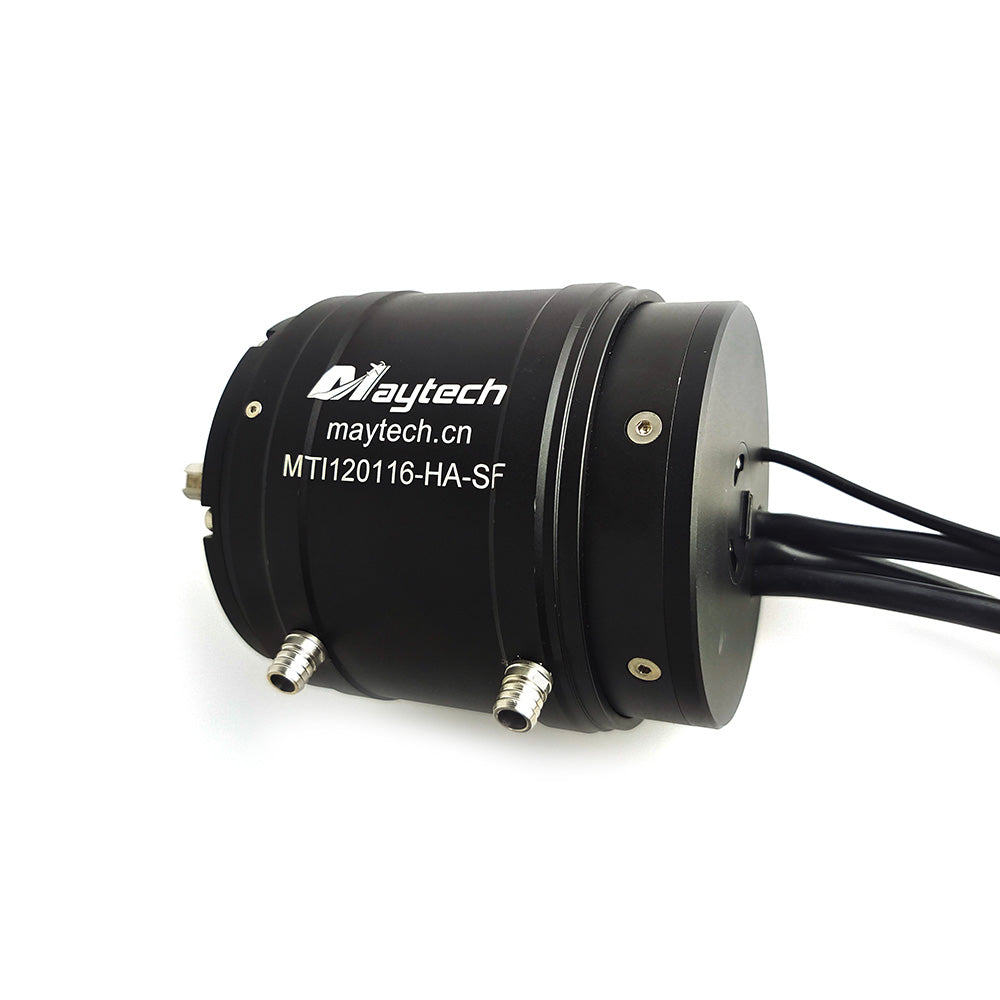

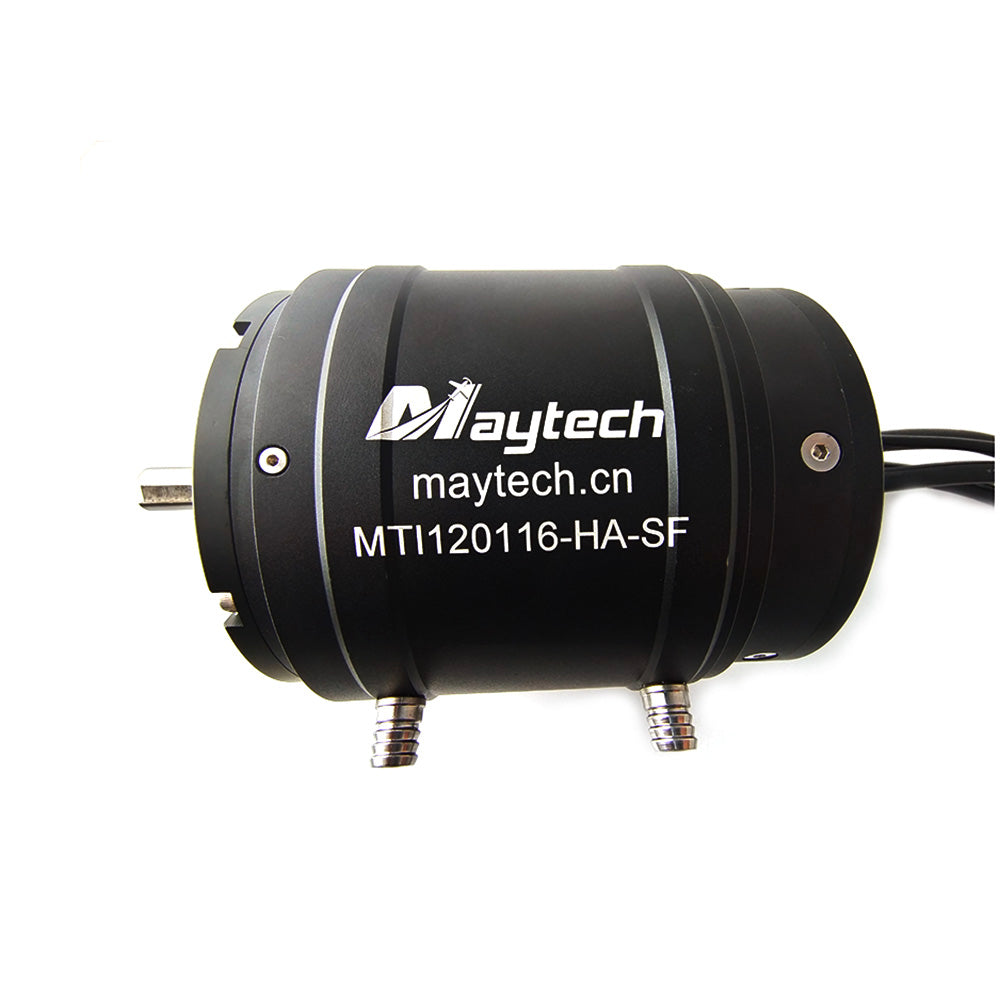

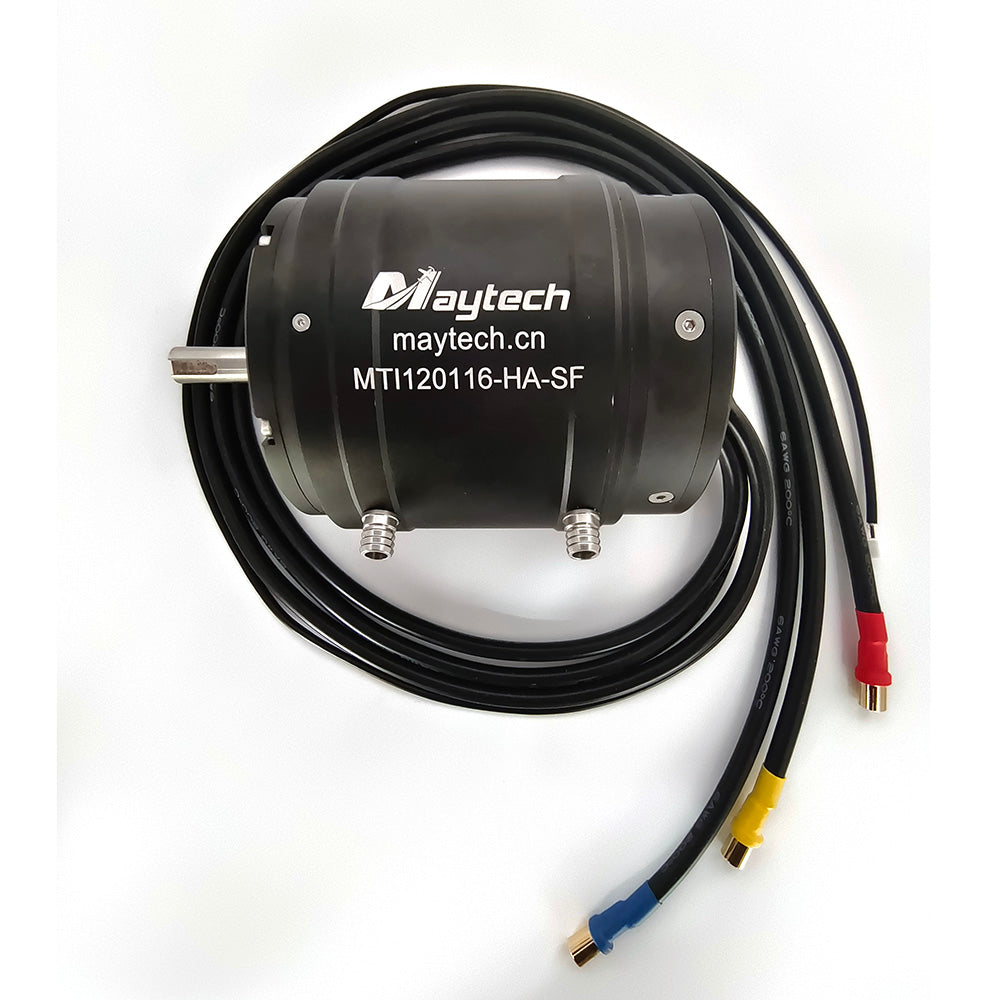

Maytech 120116 18.8KW Sensored Motor for Electric Surfboard Boat Motorcycle EV Car with Water Cooling
Maytech 120116 18.8KW Sensored Motor for Electric Surfboard Boat Motorcycle EV Car with Water Cooling
Couldn't load pickup availability
Maytech 120116 18.8KW Sensored Motor for Electric Surfboard Boat Motorcycle EV Car with Water Cooling
Specification:
| Model No. | MTI120116 | Idle Current | 2.8A/8.4V |
| Internal Resistance | 0.0322Ω | Max Current | 380A |
| Input Volt |
Max 50V for 200KV Max 100V for 100KV |
Max Output Watt | 18.8KW |
| Max Pull | 20.6 N.m | Motor Weight | 4400g |
| Motor Touque @60% | 20.6 N.m | Shaft | Keyway Shaft |
| Motor Size | 120x116mm | Construction | 12N/10P |
| Max Working Temperature | 120℃ | Insulation Volt & Leak Current | AC500V/10MA/3S |
| Shaft Extension | D15*L30 | Lead Wires Extension | 6AWGx1m |
| Plug | 10mm | Lifespan | 8000h |
Stock Notification:
The motor has 200KV in stock, but the stock is limited, please confirm order asap.
Shipping time for stock item is 24-48 hours after payment confirmed.
For 100KV, lead time is about 50-70 working days after your order confirmed, you can place order directly, we will arrange production after your order confirmed.
Application:
Electric motorcycle/ EV car/ electric car/ Electric surfboard/ Efoil/Hydrofoil/ jetski/ jetboard/ waterboard/water jet propulsion/surffoil/foilsurf/foilboards/rc boat, foil boat, foiling boat, hydrofoil boat, hydrofoiling boat, rescue boat, etc.,
Stock Notice before Place Order:
The motor stock is limited, please confirm order asap.
And if you need very urgently, please contact us agnes@maytech.cn to check stock first, if in stock, shipping time is about 1-2 days after order confirmed.
If not in stock, production time 30-50 days after order confirmed.
Warning:
Flier ESCs are not compatible to all Maytech motors, recommend to use our 300A ESC as following recommend products.
Esurf Kit Test: MTI120116-200-WP+MTSF300A-OPTO-WP+MTSKR1905WF
