Maytech Efoil Kit Fully Waterproof 65162 Motor MTSKR26WF remote with Watercooled 300A ESC 12V 30W Water Pump and 300A 80V Antispark Switch

Maytech Efoil Kit Fully Waterproof 65162 Motor MTSKR26WF remote with Watercooled 300A ESC 12V 30W Water Pump and 300A 80V Antispark Switch

Regular price $1,113.20 USD
Regular price Sale price $1,113.20 USD
Sale Sold out
Shipping calculated at checkout.

Maytech Efoil Kit Fully Waterproof 65162 Motor MTSKR26WF remote with Watercooled 300A ESC 12V 30W Water Pump and 300A 80V Antispark Switch for Electric Surfboard/ Kayak/ Jetboard/ Efoil/ Hydrofoil, etc.,

Noted Please before place order:

In this kit, the ESC max volt is 14S Lipo (58.8V), so max voltage can use for this kit is 14S Lipo (58.8V).

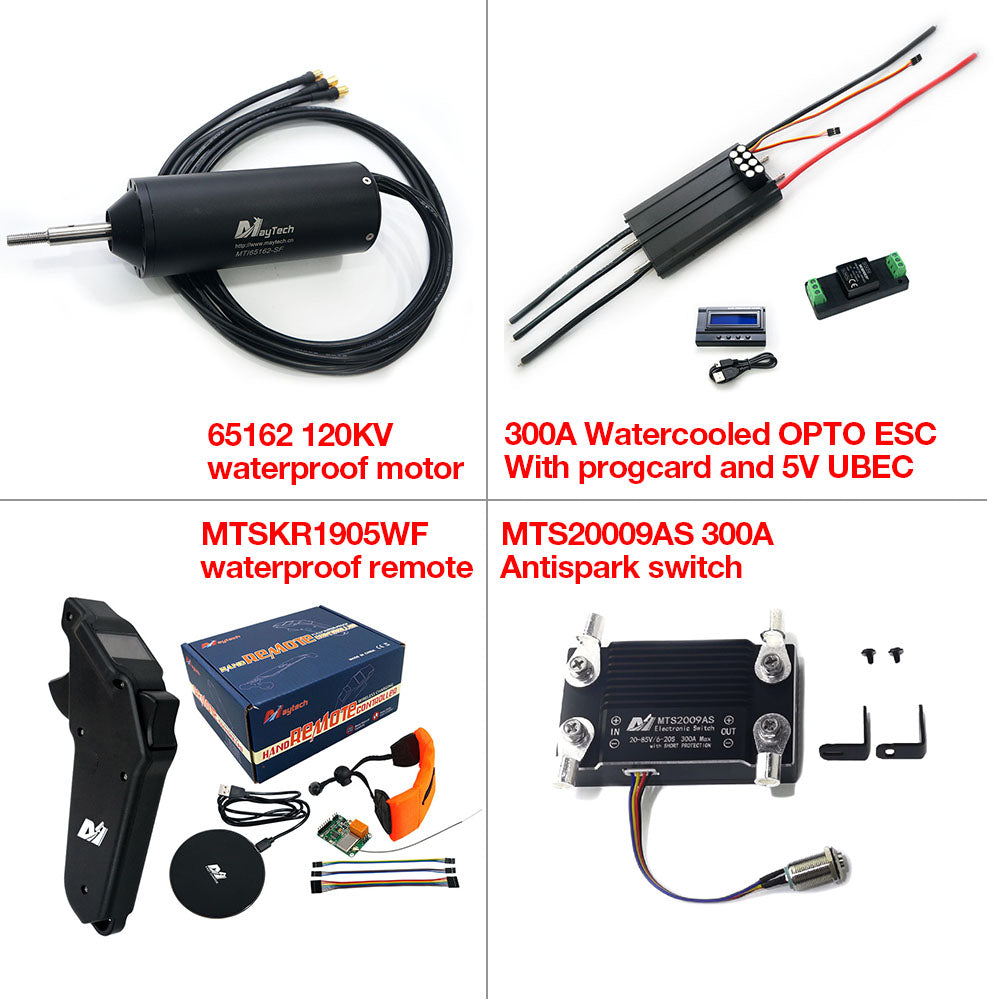

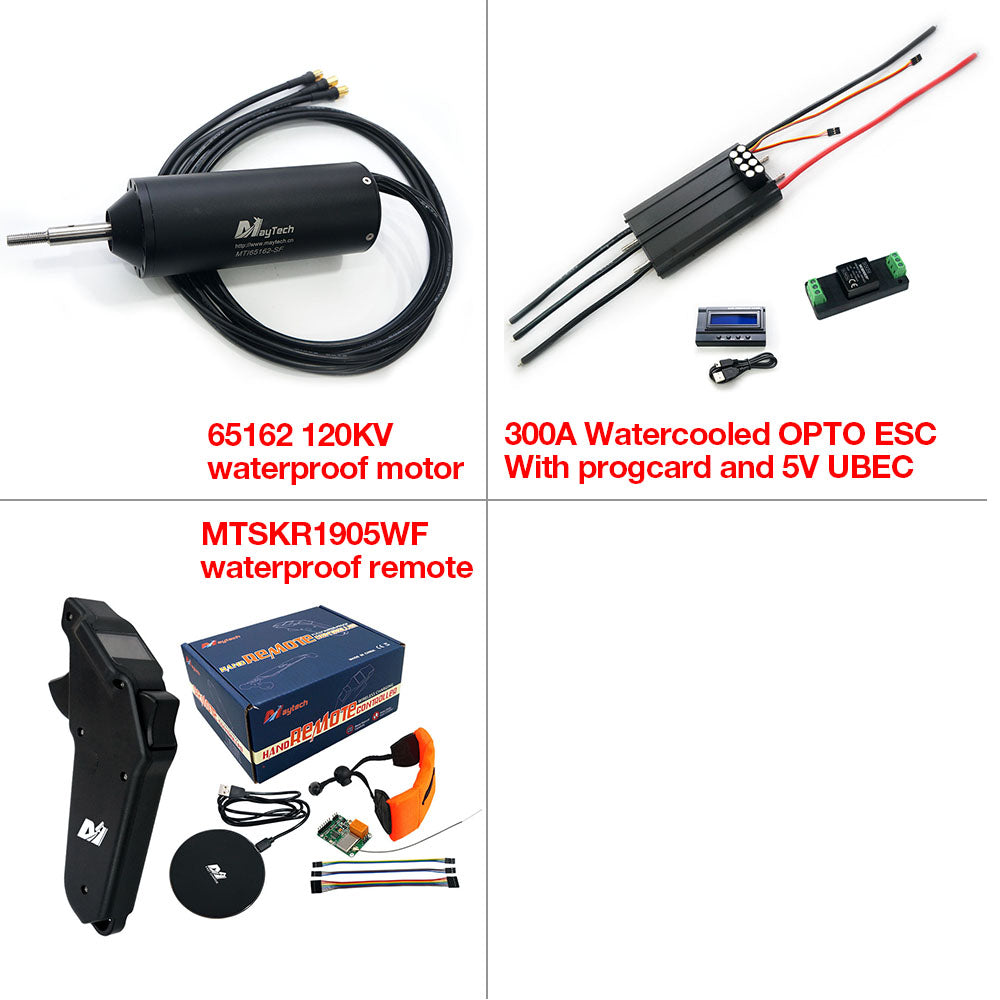

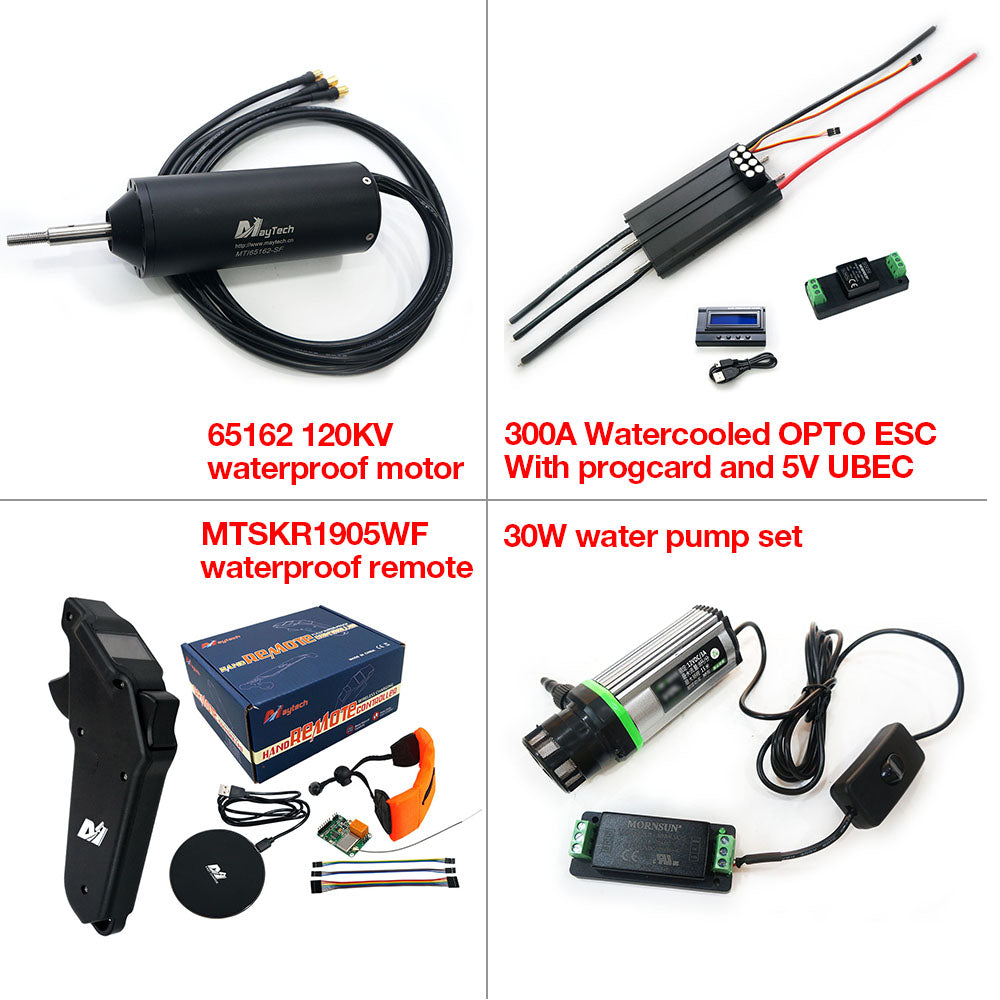

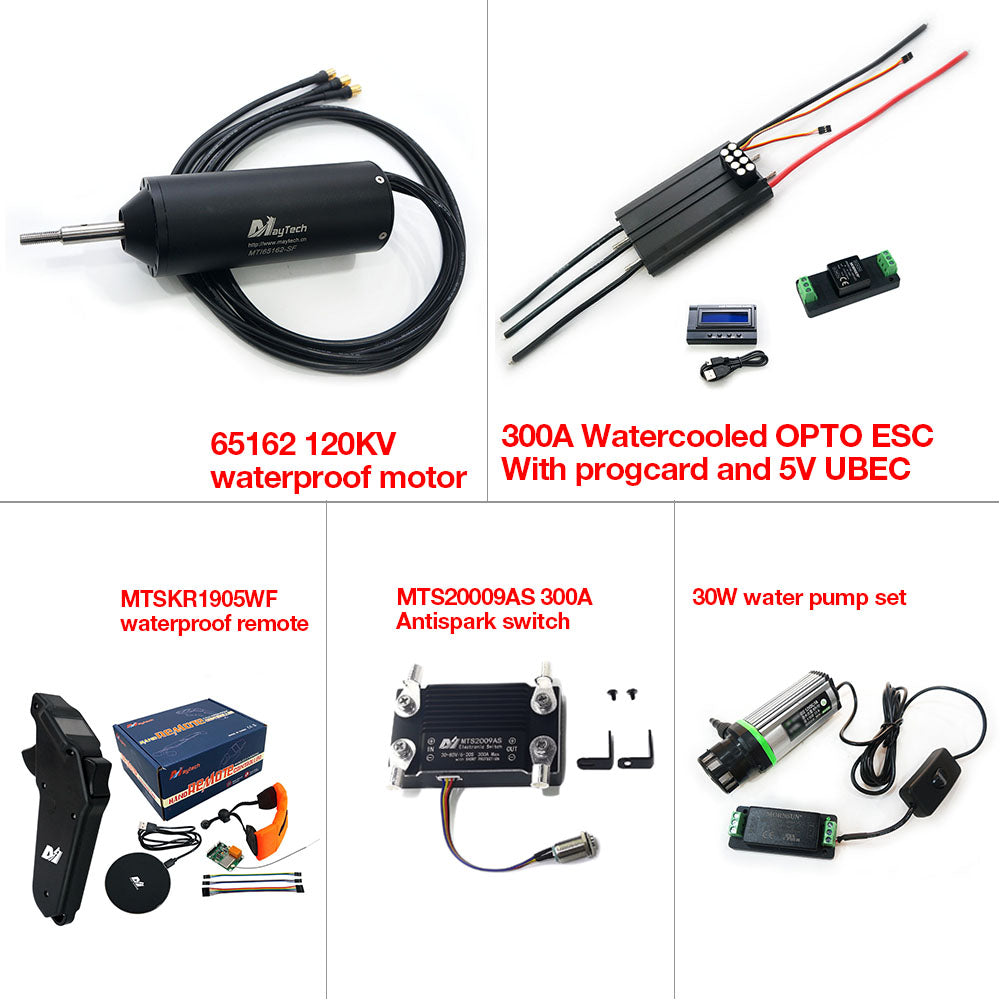

MTI65162 (120KV)+26WF+MTSF300A-OPTO+Progcard+5V UBEC+Free Propeller+12V Water Pump and its Power Supply+MTS2009AS Anti-spark Switch

Noted Please:

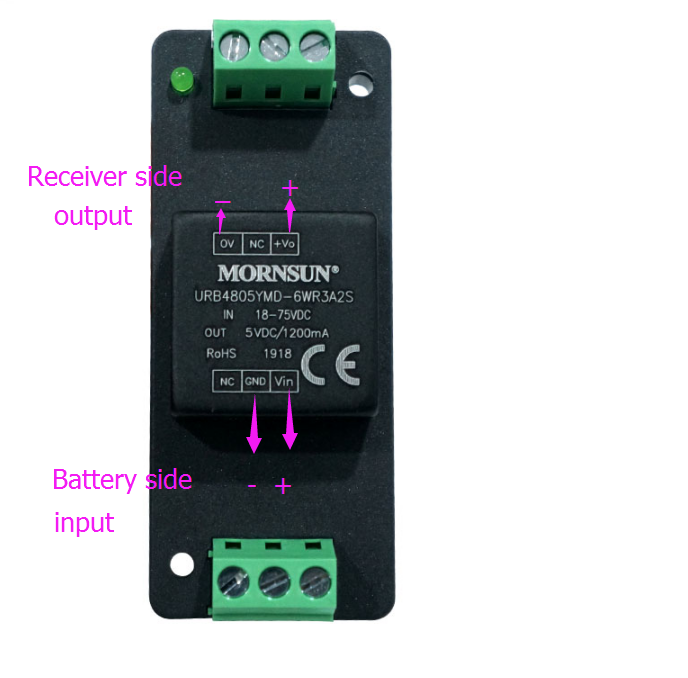

The 5V UBEC is to converter high voltage to 5V volt and power for receiver, if you don't have this part on your own, please order this together, otherwise the system will not be able to work .

Self Test Video: 65162 Motor + 300A ESC + 1905WF + Propeller

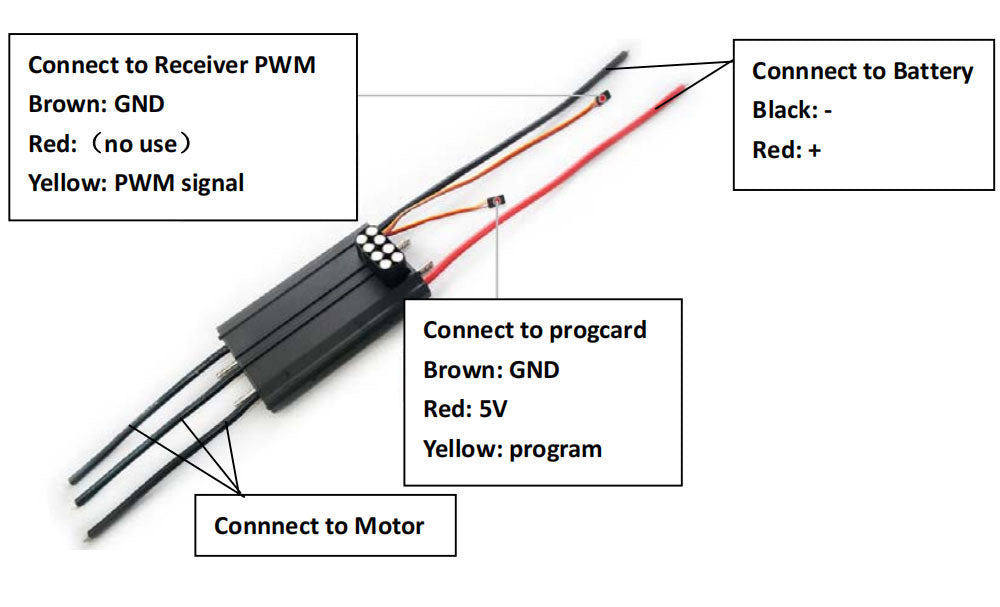

Wiring Diagram:

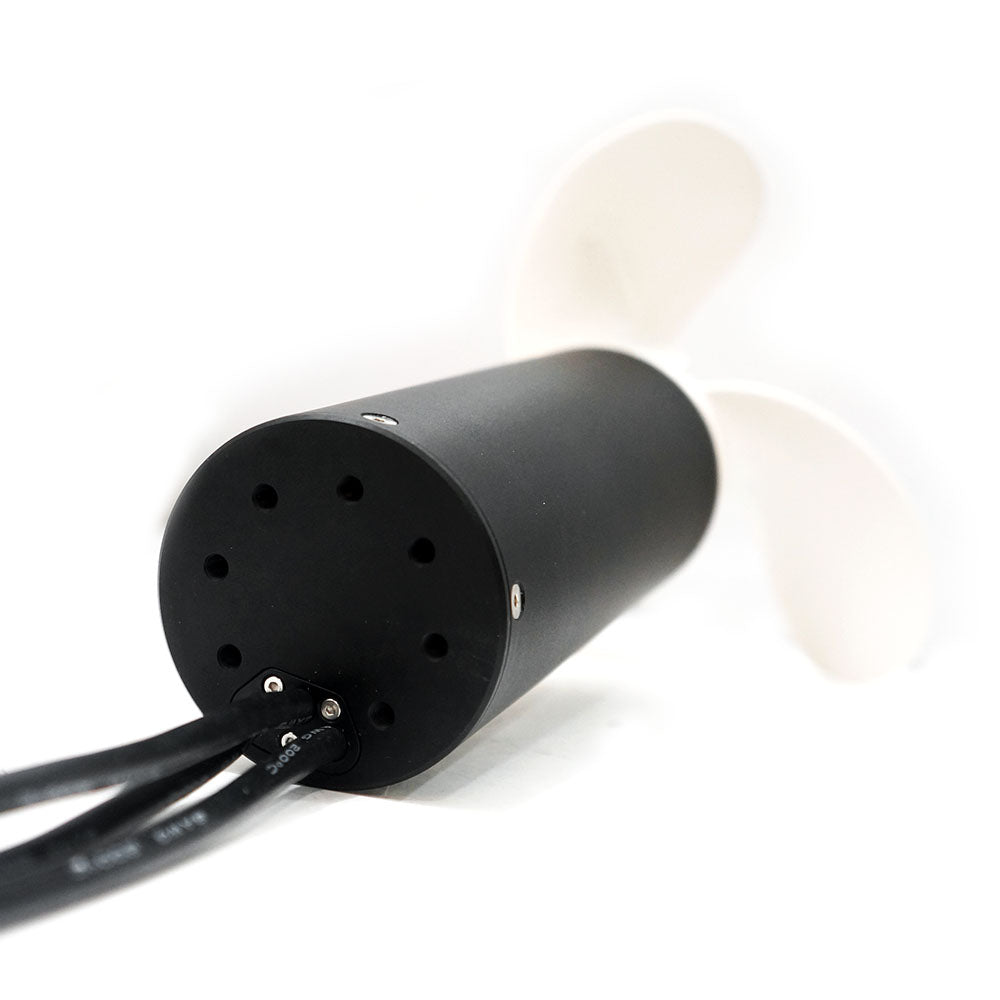

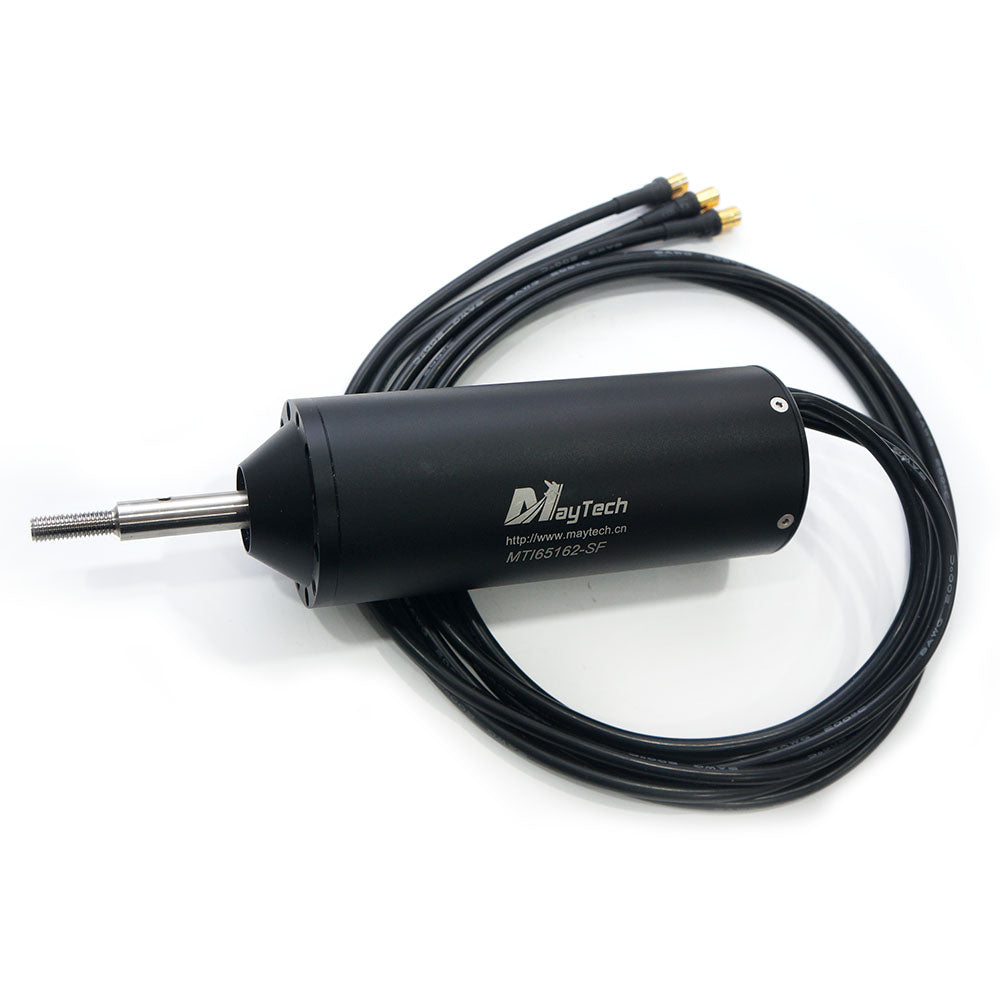

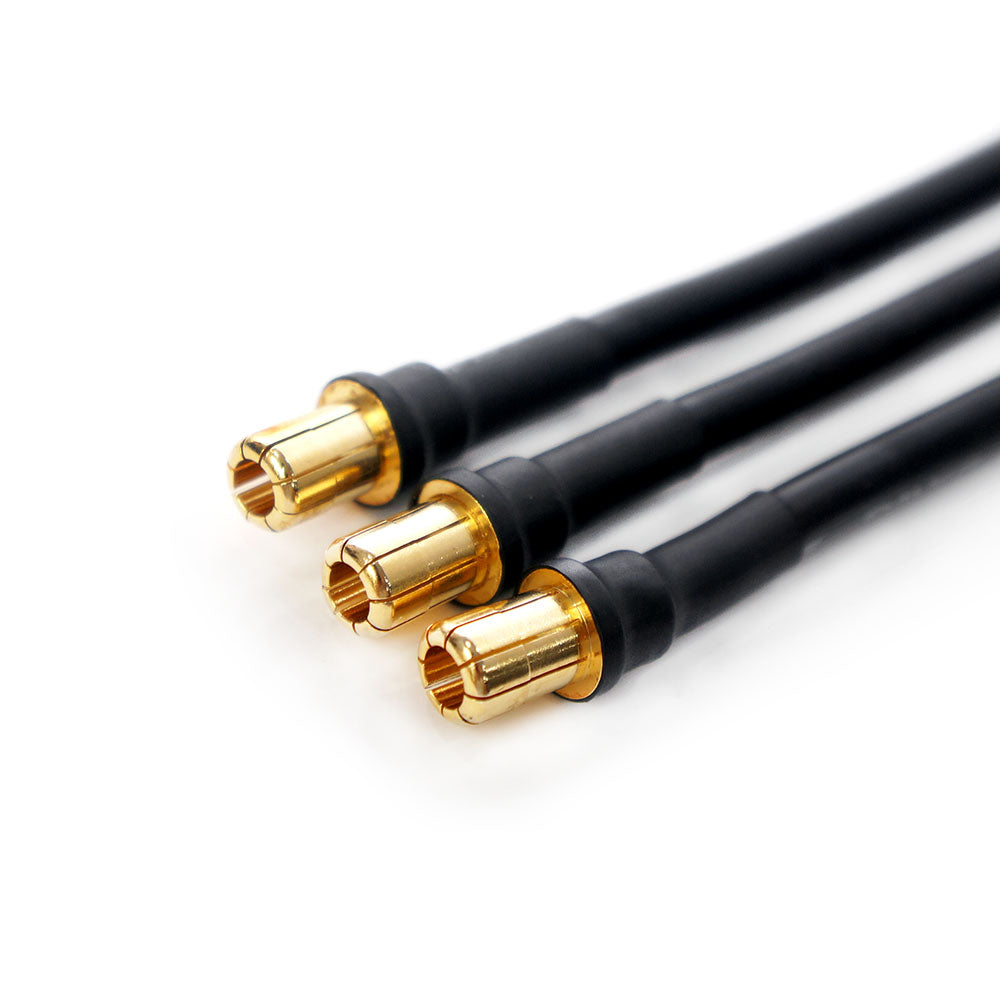

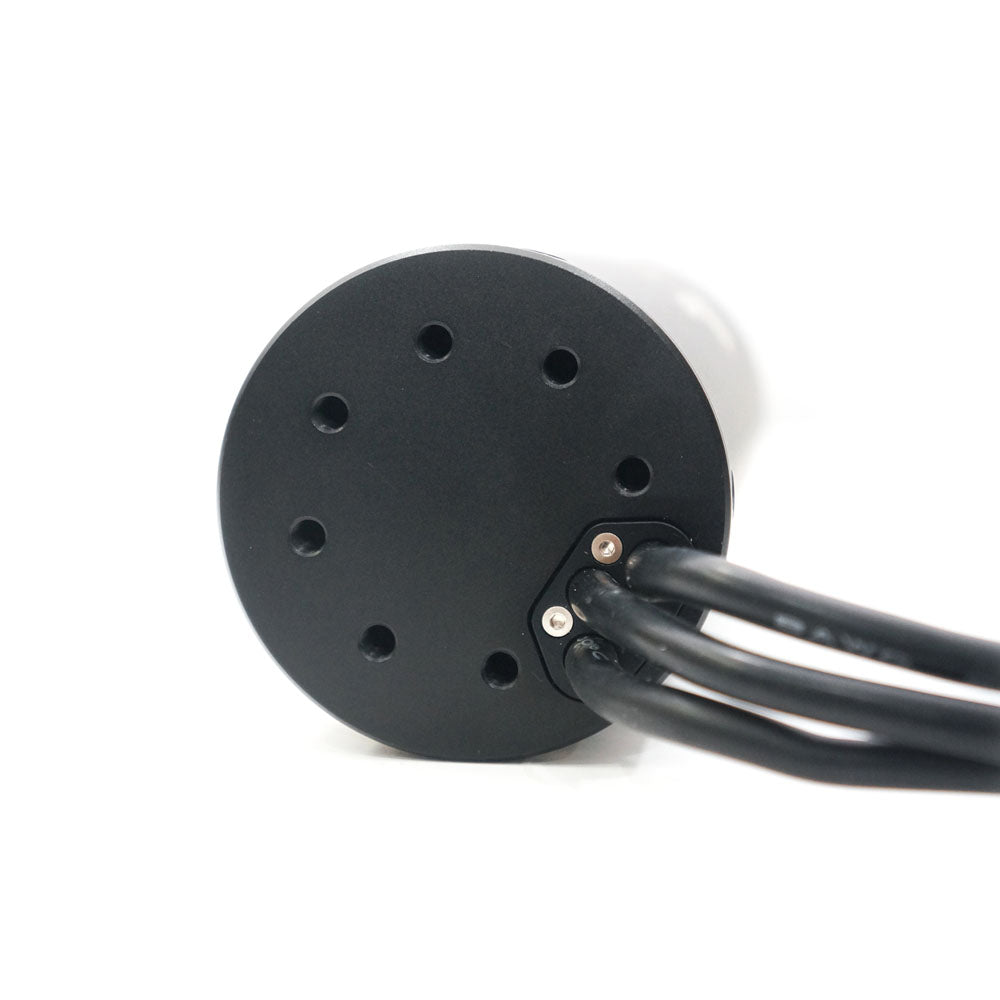

-Motor: MTI65162-SF Inrunner Sensorless Waterproof Brushless Motor

Model No.: MTI65162-SF
KV: 100/ 120/ 190
Shaft: Splined Shaft & Screw Shaft
Input Volt: 6-14S Lipo (25V-58.8V)
Max Current: 300A
Max Output Watt: 9800W
Max Torque: 10N.m
Motor Size: 65x162mm
Indle Current: @8.4V no load: 1.5A
Hall Sensor: Without

maytech 65162, 65161 waterproof motor, fully waterproof motor, sensorless motor, 100KV motor, 20S voltage motor, 9KW engine, powerful engine, efoil motor, foilboard, electric hydrofoil65162 motor, sensorless motor, splined shaft, motor drawing, 2d drawing, BLDC motor, waterproof motor, efoil motor, hydrofoil motorwater-seal craft, maytech fully waterproof motor upgraded to water-seal from oil-sealdmaytech 65162 motor production procedures, factory, manufacturer for waterproof motor, manufacturer for inrunnner brushless motors

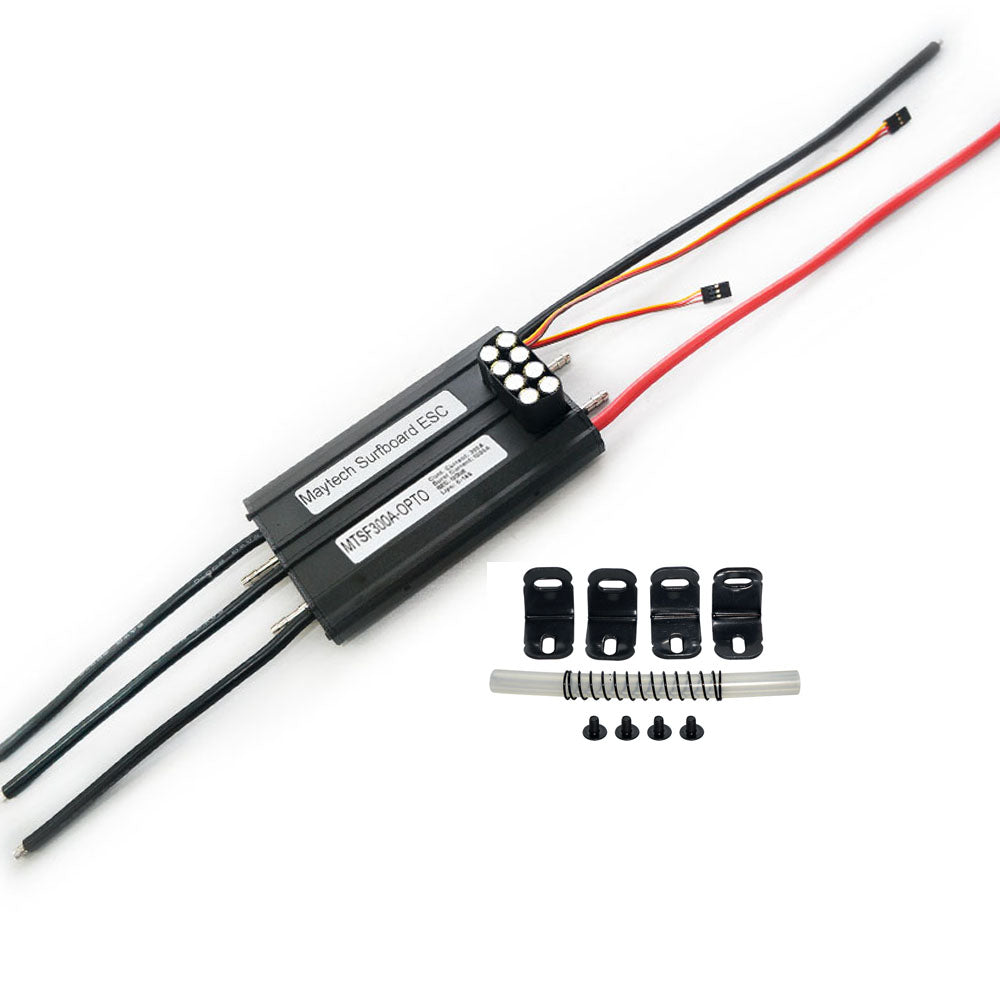

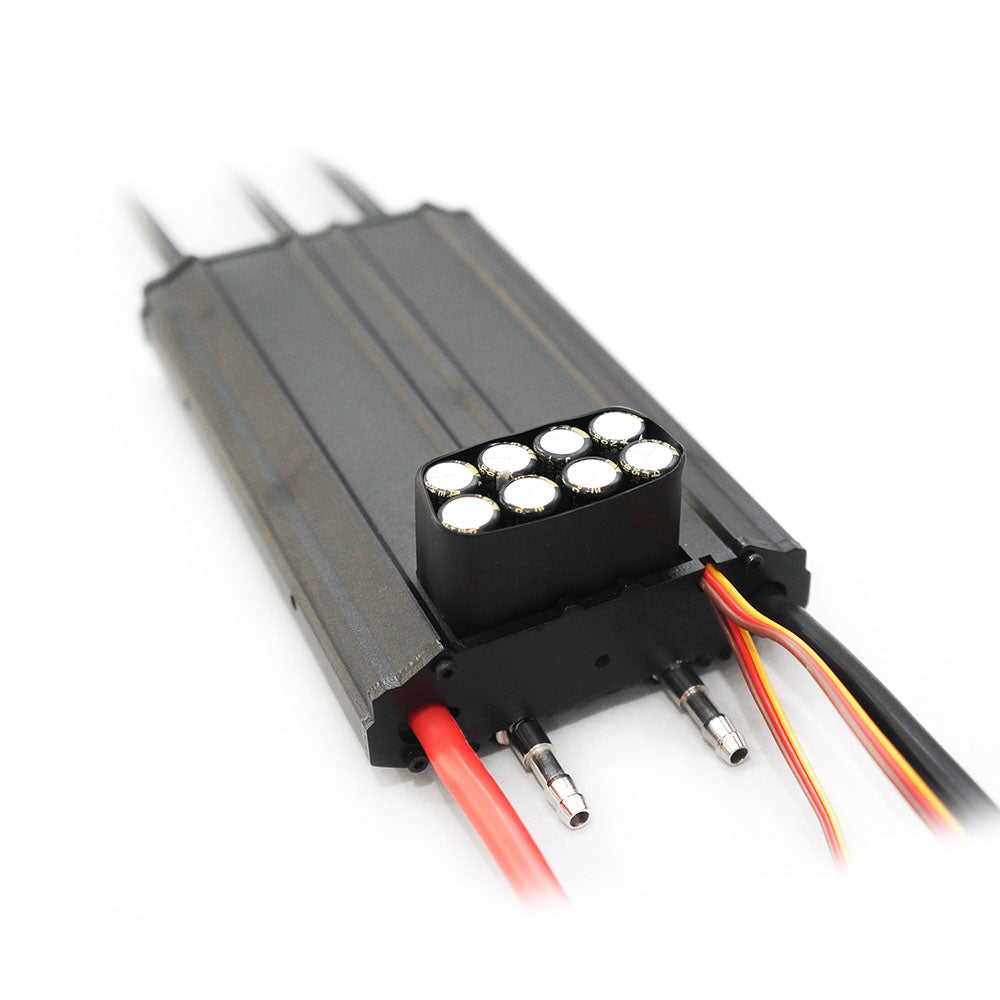

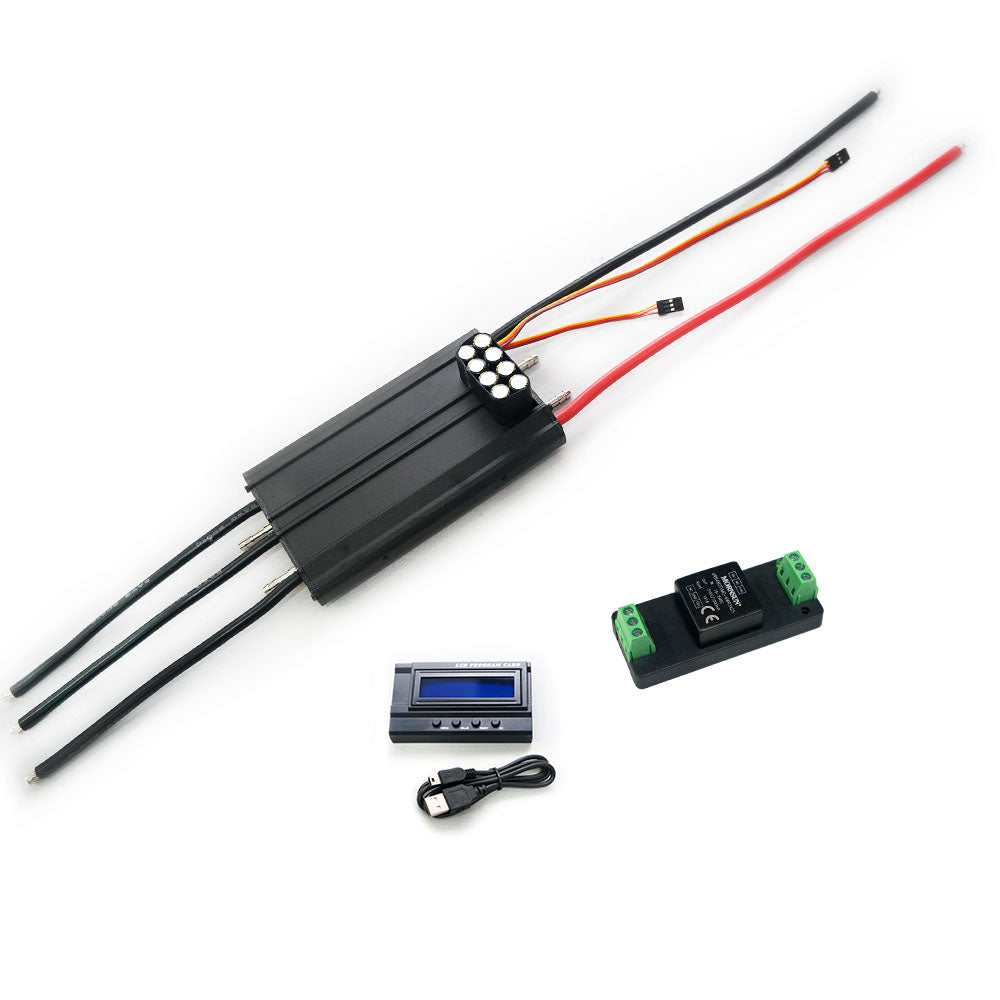

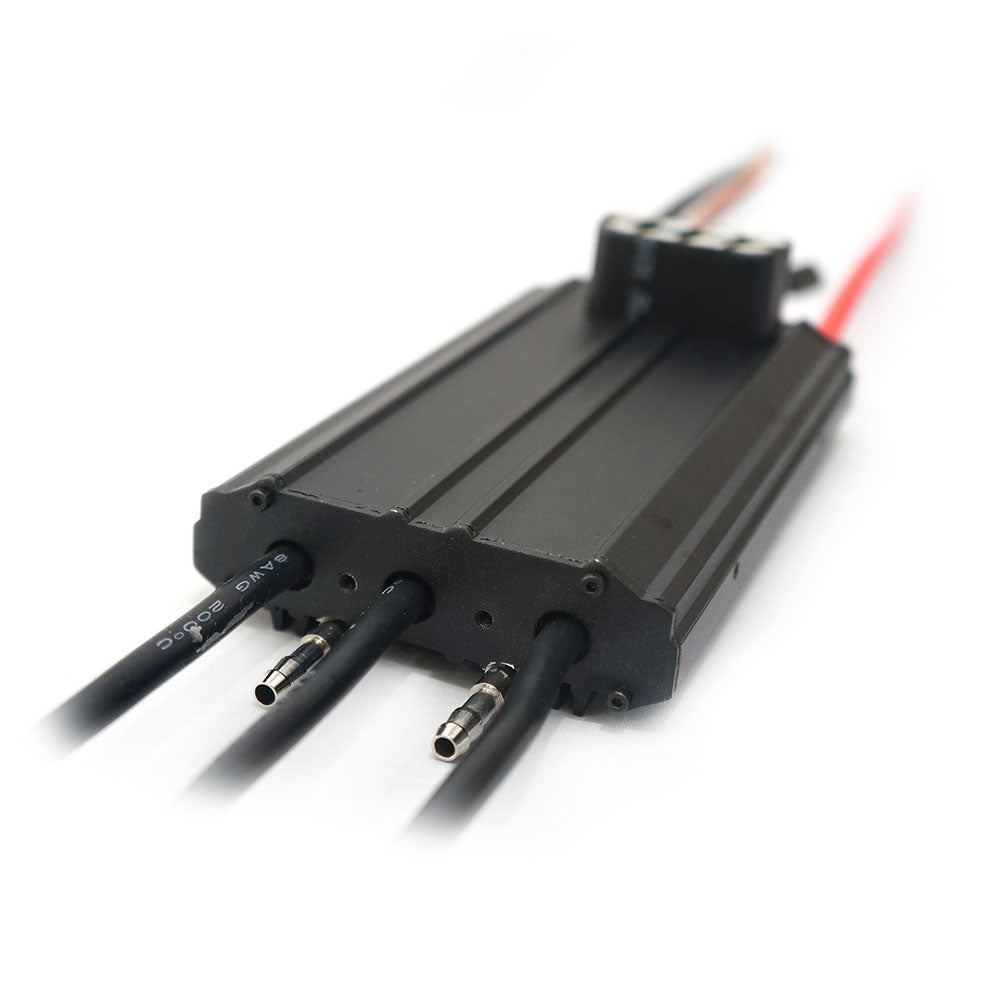

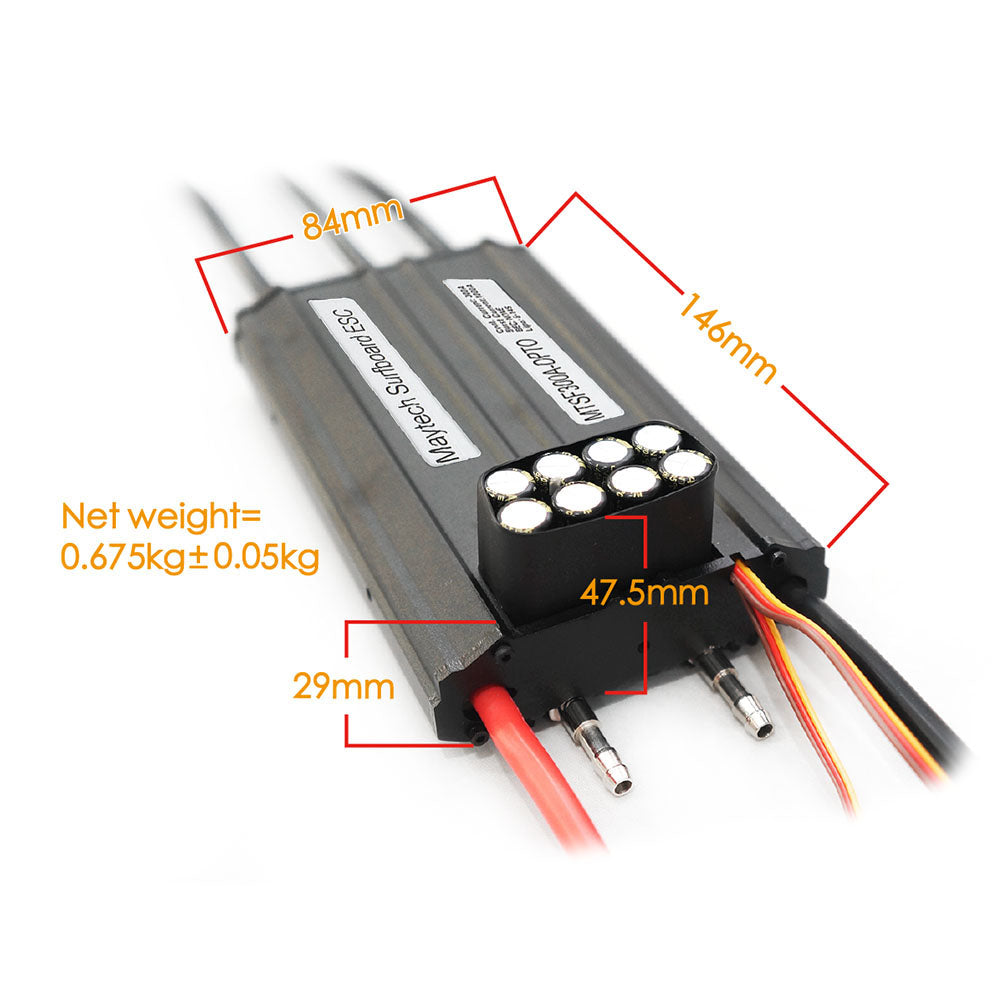

-ESC: MTSF300A-OPTO Watercooled 300A ESC Speed Controller


Model No.:  MTSF300A-OPTO
Cont Current: 300A
Max Current: 1000A
Waterproof Rank: Splash proof
Watercooling: Yes, with
Input Volt: 6-14S Lipo (24V-58.8V)
BEC: Internal with 18-75V convert to 5V DC-DC Module
Signal Format: PWM (PPM)
Signal Output: 1-2ms

maytech 300A ESC, waterproof ESC, electric speed controller, 300A sped controller, controller, powerful ESC, 1000A max current, 300amp, efoil esc, esc controller, watercooling, watercooled ESC



MTSF300A-WP programmable parameters, waterproof ESC, watercooled ESC, 300a esc

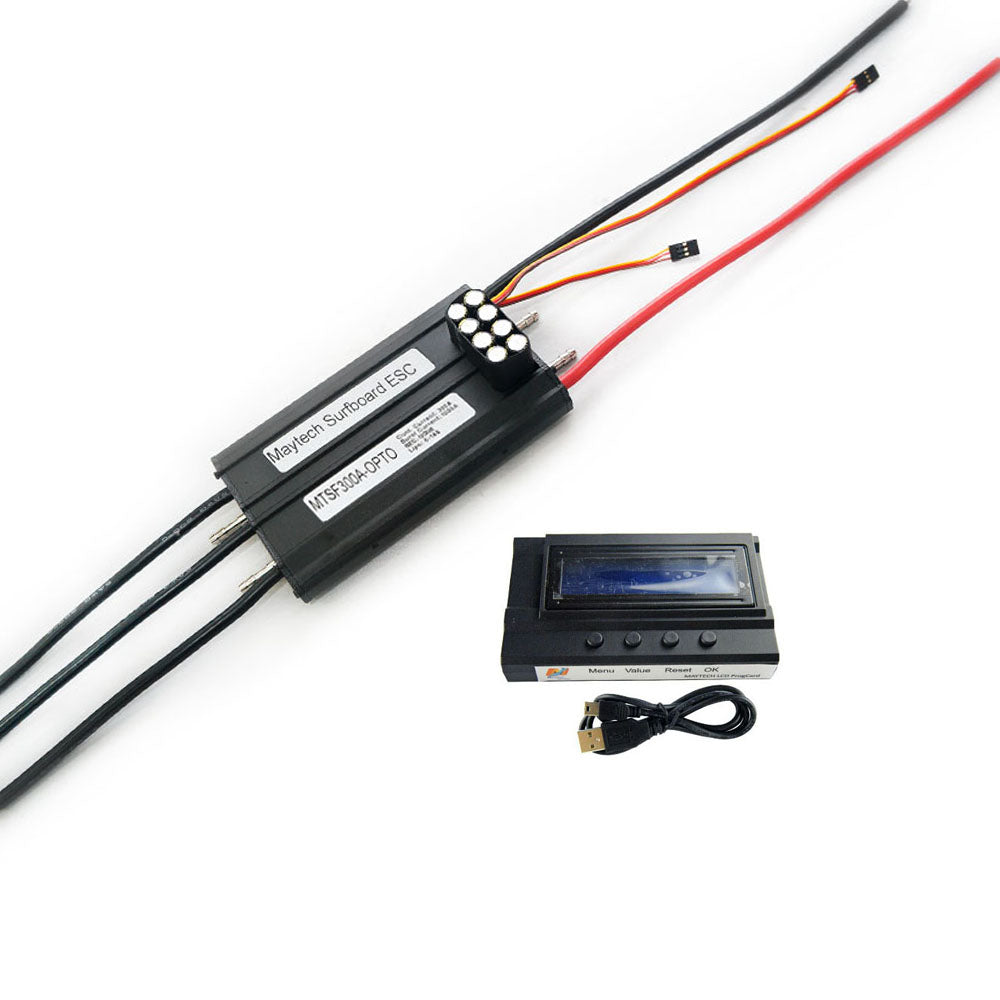

>Check Progcard Manual

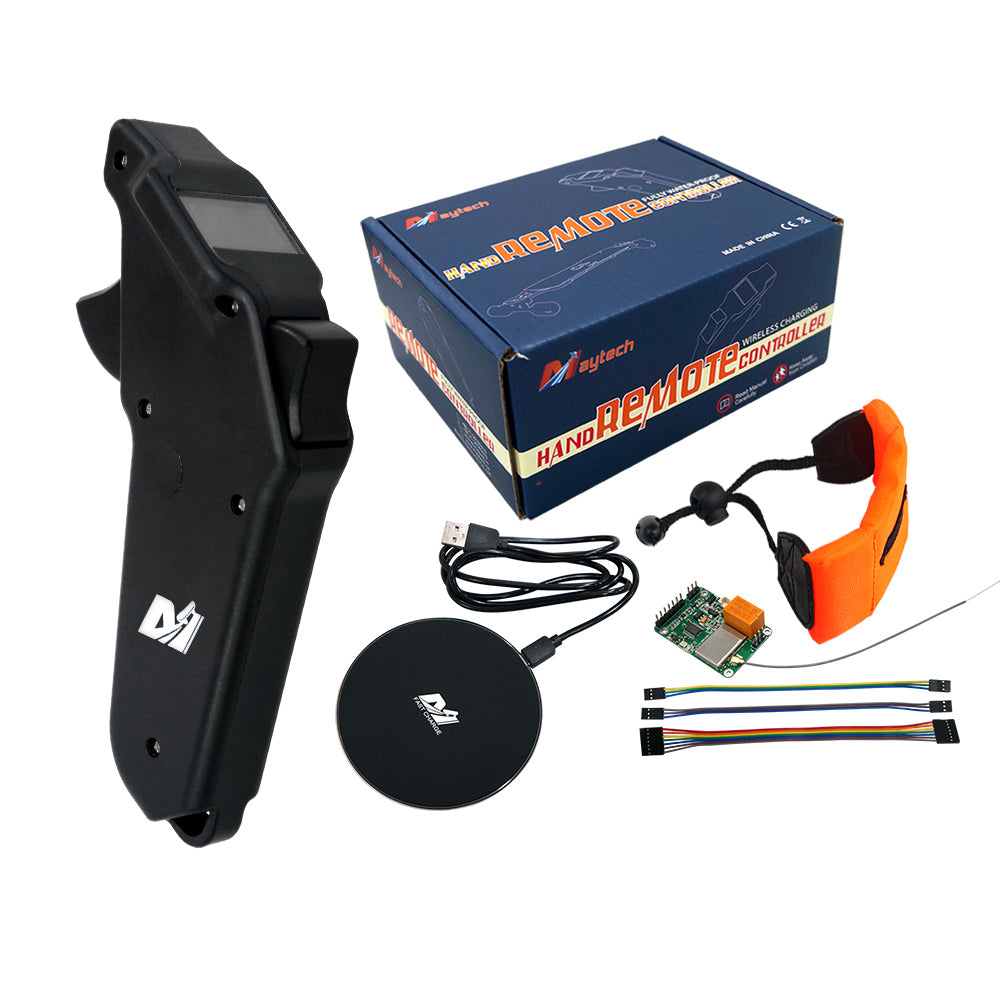

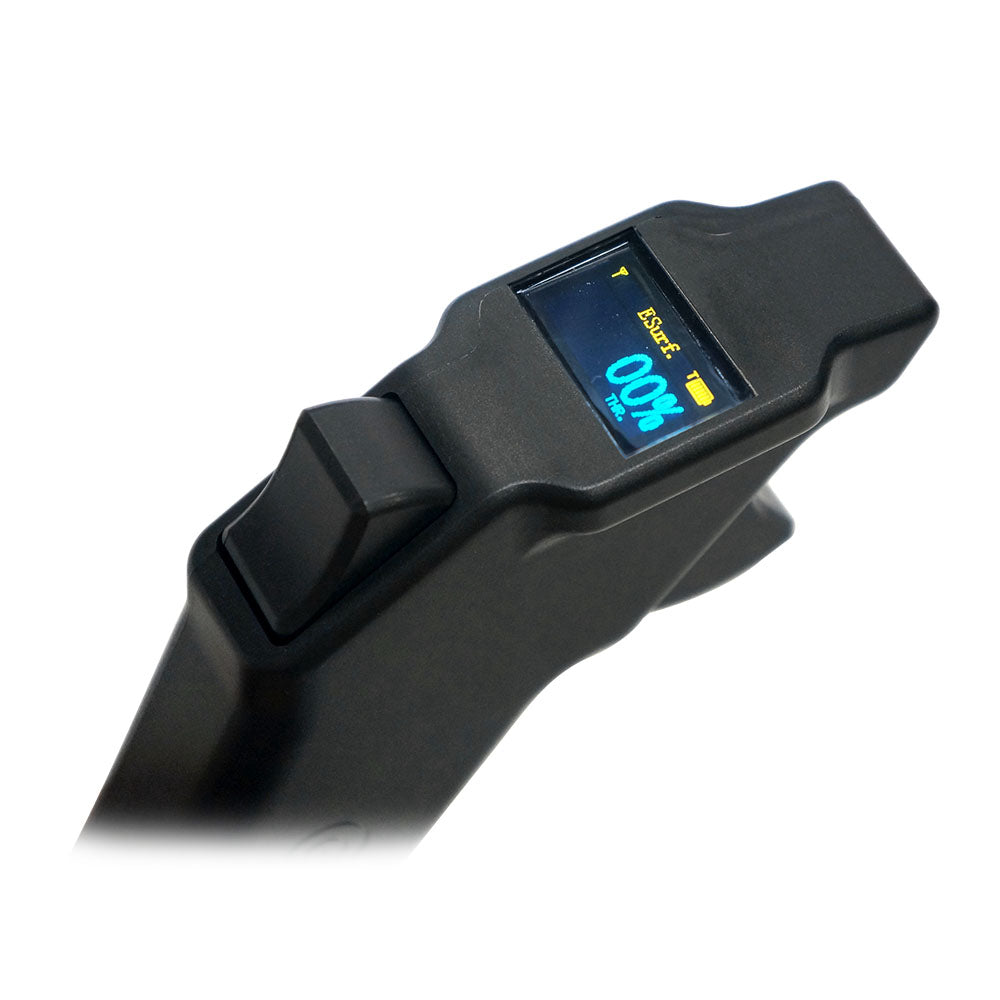

-Remote: V5.0 MTSKR26WF Waterproof GPS Remote for Esurf, with PWM & UART Receiver

Model No MTSKR26WF V5.0
Updated Functions

Equipped with GPS (GPS Speed, Distance, Max Speed, Average Speed)

Equipped with Tilted protection (IMU tilt sensor), protection angle can be adjusted to  30°/45°/60° tilt degree of your board in case of flipping over, separation of the rider from the board, or an accidental fall.
IMU degree can be calibrated according to the receiver position to be placed on your board. And Tilt protection can be turned off for experienced users.

Waterproof Rank IP68 Waterproof with 2 Layers Nanometers Coating, both on PCB board and screen
Thr Mode Esurfboard (SF) , with cruise control
and ESK8 (SK), can control forward and reverse when use on marine applications
3 Speed Modes With, adjust throttle % from 20-100%, friendly for beginners
Power Modes 2 levels, Eco (Level 1) & Pro (Level 2) optional
Signal strength: Pro > ECO
Power Consumption: PRO > ECO
Throttle Lock Yes, 10-120S optional
Signal Format Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%.
PWM Signal Output Range In Esk8(SK) mode: 1.5ms is stop position, 1.5-1ms for brake or reverse (upper trigger), 1.5-2ms for throttle (bottom trigger)
In Esurf(SF) mode: 1-2ms for throttle (bottom trigger), no brake or reverse
Double Source Power Supply Accept 5V power by ESC built-in BEC or extra 5V power
Output Signal Max 3.3V
Display Parameters

GPS Speed / Distance / Max Speed / Average Speed
Tilt sensor angle
RPM+Current+Voltage+Temp(When work with VESC and MTSF-WP32 series ESCs)

Signal strength, remote and battery power bars, battery voltage%, RPM, speed (km/miles), with VESC, Maytech WP32 ESC and other ESCs

Relay Switch No, without Relay Switch on Receiver to save mounting space
Control Light Yes (20V 2A Transistor Switch)
Safety Button Support
Cruise Control With in Esurf Mode
Brake or Reverse With in Esk8 Mode
Accessories Wirelss charging pad / Receiver / USB cable / Wristband / 1pcs 3 pins cable / 1pcs UART cable
Compatible Controllers VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote.
Application foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc.,


Water Pump and Its Power Supply:
water pump for electric surfboard esurf efoil jetski jetfoiler for electric efoiling 12V 30W water pump

Maytech 75V Convert to 12V High Power UBEC DC-DC Module Power Supply 20W Cooling Fan Set

MTS2009AS 300A 80V Anti-spark Switch (Can cut off positive pole power)

Model No.

MTS2009AS

Max Current

300A

Max Voltage

25V-80V

Connector With 4pcs Cold-pressed Terminal Connector
Function Protect your controller and power supply system when brake or startup
Features

First Switch that can cut off positive pole power in the market;

Application Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, etc.,

Maytech 300A electric switch protection for electric skateboard elimanite sparks when connection high current high power switch antispark switch on and off switch


Water Pump and Its Power Supply:

water pump for electric surfboard esurf efoil jetski jetfoiler for electric efoiling 12V 30W water pump

Maytech 75V Convert to 12V High Power UBEC DC-DC Module Power Supply 20W Cooling Fan Set



Advice for After Use:
To expand the products life, please better wipe off the waters on the products and keep them for all dry after everytime use.

About Stock:
1. Standard stock for the motor is screw shaft, 200KV, if you need to other KV or another shaft, lead time is about 40-60 days after your order confirmed, and please contact us eileen@maytech.cn to tell us your requirement.
2. The standard stock is also limited, please confirm your order asap, and if you need very urgent, please contact us eileen@maytech.cn to check stock first.
