Maytech IP67 Waterproof Esk8 Remote MTSKR2005WF Comb with MTVESC100A Speed Controller with 6355/6365/6374 Sensored Outrunner Motor for Esk8/Fightinng Robots
Maytech IP67 Waterproof Esk8 Remote MTSKR2005WF Comb with MTVESC100A Speed Controller with 6355/6365/6374 Sensored Outrunner Motor for Esk8/Fightinng Robots
Couldn't load pickup availability
Maytech Fully Waterproof Remote MTSKR1905WF Comb with MTVESC100A Speed Controller with 6355/6365/6374 Sensored Outrunner Motor for Esk8/Fightinng Robots
9 Sets Comb:

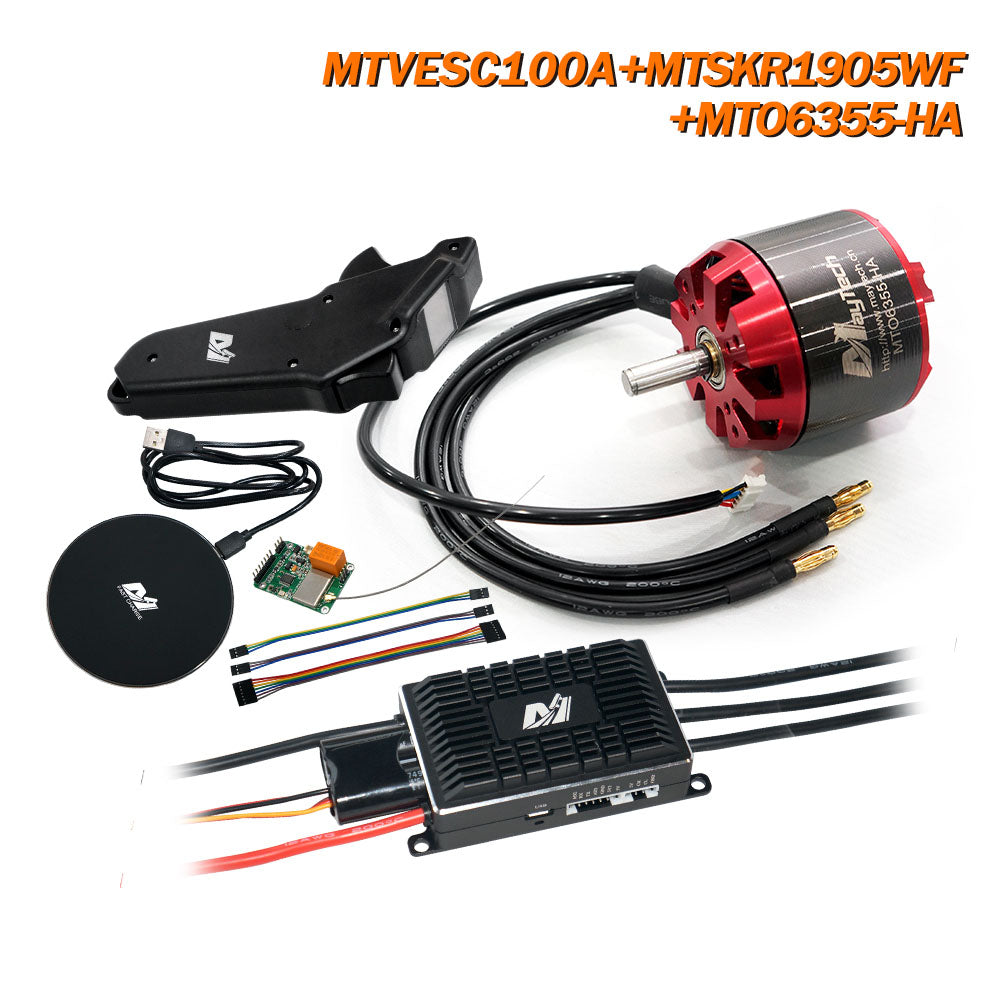

Comb 1: MTVESC100A + MTSKR1905WF + MTO6355-HA (200KV, Open Cover, 8mm shaft)

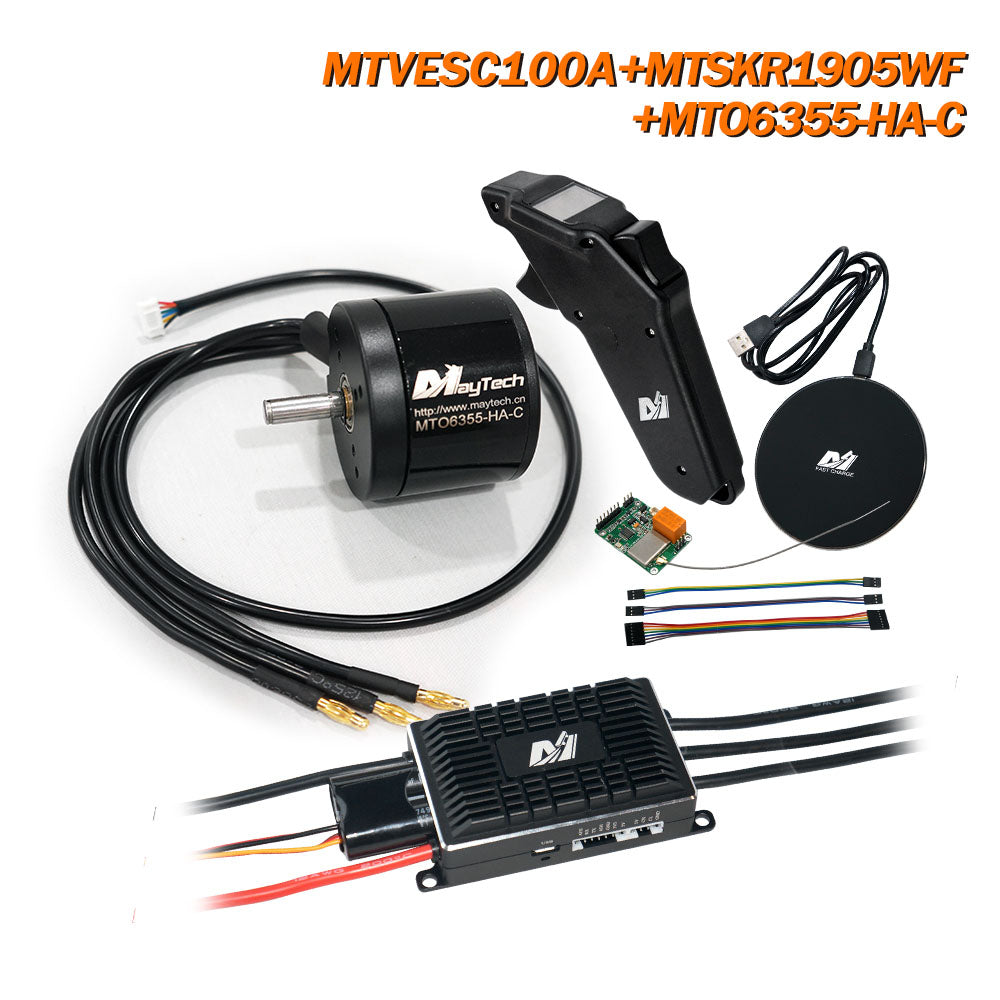

Comb 2: MTVESC100A + MTSKR1905WF + MTO6355-HA-C (170/190KV, Closed Cover, 8mm shaft)
Comb 3: MTVESC100A + MTSKR1905WF + MTO6355-HA-C2 (170/190KV, Closed Cover, 10mm shaft)

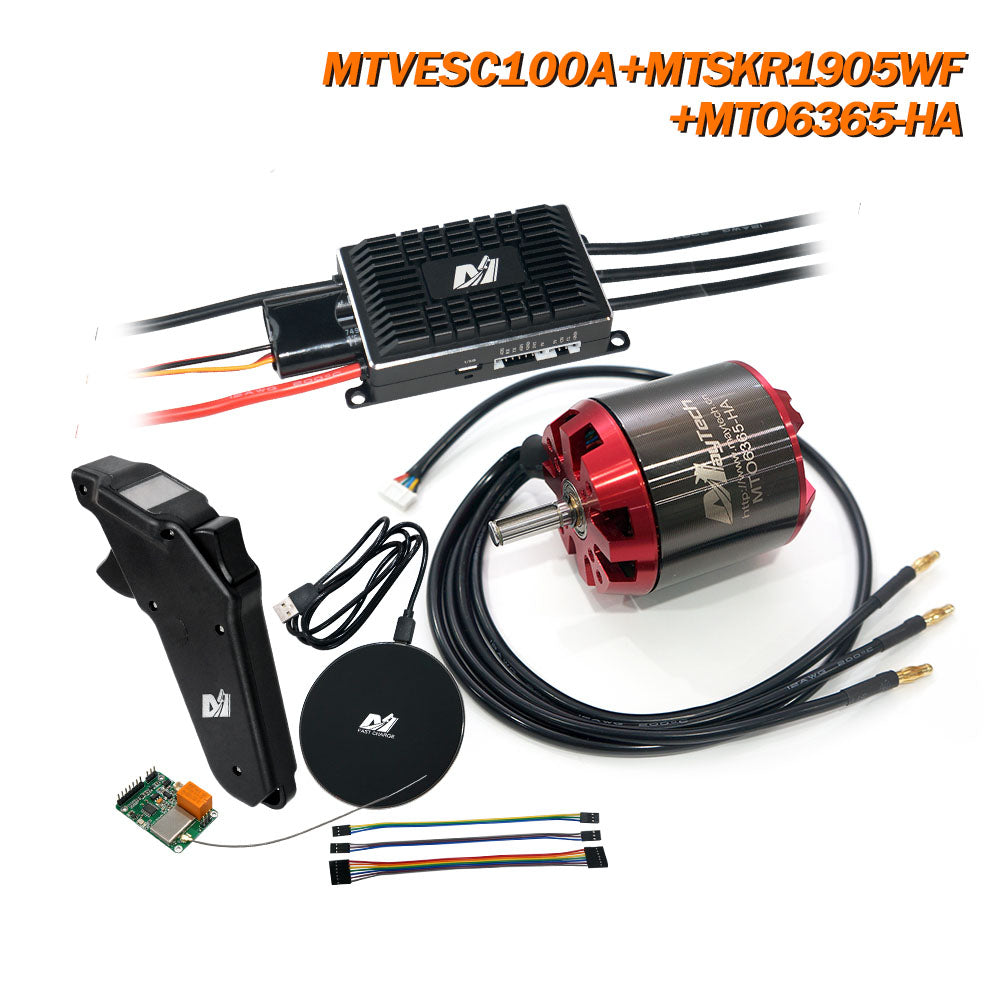

Comb 4: MTVESC100A + MTSKR1905WF + MTO6365-HA (200KV, Open Cover, 8mm shaft)

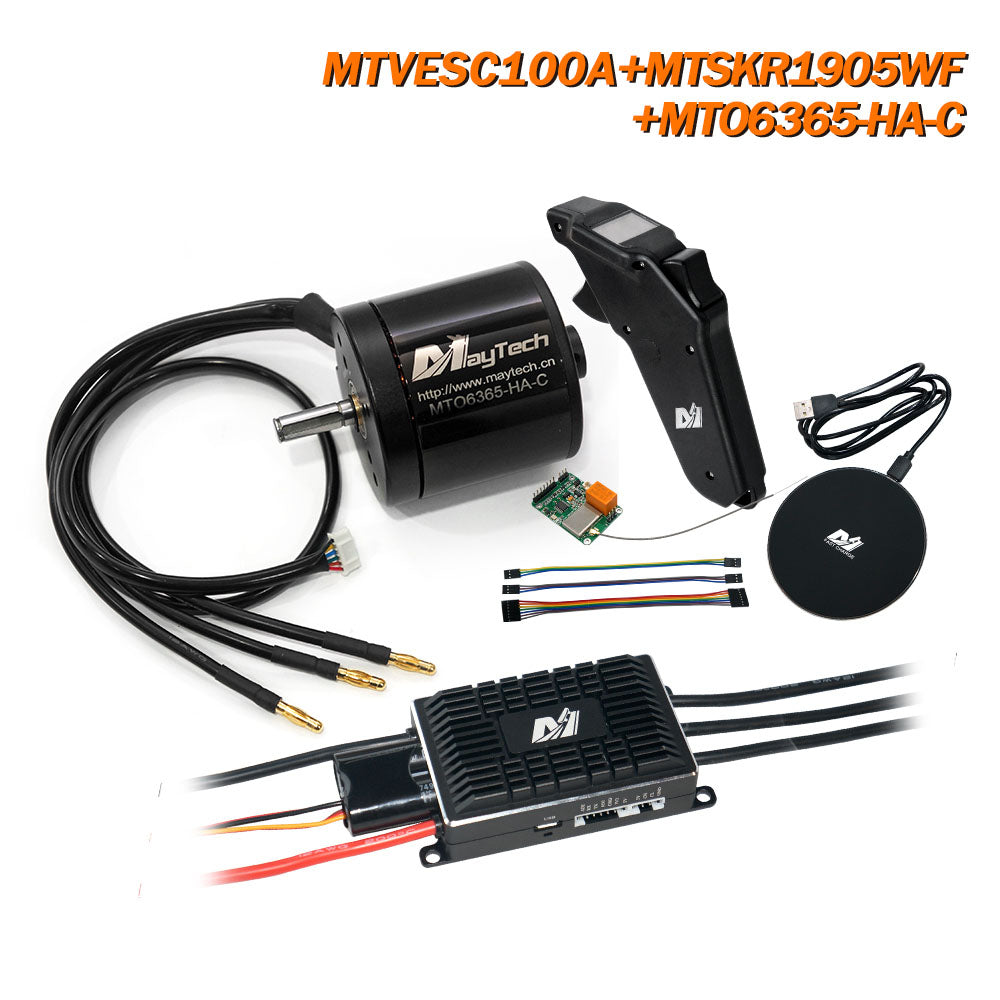

Comb 5: MTVESC100A + MTSKR1905WF + MTO6365-HA-C (170/190KV, Closed Cover, 8mm shaft)

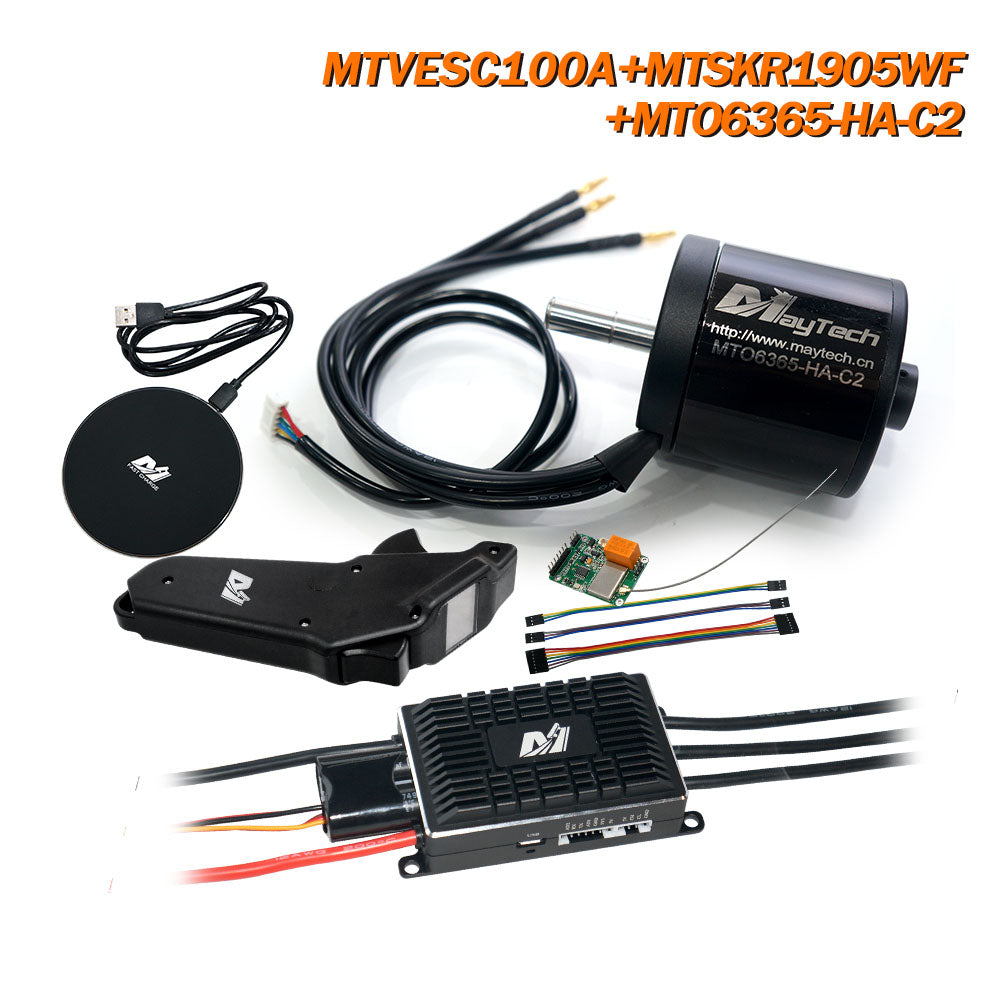

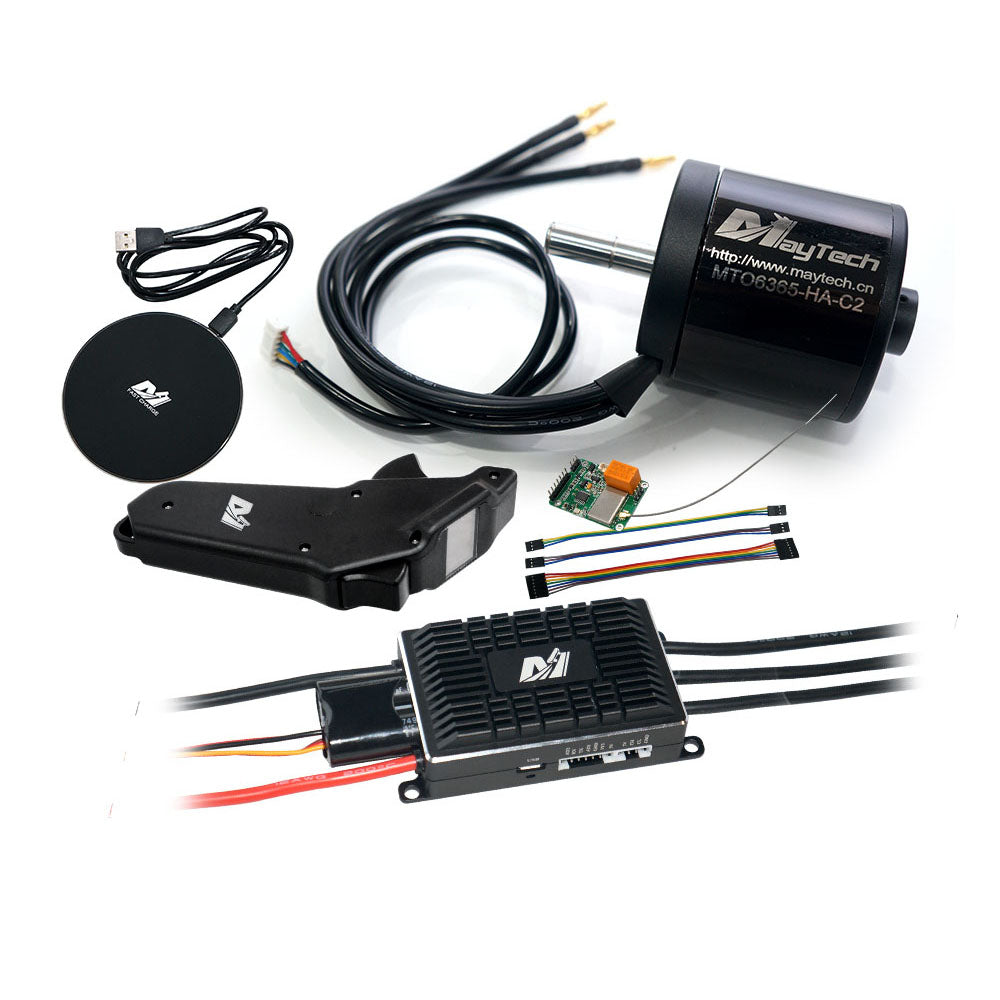

Comb 6: MTVESC100A + MTSKR1905WF + MTO6365-HA-C2 (170/190KV, Closed Cover, 10mm shaft)

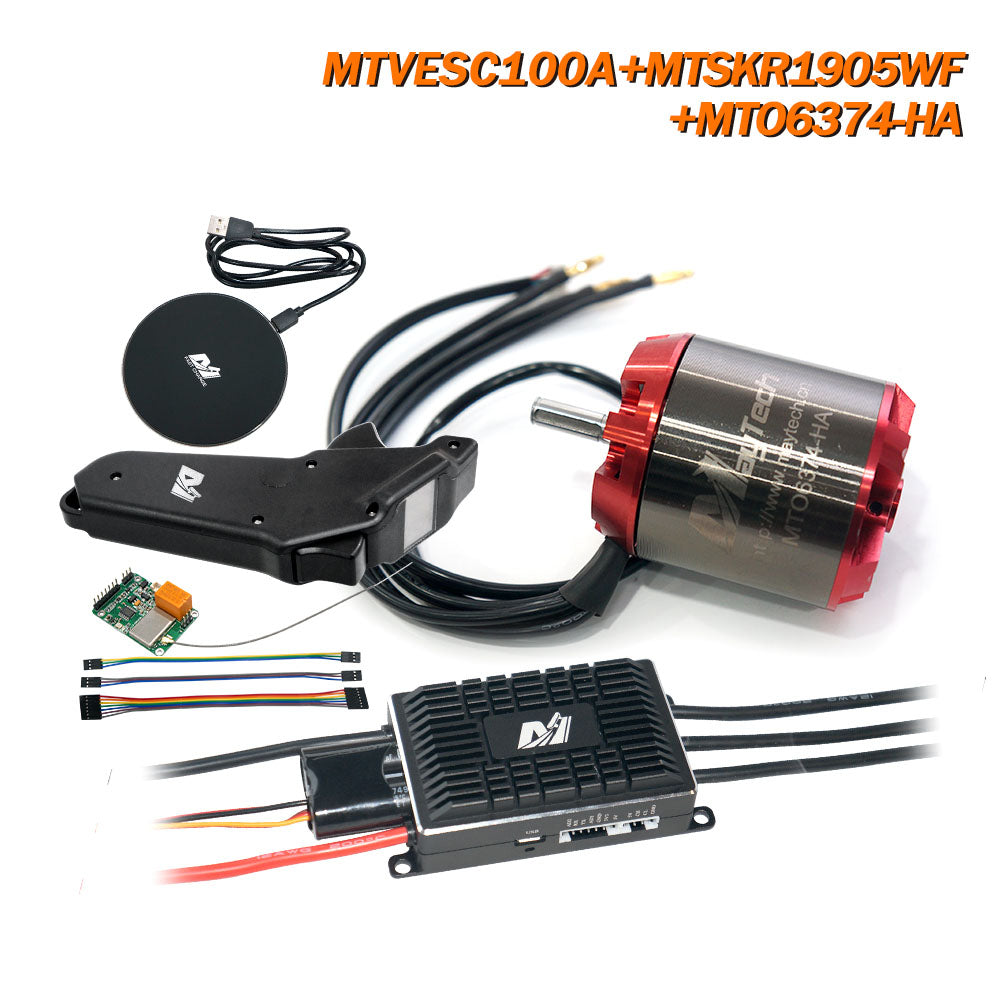

Comb 7: MTVESC100A + MTSKR1905WF + MTO6374-HA (170/190KV, Open Cover, 8mm shaft)

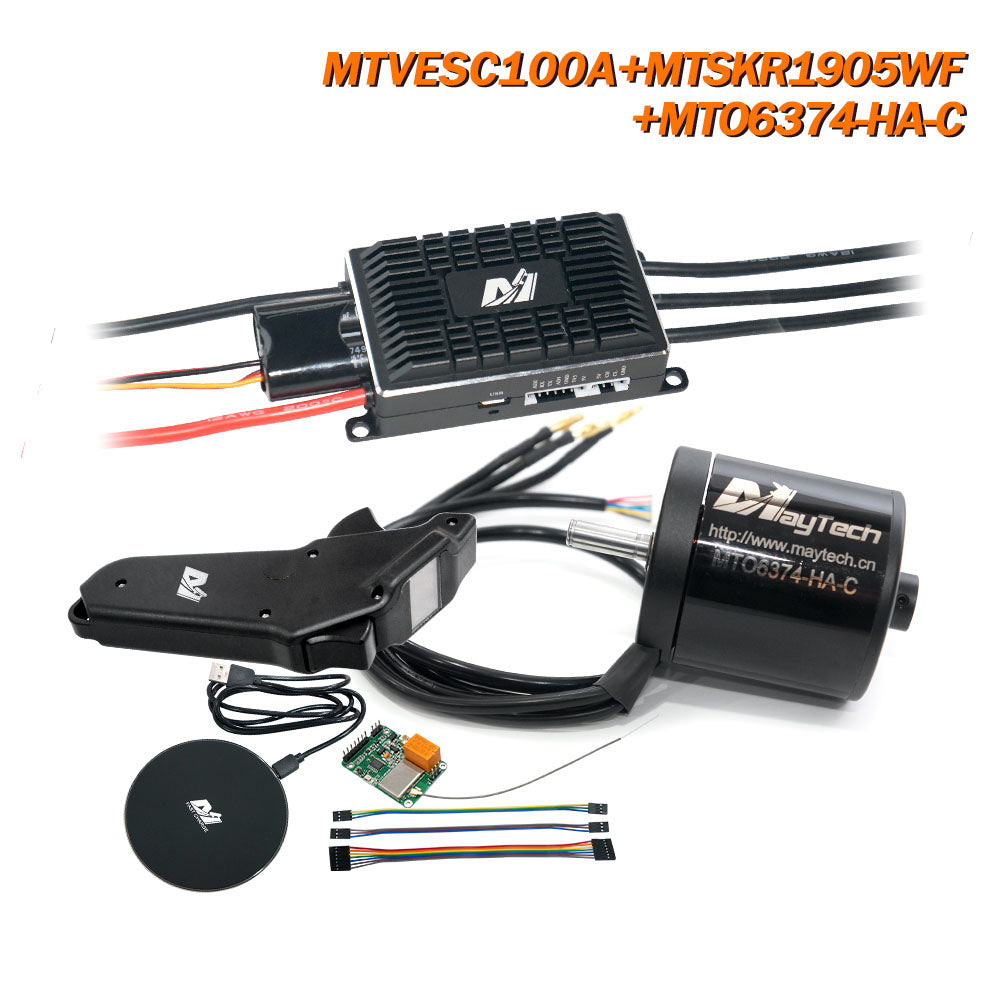

Comb 8: MTVESC100A + MTSKR1905WF + MTO6374-HA-C (170/210KV, Closed Cover, 8mm shaft)

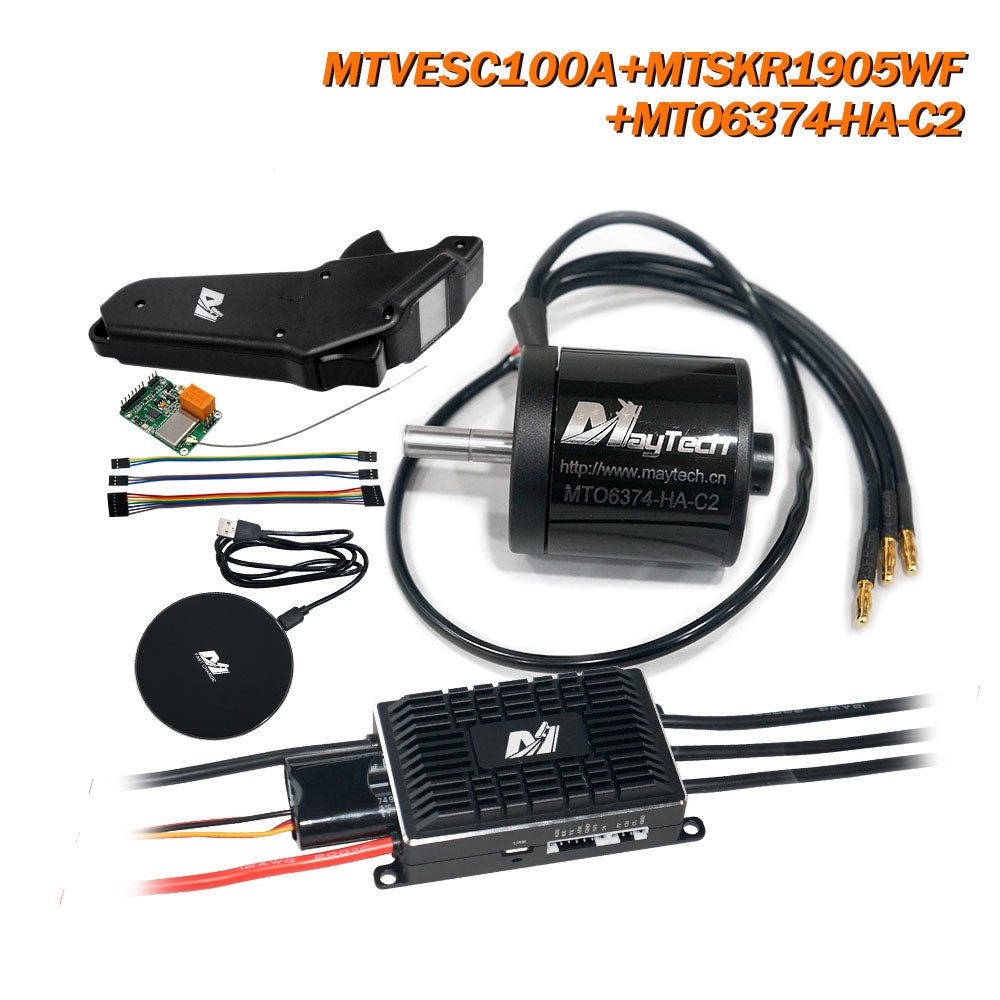

Comb 9: MTVESC100A + MTSKR1905WF + MTO6374-HA-C2 (170/190KV, Closed Cover, 10mm shaft)
Above motor KV is our standard KV, your order will be shipped as the KV we have. If you have other needs, please contact us first, we accept customize service.
Specifications:

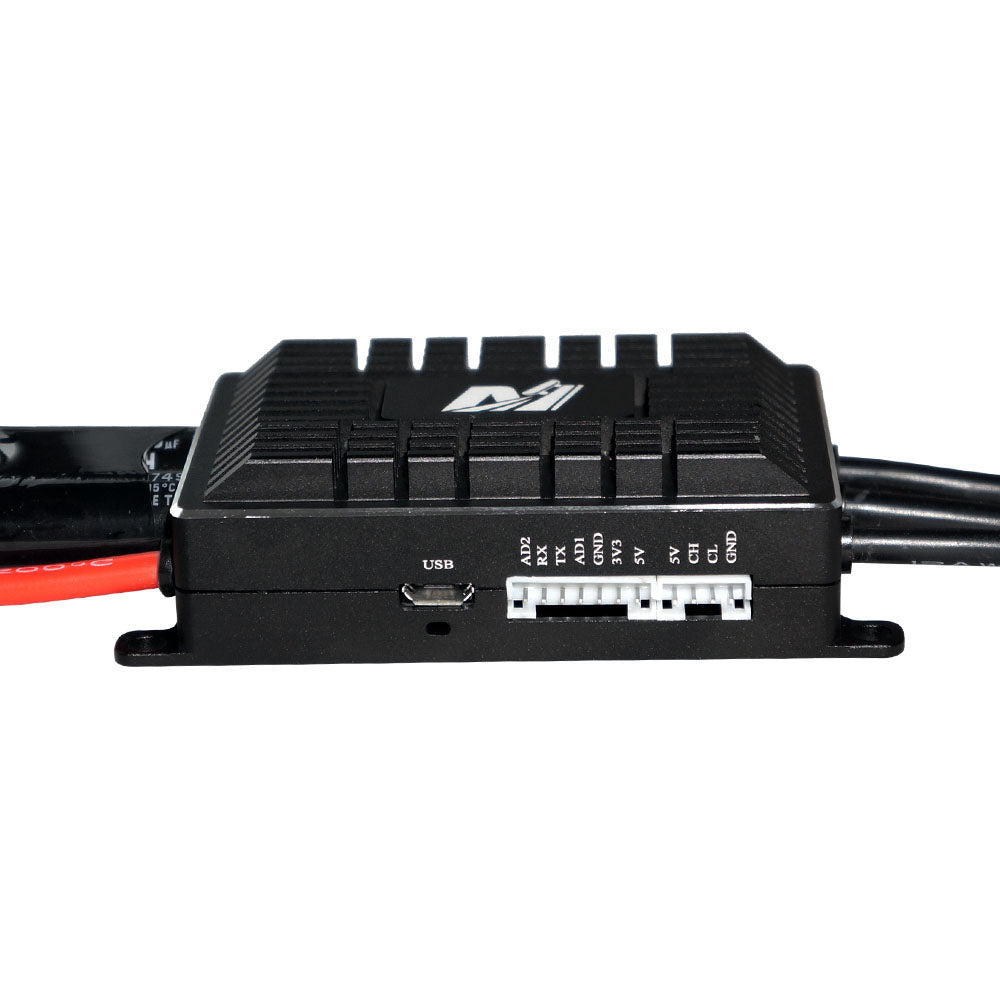

Product 1: Maytech MTVESC100A V4 based Controller Powerful ESC
| Model No. | MTVESC100A | Cont Current | 100A |
| Burst Current | 280A | BEC | 5V/1.5A |
| Voltage | 3-12S Lipo | Case Size | 71.5*45.8*18mm |
| Dustproof | Yes | Splash Waterproof | Yes |

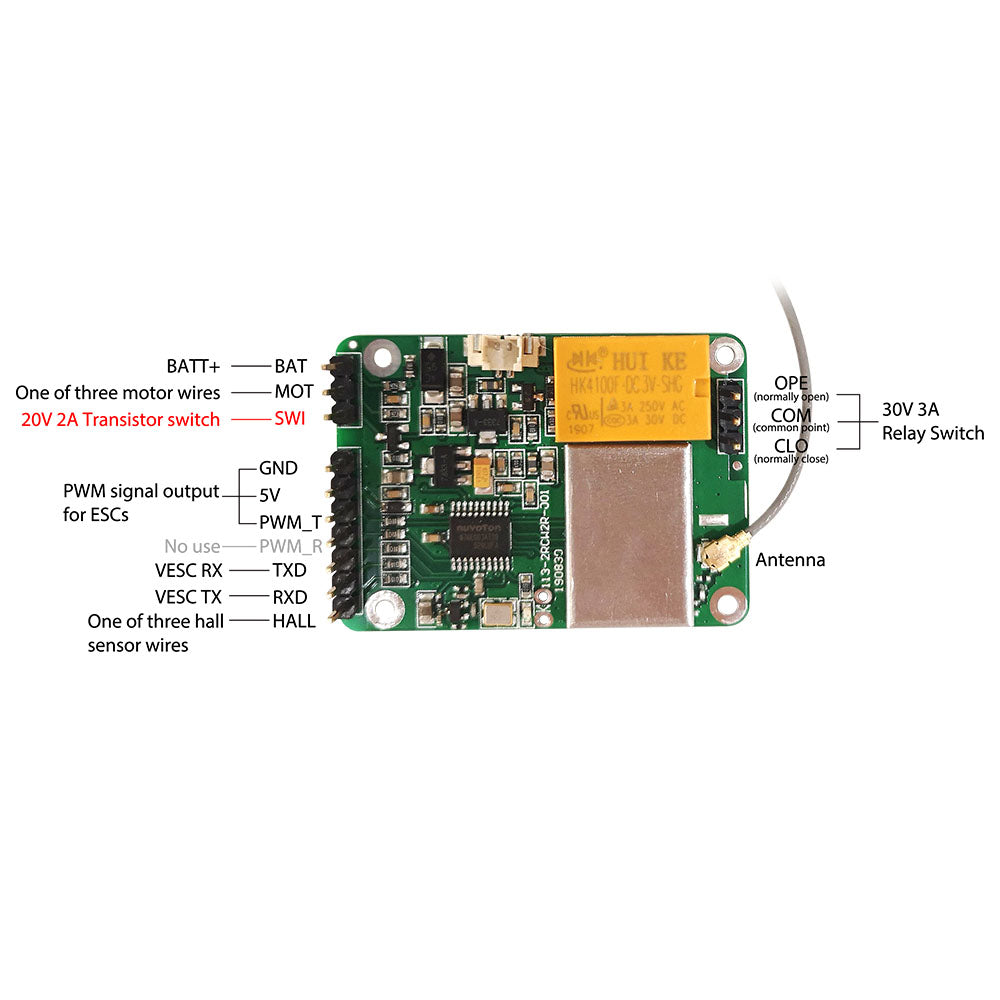

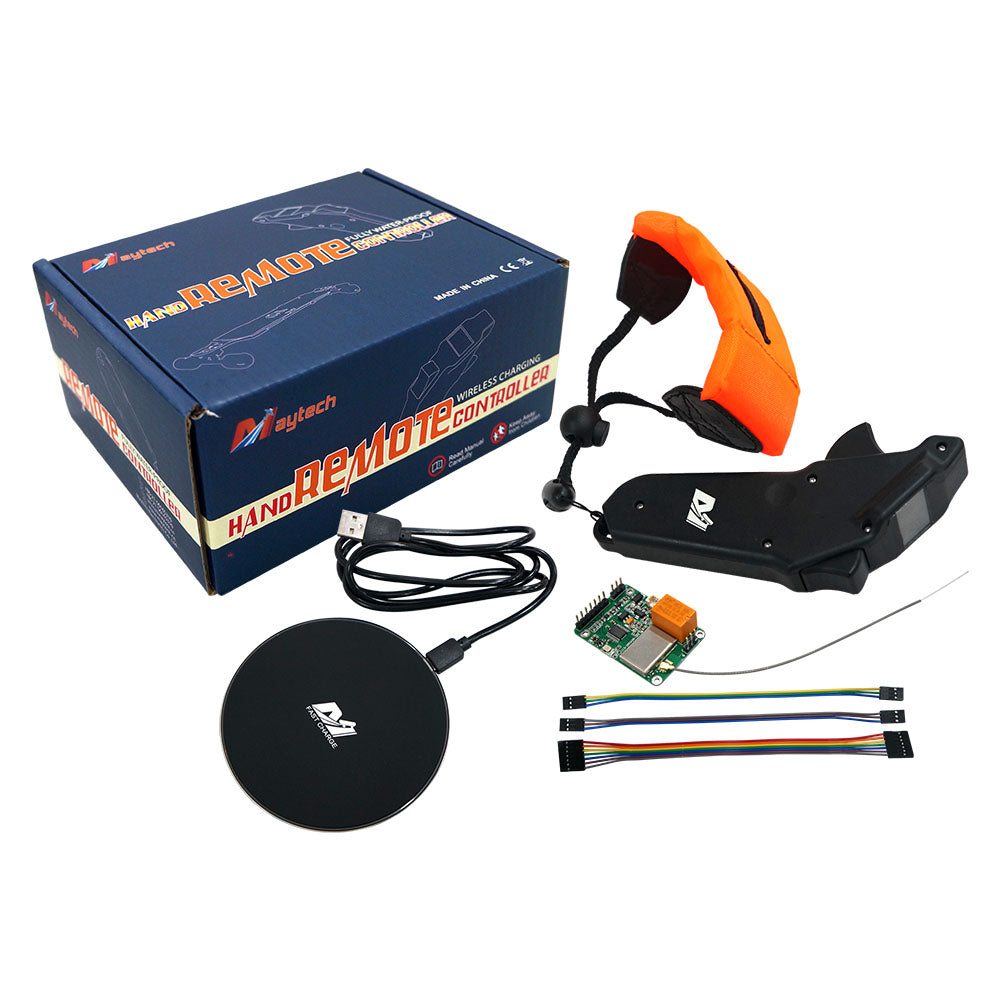

Product 2: V2 Fully Waterproof Remote MTSKR1905WF
| Model No. | MTSKR1905WF (V2) | Mode | Esk8/Esurf |
| Waterproof | Fully Waterproof with 2 Layers Nanometer Coating | Display Screen | Remote & Battery Power; Throttle Percentage; Signal Strength; RPM; Current; Temp; Volt; Speed; Distance (when work with VESC) |
| Signal | PWM | Double Source | Accept 5V power by ESC built in BEC or extran 5V power |
| Control Light | Yes (Transistor Switch) | Control Pump | Yes (Relay Switch) |
| Firmware Updatable | Yes | Set Safety Button | Acceptable |
| Brake Button | Yes (Esk8) | Cruise Control | Yes (Esurf) |
| Wireless Charging | Yes | Accessories | Charging Pad; receiver; 3pcs Dupond cables |
Product 3: Maytech Motors Datasheets
-MTO6355 Motor:
|
Model No
|
MTO6355
|
KV
|
170/200
|
|
Idle Current
|
1.0A
|
Max Current
|
65A
|
|
Inpur Voltage
|
2-12s Lipo
|
Max Output Watt
|
3510W
|
| Internal Resistance |
0.0441
|
Battle Hardened
|
Yes
|
| Proof | Splash proof and dustproof (HA-C & C2) | Shaft |
8mm (HA & HA-C) 10mm (HA-C2) |
| Cover |
Open Cover (HA) Sealed Cover (HA-C & C2) |
Output Shaft Length |
26mm (HA & HA-C)
34mm (HA-C2)
|
-MTO6365 Motor:
|
Model No
|
MTO6365
|
KV
|
170/200
|
|
Idle Current
|
0.8A
|
Max Current
|
65A
|
|
Inpur Voltage
|
2-12s Lipo
|
Max Output Watt
|
3520W
|
| Internal Resistance |
0.0402
|
Battle Hardened
|
Yes
|
| Proof | Splash proof and dustproof (HA-C & C2) | Shaft |
8mm (HA & HA-C) 10mm (HA-C2) |
| Cover |
Open Cover (HA) Sealed Cover (HA-C & C2) |
Output Shaft Length |
26mm (HA & HA-C)
34mm (HA-C2)
|

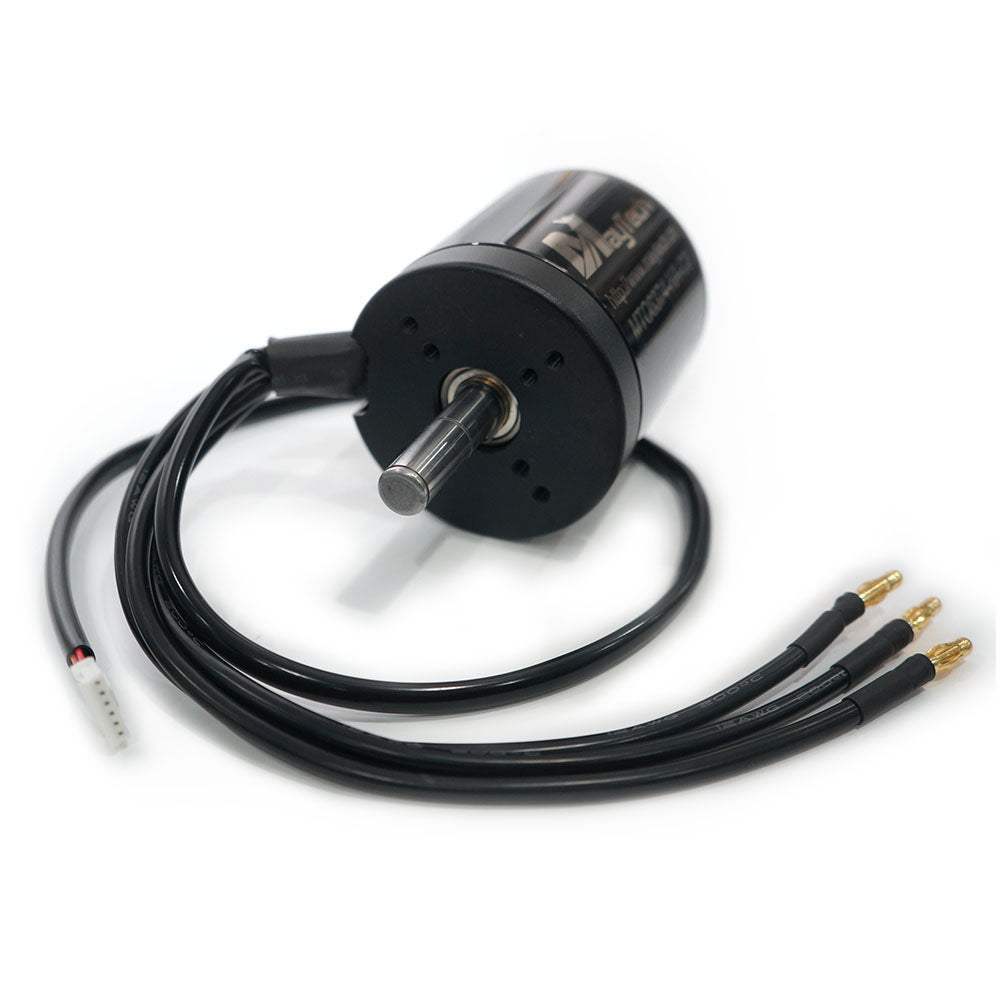

-MTO6374 Motor:
|
Model No
|
MTO6374
|
KV
|
170/190/220
|
|
Idle Current
|
0.8A
|
Max Current
|
65A
|
|
Inpur Voltage
|
2-12s Lipo
|
Max Output Watt
|
3550W
|
| Internal Resistance |
0.0402
|
Battle Hardened
|
Yes
|
| Proof | Splash proof and dustproof (HA-C & C2) | Shaft |
8mm (HA & HA-C) 10mm (HA-C2) |
| Cover |
Open Cover (HA) Sealed Cover (HA-C & C2) |
Output Shaft Length |
26mm (HA & HA-C)
34mm (HA-C2)
|
