Maytech Ghost Series 3548 790/900/1100kv Brushless Sensorless Motor for Radio Control Airplane Helicopter

  • Sale
  • $41.61
  • Regular price $43.80

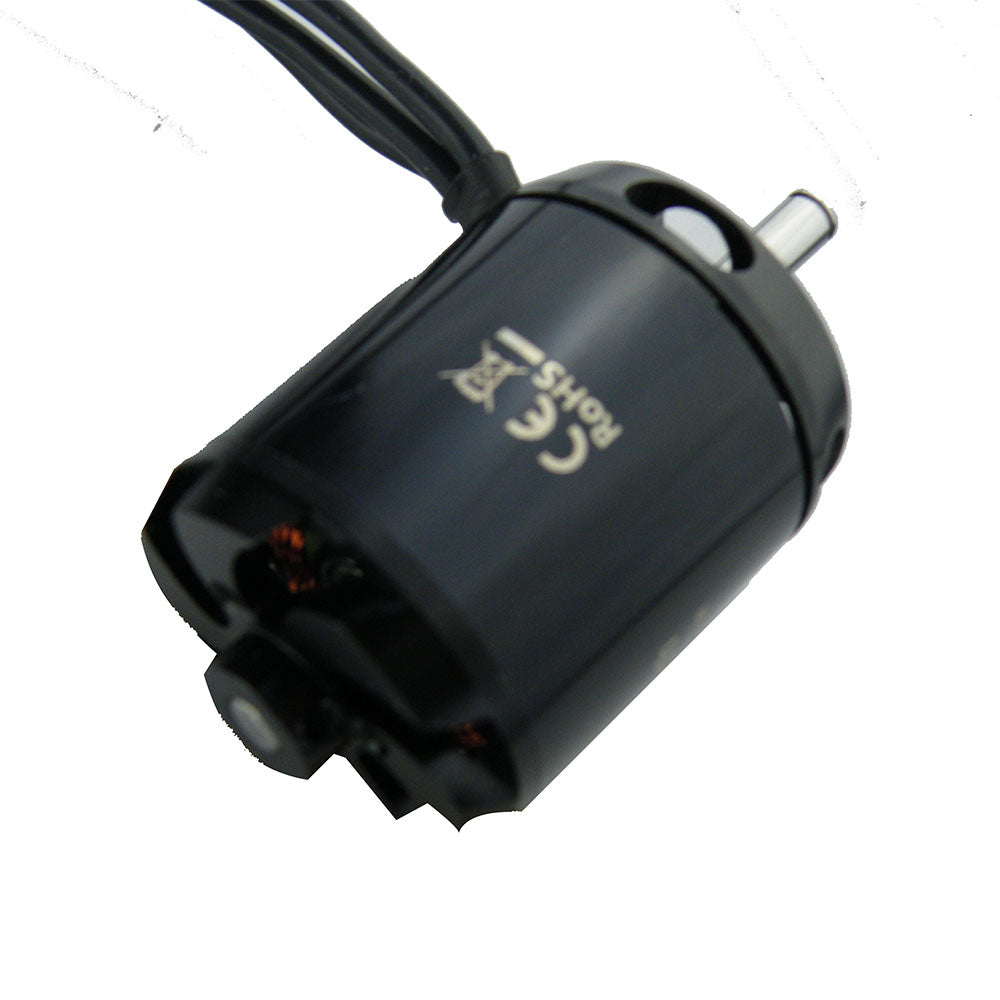

Maytech brushless motor, all parts are made of a high-precision CNC machining center, and all surfaces are made with oxidation treatment. High temperature and high purity oxygen-free copper wires were used. The motors use high-grade magnets and 0.2 mm lamination to improve efficiency.

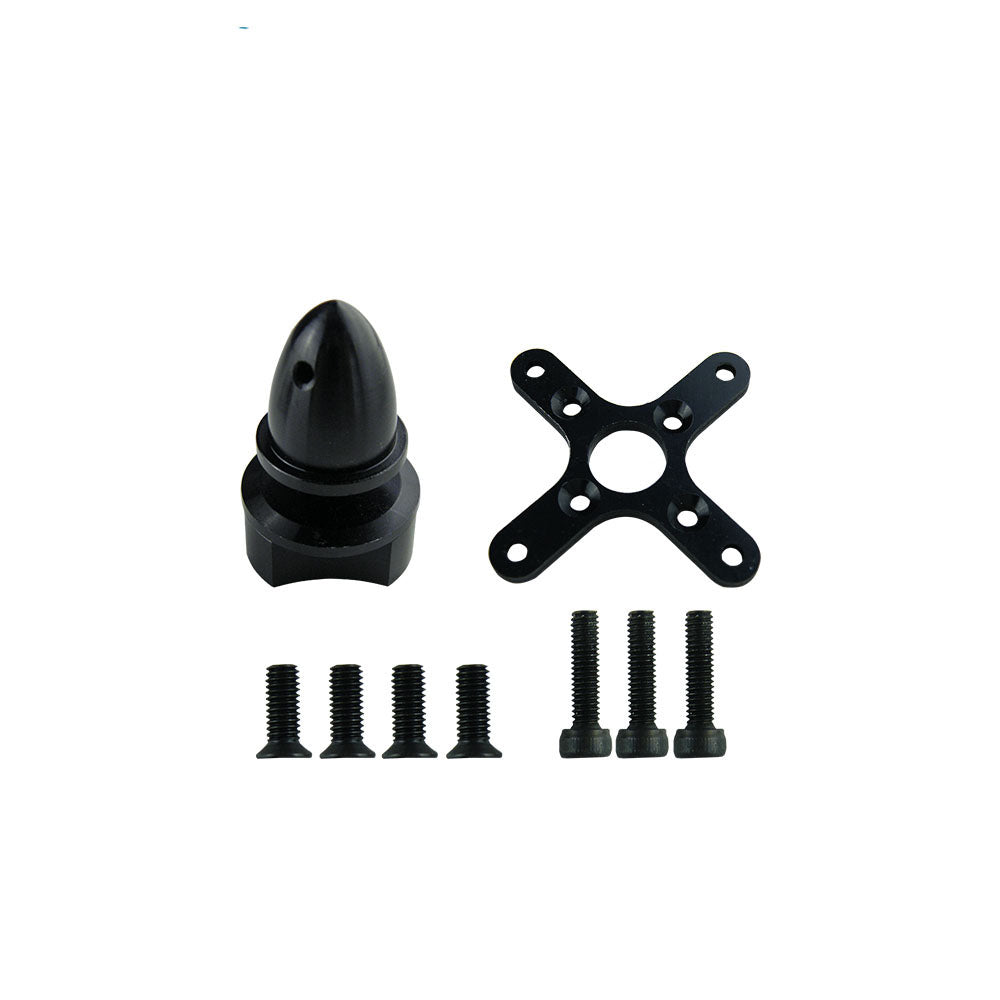

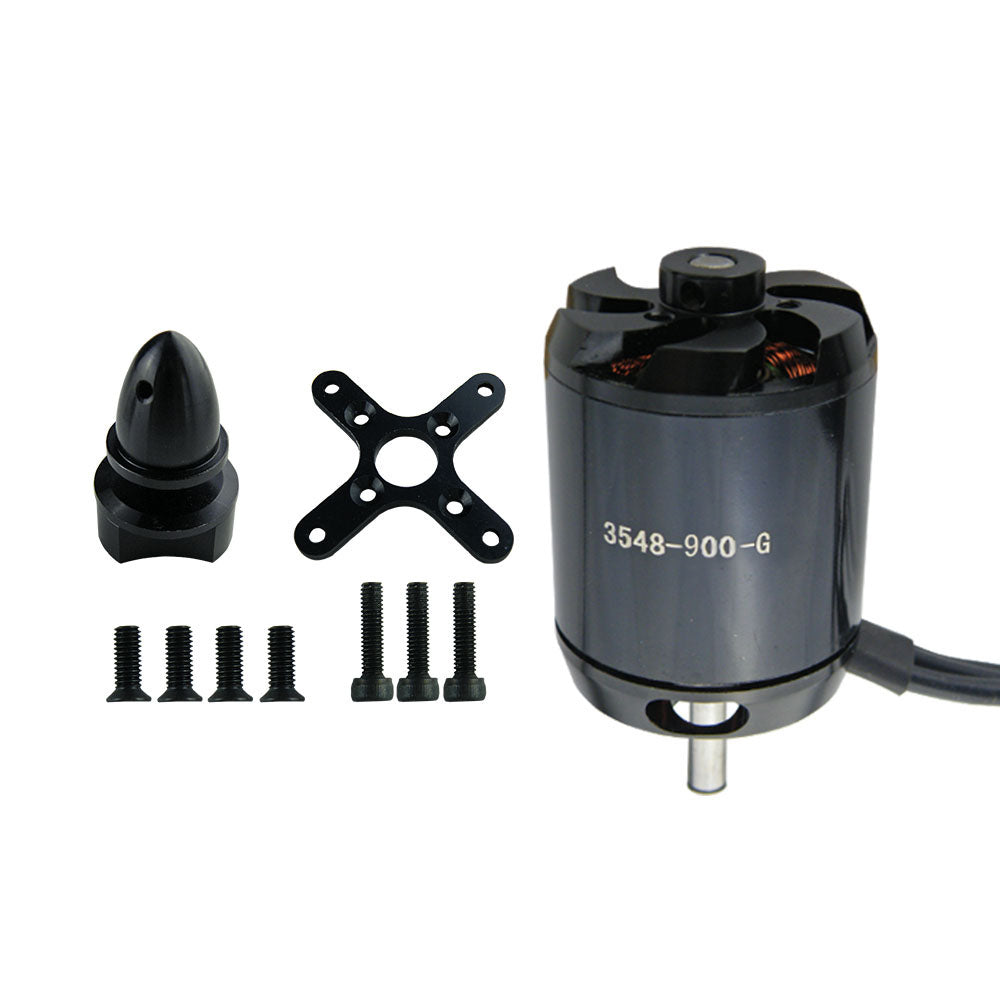

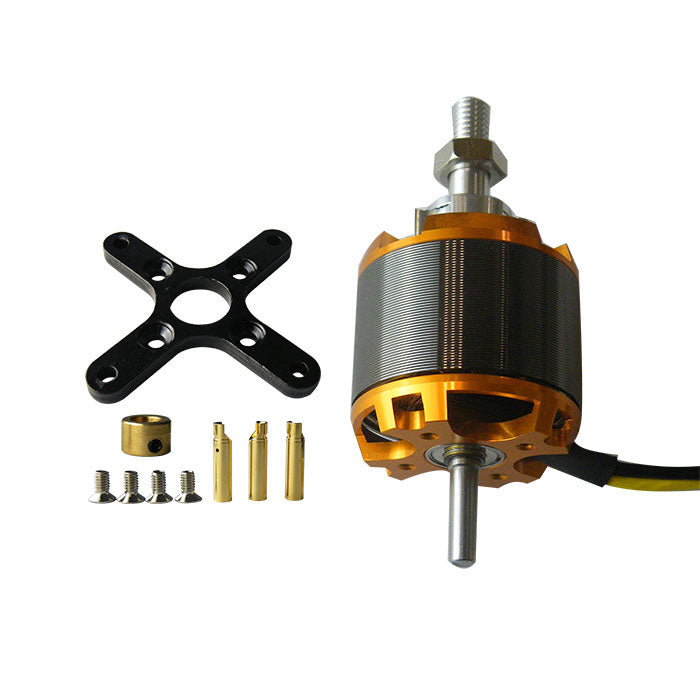

The motor comes with a complete set of propeller mount accessories, as well as the perfect packaging to protect the motor and its accessories.



Model NO.: MTO3548-790-G/MTO3548-900-G/MTO3548-1100-G

Motor KV …………………………………. 790(RPM/V)

Shaft…………………………………………5mm

Stator size……………………………………Ф28.0X26.0

Motor Size……………………………………Ф35.0x48.4

Max. Current…………………………………39.6A/42.5A/50.3A

Input Volt. ……………………………………3-5S Lipo cell

NET Weight …………………………………156g/155g/157g

Thrust…………………………………………1650g/1780g/2150g

Watt. …………………………………………..717W/770W/911W



Product description

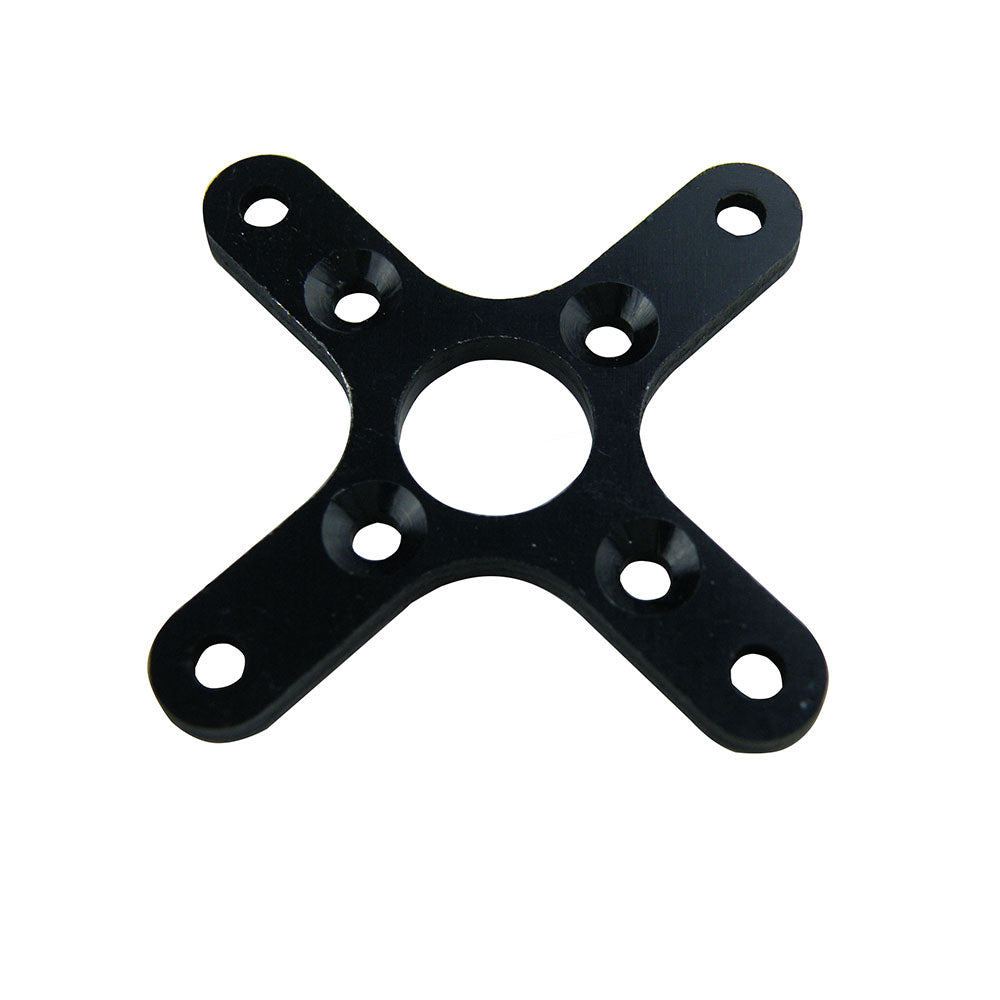

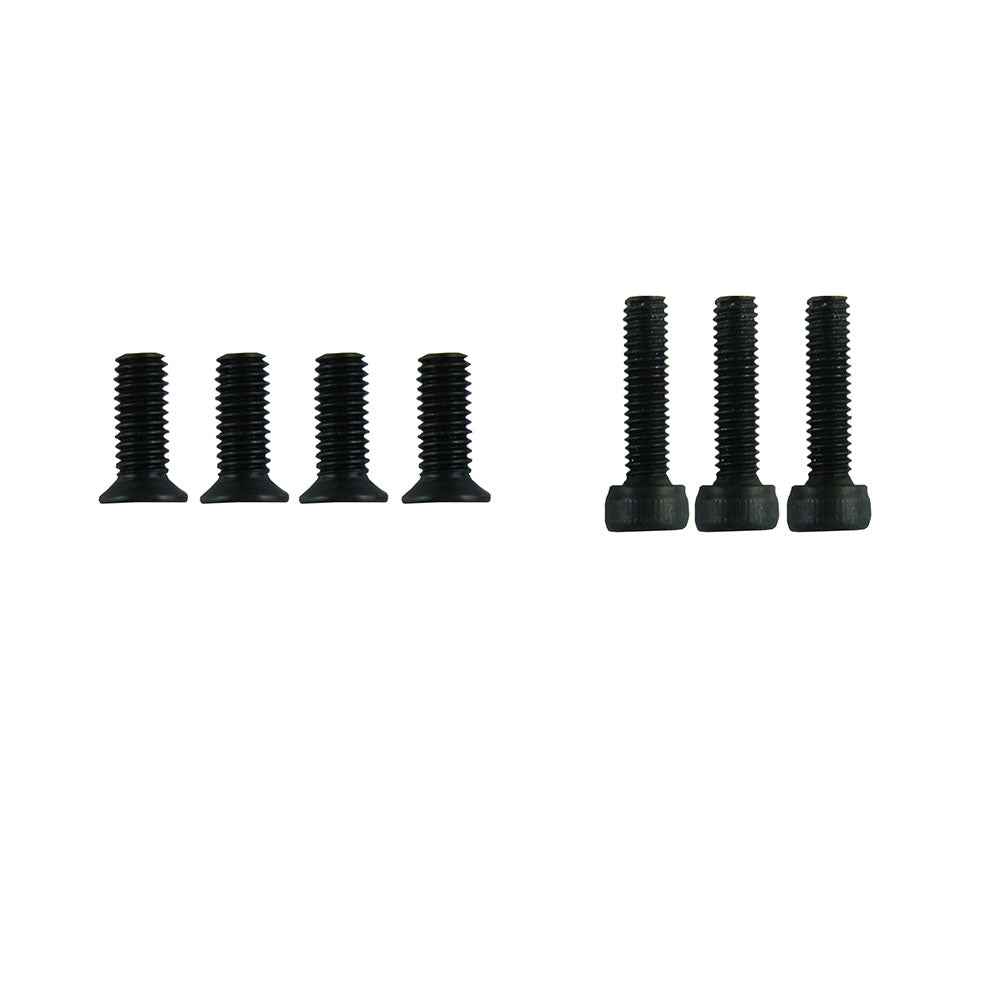

  1. 1.   Mount your motor with the included screws tightly on your front cover of model.
  2.   Our motors provide high efficiency stator design.
  3.   Small size, lightweight and long life.



ATTENTION

  1.   Please make sure your motor has enough cooling while running.
  2.   Our motors providing best performance with the recommended propeller size. If you consider changing the propeller size, pls be aware that motor beoverheat and damaged.
  3.   Keep motors away from moisture, dust, scrap and small items to avoid damages.



FAQ: What is the difference between Ghost and Sunshine series motors?

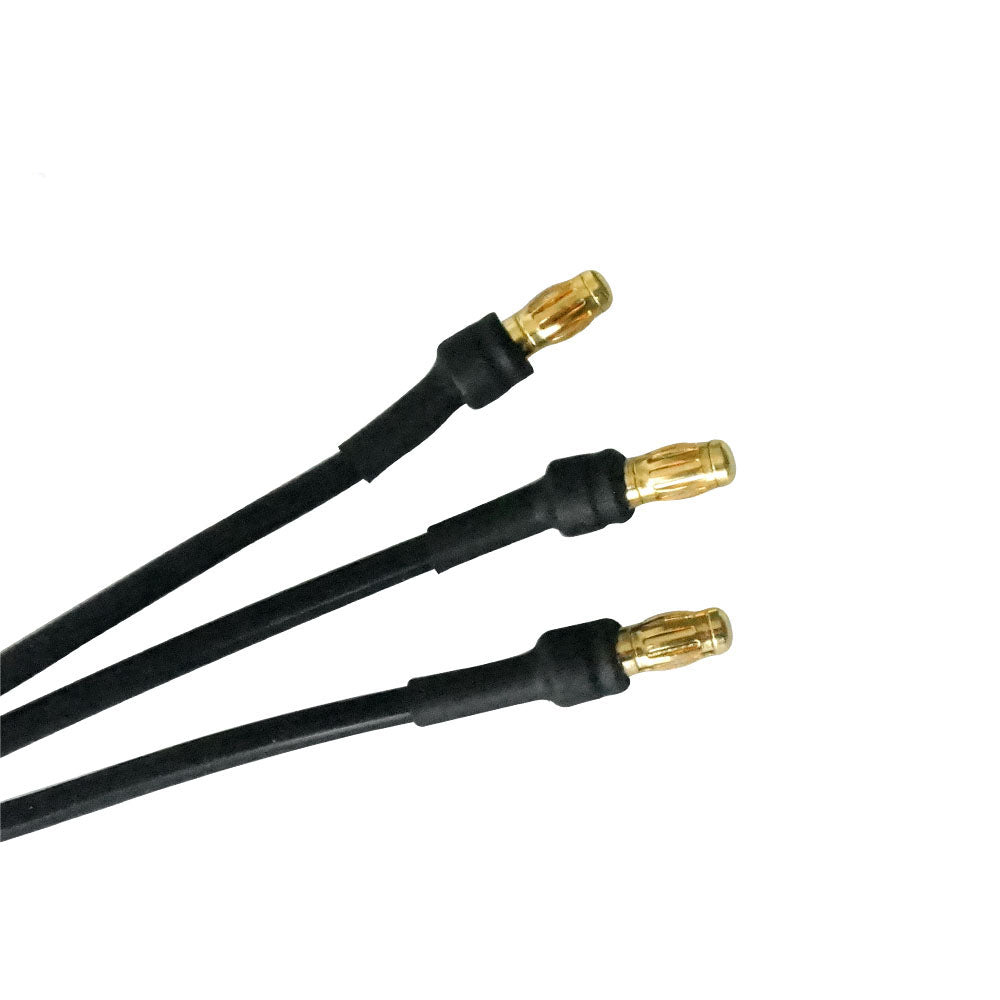

The difference is the motor wire direction. For Ghost motors, motor wires and shafts at the same direction. Sunshine series different direction



We welcome OEM orders, KV value, motor color, logo all can be customized. Pls contact us Maytech@maytech.cn  for more details.
