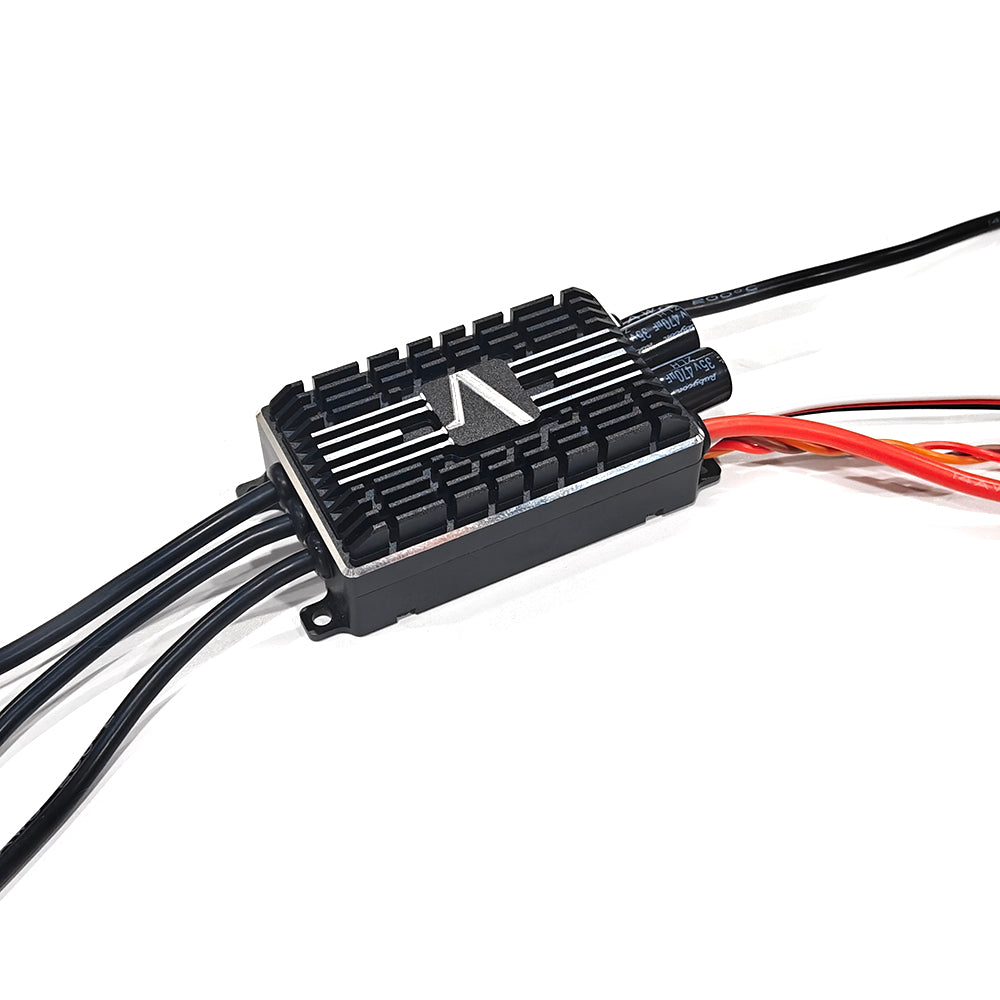

Maytech New 80A HL ESC 2-6S 5-8V/10A SBEC Output for RC Airplane / Helicopter / Fixed-Wing
Specifications:
| Model No. | MT80A-SBEC-HL | Cont Current | 80A |
| SBEC | With | Peak Current (10s) | 100A |
| Input Voltage | 2-6S Lipo (8.4-25.2V) | Program | Yes |
| SBEC Output | 5-8V/10A | PWM | 8-24KHz |

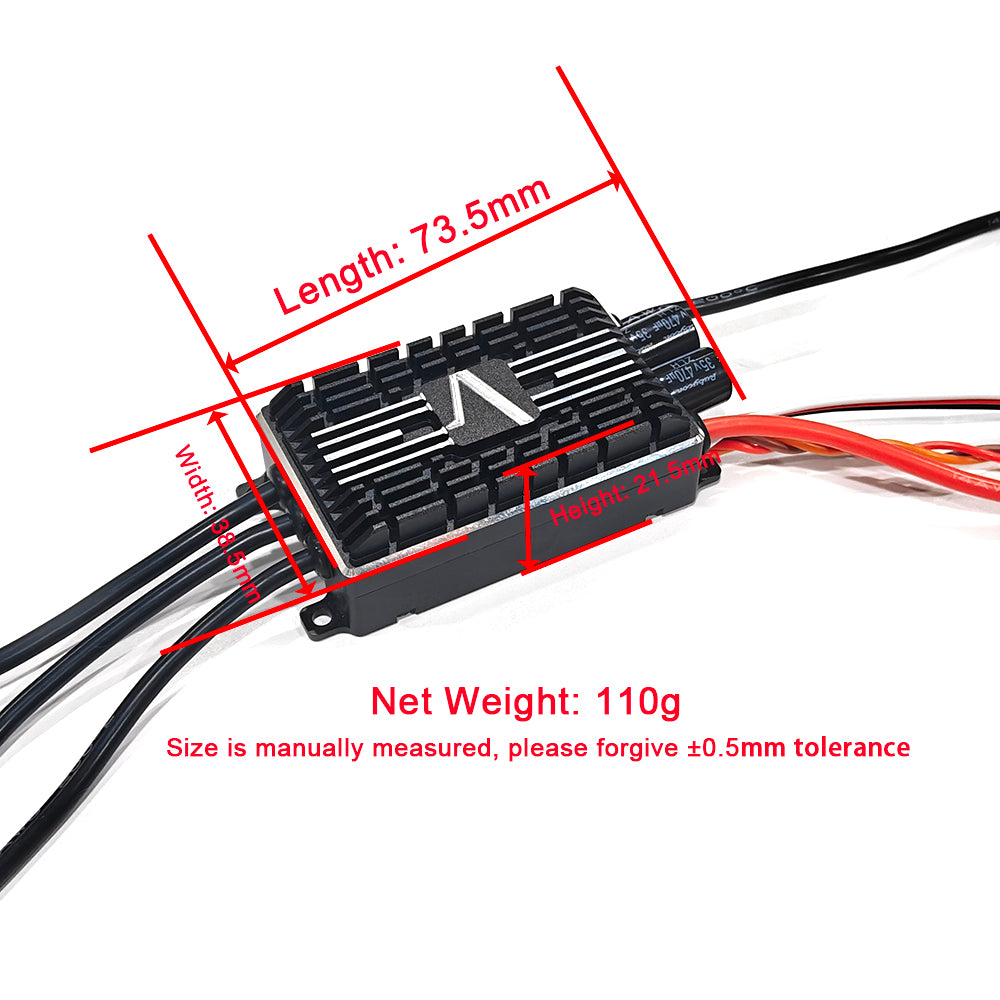

| Net Weight | 110g/pcs | PCB Size | 52*32mm |
Application: Airplane/RC Airplane/3D flying/Helicopter/ fixed-wing/ Multi-rotors/ RC Hobby Applications/sport flying/aggressive aerobatics/racing airplane/ROV/ROVEEE/remote operated vehicle, Ultra drones, quadcopter, hexacopter， agricultural drone, plant protection drone, photography drone, etc.,
Features:
- High-Performance Compact Design: Equipped with an advanced processor for rapid operation, featuring a lightweight and space-saving architecture.
- Precision Throttle Control: Delivers exceptional throttle signal acquisition accuracy with optimized linear response.
- Advanced Driver Technology: Outperforms other ESCs with 15% higher efficiency and 20% reduced thermal generation through premium-grade MOSFETS.
-

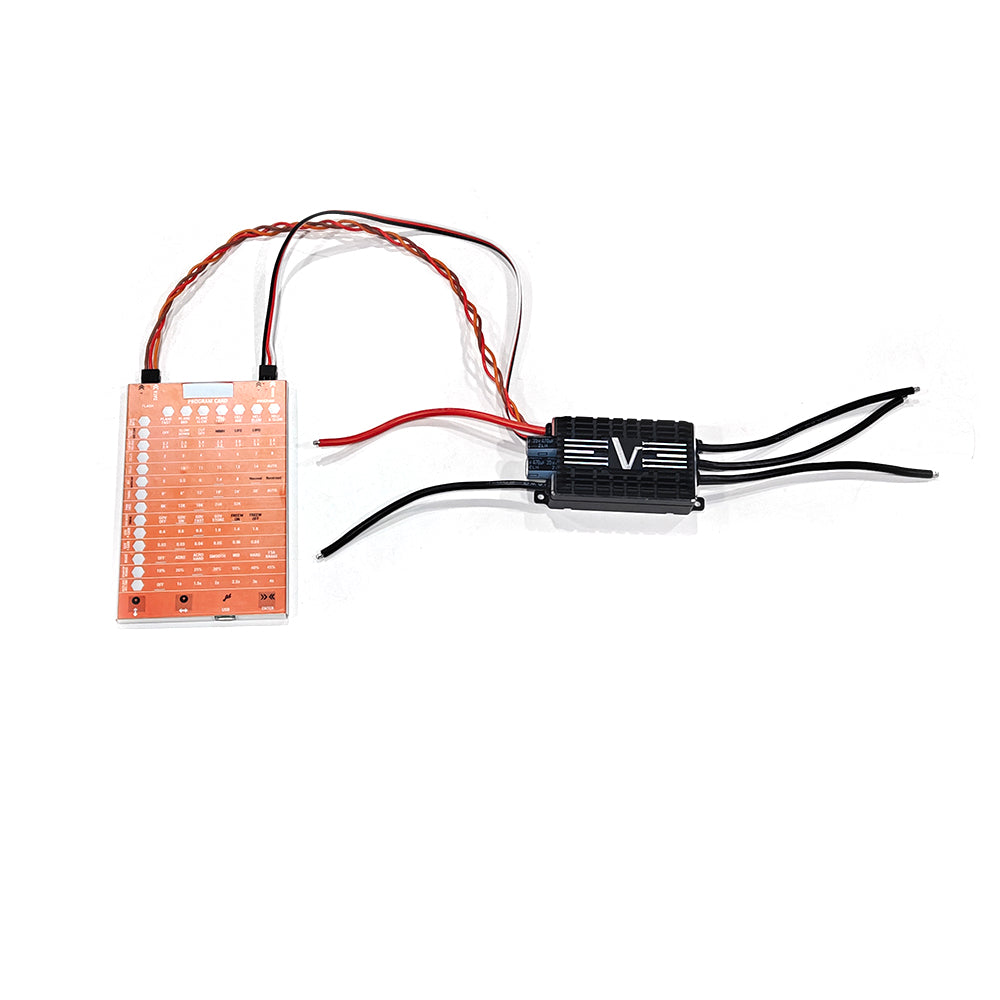

Universal Compatibility: Auto-recognition of standard transmitter signals; Programmable throttle end points for muti-protocol RC systems
- Dual Operation Modes: Fixed Wing Mode: Instant torque boost for 3D aerobatics; Helicopter Mode: Precision governor function (±0.5% RPM stability). Motor rotation reversal via AUX channel (fixed-wing only)

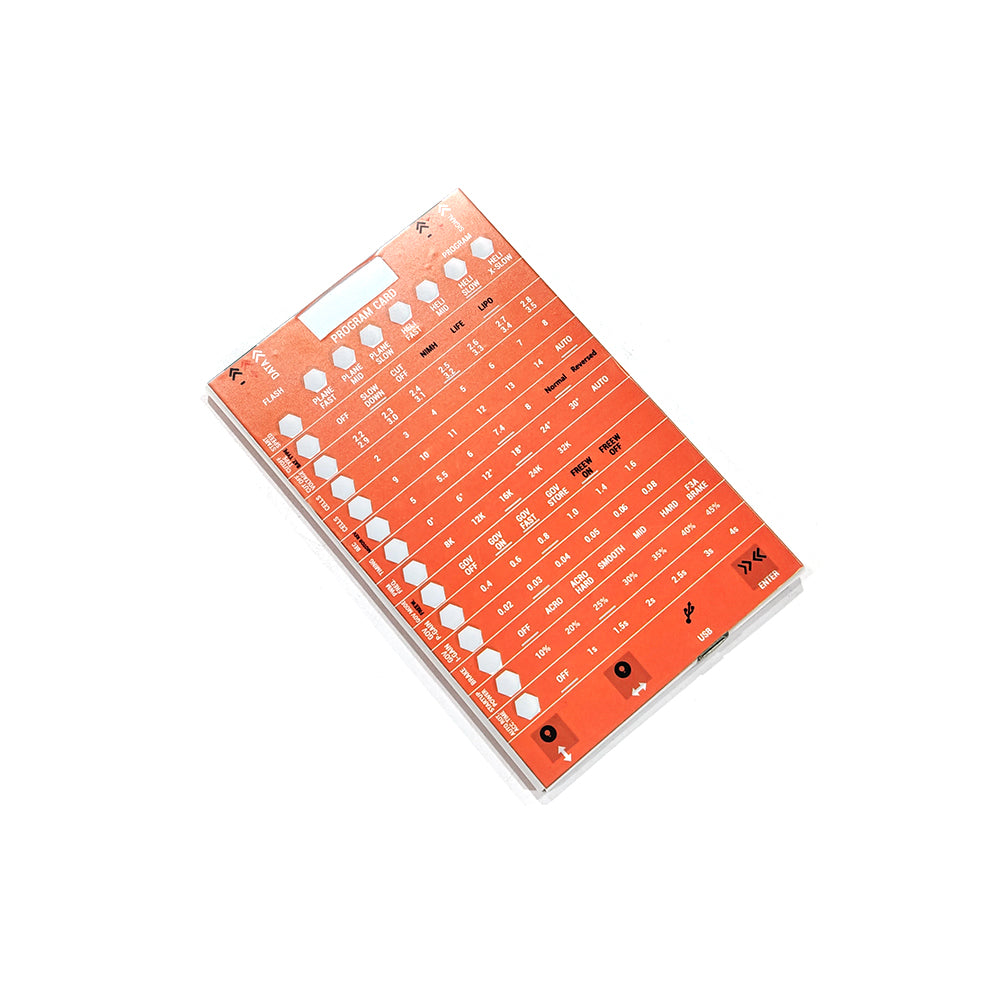

- Programmable SBEC: 5-8V adjustable (optional modes)
- Supports 90%+ mainstream brushless motors
Technical Specifications:
Max RPM with work with different poles motors:
300,000 rpm (2-pole)
100,100 rpm (6-pole)
50,000 rpm (12-pole)
