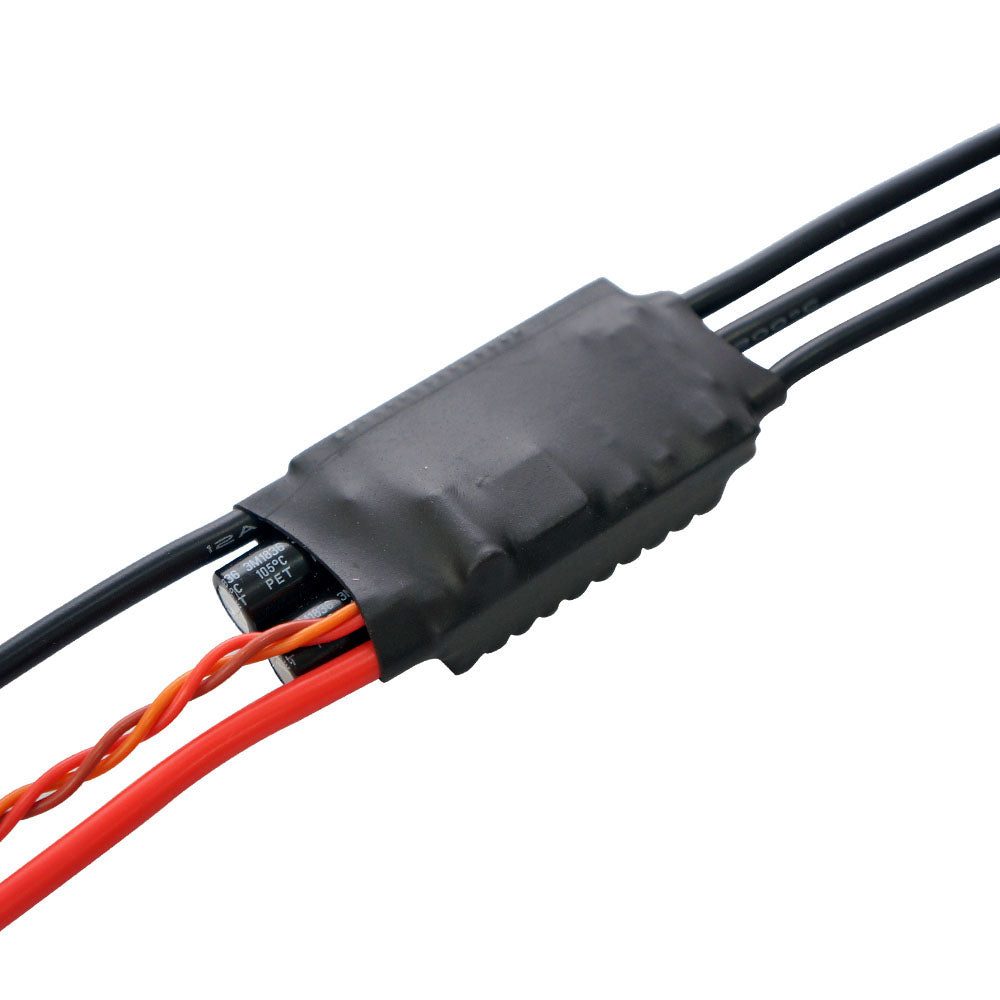

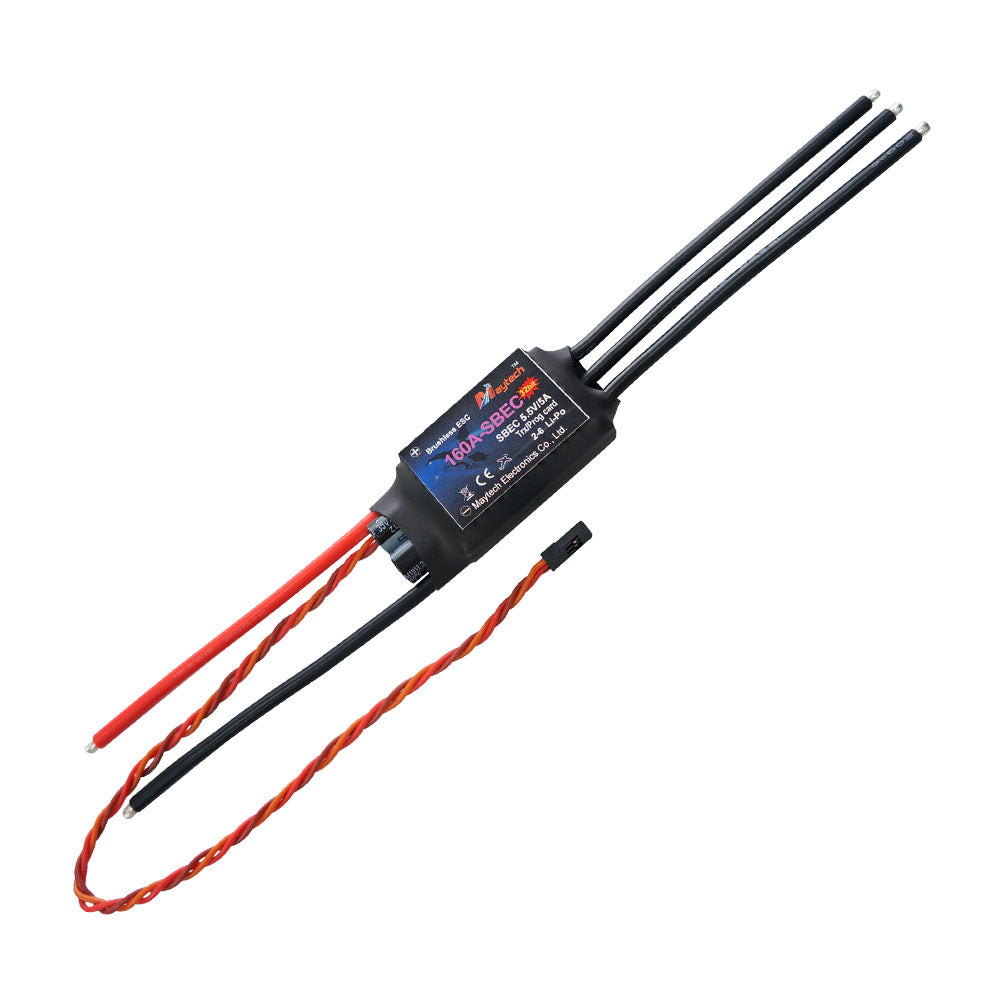

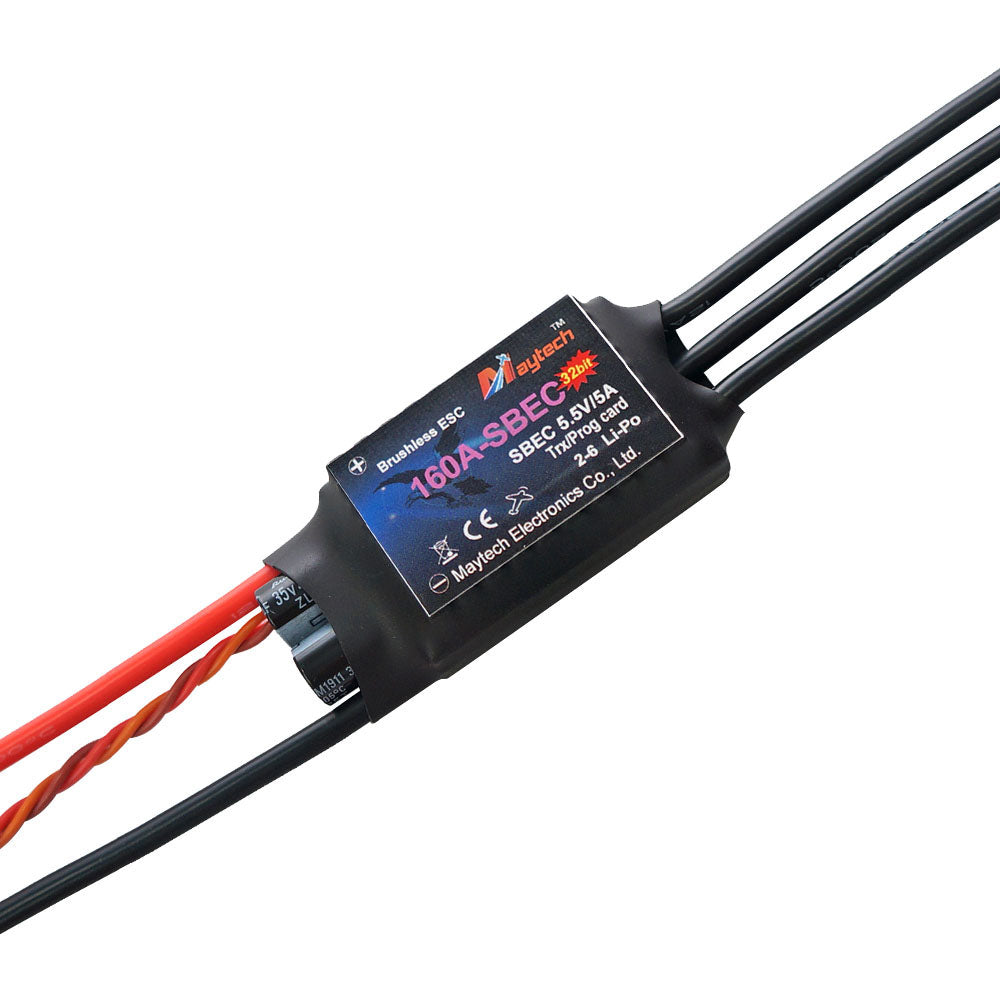

MT160A-SBEC-FP32 Falcon Pro 32bit Firmware Brushless ESC for RC Hobby/Airplane/Helicopter

MT160A-SBEC-FP32 FP 32bit Firmware Brushless ESC for RC Hobby/Airplane/Helicopter

Falcon-Pro 32bit controllers are specially used for RC airplanes. 32bit mcu are used, enable the controllers have faster and more smooth throttle response than standard controllers.

Application: Airplane/RC Airplane/3D flying/RC Hobby Applications/sport flying/aggressive aerobatics/helicopter/racing airplane/ROV/ROVEEE/remote operated vehicle, underwater robot, Underwater Robotics/underwater remotely operated vehicles, subsea robots,cablecam, broadcast, IBC2019, Ultra drones, etc.,

Suitble for flight model SBAC 55" M081

Main features:

1. Excellent startup performance, great throttle linear and quick throttle response, excellent low-speed performance.
2. Separate voltage regulator IC for MCU (Micro Controller Unit), high capability of anti-interference.
3. Low-voltage protection, block-rotation protection and signal lose protection, etc. All these functions can effectively prolong ESC service life.
4. Programmable by Trx or by a Maytech programming card (optional). Program-Card has a simple and visual surface to conveniently change parameters at any time anywhere.
5. Safe start-up. The motor won’t be started no matter which position the throttle stick is on when battery connected.
6. Motor rotating direction can be changed by exchanging two of three wires from ESC or setting by the Program-Card.

Specifications:

Model NO.:  MT160A-SBEC-FP32

Firmware.........................................   Maytech FP series firmware

Cont.Current ...................................   160A

Burst Current ...................................  185A

BEC..................................................   5.5V/5A

Lipo...................................................   2-6 cells

Net Weight ........................................  85g

Size....................................................  50*31mm

Compatible Prog-card:
